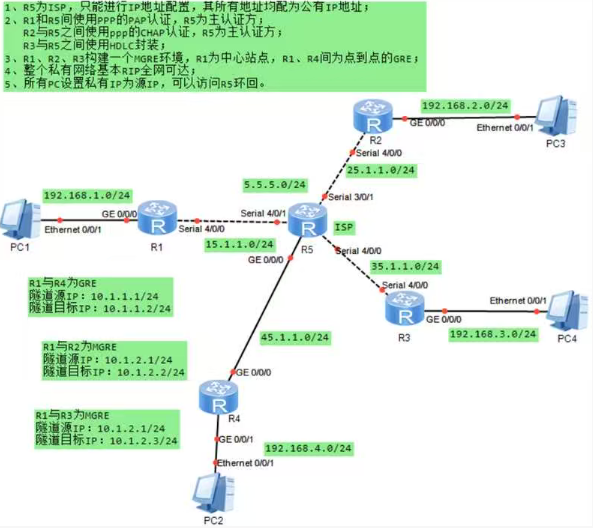

MGER综合实验

配置IP
R1
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip ad 192.168.1.1 24
[r1-GigabitEthernet0/0/0]int s4/0/0
[r1-Serial4/0/0]ip ad 15.0.0.1 24
[r1-Serial4/0/0]int lo0
[r1-LoopBack0]ip ad 1.1.1.1 24
R2
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip ad 192.168.2.1 24
[r2-GigabitEthernet0/0/0]int lo0
[r2-LoopBack0]ip ad 2.2.2.2 24
[r2-LoopBack0]int s4/0/0
[r2-Serial4/0/0]ip ad 25.0.0.1 24
R3
[r3]int lo0
[r3-LoopBack0]ip ad 3.3.3.3 24
[r3-LoopBack0]int g0/0/0
[r3-GigabitEthernet0/0/0]ip ad 192.168.3.1 24
[r3-GigabitEthernet0/0/0]int s4/0/0
[r3-Serial4/0/0]ip ad 35.0.0.1 24
R4
[r4]int lo0
[r4-LoopBack0]ip ad 4.4.4.4 24
[r4-LoopBack0]int g0/0/1
[r4-GigabitEthernet0/0/1]ip ad 192.168.5.1 24
[r4-GigabitEthernet0/0/1]int g0/0/0
[r4-GigabitEthernet0/0/0]ip ad 192.168.4.1 24
R5
[r5]int lo0
[r5-LoopBack0]ip ad 5.5.5.5 24
[r5-LoopBack0]int s3/0/0
[r5-Serial3/0/0]ip ad 15.0.0.2 24
[r5-Serial3/0/0]int s3/0/1
[r5-Serial3/0/1]ip ad 25.0.0.2 24
[r5-Serial3/0/1]int s4/0/0
[r5-Serial4/0/0]ip ad 35.0.0.2 24
[r5-Serial4/0/0]int g0/0/0
[r5-GigabitEthernet0/0/0]ip ad 192.168.4.2 24、
创建缺省
[r1]ip route-static 0.0.0.0 0 15.0.0.2
[r2]ip route-static 0.0.0.0 0 25.0.0.2
[r3]ip route-static 0.0.0.0 0 35.0.0.2
[r4]ip route-static 0.0.0.0 0 192.168.4.2

创建PAP认证

认证方[r5]aaa
[r5-aaa]local-user admin password cipher 123456
[r5-aaa]local-user admin service-type ppp
[r5-aaa]int s3/0/0
[r5-Serial3/0/0]ppp authentication-mode pap
被认证方
[r1]int s4/0/0
[r1-Serial4/0/0]ppp pap local-user admin password cipher 123456

创建CHAP

认证方[r5]int s3/0/1
[r5-Serial3/0/1]ppp authentication-mode chap
被认证方
[r2]int s4/0/0
[r2-Serial4/0/0]ppp chap user admin
[r2-Serial4/0/0]ppp chap password cipher 123456

配置HDLC

配置MGRE
r1：

[r1]int Tunnel 0/0/0

[r1-Tunnel0/0/0]ip address 20.1.1.1 24

[r1-Tunnel0/0/0]tunnel-protocol gre p2mp

[r1-Tunnel0/0/0]source 15.1.1.1

[r1-Tunnel0/0/0]nhrp network-id 100

r2：

[r2]int Tunnel 0/0/0

[r2-Tunnel0/0/0]ip address 20.1.1.2 24

[r2-Tunnel0/0/0]tunnel-protocol gre p2mp

[r2-Tunnel0/0/0]source Serial 4/0/0

[r2-Tunnel0/0/0]nhrp network-id 100

[r2-Tunnel0/0/0]nhrp entry 20.1.1.1 15.1.1.1 register

r3：

[r3]int Tunnel 0/0/0

[r3-Tunnel0/0/0]ip address 20.1.1.3 24

[r3-Tunnel0/0/0]tunnel-protocol gre p2mp

[r3-Tunnel0/0/0]source Serial 4/0/0

[r3-Tunnel0/0/0]nhrp network-id 100

[r3-Tunnel0/0/0]nhrp entry 20.1.1.1 15.1.1.1 register

（2）配置GRE
r1：

[r1]int Tunnel 0/0/1

[r1-Tunnel0/0/1]ip address 10.1.1.1 24

[r1-Tunnel0/0/1]tunnel-protocol gre

[r1-Tunnel0/0/1]source 15.1.1.1

[r1-Tunnel0/0/1]destination 45.1.1.4

r4：

[r4]int t 0/0/1

[r4-Tunnel0/0/1]ip address 10.1.1.4 24

[r4-Tunnel0/0/1]tunnel-protocol gre

[r4-Tunnel0/0/1]source 45.1.1.4

[R4-Tunnel0/0/1]destination 15.1.1.1
