概述

在移动应用中,标准的截图方法仅能捕捉当前屏幕显示的内容,对于超出屏幕可视区域的长页面或文档而言,这种方式显得不够便捷。当用户截图分享和保存(如聊天记录、网页文章、活动海报等)的内容较长的时候,需要用户多次截图来保证内容完整性。为了解决这一问题,本文将介绍长截图功能,使用户能够一键截取整个页面的长图,更轻松地分享和保存信息。

长截图功能适用于支持滚动的UI组件,比如List组件、Scroll组件、Web组件等。本文将以List组件和Web组件为例来介绍长截图功能的开发,分别通过控制器Scroller和WebviewController,结合组件截图模块componentSnapshot,实现长截图功能。

实现原理

List组件和Web组件实现长截图功能的原理相同,均可以通过模拟用户滚动行为,然后使用componentSnapshot.get()方法逐步截取不同位置的画面,将这些画面通过拼接得到长截图。Web组件通过WebviewController的相关API控制组件滚动,List组件通过Scroller的相关API控制组件滚动。

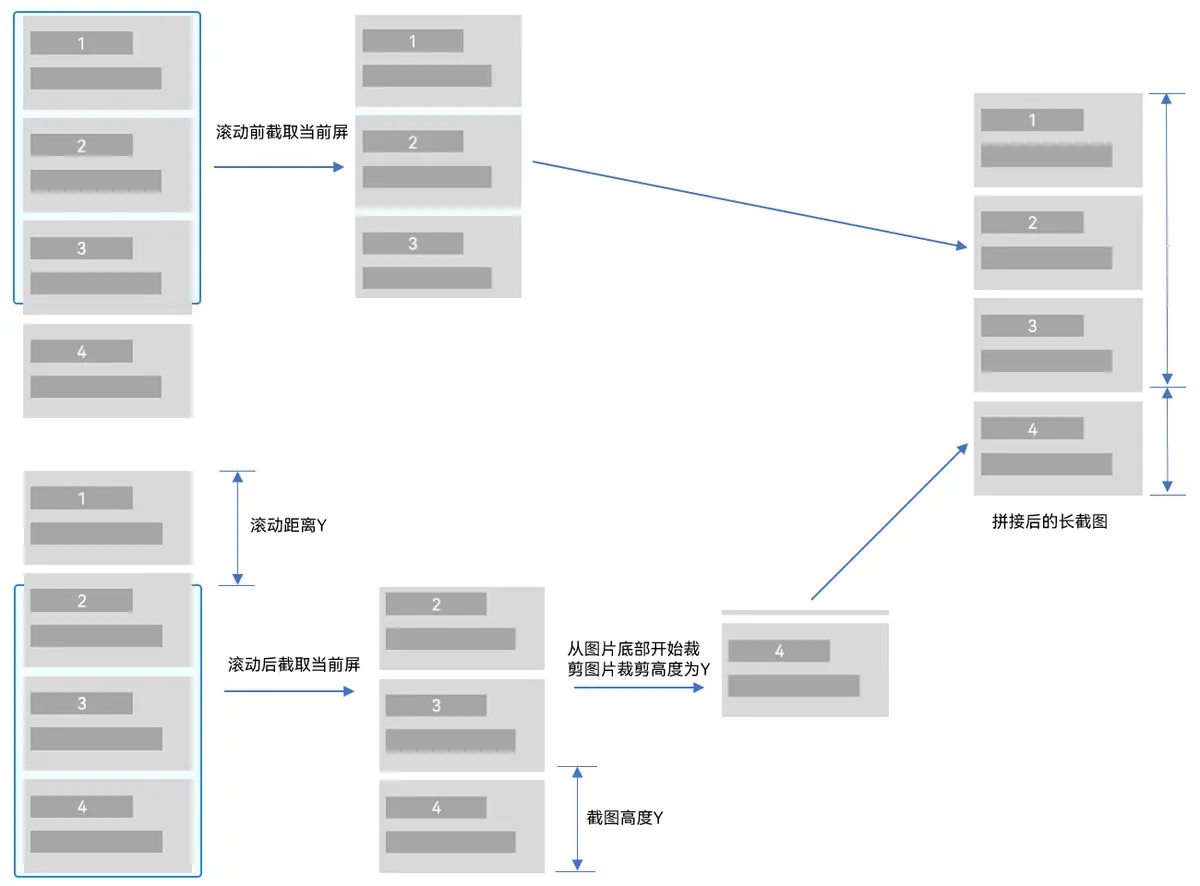

长截图拼接原理如下,将每次滚动新进入屏幕的内容裁剪后,拼接到之前的屏幕截图,依次类推。

图1长截图拼接原理图

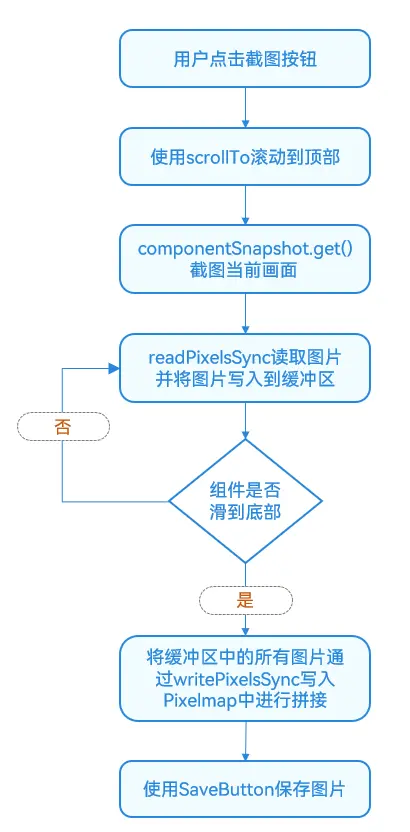

长截图主要流程如下:

图2 滚动长截图流程

说明
在长截图的拼接过程中,所有截图会被暂时缓存到内存中。对于无限滚动或数据量较大的场景,应当限制单张截图的高度,以防止过高的内存占用影响应用性能。

滚动组件长截图

List、Scroll、Grid、WaterFlow等滚动组件均是通过Scroller来控制组件滚动,本章将以List组件为例来介绍滚动组件长截图的实现。下面介绍了滚动组件两种常见的长截图场景,一键截图和滚动截图。

一键截图

场景描述

一键截图将组件数据从顶部截取到底部,在截图过程中用户看不到界面的滚动,做到无感知滚动截图。这种方案一般用于分享截图、保存数据量较少的场景。

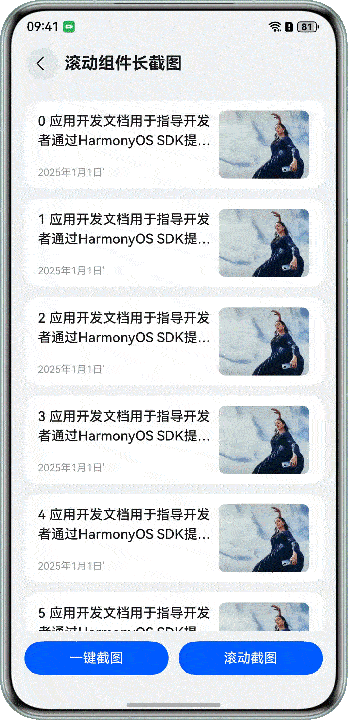

实现效果

点击“一键截图”,会生成整个列表的长截图。

开发流程

  1. 给List绑定滚动控制器,添加监听事件。

    1.1 为List滚动组件绑定Scroller控制器,以控制其滚动行为,并给List组件绑定自定义的id。

    1.2 通过onDidScroll()方法实时监听并获取滚动偏移量,确保截图拼接位置的准确性。

    1.3 同时,利用onAreaChange()事件获取List组件的尺寸,以便精确计算截图区域的大小。

// src/main/ets/view/ScrollSnapshot.ets
@Component
export struct ScrollSnapshot {
  private scroller: Scroller = new Scroller();
  private listComponentWidth: number = 0;
  private listComponentHeight: number = 0;
  // The current offset of the List component
  private curYOffset: number = 0;
  // Value of each scroll
  private scrollHeight: number = 0;

  // ...
  build() {
    // ...
    Stack() {
      // ...
      // 1.1 Bind the Scroller controller to the list scrolling component and define the customized ID.
      List({
        scroller: this.scroller
      })// ...
        .id(LIST_ID)
          // 1.2 Obtains the scrolling offset.
        .onDidScroll(() => {
          this.curYOffset = this.scroller.currentOffset().yOffset;
        })
        .onAreaChange((oldValue, newValue) => {
          // 1.3 Obtains the width and height of a component.
          this.listComponentWidth = newValue.width as number;
          this.listComponentHeight = newValue.height as number;
        })
    }
  }
}
  1. 给List添加遮罩图,初始化滚动位置。

“一键截图”功能确保在滚动截图过程中用户不会察觉到页面的滚动。通过截取当前屏幕生成遮罩图覆盖列表,并记录此时的滚动偏移量(yOffsetBefore),便于后续完成滚动截图之后,恢复到之前记录的偏移量,使用户无感知页面变化。

为保证截图的完整性,设置完遮罩图后,同样利用scrollTo()方法将列表暂时滚至顶部,确保截图从最顶端开始。

// src/main/ets/view/ScrollSnapshot.ets
@Component
export struct ScrollSnapshot {
  // Component coverage during screenshot process
  @State componentMaskImage: PixelMap | undefined = undefined;
  // The current offset of the List component
  private curYOffset: number = 0;
  // Backup component location before screenshot
  private yOffsetBefore: number = 0;
  // ...

  // One-click screenshot
  async onceSnapshot() {
    // Initialize state before screenshot
    await this.beforeSnapshot();
    // Start scrolling screenshots in a loop
    await this.snapAndMerge();
    // Restore scroll component state
    await this.afterSnapshot();
    // ...
  }

  async beforeSnapshot() {
    // Offset before scrolling
    this.yOffsetBefore = this.curYOffset;
    // Take a screenshot of the loaded List component as a cover image for the List component
    this.componentMaskImage = await componentSnapshot.get(LIST_ID);
    this.scroller.scrollTo({
      xOffset: 0,
      yOffset: 0,
      animation:
      {
        duration: 200
      }
    });
    // ...
    // Delay ensures that the scroll has reached the top
    await CommonUtils.sleep(200);
  }

  build() {
    // ...
    Stack() {
      // The mask layer during the screenshot process prevents users from noticing the rapid sliding of the screen and improves user experience.
      if (this.componentMaskImage) {
        Image(this.componentMaskImage)
        // ...
      }
      List({
        scroller: this.scroller
      })//...
        .id(LIST_ID)
        .onDidScroll(() => {
          this.curYOffset = this.scroller.currentOffset().yOffset;
        })
    }
  }
}
  1. 循环滚动截图,裁剪和缓存截图数据。
    3.1 记录每次滚动的位置到数组scrollYOffsets中,并使用componentSnapshot.get(LIST_ID) 方法获取当前画面的截图。
    3.2 如果非首次截图,则使用crop方法截取从底部滚动进来的区域,然后调用pixmap.readPixelsSync(area)方法将截图数据读取到缓冲区域area中,并将area通过集合进行保存,用于后续截图拼接。
    3.3 如果页面没有滚动到底部,继续滚动,继续递归调用snapAndMerge()方法进行截图;如果到达底部,则调用mergeImage()方法拼接所有收集到的图像片段,生成完整的长截图;同时还需限制截图的高度,以防过大的截图占用过多内存,影响应用性能,例如这里设置截长截图高度不超过5000。
async snapAndMerge() {
  this.scrollYOffsets.push(this.curYOffset);
  // Call the component screenshot interface to obtain the current screenshot
  const pixelMap = await componentSnapshot.get(LIST_ID);
  // Gets the number of bytes per line of image pixels.
  let area: image.PositionArea =
    await ImageUtils.getSnapshotArea(pixelMap, this.scrollYOffsets, this.listComponentWidth,
      this.listComponentHeight);
  this.areaArray.push(area);
  // Determine whether the bottom has been reached during the loop process
  if (!this.scroller.isAtEnd() && this.listComponentWidth + this.curYOffset < SNAPSHOT_MAX_LENGTH) {
    CommonUtils.scrollAnimation(this.scroller, 200, this.scrollHeight);
    await CommonUtils.sleep(200)
    await this.snapAndMerge();
  } else {
    this.mergedImage =
      await ImageUtils.mergeImage(this.areaArray, this.scrollYOffsets[this.scrollYOffsets.length - 1],
        this.listComponentWidth, this.listComponentHeight);
  }
}

// src/main/ets/common/ImageUtils.ets
static async getSnapshotArea(pixelMap: PixelMap, scrollYOffsets: number[], listWidth: number,
  listHeight: number): Promise<image.PositionArea> {
  // Gets the number of bytes per line of image pixels.
  let stride = pixelMap.getBytesNumberPerRow();
  // Get the total number of bytes of image pixels.
  let bytesNumber = pixelMap.getPixelBytesNumber();
  let buffer: ArrayBuffer = new ArrayBuffer(bytesNumber);
  //     Region size, read based on region.   PositionArea represents the data within the specified area of the image.
  let len = scrollYOffsets.length;

  // // Except for the first screenshot, you don't need to crop it, and you need to crop the new parts
  if (scrollYOffsets.length >= 2) {
    // Realistic roll distance
    let realScrollHeight = scrollYOffsets[len-1] - scrollYOffsets[len-2];
    if (listHeight - realScrollHeight > 0) {
      let cropRegion: image.Region = {
        x: 0,
        y: vp2px(listHeight - realScrollHeight),
        size: {
          height: vp2px(realScrollHeight),
          width: vp2px(listWidth)
        }
      };
      // Crop roll area
      await pixelMap.crop(cropRegion);
    }
  }

  let imgInfo = pixelMap.getImageInfoSync();
  // Region size, read based on region. PositionArea represents the data within the specified area of the image.
  let area: image.PositionArea = {
    pixels: buffer,
    offset: 0,
    stride: stride,
    region: {
      size: {
        width: imgInfo.size.width,
        height: imgInfo.size.height
      },
      x: 0,
      y: 0
    }
  }
  // Write data to a specified area
  pixelMap.readPixelsSync(area);
  return area;
}
  1. 拼接截图片段。

使用image.createPixelMapSync()方法创建长截图longPixelMap,并遍历之前保存的图像片段数据 (this.areaArray),构建image.PositionArea对象area,然后调用longPixelMap.writePixelsSync(area) 方法将这些片段逐个写入到正确的位置,从而拼接成一个完整的长截图。

// src/main/ets/common/ImageUtils.ets
static async mergeImage(areaArray: image.PositionArea[], lastOffsetY: number, listWidth: number,
  listHeight: number): Promise<PixelMap> {
  // Create a long screenshot PixelMap
  let opts: image.InitializationOptions = {
    editable: true,
    pixelFormat: 4,
    size: {
      width: vp2px(listWidth),
      height: vp2px(lastOffsetY + listHeight)
    }
  };
  let longPixelMap = image.createPixelMapSync(opts);
  let imgPosition: number = 0;

  for (let i = 0; i < areaArray.length; i++) {
    let readArea = areaArray[i];
    let area: image.PositionArea = {
      pixels: readArea.pixels,
      offset: 0,
      stride: readArea.stride,
      region: {
        size: {
          width: readArea.region.size.width,
          height: readArea.region.size.height
        },
        x: 0,
        y: imgPosition
      }
    }
    imgPosition += readArea.region.size.height;
    longPixelMap.writePixelsSync(area);
  }
  return longPixelMap;
}
  1. 恢复到截图前的状态,滚动到截图前的位置。
async afterSnapshot() {
  this.scroller.scrollTo({
    xOffset: 0,
    yOffset: this.yOffsetBefore,
    animation: {
      duration: 200
    }
  });
  await CommonUtils.sleep(200);
}
  1. 使用安全控件SaveButton保存截图相册。
    通过安全控件SaveButton结合photoAccessHelper模块保存截图到相册。
// src/main/ets/view/SnapshotPreview.ets
SaveButton({
  icon: SaveIconStyle.FULL_FILLED,
  text: SaveDescription.SAVE_IMAGE,
  buttonType: ButtonType.Capsule
})
  // ...
  .onClick((event, result) => {
    this.saveSnapshot(result);
  })

async saveSnapshot(result: SaveButtonOnClickResult): Promise<void> {
  if (result === SaveButtonOnClickResult.SUCCESS) {
    const helper = photoAccessHelper.getPhotoAccessHelper(this.context);
    const uri = await helper.createAsset(photoAccessHelper.PhotoType.IMAGE, 'png');
    // Open the file with a URI to write content continuously
    const file = await fileIo.open(uri, fileIo.OpenMode.READ_WRITE | fileIo.OpenMode.CREATE);
    const imagePackerApi: image.ImagePacker = image.createImagePacker();
    const packOpts: image.PackingOption = {
      format: 'image/png',
      quality: 100,
    };
    imagePackerApi.packing(this.mergedImage, packOpts).then((data) => {
      fileIo.writeSync(file.fd, data);
      fileIo.closeSync(file.fd);
      Logger.info(TAG, `Succeeded in packToFile`);
      promptAction.showToast({
        message: $r('app.string.save_album_success'),
        duration: 1800
      })
    }).catch((error: BusinessError) => {
      Logger.error(TAG, `Failed to packToFile. Error code is ${error.code}, message is ${error.message}`);
    });
  }
  // ...
}

滚动截图

场景描述

此方案允许用户控制长截图的起止位置,增加了使用的灵活性。它适用于大数据量场景,方便用户选择性保存滚动组件中的特定数据。

实现效果

点击“滚动截图”按钮后,列表将自动滚动。点击列表中的任意条目时,滚动会立即停止,并开始截取从滚动开始到停止这段时间内的数据截图。

功能实现

“滚动截图”功能的实现流程与前述的“一键截图”一样,因此这里不再重复详述整个过程,而仅聚焦于其中的几个关键差异点,例如滚动的控制和偏移量的记录,分别如下面1和2所描述。

  1. 在截图滚动的过程中,为了防止用户手动滚动对截图产生干扰,应禁用列表的手动滚动功能。可以通过设置List组件的enableScrollInteraction属性来控制是否允许手动滚动。

当准备开始截图时,将isEnableScroll设置为false以禁用滚动交互。而当用户点击列表项以确定截图结束位置时,使用scroller.scrollBy(0, 0)方法确保列表立即停止滑动。

// src/main/ets/view/ScrollSnapshot.ets
@Component
export struct ScrollSnapshot {
  // The current offset of the List component
  private curYOffset: number = 0;
  // Backup component location before screenshot
  private yOffsetBefore: number = 0;
  // is click to stop scroll
  private isClickStop: boolean = false;
  @State isEnableScroll: boolean = true;
  // ...
  // Scrolling Screenshot Entry Function
  async scrollSnapshot() {
    // The settings list cannot be manually scrolled during the screenshot process
    // to avoid interference with the screenshot
    this.isEnableScroll = false;
    // Saves the current location of the component for recovery
    this.yOffsetBefore = this.curYOffset;
    await this.scrollSnapAndMerge();
    // ...
    this.isEnableScroll = true;
    this.isClickStop = false;
  }

  build() {
    // ...
    List({
      scroller: this.scroller
    })//...
      .id(LIST_ID)
      .onClick(() => {
        // Click on the list to stop scrolling
        if (!this.isEnableScroll) {
          this.scroller.scrollBy(0, 0);
          this.isClickStop = true;
        }
      })
  }
}
  1. “滚动截图”功能依据当前坐标启动截图过程,因此在记录滚动偏移量时,通过 this.curYOffset - this.yOffsetBefore 来计算相对于初始位置的变化。
async scrollSnapAndMerge() {
  // Record an array of scrolls
  this.scrollYOffsets.push(this.curYOffset - this.yOffsetBefore);
  // Call the API for taking screenshots to obtain the current screenshots
  const pixelMap = await componentSnapshot.get(LIST_ID);
  // Gets the number of bytes per line of image pixels.
  let area: image.PositionArea =
    await ImageUtils.getSnapshotArea(pixelMap, this.scrollYOffsets, this.listComponentWidth, this.listComponentHeight)
  this.areaArray.push(area);

  // During the loop, it is determined whether the bottom is reached, and the user does not stop taking screenshots
  if (!this.scroller.isAtEnd() && !this.isClickStop &&
    this.listComponentWidth + this.curYOffset < SNAPSHOT_MAX_LENGTH) {
    // Scroll to the next page without scrolling to the end
    CommonUtils.scrollAnimation(this.scroller, 1000, this.scrollHeight);
    await CommonUtils.sleep(1500);
    await this.scrollSnapAndMerge();
  } else {
    // After scrolling to the bottom, the buffer obtained by each round of scrolling is spliced
    // to generate a long screenshot
    this.mergedImage =
      await ImageUtils.mergeImage(this.areaArray, this.scrollYOffsets[this.scrollYOffsets.length - 1],
        this.listComponentWidth, this.listComponentHeight);
  }
}
  1. 与“一键截图”不同,“滚动截图”在执行过程中不使用遮罩层,用户能够直接看到列表的滚动效果。为了确保流畅的视觉体验,在调用 scroller.scrollTo 进行滚动时,添加了动画效果,使得滚动更加自然和顺滑。
// src/main/ets/common/CommonUtils.ets
static scrollAnimation(scroller: Scroller, duration: number, scrollHeight: number): void {
  scroller.scrollTo({
    xOffset: 0,
    yOffset: (scroller.currentOffset().yOffset + scrollHeight),
    animation: {
      duration: duration,
      curve: Curve.Smooth,
      canOverScroll: false
    }
  });
}

Web组件长截图

场景描述

Web组件的长截图功能与之前介绍的滚动组件长截图在使用场景上相似,两者均旨在为用户提供快速便捷的数据信息分享和保存方式。主要区别在于,Web组件专门针对网页内容进行截图,确保用户能够完整地捕获和分享浏览的网页信息。

实现效果

点击“截图”按钮即可完成整个网页的长截图,并可将截图保存至相册。

功能实现

Web组件的长截图可以通过前文介绍的滚动截图方案以及使用WebView提供的webPageSnapshot()方法进行全量截图。本章将重点介绍webPageSnapshot()方法的使用方法,而滚动截图的相关信息已在前文详述。

使用滚动截图的方式进行长截图

Web组件滚动长截图和滚动组件长截图开发流程大体一样,主要是控制组件的滚动的方法不同。List组件使用的是Scroller,而Web组件使用的是webViewController。

在滚动截图过程中,webViewController负责控制Web组件的滚动,通过调用webViewController.scrollBy()方法来实现。为了判断是否已滚动到底部,使用this.webViewController.getPageHeight() 方法获取网页内容的总高度,并将当前偏移量this.curYOffset加上组件自身的高度与网页总高度进行比较。如果两者的和小于网页总高度,则表示尚未触底。

// src/main/ets/view/WebSnapshot.ets
async snapAndMerge() {
  this.scrollYOffsets.push(this.curYOffset);
  // Call the component screenshot interface to obtain the current screenshot
  const pixelMap = await componentSnapshot.get(WEB_ID);
  let area: image.PositionArea =
    await ImageUtils.getSnapshotArea(pixelMap, this.scrollYOffsets, this.webComponentWidth, this.webComponentHeight);
  this.areaArray.push(area);
  // Determine whether the bottom has been reached during the loop process
  if (Math.ceil(this.curYOffset + this.webComponentHeight) < this.webviewController.getPageHeight()) {
    // Not scrolling to the bottom, scrolling to the next page
    this.webviewController.scrollByWithResult(0, this.scrollHeight);
    await CommonUtils.sleep(1000)
    await this.snapAndMerge();
  } else {
    this.mergedImage =
      await ImageUtils.mergeImage(this.areaArray, this.scrollYOffsets[this.scrollYOffsets.length - 1],
        this.webComponentWidth, this.webComponentHeight);
  }
}

使用webPageSnapshot()方法进行网页全量截图

此外,Web组件还可以使用 webPageSnapshot() 方法进行网页全量截图,比较适合结构简单、静态元素的页面长截图。如果网页中有动态资源,结构相对复杂,比如有固定的标题头等,推荐上面的滚动长截图方案。使用webPageSnapshot()方法实现长截图的步骤如下:

  1. Web初始化,调用enableWholeWebPageDrawing()方法开启网页全量绘制能力
aboutToAppear(): void {
  webview.WebviewController.initializeWebEngine();
  webview.WebviewController.enableWholeWebPageDrawing();
  webview.WebviewController.prepareForPageLoad(EXAMPLE_URL, true, 2);
}
  1. 获取网页内容高度和宽度。
async getWebSize() {
  const SCRIPT = '[document.documentElement.scrollWidth, document.documentElement.scrollHeight]';
  try {
    this.webviewController.runJavaScriptExt(SCRIPT).then((result) => {
      if (result.getType() === webview.JsMessageType.ARRAY) {
        this.h5Width = (result.getArray() as number[])[0];
        this.h5Height = (result.getArray() as number[])[1];
        Logger.info(TAG, `h5Width is ${this.h5Width}, h5Height is ${this.h5Height}`);
      }
    });
  } catch (error) {
    Logger.error(TAG, `Run script to get web page size failed. Error: ${JSON.stringify(error)}`);
  }
}
  1. 调用webPageSnapshot()方法,进行网页截图。
async webSnapshot() {
  try {
    this.webviewController.webPageSnapshot({ id: WEB_ID, size: { width: this.h5Width, height: this.h5Height } },
      async (error, result) => {
        if (result) {
          this.longPixelMap = result.imagePixelMap;
        }
      });
  } catch (error) {
    Logger.error(TAG, `webPageSnapshot err : ${JSON.stringify(error)}`);
  }
}

完整示例代码如下:

import { webview } from '@kit.ArkWeb';

const TAG = 'WebComponent';
const url: string = 'https://developer.huawei.com/consumer/cn/doc/harmonyos-guides/application-dev-guide';

@Entry
@Component
struct WebComponent {
  @State h5Width: number = 0;
  @State h5Height: number = 0;
  @State longPixelMap: PixelMap | undefined = undefined;
  private webviewController: webview.WebviewController = new webview.WebviewController();

  aboutToAppear(): void {
    webview.WebviewController.initializeWebEngine();
    webview.WebviewController.enableWholeWebPageDrawing();
    webview.WebviewController.prepareForPageLoad(url, true, 2);
  }

  async getWebSize() {
    const SCRIPT = '[document.documentElement.scrollWidth, document.documentElement.scrollHeight]';
    try {
      this.webviewController.runJavaScriptExt(SCRIPT).then((result) => {
        if (result.getType() === webview.JsMessageType.ARRAY) {
          this.h5Width = (result.getArray() as number[])[0];
          this.h5Height = (result.getArray() as number[])[1];
          console.info(TAG, `h5Width is ${this.h5Width}, h5Height is ${this.h5Height}`);
        }
      });
    } catch (error) {
      console.error(TAG, `Run script to get web page size failed. Error: ${JSON.stringify(error)}`);
    }
  }

  async webSnapshot() {
    try {
      this.webviewController.webPageSnapshot({ id: 'webTest', size: { width: this.h5Width, height: this.h5Height } },
        async (error, result) => {
          if (result) {
            this.longPixelMap = result.imagePixelMap;
          }
        });
    } catch (error) {
      console.error(TAG, `webPageSnapshot err : ${JSON.stringify(error)}`);
    }
  }

  build() {
    Stack() {
      Web({
        src: url,
        controller: this.webviewController
      })
        .id('webTest')

      Scroll() {
        Column() {
          Image(this.longPixelMap)
            .width('80%')
        }
      }

      Button('WebPageSnapshot')
        .onClick(() => {
          this.webSnapshot();
        })
    }
  }
}
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
