华为eNSP模拟器防火墙配置透明交换机实验

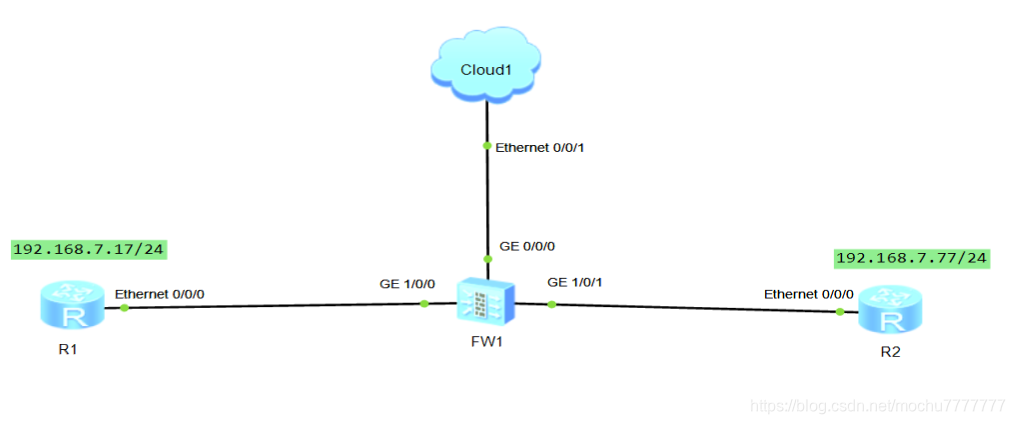

命令行配置

R1:
sys
un in en
sysname R1
int e0/0/0
ip address 192.168.7.17 24
dis this
quit
dis ip int brief

R2:
sys
un in en
sysname R2
int e0/0/0
ip address 192.168.7.77 24
dis this
quit
dis ip int brief

将防火墙上的两个端口设置成交换机端口

FW:
sys
un in en
sysname FW
firewall zone trust
add int g1/0/0
add int g1/0/1
dis this
quit
int g1/0/0
portswitch
port link-type access
dis this
int g1/0/1
portswitch
port link-type access
dis this
quit

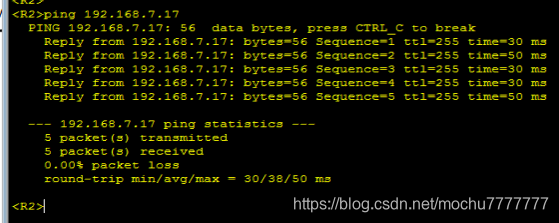

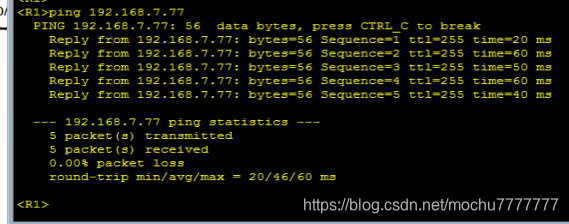

查看R1和R2两台设备能否ping通


在R1上配置telnet访问设置

sys
user-int vty 0 4
authentication-mode none
user privilege level 3
dis this
quit

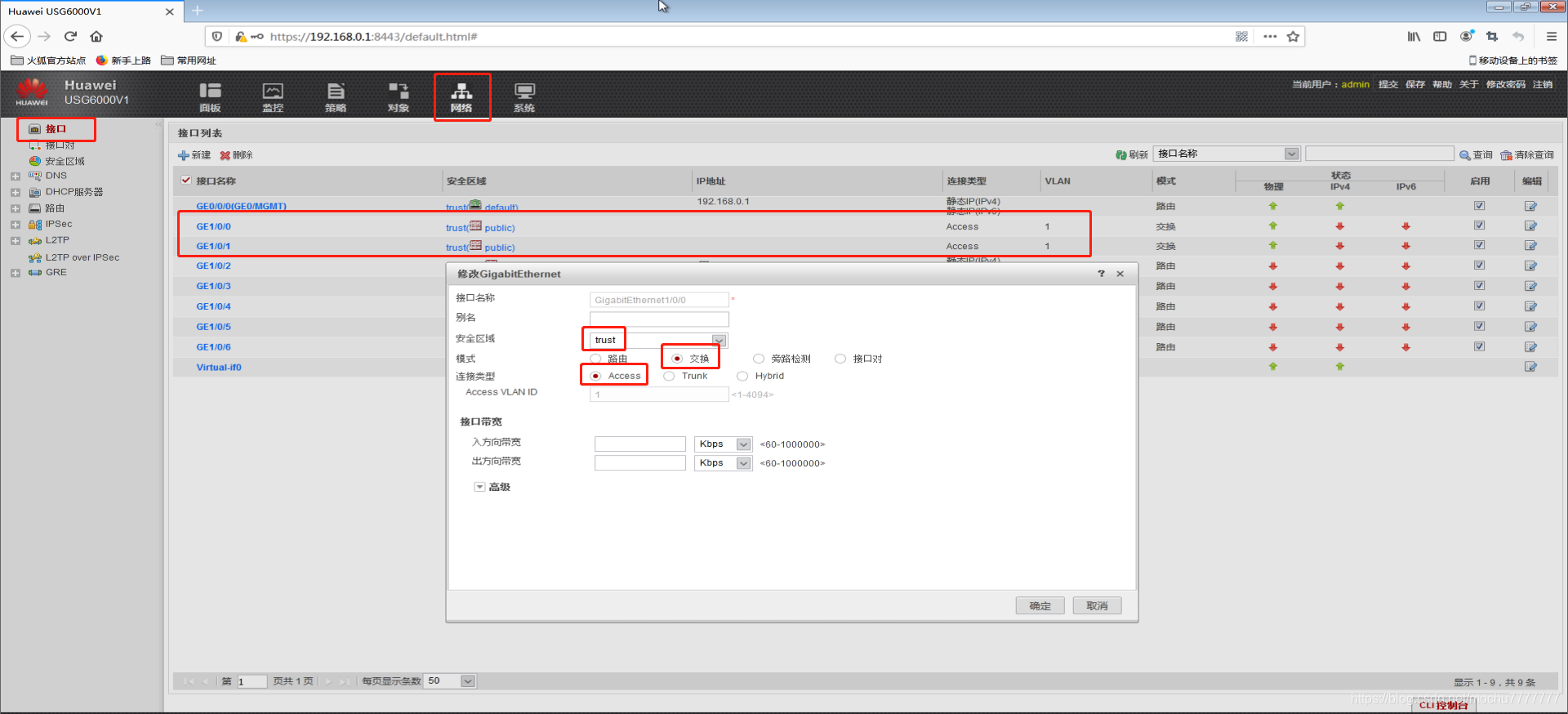

防火墙web端配置
