,Android - Paint基础

在自定义控件时，经常需要使用canvas、paint等，在canvas类中，绘画基本都是靠drawXXX()方法来完成的，在这些方法中，很多时候都需要用到paint类型的参数，
Paint作为一个非常重要的元素,功能也是非常强大的,这里简单列举一些它的属性和对应的功能.

setAntiAlias() //设置画笔的锯齿效果
setColor() //设置画笔的颜色
setARGB() //设置画笔的ARGB值
setAlpha() //设置画笔的Alpha值
setTextSize() //设置字体的的大小
setStyle() //设置画笔的风格(实心或者是空心)
setStrokeWidth() //设置空心边框的宽度.
正是由于画笔的功能不一样,再结合各种不同的绘图api,这样任意的组合就可以实现不同的绘图效果.
例如:

 mPaint = new Paint();
        mPaint.setColor(getResources().getColor(R.color.colorAccent));
        mPaint.setAntiAlias(true);
        mPaint.setStyle(Paint.Style.STROKE);
        mPaint.setStrokeWidth(10);
        mPaint.setTextSize(100);

   1
2
3
4
5
6

   1
2
3
4
5
6

以上就是关于Paint类的一个简单的介绍,更多的介绍可以参考Google的官方文档

2,Android - Canvas基础

具体的看代码

 canvas.drawPoint(100,100,mPaint);
        //绘制一条直线
        canvas.drawLine(150,150,150,300,mPaint);
        float [] pts = {
                300,300,300,400,
                300,400,400,400,
                400,400,400,500
        };
        //绘制多条直线
        canvas.drawLines(pts,mPaint);
        //绘制一个矩形
        RectF rectF = new RectF(500,100,600,300);
        canvas.drawRect(rectF,mPaint);

        //绘制圆角矩形
        RectF rectF2 = new RectF(700,100,900,300);
        canvas.drawRoundRect(rectF2,50,50,mPaint);

        //绘制一个圆
        canvas.drawCircle(600,600,100,mPaint);

        //绘制一个扇形
        RectF rectFArc = new RectF(300,800,500,1000);
        canvas.drawArc(rectFArc,0,270,true,mPaint);
        mPaint.setStyle(Paint.Style.STROKE);
        //绘制一个弧形
        RectF rectFArc2 = new RectF(300,1100,500,1300);
        canvas.drawArc(rectFArc2,0,270,false,mPaint);
        //绘制椭圆 外接矩形 也就就是该椭圆为矩形的内接椭圆
        RectF rectFArOval = new RectF(520,1100,720,1400);
        canvas.drawOval(rectFArOval,mPaint);
        //绘制文本
        canvas.drawText("hello",100,100,mPaint);
        Path path = new Path();
        path.moveTo(100,400);
        path.lineTo(200,500);
        path.lineTo(100,600);
        path.lineTo(50,700);
        canvas.drawPath(path,mPaint);

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

3,简单实例,绘制一个时钟

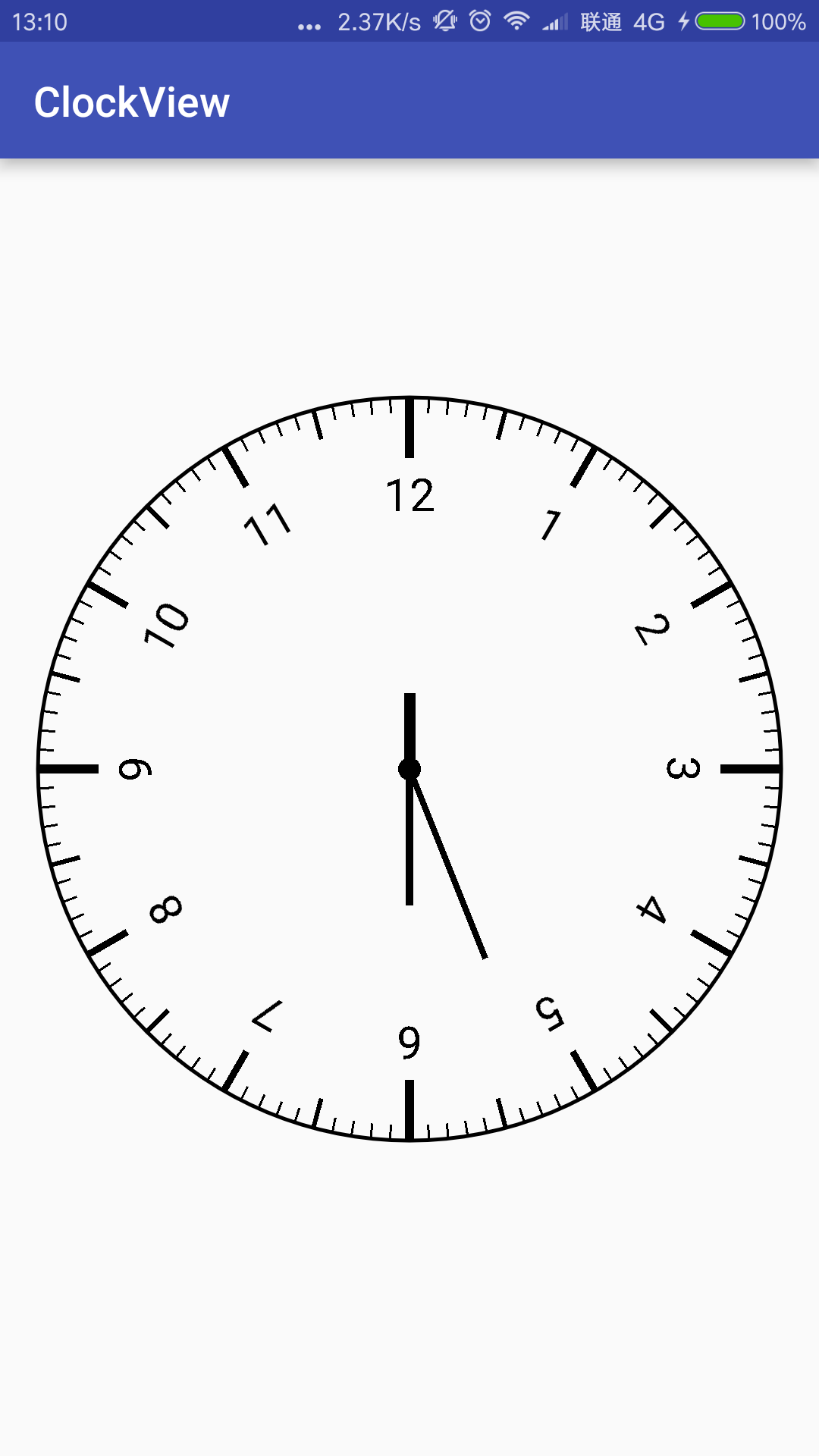

先看图
这里写图片描述

效果就如上图所示,那这样的效果是怎么实现的呢?这就需要用到Canvas和Paint的相关知识了.

Canvas作为绘制图形的直接对象,它提供了以下几个非常有用发方法.
1. canvas.save() : 保存画布,它的作用是将之前的所有已经绘制的图像保存起来,让后续的操作就好像在一个新的图层上,操作一样.
2. canvas.restore() :可以理解和PhotosShop中的合并图层操作.它的作用是我们在save之后绘制的所有图像与save之前的图像进行合并.
3. canvas.translate():画布平移,就是将画布的坐标原点移动到你指定的位置.
4. canvas,rotate():画布翻转,.就是将坐标系翻转了一定的角度.
理解了以上几个方法,那么我们就可以开始绘制我们的时钟了,先来分析下要绘制的这个图形,.我们可以分成4个步骤.

绘制仪表盘–外面的那个大圆形
刻度线-
刻度值
指针

在这个实例中,第一步绘制表盘,这个挺简单的,只要调用canvas,drawCircle()来绘制一个圆盘就可以了,圆心位置和半径按照自己的需要来确定,
代码如下:

 mWidth = getMeasuredWidth()-100;
        mHeight = getMeasuredHeight()-100;
        //首先绘制一个大圆盘
        Paint paintCircle = new Paint();
        paintCircle.setStyle(Paint.Style.STROKE);
        paintCircle.setAntiAlias(true);
        paintCircle.setStrokeWidth(5);
        canvas.drawCircle(mWidth/2,mHeight/2,mWidth/2,paintCircle);

   1
2
3
4
5
6
7
8

   1
2
3
4
5
6
7
8

第二部绘制刻度线和刻度值,我们可以将一个圆分成120根刻度线,每两根刻度线之间的角度为3度,我们只要每绘制好一根线后,我们就画布旋转3度,代码如下:

//绘制刻度
        Paint paintDegree = new Paint();
        paintDegree.setStrokeWidth(3);
        for (int i = 0 ;i<120 ;i++){
            //大点,12点 3点 6点 9点
            if (i == 0 || i == 30 || i==60 || i ==90){
                paintDegree.setStrokeWidth(12);
                paintDegree.setTextSize(60);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+80,paintDegree);
                String degree = String.valueOf(i/10);
                if (i == 0){
                    degree = "12";
                }
                canvas.drawText(degree,mWidth/2-paintDegree.measureText(degree)/2,mHeight/2-mWidth/2+150,paintDegree);
            }else if (i % 10 == 0){整点
                paintDegree.setStrokeWidth(9);
                paintDegree.setTextSize(60);
                String degree = String.valueOf(i/10);
                canvas.drawText(degree,mWidth/2-paintDegree.measureText(degree)/2,mHeight/2-mWidth/2+140,paintDegree);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+60,paintDegree);
            }else if (i % 5 == 0){
                paintDegree.setStrokeWidth(6);
                paintDegree.setTextSize(20);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+40,paintDegree);
            }
            else{
                paintDegree.setStrokeWidth(3);
                paintDegree.setTextSize(20);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+20,paintDegree);
            }
            //每次绘制完成后将画布旋转3度
            canvas.rotate(3, mWidth / 2, mHeight / 2);
        }

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

最后在绘制指针:

 //保存表盘和刻度的画布
        canvas.save();
        //绘制指针
        Paint paintPoint = new Paint();
        Paint paintHouse = new Paint();
        paintHouse.setStrokeWidth(15);
        Paint paintMinute = new Paint();
        paintMinute.setStrokeWidth(10);
        Paint paintSecond = new Paint();
        paintSecond.setStrokeWidth(8);

        //将画布的起点坐标移动到圆心位置
        canvas.translate(mWidth/2,mHeight/2);
        canvas.drawCircle(0,0,15,paintPoint);
        canvas.drawLine(0,0,0,-100,paintHouse);
        canvas.drawLine(0,0,0,180,paintMinute);
        canvas.drawLine(0,0,100,250,paintSecond);
        //合并图层
        canvas.restore();

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

全部的代码如下:

package com.example.administrator.myscrollview.view;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.view.View;

/**
 * Created by Administrator on 2016/9/29.
 */
public class ClockView extends View {
    private int mWidth,mHeight;
    public ClockView(Context context) {
        this(context,null);
    }

    public ClockView(Context context, AttributeSet attrs) {
        this(context, attrs,-1);
    }

    public ClockView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);

    }
    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        canvas.translate(50,0);
        mWidth = getMeasuredWidth()-100;
        mHeight = getMeasuredHeight()-100;
        //首先绘制一个大圆盘
        Paint paintCircle = new Paint();
        paintCircle.setStyle(Paint.Style.STROKE);
        paintCircle.setAntiAlias(true);
        paintCircle.setStrokeWidth(5);
        canvas.drawCircle(mWidth/2,mHeight/2,mWidth/2,paintCircle);
        //绘制刻度
        Paint paintDegree = new Paint();
        paintDegree.setStrokeWidth(3);
        for (int i = 0 ;i<120 ;i++){
            //大点,12点 3点 6点 9点
            if (i == 0 || i == 30 || i==60 || i ==90){
                paintDegree.setStrokeWidth(12);
                paintDegree.setTextSize(60);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+80,paintDegree);
                String degree = String.valueOf(i/10);
                if (i == 0){
                    degree = "12";
                }
                canvas.drawText(degree,mWidth/2-paintDegree.measureText(degree)/2,mHeight/2-mWidth/2+150,paintDegree);
            }else if (i % 10 == 0){整点
                paintDegree.setStrokeWidth(9);
                paintDegree.setTextSize(60);
                String degree = String.valueOf(i/10);
                canvas.drawText(degree,mWidth/2-paintDegree.measureText(degree)/2,mHeight/2-mWidth/2+140,paintDegree);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+60,paintDegree);
            }else if (i % 5 == 0){
                paintDegree.setStrokeWidth(6);
                paintDegree.setTextSize(20);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+40,paintDegree);
            }
            else{
                paintDegree.setStrokeWidth(3);
                paintDegree.setTextSize(20);
                canvas.drawLine(mWidth/2,mHeight/2-mWidth/2,mWidth/2,mHeight/2-mWidth/2+20,paintDegree);
            }
            //每次绘制完成后将画布旋转3度
            canvas.rotate(3, mWidth / 2, mHeight / 2);
        }
        //保存表盘和刻度的画布
        canvas.save();
        //绘制指针
        Paint paintPoint = new Paint();
        Paint paintHouse = new Paint();
        paintHouse.setStrokeWidth(15);
        Paint paintMinute = new Paint();
        paintMinute.setStrokeWidth(10);
        Paint paintSecond = new Paint();
        paintSecond.setStrokeWidth(8);

        //将画布的起点坐标移动到圆心位置
        canvas.translate(mWidth/2,mHeight/2);
        canvas.drawCircle(0,0,15,paintPoint);
        canvas.drawLine(0,0,0,-100,paintHouse);
        canvas.drawLine(0,0,0,180,paintMinute);
        canvas.drawLine(0,0,100,250,paintSecond);
        //合并图层
        canvas.restore();
    }
}


   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92

   1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92

效果这里写图片描述

到这,本文就结束了,希望对大家有所帮助,谢谢.
