基于Java+SpringMvc+Vue技术的在线学习交流平台设计与实现

第四章系统设计

4.1 系统概要设计

系统采用B/S架构，通过Web浏览器进行访问和操作。系统包括前台和后台两个主要部分：

1、交流网站：为大家提供用户学习、交流界面，实现文章搜索、查看、评论交流、点赞、打赏等功能。

2、后台：为管理员提供管理界面，实现用户管理、文章管理、评论管理、数据统计等功能。。

4.2 系统结构设计

整个系统是由多个功能模块组合而成的，要将所有的功能模块都一一列举出来，然后进行逐个的功能设计，使得每一个模块都有相对应的功能设计，然后进行系统整体的设计。

本系统结构图如图4-2所示。

4.3 系统顺序图设计

4.3.1 登录模块顺序图

登录模块主要满足了管理员以及用户的权限登录，登录模块顺序图如图4-3所示。

4.3.2 添加信息模块顺序图

管理员以及用户登录后均可进行添加信息操作，添加信息模块顺序图如图4-4所示。

4.4 系统关系图设计

本系统各类之间关系图如图4-2所示。

4.5 数据库设计

一个好的数据库可以关系到程序开发的优劣，数据库设计离不开表结构的设计，还有表与表之间的联系，以及系统开发需要设计的数据表内容等信息。在进行数据库设计期间，要结合实际情况来对数据库进行针对性的开发设计[12]。

4.4.1 数据库E-R图设计
本系统采用的是mysql数据库，数据存储快，因为个人博客管理系统，主要的就是对信息的管理，信息内容比较多，这就需要好好的设计一个好的数据库，分类要清楚，不能添加信息的时候，造成信息太过混乱，设计好的数据库首先就需要先把各个实体之间的关系表达明确，系统的E-R图如下图所示：

4.4.2 逻辑结构设计
逻辑结构设计是把概念结构设计阶段画好的数据库ER图转换为关系模型。该系统的关系模型的逻辑结构是由主要一下关系模式组成，具体的关系模式如下：

（1）用户信息（主键id、用户id、用户姓名、表名、角色id、角色名、密码、新增时间、过期时间）

（2）角色信息（主键id、角色名称、角色描述、新增时间、过期时间）

（3）角色权限信息（主键id、角色id、角色名称、关联的菜单id、关联的菜单名、新增时间、过期时间）

（4）菜单信息（主键id、菜单名称、菜单访问路径、菜单描述、上级菜单id、新增时间、过期时间）

（5）文章信息（主键id、创建日期、文章名称、文章内容描述、文章类型、文章标签、文章点赞数、文章访问数、父节点id、上传用户id、上传用户姓名、状态、文章审核状态、审核人id、审核人）

（6）评论信息（主键id、创建日期、文章id、文章名、评论人id、评论人姓名、评论内容、是否审核、评论时间等）

第五章系统详细设计

5.1 在线学习交流网站

5.1.1用户登录注册模块：

用户填写登录信息进行登录

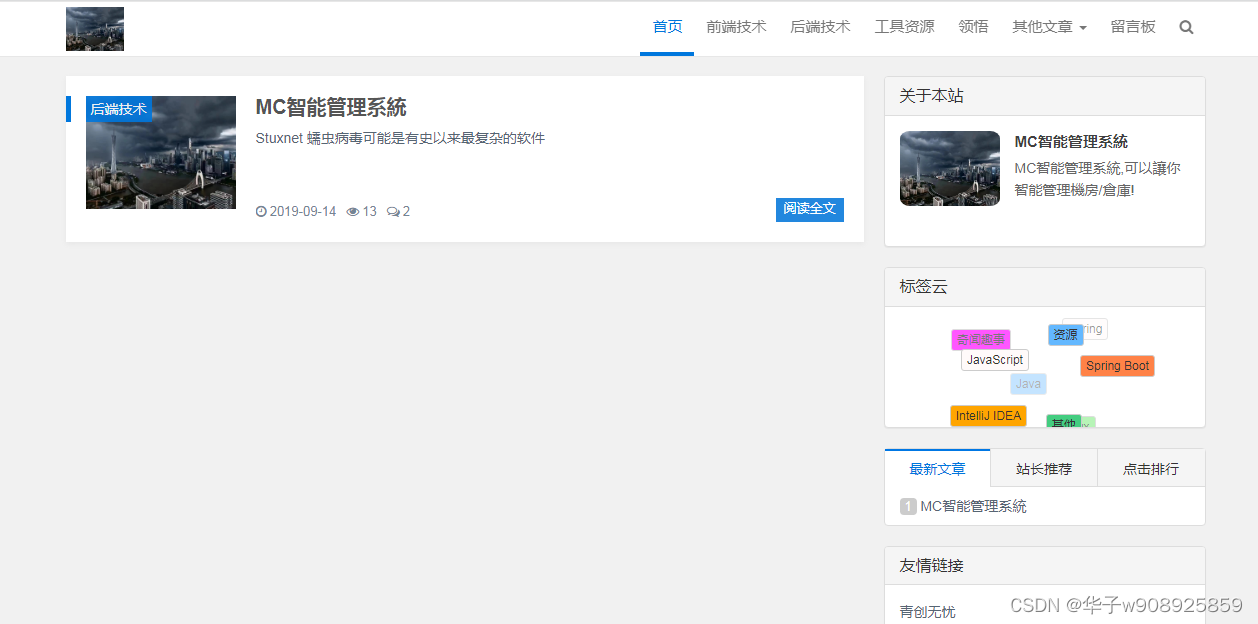

5.1.2 首页：

展示网站的所有功能，包括文章、文章分类、推荐、最新文章等

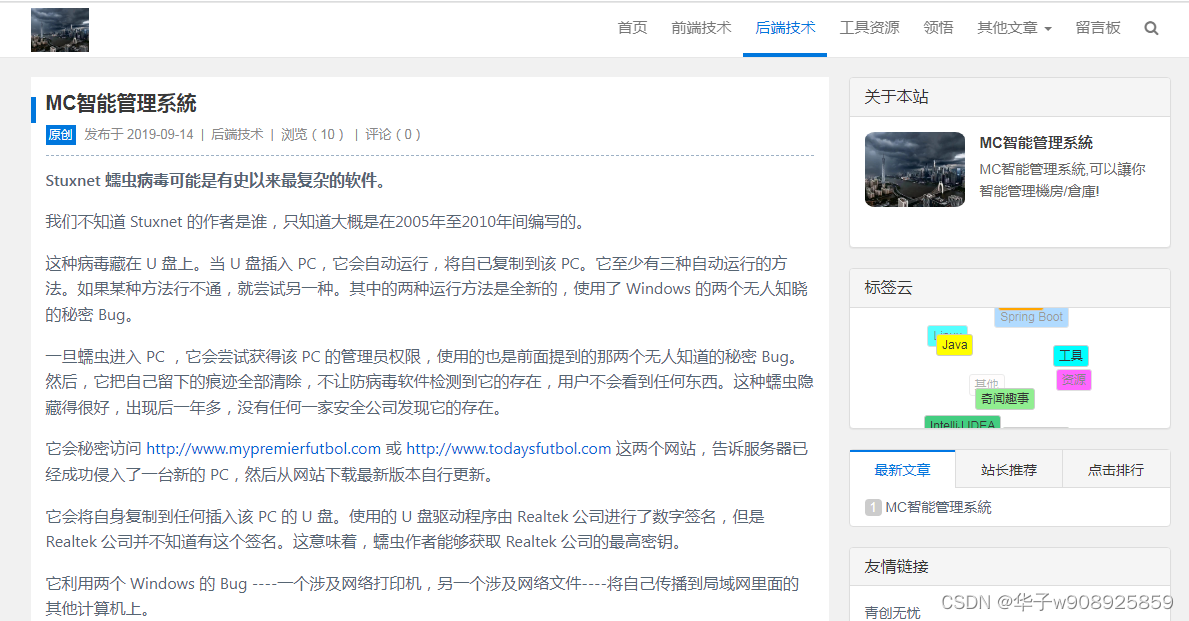

5.1.3 文章查看

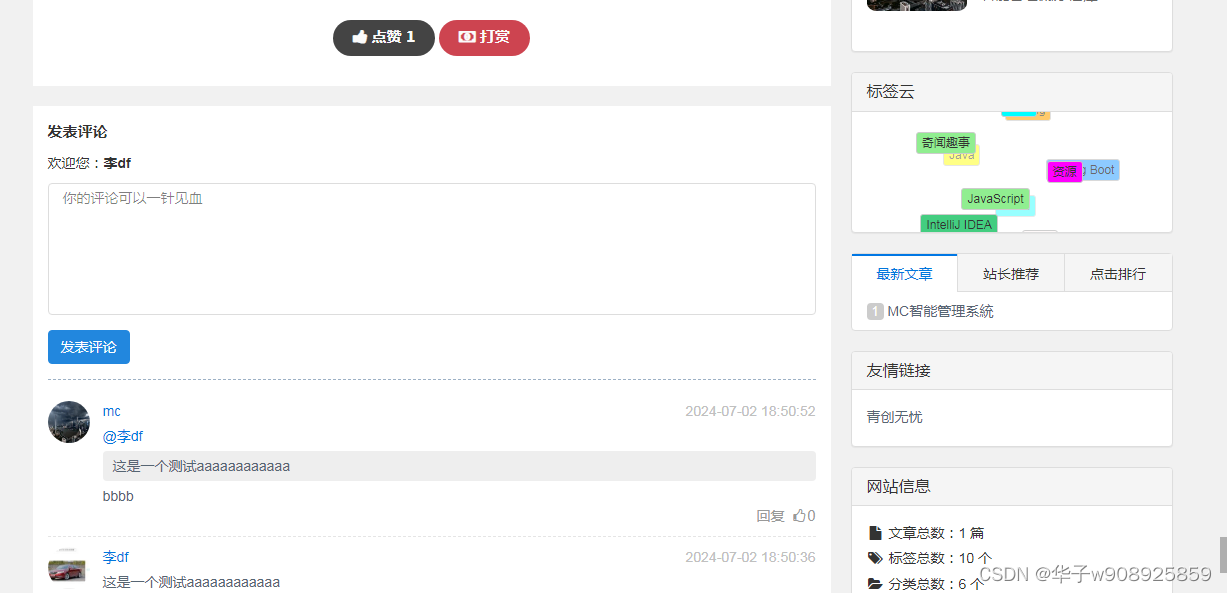

5.1.4 文章交流评论、点赞、打赏

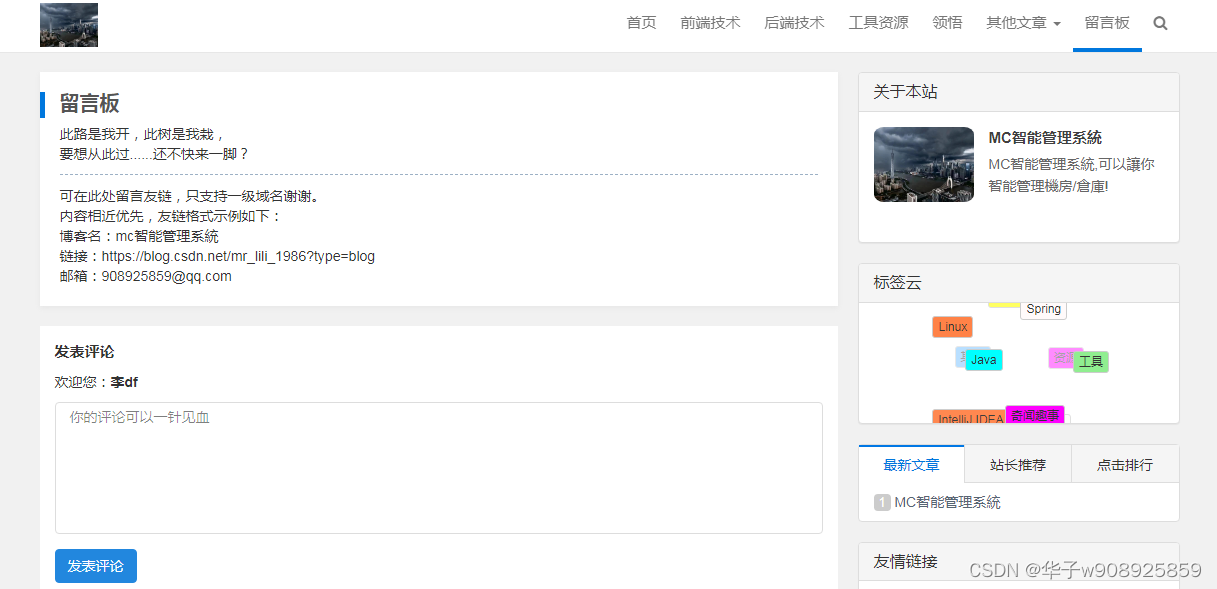

5.1.4 留言

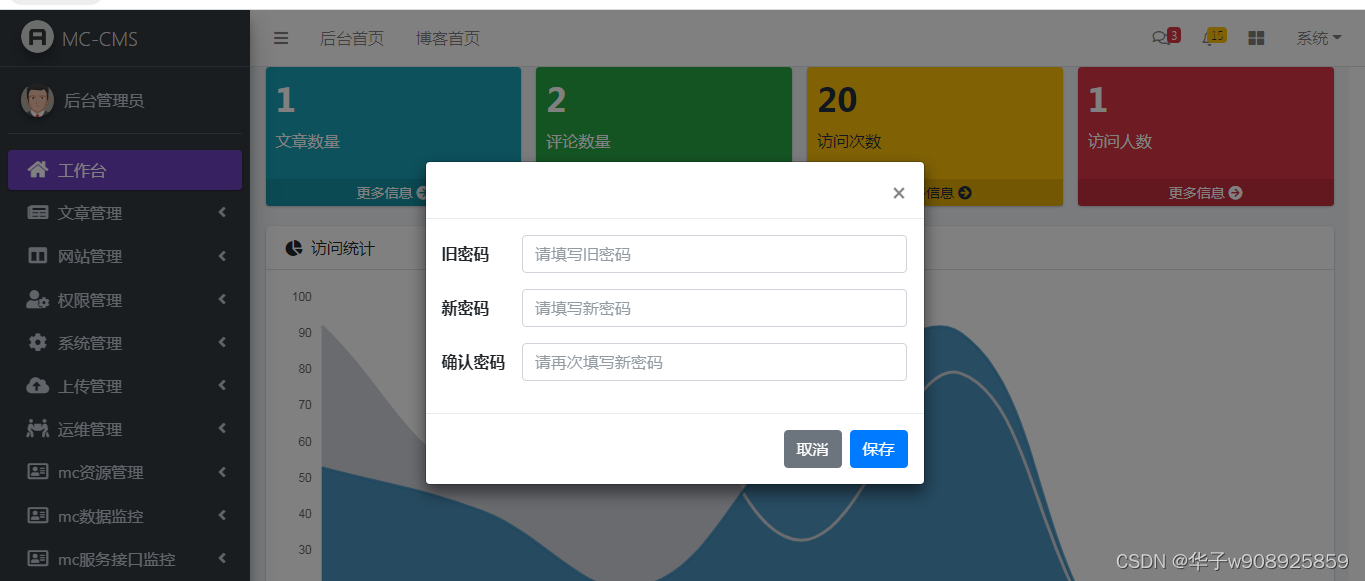

5.1.5 用户中心--修改密码：

5.1.6 用户中心--首页：

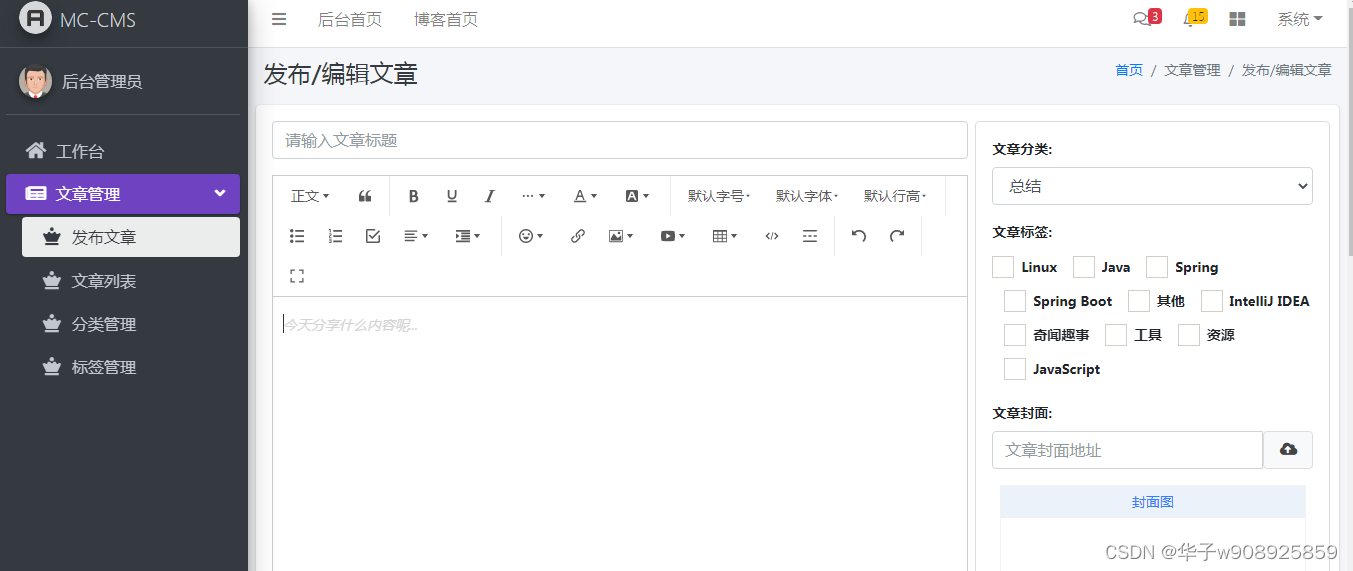

5.1.7 用户中心--发布文章：

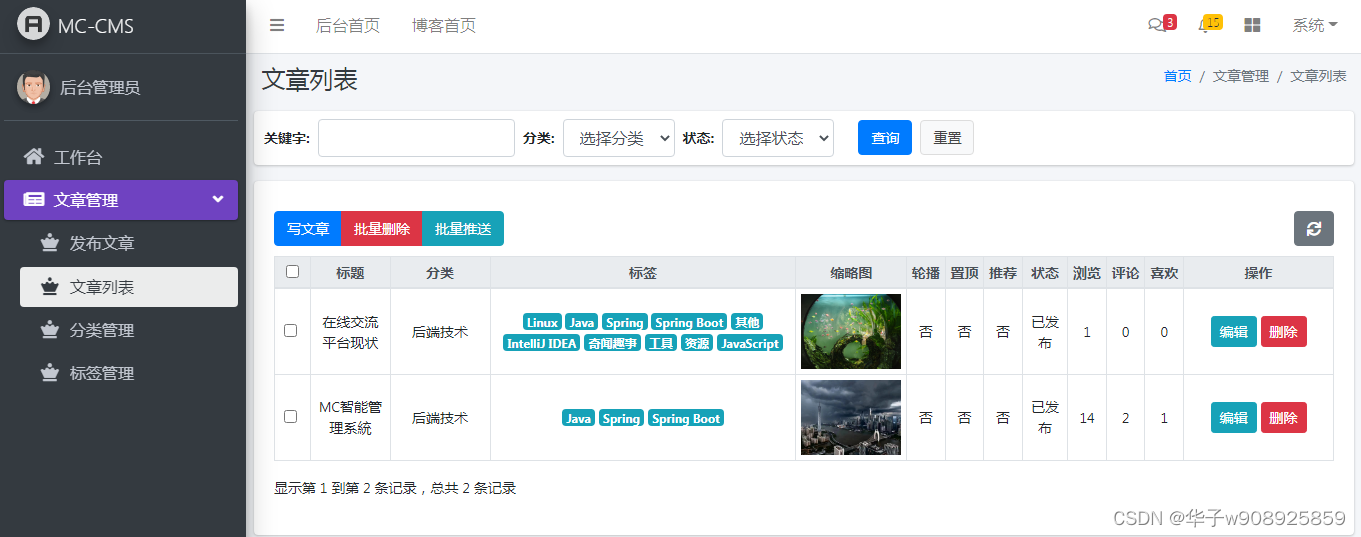

5.1.8 用户中心--文章列表：

5.1.9 用户中心--评论交流列表：

5.2后台管理

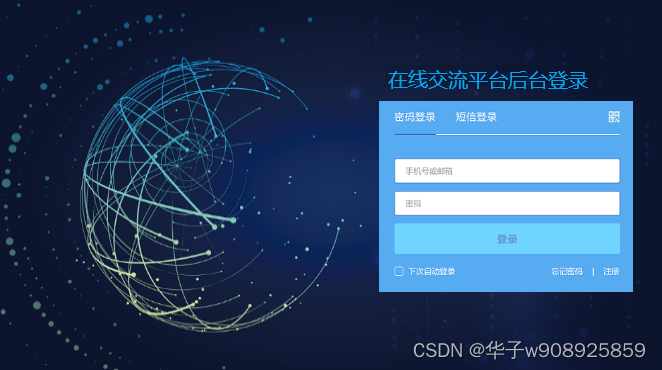

5.2.1用户登录注册模块：

用户填写登录信息进行登录

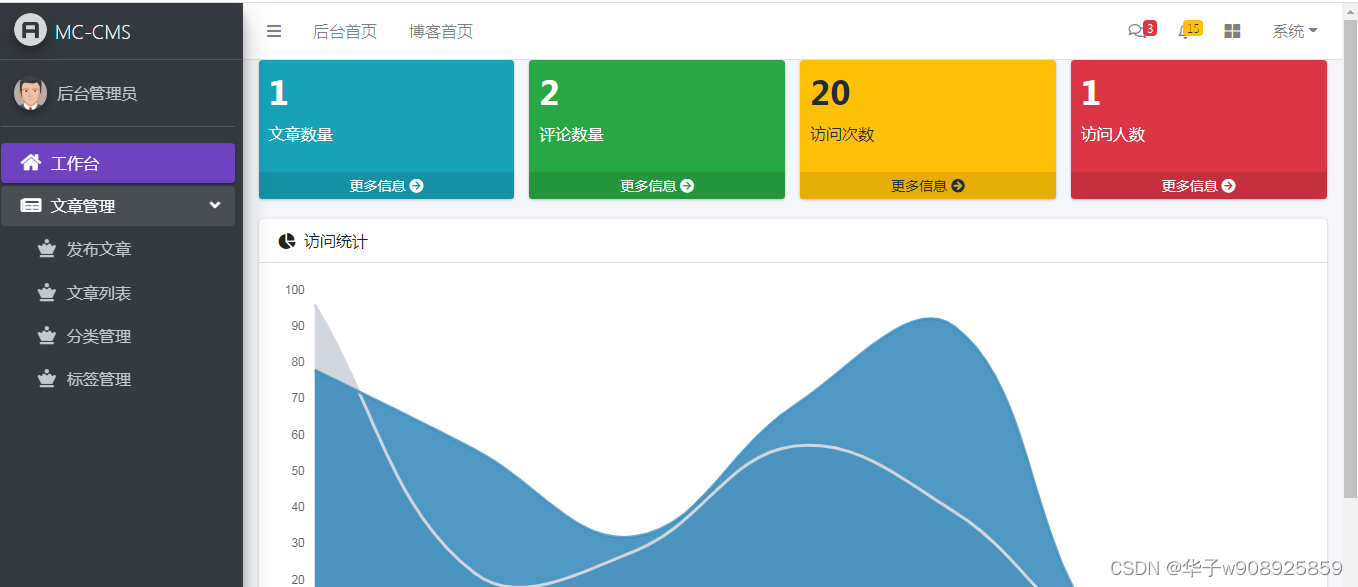

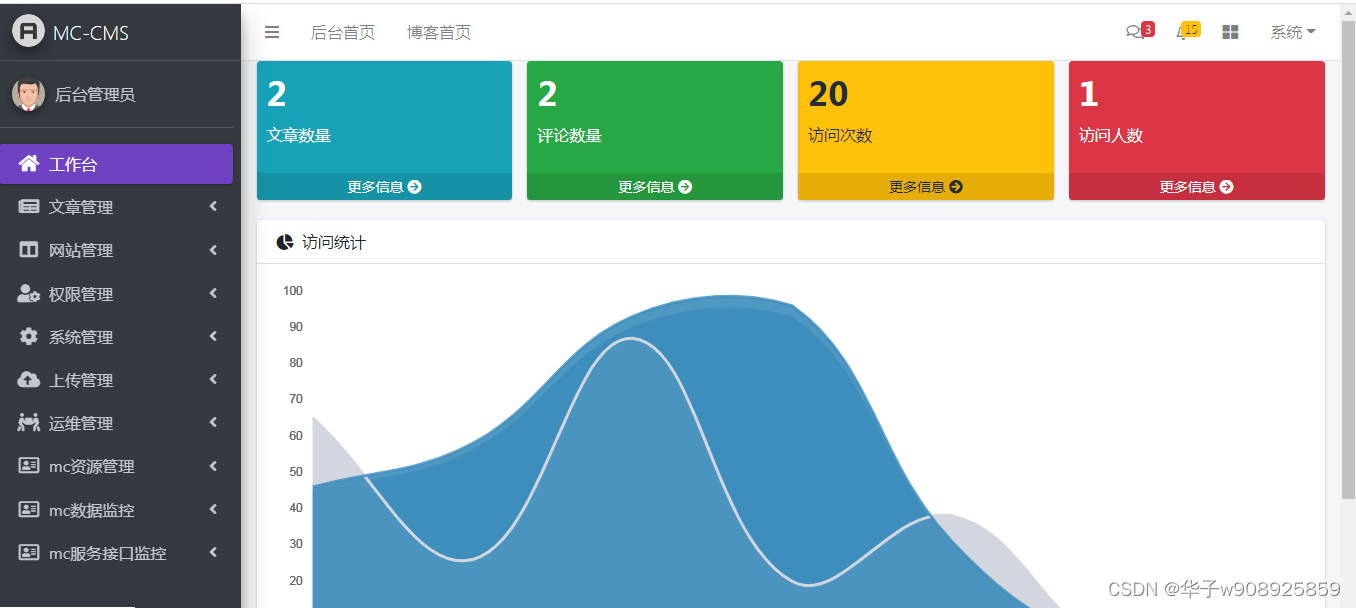

5.1.2 后台首页：

包括文章管理、菜单管理、权限管理、网站管理、系统管理

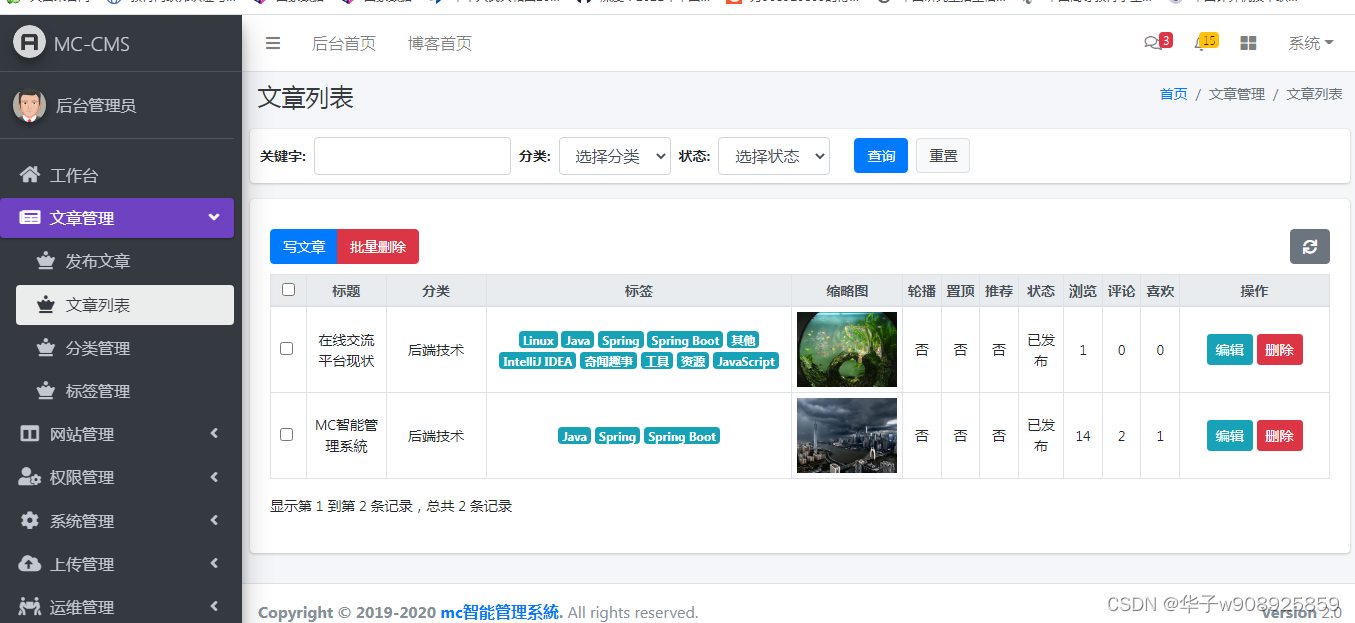

5.1.3 文章管理：

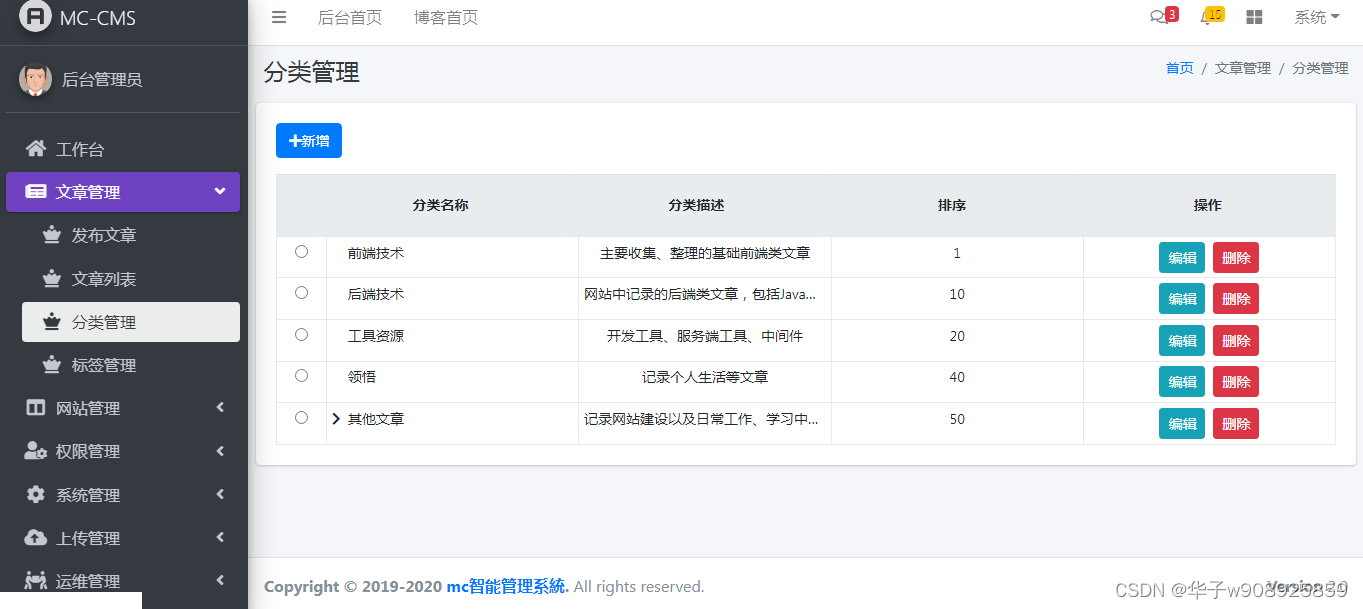

5.1.4 文章分类管理：

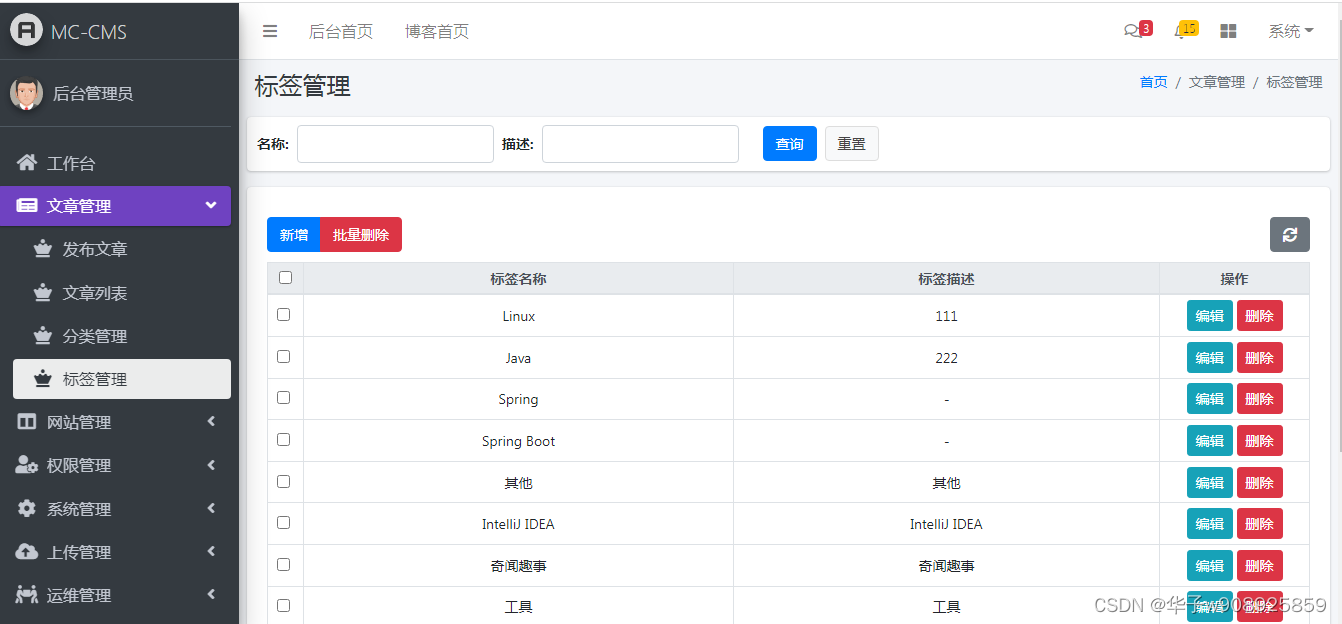

5.1.5 文章标签管理：

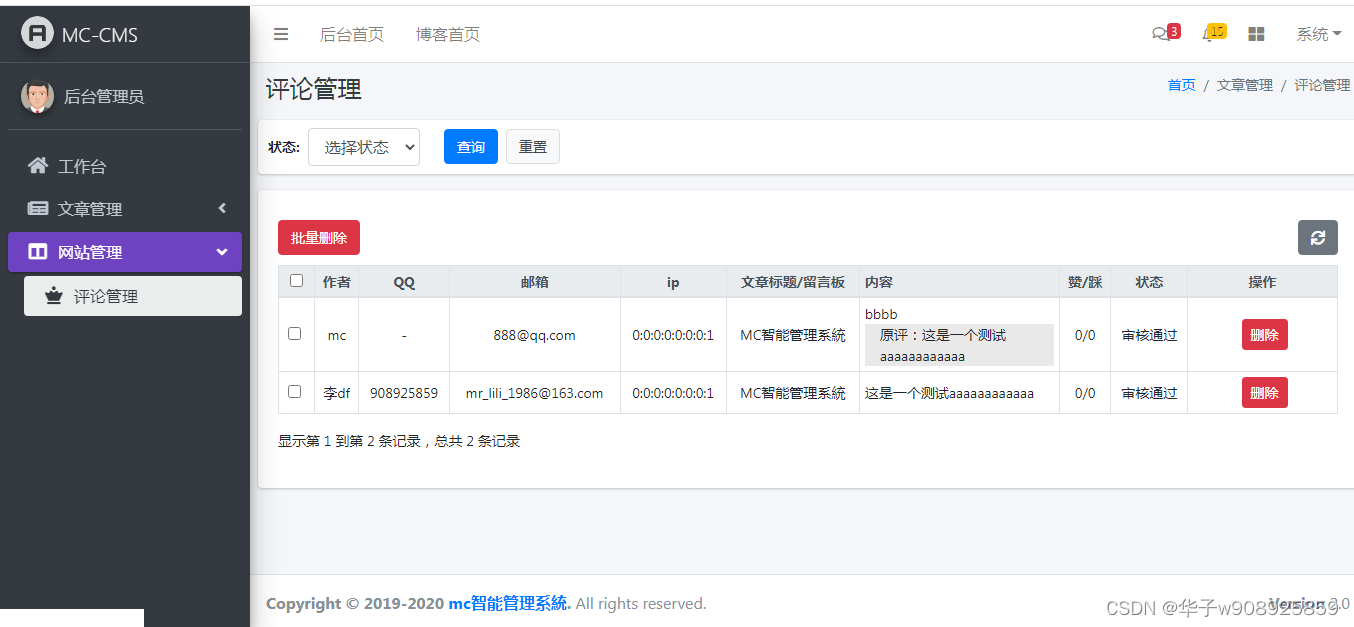

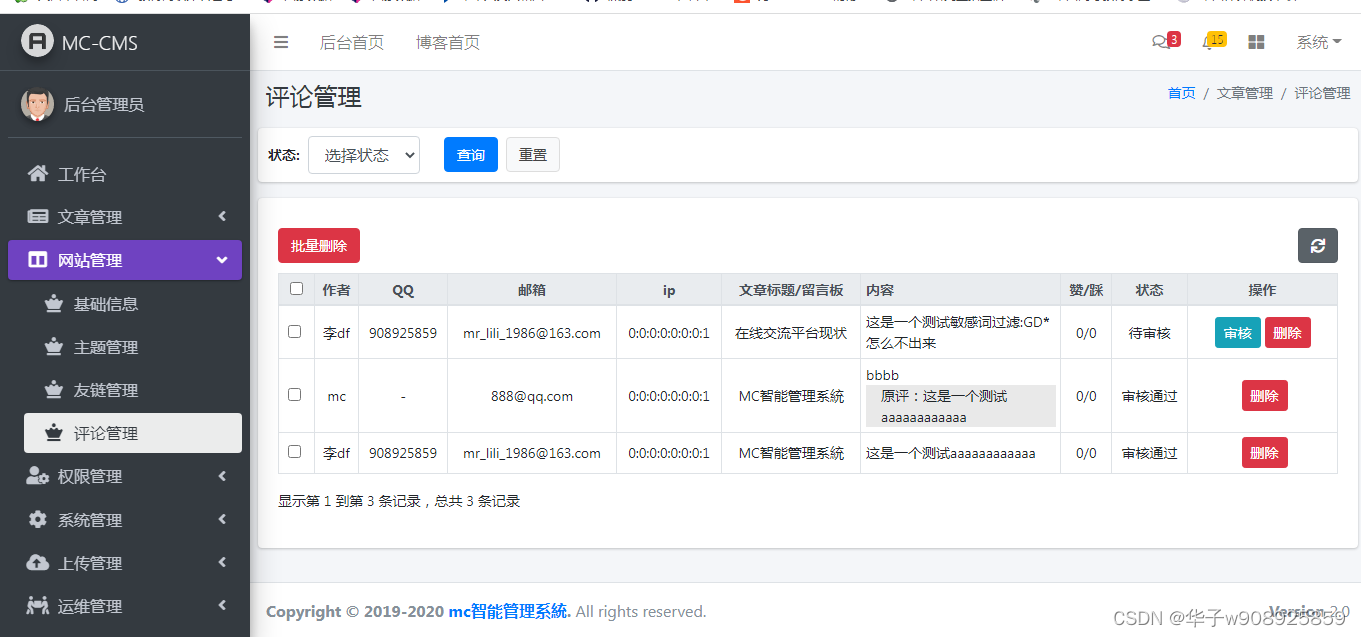

5.1.5 交流评论管理：

包含自动敏感词过滤和自动/人工审核

5.1.6 用户管理：

5.1.7 菜单管理：

5.1.7 角色管理：

5.1.8 角色权限管理：

5.1.9 日志管理：

第六章部分代码实现

6.1 Spring boot 配置代码

# Tomcat
server:
    tomcat:
        uri-encoding: UTF-8
    port: 8080
    servlet:
        context-path: /springboot0t8ql

spring:
    datasource:
        driverClassName: com.mysql.jdbc.Driver
        url: jdbc:mysql://127.0.0.1:3306/springboot0t8ql?useUnicode=true&characterEncoding=utf-8&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8
        username: root
        password: 123456

#        driverClassName: com.microsoft.sqlserver.jdbc.SQLServerDriver
#        url: jdbc:sqlserver://127.0.0.1:1433;DatabaseName=springboot0t8ql
#        username: sa
#        password: 123456

    servlet:
      multipart:
        max-file-size: 10MB
        max-request-size: 10MB
    resources:
      static-locations: classpath:/testStatic/,classpath:/META-INF/resources/,classpath:/resources/,classpath:/static/,classpath:/public/

#mybatis
mybatis-plus:
  mapper-locations: classpath*:mapper/*.xml
  #实体扫描，多个package用逗号或者分号分隔
  typeAliasesPackage: com.entity
  global-config:
    #主键类型  0:"数据库ID自增", 1:"用户输入ID",2:"全局唯一ID (数字类型唯一ID)", 3:"全局唯一ID UUID";
    id-type: 1
    #字段策略 0:"忽略判断",1:"非 NULL 判断"),2:"非空判断"
    field-strategy: 2
    #驼峰下划线转换
    db-column-underline: true
    #刷新mapper 调试神器
    refresh-mapper: true
    #逻辑删除配置
    logic-delete-value: -1
    logic-not-delete-value: 0
    #自定义SQL注入器
    sql-injector: com.baomidou.mybatisplus.mapper.LogicSqlInjector
  configuration:
    map-underscore-to-camel-case: true
    cache-enabled: false
    call-setters-on-nulls: true
    #springboot 项目mybatis plus 设置 jdbcTypeForNull (oracle数据库需配置JdbcType.NULL, 默认是Other)
jdbc-type-for-null: 'null'

6.2 用户管理及登录登出代码

/**
 * 用户账户：用于保存用户登录信息(User)表控制层
 */
@Slf4j
@RestController
@RequestMapping("user")
public class UserController extends BaseController<User, UserService> {
    /**
     * 服务对象
     */
    @Autowired
    public UserController(UserService service) {
        setService(service);
    }

    /**
     * Token服务
     */
    @Autowired
    private AccessTokenService tokenService;

    @Autowired
    private UserGroupService userGroupService;

    /**
     * 注册
     * @param user
     * @return
     */
    @PostMapping("register")
    public Map<String, Object> signUp(@RequestBody User user) {
        // 查询用户
        Map<String, String> query = new HashMap<>();
        query.put("username",user.getUsername());
        List list = service.select(query, new HashMap<>()).getResultList();
        if (list.size()>0){
            return error(30000, "用户已存在");
        }
        user.setUserId(null);
        user.setPassword(service.encryption(user.getPassword()));
        service.save(user);
        return success(1);
    }

    /**
     * 找回密码
     * @param form
     * @return
     */
    @PostMapping("forget_password")
    public Map<String, Object> forgetPassword(@RequestBody User form,HttpServletRequest request) {
        JSONObject ret = new JSONObject();
        String username = form.getUsername();
        String code = form.getCode();
        String password = form.getPassword();
        // 判断条件
        if(code == null || code.length() == 0){
            return error(30000, "验证码不能为空");
        }
        if(username == null || username.length() == 0){
            return error(30000, "用户名不能为空");
        }
        if(password == null || password.length() == 0){
            return error(30000, "密码不能为空");
        }

        // 查询用户
        Map<String, String> query = new HashMap<>();
        query.put("username",username);
        Query select = service.select(query, service.readConfig(request));
        List list = select.getResultList();
        if (list.size() > 0) {
            User o = (User) list.get(0);
            JSONObject query2 = new JSONObject();
            JSONObject form2 = new JSONObject();
            // 修改用户密码
            query2.put("user_id",o.getUserId());
            form2.put("password",service.encryption(password));
            service.update(query, service.readConfig(request), form2);
            return success(1);
        }
        return error(70000,"用户不存在");
    }

    /**
     * 登录
     * @param data
     * @param httpServletRequest
     * @return
     */
    @PostMapping("login")
    public Map<String, Object> login(@RequestBody Map<String, String> data, HttpServletRequest httpServletRequest) {
        log.info("[执行登录接口]");

        String username = data.get("username");
        String email = data.get("email");
        String phone = data.get("phone");
        String password = data.get("password");

        List resultList = null;
        Map<String, String> map = new HashMap<>();
        if(username != null && "".equals(username) == false){
            map.put("username", username);
            resultList = service.select(map, new HashMap<>()).getResultList();
        }
        else if(email != null && "".equals(email) == false){
            map.put("email", email);
            resultList = service.select(map, new HashMap<>()).getResultList();
        }
        else if(phone != null && "".equals(phone) == false){
            map.put("phone", phone);
            resultList = service.select(map, new HashMap<>()).getResultList();
        }else{
            return error(30000, "账号或密码不能为空");
        }
        if (resultList == null || password == null) {
            return error(30000, "账号或密码不能为空");
        }
        //判断是否有这个用户
        if (resultList.size()<=0){
            return error(30000,"用户不存在");
        }

        User byUsername = (User) resultList.get(0);


        Map<String, String> groupMap = new HashMap<>();
        groupMap.put("name",byUsername.getUserGroup());
        List groupList = userGroupService.select(groupMap, new HashMap<>()).getResultList();
        if (groupList.size()<1){
            return error(30000,"用户组不存在");
        }

        UserGroup userGroup = (UserGroup) groupList.get(0);

        //查询用户审核状态
        if (!StringUtils.isEmpty(userGroup.getSourceTable())){
            String sql = "select examine_state from "+ userGroup.getSourceTable() +" WHERE user_id = " + byUsername.getUserId();
            String res = String.valueOf(service.runCountSql(sql).getSingleResult());
            if (res==null){
                return error(30000,"用户不存在");
            }
            if (!res.equals("已通过")){
                return error(30000,"该用户审核未通过");
            }
        }

        //查询用户状态
        if (byUsername.getState()!=1){
            return error(30000,"用户非可用状态，不能登录");
        }

        String md5password = service.encryption(password);
        if (byUsername.getPassword().equals(md5password)) {
            // 存储Token到数据库
            AccessToken accessToken = new AccessToken();
            accessToken.setToken(UUID.randomUUID().toString().replaceAll("-", ""));
            accessToken.setUser_id(byUsername.getUserId());
            tokenService.save(accessToken);

            // 返回用户信息
            JSONObject user = JSONObject.parseObject(JSONObject.toJSONString(byUsername));
            user.put("token", accessToken.getToken());
            JSONObject ret = new JSONObject();
            ret.put("obj",user);
            return success(ret);
        } else {
            return error(30000, "账号或密码不正确");
        }
    }

    /**
     * 修改密码
     * @param data
     * @param request
     * @return
     */
    @PostMapping("change_password")
    public Map<String, Object> change_password(@RequestBody Map<String, String> data, HttpServletRequest request){
        // 根据Token获取UserId
        String token = request.getHeader("x-auth-token");
        Integer userId = tokenGetUserId(token);
        // 根据UserId和旧密码获取用户
        Map<String, String> query = new HashMap<>();
        String o_password = data.get("o_password");
        query.put("user_id" ,String.valueOf(userId));
        query.put("password" ,service.encryption(o_password));
        Query ret = service.count(query, service.readConfig(request));
        List list = ret.getResultList();
        Object s = list.get(0);
        int count = Integer.parseInt(list.get(0).toString());
        if(count > 0){
            // 修改密码
            Map<String,Object> form = new HashMap<>();
            form.put("password",service.encryption(data.get("password")));
            service.update(query,service.readConfig(request),form);
            return success(1);
        }
        return error(10000,"密码修改失败！");
    }

    /**
     * 登录态
     * @param request
     * @return
     */
    @GetMapping("state")
    public Map<String, Object> state(HttpServletRequest request) {
        JSONObject ret = new JSONObject();
        // 获取状态
        String token = request.getHeader("x-auth-token");

        // 根据登录态获取用户ID
        Integer userId = tokenGetUserId(token);

        log.info("[返回userId] {}",userId);
        if(userId == null || userId == 0){
            return error(10000,"用户未登录!");
        }

        // 根据用户ID获取用户
        Map<String,String> query = new HashMap<>();
        query.put("user_id" ,String.valueOf(userId));

        // 根据用户ID获取
        Query select = service.select(query,service.readConfig(request));
        List resultList = select.getResultList();
        if (resultList.size() > 0) {
            JSONObject user = JSONObject.parseObject(JSONObject.toJSONString(resultList.get(0)));
            user.put("token",token);
            ret.put("obj",user);
            return success(ret);
        } else {
            return error(10000,"用户未登录!");
        }
    }

    /**
     * 登录态
     * @param request
     * @return
     */
    @GetMapping("quit")
    public Map<String, Object> quit(HttpServletRequest request) {
        String token = request.getHeader("x-auth-token");
        JSONObject ret = new JSONObject();
        Map<String, String> query = new HashMap<>(16);
        query.put("token", token);
        try{
            tokenService.delete(query,service.readConfig(request));
        }catch (Exception e){
            e.printStackTrace();
        }
        return success("退出登录成功！");
    }

    /**
     * 获取登录用户ID
     * @param token
     * @return
     */
    public Integer tokenGetUserId(String token) {
        log.info("[获取的token] {}",token);
        // 根据登录态获取用户ID
        if(token == null || "".equals(token)){
            return 0;
        }
        Map<String, String> query = new HashMap<>(16);
        query.put("token", token);
        AccessToken byToken = tokenService.findOne(query);
        if(byToken == null){
            return 0;
        }
        return byToken.getUser_id();
    }

    /**
     * 重写add
     * @return
     */
    @PostMapping("/add")
    @Transactional
    public Map<String, Object> add(HttpServletRequest request) throws IOException {
        Map<String,Object> map = service.readBody(request.getReader());
        map.put("password",service.encryption(String.valueOf(map.get("password"))));
        service.insert(map);
        return success(1);
    }

}

6.3 Md5 加密算法代码

public class MD5Utils {
    private static final Logger logger = LoggerFactory.getLogger(MD5Utils.class);

    // 全局数组
    private final static String[] strDigits = {"0", "1", "2", "3", "4", "5",
            "6", "7", "8", "9", "a", "b", "c", "d", "e", "f"};

    /**
     * 16进制字符
     */
    private final static char hexdigits[] = {'0', '1', '2', '3', '4', '5', '6', '7', '8',
            '9', 'a', 'b', 'c', 'd', 'e', 'f'};


    /**
     * 对文件全文生成MD5摘要
     *
     * @param file 要加密的文件
     * @return MD5摘要码
     */
    public static String getMD5ForFile(String filePath) {
        FileInputStream fis = null;
        MessageDigest md = null;
        try {
            md = MessageDigest.getInstance("MD5");
            File file = new File(filePath);
            if (!file.exists()) {
                return "";
            }
            fis = new FileInputStream(file);
            byte[] buffer = new byte[4096];
            int length = -1;
            while ((length = fis.read(buffer)) != -1) {
                md.update(buffer, 0, length);
            }
            byte[] b = md.digest();
            return byteToHexString(b);
        } catch (Exception ex) {
            logger.error("获取MD5信息发生异常！" + ex.toString());
            return null;
        } finally {
            try {
                if (null != fis) {
                    fis.close();
                }
            } catch (IOException e) {
                logger.error("获取MD5信息发生异常！" + e.toString());
            }
        }
    }

    /**
     * 把byte[]数组转换成十六进制字符串表示形式
     *
     * @param tmp 要转换的byte[]
     * @return 十六进制字符串表示形式
     */
    private static String byteToHexString(byte[] tmp) {
        String s;
        char str[] = new char[16 * 2];
        int k = 0;
        for (int i = 0; i < 16; i++) {
            byte byte0 = tmp[i];
            str[k++] = hexdigits[byte0 >>> 4 & 0xf];
            str[k++] = hexdigits[byte0 & 0xf];
        }
        s = new String(str);
        return s;
    }

    // 返回形式为数字跟字符串
    private static String byteToArrayString(byte bByte) {
        int iRet = bByte;
        // System.out.println("iRet="+iRet);
        if (iRet < 0) {
            iRet += 256;
        }
        int iD1 = iRet / 16;
        int iD2 = iRet % 16;
        return strDigits[iD1] + strDigits[iD2];
    }

    // 返回形式只为数字
    private static String byteToNum(byte bByte) {
        int iRet = bByte;
        System.out.println("iRet1=" + iRet);
        if (iRet < 0) {
            iRet += 256;
        }
        return String.valueOf(iRet);
    }

    // 转换字节数组为16进制字串
    private static String byteToString(byte[] bByte) {
        StringBuffer sBuffer = new StringBuffer();
        for (int i = 0; i < bByte.length; i++) {
            sBuffer.append(byteToArrayString(bByte[i]));
        }
        return sBuffer.toString();
    }

    public static String GetMD5Code(String strObj) {
        if (StringUtils.isEmpty(strObj)) {
            return "";
        }
        String resultString = null;
        try {
            resultString = new String(strObj);
            MessageDigest md = MessageDigest.getInstance("MD5");
            // md.digest() 该函数返回值为存放哈希值结果的byte数组
            resultString = byteToString(md.digest(strObj.getBytes()));
        } catch (NoSuchAlgorithmException ex) {
            ex.printStackTrace();
        }
        return resultString;
    }


}

6.4 部分数据库代码

-- ----------------------------
-- Table structure for permission
-- ----------------------------
DROP TABLE IF EXISTS `permission`;
CREATE TABLE `permission` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `permission_id` varchar(32) NOT NULL COMMENT '权限id',
  `name` varchar(100) NOT NULL COMMENT '权限名称',
  `description` varchar(255) DEFAULT NULL COMMENT '权限描述',
  `url` varchar(255) DEFAULT NULL COMMENT '权限访问路径',
  `perms` varchar(255) DEFAULT NULL COMMENT '权限标识',
  `parent_id` int(11) DEFAULT NULL COMMENT '父级权限id',
  `type` int(1) DEFAULT NULL COMMENT '类型   0：目录   1：菜单   2：按钮',
  `order_num` int(3) DEFAULT '0' COMMENT '排序',
  `icon` varchar(50) DEFAULT NULL COMMENT '图标',
  `status` int(1) NOT NULL COMMENT '状态：1有效；2删除',
  `create_time` datetime DEFAULT NULL,
  `update_time` datetime DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=91 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of permission
-- ----------------------------
BEGIN;
INSERT INTO `permission` VALUES (1, '1', '工作台', '工作台', '/workdest', 'workdest', 0, 1, 1, 'fas fa-home', 1, '2017-09-27 21:22:02', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (2, '2', '权限管理', '权限管理', NULL, NULL, 0, 0, 4, 'fas fa-user-cog', 1, '2017-07-13 15:04:42', '2020-04-19 19:09:22');
INSERT INTO `permission` VALUES (3, '201', '用户管理', '用户管理', '/users', 'users', 2, 1, 1, 'fas fa-chess-queen', 1, '2017-07-13 15:05:47', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (4, '20101', '列表查询', '用户列表查询', '/user/list', 'user:list', 3, 2, 0, NULL, 1, '2017-07-13 15:09:24', '2017-10-09 05:38:29');
INSERT INTO `permission` VALUES (5, '20102', '新增', '新增用户', '/user/add', 'user:add', 3, 2, 0, NULL, 1, '2017-07-13 15:06:50', '2018-02-28 17:58:46');
INSERT INTO `permission` VALUES (6, '20103', '编辑', '编辑用户', '/user/edit', 'user:edit', 3, 2, 0, NULL, 1, '2017-07-13 15:08:03', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (7, '20104', '删除', '删除用户', '/user/delete', 'user:delete', 3, 2, 0, NULL, 1, '2017-07-13 15:08:42', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (8, '20105', '批量删除', '批量删除用户', '/user/batch/delete', 'user:batchDelete', 3, 2, 0, '', 1, '2018-07-11 01:53:09', '2018-07-11 01:53:09');
INSERT INTO `permission` VALUES (9, '20106', '分配角色', '分配角色', '/user/assign/role', 'user:assignRole', 3, 2, 0, NULL, 1, '2017-07-13 15:09:24', '2017-10-09 05:38:29');
INSERT INTO `permission` VALUES (10, '202', '角色管理', '角色管理', '/roles', 'roles', 2, 1, 2, 'fas fa-chess-queen', 1, '2017-07-17 14:39:09', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (11, '20201', '列表查询', '角色列表查询', '/role/list', 'role:list', 10, 2, 0, NULL, 1, '2017-10-10 15:31:36', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (12, '20202', '新增', '新增角色', '/role/add', 'role:add', 10, 2, 0, NULL, 1, '2017-07-17 14:39:46', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (13, '20203', '编辑', '编辑角色', '/role/edit', 'role:edit', 10, 2, 0, NULL, 1, '2017-07-17 14:40:15', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (14, '20204', '删除', '删除角色', '/role/delete', 'role:delete', 10, 2, 0, NULL, 1, '2017-07-17 14:40:57', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (15, '20205', '批量删除', '批量删除角色', '/role/batch/delete', 'role:batchDelete', 10, 2, 0, '', 1, '2018-07-10 22:20:43', '2018-07-10 22:20:43');
INSERT INTO `permission` VALUES (16, '20206', '分配权限', '分配权限', '/role/assign/permission', 'role:assignPerms', 10, 2, 0, NULL, 1, '2017-09-26 07:33:05', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (17, '203', '资源管理', '资源管理', '/permissions', 'permissions', 2, 1, 3, 'fas fa-chess-queen', 1, '2017-09-26 07:33:51', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (18, '20301', '列表查询', '资源列表', '/permission/list', 'permission:list', 17, 2, 0, NULL, 1, '2018-07-12 16:25:28', '2018-07-12 16:25:33');
INSERT INTO `permission` VALUES (19, '20302', '新增', '新增资源', '/permission/add', 'permission:add', 17, 2, 0, NULL, 1, '2017-09-26 08:06:58', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (20, '20303', '编辑', '编辑资源', '/permission/edit', 'permission:edit', 17, 2, 0, NULL, 1, '2017-09-27 21:29:04', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (21, '20304', '删除', '删除资源', '/permission/delete', 'permission:delete', 17, 2, 0, NULL, 1, '2017-09-27 21:29:50', '2018-02-27 10:53:14');
INSERT INTO `permission` VALUES (22, '3', '运维管理', '运维管理', NULL, NULL, 0, 0, 7, 'fas fa-people-carry', 1, '2018-07-06 15:19:26', '2020-04-19 19:09:59');
INSERT INTO `permission` VALUES (23, '301', '数据监控', '数据监控', '/database/monitoring', 'database', 22, 1, 1, 'fas fa-chess-queen', 1, '2018-07-06 15:19:55', '2018-07-06 15:19:55');
INSERT INTO `permission` VALUES (24, '4', '系统管理', '系统管理', NULL, NULL, 0, 0, 5, 'fas fa-cog', 1, '2018-07-06 15:20:38', '2020-04-19 19:08:58');
INSERT INTO `permission` VALUES (25, '401', '在线用户', '在线用户', '/online/users', 'onlineUsers', 24, 1, 1, 'fas fa-chess-queen', 1, '2018-07-06 15:21:00', '2018-07-24 14:58:22');
INSERT INTO `permission` VALUES (32, '1000001992372345', '在线用户查询', '在线用户查询', '/online/user/list', 'onlineUser:list', 25, 2, 0, '', 1, '2018-07-24 15:02:23', '2018-07-24 15:02:23');
INSERT INTO `permission` VALUES (33, '1000002083579304', '踢出用户', '踢出用户', '/online/user/kickout', 'onlineUser:kickout', 25, 2, 0, '', 1, '2018-07-24 15:03:16', '2018-07-24 15:03:16');
INSERT INTO `permission` VALUES (34, '1000000171409776', '批量踢出', '批量踢出', '/online/user/batch/kickout', 'onlineUser:batchKickout', 25, 2, 0, '', 1, '2018-07-24 15:04:09', '2018-07-24 15:04:09');
INSERT INTO `permission` VALUES (35, '1000000863853891', '网站管理', '网站管理', NULL, NULL, 0, 0, 3, 'fas fa-columns', 1, '2018-07-24 15:44:23', '2020-04-19 19:08:46');
INSERT INTO `permission` VALUES (36, '1000001264798222', '基础信息', '基础设置', '/siteinfo', 'siteinfo', 35, 1, 1, 'fas fa-chess-queen', 1, '2018-07-24 15:48:13', '2018-07-24 17:43:39');
INSERT INTO `permission` VALUES (37, '1000000432183856', '保存', '基础设置-保存', '/siteinfo/save', 'siteinfo:save', 36, 2, 0, '', 1, '2018-07-24 15:49:12', '2018-07-24 15:49:12');
INSERT INTO `permission` VALUES (38, '1000001792841328', '系统公告', '系统公告', '/notifies', 'notifies', 35, 1, 2, 'fas fa-chess-queen', 0, '2018-07-24 23:40:45', '2018-09-13 12:34:18');
INSERT INTO `permission` VALUES (39, '1000001351219537', '查询', '系统公告-查询', '/notify/list', 'notify:list', 38, 2, 0, '', 0, '2018-07-24 23:41:30', '2018-09-13 12:33:19');
INSERT INTO `permission` VALUES (40, '1000000791685519', '新增', '系统公告-新增', '/notify/add', 'notify:add', 38, 2, 0, '', 0, '2018-07-24 23:42:20', '2018-09-13 12:33:26');
INSERT INTO `permission` VALUES (42, '1000001531648485', '编辑', '系统公告-编辑', '/notify/edit', 'notify:edit', 38, 2, 0, '', 0, '2018-07-24 23:44:39', '2018-09-13 12:33:52');
INSERT INTO `permission` VALUES (43, '1000001548165826', '删除', '系统公告-删除', '/notify/delete', 'notify:delete', 38, 2, 0, '', 0, '2018-07-24 23:45:27', '2018-09-13 12:33:57');
INSERT INTO `permission` VALUES (44, '1000001530229707', '批量删除', '批量删除公告', '/notify/batch/delete', 'notify:batchDelete', 38, 2, 0, '', 0, '2018-07-24 23:46:25', '2018-09-13 12:34:02');
INSERT INTO `permission` VALUES (45, '1000000237721285', '友链管理', '友情链接', '/links', 'links', 35, 1, 3, 'fas fa-chess-queen', 1, '2018-07-25 11:05:49', '2018-07-25 11:07:03');
INSERT INTO `permission` VALUES (46, '1000001238193773', '查询', '友链-查询', '/link/list', 'link:list', 45, 2, 0, '', 1, '2018-07-25 11:06:44', '2018-07-25 11:06:44');
INSERT INTO `permission` VALUES (47, '1000001305005793', '新增', '友链-新增', '/link/add', 'link:add', 45, 2, 0, '', 1, '2018-07-25 11:07:46', '2018-07-25 11:07:46');
INSERT INTO `permission` VALUES (48, '1000001679037501', '编辑', '友链-编辑', '/link/edit', 'link:edit', 45, 2, 0, '', 1, '2018-07-25 11:08:21', '2018-07-25 11:08:21');
INSERT INTO `permission` VALUES (49, '1000001011730177', '删除', '友链-删除', '/link/delete', 'link:delete', 45, 2, 0, '', 1, '2018-07-25 11:08:53', '2018-07-25 11:08:53');
INSERT INTO `permission` VALUES (50, '1000001312374743', '批量删除', '友链-批量删除', '/link/batch/delete', 'link:batchDelete', 45, 2, 0, '', 1, '2018-07-25 11:09:40', '2018-07-25 11:09:40');
INSERT INTO `permission` VALUES (51, '1000001507480127', '审核', '友链-审核', '/link/audit', 'link:audit', 45, 2, 0, '', 1, '2018-07-25 11:42:28', '2018-07-25 11:42:28');
INSERT INTO `permission` VALUES (52, '1000000602555213', '文章管理', '文章管理', NULL, NULL, 0, 0, 2, 'fas fa-newspaper', 1, '2018-07-25 17:43:12', '2020-04-19 19:04:49');
INSERT INTO `permission` VALUES (53, '1000001729104792', '分类管理', '分类管理', '/categories', 'categories', 52, 1, 3, 'fas fa-chess-queen', 1, '2018-07-25 17:43:50', '2020-04-19 20:33:27');
INSERT INTO `permission` VALUES (54, '1000000015836901', '新增', '新增分类', '/category/add', 'category:add', 53, 2, 0, '', 1, '2018-07-25 17:44:28', '2018-07-25 17:44:28');
INSERT INTO `permission` VALUES (55, '1000001439189167', '编辑', '编辑分类', '/category/edit', 'category:edit', 53, 2, 0, '', 1, '2018-07-25 17:44:52', '2018-07-25 17:44:52');
INSERT INTO `permission` VALUES (56, '1000001647995753', '删除', '删除分类', '/category/delete', 'category:delete', 53, 2, 0, '', 1, '2018-07-25 17:45:28', '2018-07-25 17:45:28');
INSERT INTO `permission` VALUES (58, '1000000841419865', '查询', '分类查询', '/category/list', 'category:list', 53, 2, 0, '', 1, '2018-07-25 17:49:43', '2018-07-25 17:49:43');
INSERT INTO `permission` VALUES (59, '1000000976625379', '标签管理', '标签管理', '/tags', 'tags', 52, 1, 4, 'fas fa-chess-queen', 1, '2018-07-25 18:50:47', '2020-04-19 20:33:35');
INSERT INTO `permission` VALUES (60, '1000002127467055', '查询', '查询标签列表', '/tag/list', 'tag:list', 59, 2, 0, '', 1, '2018-07-25 18:51:20', '2018-07-25 18:51:20');
INSERT INTO `permission` VALUES (61, '1000001458372033', '新增', '新增标签', '/tag/add', 'tag:add', 59, 2, 0, '', 1, '2018-07-25 18:51:42', '2018-07-25 18:51:42');
INSERT INTO `permission` VALUES (62, '1000001832967209', '编辑', '编辑标签', '/tag/edit', 'tag:edit', 59, 2, 0, '', 1, '2018-07-25 18:52:17', '2018-07-25 18:52:17');
INSERT INTO `permission` VALUES (63, '1000000754923037', '删除', '删除标签', '/tag/delete', 'tag:delete', 59, 2, 0, '', 1, '2018-07-25 18:52:40', '2018-07-25 18:52:40');
INSERT INTO `permission` VALUES (64, '1000000759248744', '批量删除', '批量删除标签', '/tag/batch/delete', 'tag:batchDelete', 59, 2, 0, '', 1, '2018-07-25 18:53:14', '2018-07-25 18:53:14');
INSERT INTO `permission` VALUES (65, '1000001038456544', '文章列表', '文章列表', '/articles', 'articles', 52, 1, 2, 'fas fa-chess-queen', 1, '2018-07-29 20:20:23', '2020-04-19 19:23:06');
INSERT INTO `permission` VALUES (66, '1000000686545782', '查询', '查询文章', '/article/list', 'article:list', 65, 2, 0, '', 1, '2018-07-29 20:20:54', '2018-07-29 20:20:54');
INSERT INTO `permission` VALUES (67, '1000001642272578', '新增', '新增文章', '/article/add', 'article:add', 65, 2, 0, '', 1, '2018-07-29 20:21:21', '2018-07-29 20:21:21');
INSERT INTO `permission` VALUES (68, '1000000804049447', '编辑', '编辑文章', '/article/edit', 'article:edit', 65, 2, 0, '', 1, '2018-07-29 20:21:50', '2018-07-29 20:21:50');
INSERT INTO `permission` VALUES (69, '1000000488864959', '删除', '删除文章', '/article/delete', 'article:delete', 65, 2, 0, '', 1, '2018-07-29 20:23:27', '2018-07-29 20:23:27');
INSERT INTO `permission` VALUES (70, '1000000512435306', '批量删除', '批量删除文章', '/article/batch/delete', 'article:batchDelete', 65, 2, 0, '', 1, '2018-07-29 20:23:49', '2018-07-29 20:23:49');
INSERT INTO `permission` VALUES (71, '1000000899091444', '发布文章', '写文章', '/article/add', 'article:add', 52, 1, 1, 'fas fa-chess-queen', 1, '2018-07-29 20:39:49', '2020-04-19 19:16:06');
INSERT INTO `permission` VALUES (72, '1000000224901858', '评论管理', '评论管理', '/comments', 'comments', 35, 1, 4, 'fas fa-chess-queen', 1, '2018-08-10 09:44:41', '2018-09-19 15:44:13');
INSERT INTO `permission` VALUES (73, '1000001579533936', '查询', '查询', '/comment/list', 'comment:list', 72, 2, 0, '', 1, '2018-08-10 09:46:54', '2018-08-10 09:46:54');
INSERT INTO `permission` VALUES (74, '1000000663968031', '审核', '审核评论', '/comment/audit', 'comment:audit', 72, 2, 0, '', 1, '2018-08-10 09:57:11', '2018-08-10 09:57:11');
INSERT INTO `permission` VALUES (75, '1000000322655547', '回复', '回复评论', '/comment/reply', 'comment:audit', 72, 2, 0, '', 1, '2018-08-10 10:04:28', '2018-08-10 10:04:28');
INSERT INTO `permission` VALUES (76, '1000001419287014', '删除', '删除评论', '/comment/delete', 'comment:delete', 72, 2, 0, '', 1, '2018-08-10 10:06:27', '2018-08-10 10:06:27');
INSERT INTO `permission` VALUES (77, '1000002075182223', '批量删除', '批量删除评论', '/comment/batch/delete', 'comment:batchDelete', 72, 2, 0, '', 1, '2018-08-10 10:07:57', '2018-08-10 10:07:57');
INSERT INTO `permission` VALUES (78, '1000000587822241', '上传管理', '上传管理', NULL, NULL, 0, 0, 6, 'fas fa-cloud-upload-alt', 1, '2018-09-12 17:08:41', '2020-04-19 19:09:35');
INSERT INTO `permission` VALUES (79, '1000000493635111', '云存储配置', '云存储配置', '/attachment/config', 'upload:config', 78, 1, 1, 'fas fa-chess-queen', 1, '2018-09-12 17:10:09', '2020-03-07 14:31:41');
INSERT INTO `permission` VALUES (80, '1000000318760332', '保存', '保存云存储配置', '/upload/saveConfig', 'upload:saveConfig', 79, 2, 0, '', 1, '2018-09-12 17:10:42', '2018-09-12 17:10:42');
INSERT INTO `permission` VALUES (81, '1000000919723998', '主题管理', '主题管理', '/themes', 'themes', 35, 1, 2, 'fas fa-chess-queen', 1, '2018-09-19 15:43:50', '2018-09-19 15:43:50');
INSERT INTO `permission` VALUES (82, '1000000784272506', '查询', '主题列表', '/theme/list', 'theme:list', 81, 2, 0, '', 1, '2018-09-19 15:44:50', '2018-09-19 15:44:50');
INSERT INTO `permission` VALUES (83, '1000000215201942', '新增', '新增主题', '/theme/add', 'theme:add', 81, 2, 0, '', 1, '2018-09-19 15:45:34', '2018-09-19 15:45:34');
INSERT INTO `permission` VALUES (84, '1000001065007557', '启用', '启用主题', '/theme/use', 'theme:use', 81, 2, 0, '', 1, '2018-09-19 15:46:28', '2018-09-19 15:46:28');
INSERT INTO `permission` VALUES (85, '1000000431577803', '删除', '删除主题', '/theme/delete', 'theme:delete', 81, 2, 0, '', 1, '2018-09-19 15:48:06', '2018-09-19 15:48:06');
INSERT INTO `permission` VALUES (86, '1000000207002458', '批量删除', '批量删除主题', 'theme/batch/delete', 'theme:batchDelete', 81, 2, 0, '', 1, '2018-09-19 15:48:39', '2018-09-19 15:48:39');
INSERT INTO `permission` VALUES (87, '1000002051091207', '编辑', '编辑主题', '/theme/edit', 'theme:edit', 81, 2, 0, '', 1, '2018-09-19 15:54:34', '2018-09-19 15:54:34');
INSERT INTO `permission` VALUES (88, '5011629010561508', '批量推送', '批量推送百度', '/article/batch/push', 'article:batchPush', 65, 2, 0, '', 1, '2018-10-28 15:15:00', '2018-10-28 15:15:00');

COMMIT;

-- ----------------------------
-- Table structure for role
-- ----------------------------
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `role_id` varchar(20) NOT NULL COMMENT '角色id',
  `name` varchar(50) NOT NULL COMMENT '角色名称',
  `description` varchar(255) DEFAULT NULL COMMENT '角色描述',
  `status` int(1) NOT NULL COMMENT '状态：1有效；2删除',
  `create_time` datetime DEFAULT NULL COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL COMMENT '更新时间',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of role
-- ----------------------------
BEGIN;
INSERT INTO `role` VALUES (1, '1', '超级管理员', '超级管理员', 1, '2017-06-28 20:30:05', '2017-06-28 20:30:10');
INSERT INTO `role` VALUES (2, '2', '管理员', '管理员', 1, '2017-06-30 23:35:19', '2017-10-11 09:32:33');
INSERT INTO `role` VALUES (3, '3', '普通用户', '普通用户', 1, '2017-06-30 23:35:44', '2018-07-13 11:44:06');
INSERT INTO `role` VALUES (4, '4', '数据库管理员', '数据库管理员', 1, '2017-07-12 11:50:22', '2017-10-09 17:38:02');
COMMIT;

-- ----------------------------
-- Table structure for role_permission
-- ----------------------------
DROP TABLE IF EXISTS `role_permission`;
CREATE TABLE `role_permission` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `role_id` varchar(20) NOT NULL COMMENT '角色id',
  `permission_id` varchar(20) NOT NULL COMMENT '权限id',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1917 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of role_permission
-- ----------------------------
BEGIN;
INSERT INTO `role_permission` VALUES (1843, '1', '1');
INSERT INTO `role_permission` VALUES (1844, '1', '1000000602555213');
INSERT INTO `role_permission` VALUES (1845, '1', '1000000899091444');
INSERT INTO `role_permission` VALUES (1846, '1', '1000001038456544');
INSERT INTO `role_permission` VALUES (1847, '1', '1000000686545782');
INSERT INTO `role_permission` VALUES (1848, '1', '1000001642272578');
INSERT INTO `role_permission` VALUES (1849, '1', '1000000804049447');
INSERT INTO `role_permission` VALUES (1850, '1', '1000000488864959');
INSERT INTO `role_permission` VALUES (1851, '1', '1000000512435306');
INSERT INTO `role_permission` VALUES (1852, '1', '5.011629010561508e15');
INSERT INTO `role_permission` VALUES (1853, '1', '1000001729104792');
INSERT INTO `role_permission` VALUES (1854, '1', '1000000015836901');
INSERT INTO `role_permission` VALUES (1855, '1', '1000001439189167');
INSERT INTO `role_permission` VALUES (1856, '1', '1000001647995753');
INSERT INTO `role_permission` VALUES (1857, '1', '1000000841419865');
INSERT INTO `role_permission` VALUES (1858, '1', '1000000976625379');
INSERT INTO `role_permission` VALUES (1859, '1', '1000002127467055');
INSERT INTO `role_permission` VALUES (1860, '1', '1000001458372033');
INSERT INTO `role_permission` VALUES (1861, '1', '1000001832967209');
INSERT INTO `role_permission` VALUES (1862, '1', '1000000754923037');
INSERT INTO `role_permission` VALUES (1863, '1', '1000000759248744');
INSERT INTO `role_permission` VALUES (1864, '1', '1000000863853891');
INSERT INTO `role_permission` VALUES (1865, '1', '1000001264798222');
INSERT INTO `role_permission` VALUES (1866, '1', '1000000432183856');
INSERT INTO `role_permission` VALUES (1867, '1', '1000000919723998');
INSERT INTO `role_permission` VALUES (1868, '1', '1000000784272506');
INSERT INTO `role_permission` VALUES (1869, '1', '1000000215201942');
INSERT INTO `role_permission` VALUES (1870, '1', '1000001065007557');
INSERT INTO `role_permission` VALUES (1871, '1', '1000000431577803');
INSERT INTO `role_permission` VALUES (1872, '1', '1000000207002458');
INSERT INTO `role_permission` VALUES (1873, '1', '1000002051091207');
INSERT INTO `role_permission` VALUES (1874, '1', '1000000237721285');
INSERT INTO `role_permission` VALUES (1875, '1', '1000001238193773');
INSERT INTO `role_permission` VALUES (1876, '1', '1000001305005793');
INSERT INTO `role_permission` VALUES (1877, '1', '1000001679037501');
INSERT INTO `role_permission` VALUES (1878, '1', '1000001011730177');
INSERT INTO `role_permission` VALUES (1879, '1', '1000001312374743');
INSERT INTO `role_permission` VALUES (1880, '1', '1000001507480127');
INSERT INTO `role_permission` VALUES (1881, '1', '1000000224901858');
INSERT INTO `role_permission` VALUES (1882, '1', '1000001579533936');
INSERT INTO `role_permission` VALUES (1883, '1', '1000000663968031');
INSERT INTO `role_permission` VALUES (1884, '1', '1000000322655547');
INSERT INTO `role_permission` VALUES (1885, '1', '1000001419287014');
INSERT INTO `role_permission` VALUES (1886, '1', '1000002075182223');
INSERT INTO `role_permission` VALUES (1887, '1', '2');
INSERT INTO `role_permission` VALUES (1888, '1', '201');
INSERT INTO `role_permission` VALUES (1889, '1', '20101');
INSERT INTO `role_permission` VALUES (1890, '1', '20102');
INSERT INTO `role_permission` VALUES (1891, '1', '20103');
INSERT INTO `role_permission` VALUES (1892, '1', '20104');
INSERT INTO `role_permission` VALUES (1893, '1', '20105');
INSERT INTO `role_permission` VALUES (1894, '1', '20106');
INSERT INTO `role_permission` VALUES (1895, '1', '202');
INSERT INTO `role_permission` VALUES (1896, '1', '20201');
INSERT INTO `role_permission` VALUES (1897, '1', '20202');
INSERT INTO `role_permission` VALUES (1898, '1', '20203');
INSERT INTO `role_permission` VALUES (1899, '1', '20204');
INSERT INTO `role_permission` VALUES (1900, '1', '20205');
INSERT INTO `role_permission` VALUES (1901, '1', '20206');
INSERT INTO `role_permission` VALUES (1902, '1', '203');
INSERT INTO `role_permission` VALUES (1903, '1', '20301');
INSERT INTO `role_permission` VALUES (1904, '1', '20302');
INSERT INTO `role_permission` VALUES (1905, '1', '20303');
INSERT INTO `role_permission` VALUES (1906, '1', '20304');
INSERT INTO `role_permission` VALUES (1907, '1', '4');
INSERT INTO `role_permission` VALUES (1908, '1', '401');
INSERT INTO `role_permission` VALUES (1909, '1', '1000001992372345');
INSERT INTO `role_permission` VALUES (1910, '1', '1000002083579304');
INSERT INTO `role_permission` VALUES (1911, '1', '1000000171409776');
INSERT INTO `role_permission` VALUES (1912, '1', '1000000587822241');
INSERT INTO `role_permission` VALUES (1913, '1', '1000000493635111');
INSERT INTO `role_permission` VALUES (1914, '1', '1000000318760332');
INSERT INTO `role_permission` VALUES (1915, '1', '3');
INSERT INTO `role_permission` VALUES (1916, '1', '301');
COMMIT;

-- ----------------------------
-- Table structure for sys_config
-- ----------------------------
DROP TABLE IF EXISTS `sys_config`;
CREATE TABLE `sys_config` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `sys_key` varchar(50) DEFAULT NULL COMMENT 'key',
  `sys_value` varchar(2000) DEFAULT NULL COMMENT 'value',
  `status` tinyint(4) DEFAULT '1' COMMENT '状态   0：隐藏   1：显示',
  `remark` varchar(500) DEFAULT NULL COMMENT '备注',
  PRIMARY KEY (`id`),
  UNIQUE KEY `key` (`sys_key`)
) ENGINE=InnoDB AUTO_INCREMENT=12 DEFAULT CHARSET=utf8 COMMENT='系统配置信息表';

-- ----------------------------
-- Records of sys_config
-- ----------------------------
BEGIN;
INSERT INTO `sys_config` VALUES (1, 'CLOUD_STORAGE_CONFIG', '{\"type\":1,\"qiniuDomain\":\"http://xxx.com\",\"qiniuPrefix\":\"img/blog\",\"qiniuAccessKey\":\"xxxAccessKey\",\"qiniuSecretKey\":\"xxxSecretKey\",\"qiniuBucketName\":\"blog\",\"aliyunDomain\":\"\",\"aliyunPrefix\":\"\",\"aliyunEndPoint\":\"\",\"aliyunAccessKeyId\":\"\",\"aliyunAccessKeySecret\":\"\",\"aliyunBucketName\":\"\",\"qcloudDomain\":\"\",\"qcloudPrefix\":\"\",\"qcloudSecretId\":\"\",\"qcloudSecretKey\":\"\",\"qcloudBucketName\":\"\",\"qcloudRegion\":\"\"}', 1, '云存储配置信息');
INSERT INTO `sys_config` VALUES (2, 'SITE_NAME', 'MC智能管理系統', 1, '网站名称');
INSERT INTO `sys_config` VALUES (3, 'SITE_KWD', 'Java JavaScript Spring SpringBoot Vue React', 1, '网站关键字');
INSERT INTO `sys_config` VALUES (4, 'SITE_DESC', '个人博客网站，技术交流，经验分享。', 1, '网站描述');
INSERT INTO `sys_config` VALUES (5, 'SITE_LOGO', 'http://localhost:8080/img/mc-cms-logo.jpg', 1, '站点logo');
INSERT INTO `sys_config` VALUES (6, 'SITE_PERSON_PIC', 'http://localhost:8080/img/mc-cms-logo.jpg', 1, '站长头像');
INSERT INTO `sys_config` VALUES (7, 'SITE_PERSON_NAME', 'MC智能管理系統', 1, '站长名称');
INSERT INTO `sys_config` VALUES (8, 'SITE_PERSON_DESC', 'MC智能管理系統,可以讓你智能管理機房/倉庫!', 1, '站长描述');
INSERT INTO `sys_config` VALUES (9, 'BAIDU_PUSH_URL', 'https://blog.csdn.net/mr_lili_1986?type=blog', 1, '博客地址');
COMMIT;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
create table user
(
    user_id         varchar(20)  not null comment '用户id',
    username        varchar(50)  not null comment '用户名',
    password        varchar(50)  not null,
    salt            varchar(128) null comment '加密盐值',
    nickname        varchar(50)  null comment '昵称',
    email           varchar(50)  null comment '邮箱',
    phone           varchar(50)  null comment '联系方式',
    sex             int(255)     null comment '年龄：1男2女',
    age             int(3)       null comment '年龄',
    img             varchar(255) null comment '头像地址',
    status          int(1)       not null comment '用户状态：1有效; 2删除',
    create_time     datetime     null comment '创建时间',
    update_time     datetime     null comment '更新时间',
    last_login_time datetime     null comment '最后登录时间',
    constraint user_user_id_uindex
        unique (user_id)
)
    charset = utf8;

-- ----------------------------
-- Records of user
-- ----------------------------
BEGIN;
INSERT INTO `user` VALUES ('1', 'admin', '53911073f14abb1987905ff2ae66003d', '9524c5f3c8c886acd44ea01802121457', 'mc', '888@qq.com', '15666666666', 1, 22, 'http://localhost:8080/img/mc-cms-logo.jpg', 1, '2018-05-23 21:22:06', '2018-07-17 23:04:46', '2019-09-17 23:20:04');
COMMIT;

-- ----------------------------
-- Table structure for user_role
-- ----------------------------
DROP TABLE IF EXISTS `user_role`;
CREATE TABLE `user_role` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `user_id` varchar(20) NOT NULL COMMENT '用户id',
  `role_id` varchar(20) NOT NULL COMMENT '角色id',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user_role
-- ----------------------------
BEGIN;
INSERT INTO `user_role` VALUES (1, '1', '1');
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

第八章结论

本文研究了在线学习交流平台系统的设计与实现，在文章开端首先对个研究背景、研究现状和研究内容作了简单的介绍，然后通过系统分析，引申出本系统研究的主要内容。

通过对java语言、springboot框架和mysql数据库的简介，系统的说明了在线学习交流平台的设计与实现的可行性，本文结论及研究成果如下：实现了java与mysql相结合构建的在线学习交流平台，通过本次对在线学习交流平台的设计与实现的研究与实现，我感触到学习一门新技术，最重要的是实践，只有多动手才能尽快掌握它，一个系统的开发，经验是最重要的，经验不足，就难免会有许多考虑不周之处。要想吸引更多的用户，系统的界面必须要美观、有特色、友好，功能要健全。

由于在此之前对于java知识并不了解，所以从一开始就碰到许多困难，例如一开始的页面显示不规范、数据库连接有问题已经无法实现参数的传递等等，不过通过我不断的查阅相关的资料，以及向老师同学请教，最后出现的所有的问题都得到了解决，通过这次的系统开发，我学到了很多的知识，也明白了自己在哪些方面有不足的地方，尤其是学会如何从大量的信息中筛选出所需有用的信息，同时我更加深刻的体会到了，虽然书本上的大部分知识都是有价值，正确的，但实际上每个人编程的思路和对数据处理的方法、思想都是不同的，这就要求我们一定要通过实践才能找到解决问题的方案。在此次毕业设计活动中，我不断的提高了自己，也得到了宝贵的经验，我相信这些对我以后的发展都会有很大帮助。

通过这次对在线学习交流平台的开发，让我学到了更多的知识，同时通过这次系统的设计也让我明白了自己在哪方面有不足，以后加以学习争取可以开发住更多有用的适用的系统软件，本次系统的设计提高了我的编程水平，为了我今后系统的开发打下了结实的基础。

参考文献
[1] 高永强.基于深度学习的个性化推荐研究[J].工业控制计算机,2021,34(10):90-92.
[2] 张安淇,李元旭.互联网知识共享平台信息过载效应与弱化机制——基于知乎的案例研究[J].
情报科学,2020,38(01):24-29+41.DOI:10.13833/j.issn.1007-7634.2020.01.004.
[3] Xiaoqin Shelley Zhang,Xiaojie Zhang,Pavan Kaparthi. Combat Information Overload Problem in
Social Networks With Intelligent Information-Sharing and Response Mechanisms[J]. IEEE
Transactions on Computational Social Systems,2020.
[4] 刘馨蔚.“它经济”升温宠物吸金强劲[J].中国对外贸易,2021(04):54-55.
[5] 狗民网.2020 年中国宠物行业白皮书.
[6] Lou Feng,Ning Xin. E-Commerce Recommendation Technology Based on Collaborative
Filtering Algorithm and Mobile Cloud Computing[J]. Wireless Communications and Mobile
Computing,2022,2022.
[7] Goldberg D, Nichols D.A, Oki B.M, et al. Using collaborative filtering to weave an information
tapestry[J]. Communications of The ACM, 1992, 35(12): 61-70.
[8] Konstan J.A, Miller B.N, Maltz D.A, et al. GroupLens: Applying collaborative filtering to
Usenet news[J]. Communications of The ACM, 1997, 40(3): 77-87.
[9] Venture Beat [EB/OB]. htp:/venturebeat.comn/ [2009-04].
[10] He X, Deng K, Wang X, et al. LightGCN: Simplifying and Powering Graph Convolution
Network for Recommendation[C]. In ACM 2020.
[11] Wang Hulong,Shen Zesheng,Jiang Shuzhen,Sun Guang,Zhang Ren Jie. User-based
Collaborative Filtering Algorithm Design and Implementation[J]. Journal of Physics: Conference
Series,2021,1757(1).0
[12] 邓园园，吴美香,潘家辉.基于物品的改进协同过滤算法及应用[].计算机系统应用，
2019,28(01):184-189.
[13] Jena, Kalyan Kumar,Bhoi, Sourav Kumar,Mallick, Chittaranjan,Jena, Soumya Ranjan,Kumar,
Raghvendra,Long, Hoang Viet,Son, Nguyen Thi Kim. Neural model based collaborative filtering for
movie recommendation system[J]. International Journal of Information
Technology,2022(prepublish).
[14] Zhang Kaihan,Wang Zhiqiang,Liang Jiye,Zhao Xingwang. A Bayesian matrix factorization
model for dynamic user embedding in recommender system[J]. Frontiers of Computer
Science,2022,16(5).
[15] 吴青洋,程旭,邓程鹏,丁浩轩,张宏,林胜海.基于聚类和奖惩用户模型的协同过滤算法[J].计
算机系统应用,2020,29(08):135-143.DOI:10.15888/j.cnki.csa.007491.
[16] 陆文超,崔海朋.一种基于融合自编码与神经网络的协同过滤算法[J].中国水运(下半
月),2022,22(03):18-20.
[17] 王宁,沈正一,崔德龙,刘晴瑞.结合协同过滤与隐语义模型的视频推荐策略[J].湖南工程学院
学报(自然科学版),2021,31(04):40-43.DOI:10.15987/j.cnki.hgbjbz.2021.04.007.
[18] Thomas N. Kipf and Max Welling. Semi-Supervised Classification with Graph Convolutional
Networks. In ICLR.2017
[19] 张术梅.MVC架构下网站的设计与实现思考[J].信息记录材
料,2022,23(01):92-94.DOI:10.16009/j.cnki.cn13-1295/tq.2022.01.036.
[20] R.Karthik,T.S.Sridhar,R.Sriram. Digital Food ordering system based on Spring Framework[J].
International Journal of Recent Technology and Engineering (IJRTE),2020,8(6).
[21] 曹华山.SSM 框架在 Web 应用开发中的设计与实现[J].无线互联科技,2021,18(11):108-109.
[22] 胡世洋,赖森林.浅论SSM框架在构建“微农”信息服务中的应用[J].电脑知识与技
术,2021,17(34):4-6.DOI:10.14004/j.cnki.ckt.2021.3589.
[23] Di Lu,Yuping Qiu,Chun Qian,Xi Wang,Wei Tan. Design of Campus Resource Sharing
Platform based on SSM Framework[J]. IOP Conference Series: Materials Science and
Engineering,2019,490(6).
[24] Xiaojie Guo,Tingmei Wang*. Design and Implementation of Graduate Information
Management System Based on SSM Framework[J]. Journal of Simulation,2020,8(2).
[25] Feng Leijie,Mu Zehui. Research on Mobile Point Exchange System Based on Collaborative
Filtering Recommendation Algorithm[J]. International Journal of Advanced Network, Monitoring
and Controls,2021,6(2).
[26] 赖佳星.基于Bootstrap和JavaScript技术设计与实现简易Web计算器[J].科技资
讯,2022,20(01):13-16.DOI:10.16661/j.cnki.1672-3791.2110-5042-2874.
[27] Haokun Qi, Qingyang Feng , Junyan Zhang. Technology and analysis of JSP-based
merchandising system[J]. Scientific Journal of Intelligent Systems Research,2022,4(2).
[28] 周公平.基于jQuery框架的Web前端开发设计方法研究[J].信息与电脑(理论
版),2022,34(05):128-130.
[29] Liu Hongqing,Liu Yan. Research on Personalized Blog Customization System Based on
AJAX[C]//.Proceedings of 2018 5th International Conference on Electrical & Electronics
Engineering and Computer Science(ICEEECS 2018).,2018:136-139.
[30] 朱克武.Ajax技术在就业网站用户信息管理中的应用[J].电脑知识与技
术,2021,17(33):9-11.DOI:10.14004/j.cnki.ckt.2021.3303.

致谢

在毕业设计的过程中，通过对在线学习交流平台的设计，我受益匪浅。在这段时间里，大学四年所学的知识得到了综合的运用，掌握了软件开发的基本方法，了解了当今软件开发的一些新技术。

本设计是在A老师的悉心指导和热情帮助下完成的。无论在理论上还是在实践中，老师都给予我很大的帮助，每当遇到困难时，老师总是耐心的给我讲解，老师认真负责的工作态度，让我敬佩。值此论文完成之际，特别向指导老师表示衷心的感谢和崇高的敬意，谢谢他细心而又耐心地辅导，使得我得以顺利的完成毕业设计开发工作，同时也要感谢其他帮助过我的老师和同学，他们在我完成设计过程中给予我很大的帮助，在此一并表示感谢。

在论文编写过程中，虽然反复推敲核证，但由于本人水平有限，加上时间紧促，本文一定有不少缺点和不足，恳请各位老师给予帮助和指正。

------------------------------------------------------------------
