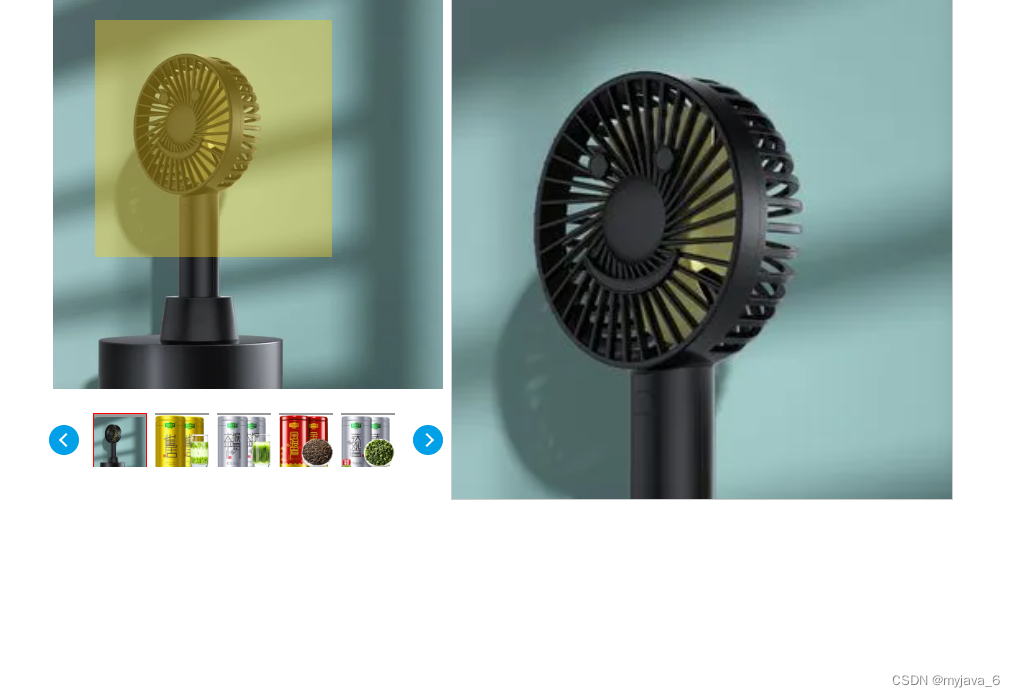

图片放大镜
此案例代码用到的技术栈有vue2、jquery等
下载安装jQuery的命令如下
npm install jquery
代码如下
<template>
<div>
<!-- <h3>放大镜案例</h3> -->
<!-- 放大镜 -->
<div class="loupe-box">
<div class="img-box">
<img :src="imgUrlValue" alt="图片" />
<div class="slide"></div>
<div class="mark"></div>
<div class="view"></div>
</div>
<!-- 图片盒子 -->
<div class="seamless-warp3">
<span class="left-arrow" @click="clickLeftArrow"></span>
<span class="right-arrow" @click="clickRightArrow"></span>
<div class="slideshow-outer-box">
<div class="slideshow-box">
<div
v-for="(item, index) in slideList"
class="img-item-box"
:key="item"
@mouseover="
(event, imgUrl) => mouseoverSlideHandler(event, item, index)
"
>
<img style="width: 100%; height: 100%" :src="item" />
</div>
</div>
</div>
</div>
</div>
</div>
</template>
<script>
import $ from 'jquery'
export default {
data() {
return {
slideList: [
"https://img2.baidu.com/it/u=3147571584,2473606295&fm=253&fmt=auto&app=138&f=JPEG?w=500&h=500",
"https://img13.360buyimg.com/n1/s150x150_jfs/t1/146619/4/38072/146082/64996004F27ab3fcf/438de053a6d14f47.jpg",
"https://img14.360buyimg.com/n1/s150x150_jfs/t1/45273/11/23686/153723/649960c8Fd950f334/0f2a9a08729c92ea.jpg",
"https://img13.360buyimg.com/n1/s150x150_jfs/t1/54800/18/24153/237713/64acc183F668e310c/c8e702715b166e70.jpg",
"https://img13.360buyimg.com/n1/s150x150_jfs/t1/147852/2/34285/219955/648184f7Fee9bd8c3/958a54714beffa0e.jpg",
"https://img12.360buyimg.com/n1/s150x150_jfs/t1/218622/3/35340/219866/64ccad2bFa48c85d8/e3d667e5c5e84100.jpg",
"https://img13.360buyimg.com/n1/jfs/t1/107637/3/37127/306072/6419a5b0F8b2c5ca2/89b71bb9fdf05cd1.jpg",
],
// 需要放大的图
imgUrlValue: "",
clickLeftNum: 1,
clickRightNum: 1,
};
},
mounted() {
this.imgUrlValue = this.slideList[0];
// 初始化图片容器长度
$(".slideshow-box").css("width", this.slideList.length * 62 + "px");
this.loupeInit();
},
methods: {
// 左边箭头
clickLeftArrow() {
// 图片视口和图片容器左边到浏览器距离小于等于则禁止点击
// 进行点击
if (
$(".slideshow-outer-box").offset().left <=
$(".slideshow-box").offset().left
) {
// $('.slideshow-box').css("transform",`translate(${this.clickLeftNum * 62}px, 0px)`)
// $('.slideshow-box').css("transition",`all 400ms linear 0s`)
// 进行点击右边箭头样式
$(".left-arrow").hover(
function () {
$(this).css("background-color", "#b9b9b9");
},
function () {
$(this).css("background-color", "#00a0e9");
}
);
return;
}
// 进行点击
else {
$(".slideshow-box").css(
"transform",
`translate(${this.clickLeftNum * 62}px, 0px)`
);
$(".slideshow-box").css("transition", `all 400ms linear 0s`);
$(".right-arrow:hover").css("background-color", "#0F39FA");
// 禁止点击右边箭头样式 鼠标移入 鼠标移出
$(".right-arrow").hover(
function () {
$(this).css("background-color", "#0f39fa");
},
function () {
$(this).css("background-color", "#00a0e9");
}
);
}
this.clickLeftNum += 1;
this.clickRightNum -= 1;
},
// 右边箭头
clickRightArrow() {
// 总移动的距离小于可视区盒子则可进行点击否则禁止点击
// if( ($('.slideshow-box').get(0).offsetWidth - this.clickRightNum * 62) >= $('.slideshow-outer-box').get(0).offsetWidth ) {
// 图片视口和图片容器右边到浏览器距离小于则进行点击
if (
$(".slideshow-outer-box").offset().left +
$(".slideshow-outer-box").outerWidth() <
$(".slideshow-box").offset().left + $(".slideshow-box").outerWidth()
) {
$(".slideshow-box").css(
"transform",
`translate(${this.clickRightNum * -62}px, 0px)`
);
$(".slideshow-box").css("transition", `all 400ms linear 0s`);
// 可进行点击左边样式
$(".left-arrow").hover(
function () {
$(this).css("background-color", "#0f39fa");
},
function () {
$(this).css("background-color", "#00a0e9");
}
);
}
// 禁止点击
else {
// 禁止点击箭头样式 鼠标移入 鼠标移出
$(".right-arrow").hover(
function () {
$(this).css("background-color", "#b9b9b9");
},
function () {
$(this).css("background-color", "#00a0e9");
}
);
return;
}
this.clickRightNum += 1;
this.clickLeftNum -= 1;
},
// 鼠标移上图片
mouseoverSlideHandler(event, imgUrl, index) {
this.imgUrlValue = imgUrl;
// 循环排他
$(".img-item-box").each(function (index1, element) {
$(element).css("border", "none");
if (index == index1) {
$(element).css("border", "1px solid red");
}
});
// 鼠标移上去切换放大镜图片
$(".big-img").get(
0
).style.background = `url(${this.imgUrlValue}) no-repeat 0 0/cover`;
},
// 放大镜操作
loupeInit() {
// 容器和容器的宽高
var box = $(".img-box").get(0);
var boxW = box.offsetWidth;
var boxH = box.offsetHeight;
// 滑块和滑块的宽高
var slide = $(".slide").get(0);
var slideW = slide.offsetWidth;
var slideH = slide.offsetHeight;
// 初始隐藏滑块和放大镜
$(".slide").css("display", "none");
// 设置鼠标移上去显示滑块 移除隐藏滑块
$(".img-box").hover(
function () {
$(".slide").css("display", "block");
$(".view").css("display", "block");
},
function () {
$(".slide").css("display", "none");
$(".view").css("display", "none");
}
);
// 获取大的滑块
var view = $(".view").get(0);
var viewW = view.offsetWidth; //500
var viewH = view.offsetHeight; //500
// 计算比例: 大滑块/小滑块 = 大图片/小图片
var calc = viewW / slideW;
// console.log(calc);
// 根据比例创建大图片
var bigImg = $("<div>").get(0);
bigImg.style.width = boxW * calc + "px";
bigImg.style.height = boxH * calc + "px";
bigImg.style.background = `url(${this.imgUrlValue}) no-repeat 0 0/cover`;
bigImg.style.position = "absolute";
bigImg.className = "big-img";
view.appendChild(bigImg);
// 隐藏放大镜
$(".view").css("display", "none");
box.onmousemove = function (e) {
// 鼠标的坐标
// console.log(e.target, "=>", e.offsetX, e.offsetY); // 鼠标在大盒子, 鼠标在小盒子
// 把滑块的中心, 挪动到鼠标的坐标
var left = e.offsetX - slideW / 2;
var top = e.offsetY - slideH / 2;
// 边界控制 left和top能到达的最大值
var MAX_LEFT = boxW - slideW;
var MAX_TOP = boxH - slideH;
// 边界控制
left = left < 0 ? 0 : left > MAX_LEFT ? MAX_LEFT : left;
top = top < 0 ? 0 : top > MAX_TOP ? MAX_TOP : top;
// 黄色滑块移动
slide.style.left = left + "px";
slide.style.top = top + "px";
// view显示的大图片的移动
bigImg.style.left = -left * calc + "px";
bigImg.style.top = -top * calc + "px";
};
},
},
};
</script>
<style lang="less" scoped>
.loupe-box {
// margin: 0 auto;
margin-left: 100px;
margin-right: 50px;
width: 390px;
.img-box {
// width: 330px;
// margin-right: 20px;
width: 390px;
height: 390px;
position: relative;
img {
width: 100%;
height: 100%;
// z-index: 100;
}
// 滑块
.slide {
width: 237px;
height: 237px;
background-color: #f5cd23;
opacity: 0.4;
position: absolute;
left: 0;
top: 0;
}
// 遮罩层
.mark {
width: 100%;
height: 100%;
position: absolute;
left: 0;
top: 0;
background: transparent;
}
// 放大视口
.view {
z-index: 100;
width: 500px;
height: 500px;
// float: left;
position: absolute;
left: 249px;
top: 0px;
outline: 1px solid #ccc;
margin-left: 150px;
// position: relative;
overflow: hidden;
}
}
.seamless-warp3 {
// overflow: hidden;
height: 54px;
width: 100%;
// width: 62px * 5;
margin: 0 auto;
margin-top: 24px;
position: relative;
.slideshow-outer-box {
overflow: hidden;
height: 54px;
width: 62px * 5;
margin: 0 auto;
}
.left-arrow,
.right-arrow {
// position: relative;
position: absolute;
z-index: 1000;
display: inline-block;
// width: 40px;
// height: 40px;
width: 30px;
height: 30px;
border-radius: 50%;
background-color: #00a0e9;
cursor: pointer;
&:hover {
background-color: #0f39fa;
}
&::before {
position: absolute;
content: "";
/* width: 16px;
height: 16px;
top: 12px;
left: 15px; */
width: 10px;
height: 10px;
top: 10px;
left: 12px;
border: 2px solid #fff;
}
}
.left-arrow {
top: calc(50% - 15px);
left: -4px;
}
.right-arrow {
top: calc(50% - 15px);
right: 0px;
}
.left-arrow::before {
border-right: 0;
border-bottom: 0;
transform: rotate(-45deg);
}
.right-arrow::before {
position: absolute;
border-left: 0;
border-top: 0;
left: 9px;
transform: rotate(-45deg);
}
.slideshow-box {
width: 62px * 10;
height: 54px;
.img-item-box {
float: left;
width: 54px;
height: 54px;
line-height: 54px;
background-color: #999;
color: #fff;
text-align: center;
font-size: 14px;
margin-right: 8px;
}
.img-item-box:hover {
border: 1px solid red;
}
}
}
}
</style>
