DrawerLayoutMenu使用详解

DrawerLayoutMenu使用详解

如今许多APP都在使用DrawerLayout抽屉式菜单，Material Design统一了侧滑式菜单和样式，重新定义了一个抽屉式导航应该有的外观和感受。关于DrawerLayout，这里主要对其使用进行介绍。

在应用或模块的 build.gradle 文件中添加所需工件的依赖项：

dependencies {
        implementation "androidx.drawerlayout:drawerlayout:1.0.0"
    }

MainActivity.java

DrawerLayout.DrawerListener：监听器用于监控有关抽屉的事件，例如菜单展开是更新actionbar菜单等等，以下为基本方法：
1.onDrawerSlide： 菜单滑动时调用
2.onDrawerOpened： 打开菜单时调用
3.onDrawerClosed： 关闭菜单时调用
4.onDrawerStateChanged： 菜单状态改变时调用

package com.dalong.drawlayoutmenu;

import android.content.Context;
import android.os.Bundle;
import android.support.design.widget.CoordinatorLayout;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.NavigationView;
import android.support.design.widget.Snackbar;
import android.support.v4.view.GravityCompat;
import android.support.v4.widget.DrawerLayout;
import android.support.v7.app.ActionBarDrawerToggle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.view.Display;
import android.view.MenuItem;
import android.view.MotionEvent;
import android.view.View;
import android.view.WindowManager;

public class MainActivity extends AppCompatActivity
        implements NavigationView.OnNavigationItemSelectedListener {
    private CoordinatorLayout right;
    private NavigationView left;
    private boolean isDrawer=false;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);

        FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
        fab.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
                        .setAction("Action", null).show();
            }
        });

        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
        right = (CoordinatorLayout) findViewById(R.id.right);
        left = (NavigationView) findViewById(R.id.nav_view);
        ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(
                this, drawer, toolbar, R.string.navigation_drawer_open, R.string.navigation_drawer_close);
        drawer.setDrawerListener(toggle);
        toggle.syncState();

        NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);
        navigationView.setNavigationItemSelectedListener(this);

        right.setOnTouchListener(new View.OnTouchListener() {
            @Override
            public boolean onTouch(View view, MotionEvent motionEvent) {
                if(isDrawer){
                    return left.dispatchTouchEvent(motionEvent);
                }else{
                    return false;
                }
            }
        });
        drawer.setDrawerListener(new DrawerLayout.DrawerListener() {
            @Override
            public void onDrawerSlide(View drawerView, float slideOffset) {
                isDrawer=true;
                //获取屏幕的宽高
                WindowManager manager = (WindowManager) getSystemService(Context.WINDOW_SERVICE);
                Display display = manager.getDefaultDisplay();
                //设置右面的布局位置  根据左面菜单的right作为右面布局的left   左面的right+屏幕的宽度（或者right的宽度这里是相等的）为右面布局的right
                right.layout(left.getRight(), 0, left.getRight() + display.getWidth(), display.getHeight());
            }
            @Override
            public void onDrawerOpened(View drawerView) {}
            @Override
            public void onDrawerClosed(View drawerView) {
                isDrawer=false;
            }
            @Override
            public void onDrawerStateChanged(int newState) {}
        });
    }

    @Override
    public void onBackPressed() {
        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
        if (drawer.isDrawerOpen(GravityCompat.START)) {
            drawer.closeDrawer(GravityCompat.START);
        } else {
            super.onBackPressed();
        }
    }


    @SuppressWarnings("StatementWithEmptyBody")
    @Override
    public boolean onNavigationItemSelected(MenuItem item) {
        // Handle navigation view item clicks here.
        int id = item.getItemId();

        if (id == R.id.nav_camera) {
            // Handle the camera action
        } else if (id == R.id.nav_gallery) {

        } else if (id == R.id.nav_slideshow) {

        } else if (id == R.id.nav_manage) {

        } else if (id == R.id.nav_share) {

        } else if (id == R.id.nav_send) {

        }

        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
        drawer.closeDrawer(GravityCompat.START);
        return true;
    }
}

抽屉式菜单主要由主页和侧滑菜单页面组成，以下为activity_main.xml和activity_main_drawer.xml

activity_main.xml
DrawerLayout里面有两个元素：
1.include：用于显示页面内容
2.NavigationView：侧滑菜单，其中有两个属性headerLayout和menu，分别用于显示顶部布局和构建MenuItem选项菜单

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:openDrawer="start">

    <include
        layout="@layout/app_bar_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

    <android.support.design.widget.NavigationView
        android:id="@+id/nav_view"
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:layout_gravity="start"
        android:fitsSystemWindows="true"
        app:headerLayout="@layout/nav_header_main"
        app:menu="@menu/activity_main_drawer" />

</android.support.v4.widget.DrawerLayout>

activity_main_drawer.xml
menu可以进行分组，group的android:checkableBehavior属性设置为single可以设置该组为单选

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">

    <group android:checkableBehavior="single">
        <item
            android:id="@+id/nav_camera"
            android:icon="@drawable/ic_menu_camera"
            android:title="import" />
        <item
            android:id="@+id/nav_gallery"
            android:icon="@drawable/ic_menu_gallery"
            android:title="Gallery" />
        <item
            android:id="@+id/nav_slideshow"
            android:icon="@drawable/ic_menu_slideshow"
            android:title="Slideshow" />
        <item
            android:id="@+id/nav_manage"
            android:icon="@drawable/ic_menu_manage"
            android:title="Tools" />
    </group>

    <item android:title="Communicate">
        <menu>
            <item
                android:id="@+id/nav_share"
                android:icon="@drawable/ic_menu_share"
                android:title="Share" />
            <item
                android:id="@+id/nav_send"
                android:icon="@drawable/ic_menu_send"
                android:title="Send" />
        </menu>
    </item>

</menu>

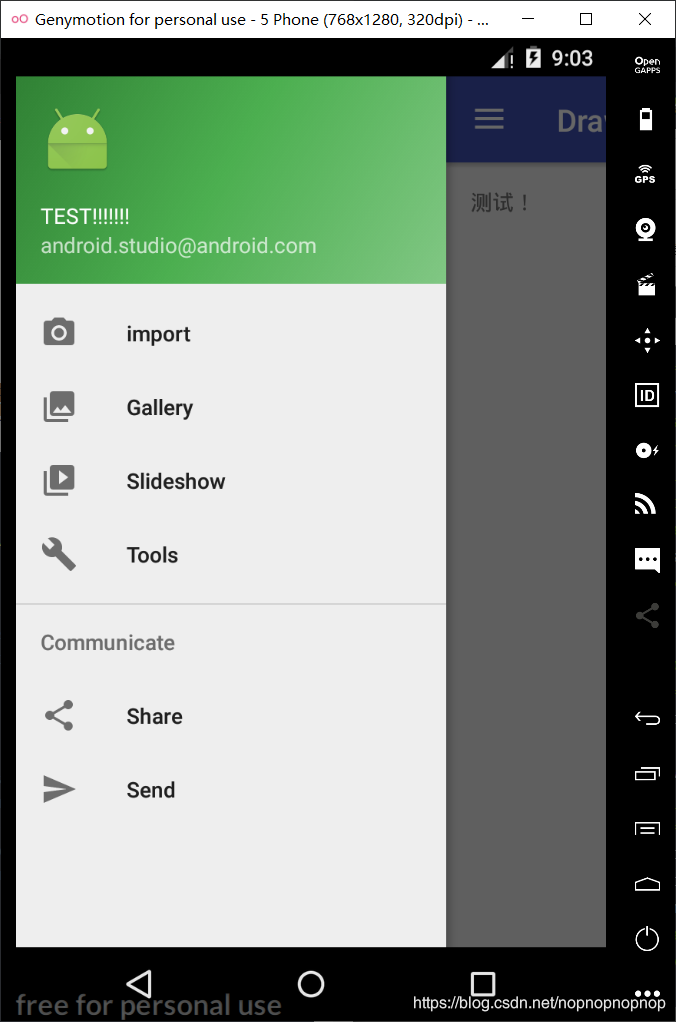

运行结果
