Seatunnel组件Jdbc TO Doris出现的异常Failed to flush data to Doris. Column has no default value. column: XXX

一.现象

• 配置seatunnel从mysql数据同步到doris数据库，出现了某些字段数据为NULL或格式错误的问题。
• jdbc连接mysql，通过sql查出来的数据是正常返回的

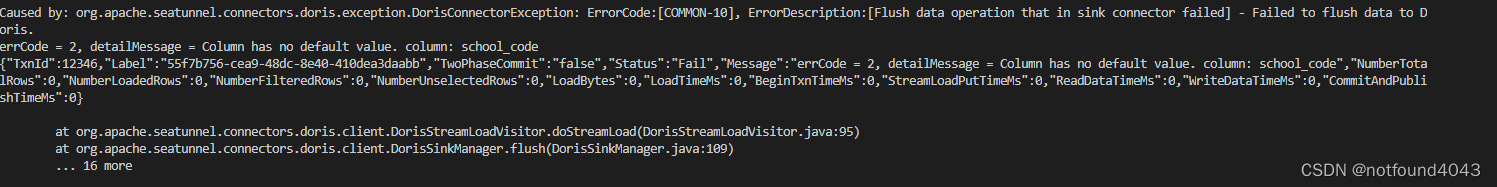

• 执行seatunnel脚本结果报错：

Caused by: org.apache.seatunnel.connectors.doris.exception.DorisConnectorException: ErrorCode:[COMMON-10], ErrorDescription:[Flush data operation that in sink connector failed] - Failed to flush data to Doris.
errCode = 2, detailMessage = Column has no default value. column: school_code
{"TxnId":12346,"Label":"55f7b756-cea9-48dc-8e40-410dea3daabb","TwoPhaseCommit":"false","Status":"Fail","Message":"errCode = 2, detailMessage = Column has no default value. column: school_code","NumberTotalRows":0,"NumberLoadedRows":0,"NumberFilteredRows":0,"NumberUnselectedRows":0,"LoadBytes":0,"LoadTimeMs":0,"BeginTxnTimeMs":0,"StreamLoadPutTimeMs":0,"ReadDataTimeMs":0,"WriteDataTimeMs":0,"CommitAndPublishTimeMs":0}

        at org.apache.seatunnel.connectors.doris.client.DorisStreamLoadVisitor.doStreamLoad(DorisStreamLoadVisitor.java:95)
        at org.apache.seatunnel.connectors.doris.client.DorisSinkManager.flush(DorisSinkManager.java:109)
        ... 16 more

以下是我出错的配置
seatunnel config：

env {
  execution.parallelism = 1
  job.mode = "BATCH"
}

source {
    #获取学校信息
	Jdbc {
        url = "jdbc:mysql://192.168.1.172/test?serverTimezone=GMT%2b8"
        driver = "com.mysql.cj.jdbc.Driver"
        connection_check_timeout_sec = 100
        user = "root"
        password = "root"
        result_table_name = dws_school
        query = "SELECT business_code AS school_code, school_name FROM basic_school WHERE del_flag = 0"
    }
}

transform {

}

sink {
    doris  {
   	   source_table_name = dws_school
        nodeUrls = ["192.168.1.173:8030"]
        username = "root"
        password = "root"
        database = "doris_table_name"
        table = "dtn_school"
        batch_max_rows = 100
        sink.properties.format = "csv"
        sink.properties.column_separator = ","
    }
}

二.解决方案

据我分析应该还是seatunnel对doris的兼容性不足

可以看到 读取不到的字段都是sql里面起别名的字段
我们只需要把sql改成：

再包一层即可

修改后的配置：

env {
  execution.parallelism = 1
  job.mode = "BATCH"
}

source {
    #获取学校信息
	Jdbc {
        url = "jdbc:mysql://192.168.1.172/edusys?serverTimezone=GMT%2b8"
        driver = "com.mysql.cj.jdbc.Driver"
        connection_check_timeout_sec = 100
        user = "root"
        password = "root"
        result_table_name = dws_school
        query = "SELECT * FROM (SELECT business_code as school_code,school_name from basic_school where del_flag = 0)t;"
    }
}

transform {

}

sink {
    doris  {
sink {
    doris  {
   	   source_table_name = dws_school
        nodeUrls = ["192.168.1.173:8030"]
        username = "root"
        password = "root"
        database = "doris_database"
        table = "dd_school"
        batch_max_rows = 100
        sink.properties.format = "csv"
        sink.properties.column_separator = ","
    }
#Console {
#
#    }
#jdbc {
#    url = "jdbc:mysql://192.168.1.10/demo?serverTimezone=GMT%2b8"
#    driver = "com.mysql.cj.jdbc.Driver"
#   user = "root"
#   password = "root"
#    query = "INSERT INTO `table_name` VALUES (?,?, ?, ?, ?, ?);"
#}

#  Redis {
#    host = 192.168.1.10
#    port = 6379
#    key = age
#    auth = "root"
#    data_type = list
#  }
}

---

三.其他

除此之外还有好多需要注意的点：

1. 在seatunnel配置文件中，sql不能换行，需要在一行写，否则会报一些关于newline的错。
2. jdbc读取到一个整数，比如说是10，seatunnel在sinkToDoris的时候可能会将结果解析成10.000，变成了一个小数，结果当然是赋值不进去导致报错，在sql中使用cast()函数对应的字段强转成对应类型即可
3. 虽然官网说seatunnel可以在jdk11环境使用，但是公司环境实测11不行，换成了jdk8才可以
