Android Gradle发布Artifact (aar包)到Maven仓库

灯塔@kuaidao

已于 2022-12-04 16:08:18 修改

阅读量2.8k

点赞数 3

分类专栏： android 基础知识文章标签： gradle

于 2022-11-14 08:56:34 首次发布

本文为 CSDN 作者:灯塔@kuaidao原创文章，转载请注明出处。

本文链接：https://blog.csdn.net/o279642707/article/details/127840975

版权

android 基础知识专栏收录该内容

177 篇文章

订阅专栏

gradle升级之后，早期gradle发布artifact 到maven的脚本提示部分引用找不到，通过gradle 官方给的demo梳理出来 gradle 7.2 以上使用的发布脚本。

新建一个发布脚本文件，功能包含发布Artifact aar 到maven仓库。附带源码方便调试

测试环境：

Gradle 版本：7.4
AGP版本：7.1.3
AS版本:Dolphin 2021.3.1 Patch 1

脚本publish.gradle 文件

apply plugin: 'maven-publish'
apply plugin: 'signing'

ext {
    VERSION_CODE = 1
    VERSION_NAME = "1.0.0-SNAPSHOT"
    GROUP = "com.example.MyLibrary"
    POM_NAME = "logview-sdk"
    ARTIFACT_ID = "final-debug"
    POM_PACKAGING = "aar"
    POM_DESCRIPTION = "descript"

    POM_URL = ""
    POM_SCM_URL = ""
    POM_SCM_CONNECTION = ""
    POM_SCM_DEV_CONNECTION = ""
    POM_LICENCE_NAME = ""
    POM_LICENCE_URL = ""
    POM_LICENCE_DIST = "repo"
    POM_DEVELOPER_ID = "chrisbanes"
    POM_DEVELOPER_NAME = "Chris Banes"

    NEXUS_USERNAME = "mvn仓库账户"
    NEXUS_PASSWORD = "mvn仓库密码"
   RELEASE_REPOSITORY_URL = "https://s01.oss.sonatype.org/content/repositories/releases/"
    SNAPSHOT_REPOSITORY_URL ="https://s01.oss.sonatype.org/content/repositories/snapshots/"

}

def isReleaseBuild() {
    return VERSION_NAME.contains("SNAPSHOT") == false
}

def getReleaseRepositoryUrl() {
    return hasProperty('RELEASE_REPOSITORY_URL') ? RELEASE_REPOSITORY_URL
            : "https://oss.sonatype.org/service/local/staging/deploy/maven2/"
}

def getSnapshotRepositoryUrl() {
    return hasProperty('SNAPSHOT_REPOSITORY_URL') ? SNAPSHOT_REPOSITORY_URL
            : "https://oss.sonatype.org/content/repositories/snapshots/"
}

def getRepositoryUsername() {
    return hasProperty('NEXUS_USERNAME') ? NEXUS_USERNAME : ""
}

def getRepositoryPassword() {
    return hasProperty('NEXUS_PASSWORD') ? NEXUS_PASSWORD : ""
}


def getVersionName(){
    return (project.hasProperty('version') && !project.getProperty('version').equals('unspecified'))? project.getProperty('version') : VERSION_NAME
}



def getRepositoryUrl() {
    if (isReleaseBuild()) {
        return getReleaseRepositoryUrl()
    } else {
        return getSnapshotRepositoryUrl()
    }
}

afterEvaluate {
    publishing {
        publications {

             maven(MavenPublication) {
                //如果发布到maven仓库
                artifact bundleReleaseAar
                artifact sourcesJar

                groupId = GROUP
                artifactId = ARTIFACT_ID
                version = getVersionName()

                pom {
                    name = POM_NAME
                    packaging = POM_PACKAGING
                    description = POM_DESCRIPTION
                    url = POM_URL

                    licenses {
                        license {
                            name = POM_LICENCE_NAME
                            url = POM_LICENCE_URL
                            distribution = POM_LICENCE_DIST
                        }
                    }

                    developers {
                        developer {
                            id = POM_DEVELOPER_ID
                            name = POM_DEVELOPER_NAME
                        }
                    }

                    scm {
                        url = POM_SCM_URL
                        connection = POM_SCM_CONNECTION
                        developerConnection = POM_SCM_DEV_CONNECTION
                    }

                }
            }
        }
        repositories {
            maven {
               allowInsecureProtocol = true
                credentials(PasswordCredentials){
                    username  getRepositoryUsername()
                    password  getRepositoryPassword()
                }
                url  getRepositoryUrl()
            }
        }

    }
}


    task sourcesJar(type: Jar) {
        if (project.hasProperty("kotlin")) {
            from android.sourceSets.main.java.getSrcDirs()
        } else if (project.hasProperty("android")) {
            from android.sourceSets.main.java.sourceFiles
        } else {
            println project
            from sourceSets.main.allSource
        }
        archiveClassifier='sources'
    }

    artifacts {
        archives sourcesJar
    }

//这里的需要配置gpg工具，可以不对artifact进行签名
signing {
    required { isReleaseBuild() && gradle.taskGraph.hasTask("publish") }
    sign configurations.archives
}

module的build.gradle文件

apply plugin: 'com.android.library'
apply plugin: 'org.jetbrains.kotlin.android'
apply from: 'gradle-mvn-push.gradle'



android {
    namespace 'com.codelabs.mylibrary'
    compileSdk 32

    defaultConfig {
        minSdk 25
        targetSdk 32

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
        consumerProguardFiles "consumer-rules.pro"
    }
        publishing {
        // Publishes "fullRelease" build variant with "fullRelease" component created by
        // Android Gradle plugin
        singleVariant("release")
    }

    buildTypes {
        release {
            minifyEnabled false
        }
    }
    compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }
    kotlinOptions {
        jvmTarget = '1.8'
    }
}




dependencies {
    implementation 'androidx.core:core-ktx:1.7.0'
    implementation 'androidx.appcompat:appcompat:1.4.1'
    implementation 'com.google.android.material:material:1.5.0'

}

tips:

如果配置了sign，需要在gradle.properties文件中配置gpg的

signing.keyId=key
signing.password=密码
signing.secretKeyRingFile=/Users/yangweichao/.gnupg/secring.gpg

gpg插件api说明。https://docs.gradle.org/current/userguide/signing_plugin.html#signing_plugin

使用maven命令发布。(maven下载地址)

首先配置系统环境变量。

mvn deploy:deploy-file
-Durl=http://nexus.xxxxxx.com/nexus/repository/maven-snapshots-android/
-Dfile=/Users/yangweichao/Downloads/unityLibrary-release.aar
-Dpackaging=aar
-DgroupId=com.codeview.miniparty
-DartifactId=unity-sdk
-Dversion=1.0.0-SNAPSHOT
-DrepositoryId=snapshots

配置maven的setting.xml

//全局环境变量
M2_HOME="/Users/yangweichao/Downloads/apache-maven-3.8.6/bin"

  <server>
      <id>snapshots</id>
      <username>账号</username>
      <password>密码</password>
    </server>

tips：
这里的 snapshots需要与命令行 -DrepositoryId=snapshots 匹配。

异常：

1.未显式声明发布变体

FAILURE: Build failed with an exception.

* What went wrong:
Execution failed for task ':app:dataBindingMergeDependencyArtifactsRelease'.
> Could not resolve all files for configuration ':app:releaseCompileClasspath'.
   > Could not resolve com.codeview.miniparty:crashlytics:1.0.0.
     Required by:
         project :app
      > No matching variant of com.codeview.miniparty:crashlytics:1.0.0 was found. The consumer was configured to find an API of a component, preferably optimized f
or Android, as well as attribute 'com.android.build.api.attributes.BuildTypeAttr' with value 'release', attribute 'com.android.build.api.attributes.AgpVersionAttr'
with value '7.1.3', attribute 'org.jetbrains.kotlin.platform.type' with value 'androidJvm' but:
          - Variant 'debugApiElements-published' capability com.codeview.miniparty:crashlytics:1.0.0 declares an API of a component, as well as attribute 'org.jetbr
ains.kotlin.platform.type' with value 'androidJvm':
              - Incompatible because this component declares a component, as well as attribute 'com.android.build.api.attributes.BuildTypeAttr' with value 'debug' a
nd the consumer needed a component, as well as attribute 'com.android.build.api.attributes.BuildTypeAttr' with value 'release'
              - Other compatible attributes:
                  - Doesn't say anything about com.android.build.api.attributes.AgpVersionAttr (required '7.1.3')
                  - Doesn't say anything about its target Java environment (preferred optimized for Android)
          - Variant 'debugRuntimeElements-published' capability com.codeview.miniparty:crashlytics:1.0.0 declares a runtime of a component, as well as attribute 'or
g.jetbrains.kotlin.platform.type' with value 'androidJvm':
              - Incompatible because this component declares a component, as well as attribute 'com.android.build.api.attributes.BuildTypeAttr' with value 'debug' a
nd the consumer needed a component, as well as attribute 'com.android.build.api.attributes.BuildTypeAttr' with value 'release'
              - Other compatible attributes:
                  - Doesn't say anything about com.android.build.api.attributes.AgpVersionAttr (required '7.1.3')
                  - Doesn't say anything about its target Java environment (preferred optimized for Android)

* Try:
Run with --stacktrace option to get the stack trace. Run with --info or --debug option to get more log output. Run with --scan to get full insights.

解决方式：参照 LibraryPublishing

2.同时发布多个artifacts 需要指定类别

Maven-plublish: multiple artifacts with the identical extension and classifier

3.发布aar到https://s01.oss.sonatype.org/ 仓库未指定aar

发布到内网maven平台并没有显式指定,如下代码

afterEvaluate {
    publishing {
        publications {

             debug(MavenPublication) {
                //如果发布到maven仓库
                artifact bundleReleaseAar
                ...
                ...
                }
             }
            }

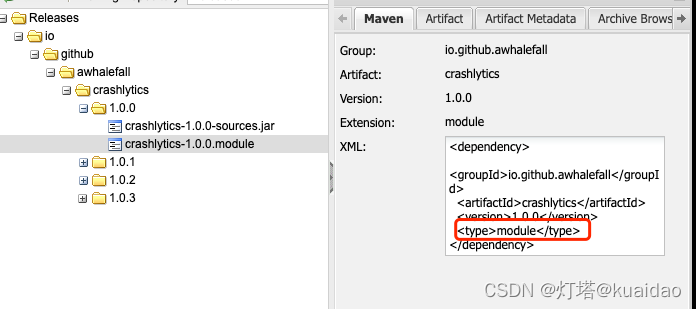

但是发布到maven平台之后，查看pom.xml发现artifact 类型是module，然后无法正常引用通过格式，io.github.awhelefall:crashlytics:1.0.0-SNAPSHOT
在这里插入图片描述

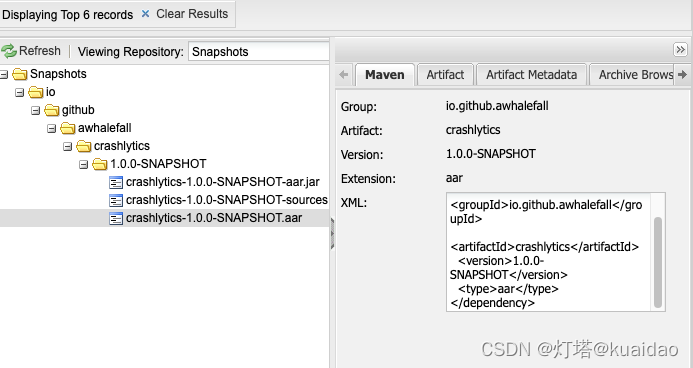

指导添加上artifact bundleReleaseAar，之后，发布的类别也包含aar了。如下图

4.error Code=400

对于release仓库中同名的资源，并不会覆盖。会返回一个code =400的异常。未发布成功收到400异常，优先检查下发布的资源ARTIFACT_ID 是否已经存在。

待定：
未指定 artifact bundleReleaseAar，无法依赖到maven仓库，发现type类型是module。最后通过设置 artifact bundleReleaseAar，类型更正为aar。通过真实测试，类型为module，是可以依赖到发布到maven仓库的工件。但是是有一定的延时。发上去之后不能里面搜索到

总结：

升级 gradle到7.0+ 之后发现 MavenDeployment 找不到引用，通过gradle官方介绍maven插件升级了，升级之后Api进行调整。本Blog 支持Gradle 7.0+，发布aar到maven仓库。

demo: https://github.com/aWhalefall/AndroidLog

直接进入libcrash module,执行Gradle脚本

引用：

1. Gradle Publish Plugins

2. LibraryPublishing
3. Using Gradle Plugins
4. Nexus repository manager
5.发布aar包到maven仓库
 6.mutipart artifact 需要显示或者隐式声明依赖传递项
 7.Maven中央仓库
