【华为实验】不同的ip网段，通过路由器实现互通

w_goss

已于 2024-11-12 23:49:13 修改

阅读量851

点赞数 3

文章标签：网络

于 2024-11-12 23:43:56 首次发布

本文链接：https://blog.csdn.net/oLangJian/article/details/143726772

版权

案例如下图：

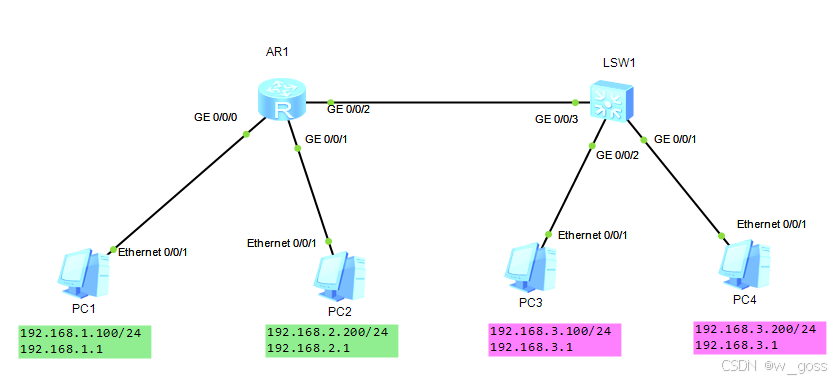

分析：PC1、PC2属不同网段，分别连接AR1的g0/0/0和g0/0/1接口；PC3和PC4在同一网段，连接到LSW1交换机，LSW1交换机连接到AR1的g0/0/2口。

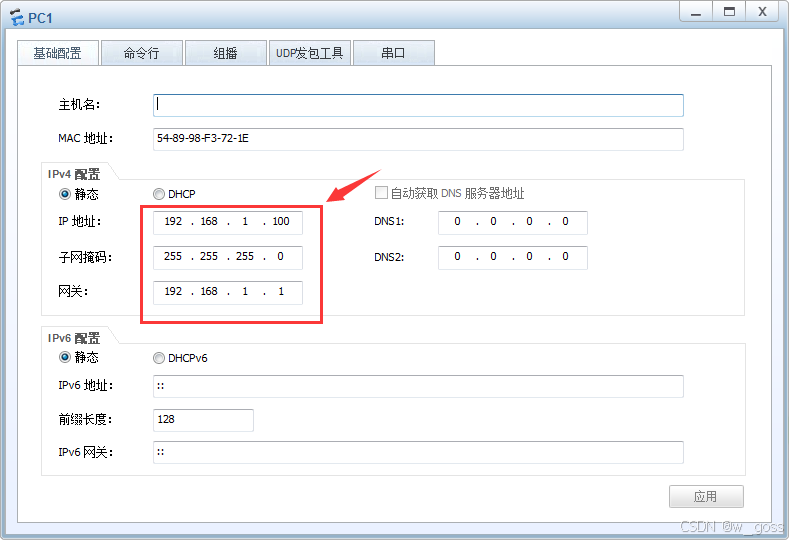

1.先把pc1~4的基础本配置配好，填写相应的ip地址、子网掩码、网关，

2.配置路由器AR1各接口的ip地址，ip地址分别为pc1、pc2、pc3~pc4的网关地址，配置完成后即可互通。

AR1配置代码如下：

<Huawei>system-view
[Huawei]undo info-center enable
[Huawei]sysname AR1

[AR1]interface GigabitEthernet 0/0/0
[AR1-GigabitEthernet0/0/0]ip address 192.168.1.1 24
[AR1-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[AR1-GigabitEthernet0/0/1]ip address 192.168.2.1 24

[AR1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[AR1-GigabitEthernet0/0/2]ip address 192.168.3.1 24

3.通过ping命令检查是否成功。

PC>ping 192.168.2.200

Ping 192.168.2.200: 32 data bytes, Press Ctrl_C to break
From 192.168.2.200: bytes=32 seq=1 ttl=127 time<1 ms
From 192.168.2.200: bytes=32 seq=2 ttl=127 time<1 ms
From 192.168.2.200: bytes=32 seq=3 ttl=127 time=16 ms
From 192.168.2.200: bytes=32 seq=4 ttl=127 time=16 ms
From 192.168.2.200: bytes=32 seq=5 ttl=127 time<1 ms

--- 192.168.2.200 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 0/6/16 ms



PC>ping 192.168.3.200

Ping 192.168.3.200: 32 data bytes, Press Ctrl_C to break
Request timeout!
From 192.168.3.200: bytes=32 seq=2 ttl=127 time=46 ms
From 192.168.3.200: bytes=32 seq=3 ttl=127 time=47 ms
From 192.168.3.200: bytes=32 seq=4 ttl=127 time=47 ms
From 192.168.3.200: bytes=32 seq=5 ttl=127 time=47 ms

--- 192.168.3.200 ping statistics ---
  5 packet(s) transmitted
  4 packet(s) received
  20.00% packet loss
  round-trip min/avg/max = 0/46/47 ms
