GO实现图形界面exe小程序

环境信息

win10专业版
vscode1.71.2
go1.19

1.安装walk
https://github.com/lxn/walk

go get github.com/lxn/walk

2.安装rsrc
Then either compile the manifest using the rsrc tool

go get github.com/akavel/rsrc
进入目录   %GOPATH%\pkg\mod\github.com\akavel\rsrc@v0.10.2
go build 生成 rsrc.exe文件

3.配置rsrc环境变量

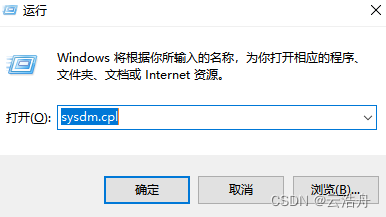

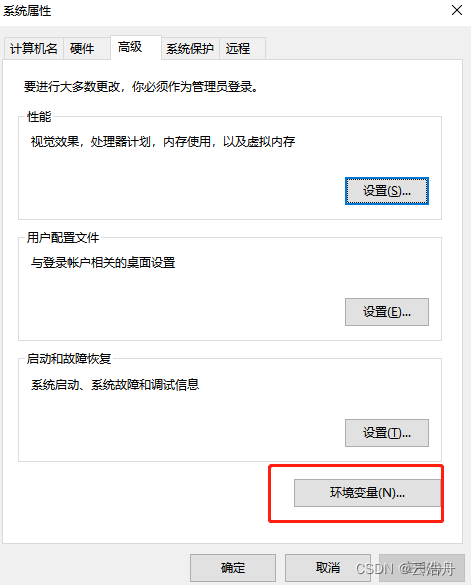

配置环境变量 win+r 启动运行 输入 sysdm.cpl 在PATH增加rsrc的路径

注意：如果使用的vscode那么需要重启后环境变量才会生效

4.create test.go

package main

import (
	"github.com/lxn/walk"
	. "github.com/lxn/walk/declarative"
	"strings"
)

func main() {
	var inTE, outTE *walk.TextEdit

	MainWindow{
		Title:   "SCREAMO",
		MinSize: Size{600, 400},
		Layout:  VBox{},
		Children: []Widget{
			HSplitter{
				Children: []Widget{
					TextEdit{AssignTo: &inTE},
					TextEdit{AssignTo: &outTE, ReadOnly: true},
				},
			},
			PushButton{
				Text: "SCREAM",
				OnClicked: func() {
					outTE.SetText(strings.ToUpper(inTE.Text()))
				},
			},
		},
	}.Run()
}

4.Create Manifest test.manifest

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<assembly xmlns="urn:schemas-microsoft-com:asm.v1" manifestVersion="1.0">
    <assemblyIdentity version="1.0.0.0" processorArchitecture="*" name="SomeFunkyNameHere" type="win32"/>
    <dependency>
        <dependentAssembly>
            <assemblyIdentity type="win32" name="Microsoft.Windows.Common-Controls" version="6.0.0.0" processorArchitecture="*" publicKeyToken="6595b64144ccf1df" language="*"/>
        </dependentAssembly>
    </dependency>
    <application xmlns="urn:schemas-microsoft-com:asm.v3">
        <windowsSettings>
            <dpiAwareness xmlns="http://schemas.microsoft.com/SMI/2016/WindowsSettings">PerMonitorV2, PerMonitor</dpiAwareness>
            <dpiAware xmlns="http://schemas.microsoft.com/SMI/2005/WindowsSettings">True</dpiAware>
        </windowsSettings>
    </application>
</assembly>

4.编译manifest 文件(注意test.go和test.manifest两个文件都放到一个目录执行下面命令)

rsrc -manifest test.manifest -o rsrc.syso

可以添加exe图标

rsrc -manifest test.manifest -ico test.ico -o rsrc.syso

5.Build app(第一种有控制台窗口可查看日志，第二种无控制台窗口，适用程序最后打包使用)
In the directory containing test.go run

go build

To get rid of the cmd window, instead run

go build -ldflags="-H windowsgui"

6.Run app

test.exe

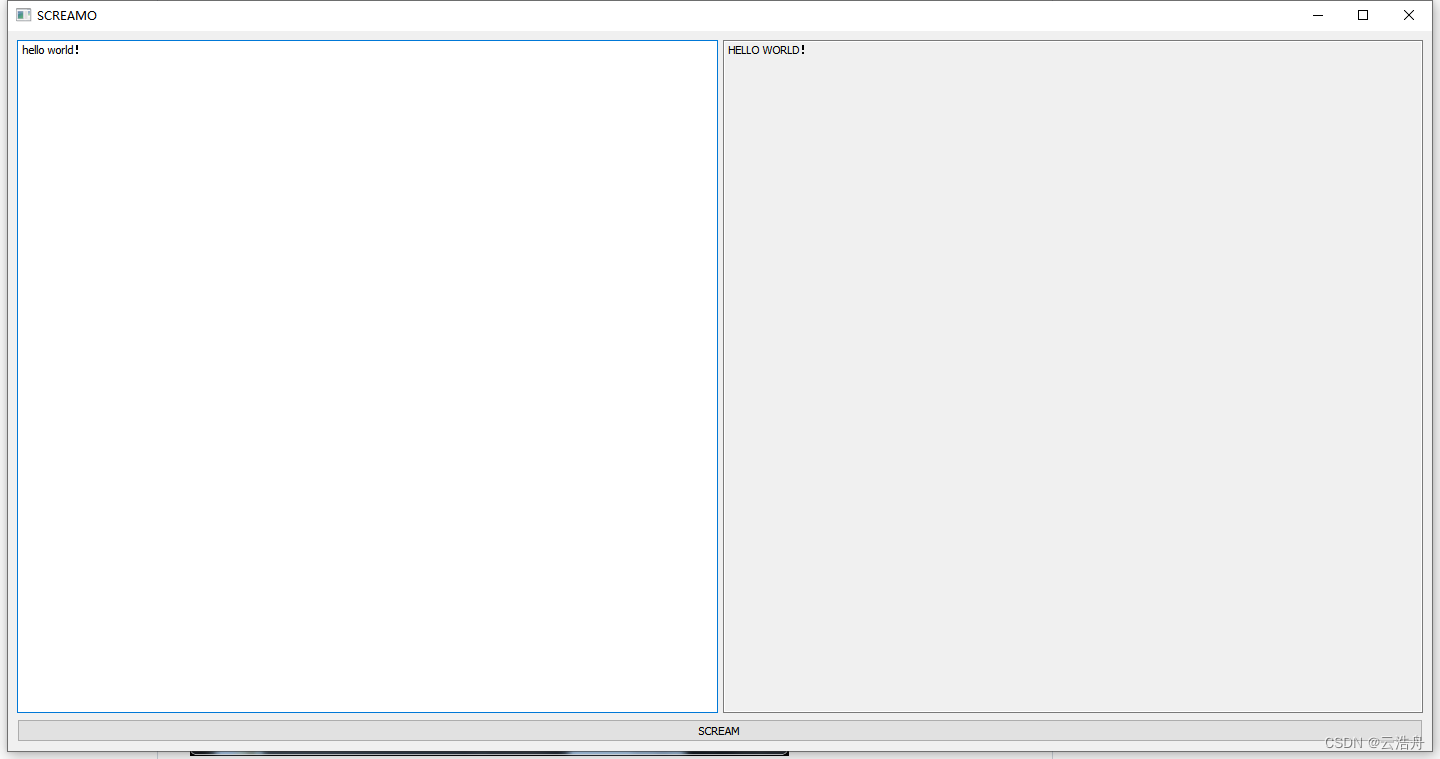

Sample Output (Windows 10)
