SAP和APS系统订单BOM核对（SAP配置BOM攻略九）

本文链接：https://blog.csdn.net/ot512csdn/article/details/133358591

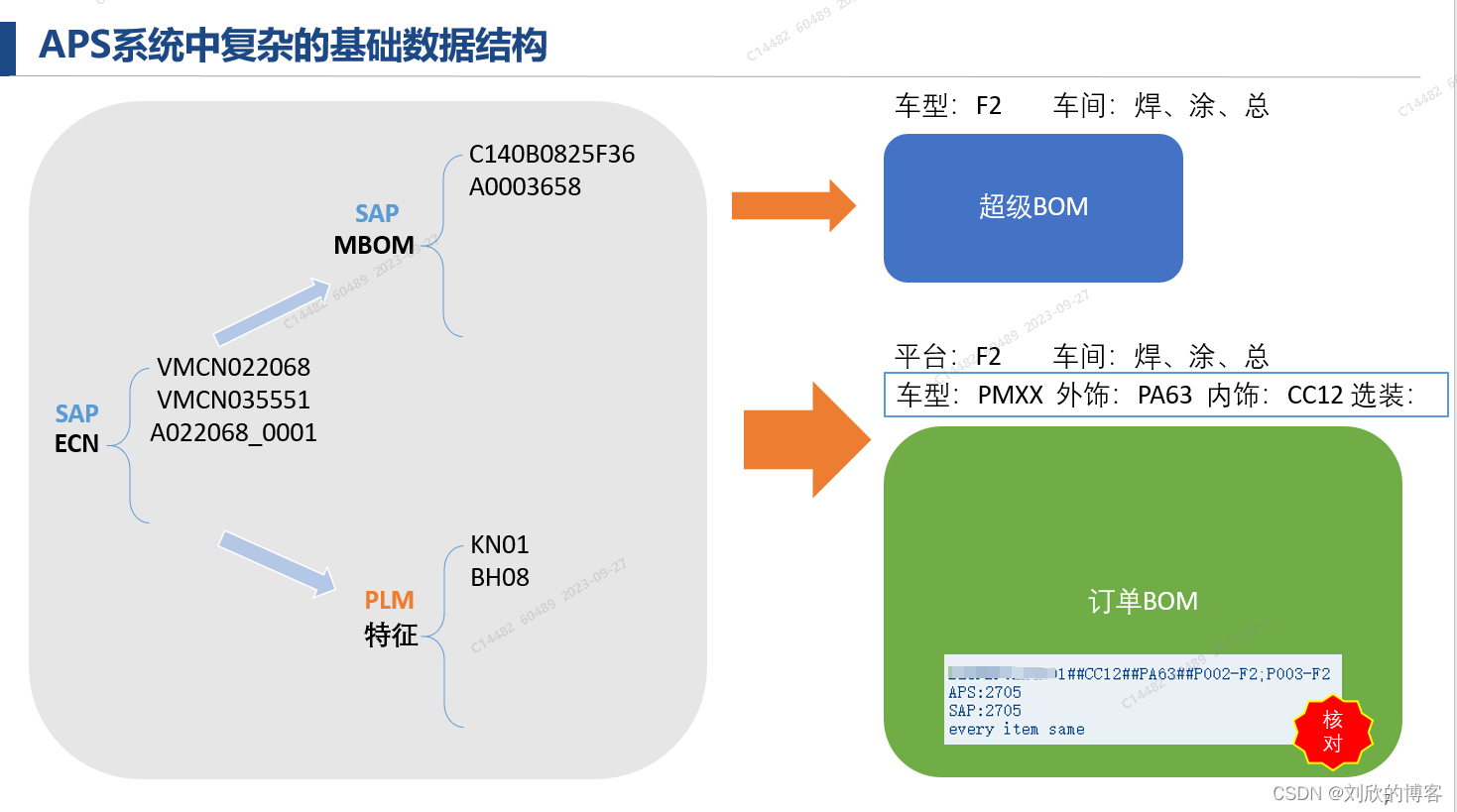

配置订单BOM因为要考虑历史ECN、特征语法、BOM语法，是最复杂的一个算法结果，为了摆脱这种被动的场景，博主开发了一个被动核对数据的程序来保障数据质量。

今天是APS系统上线的第三天，我们的核对程序在昨天上线，面对大量用户的基础数据查询，SAP和APS在核对无误的情况下，可以可靠的输出基础数据，两个系统用完全一致的数据相互验证了BOM的准确率。博主也给自己找到一个工作岗位，每天跑一下一个自动核对程序，程序可以核对SAP和APS两个系统的订单BOM，当两个系统的数据完全一致，就表示我们的数据是正确的。

又过了2天，设变来了，我才发现SAP的销售订单BOM不会随设变更新，没有PP中的重读BOM功能，所以，在SAP中拿到订单BOM解析，只能走CU50一条路。SAP社区中有很多关于CU50的问答。终于，我完成了一个半自动的订单BOM核对程序，它工作后的输出很简洁：

20231006:B27F,CC12,PA74,P009-XX
APS:2897
SAP:2897
every item same

*&---------------------------------------------------------------------*
*& Report ZPPR0016B
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZPPR0016B.



TABLES:vbap,stko.

TYPES:BEGIN OF ty_vbap,
        vbeln TYPE vbap-vbeln,
        posnr TYPE vbap-posnr,
        cuobj TYPE vbap-cuobj,
        matnr TYPE vbap-matnr,
        werks TYPE vbap-werks,
      END OF ty_vbap.

DATA gs_vbap TYPE ty_vbap.
DATA gt_conf_out TYPE TABLE OF conf_out.
DATA gt_stpo TYPE TABLE OF stpox.
DATA:gs_layout   TYPE lvc_s_layo,                           "#EC NEEDED
     gs_glay     TYPE lvc_s_glay,                           "#EC NEEDED
     gt_fieldcat TYPE lvc_t_fcat.                           "#EC NEEDED




SELECTION-SCREEN BEGIN OF BLOCK a0 WITH FRAME TITLE TEXT-001.

PARAMETERS:s_vbeln TYPE vbap-vbeln .                        "销售凭证
PARAMETERS:s_posnr TYPE vbap-posnr .                        "项目
PARAMETERS:s_datuv TYPE stko-datuv DEFAULT sy-datum.        "有效起始日期

SELECTION-SCREEN END OF BLOCK a0.



START-OF-SELECTION.






   PERFORM frm_get_data.








  FORM frm_get_data .

  SELECT SINGLE vbeln,
         posnr,
         cuobj,
         matnr,
         werks
    FROM vbap
    WHERE vbeln = @s_vbeln
    AND posnr = @s_posnr
    INTO @gs_vbap.

  IF gs_vbap IS INITIAL.
    MESSAGE 'no data' TYPE 'E' DISPLAY LIKE 'S'.
  ENDIF.



"--------取SAP系统销售订单的BOM--------------------------------
 IF gs_vbap-cuobj IS INITIAL.
    MESSAGE 'no data' TYPE 'E' DISPLAY LIKE 'S'.
  ENDIF.

  IF s_datuv = ''.
    MESSAGE 'Please enter the expiration date' TYPE 'E' DISPLAY LIKE 'S'.
  ELSE.
    SELECT * FROM mast
      WHERE matnr = @gs_vbap-matnr
      AND werks = @gs_vbap-werks
      INTO TABLE @DATA(lt_mast).
    IF sy-subrc <> 0.
      MESSAGE 'Please enter expiry date non-expandable BOM material number' TYPE 'E' DISPLAY LIKE 'S'.
    ENDIF.

    CALL FUNCTION 'CS_BOM_EXPL_KND_V1'
      EXPORTING
        vbeln = gs_vbap-vbeln
        vbpos = gs_vbap-posnr
        capid = 'PP01'
        cuobj = gs_vbap-cuobj
        datuv = s_datuv         "界面输入，默认当天
        mktls = 'X'
        mehrs = ''     "勾选则为X，不勾选则为空
        mtnrv = gs_vbap-matnr "（物料）
        werks = gs_vbap-werks "（工厂）
      TABLES
        stb   = gt_stpo.

  ENDIF.

"--------取销售订单的四大配置和APS的订单BOM-------------

  IF gs_vbap-cuobj IS INITIAL.
    MESSAGE 'no data' TYPE 'E' DISPLAY LIKE 'S'.
  ELSE.
    CALL FUNCTION 'VC_I_GET_CONFIGURATION'
      EXPORTING
        instance      = gs_vbap-cuobj
      TABLES
        configuration = gt_conf_out.
  ENDIF.


" F2_CC00 = CC12
" F2_PA00 = PA63
" F2_PM = B27FRF8JA4L01
" F2_PKG0 = P002-F2
" F2_PKG0 = P003-F2


 DATA ls_write      TYPE zspp_bominfo.
 DATA ls_head      TYPE zspp_bominfo.
  DATA lt_head      TYPE TABLE OF zspp_bominfo.
  DATA lv_rfcdest   TYPE rfcdest.
  DATA lt_esb_com   TYPE zsca_esb_com_tab.
  DATA lt_bomlist   TYPE TABLE OF zspp_bomlist.


LOOP AT gt_conf_out INTO DATA(gs_conf).


    IF gs_conf-ATNAM = 'F2_PM'.   ls_head-ATWRT1 = gs_conf-ATWRT.  ENDIF.
    IF gs_conf-ATNAM = 'F2_CC00'. ls_head-ATWRT2 = gs_conf-ATWRT.  ENDIF.
    IF gs_conf-ATNAM = 'F2_PA00'. ls_head-ATWRT3 = gs_conf-ATWRT.  ENDIF.

    IF gs_conf-ATNAM = 'F2_PKG0'.

      IF ls_head-ATWRT4 is INITIAL.
          ls_head-ATWRT4 = gs_conf-ATWRT.
       ELSE.
            ls_head-ATWRT4 = ls_head-ATWRT4 && ';' && gs_conf-ATWRT.
      ENDIF.



    ENDIF.


ENDLOOP.


    ls_head-werks  = '1003'.
    ls_head-matnr  = 'F2'.
    ls_head-badat  = s_datuv.

    IF gs_vbap-MATNR EQ 'F2'.    ls_head-z_st   = 'V'.    ENDIF.
    IF gs_vbap-MATNR EQ 'F2PD'.  ls_head-z_st   = 'P'.    ENDIF.
    IF gs_vbap-MATNR EQ 'F2BD'.  ls_head-z_st   = 'A'.    ENDIF.


    APPEND ls_head TO lt_head .

  ls_write =  ls_head.
    CLEAR ls_head.

   lv_rfcdest = zcl_ca_tools=>get_rfcdest( ).

    CALL FUNCTION 'ZSAP_PP_APS_BOMINFO_OUT' DESTINATION lv_rfcdest
      TABLES
        et_po_header = lt_head
        tt_esb_com   = lt_esb_com
        tt_bomlist   = lt_bomlist.



"-----去掉一个物料---------------

LOOP AT gt_stpo INTO DATA(gs_stpo).

  IF gs_stpo-OJTXP = 'F2BD'.   DELETE gt_stpo.   ENDIF.
  IF gs_stpo-OJTXP = 'F2PD'.   DELETE gt_stpo.   ENDIF.

ENDLOOP.







"----输出两个表的条数-----------

WRITE:/ gs_vbap-vbeln && ',' && gs_vbap-posnr && ',' && ls_write-atwrt1 && ',' && ls_write-atwrt2 && ',' &&  ls_write-atwrt3 && ',' &&  ls_write-atwrt4.


DATA lv_l1 TYPE i VALUE 0.
DATA lv_l2 TYPE i VALUE 0.

lv_l1 = lines( lt_bomlist ).
lv_l2 = lines( gt_stpo ).

WRITE:/ 'APS: '  &&  lv_l1.
WRITE:/ 'SAP: '  &&  lv_l2 .



"----两个内表比较-----------IDNRK


"定义结构体
TYPES: BEGIN OF ty_table,
         matnr(40)       TYPE C,
       END OF ty_table.

"定义内表
DATA gt_SAP TYPE  TABLE OF ty_table.
DATA gt_APS TYPE  TABLE OF ty_table.

DATA gs_gsgs TYPE ty_table.


LOOP AT gt_stpo INTO DATA(gs_1).

  gs_gsgs-MATNR = gs_1-IDNRK.

  APPEND gs_gsgs to gt_SAP.
  CLEAR gs_gsgs.

ENDLOOP.




LOOP AT lt_bomlist INTO DATA(gs_2).

  gs_gsgs-MATNR = gs_2-MATNR.

  APPEND gs_gsgs to gt_APS.
  CLEAR gs_gsgs.

ENDLOOP.



SORT gt_SAP.
SORT gt_APS.


IF gt_SAP[] = gt_APS[].
  WRITE:/ 'every item same'.
ELSE.
  WRITE:/ 'some item different'.
ENDIF.




CLEAR:gt_SAP[],gt_APS[],lt_bomlist[],gt_stpo[],gs_vbap,gt_conf_out[].





ENDFORM.
