轻量级锁实现1——结构体解析、初始化

瀚高数据库
目录
环境
文档用途
详细信息

环境
系统平台：Linux x86-64 Red Hat Enterprise Linux 7
版本：14
文档用途
从底层理解轻量级锁的实现，从保护共享内存的角度理解轻量级锁的使用场景，包括上锁、等待、释放，理解轻量级锁的互斥（execlusive)和共享（shared)2种状态。

详细信息

1.轻量级锁空间分配

锁作为并发场景下使用的一种进程间的同步机制，因此有必要将其放在共享内存中。

/*

 * Set up shared memory and semaphores.

 *

 * Note: if using SysV shmem and/or semas, each postmaster startup will

 * normally choose the same IPC keys.  This helps ensure that we will

 * clean up dead IPC objects if the postmaster crashes and is restarted.

 */

CreateSharedMemoryAndSemaphores();

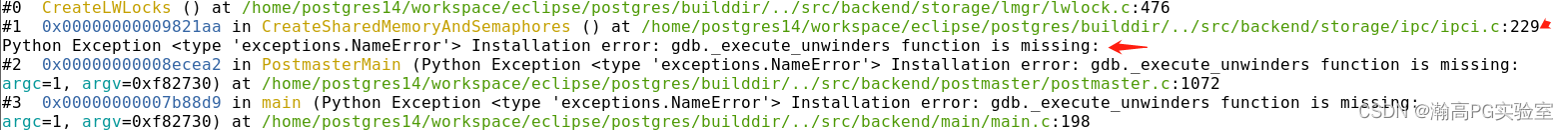

以下代码是轻量级锁的初始化代码：LWLock系统通常由一个主要的LWLock数组组成，每个数组元素对应一个具体的锁资源。而"tranche" 是指将LWLock数组进一步分割成更小的单元，以提供更细粒度的并发控制。

/*

 * Allocate shmem space for the main LWLock array and all tranches and

 * initialize it.  We also register extension LWLock tranches here.

 */
void CreateLWLocks(void)

{

if (!IsUnderPostmaster) // 主进程或者是standlone进程

	{
 Size		spaceLocks = LWLockShmemSize();

		int		   *LWLockCounter;

		char	   *ptr;

	/* Allocate space */

		ptr = (char *) ShmemAlloc(spaceLocks);

		/* Leave room for dynamic allocation of tranches */

		ptr += sizeof(int);



		/* Ensure desired alignment of LWLock array */

		ptr += LWLOCK_PADDED_SIZE - ((uintptr_t) ptr) % LWLOCK_PADDED_SIZE;

 MainLWLockArray = (LWLockPadded *) ptr;



		/*

		 * Initialize the dynamic-allocation counter for tranches, which is

		 * stored just before the first LWLock.

		 */

		LWLockCounter = (int *) ((char *) MainLWLockArray - sizeof(int));

		*LWLockCounter = LWTRANCHE_FIRST_USER_DEFINED;



		/* Initialize all LWLocks */

		InitializeLWLocks();

	}



	/* Register named extension LWLock tranches in the current process. */

	for (int i = 0; i < NamedLWLockTrancheRequests; i++)

		LWLockRegisterTranche(NamedLWLockTrancheArray[i].trancheId,

							  NamedLWLockTrancheArray[i].trancheName);

}

1.1计算轻量级锁数组占用的共享内存的存储空间的大小：

/*

 * Compute shmem space needed for LWLocks and named tranches.

 */

Size LWLockShmemSize(void)

{

	Size		size;

	int			i;

     //NUM_FIXED_LWLLOCKS是pg内核使用的锁的数量，写死的数量

	int			numLocks = NUM_FIXED_LWLOCKS;

     //加上其它模块比如动态库请求的锁的数量，例如pg_stat_statements在请求共享内存的钩子函数的代码



/*

     static void

     pgss_shmem_request(void)

     {

	if (prev_shmem_request_hook)

		prev_shmem_request_hook();



	RequestAddinShmemSpace(pgss_memsize());

	RequestNamedLWLockTranche("pg_stat_statements", 1);

     }

*/

	/* Calculate total number of locks needed in the main array. */

	numLocks += NumLWLocksForNamedTranches();



	/* Space for the LWLock array. */

	size = mul_size(numLocks, sizeof(LWLockPadded)); // 1.2



	/* Space for dynamic allocation counter, plus room for alignment. */

	size = add_size(size, sizeof(int) + LWLOCK_PADDED_SIZE);



	/* space for named tranches. */

	size = add_size(size, mul_size(NamedLWLockTrancheRequests, sizeof(NamedLWLockTranche)));



	/* space for name of each tranche. */

	for (i = 0; i < NamedLWLockTrancheRequests; i++)

		size = add_size(size, strlen(NamedLWLockTrancheRequestArray[i].tranche_name) + 1);



	return size;

}

1.2 LWLockPadded结构体解析

/*

 * In most cases, it's desirable to force each tranche of LWLocks to be aligned

 * on a cache line boundary and make the array stride a power of 2.  This saves

 * a few cycles in indexing, but more importantly ensures that individual

 * LWLocks don't cross cache line boundaries.  This reduces cache contention

 * problems, especially on AMD Opterons.  In some cases, it's useful to add

 * even more padding so that each LWLock takes up an entire cache line; this is

 * useful, for example, in the main LWLock array, where the overall number of

 * locks is small but some are heavily contended.

 */

通俗一点说，为什么要设计一个LWLockPadded的union?

因为union成员共享存储空间，所以整个union占用的空间大小将为LWLOCK_PADDED_SIZE的大小(这个已经断言过了）。

LWLOCK_PADDED_SIZE的大小是cpu一级缓存的大小，所以结果将是LWLock独占一个缓存行，也就是CPU一次读取的单位大小。

这么做的好处是提高性能：CPU使用分布式一致性缓存协议MESI（当然实际情况不止这四种状态），当CPU1要改动LWLock,那么对其它的CPU会发送read invalidate消息，其它CPU如果有LWLock在其缓存行，将会清空。如果CPU0下次要修改LWLock,同样也会对其它CPU发送read invalidate消息。但是如果缓存行保存了非LWLock内容，那么对非LWLock内容的修改操作，将会产生invalidate影响（false sharing).因此将其扩充到1个缓存行大小，这样避免其它变量对该LWLock的影响。

#define LWLOCK_PADDED_SIZE	PG_CACHE_LINE_SIZE



StaticAssertDecl(sizeof(LWLock) <= LWLOCK_PADDED_SIZE,

				 "Miscalculated LWLock padding");



/* LWLock, padded to a full cache line size */

typedef union LWLockPadded

{

	LWLock		lock;

	char		pad[LWLOCK_PADDED_SIZE];

} LWLockPadded;

举例说明：读取物理核心数，将每个线程绑定一个物理cpu,本机只有cpu0~cpu3,然后对atomics进行单字节的修改，随着线程增多，每个线程的执行时间会随时间增长，因为cpu重复清空（invalidate)和加载(read -> modified)。如果是根据业务将数据分在不同的cache line，那么效率会有提升。

#define _GNU_SOURCE

#include <stdio.h>

#include <stdlib.h>

#include <unistd.h>

#include <pthread.h>

#include <stdatomic.h>

#include <time.h>

#include <assert.h>

#include <sched.h>



#define CL_SIZE 64



pthread_barrier_t barrier;

pthread_mutex_t sync_mutex;

atomic_long nsSum;

int sync_count;

struct CacheLine {

   atomic_char atomics[CL_SIZE];

};





// this function used to get cache line size from runtime

/*

 * unsigned int get_cache_line_size_x86() {

    unsigned int cache_line_size = 0;



    // Execute CPUID instruction with EAX=0x80000006 to get cache information

    __asm__ volatile (

        "mov $0x80000006, %%eax\n\t"

        "cpuid\n\t"

        "mov %%ecx, %0\n\t"

        : "=r" (cache_line_size)  // Output: store cache line size in variable

        :                         // No input

        : "%eax", "%ebx", "%ecx", "%edx"  // Clobbered registers

    );



    // Extract cache line size from bit 0 to 7 of ECX register

    cache_line_size = cache_line_size & 0xFF;



    return cache_line_size;

}

*/



// thread function

void* threadFunc(void* arg) {

    struct CacheLine* cacheLine = (struct CacheLine*)arg;

    pthread_barrier_wait(&barrier);



    pthread_mutex_lock(&sync_mutex);

    // .....

    pthread_mutex_unlock(&sync_mutex);



    struct timespec start, end;

    clock_gettime(CLOCK_MONOTONIC, &start);

    for (size_t r = 10000000LL; r > 0; --r) {

        atomic_fetch_add_explicit(&cacheLine->atomics[r % CL_SIZE], 1, memory_order_relaxed);

    }

    clock_gettime(CLOCK_MONOTONIC, &end);



    int64_t diff = (end.tv_sec - start.tv_sec) * 1000000000LL + (end.tv_nsec - start.tv_nsec);

    atomic_fetch_add_explicit(&nsSum, diff, memory_order_relaxed);



    return NULL;

}





int main() {

    int hc = sysconf(_SC_NPROCESSORS_ONLN);

    cpu_set_t cs;

    // loops just for counter

    for (int nThreads = 1; nThreads <= hc; ++nThreads)

        {

        pthread_t threads[nThreads];

        struct CacheLine cacheLine;

        nsSum = 0;



        pthread_barrier_init(&barrier, NULL, nThreads);

        pthread_mutex_init(&sync_mutex, NULL);

        sync_count = nThreads;

   // loops for threads number

        for (int t = 0; t < nThreads; ++t) {

            pthread_create(&threads[t], NULL, threadFunc, &cacheLine);

            CPU_ZERO(&cs);

            CPU_SET(t, &cs);

            assert(pthread_setaffinity_np(threads[t], sizeof(cs), &cs) == 0);

        }



        for (int t = 0; t < nThreads; ++t) {

            pthread_join(threads[t], NULL);

        }



        pthread_barrier_destroy(&barrier);

        pthread_mutex_destroy(&sync_mutex);

        printf("%d: %ld\n", nThreads, (long)(nsSum/(1.0e7 * nThreads) + 0.5));

    }



    return 0;

}

结果：

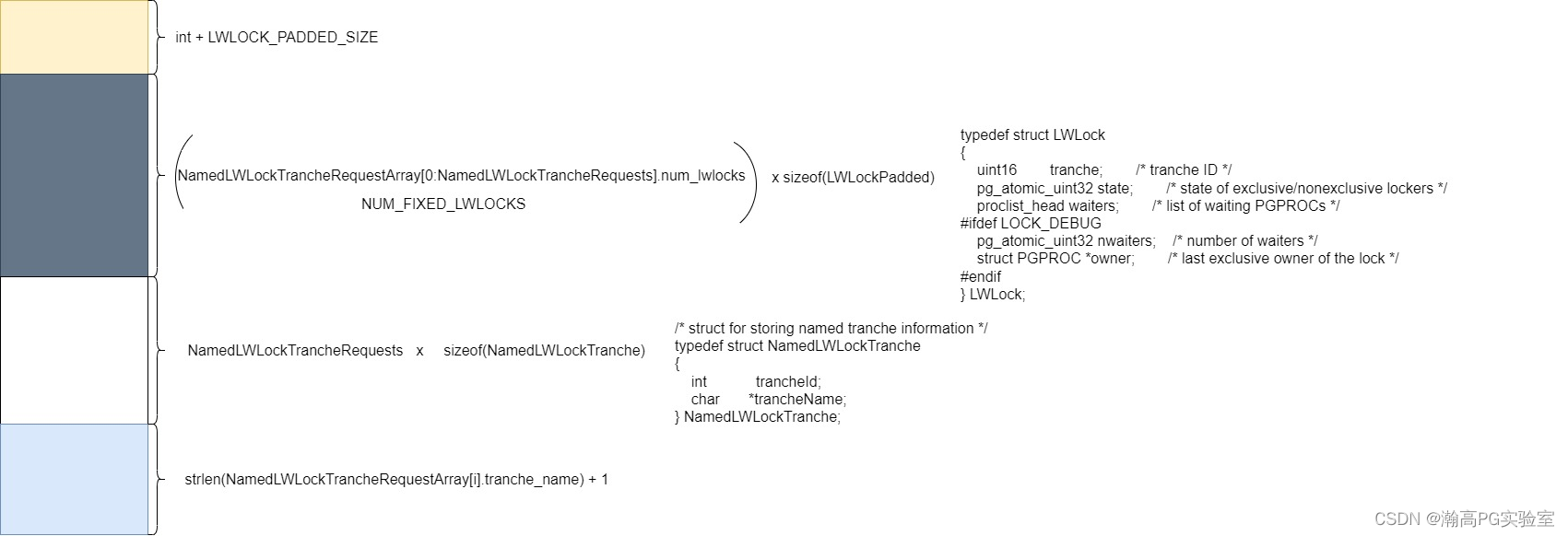

1.3 轻量级锁在共享内存中的布局

2.轻量级锁的初始化

对于上图的空间顺序进行初始化，主要看下LWLockInitialize的实现：

/*

 * Initialize LWLocks that are fixed and those belonging to named tranches.

 */

static void

InitializeLWLocks(void)

{

	int			numNamedLocks = NumLWLocksForNamedTranches();

	int			id;

	int			i;

	int			j;

	LWLockPadded *lock;



	/* Initialize all individual LWLocks in main array */

	for (id = 0, lock = MainLWLockArray; id < NUM_INDIVIDUAL_LWLOCKS; id++, lock++)

		LWLockInitialize(&lock->lock, id);



	/* Initialize buffer mapping LWLocks in main array */

	lock = MainLWLockArray + BUFFER_MAPPING_LWLOCK_OFFSET;

	for (id = 0; id < NUM_BUFFER_PARTITIONS; id++, lock++)

		LWLockInitialize(&lock->lock, LWTRANCHE_BUFFER_MAPPING);



	/* Initialize lmgrs' LWLocks in main array */

	lock = MainLWLockArray + LOCK_MANAGER_LWLOCK_OFFSET;

	for (id = 0; id < NUM_LOCK_PARTITIONS; id++, lock++)

		LWLockInitialize(&lock->lock, LWTRANCHE_LOCK_MANAGER);



	/* Initialize predicate lmgrs' LWLocks in main array */

	lock = MainLWLockArray + PREDICATELOCK_MANAGER_LWLOCK_OFFSET;

	for (id = 0; id < NUM_PREDICATELOCK_PARTITIONS; id++, lock++)

		LWLockInitialize(&lock->lock, LWTRANCHE_PREDICATE_LOCK_MANAGER);



	/*

	 * Copy the info about any named tranches into shared memory (so that

	 * other processes can see it), and initialize the requested LWLocks.

	 */

	if (NamedLWLockTrancheRequests > 0)

	{

		char	   *trancheNames;



		NamedLWLockTrancheArray = (NamedLWLockTranche *)

			&MainLWLockArray[NUM_FIXED_LWLOCKS + numNamedLocks];



		trancheNames = (char *) NamedLWLockTrancheArray +

			(NamedLWLockTrancheRequests * sizeof(NamedLWLockTranche));

		lock = &MainLWLockArray[NUM_FIXED_LWLOCKS];



		for (i = 0; i < NamedLWLockTrancheRequests; i++)

		{

			NamedLWLockTrancheRequest *request;

			NamedLWLockTranche *tranche;

			char	   *name;



			request = &NamedLWLockTrancheRequestArray[i];

			tranche = &NamedLWLockTrancheArray[i];



			name = trancheNames;

			trancheNames += strlen(request->tranche_name) + 1;

			strcpy(name, request->tranche_name);

			tranche->trancheId = LWLockNewTrancheId();

			tranche->trancheName = name;



			for (j = 0; j < request->num_lwlocks; j++, lock++)

				LWLockInitialize(&lock->lock, tranche->trancheId);

		}

	}

}

2.1 LWLock赋初值
分别对LWLock中的成员变量state（包括exclusive、shared等状态）、tranche_id（锁的粒度划分，一个tranche_name下可以有多个lock,每个lock有唯一的tranche_id）、waiters（等待队列，是双向链表实现）进行初始化，当中state成员比较特殊。

/*

 * LWLockInitialize - initialize a new lwlock; it's initially unlocked

 */

void

LWLockInitialize(LWLock *lock, int tranche_id)

{

	pg_atomic_init_u32(&lock->state, LW_FLAG_RELEASE_OK);

#ifdef LOCK_DEBUG

	pg_atomic_init_u32(&lock->nwaiters, 0);

#endif

	lock->tranche = tranche_id;

	proclist_init(&lock->waiters);

}

/*

 * Code outside of lwlock.c should not manipulate the contents of this

 * structure directly, but we have to declare it here to allow LWLocks to be

 * incorporated into other data structures.

 */

对于LWLock不应该外部操作，但是有些结构体需要包含这一LWLock类型，所以把LWLock结构声明放在/src/include/storage/lwlock.h

typedef struct LWLock

{

	uint16		tranche;		/* tranche ID */

	pg_atomic_uint32 state;		     /* state of exclusive/nonexclusive lockers */

	proclist_head waiters;		     /* list of waiting PGPROCs */

#ifdef LOCK_DEBUG

	pg_atomic_uint32 nwaiters;	     /* number of waiters */

	struct PGPROC *owner;		     /* last exclusive owner of the lock */

#endif

} LWLock;

使用lwlock时，会有多个进程进行争用，因此需要保证对该变量的修改原子化，然而在初始化时还未有并发的使用，所以只是简单的赋值，但是该变量要保证修改完成时对其它进程的可见性，所以必须加上volatile关键字，后续每个进程的访问和修改都要从内存读取。

typedef struct pg_atomic_uint32

{

	volatile uint32 value;

} pg_atomic_uint32;

/*

 * pg_atomic_init_u32 - initialize atomic variable

 *

 * Has to be done before any concurrent usage..

 *

 * No barrier semantics.

 */

static inline void

pg_atomic_init_u32(volatile pg_atomic_uint32 *ptr, uint32 val)

{

	AssertPointerAlignment(ptr, 4);



	pg_atomic_init_u32_impl(ptr, val);

}
