以下是访问 https://github.com 的 wireshark 抓包截图:
- C->S:Client Hello
- S->C:Server Hello
- S->C:Certificate, Server Key Exchange, Server Hello Done
- C->S:Client Key Change
- C->S:Change Cipher Spec
- C->S:Encryted Handshake Message
- S->C:Change Cipher Spec, Encryted Handshake Message
- C->S/S->C:Application Data
第 1、2、3、4、6、7.2 步均为 TLSv1.2 Record Layer 中的 Handshake Protocol,
第 5、7.1 步为 TLSv1.2 Record Layer 中的 Change Cipher Spec Protocol,
第 8 步为 TLSv1.2 Record Layer 中的 Application Data Protocol: http-over-tls
。
与 rfc4492-Message_flow_in_a_full_TLS_handshake 对比,服务器没有要求 client authentication,即不涉及 *+ 步骤。
在 Wireshark 解析树中,TLS 被解析为 Secure Sockets Layer
。
The protocol is composed of two layers: the TLS Record Protocol and the TLS Handshake Protocol.
TLS wraps all traffic in “records” of different types. A TLS message may span multiple TLS records.
The handshake record is broken out into several messages.

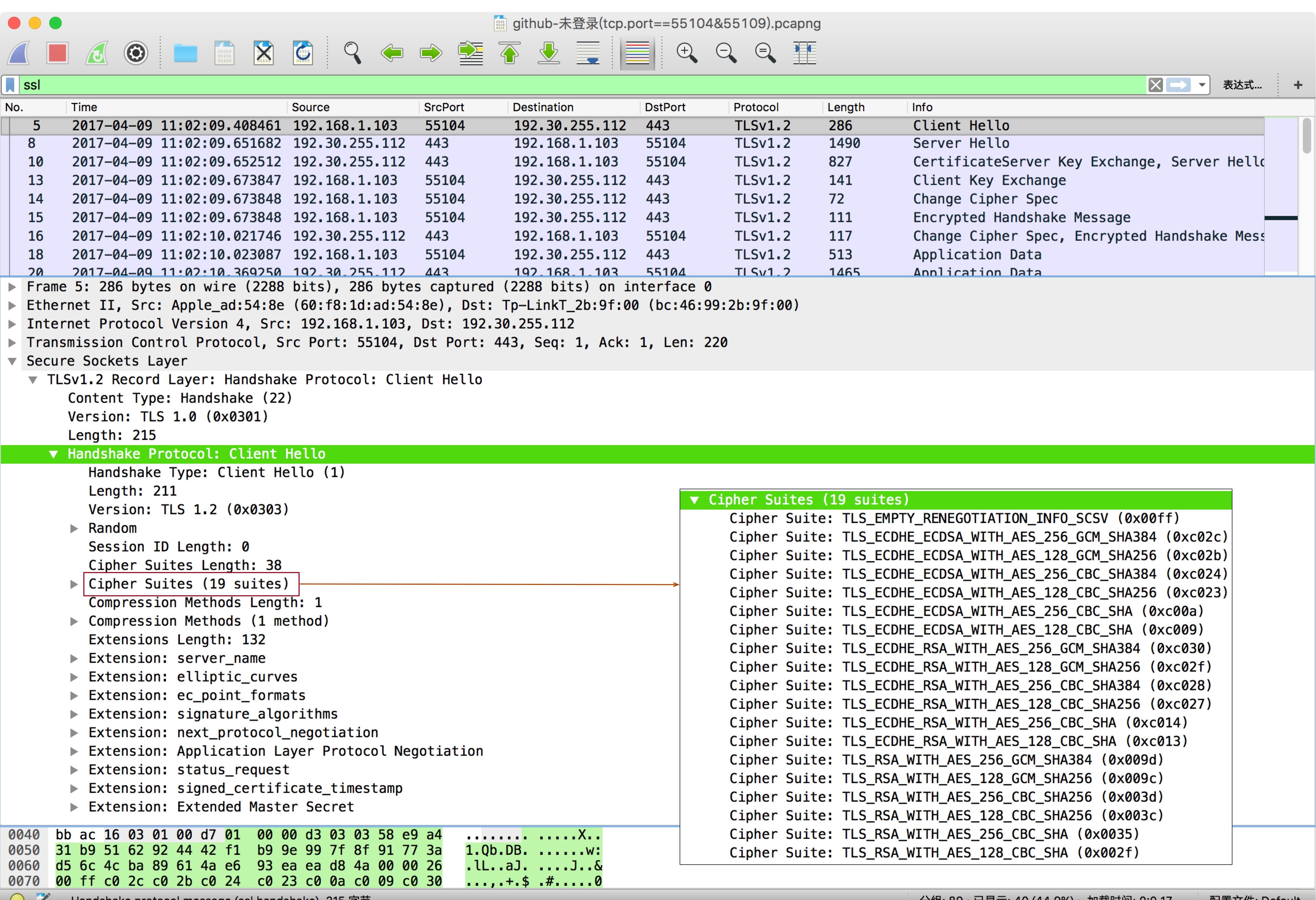

Client Hello
TLSv1.2 Record Layer: Handshake Protocol: Client Hello
ssl.record.content_type=0x16
ssl.handshake.type=0x01
- TLS Version
- Random
- Cipher Suites
- Compression Methods
- Extension: server_name(Server Name Indication extension)
- Extension: elliptic_curves(EllipticCurveList)
- Extension: ec_point_formats(ECPointFormatList)
- Extension: signature_algorithms
- Extension: next_protocol_negotiation
- Extension: Application Layer Protocol Negotiation(ALPN Protocol)
- Extension: signed_certificate_timestamp
- Extension: Extended Master Secret
ssl.record 头部的 Version 为 TLS 1.0(0x0301),为客户端首次发起 Hello 选择的最低版本。ssl.handshake 报文中的 Version 为 TLS 1.2(0x0303),为客户端支持的 TLS 最高版本。
所有的枚举能力项(Cipher Suites,Compression Methods,elliptic_curves,ec_point_formats,signature_algorithms,etc)都是按照从高到低的优先级排列(favorite choice first)。
Signature Hash Algorithm 包括 Hash 算法 和 Signature 算法。

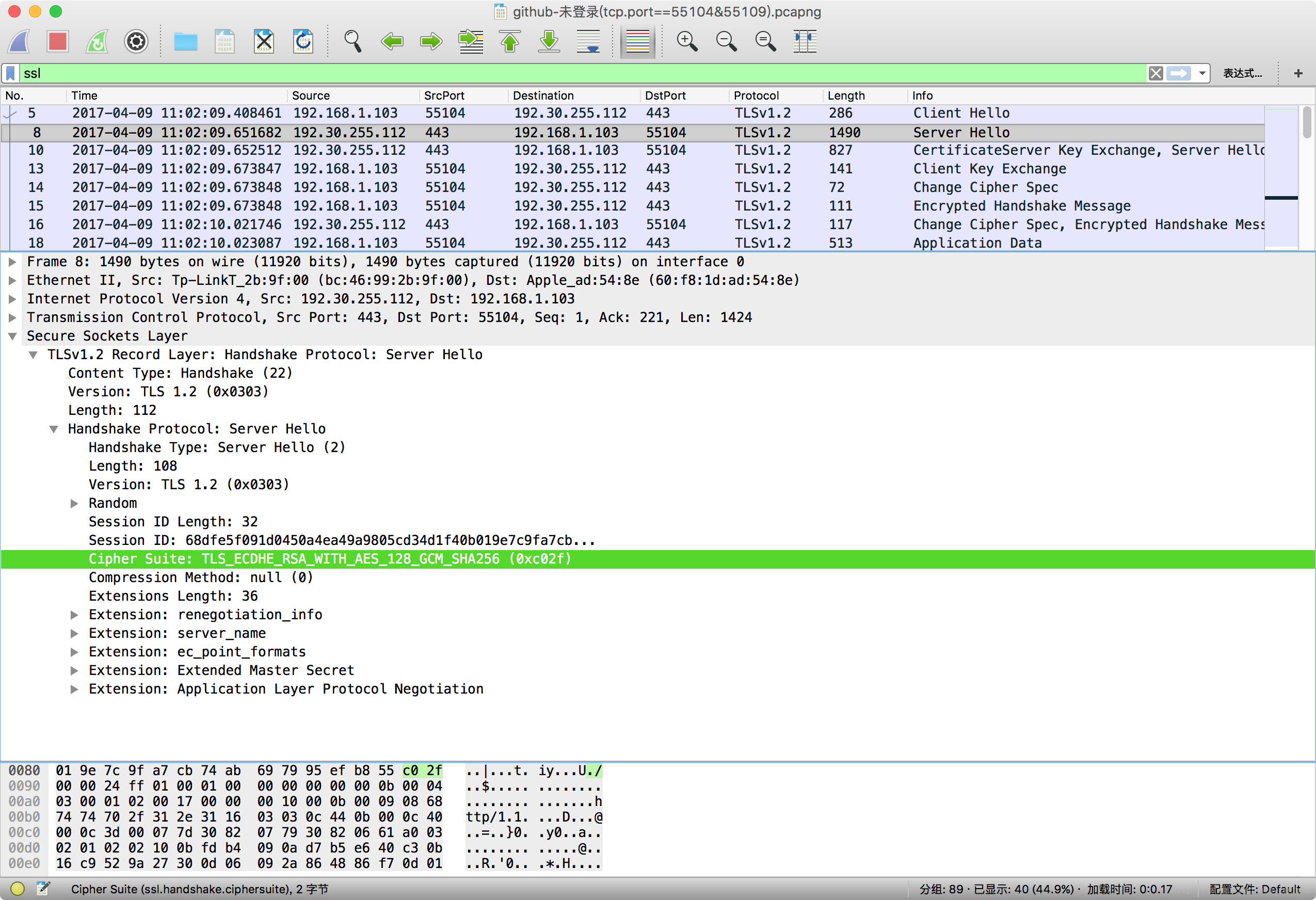

Server Hello
TLSv1.2 Record Layer: Handshake Protocol: Server Hello
ssl.record.content_type=0x16
ssl.handshake.type=0x02
- TLS Version
- Random
- Session ID, (黑体新增)
- Cipher Suite, (斜体协定)
- Compression Method
- Extension: renegotiation_info
- Extension: server_name(Server Name Indication extension)
- Extension: ec_point_formats(ECPointFormatList)
- Extension: Extended Master Secret
- Extension: Application Layer Protocol Negotiation(ALPN Next Protocol: http/1.1)
ssl.record 头部的 Version 为 TLS 1.2(0x0303),表示 Server 回应 Hello 使用的版本为 TLS 1.2。ssl.handshake 报文中的 Version 也为 TLS 1.2(0x0303)。
Hello Extensions is “client-oriented“:
the extension type MUST NOT appear in the extended server hello unless the same extension type appeared in the corresponding client hello.
the extended server hello message is only sent in response to an extended client hello message.
ssl.record 总长117,各部分长度构成如下:
- sizeof(ssl.record.content_type)=1
- sizeof(ssl.record.version)=2
- sizeof(ssl.record.length)=2
- sizeof(ssl.handshake)=112
报文(#8) 帧长 1490(tcp payload 长度为 1424),出现了 TCP 报文流粘连,117 字节的 Server Hello 后面还有 1307 个字节是服务器发送的证书报文。
Certificate
TLSv1.2 Record Layer: Handshake Protocol: Certificate
ssl.record.content_type=0x16
ssl.handshake.type=0x0b
This message conveys the server’s certificate chain to the client.
报文(#8) 包含证书的前 1307 个字节,报文(#9)为证书的中间部分(TCP Segment Len: 1424)。
报文(#10) 帧长 827(tcp payload 长度为 761),也出现了 TCP 报文流粘连:
- 414 字节的证书结尾部分;
- 338 字节的
Server Key Exchange
报文; - 9 字节的
Server Hello Done
报文。

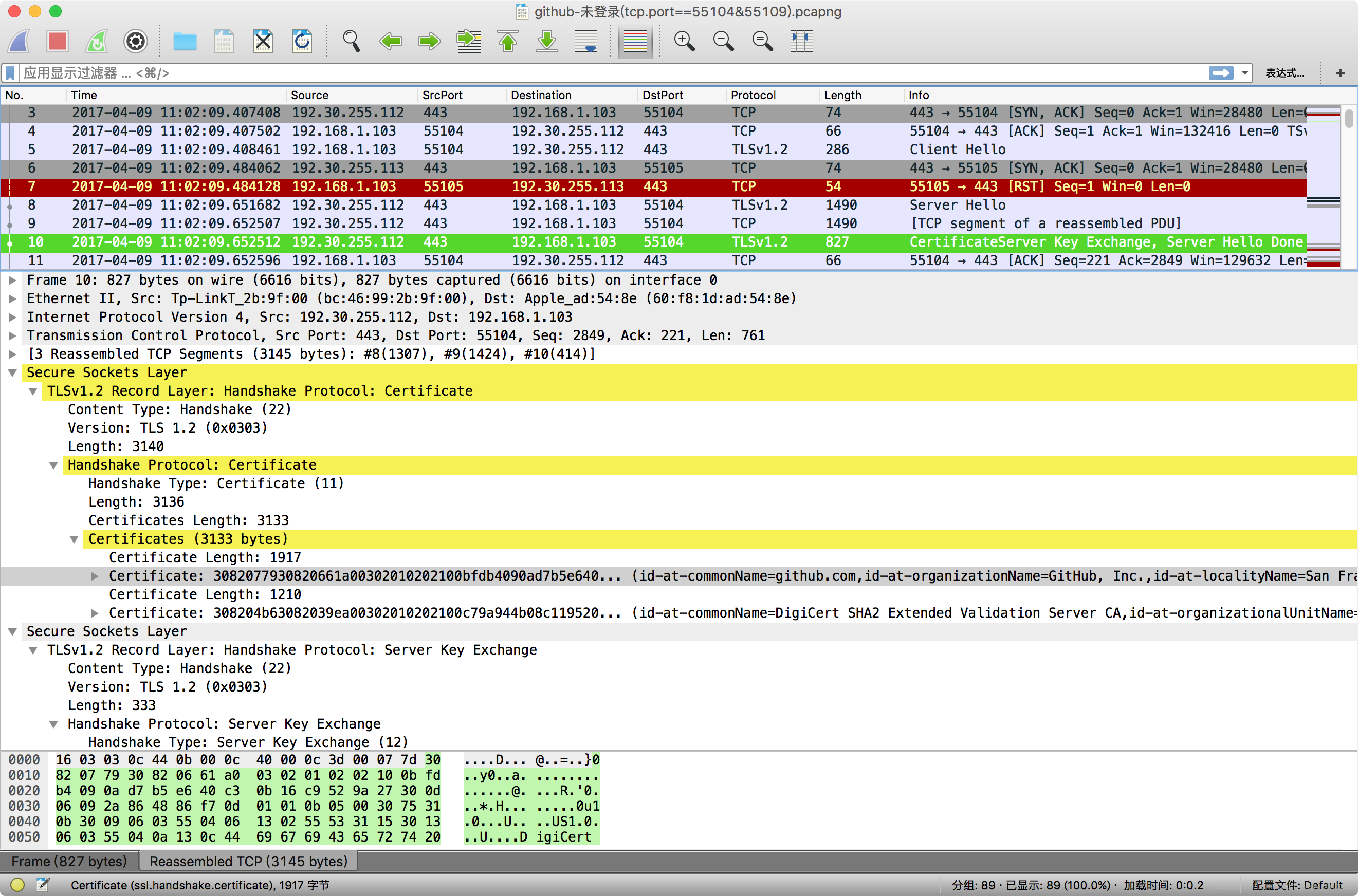

整个证书 Certificate
报文由3个TCP流组成:
[3 Reassembled TCP Segments (3145 bytes): #8(1307), #9(1424), #10(414)]
ssl.record 各部分长度构成如下:
- sizeof(ssl.record.content_type)=1
- sizeof(ssl.record.version)=2
- sizeof(ssl.record.length)=2
- sizeof(ssl.handshake)=3140
正如 rfc4492 所述,The server’s Certificate message is capable of carrying a chain of certificates.
Certificate
报文下发了 GitHub 机构旗下 github.com 网站的证书及其颁发机构 DigiCert 的证书:
// 二级证书(1917 bytes)
Certificate: 3082077930820661a00302010202100bfdb4090ad7b5e640... (id-at-commonName=github.com,id-at-organizationName=GitHub, Inc.,id-at-localityName=San Francisco,id-at-stateOrProvinceName=California,id-at-countryName=US,id-at-postalCode=9
// 一级证书(1210 bytes)
Certificate: 308204b63082039ea00302010202100c79a944b08c119520... (id-at-commonName=DigiCert SHA2 Extended Validation Server CA,id-at-organizationalUnitName=www.digicert.com,id-at-organizationName=DigiCert Inc,id-at-countryName=US)
在 wireshark 中可依次展开 Certificate|signedCertificate 查看证书颁发机构(issuer)和证书持有主体(subject)信息及其公钥信息(subjectPublicKeyInfo)。其中 signature 指定了认证签密算法,encrypted 部分为使用 DigiCert 私钥加过密的签名。
也可右键菜单 导出分组字节流
,可导出 Certificate 字段值的分组字节流(raw 二进制),并保存为 *.cer。在 macOS 下双击自动将证书导入钥匙串(Keychain Access),然后在钥匙串中可双击打开查看证书内容。
Actions of the receiver
The client validates the certificate chain, extracts the server’s public key, and checks that the key type is appropriate for the negotiated key exchange algorithm.
Server Key Exchange
TLSv1.2 Record Layer: Handshake Protocol: Server Key Exchange
ssl.record.content_type=0x16
ssl.handshake.type=0x0c
This message is used to convey the server’s ephemeral ECDH public key (and the corresponding elliptic curve domain parameters) to the client.
交换 ECDH 参数(EC Diffie-Hellman Server Params):
- TLS Version
- Curve Type: named_curve
- Named Curve: secp256r1
- Pubkey
- Signature Hash Algorithm(Hash: SHA512, Signature: RSA)
- Signature
传输了 Curve Type 及其对应值(elliptic curve domain parameters)、Pubkey(The ephemeral ECDH public key) 及其对应签名(及其散列签名算法)。
Actions of the sender/receiver
The server selects elliptic curve domain parameters and an ephemeral ECDH public key corresponding to these parameters according to the ECKAS-DH1 scheme from IEEE 1363 [6].
The client verifies the signature (when present) and retrieves the server’s elliptic curve domain parameters and ephemeral ECDH public key from the ServerKeyExchange message.
Server Hello Done
TLSv1.2 Record Layer: Handshake Protocol: Server Hello Done
ssl.record.content_type=0x16
ssl.handshake.type=0x0e
The ServerHelloDone message is sent by the server to indicate the end of the ServerHello and associated messages.
After sending this message, the server will wait for a client response.
Client Key Exchange
TLSv1.2 Record Layer: Handshake Protocol: Client Key Exchange
ssl.record.content_type=0x16
ssl.handshake.type=0x10
交换 ECDH 参数(EC Diffie-Hellman Client Params):
- TLS Version
- Pubkey
It MUST immediately follow the client certificate message, if it is sent. Otherwise, it MUST be the first message sent by the client after it receives the ServerHelloDone message.
With this message, the premaster secret is set, either by direct transmission of the RSA-encrypted secret or by the transmission of Diffie-Hellman parameters that will allow each side to agree upon the same premaster secret.
Actions of the sender/receiver
The client selects an ephemeral ECDH public key corresponding to the
parameters it received from the server according to the ECKAS-DH1
scheme from IEEE 1363 [6].
The server retrieves the client’s ephemeral ECDH public key from the
ClientKeyExchange message and checks that it is *on the same elliptic
curve* as the server’s ECDH key.
Change Cipher Spec(C)
ssl.record.content_type=0x14
- TLS Version
- Change Cipher Spec Message
The change cipher spec protocol exists to signal transitions in ciphering strategies.
It means has finished computing the new keying material.
The ChangeCipherSpec message is sent during the handshake after the security parameters have been agreed upon, but before the verifying Finished message is sent.
The ChangeCipherSpec message is sent by both the client and the server to notify the receiving party that subsequent records will be protected under the newly negotiated CipherSpec and keys.
Reception of this message causes the receiver to instruct the record layer to immediately copy the read pending state into the read current state.
Immediately after sending this message, the sender MUST instruct the record layer to make the write pending state the write active state.
Encryted Handshake Message(C)
TLS Client Finished
ssl.record.content_type=0x16
- TLS Version
- Encrypted Handshake Message
verify that their peer has calculated the same security parameters.
A Finished message is always sent immediately after a change cipher spec message to verify that the key exchange and authentication processes were successful.
It is essential that a change cipher spec message be received between the other handshake messages and the Finished message.
The Finished message is the first one protected with the just negotiated algorithms, keys, and secrets.
Recipients of Finished messages MUST verify that the contents are correct.
Once a side has sent its Finished message and received and validated the Finished message from its peer, it may begin to send and receive application data over the connection.
Change Cipher Spec(S)
ssl.record.content_type=0x14
- TLS Version
- Change Cipher Spec Message
机制同 Change Cipher Spec(C)。
Encryted Handshake Message(S)
TLS Server Finished
ssl.record.content_type=0x16
- TLS Version
- Encrypted Handshake Message
机制同 Encryted Handshake Message(C)。
