openlayers 设置路线和划分区域

效果图

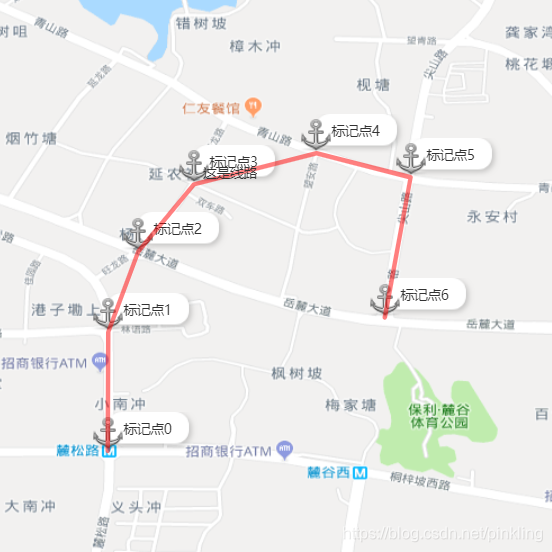

路线:

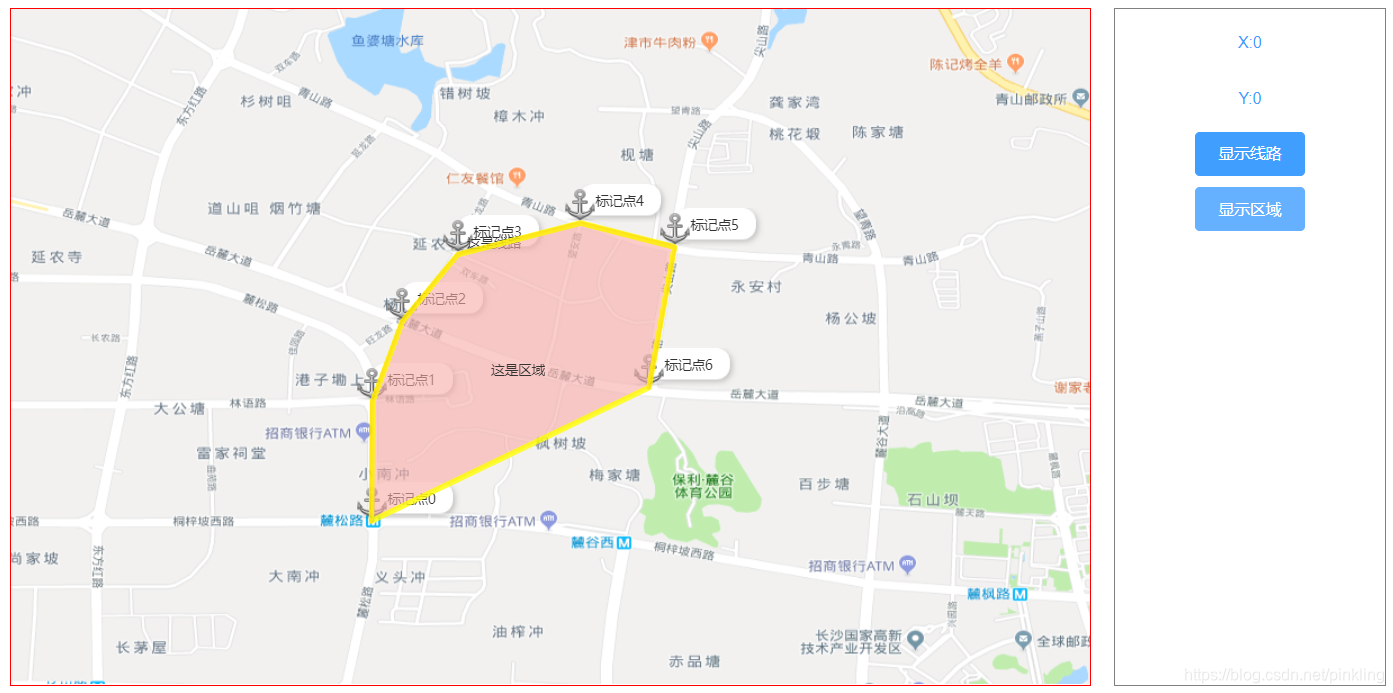

区域:

整体效果:

代码及思路过程

路线 是将一个个坐标点连接起来组成一个 feature

所以要首先需要一组坐标点的数据,

在有一段数据之后考虑 feature 所需要的内容,

feature需要图层(layer即 ol/layer/Vector ) ,

而图层需要一个源 ( source 即 ol/source/Vector )

这些都一一引入,配置好, 另外就是绘制路线所需要的具体实现的工具了

import { Point, LineString, Polygon } from 'ol/geom'

依次为点  线  和多边形

    /**
     * 设置线路
     */
    addLine () {
      const _that = this
      _that.routeFeature = new Feature({
        type: 'route',
        geometry: new LineString(_that.coordinates1)
      })
      _that.routeFeature.setStyle(new Style({
        stroke: new Stroke({
          width: 4,
          color: [255, 0, 0, 0.5]
        }),
        text: new Text({
          text: '这是线路'
        })
      }))
      // 设置图层
      _that.routeLayer = new VectorLayer({
        source: new VectorSource({
          features: [_that.routeFeature]
        })
      })
      // 添加图层
      _that.map.addLayer(_that.routeLayer)
    }

这是具体的代码, 流程是

1. 新建一个要素(feature)

2. 要素的内容是一条路(route)  几何特征(geometry)是 LineString

3. 利用LineString 连接 事先准备好的很多坐标点 (coordinates)

4. 新建好要素(feature)之后 为要素添加样式(style)

5. stroke 笔迹/线 设置宽度和颜色以及透明度

6. 文本随意添加设置

7. 将routeLayer 线路图层赋一个openlayers的图层对象  并将要素在构造时放入  也可使用方法另外放入

8. 新建好之后将图层(layer) 加入地图(map)中



区域:

和线路是一样的思路  区别在于Polygon和LineString一个会连接第一和最后一个点, 一个不会.

代码:

    addPolygon () {
      const _that = this
      _that.polygonFeature = new Feature({
        type: 'polygon',
        geometry: new Polygon([_that.coordinates1])
      })
      _that.polygonFeature.setStyle(new Style({
        stroke: new Stroke({
          width: 5,
          color: [255, 255, 0, 0.8]
        }),
        fill: new Fill({
          color: [248, 172, 166, 0.6]
        }),
        text: new Text({
          text: '这是区域'
        })
      }))
      _that.polygonLayer = new VectorLayer({
        source: new VectorSource({
          features: [_that.polygonFeature]
        })
      })
      _that.map.addLayer(_that.polygonLayer)
    }

1. 同样的  首先需要创建一个要素(feature) 声明好要素的type之后, 为他新建一个几何对象, new Polygon()

                 注意:  此处放入坐标点时是在一个数组内放置, 具体可以去翻阅一下文档

2. 设置多边形的 边框颜色 和 填充颜色 以及 文本

3. 将多边形(polygon) 放置进多边形图层(polygonLayer) 同时将要素(feature)也放入

4. 最后将多边形图层加入地图即可



全部代码 vue + element + openlayers

<template>
<section style="display: flex">
  <section style="height: 600px; width: 1200px;border: 1px red solid; margin: 10px 10px 10px 50px;">
    <section id="Map" style="width: 100%; height: 100%;"></section>
  </section>
  <section style="height: 600px; width: 300px;border: 1px gray solid; margin: 10px">
    <section>
      <el-button class="items" type="text">X:{{x}}</el-button>
      <el-button class="items" type="text">Y:{{y}}</el-button>
      <el-button class="items" @click="addLine" type="primary">显示线路</el-button>
      <el-button class="items" @click="addPolygon" type="primary">显示区域</el-button>
    </section>
    <section>
    </section>
  </section>
</section>
</template>

<script>
import 'ol/ol.css'
import TileLayer from 'ol/layer/Tile'
import VectorLayer from 'ol/layer/Vector'
import VectorSource from 'ol/source/Vector'
import XYZ from 'ol/source/XYZ'
import { Map, View, Feature } from 'ol'
import { Style, Icon, Stroke } from 'ol/style'
import Text from 'ol/style/Text'
import Fill from 'ol/style/Fill'
import { Point, LineString, Polygon } from 'ol/geom'
import {defaults} from 'ol/control/util.js'
export default {
  name: 'map6',
  data () {
    return {
      map: null,
      x: 0,
      y: 0,
      coordinates: [
        {
          x: 112.87197876066057,
          y: 28.22084712811648
        },
        {
          x: 112.8720016491825,
          y: 28.225383281160706
        },
        {
          x: 112.87314605792562,
          y: 28.228450298111515
        },
        {
          x: 112.87527465926178,
          y: 28.23101377452122
        },
        {
          x: 112.87994384801641,
          y: 28.232203960351857
        },
        {
          x: 112.88353729301525,
          y: 28.23128843224413
        },
        {
          x: 112.8825531017319,
          y: 28.225932597479645
        }
      ],
      coordinates1: [[112.87197876066057, 28.22084712811648], [112.8720016491825, 28.225383281160706], [112.87314605792562, 28.228450298111515],
        [112.87527465926178, 28.23101377452122], [112.87994384801641, 28.232203960351857], [112.88353729301525, 28.23128843224413], [112.8825531017319, 28.225932597479645]],
      features: [],
      flagLayer: null,
      routeLayer: null,
      routeFeature: null,
      polygonLayer: null,
      polygonFeature: null
    }
  },
  computed: {
  },
  methods: {
    /**
     * 初始化地图
     */
    initMap () {
      this.map = new Map({
        target: 'Map',
        controls: defaults({zoom: false}),
        layers: [
          new TileLayer({
            source: new XYZ({
              url: 'http://www.google.cn/maps/vt/pb=!1m4!1m3!1i{z}!2i{x}!3i{y}!2m3!1e0!2sm!3i345013117!3m8!2szh-CN!3scn!5e1105!12m4!1e68!2m2!1sset!2sRoadmap!4e0'
            })
          })
        ],
        view: new View({
          // 指定地图投影模式
          projection: 'EPSG:4326',
          // 定义地图显示的坐标
          center: [112.87, 28.23],
          // 限制地图中心范围，但无法限制缩小范围
          // extent: [110, 26, 114, 30],
          // 定义地图显示层级为16
          zoom: 13,
          // 限制缩放级别，可以和extent同用限制范围
          maxZoom: 19,
          // 最小级别，越大则面积越大
          minZoom: 5
        })
      })
    },
    /**
     * 变换XY坐标
     * @param e
     */
    changeXY (e) {
      const _that = this
      _that.x = e.coordinate[0]
      _that.y = e.coordinate[1]
      console.log(_that.x, _that.y)
    },
    /**
     * 批量添加坐标点
     */
    handleAddBatchFeature () {
      const _that = this
      // 设置图层
      _that.flagLayer = new VectorLayer({
        source: new VectorSource()
      })
      // 添加图层
      _that.map.addLayer(_that.flagLayer)
      // 循环添加feature
      for (let i = 0; i < this.coordinates.length; i++) {
        // 创建feature
        let feature = new Feature({
          geometry: new Point([_that.coordinates[i].x, _that.coordinates[i].y])
        })
        // 设置ID
        feature.setId(i)
        // 设置样式
        feature.setStyle(_that.getStyls(feature))
        // 放入features
        _that.features.push(feature)
      } // for 结束
      // 批量添加feature
      _that.flagLayer.getSource().addFeatures(_that.features)
    },
    /**
     * 设置Style
     */
    getStyls (feature) {
      let Styles = []
      // 绘制圆角矩形
      let canvas = document.createElement('canvas')
      let context = canvas.getContext('2d')
      let length = (feature.id_ + '标记点').length + 2
      canvas.width = length * 15
      canvas.height = 35
      let x = 0
      let y = 0
      let w = canvas.width
      let h = canvas.height
      let r = 15
      // 缩放
      context.scale(0.8, 0.8)
      context.fillStyle = 'rgba(255,255,255,1)'
      // 绘制圆角矩形
      context.beginPath()
      context.moveTo(x + r, y)
      context.arcTo(x + w, y, x + w, y + h, r)
      context.arcTo(x + w, y + h, x, y + h, r)
      context.arcTo(x, y + h, x, y, r)
      context.arcTo(x, y, x + w, y, r)
      // 设置阴影
      context.shadowColor = 'rgba(0, 0, 0, 0.2)' // 颜色
      context.shadowBlur = 5 // 模糊尺寸
      context.shadowOffsetX = 2 // 阴影Y轴偏移
      context.shadowOffsetY = 2 // 阴影X轴偏移
      // ----
      context.closePath()
      // 填充
      context.fill()
      // 设置style
      Styles.push(
        new Style({
          image: new Icon({
            img: canvas,
            imgSize: [w, h],
            anchor: [0, 1]
          }),
          text: new Text({
            textAlign: 'center',
            text: '标记点' + feature.id_,
            offsetX: 35,
            offsetY: -18
          }),
          zIndex: feature.id_
        })
      )
      Styles.push(
        new Style({
          image: new Icon({
            src: 'http://weilin.me/ol3-primer/img/anchor.png',
            anchor: [0.5, 1]
          }),
          zIndex: feature.id_
        })
      )
      return Styles
    },
    /**
     * 设置线路
     */
    addLine () {
      const _that = this
      _that.routeFeature = new Feature({
        type: 'route',
        geometry: new LineString(_that.coordinates1)
      })
      _that.routeFeature.setStyle(new Style({
        stroke: new Stroke({
          width: 4,
          color: [255, 0, 0, 0.5]
        }),
        text: new Text({
          text: '这是线路'
        })
      }))
      // 设置图层
      _that.routeLayer = new VectorLayer({
        source: new VectorSource({
          features: [_that.routeFeature]
        })
      })
      // 添加图层
      _that.map.addLayer(_that.routeLayer)
    },
    addPolygon () {
      const _that = this
      _that.polygonFeature = new Feature({
        type: 'polygon',
        geometry: new Polygon([_that.coordinates1])
      })
      _that.polygonFeature.setStyle(new Style({
        stroke: new Stroke({
          width: 5,
          color: [255, 255, 0, 0.8]
        }),
        fill: new Fill({
          color: [248, 172, 166, 0.6]
        }),
        text: new Text({
          text: '这是区域'
        })
      }))
      _that.polygonLayer = new VectorLayer({
        source: new VectorSource({
          features: [_that.polygonFeature]
        })
      })
      _that.map.addLayer(_that.polygonLayer)
    }
  },
  mounted () {
    this.initMap()
    this.handleAddBatchFeature()
    this.map.on('singleclick', this.changeXY)
  },
  created () {
  }
}
</script>

<style scoped>
.items{
  display: block;
  margin: 10px auto;
}
</style>
