Vue3封装Echrats组件

相信很多小伙伴在开发大屏可视化的项目中经常用到图表展示的模块，那么我们总不能一次又一次的声明一个容器去创建一个Echarts示例，一次又一次的init、一次又一次的setOption，接下来我们将实现一个Echarts的图表组件的封装。

在项目中引入Echarts

通过script标签引入

   下载Echarts.js,通过官方的github或者使用CDN加速器的方式引入到自己的项目中。

 <script src="./echarts.min.js"></script> //源码引入
 <script src="https://cdn.bootcdn.net/ajax/libs/echarts/5.3.3/echarts.common.js"></script> //bootcdn引入

通过npm安装enharts

npm install echarts --save

Echarts组件的封装

<template>
  <div ref="chartRef" :class="props.className" :style="{ height: props.height, width: props.width }" />
</template>

<script lang="ts" setup>
import {
  onActivated,
  PropType,
  onMounted,
  onBeforeUnmount,
  unref,
  ref,
  watch,
  nextTick,
  defineProps,
} from 'vue';
import type { ECharts, EChartsOption } from 'echarts';
import * as echarts from 'echarts';
const props = defineProps({
  // 自定义组件的类名
  className: {
    type: String as PropType<string>,
    default: 'chart',
  },
  // 图表容器的宽度
  width: {
    type: String as PropType<string>,
    default: '100%',
  },
  // 图表容器的高度
  height: {
    type: String as PropType<string>,
    default: '100%',
  },
  // 图表参数
  options: {
    type: Object as PropType<EChartsOption | undefined>,
    default: undefined,
  },
  // 图表是否具有点击事件
  isClick: {
    type: Boolean as PropType<boolean>,
    default:false
  }
});
const chartRef = ref<HTMLCanvasElement | null>(null);
let chart: ECharts | null = null;
watch(
  () => props.options,
  (options: EChartsOption | undefined) => {
    nextTick(() => {
      if (chart) {
        chart.setOption(options as EChartsOption, true);
      }
    });
  },
  {
    deep: true,
  }
);
const emits = defineEmits(['callbackFun'])
onMounted(() => {
  // 设置异步，不然图例一开始的宽度不正确。
  nextTick(() => {
    initChart();
  });
});
const initChart = (): void => {
  // 初始化echart
  const chartRefWrap = unref(chartRef);
  if (chartRefWrap) {
    chart = echarts.init(chartRefWrap);
    // 若图表需要点击事件做些其他功能，在初始化示例时注册图表的点击事件
    if (props.isClick) {
      chart.on('click', (params: any) => {
        emits('callbackFun',params)
      })
    }
    chart.setOption(props.options as EChartsOption, true);
    window.addEventListener('resize',chartsResize)
  }
};
onActivated(() => {
  // 防止keep-alive之后图表变形
  if (chart) {
    nextTick(() => {
      chart.resize();
    })
  }
});

const chartsResize = () => {
  chart && chart.resize();
};

onBeforeUnmount(() => {

  window.removeEventListener('resize',chartsResize);
  chart = nll;
});
</script>

<style>
</style>


Echarts组件的使用 (含点击事件)

<template>
  <div class="myEcharts">
    <Echarts
      width="100%"
      height="100%"
      :options="data.myEchartsOption"
      isClick
      @callbackFun="callbackFun"
    />
  </div>
</template>

<script lang="ts" setup>
import * as echarts from "echarts";
import Echarts from "@/components/Charts/index.vue";
import { reactive } from "vue";
const data = reactive({
  myEchartsOption: {
    backgroundColor: "#061740",
    grid: {
      x: 0,
      y: 0,
      x2: 0,
      y2: 0,
      top: "15%",
      left: "3%",
      right: "3%",
      bottom: "20%",
      containLabel: true,
    },
    legend: {
      data: ["季度销售额", "销售增长率"],
      bottom: "bottom",
      type: "scroll",
      padding: [10, 0, 0, 0],
      textStyle: {
        color: "rgba(36, 173, 254, 1)",
        fontSize: "1rem",
      },
      //图例标记的图形高度
      itemHeight: 5,
      //图例标记的图形宽度
      itemWidth: 10,
    },
    tooltip: {
      trigger: "axis",
      axisPointer: {
        type: "shadow",
      },
    },
    xAxis: [
      {
        type: "category",
        axisTick: {
          show: false,
        },
        interval: 1,
        axisLabel: {
          color: "rgba(36, 173, 254, 1)",
          fontSize: "24",
        },
        axisLine: {
          show: false,
        },
        data: ["第一季度", "第二季度", "第三季度"],
      },
    ],
    yAxis: [
      {
        type: "value",
        splitNumber: 5,
        splitLine: {
          show: true,
          lineStyle: {
            type: "dashed",
            color: "rgba(36, 173, 254, 0.2)",
          },
        },
        axisTick: {
          show: false,
        },
        axisLabel: {
          textStyle: {
            color: "rgba(36, 173, 254, 1)",
          },
          fontSize: "24",
        },
        axisLine: {
          show: true,
          lineStyle: {
            color: "rgba(36, 173, 254, 1)",
          },
        },
      },
      {
        type: "value",
        splitNumber: 5,
        splitLine: {
          show: true,
          lineStyle: {
            type: "dashed",
            color: "rgba(36, 173, 254, 0.2)",
          },
        },
        axisTick: {
          show: false,
        },
        axisLabel: {
          textStyle: {
            color: "rgba(36, 173, 254, 1)",
          },
          fontSize: "24",
        },
        axisLine: {
          show: true,
          lineStyle: {
            color: "rgba(36, 173, 254, 1)",
          },
        },
      },
    ],
    series: [
      {
        name: "季度销售额",
        type: "bar",
        barWidth: "20%",
        data: ["13", "25", "38"],
        //背景色
        showBackground: true,
        backgroundStyle: {
          color: "rgba(180, 180, 180, 0.2)",
        },
        //柱体颜色
        itemStyle: {
          normal: {
            //圆角
            barBorderRadius: [30, 30, 0, 0],
            //柱图高亮渐变色
            color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
              {
                offset: 0,
                color: "#77DDFF",
              },
              {
                offset: 0.5,
                color:
                "#00BBFF",
              },
              {
                offset: 1,
                color: "#009FCC",
              },
            ]),
          },
        },
      },
      {
        type: "line",
        stack: "Total",
        name: "销售增长率",
        emphasis: {
          focus: "series",
        },
        yAxisIndex: 1,
        data: ["40", "28", "26"],
        itemStyle: {
          normal: {
            color: "#FFBB00", //改变折线点的颜色
            lineStyle: {
              color: "#FFBB00", //改变折线颜色
              type: "dashed",
            },
          },
        },
        symbol: "circle",
        symbolSize: 15,
      },
    ],
  },
});
// echarts组件的点击抛出事件
const callbackFun = (obj) => {
  console.log(obj, "拿到对象做点你需要的功能");
};
</script>
<style scoped lang="less">
.myEcharts {
  width: 100%;
  height: 100%;
}
</style>

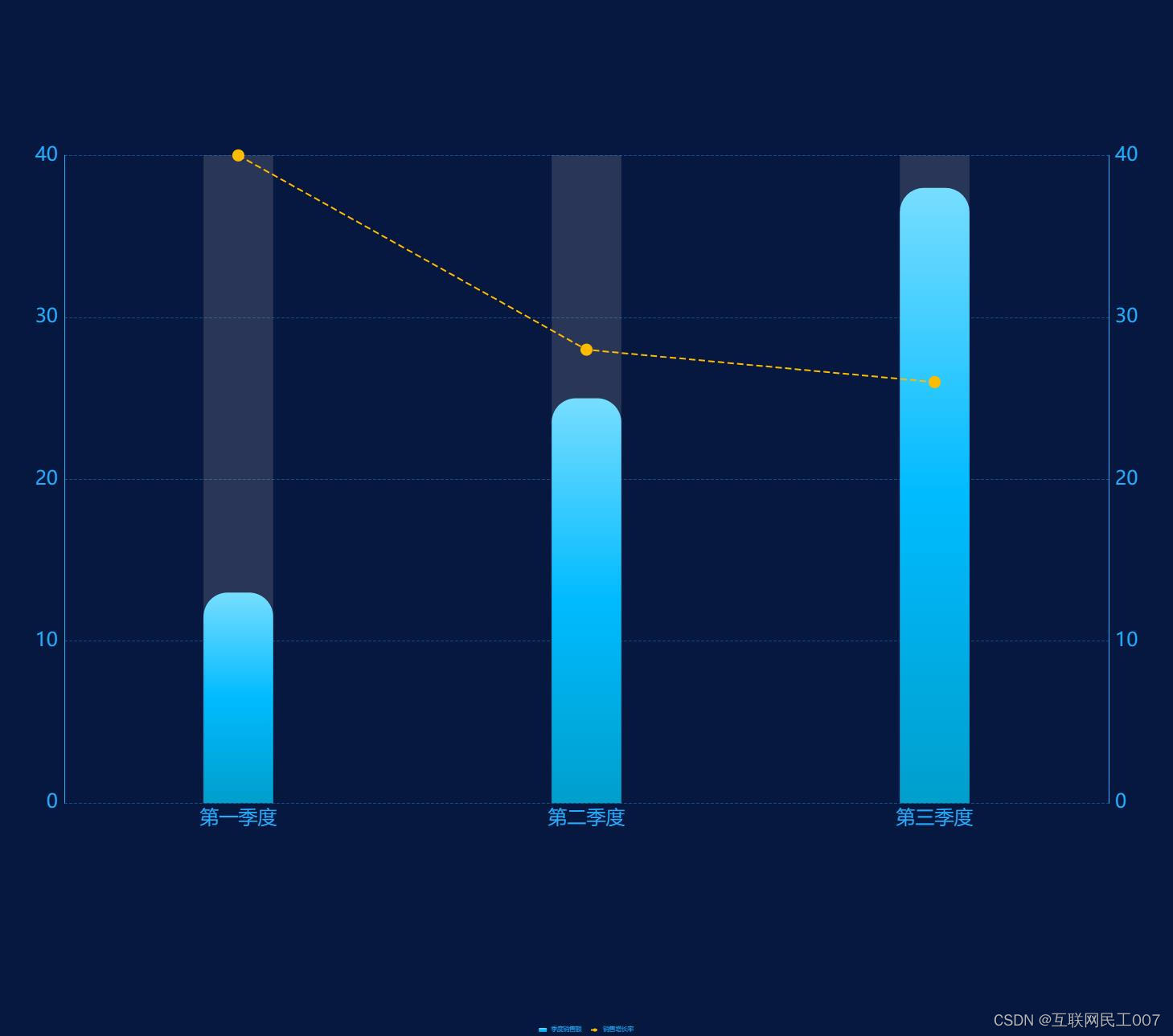

效果图

点击事件的说明

当你不需要点击事件时，你不需要传入isClick参数和接收callbackFun事件
当你需要点击图表触发其他自定义业务代码时，传入isClick参数和接收callbackFun事件

<template>
  <div class="myEcharts">
    <Echarts
      width="100%"
      height="100%"
      :options="data.myEchartsOption"
    />
  </div>
</template>

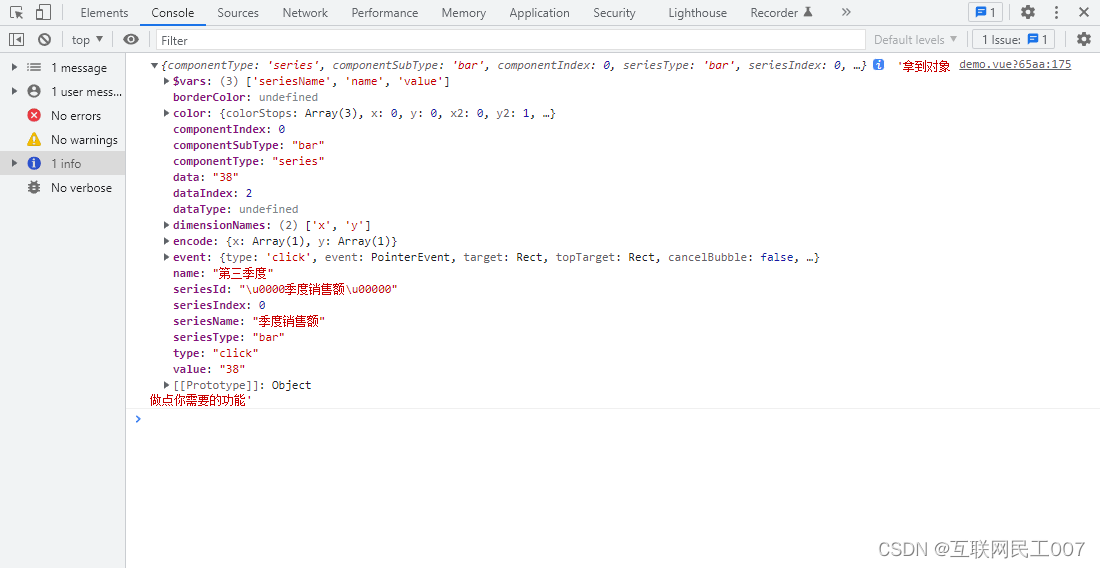

点击事件的效果打印

总结

一直在不断前进，如有问题，请各位看官指出，相互交流学习。
