前言

   七牛云直播SDK迭代快，但是官方文档跟不上迭代速度，导致快速开始这部分文档的还没更新，很多被废弃的类、方法还在文档中，本文是基于2.3.0版本进行的快速开发，由于是第一次接触直播，存在着许多不足欢迎批评指正。

  1. 官方文档地址：https://developer.qiniu.com/pili/sdk/3718/PLDroidMediaStreaming-quick-start
  2. 官方Demo地址：https://github.com/pili-engineering/PLDroidMediaStreaming
  3. SDK地址：https://github.com/pili-engineering/PLDroidMediaStreaming/tree/master/releases
  4. 本文代码地址：https://github.com/infoSafe/LiveBroadcastDemo

快速开始

  •  创建项目（软编要求 MinimumSDK API 15 ； 硬编要求 MinimumSDK API 18）本文使用的是18

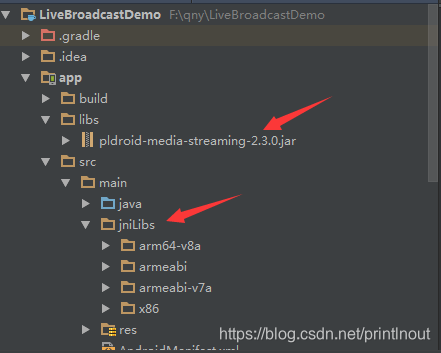

  • 导入SDK，在 app/src/main 目录下创建 jniLibs 目录。将文件导入对应的目录（如下图）。



  • 添加相关权限并注册 Activity

  • <?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.live.demo">

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.RECORD_AUDIO" />
    <uses-permission android:name="android.permission.CAMERA" />
    <uses-permission android:name="android.permission.WAKE_LOCK" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <uses-permission android:name="android.permission.READ_PHONE_STATE" />
    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-feature android:glEsVersion="0x00020000" android:required="true" />

    <application
        android:name=".StreamingApplication"
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".Activity.MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <activity
            android:name="com.qiniu.pili.droid.streaming.screen.ScreenCaptureRequestActivity"
            android:theme="@android:style/Theme.Translucent.NoTitleBar"></activity>

        <activity android:name=".Activity.AVStreamingActivity" />
        <activity android:name=".Activity.SWCameraStreamingActivity" />
    </application>

</manifest>



  • 添加 happy-dns 依赖（

    compile 'com.qiniu:happy-dns:0.2.8'

    ）

  • 实现自己的 Application

    import android.app.Application;

import com.qiniu.pili.droid.streaming.StreamingEnv;

public class StreamingApplication extends Application {
    @Override
    public void onCreate() {
        super.onCreate();
        /**
         * init must be called before any other func
         */
        StreamingEnv.init(getApplicationContext());
    }
}



  • 创建主界面

    package com.live.demo.Activity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

import com.live.demo.R;
import com.live.demo.Util.Util;

import java.util.UUID;

public class MainActivity extends Activity  implements View.OnClickListener{

    private static final String TAG = "MainActivity";

    private static final String GENERATE_STREAM_TEXT = "http://api-demo.qnsdk.com/v1/live/stream/";

    private TextView tv_start;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();
    }


    public void initView(){
        tv_start = findViewById(R.id.tv_start);
        tv_start.setOnClickListener(this);
    }


    @Override
    public void onClick(View v) {
        new Thread(new Runnable() {
            @Override
            public void run() {
              final String tlpath =   genPublishURL();
//                video_Audio
                Intent intent = new Intent(MainActivity.this, SWCameraStreamingActivity.class);
//                传推流地址
                intent.putExtra("stream_publish_url", tlpath);
                startActivity(intent);

            }
        }).start();
    }


    /**
     * @author:
     * @create at: 2018/11/13  13:01
     * @Description: 获取推流地址
     */
    private String genPublishURL() {
        String publishUrl = Util.syncRequest(GENERATE_STREAM_TEXT + UUID.randomUUID());
        return publishUrl;
    }
}



  • 主界面布局文件

    <?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center_horizontal"
    tools:context=".demo.Activity.MainActivity">

    <TextView
        android:id="@+id/tv_start"
        android:text="开始推流"
        android:gravity="center"
        android:textSize="18sp"
        android:layout_marginTop="40dp"
        android:textColor="@color/textColorPrimary"
        android:background="@color/colorHeader"
        android:layout_width="160dp"
        android:layout_height="50dp" />

</LinearLayout>



  • 创建推流界面

    package com.live.demo.Activity;

import android.app.Activity;
import android.hardware.Camera;
import android.os.Bundle;
import android.util.Log;
import android.widget.TextView;

import com.live.demo.R;
import com.live.demo.ui.CameraPreviewFrameView;
import com.qiniu.android.dns.DnsManager;
import com.qiniu.android.dns.IResolver;
import com.qiniu.android.dns.NetworkInfo;
import com.qiniu.android.dns.http.DnspodFree;
import com.qiniu.android.dns.local.AndroidDnsServer;
import com.qiniu.android.dns.local.Resolver;
import com.qiniu.pili.droid.streaming.CameraStreamingSetting;
import com.qiniu.pili.droid.streaming.MediaStreamingManager;
import com.qiniu.pili.droid.streaming.StreamStatusCallback;
import com.qiniu.pili.droid.streaming.StreamingProfile;
import com.qiniu.pili.droid.streaming.StreamingState;
import com.qiniu.pili.droid.streaming.StreamingStateChangedListener;

import java.io.IOException;
import java.net.InetAddress;
import java.net.URISyntaxException;

import static com.qiniu.pili.droid.streaming.AVCodecType.SW_VIDEO_WITH_SW_AUDIO_CODEC;

public class SWCameraStreamingActivity extends Activity implements StreamingStateChangedListener,
        StreamStatusCallback  {
    private static final String TAG = "LiveAcivity";
    private MediaStreamingManager mMediaStreamingManager;
    private StreamingProfile mProfile;
    private  CameraPreviewFrameView cameraPreviewFrameView;
    private TextView mStatView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_swcamera_streaming);
        initView();
    }

    public void initView(){
       cameraPreviewFrameView = findViewById(R.id.cameraPreview_surfaceView);
        mStatView =  findViewById(R.id.stream_status);
        String publishURLFromServer = getIntent().getStringExtra("stream_publish_url");
        Log.d(TAG, "initView: ===>"+publishURLFromServer);
            mProfile = new StreamingProfile();
        try {
            mProfile.setVideoQuality(StreamingProfile.VIDEO_QUALITY_HIGH1)
                    .setAudioQuality(StreamingProfile.AUDIO_QUALITY_MEDIUM2)
                    .setQuicEnable(false)//RMPT or QUIC
                    .setVideoQuality(StreamingProfile.VIDEO_QUALITY_MEDIUM1)
                    .setEncodingOrientation(StreamingProfile.ENCODING_ORIENTATION.PORT )//横竖屏
                    .setEncodingSizeLevel(StreamingProfile.VIDEO_ENCODING_HEIGHT_480)
                    .setBitrateAdjustMode(StreamingProfile.BitrateAdjustMode.Auto)//自适应码率
                    .setEncoderRCMode(StreamingProfile.EncoderRCModes.QUALITY_PRIORITY)
                    .setDnsManager(getMyDnsManager())
                    .setStreamStatusConfig(new StreamingProfile.StreamStatusConfig(3))
                    .setSendingBufferProfile(new StreamingProfile.SendingBufferProfile(0.2f, 0.8f, 3.0f, 20 * 1000))
                    .setPublishUrl(publishURLFromServer);//设置推流地址
        } catch (URISyntaxException e) {
            e.printStackTrace();
        }
        CameraStreamingSetting setting = new CameraStreamingSetting();
            setting.setCameraId(Camera.CameraInfo.CAMERA_FACING_FRONT) // 摄像头切换
                    .setContinuousFocusModeEnabled(true)
                    .setFaceBeautySetting(new CameraStreamingSetting.FaceBeautySetting(1.0f, 1.0f, 1.0f))//美颜 磨皮，美白，红润 取值范围为[0.0f, 1.0f]
                    .setVideoFilter(CameraStreamingSetting.VIDEO_FILTER_TYPE.VIDEO_FILTER_BEAUTY)
                    .setCameraPrvSizeLevel(CameraStreamingSetting.PREVIEW_SIZE_LEVEL.MEDIUM)
                    .setCameraPrvSizeRatio(CameraStreamingSetting.PREVIEW_SIZE_RATIO.RATIO_16_9);
            mMediaStreamingManager = new MediaStreamingManager(this, cameraPreviewFrameView, SW_VIDEO_WITH_SW_AUDIO_CODEC);
            mMediaStreamingManager.prepare(setting, mProfile);
            mMediaStreamingManager.setStreamingStateListener(this);

    }

    @Override
    public void onStateChanged(StreamingState streamingState, Object o) {
        switch (streamingState) {
            case PREPARING:
                Log.d(TAG, "onStateChanged: ===>"+"准备");
                break;
            case READY:
                startStreaming();
                break;
            case CONNECTING:
                Log.d(TAG, "onStateChanged: ===>"+"连接");
                break;
            case STREAMING:
                Log.d(TAG, "onStateChanged: ===>"+"已发送");
                break;
            case SHUTDOWN:
                Log.d(TAG, "onStateChanged: ===>"+"推流结束");
                break;
            case IOERROR:
                Log.d(TAG, "onStateChanged: ===>"+"IO异常");
                break;
            case SENDING_BUFFER_EMPTY:
                break;
            case SENDING_BUFFER_FULL:
                break;
            case AUDIO_RECORDING_FAIL:
                break;
            case OPEN_CAMERA_FAIL:
                break;
            case DISCONNECTED:
                Log.d(TAG, "onStateChanged: ===>"+"断开连接");
                break;
        }
    }

    /**
     * @author:
     * @create at: 2018/11/14  15:32
     * @Description: 开始推流
     */
    protected void startStreaming() {
        new Thread(new Runnable() {
            @Override
            public void run() {
                mMediaStreamingManager.startStreaming();
                Log.d(TAG, "run: ===>"+"推流");
            }
        }).start();
    }

    @Override
    protected void onResume() {
        super.onResume();
        mMediaStreamingManager.resume();
    }

    @Override
    protected void onPause() {
        super.onPause();
        mMediaStreamingManager.pause();
    }

    /**
     * @author:
     * @create at: 2018/11/14  10:57
     * @Description: 防止 Dns 被劫持
     */
    private static DnsManager getMyDnsManager() {
        IResolver r0 = null;
        IResolver r1 = new DnspodFree();
        IResolver r2 = AndroidDnsServer.defaultResolver();
        try {
            r0 = new Resolver(InetAddress.getByName("119.29.29.29"));
        } catch (IOException ex) {
            ex.printStackTrace();
        }
        return new DnsManager(NetworkInfo.normal, new IResolver[]{r0, r1, r2});
    }


    @Override
    public void notifyStreamStatusChanged(final StreamingProfile.StreamStatus streamStatus) {
        runOnUiThread(new Runnable() {
            @Override
            public void run() {
                Log.d(TAG, "run:totalAVBitrate ===>"+streamStatus.totalAVBitrate);
                Log.d(TAG, "run:audioFps ===>"+streamStatus.audioFps);
                Log.d(TAG, "run:videoFps ===>"+streamStatus.videoFps);
                mStatView.setText("bitrate:" + streamStatus.totalAVBitrate / 1024 + " kbps"
                        + "\naudio:" + streamStatus.audioFps + " fps"
                        + "\nvideo:" + streamStatus.videoFps + " fps");
            }
        });
    }


}



推流界面布局

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.live.demo.Activity.SWCameraStreamingActivity">

    <com.live.demo.ui.CameraPreviewFrameView
        android:id="@+id/cameraPreview_surfaceView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_gravity="center" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="left|top"
        android:gravity="center_vertical"
        android:orientation="vertical">

        <include
            layout="@layout/status"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

    </LinearLayout>


</RelativeLayout>

启动 APP 之后，当点击 开始推流，就可以开始推流了。

测试直播效果

1.下载播放端的Demo运行输入推流地址 ：https://github.com/pili-engineering/PLDroidPlayer

2.或者扫码下载播放app输入推流地址

推流地址获取方法

  手机运行app，as打印推流地址



评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
