XXL-JOB介绍

一、介绍

1.1、什么是XXL-JOB

XXL-JOB是一个分布式任务调度平台，用于解决分布式系统中定时任务执行问题

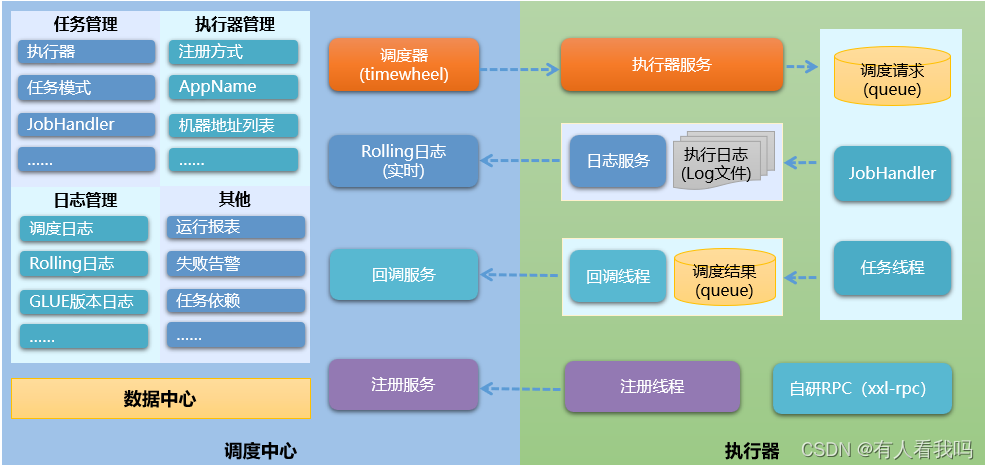

1.2、架构图

二、部署

2.1、源码部署

2.1.1、下载源码

gitee下载地址
github下载地址

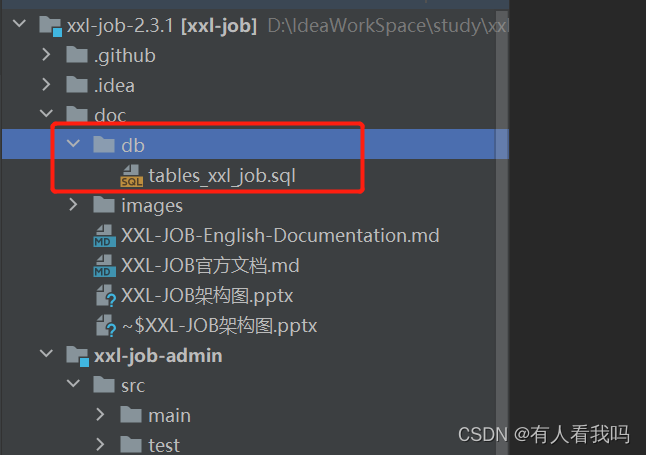

2.1.2、初始化数据库

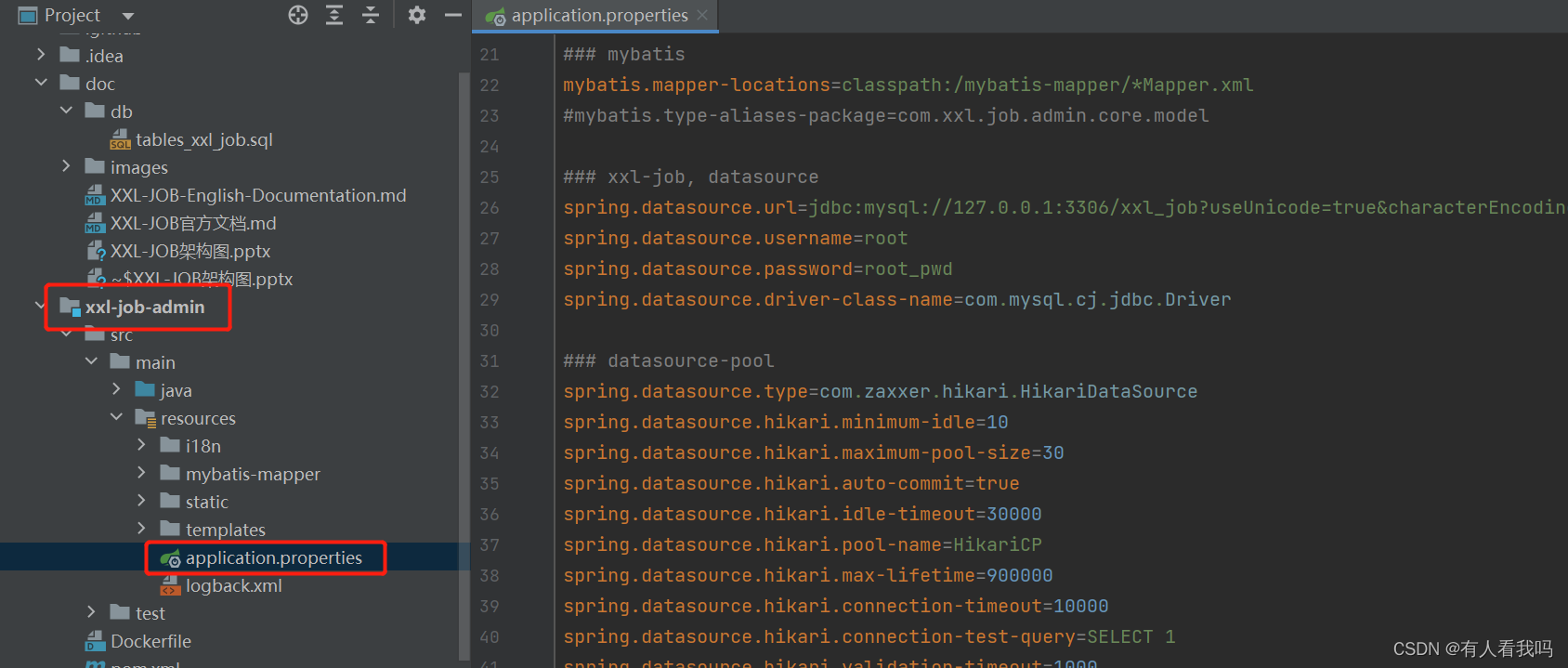

2.1.3、修改数据库配置

2.1.4、将xxl-job-admin打包部署

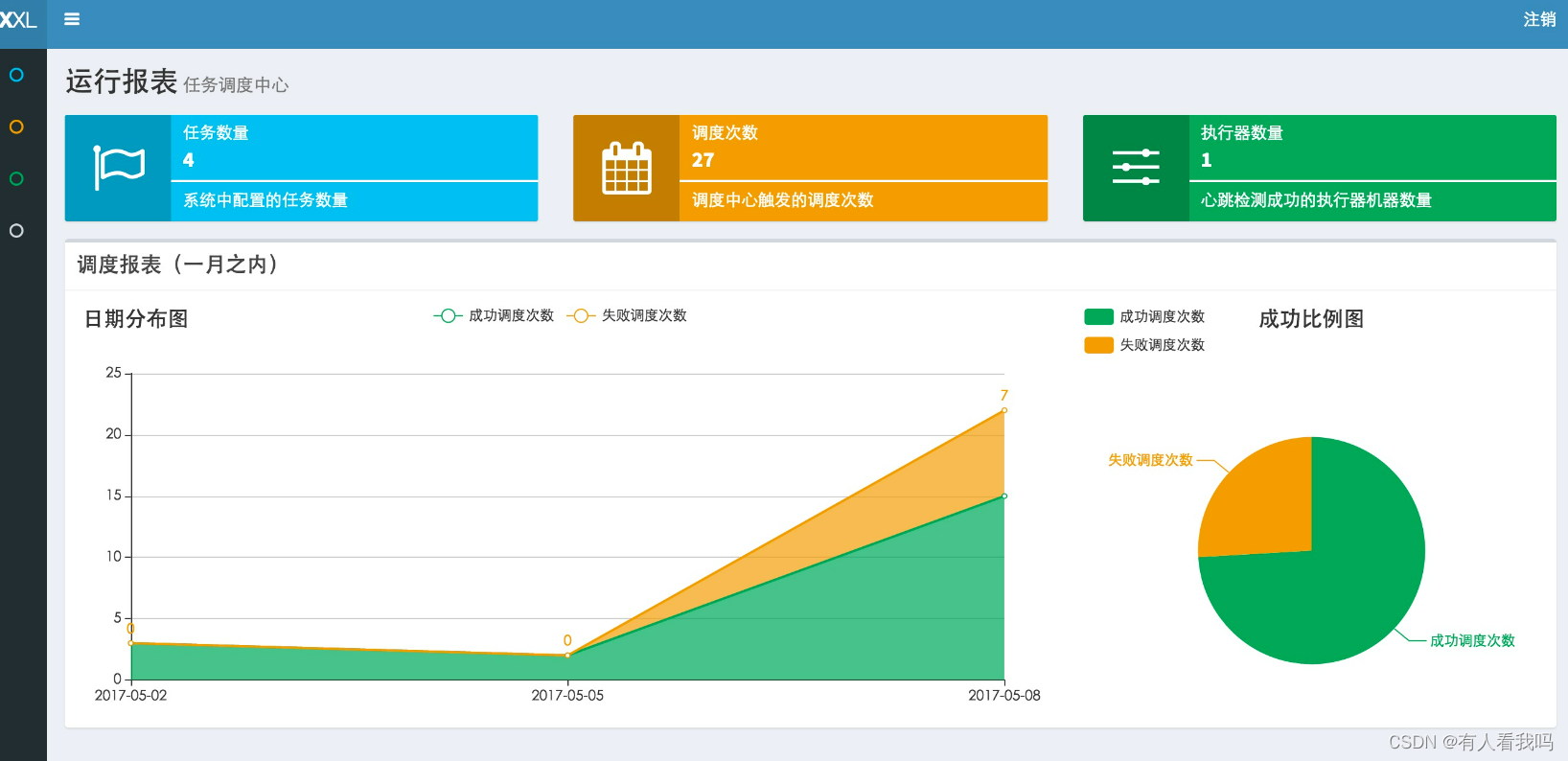

2.1.5、访问

http://localhost:8080/xxl-job-admin
默认登录账号 “admin/123456”

2.2、docker部署

docker run -d -e PARAMS="--spring.datasource.url=jdbc:mysql://127.0.0.1:3306/xxl_job?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true --spring.datasource.username=root --spring.datasource.password=123456 --spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver" -p 8080:8080 --name xxl-job-admin xuxueli/xxl-job-admin:2.3.1

三、使用

3.1、引入依赖

<dependency>
    <groupId>com.xuxueli</groupId>
    <artifactId>xxl-job-core</artifactId>
    <version>2.3.1</version>
</dependency>

3.2、代码编写

package com.xxl.job.executor.service.jobhandler;

import com.xxl.job.core.context.XxlJobHelper;
import com.xxl.job.core.handler.annotation.XxlJob;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

import java.io.BufferedInputStream;
import java.io.BufferedReader;
import java.io.DataOutputStream;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.URL;
import java.util.Arrays;
import java.util.concurrent.TimeUnit;

/**
 * XxlJob开发示例（Bean模式）
 *
 * 开发步骤：
 *      1、任务开发：在Spring Bean实例中，开发Job方法；
 *      2、注解配置：为Job方法添加注解 "@XxlJob(value="自定义jobhandler名称", init = "JobHandler初始化方法", destroy = "JobHandler销毁方法")"，注解value值对应的是调度中心新建任务的JobHandler属性的值。
 *      3、执行日志：需要通过 "XxlJobHelper.log" 打印执行日志；
 *      4、任务结果：默认任务结果为 "成功" 状态，不需要主动设置；如有诉求，比如设置任务结果为失败，可以通过 "XxlJobHelper.handleFail/handleSuccess" 自主设置任务结果；
 *
 * @author xuxueli 2019-12-11 21:52:51
 */
@Component
public class SampleXxlJob {
    private static Logger logger = LoggerFactory.getLogger(SampleXxlJob.class);


    /**
     * 1、简单任务示例（Bean模式）
     */
    @XxlJob("demoJobHandler")
    public void demoJobHandler() throws Exception {
        XxlJobHelper.log("XXL-JOB, Hello World.");

        for (int i = 0; i < 5; i++) {
            XxlJobHelper.log("beat at:" + i);
            TimeUnit.SECONDS.sleep(2);
        }
        // default success
    }


    /**
     * 2、分片广播任务
     */
    @XxlJob("shardingJobHandler")
    public void shardingJobHandler() throws Exception {

        // 分片参数
        int shardIndex = XxlJobHelper.getShardIndex();
        int shardTotal = XxlJobHelper.getShardTotal();

        XxlJobHelper.log("分片参数：当前分片序号 = {}, 总分片数 = {}", shardIndex, shardTotal);

        // 业务逻辑
        for (int i = 0; i < shardTotal; i++) {
            if (i == shardIndex) {
                XxlJobHelper.log("第 {} 片, 命中分片开始处理", i);
            } else {
                XxlJobHelper.log("第 {} 片, 忽略", i);
            }
        }

    }


    /**
     * 3、命令行任务
     */
    @XxlJob("commandJobHandler")
    public void commandJobHandler() throws Exception {
        String command = XxlJobHelper.getJobParam();
        int exitValue = -1;

        BufferedReader bufferedReader = null;
        try {
            // command process
            ProcessBuilder processBuilder = new ProcessBuilder();
            processBuilder.command(command);
            processBuilder.redirectErrorStream(true);

            Process process = processBuilder.start();
            //Process process = Runtime.getRuntime().exec(command);

            BufferedInputStream bufferedInputStream = new BufferedInputStream(process.getInputStream());
            bufferedReader = new BufferedReader(new InputStreamReader(bufferedInputStream));

            // command log
            String line;
            while ((line = bufferedReader.readLine()) != null) {
                XxlJobHelper.log(line);
            }

            // command exit
            process.waitFor();
            exitValue = process.exitValue();
        } catch (Exception e) {
            XxlJobHelper.log(e);
        } finally {
            if (bufferedReader != null) {
                bufferedReader.close();
            }
        }

        if (exitValue == 0) {
            // default success
        } else {
            XxlJobHelper.handleFail("command exit value("+exitValue+") is failed");
        }

    }


    /**
     * 4、跨平台Http任务
     *  参数示例：
     *      "url: http://www.baidu.com\n" +
     *      "method: get\n" +
     *      "data: content\n";
     */
    @XxlJob("httpJobHandler")
    public void httpJobHandler() throws Exception {

        // param parse
        String param = XxlJobHelper.getJobParam();
        if (param==null || param.trim().length()==0) {
            XxlJobHelper.log("param["+ param +"] invalid.");

            XxlJobHelper.handleFail();
            return;
        }

        String[] httpParams = param.split("\n");
        String url = null;
        String method = null;
        String data = null;
        for (String httpParam: httpParams) {
            if (httpParam.startsWith("url:")) {
                url = httpParam.substring(httpParam.indexOf("url:") + 4).trim();
            }
            if (httpParam.startsWith("method:")) {
                method = httpParam.substring(httpParam.indexOf("method:") + 7).trim().toUpperCase();
            }
            if (httpParam.startsWith("data:")) {
                data = httpParam.substring(httpParam.indexOf("data:") + 5).trim();
            }
        }

        // param valid
        if (url==null || url.trim().length()==0) {
            XxlJobHelper.log("url["+ url +"] invalid.");

            XxlJobHelper.handleFail();
            return;
        }
        if (method==null || !Arrays.asList("GET", "POST").contains(method)) {
            XxlJobHelper.log("method["+ method +"] invalid.");

            XxlJobHelper.handleFail();
            return;
        }
        boolean isPostMethod = method.equals("POST");

        // request
        HttpURLConnection connection = null;
        BufferedReader bufferedReader = null;
        try {
            // connection
            URL realUrl = new URL(url);
            connection = (HttpURLConnection) realUrl.openConnection();

            // connection setting
            connection.setRequestMethod(method);
            connection.setDoOutput(isPostMethod);
            connection.setDoInput(true);
            connection.setUseCaches(false);
            connection.setReadTimeout(5 * 1000);
            connection.setConnectTimeout(3 * 1000);
            connection.setRequestProperty("connection", "Keep-Alive");
            connection.setRequestProperty("Content-Type", "application/json;charset=UTF-8");
            connection.setRequestProperty("Accept-Charset", "application/json;charset=UTF-8");

            // do connection
            connection.connect();

            // data
            if (isPostMethod && data!=null && data.trim().length()>0) {
                DataOutputStream dataOutputStream = new DataOutputStream(connection.getOutputStream());
                dataOutputStream.write(data.getBytes("UTF-8"));
                dataOutputStream.flush();
                dataOutputStream.close();
            }

            // valid StatusCode
            int statusCode = connection.getResponseCode();
            if (statusCode != 200) {
                throw new RuntimeException("Http Request StatusCode(" + statusCode + ") Invalid.");
            }

            // result
            bufferedReader = new BufferedReader(new InputStreamReader(connection.getInputStream(), "UTF-8"));
            StringBuilder result = new StringBuilder();
            String line;
            while ((line = bufferedReader.readLine()) != null) {
                result.append(line);
            }
            String responseMsg = result.toString();

            XxlJobHelper.log(responseMsg);

            return;
        } catch (Exception e) {
            XxlJobHelper.log(e);

            XxlJobHelper.handleFail();
            return;
        } finally {
            try {
                if (bufferedReader != null) {
                    bufferedReader.close();
                }
                if (connection != null) {
                    connection.disconnect();
                }
            } catch (Exception e2) {
                XxlJobHelper.log(e2);
            }
        }

    }

    /**
     * 5、生命周期任务示例：任务初始化与销毁时，支持自定义相关逻辑；
     */
    @XxlJob(value = "demoJobHandler2", init = "init", destroy = "destroy")
    public void demoJobHandler2() throws Exception {
        XxlJobHelper.log("XXL-JOB, Hello World.");
    }
    public void init(){
        logger.info("init");
    }
    public void destroy(){
        logger.info("destroy");
    }


}

除了可以通过@XxlJob注解的方式注册执行器，也可以通过继承IJobHandle类重写execute的方式来编写

3.3、执行定时任务

三、XXL-JOB-ADMIN配置详解

官方xxl-job-admin配置详解地址

四、XXL-JOB-ADMIN页面使用

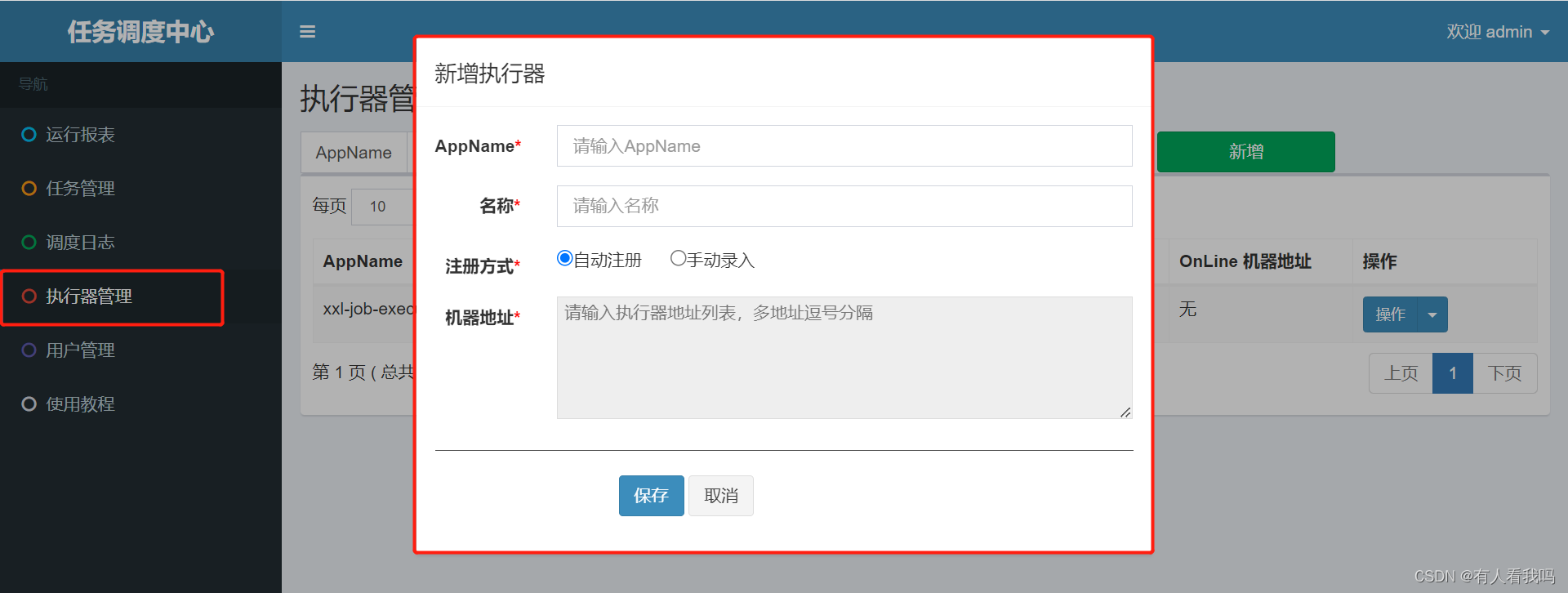

4.1新增执行器

配置	说明
执行器	用于分组，区分不同服务
AppName	和执行器中的xxl.job.executor.appname保持一直，否则无法自动注册成功
名称	随意
机器地址	如果执行器配置了xxl.job.admin.addresses和xxl.job.executor.appname便可以制动注册到该执行器下

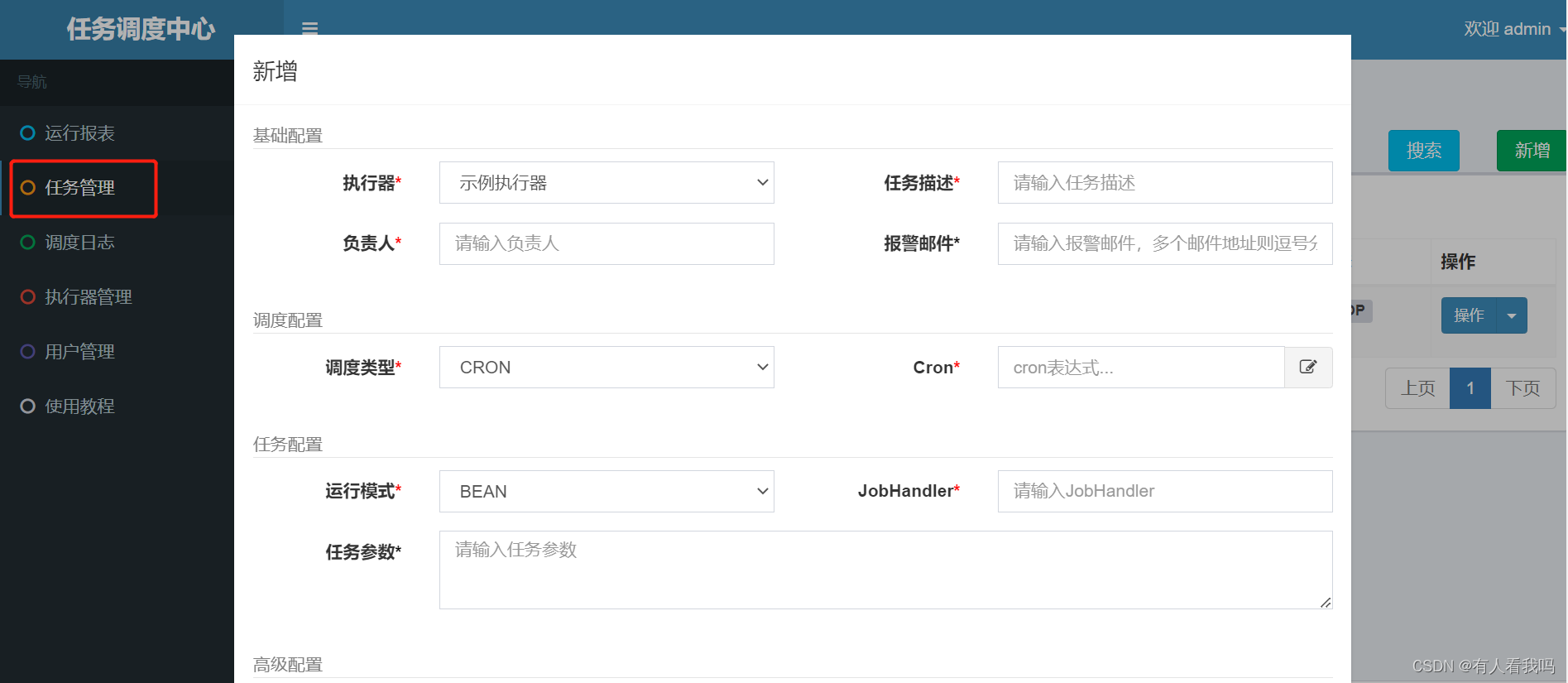

4.2、新增任务

官方任务配置详解

配置	说明
JobHandler	@XxlJob设置的名称
任务参数	可以通过API获取到这里配置的参数
路由策略	默认为第一个，如果执行器集群部署可以设置路由策略

五、执行器配置详解

官方执行器配置详解地址
