thingsboard安装时的记录

一、
整体上按照thiingsboard的步骤一步一步做，遇到了一俩个小问题记录一下。
参考的网站：http://www.ithingsboard.com/docs/user-guide/install/windows/
二、遇到的问题
1、如下是安装完数据库后 启动时的操作。“.\install.bat” 这里加 .\。
2、如下记录中前两次失败解决办法如下：

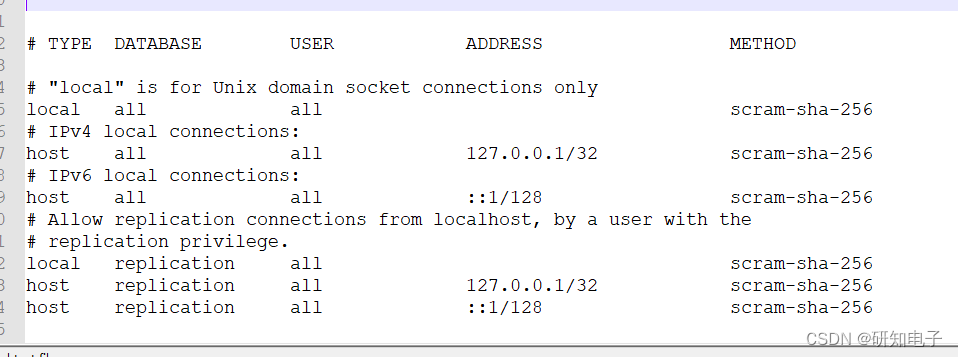

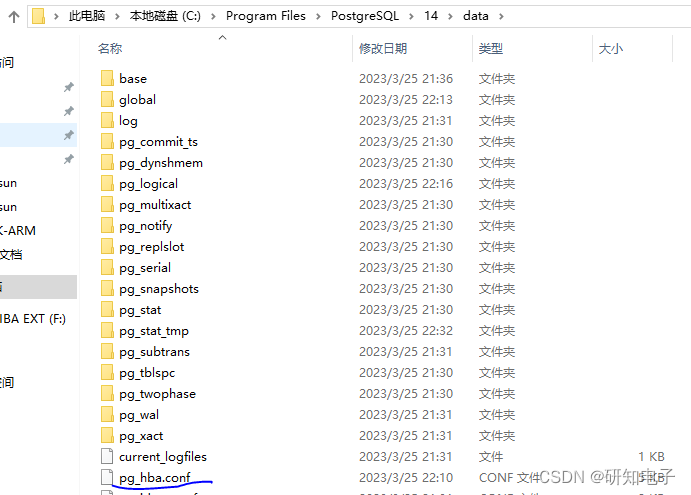

在数据库安装目录下找到 pg_hba.conf文件，用管理员身份在记事本工具中打开。

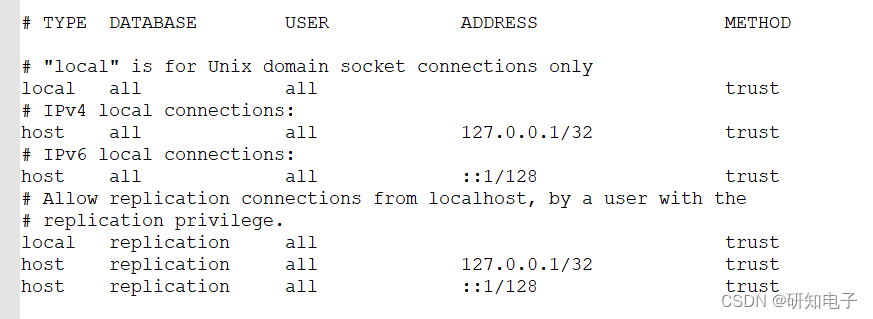

将以上内容修改为

再次运行安装命令 ，安装成功。

PS C:\> cd "C:\Program Files (x86)"
PS C:\Program Files (x86)> cd thingsboard
PS C:\Program Files (x86)\thingsboard> install.bat --loadDemo
install.bat : 无法将“install.bat”项识别为 cmdlet、函数、脚本文件或可运行程序的名称。请检查名称的拼写，如果包括路径，
所在位置 行:1 字符: 1
+ install.bat --loadDemo
+ ~~~~~~~~~~~
    + CategoryInfo          : ObjectNotFound: (install.bat:String) [], CommandNotFoundException
    + FullyQualifiedErrorId : CommandNotFoundException


Suggestion [3,General]: 找不到命令 install.bat，但它确实存在于当前位置。默认情况下，Windows PowerShell 不会从当前位置加
载命令。如果信任此命令，请改为键入“.\install.bat”。有关详细信息，请参阅 "get-help about_Command_Precedence"。
PS C:\Program Files (x86)\thingsboard> .\install.bat --loadDemo
Detecting Java version installed.
CurrentVersion 18
Java 1.8 found!
Installing thingsboard ...
 ===================================================
 :: ThingsBoard ::       (v3.1.1)
 ===================================================

Starting ThingsBoard Installation...
Installing DataBase schema for entities...
Installing SQL DataBase schema part: schema-entities.sql
Unexpected error during ThingsBoard installation!
org.postgresql.util.PSQLException: 不支援 10 验证类型。请核对您已经组态 pg_hba.conf 文件包含客户端的IP位址或网路区段，以
及驱动程序所支援的验证架构模式已被支援。
        at org.postgresql.core.v3.ConnectionFactoryImpl.doAuthentication(ConnectionFactoryImpl.java:634)
        at org.postgresql.core.v3.ConnectionFactoryImpl.openConnectionImpl(ConnectionFactoryImpl.java:217)
        at org.postgresql.core.ConnectionFactory.openConnection(ConnectionFactory.java:52)
        at org.postgresql.jdbc.PgConnection.<init>(PgConnection.java:216)
        at org.postgresql.Driver.makeConnection(Driver.java:404)
        at org.postgresql.Driver.connect(Driver.java:272)
        at java.sql.DriverManager.getConnection(Unknown Source)
        at java.sql.DriverManager.getConnection(Unknown Source)
        at org.thingsboard.server.service.install.SqlAbstractDatabaseSchemaService.createDatabaseSchema(SqlAbstractDatab
aseSchemaService.java:66)
        at org.thingsboard.server.service.install.SqlAbstractDatabaseSchemaService.createDatabaseSchema(SqlAbstractDatab
aseSchemaService.java:57)
        at org.thingsboard.server.install.ThingsboardInstallService.performInstall(ThingsboardInstallService.java:194)
        at org.thingsboard.server.ThingsboardInstallApplication.main(ThingsboardInstallApplication.java:44)
        at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
        at java.lang.reflect.Method.invoke(Unknown Source)
        at org.springframework.boot.loader.MainMethodRunner.run(MainMethodRunner.java:48)
        at org.springframework.boot.loader.Launcher.launch(Launcher.java:87)
        at org.springframework.boot.loader.Launcher.launch(Launcher.java:51)
        at org.springframework.boot.loader.PropertiesLauncher.main(PropertiesLauncher.java:597)
Unexpected error during ThingsBoard installation!
ThingsBoard installation failed!
PS C:\Program Files (x86)\thingsboard> .\install.bat --loadDemo
Detecting Java version installed.
CurrentVersion 18
Java 1.8 found!
Installing thingsboard ...
 ===================================================
 :: ThingsBoard ::       (v3.1.1)
 ===================================================

Starting ThingsBoard Installation...
Installing DataBase schema for entities...
Installing SQL DataBase schema part: schema-entities.sql
org.postgresql.util.PSQLException: 不支援 10 验证类型。请核对您已经组态 pg_hba.conf 文件包含客户端的IP位址或网路区段，以
及驱动程序所支援的验证架构模式已被支援。
        at org.postgresql.core.v3.ConnectionFactoryImpl.doAuthentication(ConnectionFactoryImpl.java:634)
        at org.postgresql.core.v3.ConnectionFactoryImpl.openConnectionImpl(ConnectionFactoryImpl.java:217)
        at org.postgresql.core.ConnectionFactory.openConnection(ConnectionFactory.java:52)
        at org.postgresql.jdbc.PgConnection.<init>(PgConnection.java:216)
        at org.postgresql.Driver.makeConnection(Driver.java:404)
        at org.postgresql.Driver.connect(Driver.java:272)
        at java.sql.DriverManager.getConnection(Unknown Source)
        at java.sql.DriverManager.getConnection(Unknown Source)
        at org.thingsboard.server.service.install.SqlAbstractDatabaseSchemaService.createDatabaseSchema(SqlAbstractDatab
aseSchemaService.java:66)
        at org.thingsboard.server.service.install.SqlAbstractDatabaseSchemaService.createDatabaseSchema(SqlAbstractDatab
aseSchemaService.java:57)
        at org.thingsboard.server.install.ThingsboardInstallService.performInstall(ThingsboardInstallService.java:194)
        at org.thingsboard.server.ThingsboardInstallApplication.main(ThingsboardInstallApplication.java:44)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
        at java.lang.reflect.Method.invoke(Unknown Source)
        at org.springframework.boot.loader.MainMethodRunner.run(MainMethodRunner.java:48)
        at org.springframework.boot.loader.Launcher.launch(Launcher.java:87)
        at org.springframework.boot.loader.Launcher.launch(Launcher.java:51)
        at org.springframework.boot.loader.PropertiesLauncher.main(PropertiesLauncher.java:597)
Unexpected error during ThingsBoard installation!
ThingsBoard installation failed!
PS C:\Program Files (x86)\thingsboard> .\install.bat --loadDemo
Detecting Java version installed.
CurrentVersion 18
Java 1.8 found!
Installing thingsboard ...
 ===================================================
 :: ThingsBoard ::       (v3.1.1)
 ===================================================

Starting ThingsBoard Installation...
Installing DataBase schema for entities...
Installing SQL DataBase schema part: schema-entities.sql
Installing SQL DataBase schema indexes part: schema-entities-idx.sql
Installing DataBase schema for timeseries...
Installing SQL DataBase schema part: schema-ts-psql.sql
Successfully executed query: CREATE TABLE IF NOT EXISTS ts_kv_indefinite PARTITION OF ts_kv DEFAULT;
Loading system data...
Loading demo data...
Installation finished successfully!
2023-03-25 22:12:01,874 INFO  - Starting ServiceWrapper in the CLI mode
2023-03-25 22:12:03,026 INFO  - Completed. Exit code is 0
ThingsBoard installed successfully!
PS C:\Program Files (x86)\thingsboard> net start thingsboard
ThingsBoard Server Application 服务正在启动 .
ThingsBoard Server Application 服务已经启动成功。

PS C:\Program Files (x86)\thingsboard>

3、浏览器本地访问失败（http://localhost:8080/login）：
解决办法：控制面板->防火墙->左侧点击高级设置->入站规则->类型选端口->输入thingsboard使用的3个端口，中间用，隔开。->命名此条规则。即可访问。
