ensp ac三层旁挂式组网web登录

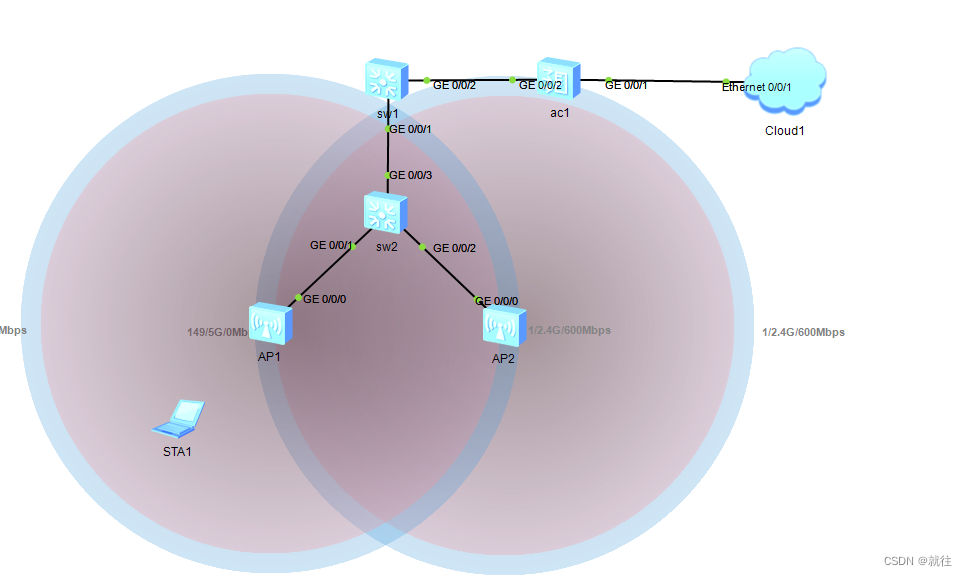

拓扑图

可代做ensp实验 拓扑图

设备命令

设备命令

sw2

vlan batch 10 20
interface GigabitEthernet0/0/1
  port link-type trunk
  port trunk pvid vlan 10
  port trunk allow-pass vlan 2 to 4094
interface GigabitEthernet0/0/2
  port link-type trunk
  port trunk pvid vlan 10
  port trunk allow-pass vlan 2 to 4094
interface GigabitEthernet0/0/3
  port link-type trunk
  port trunk allow-pass vlan 10 20

sw1

vlan batch 10 20 30 40
dhcp enable

#创建地址池

ip pool ap
 gateway-list 10.1.1.1
 network 10.1.1.0 mask 255.255.255.0
 option 43 sub-option 2 ip-address 30.30.30.30  #重点
#
ip pool sta
 gateway-list 10.1.2.1
 network 10.1.2.0 mask 255.255.255.0

interface Vlanif10
 ip address 10.1.1.1 255.255.255.0
 dhcp select global
#
interface Vlanif20
 ip address 10.1.2.1 255.255.255.0
 dhcp select global
#
interface Vlanif40
 ip address 10.1.4.2 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 40
#

ip route-static 0.0.0.0 0.0.0.0 10.1.4.1

ac1

 http server enable

vlan batch 10 30 40
local-user huawei password cipher password huawei@123
local-user huawei privilege level 15
local-user huawei service-type http

#

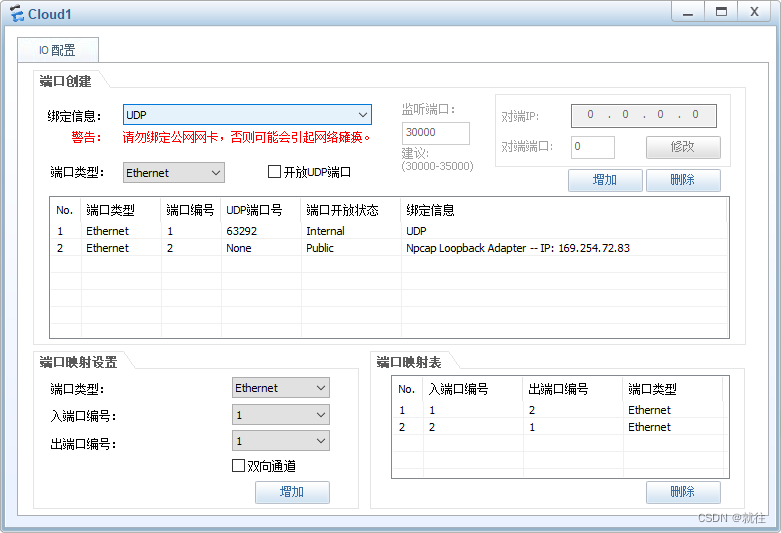

interface Vlanif30
 ip address 169.254.1.1 255.255.0.0
#
interface Vlanif40
 ip address 10.1.4.1 255.255.255.0
#
interface MEth0/0/1
 undo negotiation auto
 duplex half
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 30
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 40

capwap source interface loopback0

wlan
ap auth-mode no-auth
security-profile name default
  security wpa-wpa2 psk pass-phrase a1234567 aes
 ssid-profile name default
  ssid default
 vap-profile name default
  service-vlan vlan-id 20
  ssid-profile default
  security-profile default
 ap-group name default
  vap-profile default wlan 1 radio all
