1、简介 :
wpa_supplicant是配置开发wifi的常用工具,该工具包含wpa_supplicant和wpa_cli 这2个程序。其中wpa_supplicant 程序相当于服务端在后台运行,wpa_cli 相当于客户端。wpa_supplicant 会响应wpa_cli 的请求,从而实现WiFi的配置连接或者信息更改。
wpa_supplicant工具支持wep、wpa、wpa2等加密认证方式。
2、wpa_cli 的使用

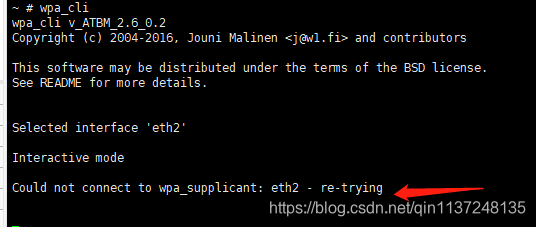

根据其他博客的方式,直接使用这样的方式,会把报错。在我自己的板子上会报错,因为网卡不同,或者说配置文件的路径不同。
wpa_cli -i wlan0 scan
因此,我们通过使用指定路径的方式,进行运行
首先运行 ifconfig 可以指导网卡的名称
ifconfig
然后 使用以下命令(根据自己的文件路径进行指定就可以了 )

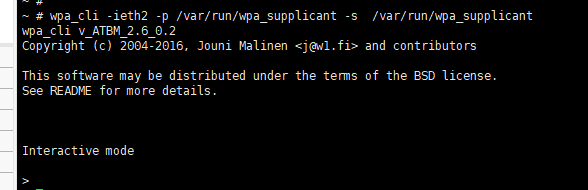

wpa_cli -ieth2 -p /var/run/wpa_supplicant -s /var/run/wpa_supplicant
这样,就可以进行命令的输入了。
3、常用命令的使用
命令 | 返回值 | 含义 | 备注 |
scan | ok | 搜索wifi | |
scan_results | wifi名称 | 搜到到的全部wifi名称等信息 | |
set_network | ok | 设置wifi的SSID和psk | |
list_network | 列出所有的配置文件中的信息 | 列出保存的文件中的所有信息 | |
add_network | 添加一个网络 | 添加一个网络 | |
save_network | OK | 将配置保存 | |
remove_network | 删除一个网络,根据网络ID删除 | 删除一个网络ID,根据网络ID删除 |
4、举个例子
如果要连接加密方式是[WPA-PSK-CCMP+TKIP][WPA2-PSK-CCMP+TKIP][ESS]
(wpa
加密),wifi
名称是name
,wifi
密码是:psk
。
首先通过 list_network 将wifi 信息 全部列出。从这里可以看出当前有哪些网络信息。network_id ssid bssid flags 。其中flags 表明,当前所使用的wifi连接。(想一下自己的手机使用的wifi 的时候,也曾连接多个wifi,连接过的那些都会在你的配置文件里,但是使用的就只是当前的一个。其他的都是disable状态。这样有助于自己理解)
以下是一个使用的当时。前面两行是设置SSID 和 密码。第三行是保存配置,如果不保存的话,重启之后就失败了。第四第五行,就是将配置的生效。
wpa_cli -ieth2 -p /var/run/wpa_supplicant -s /var/run/wpa_supplicant set_network 0 ssid '"wifitest"'
wpa_cli -ieth2 -p /var/run/wpa_supplicant -s /var/run/wpa_supplicant set_network 0 psk '"12345678"'
wpa_cli -ieth2 -p /var/run/wpa_supplicant -s /var/run/wpa_supplicant save_config
wpa_cli -ieth2 -p /var/run/wpa_supplicant -s /var/run/wpa_supplicant disable_network 0
wpa_cli -ieth2 -p /var/run/wpa_supplicant -s /var/run/wpa_supplicant enable_network 0
5、 附件
使用help 命令,可以显示所有的wpa_cli 的命令
wpa_cli -ieth2 -p /var/run/wpa_supplicant -s /var/run/wpa_supplicant help
一个表格
status [verbose] | get current WPA/EAPOL/EAP status |
ifname | get current interface name |
ping | pings wpa_supplicant |
relog | re-open log-file (allow rolling logs) |
note <text> | add a note to wpa_supplicant debug log |
mib | get MIB variables (dot1x, dot11) |
help [command] | show usage help |
interface [ifname] | show interfaces/select interface |
level <debug level> | change debug level |
license | show full wpa_cli license |
quit | exit wpa_cli |
set | set variables (shows list of variables when run without arguments) |
dump | dump config variables |
get <name> | get information |
driver_flags | list driver flags |
logon | IEEE 802.1X EAPOL state machine logon |
logoff | IEEE 802.1X EAPOL state machine logoff |
pmksa | show PMKSA cache |
pmksa_flush | flush PMKSA cache entries |
reassociate | force reassociation |
reattach | force reassociation back to the same BSS |
preauthenticate <BSSID> | force preauthentication |
identity <network id> <identity> | configure identity for an SSID |
password <network id> <password> | configure password for an SSID |
new_password <network id> <password> | change password for an SSID |
pin <network id> <pin> | configure pin for an SSID |
otp <network id> <password> | configure one-time-password for an SSID |
passphrase <network id> <passphrase> | configure private key passphrase for an SSID |
sim <network id> <pin> | report SIM operation result |
bssid <network id> <BSSID> | set preferred BSSID for an SSID |
blacklist <BSSID> | add a BSSID to the blacklist |
blacklist clear | clear the blacklist |
blacklist | display the blacklist |
log_level <level> [<timestamp>] | update the log level/timestamp |
log_level | display the current log level and log options |
list_networks | list configured networks |
select_network <network id> | select a network (disable others) |
enable_network <network id> | enable a network |
disable_network <network id> | disable a network |
add_network | add a network |
remove_network <network id> | remove a network |
set_network <network id> <variable> <value> | set network variables (shows |
list of variables when run without arguments) | |
get_network <network id> <variable> | get network variables |
dup_network <src network id> <dst network id> <variable> | duplicate network variables |
list_creds | list configured credentials |
add_cred | add a credential |
remove_cred <cred id> | remove a credential |
set_cred <cred id> <variable> <value> | set credential variables |
get_cred <cred id> <variable> | get credential variables |
save_config | save the current configuration |
disconnect | disconnect and wait for reassociate/reconnect command before |
connecting | |
reconnect | like reassociate, but only takes effect if already disconnected |
scan | request new BSS scan |
scan_results | get latest scan results |
abort_scan | request ongoing scan to be aborted |
bss <<idx> | <bssid>> | get detailed scan result info |
get_capability <eap/pairwise/group/key_mgmt/proto/auth_alg/channels/freq/modes> | get capabilities |
reconfigure | force wpa_supplicant to re-read its configuration file |
terminate | terminate wpa_supplicant |
interface_add <ifname> <confname> <driver> <ctrl_interface> <driver_param> | |
<bridge_name> <create> <type> | adds new interface, all parameters but |
<ifname> are optional. Supported types are station ('sta') and AP ('ap') | |
interface_remove <ifname> | removes the interface |
interface_list | list available interfaces |
ap_scan <value> | set ap_scan parameter |
scan_interval <value> | set scan_interval parameter (in seconds) |
bss_expire_age <value> | set BSS expiration age parameter |
bss_expire_count <value> | set BSS expiration scan count parameter |
bss_flush <value> | set BSS flush age (0 by default) |
stkstart <addr> | request STK negotiation with <addr> |
ft_ds <addr> | request over-the-DS FT with <addr> |
wps_pbc [BSSID] | start Wi-Fi Protected Setup: Push Button Configuration |
wps_pin <BSSID> [PIN] | start WPS PIN method (returns PIN, if not hardcoded) |
wps_check_pin <PIN> | verify PIN checksum |
wps_cancel Cancels the pending WPS operation | |
wps_reg <BSSID> <AP PIN> | start WPS Registrar to configure an AP |
wps_ap_pin [params..] | enable/disable AP PIN |
wps_er_start [IP address] | start Wi-Fi Protected Setup External Registrar |
wps_er_stop | stop Wi-Fi Protected Setup External Registrar |
wps_er_pin <UUID> <PIN> | add an Enrollee PIN to External Registrar |
wps_er_pbc <UUID> | accept an Enrollee PBC using External Registrar |
wps_er_learn <UUID> <PIN> | learn AP configuration |
wps_er_set_config <UUID> <network id> | set AP configuration for enrolling |
wps_er_config <UUID> <PIN> <SSID> <auth> <encr> <key> | configure AP |
ibss_rsn <addr> | request RSN authentication with <addr> in IBSS |
suspend | notification of suspend/hibernate |
resume | notification of resume/thaw |
roam <addr> | roam to the specified BSS |
sta_autoconnect <0/1> | disable/enable automatic reconnection |
tdls_discover <addr> | request TDLS discovery with <addr> |
tdls_setup <addr> | request TDLS setup with <addr> |
tdls_teardown <addr> | tear down TDLS with <addr> |
tdls_link_status <addr> | TDLS link status with <addr> |
