layer 2 WAN circuit technologies（MLPPP）

multilink PPP
多链路PPP特性提供了多个WAN链路上的负载平衡功能，类似于以太网中的链路捆绑，可以增加广域网链路的带宽以及可靠性。
配置multilink PPP
Interface type slot/port
ppp multilink
ppp multilink group

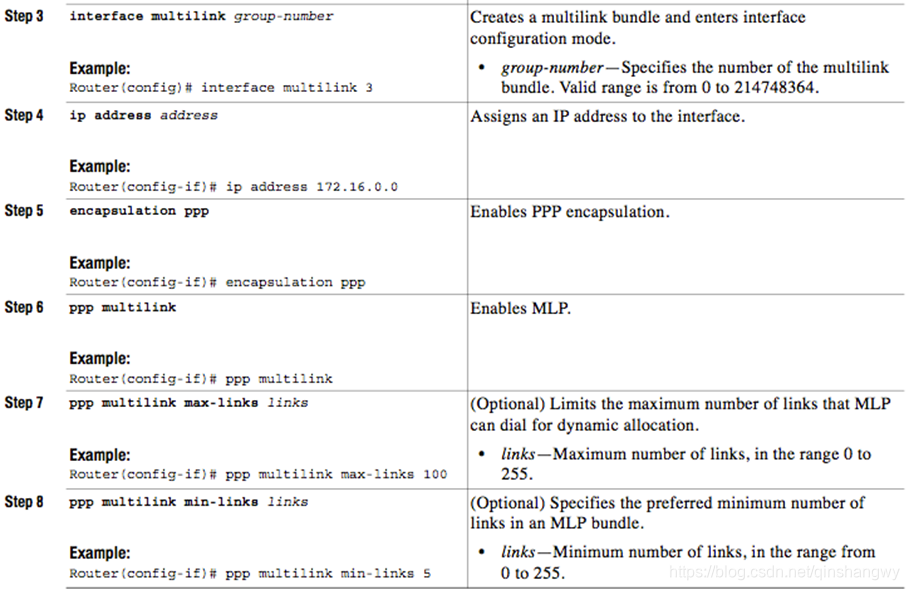

interface multilink group-number
ip address address
encapsulation ppp
ppp multilink
ppp multilink max-links links
ppp multilink min-links links
no shutdown


R1：
interface Serial1/0
encapsulation ppp
ppp multilink
ppp multilink group 1
!
interface Serial1/1
encapsulation ppp
ppp multilink
ppp multilink group 1
!

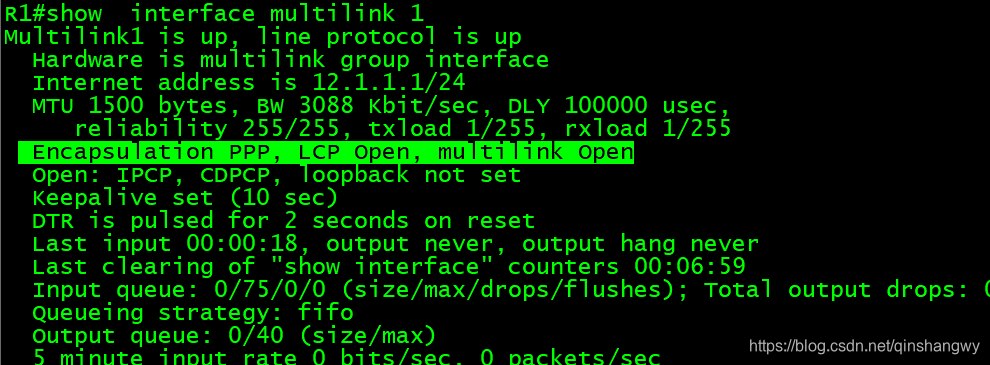

interface Multilink1
ip address 12.1.1.1 255.255.255.0
ppp authentication chap
ppp multilink
ppp multilink group 1

Username R1 password cisco

R2：
interface Serial1/0
encapsulation ppp
ppp multilink
ppp multilink group 1
!
interface Serial1/1
encapsulation ppp
ppp multilink
ppp multilink group 1
!
interface Multilink1
ip address 12.1.1.1 255.255.255.0
ppp authentication chap
ppp multilink
ppp multilink group 1

Username R2 password cisco
