VPP环境搭建

本地环境

ubuntu 16.04
dpdk 19.08
vpp 1801

特别强调：

在编译VPP的时候网络环境需要稳定，否则可能会在执行脚本的时候访问域名失败
虚拟机的内存最好设置成16g/core，否则可能在运行脚本的时候报内存错误

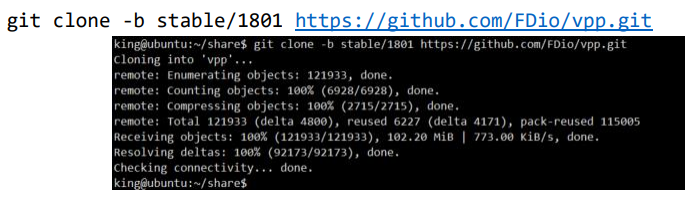

git下载vpp软件包

运行脚本

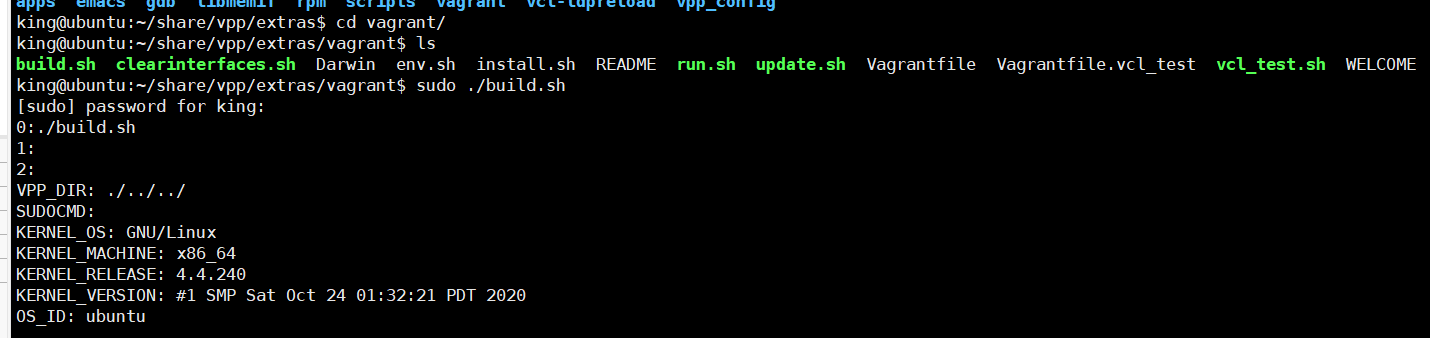

进入到软件包的vpp/extras/vagrant目录并且以管理员权限运行脚本build.sh

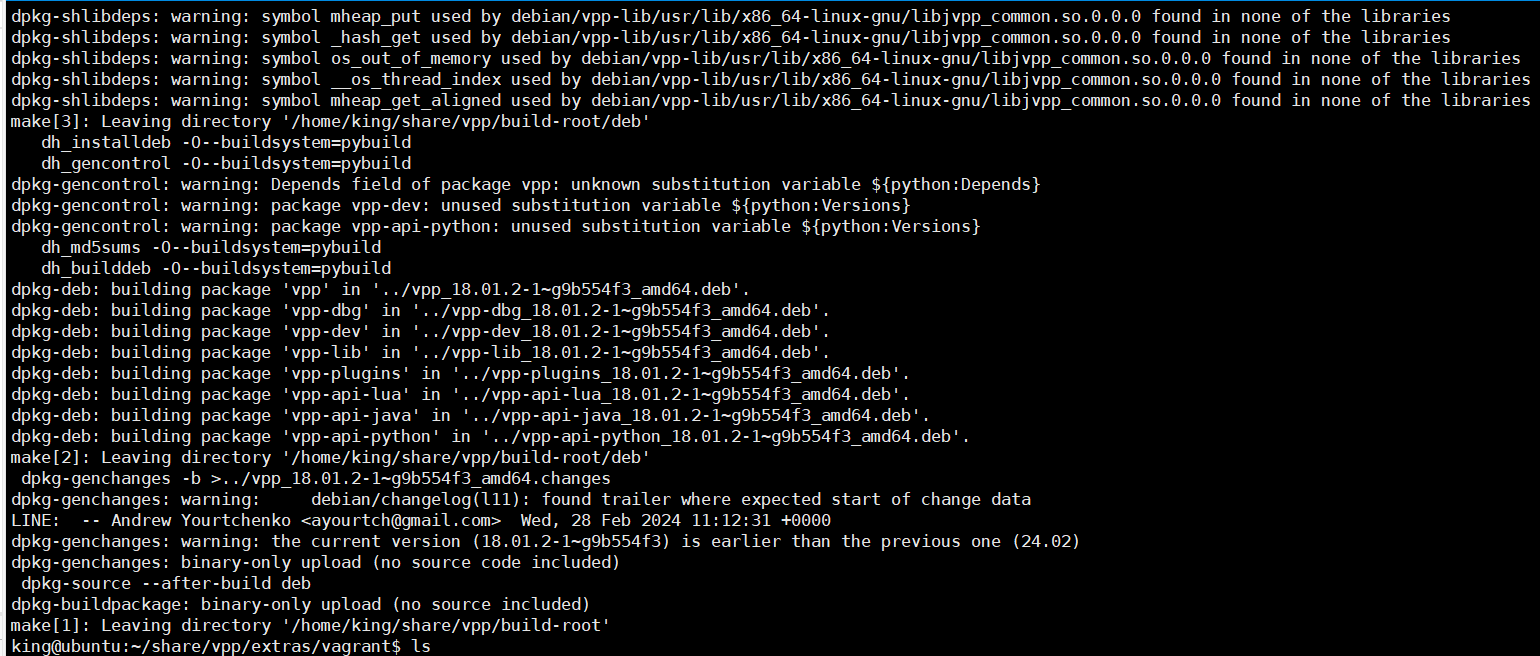

脚本运行成功显示：

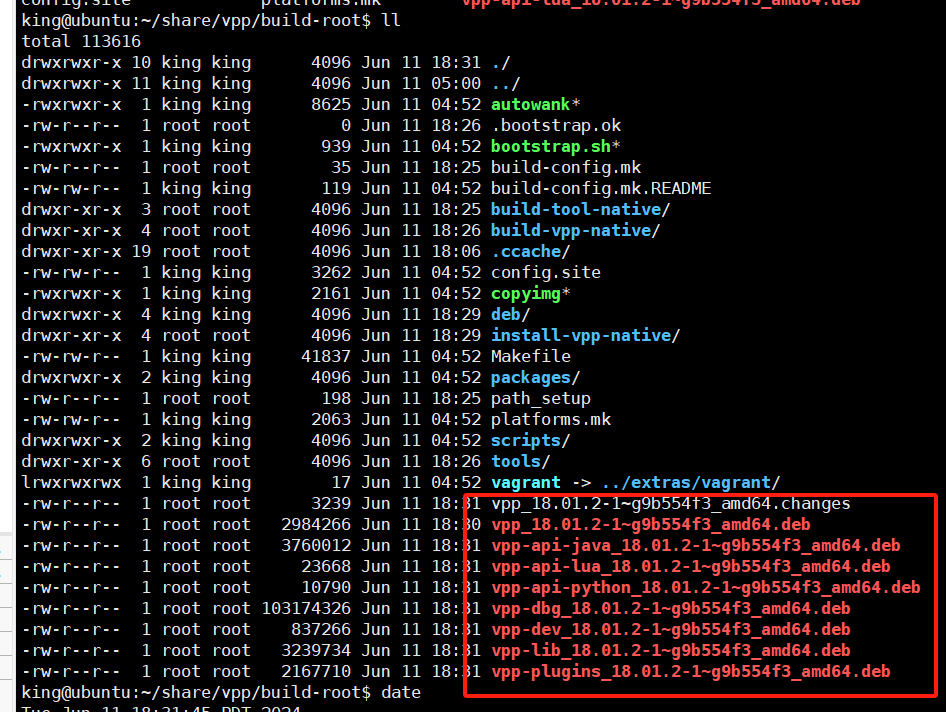

并且在vpp/build-root目录下生成.deb的安装包：

安装deb库

安装命令

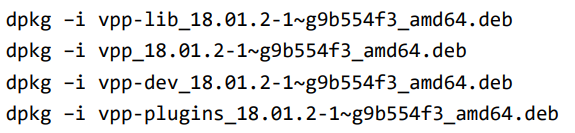

以管理员权限运行如下命令：

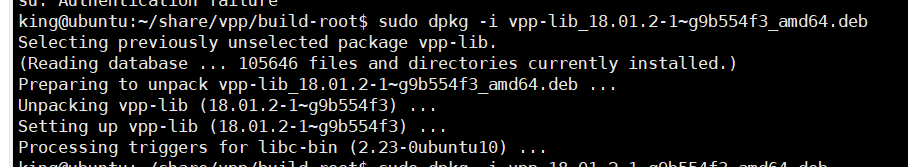

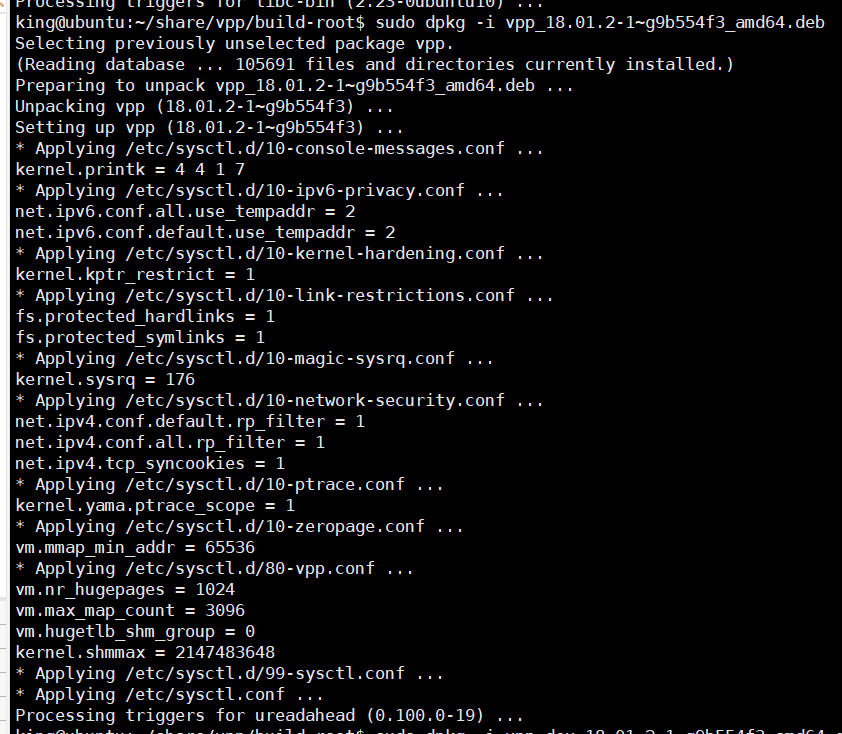

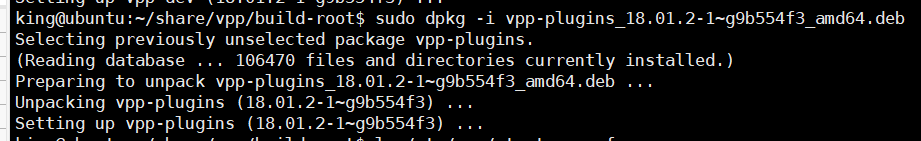

执行安装

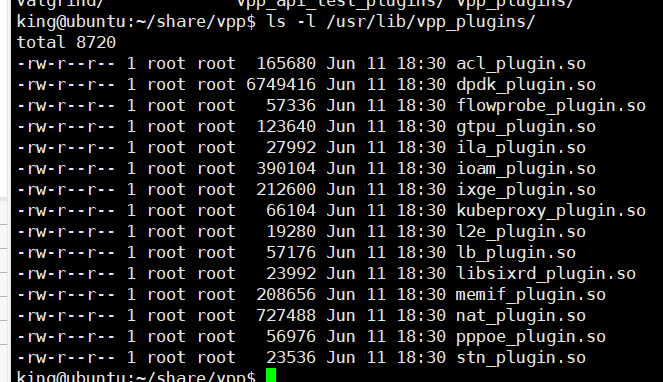

安装deb之后，会在/etc/vpp目录下生成startup.conf文件，并且在/usr/lib/vpp_plugins目录下生成.so动态库文件：

修改/etc/vpp/startup.conf配置文件

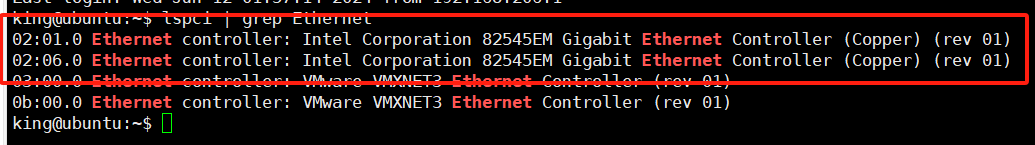

查看pci的地址：

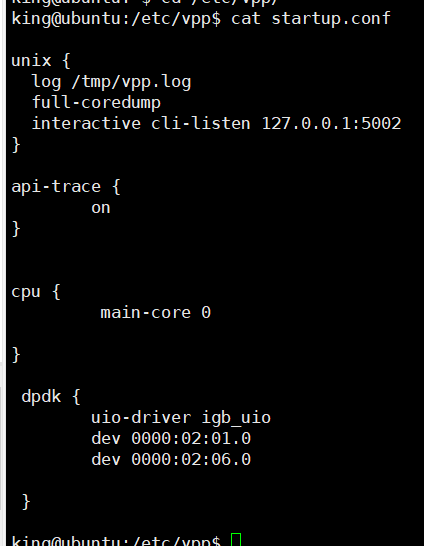

将生成的/etc/vpp/startup.conf文件修改为如下内容：

VPP运行的准备工作

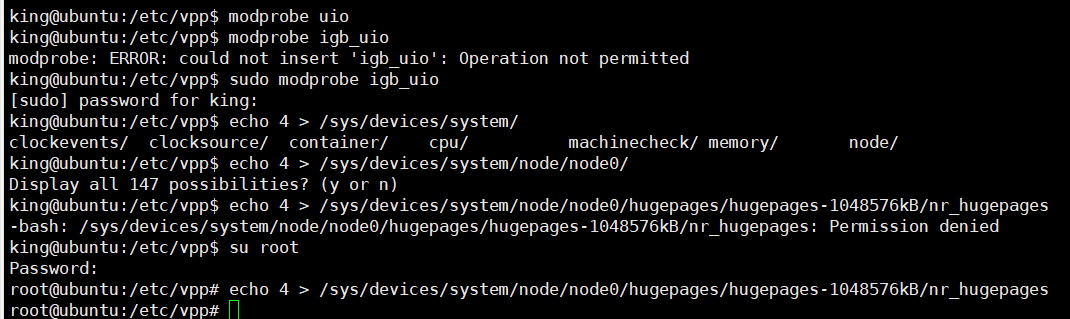

加载模块：

关闭eth0，eth2，eth3:

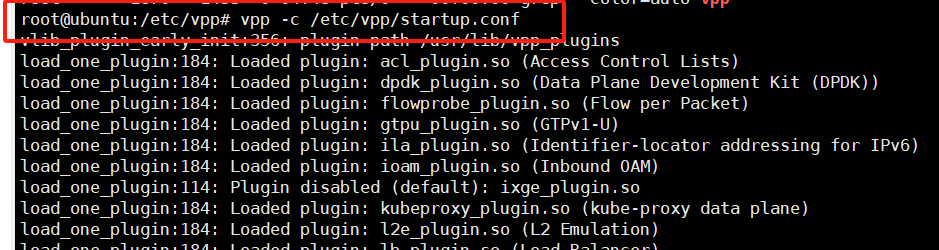

启动vpp

root@ubuntu:/etc/vpp# vpp -c /etc/vpp/startup.conf
vlib_plugin_early_init:356: plugin path /usr/lib/vpp_plugins
load_one_plugin:184: Loaded plugin: acl_plugin.so (Access Control Lists)
load_one_plugin:184: Loaded plugin: dpdk_plugin.so (Data Plane Development Kit (DPDK))
load_one_plugin:184: Loaded plugin: flowprobe_plugin.so (Flow per Packet)
load_one_plugin:184: Loaded plugin: gtpu_plugin.so (GTPv1-U)
load_one_plugin:184: Loaded plugin: ila_plugin.so (Identifier-locator addressing for IPv6)
load_one_plugin:184: Loaded plugin: ioam_plugin.so (Inbound OAM)
load_one_plugin:114: Plugin disabled (default): ixge_plugin.so
load_one_plugin:184: Loaded plugin: kubeproxy_plugin.so (kube-proxy data plane)
load_one_plugin:184: Loaded plugin: l2e_plugin.so (L2 Emulation)
load_one_plugin:184: Loaded plugin: lb_plugin.so (Load Balancer)
load_one_plugin:184: Loaded plugin: libsixrd_plugin.so (IPv6 Rapid Deployment on IPv4 Infrastructure (RFC5969))
load_one_plugin:184: Loaded plugin: memif_plugin.so (Packet Memory Interface (experimetal))
load_one_plugin:184: Loaded plugin: nat_plugin.so (Network Address Translation)
load_one_plugin:184: Loaded plugin: pppoe_plugin.so (PPPoE)
load_one_plugin:184: Loaded plugin: stn_plugin.so (VPP Steals the NIC for Container integration)
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/pppoe_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/gtpu_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/ioam_vxlan_gpe_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/nat_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/lb_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/flowprobe_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/acl_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/udp_ping_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/stn_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/vxlan_gpe_ioam_export_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/dpdk_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/memif_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/kubeproxy_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/ioam_pot_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/ioam_export_test_plugin.so
load_one_plugin:63: Loaded plugin: /usr/lib/vpp_api_test_plugins/ioam_trace_test_plugin.so
clib_sysfs_read: open `/sys/devices/system/node/node0/hugepages/hugepages-2048kB/free_hugepages': No such file or directory
dpdk_config:1240: EAL init args: -c 1 -n 4 --huge-dir /run/vpp/hugepages --file-prefix vpp -w 0000:02:01.0 -w 0000:02:06.0 --master-lcore 0 --socket-mem 64
EAL: VFIO support initialized
EAL:   Invalid NUMA socket, default to 0
EAL:   Invalid NUMA socket, default to 0
DPDK physical memory layout:
Segment 0: IOVA:0x40000000, len:1073741824, virt:0x7f0140000000, socket_id:0, hugepage_sz:1073741824, nchannel:0, nrank:0
unix_physmem_region_iommu_register: ioctl (VFIO_IOMMU_MAP_DMA): Invalid argument
0: dpdk_ipsec_process:1011: not enough DPDK crypto resources, default to OpenSSL
    _______    _        _   _____  ___
 __/ __/ _ \  (_)__    | | / / _ \/ _ \
 _/ _// // / / / _ \   | |/ / ___/ ___/
 /_/ /____(_)_/\___/   |___/_/  /_/

vpp#
vpp#
vpp#
vpp#
vpp#
