QGIS加载ESRI(ArcGIS)的矢量切片(weixin公众号【图说GIS】)

前言

最近发现,QGIS可以加载ESRI的矢量切片,试了下,挺好用,简单记录下。我试了一个地址,多种样式,其余样式自行探索。

加载方法

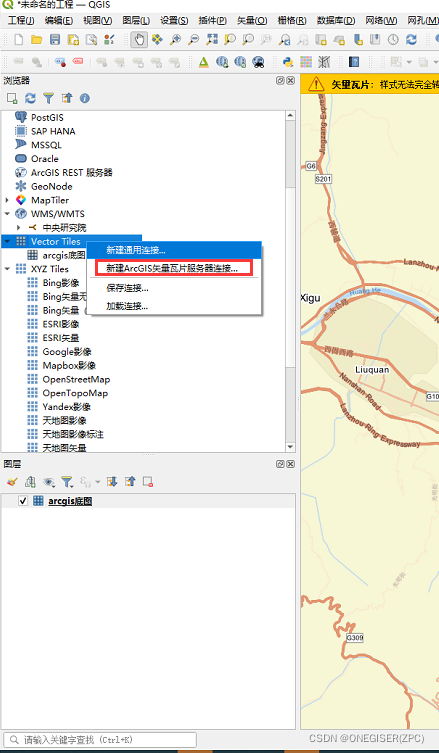

  1. 在矢量切片上右键新建ArcGIS矢量瓦片服务器链接
    在这里插入图片描述
  2. 添加esri的矢量瓦片地址及样式,你自己的server发布的也可以,我试了一个地址,多种样式,其余样式自行探索。
    在这里插入图片描述
  3. 地址及样式

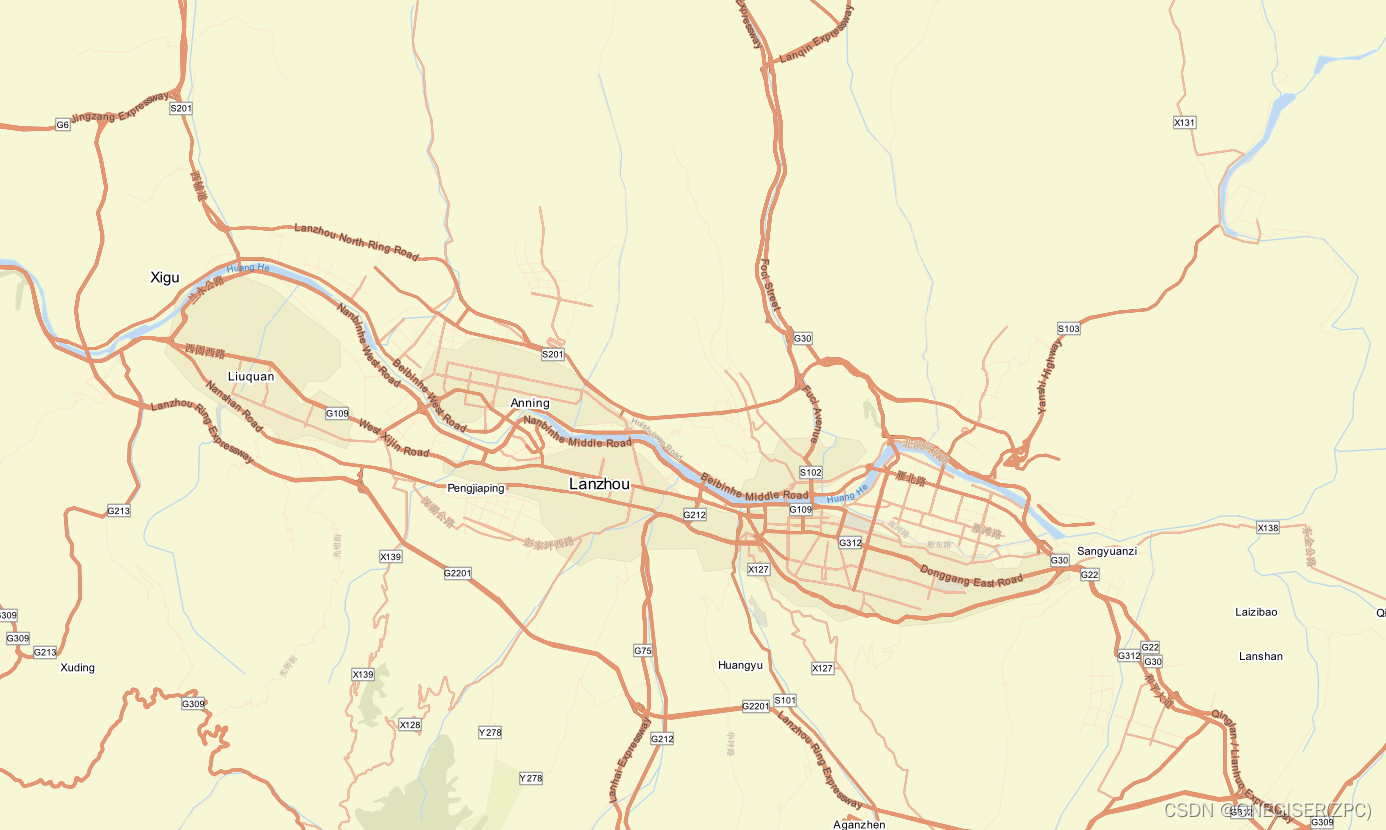

    url:
    https://basemaps.arcgis.com/arcgis/rest/services/World_Basemap_v2/VectorTileServer
    在这里插入图片描述

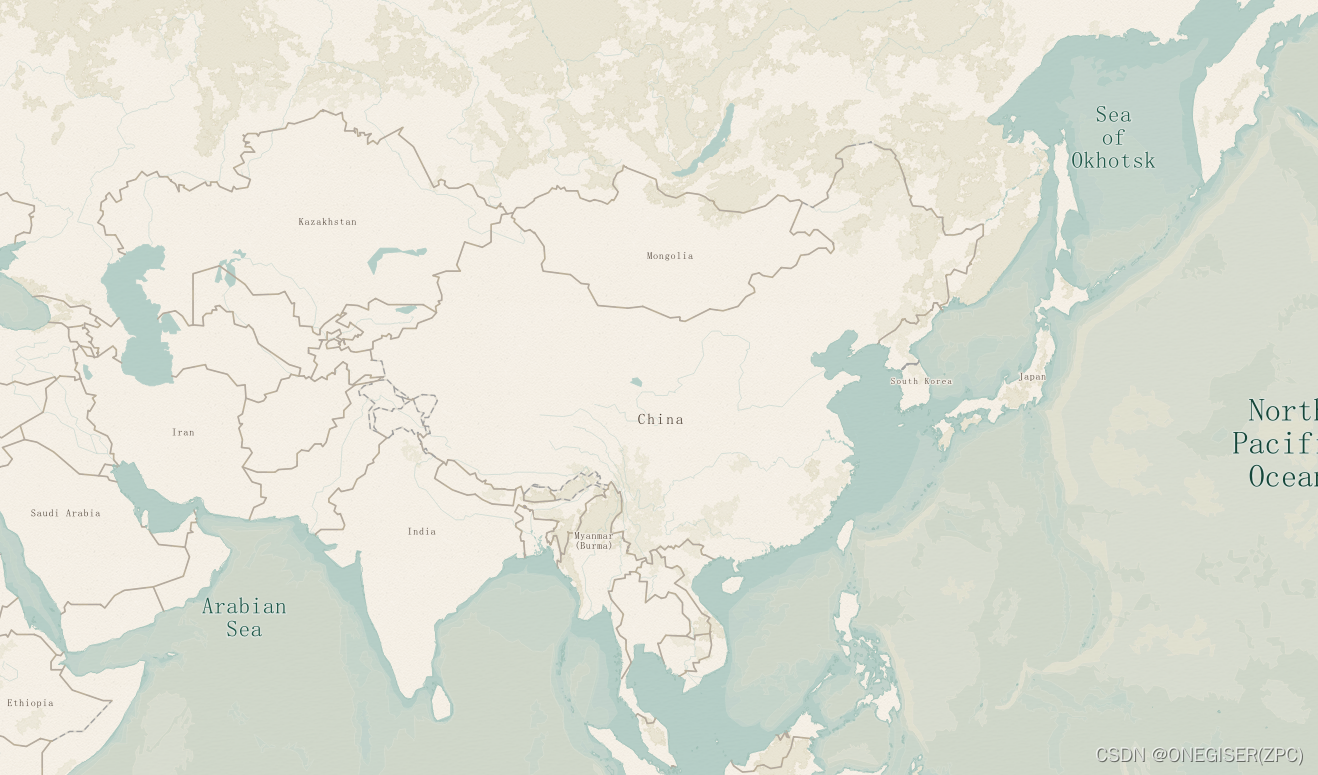

    样式1:https://www.arcgis.com/sharing/rest/content/items/effe3475f05a4d608e66fd6eeb2113c0/resources/styles/root.json
    在这里插入图片描述

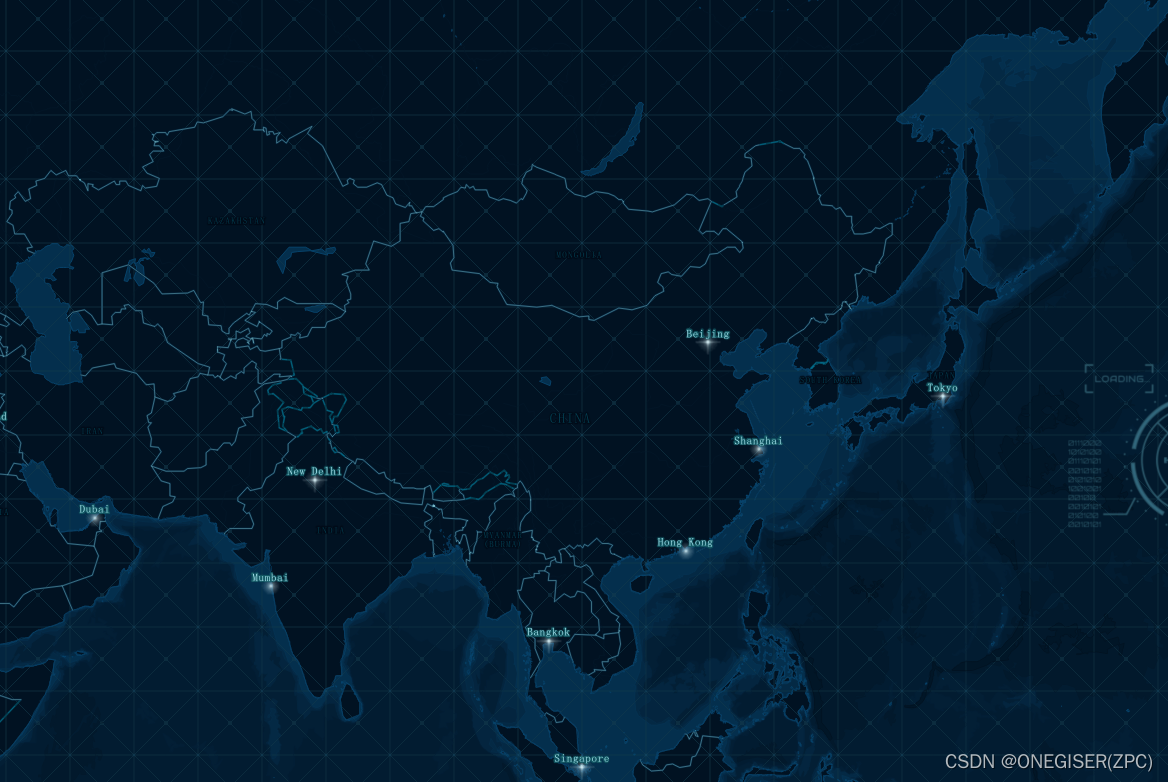

    样式2:
    https://www.arcgis.com/sharing/rest/content/items/75f4dfdff19e445395653121a95a85db/resources/styles/root.json
    在这里插入图片描述

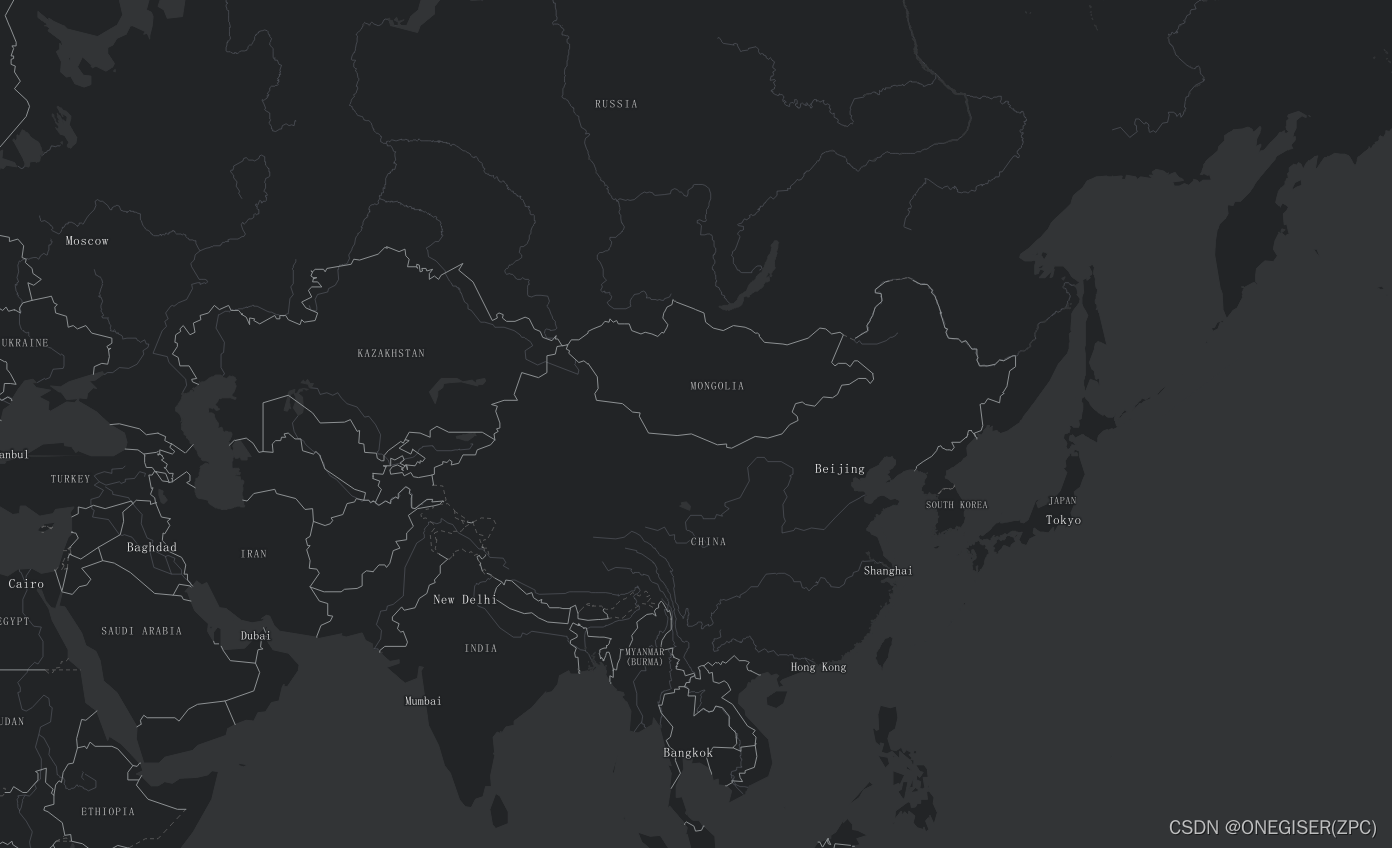

    样式3-1:https://www.arcgis.com/sharing/rest/content/items/33064a20de0c48d2bb61efa8faca93a8/resources/styles/root.json
    样式3-2:
    https://www.arcgis.com/sharing/rest/content/items/14fbc125ccc9488888b014db09f35f67/resources/styles/root.json
    在这里插入图片描述

样式4-1:
http://www.arcgis.com/sharing/rest/content/items/d7397603e9274052808839b70812be50/resources/styles/root.json
样式4-2:
http://www.arcgis.com/sharing/rest/content/items/1ddbb25aa29c4811aaadd94de469856a/resources/styles/root.json
样式4-3:
http://www.arcgis.com/sharing/rest/content/items/4a3922d6d15f405d8c2b7a448a7fbad2/resources/styles/root.json
在这里插入图片描述

样式5-1:
https://www.arcgis.com/sharing/rest/content/items/2afe5b807fa74006be6363fd243ffb30/resources/styles/root.json
样式5-2:
https://www.arcgis.com/sharing/rest/content/items/97fa1365da1e43eabb90d0364326bc2d/resources/styles/root.json
样式5-3:
https://www.arcgis.com/sharing/rest/content/items/ba52238d338745b1a355407ec9df6768/resources/styles/root.json

在这里插入图片描述
