RecyclerView不属于MD系列，但是却常常一起使用。

`一、Reclycler的作用和优点`

用来干嘛—— 代替 ListView个GridView。

自带ViewHolder
分割线控制方便
横向，竖向、列表，多行列表和流式皆可
item增删动画控制方便

`二、简单使用`

以前没有RecyclerView，我们要使用RecyclerView可以引入下面这个

com.android.support:recyclerview-v7:23.4.0

不过你要是使用md设计，也以这样如下引用就好（本文采用的就是这样）

    compile 'com.android.support:appcompat-v7:23.4.0'
    compile 'com.android.support:design:23.4.0'

support:design 里面应该包含了 support:recyclerview 。

最基本的使用：

布局文件

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <android.support.v7.widget.RecyclerView
        android:id="@+id/mRecycler"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:divider="#ffff0000"
        android:dividerHeight="10dp"
        >
    </android.support.v7.widget.RecyclerView>

</RelativeLayout>

.
.
item布局

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    android:background="#66ff0000"
    android:padding="5dp"
    >

    <TextView
        android:id="@+id/mTvTitle"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="标题"
        android:textSize="20sp"

        android:padding="10dp"
        android:textColor="#ff0000"
        android:background="#4f92c9"
        />
    <TextView
        android:id="@+id/mTvDesc"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="描述"
        android:textSize="16sp"

        android:padding="10dp"
        android:textColor="#3657d7"
        android:background="#a9a667"
        />

</LinearLayout>

.
.
MainActivity

public class MainActivity extends AppCompatActivity {

    private RecyclerView mRecyclerView;
    private List<DataBean> mDatas;
    private TestAdapter mAdapter;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        initData();
        mRecyclerView = (RecyclerView) findViewById(R.id.mRecycler);
        mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
        mRecyclerView.setAdapter(mAdapter = new TestAdapter());

    }
    protected void initData()
    {
        mDatas = new ArrayList<DataBean>();
        DataBean dataBean = null;
        for (int i = 0; i < 20; i++)
        {
            dataBean = new DataBean();
            dataBean.title = "标题　　"+i;
            dataBean.desc = "描述一下　　"+i;
            mDatas.add(dataBean);
        }
    }

    class TestAdapter extends RecyclerView.Adapter<TestAdapter.MyViewHolder>{
        // 孩子数
        @Override
        public int getItemCount() {
            return mDatas.size();
        }


        // 创建视图
        @Override
        public MyViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
            MyViewHolder myViewHolder = new MyViewHolder(LayoutInflater.from(MainActivity.this)
                    .inflate(R.layout.item_recy_test,parent, false));
            return myViewHolder;
        }

        // 绑定视图视图  以前getView的事情  关键方法
        @Override
        public void onBindViewHolder(MyViewHolder holder, int position) {
            DataBean dataBean = mDatas.get(position);
            holder.mTvTitle.setText(dataBean.title);
            holder.mTvDesc.setText(dataBean.desc);

        }

        // 必须实现的Holder
        class MyViewHolder extends RecyclerView.ViewHolder
        {
            TextView mTvTitle;
            TextView mTvDesc;

            public MyViewHolder(View itemView) {
                super(itemView);
                mTvTitle = (TextView) itemView.findViewById(R.id.mTvTitle);
                mTvDesc = (TextView) itemView.findViewById(R.id.mTvDesc);
            }
        }

    }
}

.
.

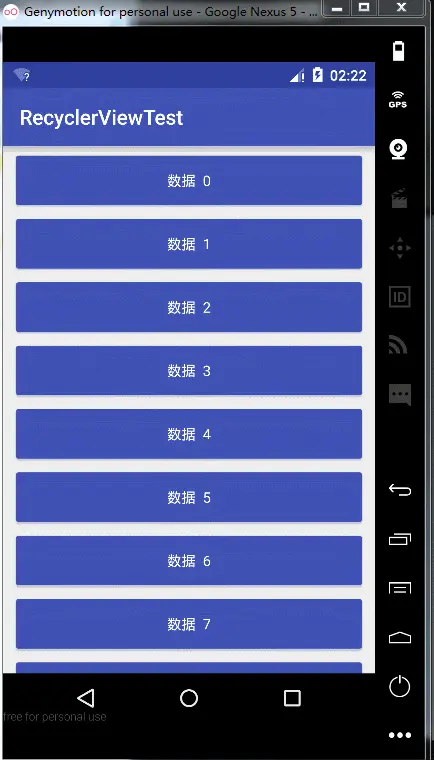

效果图


少年我知道你不是伸手党，你会自己去打一遍，而且不怎么看代码。如果你遇到了下面的问题，那你可以看看

问题1、为什么RecyclerView的数据没显示出来？

遥想当年，我们设置ListView，find到ListView之后满脑海想的就是setAdapter，然后在这里我们也是这么做，所以，没显示出来

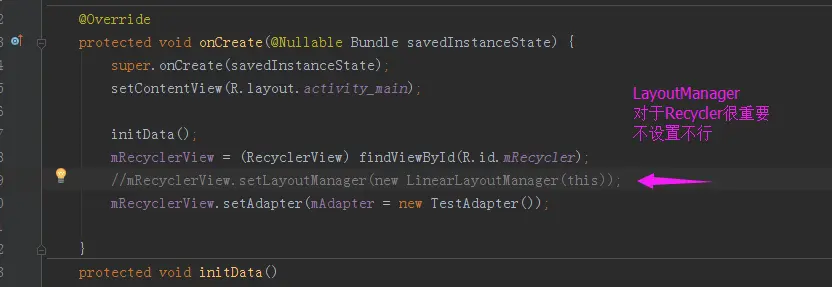

很有可能是你没设置 LayoutManager，LayoutManager对于RecyclerView是一个很重要的概念。

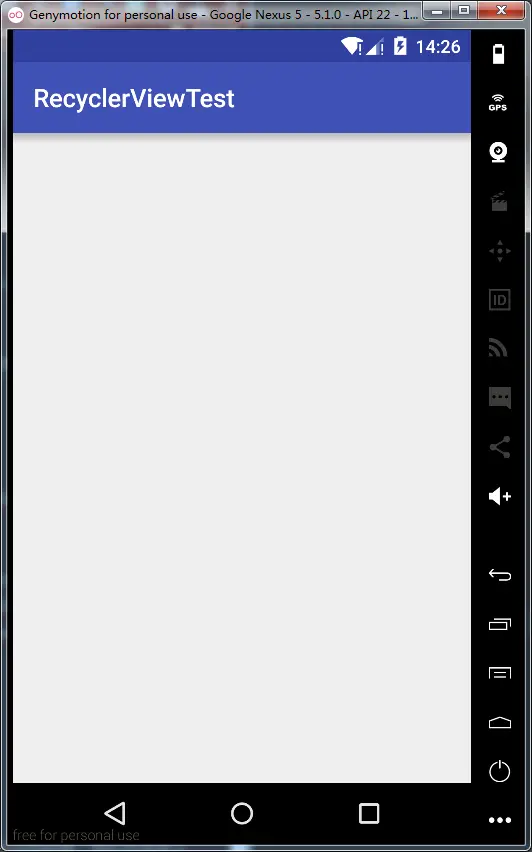

结果就像现在下图

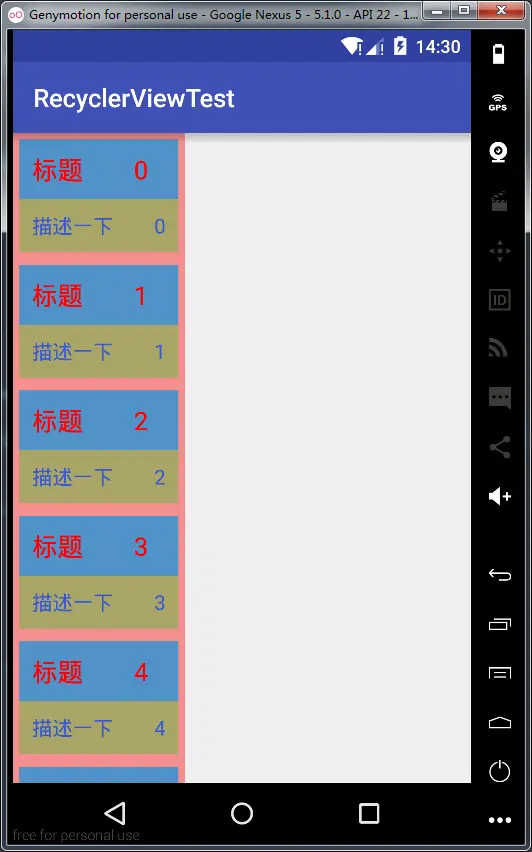

问题2、明明就是item就是match_parent，但是为什么只显示一部分？

还是需要遥想当年，左牵黄，右擎苍，潇潇洒洒地在ListView的getView方法的时候，我们总是传入layout布局，然后就null，写顺手了。

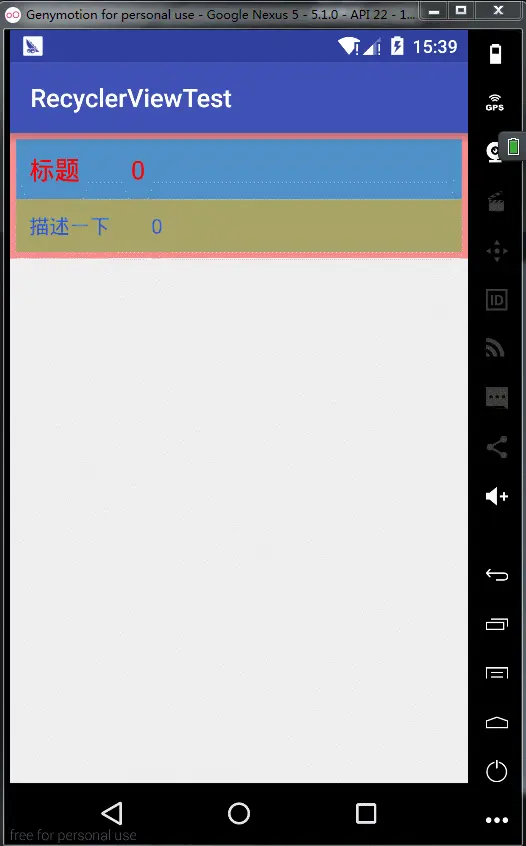

如果写成上图备注的样子，即父亲为null，就会出现下图的状况


三、列表分割线

我们说过，RecyclerView自带设置分割线，（但是却没有分割线的样式可以选，必须自己实现）

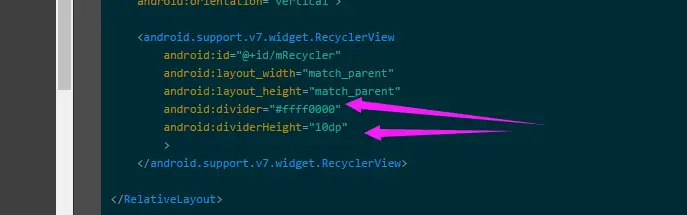

先听一下，回头看一下我们之前activity_main的布局文件


我们设置分割线，但是安卓ListView的做法设置分割线没有显示。

现在我们来设置分割线
RecyclerView自带设置分割线的api

mRecyclerView.addItemDecoration((ItemDecoration decor);

我们分割线的样式需要自己实现
下面附上一份分割线样式代码参考

public class RecycleViewDivider extends RecyclerView.ItemDecoration {

    private Paint mPaint;
    private Drawable mDivider;
    private int mDividerHeight = 2;//分割线高度，默认为1px
    private int mOrientation;//列表的方向：LinearLayoutManager.VERTICAL或LinearLayoutManager.HORIZONTAL
    private static final int[] ATTRS = new int[]{android.R.attr.listDivider};

    /**
     * 默认分割线：高度为2px，颜色为灰色
     *
     * @param context
     * @param orientation 列表方向
     */
    public RecycleViewDivider(Context context, int orientation) {
        if (orientation != LinearLayoutManager.VERTICAL && orientation != LinearLayoutManager.HORIZONTAL) {
            throw new IllegalArgumentException("请输入正确的参数！");
        }
        mOrientation = orientation;

        final TypedArray a = context.obtainStyledAttributes(ATTRS);
        mDivider = a.getDrawable(0);
        a.recycle();
    }

    /**
     * 自定义分割线
     *
     * @param context
     * @param orientation 列表方向
     * @param drawableId  分割线图片
     */
    public RecycleViewDivider(Context context, int orientation, int drawableId) {
        this(context, orientation);
        mDivider = ContextCompat.getDrawable(context, drawableId);
        mDividerHeight = mDivider.getIntrinsicHeight();
    }

    /**
     * 自定义分割线
     *
     * @param context
     * @param orientation   列表方向
     * @param dividerHeight 分割线高度
     * @param dividerColor  分割线颜色
     */
    public RecycleViewDivider(Context context, int orientation, int dividerHeight, int dividerColor) {
        this(context, orientation);
        mDividerHeight = dividerHeight;
        mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mPaint.setColor(dividerColor);
        mPaint.setStyle(Paint.Style.FILL);
    }


    //获取分割线尺寸
    @Override
    public void getItemOffsets(Rect outRect, View view, RecyclerView parent, RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);
        outRect.set(0, 0, 0, mDividerHeight);
    }

    //绘制分割线
    @Override
    public void onDraw(Canvas c, RecyclerView parent, RecyclerView.State state) {
        super.onDraw(c, parent, state);
        if (mOrientation == LinearLayoutManager.VERTICAL) {
            drawVertical(c, parent);
        } else {
            drawHorizontal(c, parent);
        }
    }

    //绘制横向 item 分割线
    private void drawHorizontal(Canvas canvas, RecyclerView parent) {
        final int left = parent.getPaddingLeft();
        final int right = parent.getMeasuredWidth() - parent.getPaddingRight();
        final int childSize = parent.getChildCount();
        for (int i = 0; i < childSize; i++) {
            final View child = parent.getChildAt(i);
            RecyclerView.LayoutParams layoutParams = (RecyclerView.LayoutParams) child.getLayoutParams();
            final int top = child.getBottom() + layoutParams.bottomMargin;
            final int bottom = top + mDividerHeight;
            if (mDivider != null) {
                mDivider.setBounds(left, top, right, bottom);
                mDivider.draw(canvas);
            }
            if (mPaint != null) {
                canvas.drawRect(left, top, right, bottom, mPaint);
            }
        }
    }

    //绘制纵向 item 分割线
    private void drawVertical(Canvas canvas, RecyclerView parent) {
        final int top = parent.getPaddingTop();
        final int bottom = parent.getMeasuredHeight() - parent.getPaddingBottom();
        final int childSize = parent.getChildCount();
        for (int i = 0; i < childSize; i++) {
            final View child = parent.getChildAt(i);
            RecyclerView.LayoutParams layoutParams = (RecyclerView.LayoutParams) child.getLayoutParams();
            final int left = child.getRight() + layoutParams.rightMargin;
            final int right = left + mDividerHeight;
            if (mDivider != null) {
                mDivider.setBounds(left, top, right, bottom);
                mDivider.draw(canvas);
            }
            if (mPaint != null) {
                canvas.drawRect(left, top, right, bottom, mPaint);
            }
        }
    }
}

.
.
设置分割线：

        mRecyclerView = (RecyclerView) findViewById(R.id.mRecycler);
        mRecyclerView.setLayoutManager(new LinearLayoutManager(this));
        mRecyclerView.addItemDecoration(new RecycleViewDivider(MainActivity.this, LinearLayoutManager.VERTICAL)); // 设置分割线
        mRecyclerView.setAdapter(mAdapter = new TestAdapter());

发现只需要在原来的代码上加上一行代码

        mRecyclerView.addItemDecoration(new RecycleViewDivider(MainActivity.this,

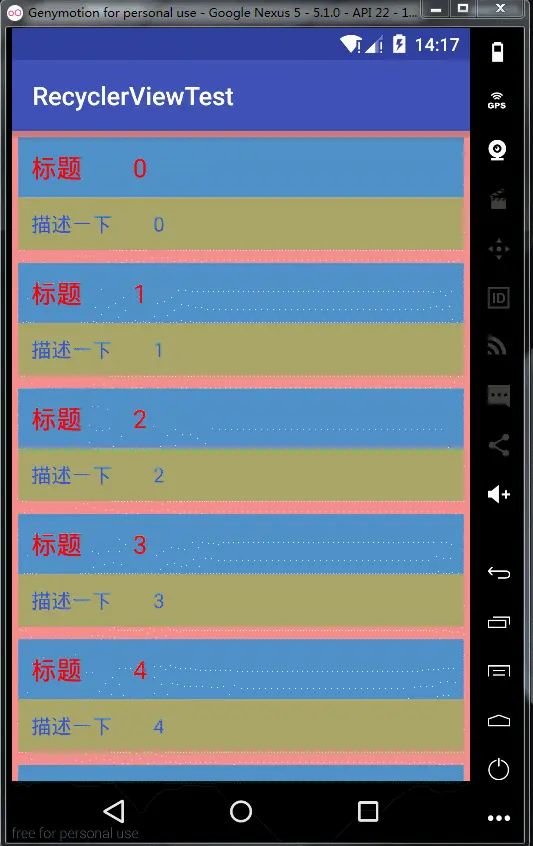

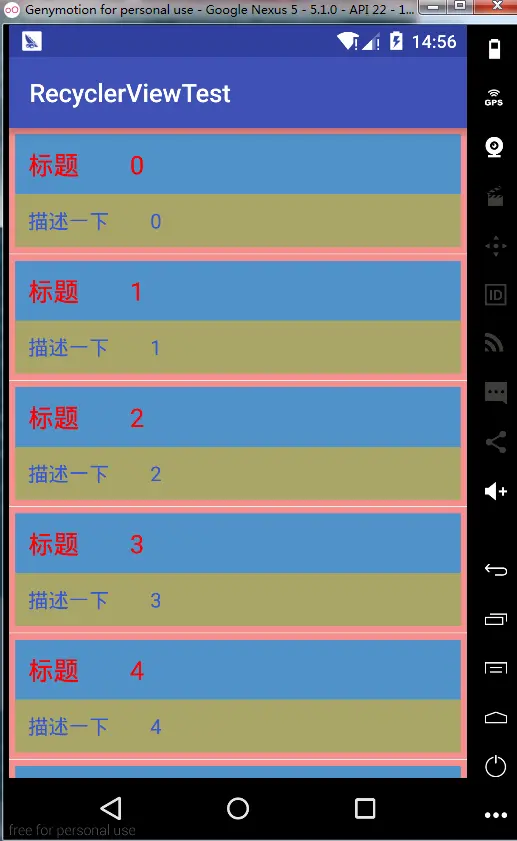

效果图：

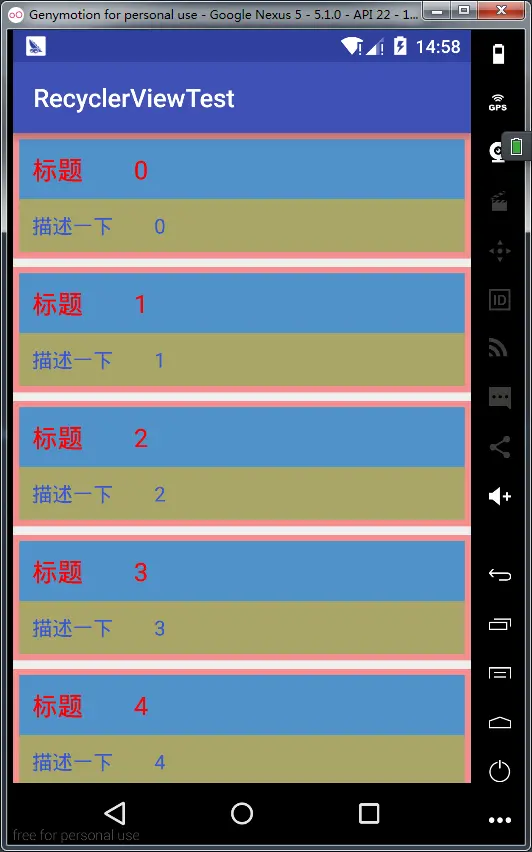

看得很辛苦，那么我们让分割线加大一些，指定一下颜色吧

        mRecyclerView.addItemDecoration(new RecycleViewDivider(MainActivity.this,
                                 LinearLayoutManager.VERTICAL,20, Color.GRAY)); // 设置分割线


四、布局管理器

RecyclerView.LayoutManager，这是一个抽象类，系统提供了3个实现类：

LinearLayoutManager 线性管理器，支持横向、纵向。
GridLayoutManager 网格布局管理器
StaggeredGridLayoutManager 瀑布就式布局管理器

说说LinearLayoutManager

LinearLayoutManager 我们上面用的一直是纵向。

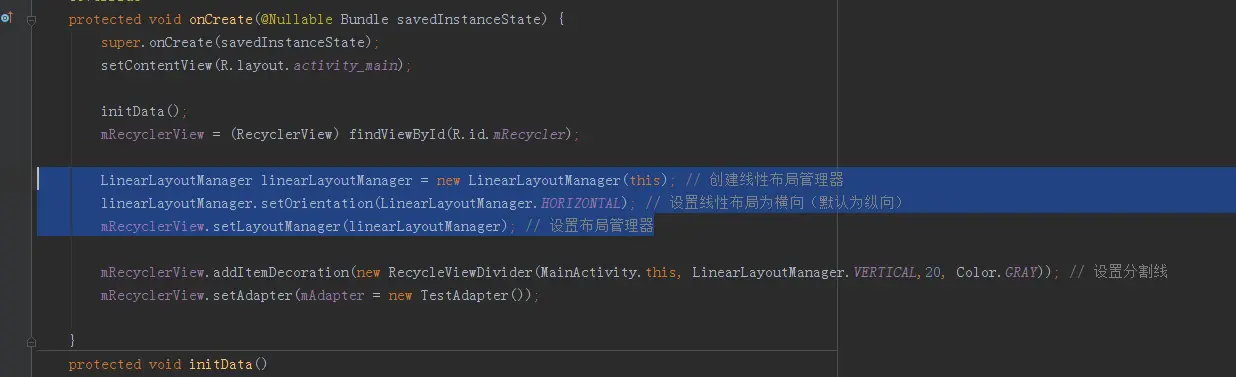

现在来设置成为横向的：


        LinearLayoutManager linearLayoutManager = new LinearLayoutManager(this); // 创建线性布局管理器
        linearLayoutManager.setOrientation(LinearLayoutManager.HORIZONTAL); // 设置线性布局为横向（默认为纵向）
        mRecyclerView.setLayoutManager(linearLayoutManager); // 设置布局管理器


说说GridLayoutManager

纵向

mRecyclerView = (RecyclerView) findViewById(R.id.mRecycler);

        mRecyclerView.setLayoutManager(new C(this,2)); // 设置布局管理器 GridView

        mRecyclerView.addItemDecoration(new RecycleViewDivider(MainActivity.this, GridLayoutManager.VERTICAL)); // 设置分割线
        mRecyclerView.setAdapter(mAdapter = new TestAdapter());

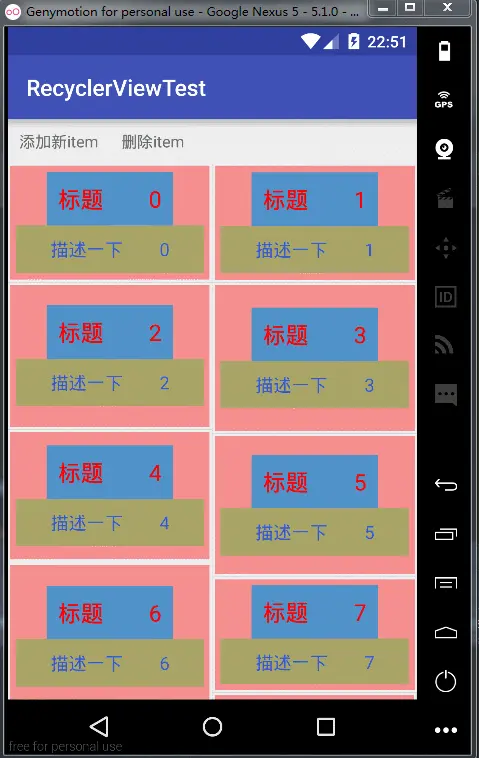

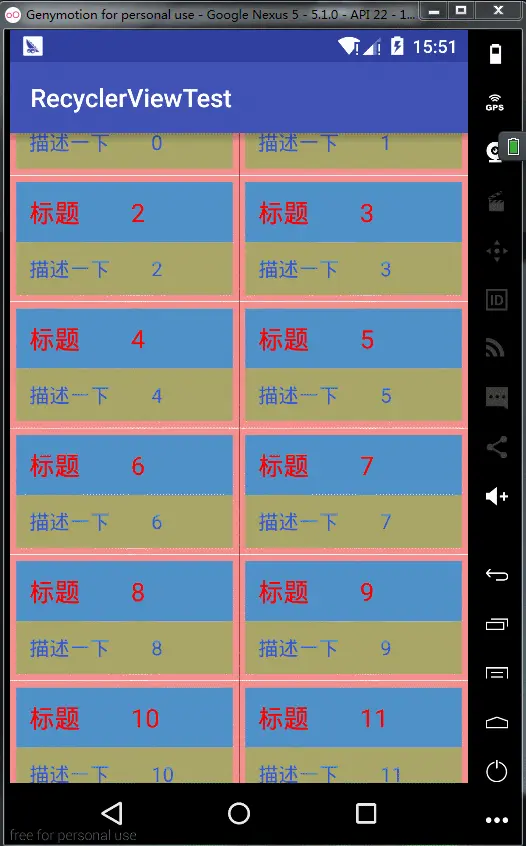

效果

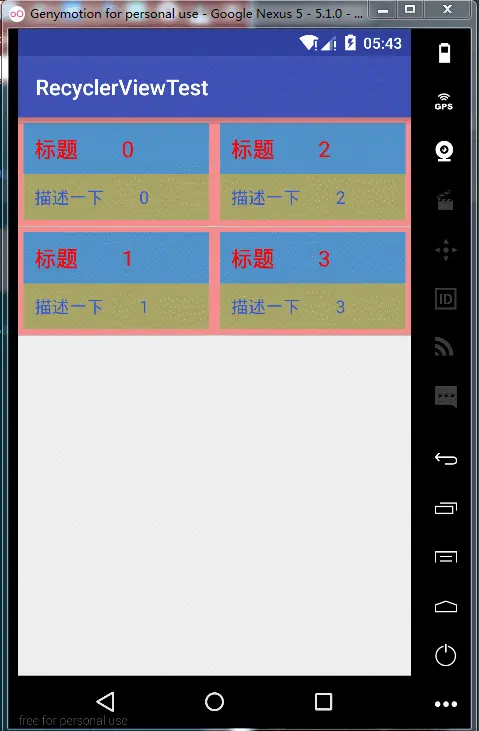

横向

利用 StaggeredGridLayoutManager

只需要一行代码：

mRecyclerView.setLayoutManager(new StaggeredGridLayoutManager(2,StaggeredGridLayoutManager.HORIZONTAL)); // 设置布局管理器 GridView

不过布局有一点点需要改动
activity_main的RecyclerView高度需要包裹，不能填充父窗体

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <android.support.v7.widget.RecyclerView
        android:id="@+id/mRecycler"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:divider="#ffff0000"
        android:dividerHeight="10dp"></android.support.v7.widget.RecyclerView>

</RelativeLayout>

item布局宽度不能填充父窗体

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="180dp"
    android:layout_height="100dp"
    android:orientation="vertical"
    android:background="#66ff0000"
    android:padding="5dp"
    >

    <TextView
        android:id="@+id/mTvTitle"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="标题"
        android:textSize="20sp"

        android:padding="10dp"
        android:textColor="#ff0000"
        android:background="#4f92c9"
        />
    <TextView
        android:id="@+id/mTvDesc"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="描述"
        android:textSize="16sp"

        android:padding="10dp"
        android:textColor="#3657d7"
        android:background="#a9a667"
        />

</LinearLayout>

效果：

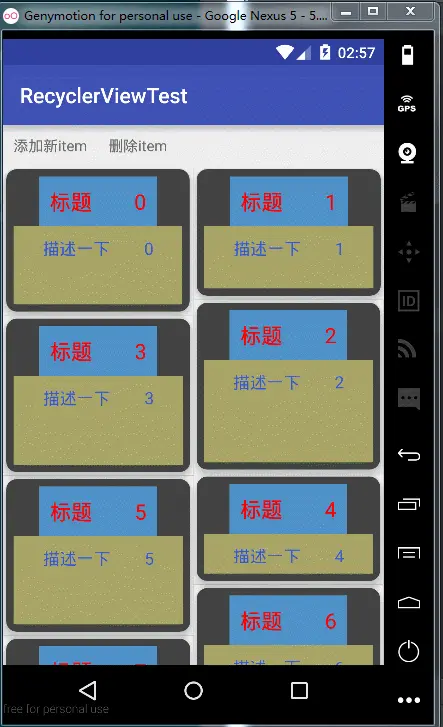

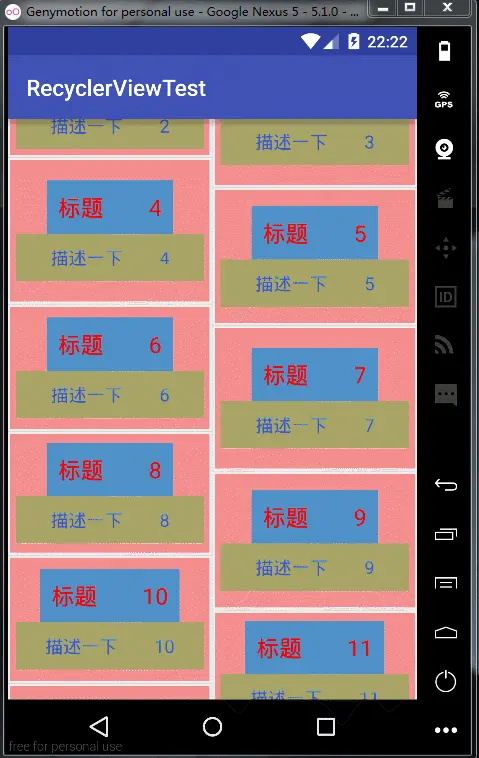

说说StaggeredGridLayoutManager 流式布局

在上面的横向布局里面，我们已经用到了StaggeredGridLayoutManager

做的东西就几点：
1、item布局需要在外层给出具体高度，这样方便待会计算的时候保证最低高度
2、在RecyclerView.Adapter的继承类的onBindViewHolder里面动态改变高度

接下来看代码：
item布局里面，我们给最外层指定了最低高度100dp，最低宽度180dp

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/mLlItemRoot"
    android:layout_width="180dp"
    android:layout_height="100dp"
    android:orientation="vertical"
    android:background="#66ff0000"
    android:padding="5dp"
    android:gravity="center"
    android:layout_margin="2dp"
    >

    <TextView
        android:id="@+id/mTvTitle"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="标题"
        android:layout_gravity="center_horizontal"
        android:textSize="20sp"
        android:padding="10dp"
        android:textColor="#ff0000"
        android:background="#4f92c9"
        />
    <TextView
        android:id="@+id/mTvDesc"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="描述"
        android:textSize="16sp"
        android:gravity="center_horizontal"
        android:padding="10dp"
        android:textColor="#3657d7"
        android:background="#a9a667"
        />

</LinearLayout>

.
.

接下来是adapter，主要看 onBindViewHolder方法

public  class TestAdapter extends RecyclerView.Adapter<TestAdapter.MyViewHolder>{

    private List<DataBean> mDatas;
    private Context mContext;
    private LayoutInflater mInflater;
    private List<Integer> mHeights;


    public TestAdapter(Context mContext, List<DataBean> mDatas) {
        mInflater = LayoutInflater.from(mContext);
        this.mContext = mContext;
        this.mDatas = mDatas;

        mHeights = new ArrayList<Integer>();
        for (int i = 0; i < mDatas.size(); i++)
        {
            // 这里为什么是300？ 因为item的高度我们给的是100.如果item不给实际高度，那么lp.height拿出来的很可能是个负数
            // 我给item的值100，但是下面lp.height给出来的是300，才写了300
            mHeights.add( 300+(int) (Math.random() * 100));
        }

    }

    // 孩子数
    @Override
    public int getItemCount() {
        return mDatas.size();
    }


    // 创建视图
    @Override
    public MyViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {

        // 应该调用三个参数的inflate方法，传入父亲（parent）
        MyViewHolder myViewHolder = new MyViewHolder(mInflater.inflate(R.layout.item_recy_test,parent, false));
        return myViewHolder;
    }

    // 绑定视图视图  以前getView的事情  关键方法
    @Override
    public void onBindViewHolder(MyViewHolder holder, int position) {
        ViewGroup.LayoutParams lp = holder.mLlItemRoot.getLayoutParams();

        //
        if(position==1){
            System.out.println("===========lp.height:  "+lp.height);
            System.out.println("===========lp.height + 50 :  "+(lp.height+50));
        }
        lp.height = mHeights.get(position);

        holder.mLlItemRoot.setLayoutParams(lp);

        DataBean dataBean = mDatas.get(position);
        holder.mTvTitle.setText(dataBean.title);
        holder.mTvDesc.setText(dataBean.desc);
    }

    // 必须实现的Holder
    class MyViewHolder extends RecyclerView.ViewHolder
    {
        TextView mTvTitle;
        TextView mTvDesc;
        LinearLayout mLlItemRoot;

        public MyViewHolder(View itemView) {
            super(itemView);
            mLlItemRoot = (LinearLayout) itemView.findViewById(R.id.mLlItemRoot);
            mTvTitle = (TextView) itemView.findViewById(R.id.mTvTitle);
            mTvDesc = (TextView) itemView.findViewById(R.id.mTvDesc);
        }
    }
}

还要需要注意的就是这句代码

mHeights.add( 300+(int) (Math.random() * 100));

这里为什么是300？因为item的高度我们给的是100.如果item不给实际高度，那么lp.height拿出来的很可能是个负数
我给item的值100，但是下面lp.height给出来的是300，才写了300

为什么要把高度写在集合里面而不写在onBindViewHolder？
如果这样循环往复拉动几次会出现什么状况?高度越来越大，每次都上在上次的基础上扩大。

.
.
MainActivity

public class MainActivity extends AppCompatActivity {

    private RecyclerView mRecyclerView;
    private List<DataBean> mDatas;
    private TestAdapter mAdapter;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        initData();
        mRecyclerView = (RecyclerView) findViewById(R.id.mRecycler);

        mRecyclerView.setLayoutManager(new StaggeredGridLayoutManager(2,StaggeredGridLayoutManager.VERTICAL)); // 设置布局管理器 GridView

        mRecyclerView.addItemDecoration(new DividerGridItemDecoration(MainActivity.this)); // 设置分割线
        mRecyclerView.setAdapter(mAdapter = new TestAdapter(MainActivity.this,mDatas));

    }
    protected void initData()
    {
        mDatas = new ArrayList<DataBean>();
        DataBean dataBean = null;
        for (int i = 0; i < 20; i++)
        {
            dataBean = new DataBean();
            dataBean.title = "标题　　"+i;
            dataBean.desc = "描述一下　　"+i;
            mDatas.add(dataBean);
        }
    }
}

.
.
在上面的代码这句

mRecyclerView.addItemDecoration(new DividerGridItemDecoration(MainActivity.this)); // 设置分割线

我们还用到了一个分割线文件
附上分割线文件，参考csdn 鸿洋

public class DividerGridItemDecoration extends RecyclerView.ItemDecoration
{

    private static final int[] ATTRS = new int[] { android.R.attr.listDivider };
    private Drawable mDivider;

    public DividerGridItemDecoration(Context context)
    {
        final TypedArray a = context.obtainStyledAttributes(ATTRS);
        mDivider = a.getDrawable(0);
        a.recycle();
    }

    @Override
    public void onDraw(Canvas c, RecyclerView parent, State state)
    {

        drawHorizontal(c, parent);
        drawVertical(c, parent);

    }

    private int getSpanCount(RecyclerView parent)
    {
        // 列数
        int spanCount = -1;
        LayoutManager layoutManager = parent.getLayoutManager();
        if (layoutManager instanceof GridLayoutManager)
        {

            spanCount = ((GridLayoutManager) layoutManager).getSpanCount();
        } else if (layoutManager instanceof StaggeredGridLayoutManager)
        {
            spanCount = ((StaggeredGridLayoutManager) layoutManager)
                    .getSpanCount();
        }
        return spanCount;
    }

    public void drawHorizontal(Canvas c, RecyclerView parent)
    {
        int childCount = parent.getChildCount();
        for (int i = 0; i < childCount; i++)
        {
            final View child = parent.getChildAt(i);
            final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
                    .getLayoutParams();
            final int left = child.getLeft() - params.leftMargin;
            final int right = child.getRight() + params.rightMargin
                    + mDivider.getIntrinsicWidth();
            final int top = child.getBottom() + params.bottomMargin;
            final int bottom = top + mDivider.getIntrinsicHeight();
            mDivider.setBounds(left, top, right, bottom);
            mDivider.draw(c);
        }
    }

    public void drawVertical(Canvas c, RecyclerView parent)
    {
        final int childCount = parent.getChildCount();
        for (int i = 0; i < childCount; i++)
        {
            final View child = parent.getChildAt(i);

            final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
                    .getLayoutParams();
            final int top = child.getTop() - params.topMargin;
            final int bottom = child.getBottom() + params.bottomMargin;
            final int left = child.getRight() + params.rightMargin;
            final int right = left + mDivider.getIntrinsicWidth();

            mDivider.setBounds(left, top, right, bottom);
            mDivider.draw(c);
        }
    }

    private boolean isLastColum(RecyclerView parent, int pos, int spanCount,
            int childCount)
    {
        LayoutManager layoutManager = parent.getLayoutManager();
        if (layoutManager instanceof GridLayoutManager)
        {
            if ((pos + 1) % spanCount == 0)// 如果是最后一列，则不需要绘制右边
            {
                return true;
            }
        } else if (layoutManager instanceof StaggeredGridLayoutManager)
        {
            int orientation = ((StaggeredGridLayoutManager) layoutManager)
                    .getOrientation();
            if (orientation == StaggeredGridLayoutManager.VERTICAL)
            {
                if ((pos + 1) % spanCount == 0)// 如果是最后一列，则不需要绘制右边
                {
                    return true;
                }
            } else
            {
                childCount = childCount - childCount % spanCount;
                if (pos >= childCount)// 如果是最后一列，则不需要绘制右边
                    return true;
            }
        }
        return false;
    }

    private boolean isLastRaw(RecyclerView parent, int pos, int spanCount,
            int childCount)
    {
        LayoutManager layoutManager = parent.getLayoutManager();
        if (layoutManager instanceof GridLayoutManager)
        {
            childCount = childCount - childCount % spanCount;
            if (pos >= childCount)// 如果是最后一行，则不需要绘制底部
                return true;
        } else if (layoutManager instanceof StaggeredGridLayoutManager)
        {
            int orientation = ((StaggeredGridLayoutManager) layoutManager)
                    .getOrientation();
            // StaggeredGridLayoutManager 且纵向滚动
            if (orientation == StaggeredGridLayoutManager.VERTICAL)
            {
                childCount = childCount - childCount % spanCount;
                // 如果是最后一行，则不需要绘制底部
                if (pos >= childCount)
                    return true;
            } else
            // StaggeredGridLayoutManager 且横向滚动
            {
                // 如果是最后一行，则不需要绘制底部
                if ((pos + 1) % spanCount == 0)
                {
                    return true;
                }
            }
        }
        return false;
    }

    @Override
    public void getItemOffsets(Rect outRect, int itemPosition,
            RecyclerView parent)
    {
        int spanCount = getSpanCount(parent);
        int childCount = parent.getAdapter().getItemCount();
        if (isLastRaw(parent, itemPosition, spanCount, childCount))// 如果是最后一行，则不需要绘制底部
        {
            outRect.set(0, 0, mDivider.getIntrinsicWidth(), 0);
        } else if (isLastColum(parent, itemPosition, spanCount, childCount))// 如果是最后一列，则不需要绘制右边
        {
            outRect.set(0, 0, 0, mDivider.getIntrinsicHeight());
        } else
        {
            outRect.set(0, 0, mDivider.getIntrinsicWidth(),
                    mDivider.getIntrinsicHeight());
        }
    }
}

效果：


感觉有点丑，后面我们可以用CradView感觉就会好很多。

五、item的增删动画 ItemAnimator

我们之前ListView的时候，通知试图刷新变化调用的是 notifyDataSetChanged()

而在RecyclerView，除了notifyDataSetChanged()，还有

添加 notifyItemInserted(position) 指定位置添加一个item
删除 notifyItemRemoved(position) 指定删除哪一个item

既然知道怎么添加和删除，那么我们就在adapter里面新增两个对用的方法

    public void addData(int position)
    {
        DataBean tempAdd = new DataBean();
        tempAdd.title="新增标题";
        tempAdd.desc="新增描述";

        mDatas.add(position, tempAdd);
        mHeights.add( 300+(int) (Math.random() * 100));
        notifyItemInserted(position);
    }

    public void removeData(int position)
    {
        mDatas.remove(position);
        notifyItemRemoved(position);
    }

然后我们弄两个按钮，点击就调用方法

        mTvAdd = (TextView) findViewById(R.id.mTvAdd);
        mTvAdd.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mAdapter.addData(1);
            }
        });
        mTvRemove = (TextView) findViewById(R.id.mTvRemove);
        mTvRemove.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mAdapter.removeData(1);
            }
        });

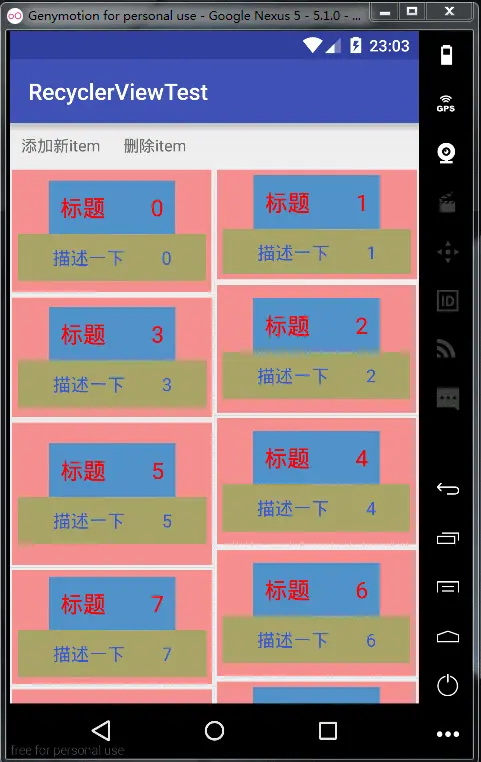

效果图


我们发现这个增删的过程还是有动画的，这是RecyclerView我们实现的默认动画。

 mRecyclerView = (RecyclerView) findViewById(R.id.mRecycler);

        mRecyclerView.setLayoutManager(new StaggeredGridLayoutManager(2,StaggeredGridLayoutManager.VERTICAL)); // 设置布局管理器 GridView

        mRecyclerView.addItemDecoration(new DividerGridItemDecoration(MainActivity.this)); // 设置分割线
        // 设置item动画
        mRecyclerView.setItemAnimator(new DefaultItemAnimator());
        mRecyclerView.setAdapter(mAdapter = new TestAdapter(MainActivity.this,mDatas));


我们也可以利用ItemAnimator()实现动画。

六、自己实现点击事件

RecyclerView没有点击回调的方法方法可以用，我们需要自己实现

    // 点击回调
    public interface OnItemClickLitener
    {
        void onItemClick(View view, int position);  // 点击
        void onItemLongClick(View view , int position); // 长按
    }

    private OnItemClickLitener mOnItemClickLitener;

    public void setOnItemClickLitener(OnItemClickLitener mOnItemClickLitener)
    {
        this.mOnItemClickLitener = mOnItemClickLitener;
    }

    // 绑定视图视图  以前getView的事情  关键方法
    @Override
    public void onBindViewHolder(final MyViewHolder holder, int position) {
        ViewGroup.LayoutParams lp = holder.mLlItemRoot.getLayoutParams();

        // 如果设置了回调，则设置点击事件
        if (mOnItemClickLitener != null)
        {
            holder.itemView.setOnClickListener(new View.OnClickListener()
            {
                @Override
                public void onClick(View v)
                {
                    int pos = holder.getLayoutPosition();
                    mOnItemClickLitener.onItemClick(holder.itemView, pos);
                }
            });

            holder.itemView.setOnLongClickListener(new View.OnLongClickListener()
            {
                @Override
                public boolean onLongClick(View v)
                {
                    int pos = holder.getLayoutPosition();
                    mOnItemClickLitener.onItemLongClick(holder.itemView, pos);
                    return false;
                }
            });
        }
}

效果图


到这里，回顾开头我们说的

自带ViewHolder
分割线控制方便
横向，竖向、列表，多行列表和流式皆可
item增删动画控制方便

都言及了。

七、CardView 的配合使用

对于CardView，你可以简单的认为它是一个使用了Material Desgin风格的FrameLayout，只不过比普通的FrameLayout多了圆角背景和阴影效果。所以它常用作ListView 或者 RecyclerView等视图Item的布局容器；

我们自然可以联想到它的使用跟FrameLayout非常相似，只不多多了几个用于控制圆角、阴影等自身特有的属性：

design里面没有包含CardView
所以我们还需要引入CardView

    compile 'com.android.support:appcompat-v7:23.4.0'
    compile 'com.android.support:design:23.4.0'

    compile 'com.android.support:cardview-v7:23.4.0'   // 引入 cardview

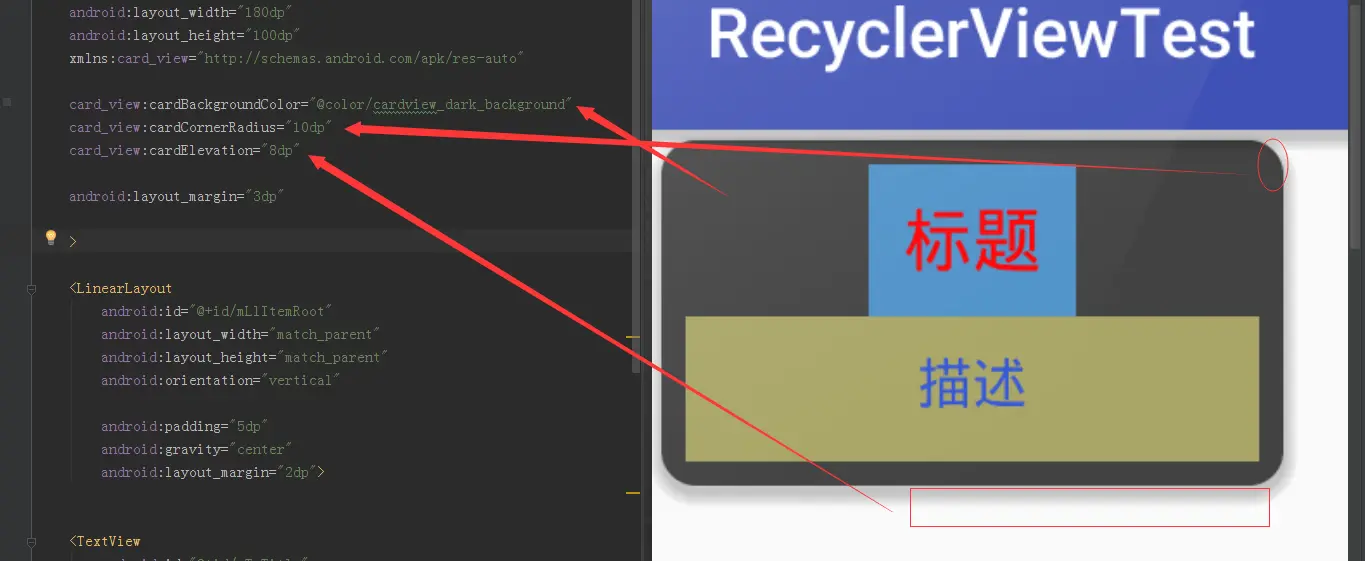

接下来，把itme的布局文件最外层设置为CardView

<?xml version="1.0" encoding="utf-8"?>
<android.support.v7.widget.CardView xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/mCvItemRoot"
    android:layout_width="180dp"
    android:layout_height="100dp"
    xmlns:card_view="http://schemas.android.com/apk/res-auto"

    card_view:cardBackgroundColor="@color/cardview_dark_background"
    card_view:cardCornerRadius="10dp"
    card_view:cardElevation="8dp"

    android:layout_margin="3dp"

    >

    <LinearLayout
        android:id="@+id/mLlItemRoot"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical"

        android:padding="5dp"
        android:gravity="center"
        android:layout_margin="2dp">


    <TextView
        android:id="@+id/mTvTitle"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="标题"
        android:layout_gravity="center_horizontal"
        android:textSize="20sp"
        android:padding="10dp"
        android:textColor="#ff0000"
        android:background="#4f92c9"
        />
    <TextView
        android:id="@+id/mTvDesc"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:text="描述"
        android:textSize="16sp"
        android:gravity="center_horizontal"
        android:padding="10dp"
        android:textColor="#3657d7"
        android:background="#a9a667"
        />

    </LinearLayout>
</android.support.v7.widget.CardView>

其中关键代码无非这两句

    card_view:cardBackgroundColor="@color/cardview_dark_background"
    card_view:cardCornerRadius="10dp"
    card_view:cardElevation="8dp"

第一句指定颜色
第二句指定圆角角度
第三句指定阴影


当然Adapter也有相应的变化
起始就是把原来的 LinearLayout 换成 CardView ，计算高度也是换成 CardView 而已，为了让流式效果明显一些，我们把随机生成的高度弄大了一些。

 public  class TestAdapter extends RecyclerView.Adapter<TestAdapter.MyViewHolder>{

    private List<DataBean> mDatas;
    private Context mContext;
    private LayoutInflater mInflater;
    private List<Integer> mHeights;


    public TestAdapter(Context mContext, List<DataBean> mDatas) {
        mInflater = LayoutInflater.from(mContext);
        this.mContext = mContext;
        this.mDatas = mDatas;

        mHeights = new ArrayList<Integer>();
        for (int i = 0; i < mDatas.size(); i++)
        {
            // 这里为什么是300？ 因为item的高度我们给的是100.如果item不给实际高度，那么lp.height拿出来的很可能是个负数
            // 我给item的值100，但是下面lp.height给出来的是300，才写了300
            mHeights.add( 300+(int) (Math.random() * 200));
        }
    }

    // 孩子数
    @Override
    public int getItemCount() {
        return mDatas.size();
    }


    // 创建视图
    @Override
    public MyViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {

        // 应该调用三个参数的inflate方法，传入父亲（parent）
        MyViewHolder myViewHolder = new MyViewHolder(mInflater.inflate(R.layout.item_recy_test,parent, false));
        return myViewHolder;
    }

    // 点击回调
    public interface OnItemClickLitener
    {
        void onItemClick(View view, int position);  // 点击
        void onItemLongClick(View view , int position); // 长按
    }

    private OnItemClickLitener mOnItemClickLitener;

    public void setOnItemClickLitener(OnItemClickLitener mOnItemClickLitener)
    {
        this.mOnItemClickLitener = mOnItemClickLitener;
    }

    // 绑定视图视图  以前getView的事情  关键方法
    @Override
    public void onBindViewHolder(final MyViewHolder holder, int position) {
        // 如果设置了回调，则设置点击事件
        if (mOnItemClickLitener != null)
        {
            holder.itemView.setOnClickListener(new View.OnClickListener()
            {
                @Override
                public void onClick(View v)
                {
                    int pos = holder.getLayoutPosition();
                    mOnItemClickLitener.onItemClick(holder.itemView, pos);
                }
            });

            holder.itemView.setOnLongClickListener(new View.OnLongClickListener()
            {
                @Override
                public boolean onLongClick(View v)
                {
                    int pos = holder.getLayoutPosition();
                    mOnItemClickLitener.onItemLongClick(holder.itemView, pos);
                    return false;
                }
            });
        }

        ViewGroup.LayoutParams lp = holder.mCvItemRoot.getLayoutParams();

        if(position==1){
            System.out.println("===========lp.height:  "+lp.height);
            System.out.println("===========lp.height + 50 :  "+(lp.height+50));
        }
        lp.height = mHeights.get(position);

        holder.mCvItemRoot.setLayoutParams(lp);

        DataBean dataBean = mDatas.get(position);
        holder.mTvTitle.setText(dataBean.title);
        holder.mTvDesc.setText(dataBean.desc);
    }

    // 必须实现的Holder
    class MyViewHolder extends RecyclerView.ViewHolder
    {
        TextView mTvTitle;
        TextView mTvDesc;
        LinearLayout mLlItemRoot;
        CardView mCvItemRoot;

        public MyViewHolder(View itemView) {
            super(itemView);
            mCvItemRoot = (CardView) itemView.findViewById(R.id.mCvItemRoot);
            mLlItemRoot = (LinearLayout) itemView.findViewById(R.id.mLlItemRoot);
            mTvTitle = (TextView) itemView.findViewById(R.id.mTvTitle);
            mTvDesc = (TextView) itemView.findViewById(R.id.mTvDesc);
        }
    }


    public void addData(int position)
    {
        DataBean tempAdd = new DataBean();
        tempAdd.title="新增标题";
        tempAdd.desc="新增描述";

        mDatas.add(position, tempAdd);
        mHeights.add( 300+(int) (Math.random() * 100));
        notifyItemInserted(position);
    }

    public void removeData(int position)
    {
        mDatas.remove(position);
        notifyItemRemoved(position);
    }
}


八、下拉刷新和上拉加载更多

ANDROID官方的SwipeRefreshLayout可用于刷新，但是这个只是做下拉刷新。
而下拉刷新需要判断列表是否抵达底部、

所以需要注意两点：
一是用 SwipeRefreshLayout 包裹 RecyclerView 实现下拉刷新。
下拉刷新是通过实现 SwipeRefreshLayout.OnRefreshListener 接口来实现的，也就是说下拉刷新具有了通用性，不只是 RecyclerView ;

二是滑倒底部的时候自动加载实现加载更多。
加载更多要通过 LayoutManager 来获取 RecyclerView 是否滑动到底部来实现。

下拉刷新

说起来就是几步
1、RecyclerView 外层需要包一个 SwipeRefreshLayout
2、給SwipeRefreshLayout设置颜色

mSwipeRefresh.setColorSchemeResources(
                R.color.google_blue,
                R.color.google_green,
                R.color.google_red,
                R.color.google_yellow
        );

3、回调接口

  mSwipeRefresh.setOnRefreshListener(this); //复写onRefresh方法 做下拉刷新
  ...


   @Override
    public void onRefresh() {

        new Handler().postDelayed(new Runnable() {
            @Override
            public void run() {
                DataBean addTemp = new DataBean();
                addTemp.title = "标题 下拉新增";
                addTemp.desc = "desc 下拉新增";
                mDatas.add(0,addTemp);
                mAdapter.notifyDataSetChanged();
                mSwipeRefresh.setRefreshing(false); //
            }
        }, 1000);
    }

大概步骤如上。
接下来看代码：

简单的下拉刷新的实现

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    >
    <LinearLayout
          ...
    </LinearLayout>

    <android.support.v4.widget.SwipeRefreshLayout
        android:id="@+id/mSwipeRefresh"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <android.support.v7.widget.RecyclerView
            android:id="@+id/mRecycler"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:divider="#ffff0000"
            android:dividerHeight="10dp">
        </android.support.v7.widget.RecyclerView>

    </android.support.v4.widget.SwipeRefreshLayout>

</LinearLayout>

Mainactivity

public class MainActivity extends AppCompatActivity implements SwipeRefreshLayout.OnRefreshListener {

    private RecyclerView mRecyclerView;
    private TextView mTvAdd;
    private TextView mTvRemove;
    private List<DataBean> mDatas;
    private TestAdapter mAdapter;
    private SwipeRefreshLayout mSwipeRefresh;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mTvAdd = (TextView) findViewById(R.id.mTvAdd);
        mTvAdd.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mAdapter.addData(1);
            }
        });
        mTvRemove = (TextView) findViewById(R.id.mTvRemove);
        mTvRemove.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mAdapter.removeData(1);
            }
        });

        mRecyclerView = (RecyclerView) findViewById(R.id.mRecycler);
        initData();
        mRecyclerView.setLayoutManager(new StaggeredGridLayoutManager(2,StaggeredGridLayoutManager.VERTICAL)); // 设置布局管理器 GridView
        mRecyclerView.addItemDecoration(new DividerGridItemDecoration(MainActivity.this)); // 设置分割线
        mRecyclerView.setItemAnimator(new DefaultItemAnimator());        // 设置item动画
        mRecyclerView.setAdapter(mAdapter = new TestAdapter(MainActivity.this,mDatas));
        mAdapter.setOnItemClickLitener(new TestAdapter.OnItemClickLitener() {
            @Override
            public void onItemClick(View view, int position) {
                Toast.makeText(MainActivity.this,"点击："+position,Toast.LENGTH_SHORT).show();
            }

            @Override
            public void onItemLongClick(View view, int position) {
                Toast.makeText(MainActivity.this,"长按："+position,Toast.LENGTH_SHORT).show();
            }
        });

        // 刷新
        mSwipeRefresh = (SwipeRefreshLayout) findViewById(R.id.mSwipeRefresh);
        // 刷新的时候的颜色
        mSwipeRefresh.setColorSchemeResources(
                R.color.google_blue,
                R.color.google_green,
                R.color.google_red,
                R.color.google_yellow
        );
        // implements SwipeRefreshLayout.OnRefreshListener
        mSwipeRefresh.setOnRefreshListener(this); //复写onRefresh方法 做下拉刷新
        // 刷新
    }

    @Override
    public void onRefresh() {

        new Handler().postDelayed(new Runnable() {
            @Override
            public void run() {
                DataBean addTemp = new DataBean();
                addTemp.title = "标题 下拉新增";
                addTemp.desc = "desc 下拉新增";
                mDatas.add(0,addTemp);
                mAdapter.notifyDataSetChanged();
                mSwipeRefresh.setRefreshing(false); //
            }
        }, 1000);
    }
    protected void initData()
    {
        mDatas = new ArrayList<DataBean>();
        DataBean dataBean = null;
        for (int i = 0; i < 20; i++)
        {
            dataBean = new DataBean();
            dataBean.title = "标题　　"+i;
            dataBean.desc = "描述一下　　"+i;
            mDatas.add(dataBean);
        }
    }
}

.
.
效果图


上拉加载更多数据

上拉加载更多用一个新的页面展示，更加清晰。


主要就是完成从下面这几步：

1、Adapter 定义两个常量区分普通item视图和脚部

  private static final int TYPE_ITEM = 0;
  private static final int TYPE_FOOTER = 1;

2、Adapter getItemCount()方法为脚部做调整

    @Override
    public int getItemCount() {
        return mDatas.size() == 0 ? 0 : mDatas.size() + 1;
    }

3、C利用getItemViewType做视图判断

@Override
  public int getItemViewType(int position) {
      if (position + 1 == getItemCount()) {
          return TYPE_FOOTER;
      } else {
          return TYPE_ITEM;
      }
  }

4、Adapter onCreateViewHolder 初始化视图

@Override
  public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
      if (viewType == TYPE_ITEM) {
          View view = LayoutInflater.from(context).inflate(R.layout.item_base, parent,
                  false);
          return new ItemViewHolder(view);
      } else if (viewType == TYPE_FOOTER) {
          View view = LayoutInflater.from(context).inflate(R.layout.item_foot, parent,
                  false);
          return new FootViewHolder(view);
      }
      return null;
  }

5、Adapter onBindViewHolder 帮顶视图做区分

@Override
  public void onBindViewHolder(final ViewHolder holder, int position) {
      if (holder instanceof ItemViewHolder) {
          if (onItemClickListener != null) {
              holder.itemView.setOnClickListener(new View.OnClickListener() {
                  @Override
                  public void onClick(View v) {
                      int position = holder.getLayoutPosition();
                      onItemClickListener.onItemClick(holder.itemView, position);
                  }
              });

              holder.itemView.setOnLongClickListener(new View.OnLongClickListener() {
                  @Override
                  public boolean onLongClick(View v) {
                      int position = holder.getLayoutPosition();
                      onItemClickListener.onItemLongClick(holder.itemView, position);
                      return false;
                  }
              });
          }
          ItemViewHolder itemViewHolder = (ItemViewHolder)holder;
          itemViewHolder.mTvName.setText(mDatas.get(position));
      }
  }

6、在Activity里面的scroll监听做上拉要执行的逻辑

recyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
          @Override
          public void onScrollStateChanged(RecyclerView recyclerView, int newState) {
              super.onScrollStateChanged(recyclerView, newState);
              Log.d("test", "StateChanged = " + newState);
          }

          @Override
          public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
              super.onScrolled(recyclerView, dx, dy);
              Log.d("test", "onScrolled");

              int lastVisibleItemPosition = layoutManager.findLastVisibleItemPosition();
              if (lastVisibleItemPosition + 1 == adapter.getItemCount()) {
                  Log.d("test", "loading executed");

                  boolean isRefreshing = swipeRefreshLayout.isRefreshing();
                  if (isRefreshing) {
                      adapter.notifyItemRemoved(adapter.getItemCount());
                      return;
                  }
                  if (!isLoading) {
                      isLoading = true;
                      handler.postDelayed(new Runnable() {
                          @Override
                          public void run() {
                              mDatas.add("上拉 加载 很多数据");
                              adapter.notifyDataSetChanged();
                              swipeRefreshLayout.setRefreshing(false);
                              adapter.notifyItemRemoved(adapter.getItemCount());

                              Log.d("test", "load more completed");
                              isLoading = false;
                          }
                      }, 1000);
                  }
              }
          }
      });

大概就是这么些步骤，，下面附上代码。

public class RefreshActivity extends AppCompatActivity {

    private RecyclerView recyclerView;
    private SwipeRefreshLayout swipeRefreshLayout;

    boolean isLoading;
    private List<String> mDatas = new ArrayList<>();
    private RecyclerViewAdapter adapter = new RecyclerViewAdapter(this, mDatas);
    private Handler handler = new Handler();

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_refresh);
        swipeRefreshLayout = (SwipeRefreshLayout) findViewById(R.id.swipeRefreshLayout);
        recyclerView = (RecyclerView) findViewById(R.id.recyclerView);

        initView();
        initData();
    }

    public void initView() {


        swipeRefreshLayout.setColorSchemeResources(
                R.color.google_blue,
                R.color.google_green,
                R.color.google_red,
                R.color.google_yellow
        );
        swipeRefreshLayout.post(new Runnable() {
            @Override
            public void run() {
                swipeRefreshLayout.setRefreshing(true);
            }
        });

        swipeRefreshLayout.setOnRefreshListener(new SwipeRefreshLayout.OnRefreshListener() {
            @Override
            public void onRefresh() { // 下拉加载新数据
                handler.postDelayed(new Runnable() {
                    @Override
                    public void run() {
                        mDatas.add(0,"下拉刷新出来的新数据");
                        adapter.notifyDataSetChanged();
                        swipeRefreshLayout.setRefreshing(false);
                        adapter.notifyItemRemoved(adapter.getItemCount());
                    }
                }, 2000);
            }
        });
        final LinearLayoutManager layoutManager = new LinearLayoutManager(this);
        recyclerView.setLayoutManager(layoutManager);
        recyclerView.setAdapter(adapter);
        recyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
            @Override
            public void onScrollStateChanged(RecyclerView recyclerView, int newState) {
                super.onScrollStateChanged(recyclerView, newState);
                Log.d("test", "StateChanged = " + newState);
            }

            @Override
            public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
                super.onScrolled(recyclerView, dx, dy);
                Log.d("test", "onScrolled");

                int lastVisibleItemPosition = layoutManager.findLastVisibleItemPosition();
                if (lastVisibleItemPosition + 1 == adapter.getItemCount()) {
                    Log.d("test", "loading executed");

                    boolean isRefreshing = swipeRefreshLayout.isRefreshing();
                    if (isRefreshing) {
                        adapter.notifyItemRemoved(adapter.getItemCount());
                        return;
                    }
                    if (!isLoading) {
                        isLoading = true;
                        handler.postDelayed(new Runnable() {
                            @Override
                            public void run() {
                                mDatas.add("上拉 加载 很多数据");
                                adapter.notifyDataSetChanged();
                                swipeRefreshLayout.setRefreshing(false);
                                adapter.notifyItemRemoved(adapter.getItemCount());

                                Log.d("test", "load more completed");
                                isLoading = false;
                            }
                        }, 1000);
                    }
                }
            }
        });

        //添加点击事件
        adapter.setOnItemClickListener(new RecyclerViewAdapter.OnItemClickListener() {
            @Override
            public void onItemClick(View view, int position) {
                Log.d("test", "item position = " + position);
            }

            @Override
            public void onItemLongClick(View view, int position) {

            }
        });
    }


    public void initData() {
        handler.postDelayed(new Runnable() {
            @Override
            public void run() {
                getData();
            }
        }, 1500);

    }

    /**
     * 获取测试数据
     */
    private void getData() {
        for (int i = 0; i < 20; i++) {

            mDatas.add("数据  "+i);
        }
        adapter.notifyDataSetChanged();
        swipeRefreshLayout.setRefreshing(false);
        adapter.notifyItemRemoved(adapter.getItemCount());
    }
}

.
.
页面布局

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.SwipeRefreshLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/swipeRefreshLayout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    >

    <android.support.v7.widget.RecyclerView
        android:id="@+id/recyclerView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scrollbars="vertical"></android.support.v7.widget.RecyclerView>

</android.support.v4.widget.SwipeRefreshLayout>

.
.
item布局

<?xml version="1.0" encoding="utf-8"?>

<android.support.v7.widget.CardView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_marginLeft="10dp"
    android:layout_marginRight="10dp"
    android:layout_marginTop="6dp"
    android:orientation="vertical"
    app:cardBackgroundColor="@color/colorPrimary"
    app:cardPreventCornerOverlap="true"
    app:cardUseCompatPadding="true"
    app:contentPadding="6dp">

    <TextView
        android:id="@+id/mTvName"
        android:layout_width="match_parent"
        android:layout_height="36dp"
        android:gravity="center"
        android:textColor="#ffffff"
        android:text="你好色彩" />


</android.support.v7.widget.CardView>

.
.
Adapter

public class RecyclerViewAdapter extends Adapter<ViewHolder> {

    private static final int TYPE_ITEM = 0;
    private static final int TYPE_FOOTER = 1;
    private Context context;
    private List<String> mDatas;


    public RecyclerViewAdapter(Context context, List<String> mDatas) {
        this.context = context;
        this.mDatas = mDatas;
    }

    public interface OnItemClickListener {
        void onItemClick(View view, int position);

        void onItemLongClick(View view, int position);
    }

    private OnItemClickListener onItemClickListener;

    public void setOnItemClickListener(OnItemClickListener onItemClickListener) {
        this.onItemClickListener = onItemClickListener;
    }

    @Override
    public int getItemCount() {
        return mDatas.size() == 0 ? 0 : mDatas.size() + 1;
    }

    @Override
    public int getItemViewType(int position) {
        if (position + 1 == getItemCount()) {
            return TYPE_FOOTER;
        } else {
            return TYPE_ITEM;
        }
    }

    @Override
    public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        if (viewType == TYPE_ITEM) {
            View view = LayoutInflater.from(context).inflate(R.layout.item_base, parent,
                    false);
            return new ItemViewHolder(view);
        } else if (viewType == TYPE_FOOTER) {
            View view = LayoutInflater.from(context).inflate(R.layout.item_foot, parent,
                    false);
            return new FootViewHolder(view);
        }
        return null;
    }


    @Override
    public void onBindViewHolder(final ViewHolder holder, int position) {
        if (holder instanceof ItemViewHolder) {
            if (onItemClickListener != null) {
                holder.itemView.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View v) {
                        int position = holder.getLayoutPosition();
                        onItemClickListener.onItemClick(holder.itemView, position);
                    }
                });

                holder.itemView.setOnLongClickListener(new View.OnLongClickListener() {
                    @Override
                    public boolean onLongClick(View v) {
                        int position = holder.getLayoutPosition();
                        onItemClickListener.onItemLongClick(holder.itemView, position);
                        return false;
                    }
                });
            }

            ItemViewHolder itemViewHolder = (ItemViewHolder)holder;
            itemViewHolder.mTvName.setText(mDatas.get(position));

        }
    }


    static class ItemViewHolder extends ViewHolder {

        TextView mTvName;

        public ItemViewHolder(View view) {
            super(view);
            mTvName = (TextView) view.findViewById(R.id.mTvName);
        }
    }

    static class FootViewHolder extends ViewHolder {

        public FootViewHolder(View view) {
            super(view);
        }
    }

九、其他

1、反序

比如服务器给我们返回一组日期从早到晚的数组，我们也用的很开心，但是突然说要降序，我们不用自己写比较器，只需要利用下面代码反序展示就好

        mLinearLayoutManager = new LinearLayoutManager(this);

        // 两者一起使用，才能使得反转后从上方开始展示
        mLinearLayoutManager.setReverseLayout(true);//列表翻转
        mLinearLayoutManager.setStackFromEnd(true);//列表再底部开始展示，反转后由上面开始展示

        rvGroupList.setLayoutManager(mLinearLayoutManager);

2、跳转到指定位置

在Adapter里面添加如下方法，需要地方调用即可

public static void moveToPosition(LinearLayoutManager manager, int position) {
        manager.scrollToPositionWithOffset(position, 0);
        manager.setStackFromEnd(true);
    }

调用示例

 mHideMsgLogAdapter.moveToPosition(mLinearLayoutManager,messList.size()-1);

作者：阿敏其人
链接：http://www.jianshu.com/p/b4d1bfd55ae9
來源：简书
著作权归作者所有。商业转载请联系作者获得授权，非商业转载请注明出处。

碎火流荧

关注

0
点赞
踩
4

收藏

觉得还不错? 一键收藏
0
评论
RecycleView使用详解

RecyclerView不属于MD系列，但是却常常一起使用。一、Reclycler的作用和优点用来干嘛—— 代替 ListView个GridView。自带ViewHolder分割线控制方便横向，竖向、列表，多行列表和流式皆可item增删动画控制方便二、简单使用以前没有RecyclerView，我们要使用RecyclerView可以引入下面这个com.android.su
复制链接

扫一扫
