Spring Batch提供通过命令行的方式执行Job的功能,通过命令行的方式可以在一个单独的JVM中执行批量处理作业。通过命令行的方式可以手动触发,也可以定义自动任务通过脚本的方式执行批处理作业。Spring Batch框架提供的命令行执行类:org.springframework.batch.core.launch.support.CommandLineJobRunner.
CommandLineJobRunner参数说明如下:
java -classpath “xxx” CommandLineJobRunner jobPath <options> jobIdentifier(jobParameters)
- jobPath:CommandLineJobRunner默认使用ClassPathXmlApplicationContext从当前的classpath中加载配置文件。
- options:可选的参数,支持参数包括-restart、-stop、-abandon、-next。
-restart 根据jobIdentifier重启最后一次失败的作业
-stop 根据jobIdentifier停止正在执行的作业
-abandon 根据jobIdentifier废弃stopped的作业
-next 根据JobParametersIncrementer执行下一个作业
- jobIdentifier:作业的名字,即Spring配置文件中配置的Job的Bean ID,或者是job execution的id(当使用-restart、-stop、-abandon时候,需要传入job execution的id)。
- job Parameters:作业参数可以有0到多个,其支持的类型为String,Date,Long,Double。
一、项目架构
二、代码实现
CreditBill.java:
package com.xj.demo8;
/**
* @Author : xjfu
* @Date : 2021/12/05 19:27
* @Description :demo8的CreditBill
*/
public class CreditBill {
//银行卡账户ID
private String accountID = "";
//持卡人姓名
private String name = "";
//消费金额
private double amount = 0;
//消费日期
private String date = "";
//消费场所
private String address = "";
get和set方法....
}
CreditBillProcessor.java:
package com.xj.demo8;
import org.springframework.batch.item.ItemProcessor;
/**
* @Author : xjfu
* @Date : 2021/12/05 19:29
* @Description :demo8的处理类
*/
public class CreditBillProcessor implements ItemProcessor<CreditBill, CreditBill> {
@Override
public CreditBill process(CreditBill bill) throws Exception {
System.out.println(bill.toString());
//做一些简单的处理
bill.setAccountID(bill.getAccountID() + "1");
bill.setName(bill.getName() + "2");
bill.setAmount(bill.getAmount() + 3);
bill.setDate(bill.getDate() + "4");
bill.setAddress(bill.getAddress() + 5);
return bill;
}
}
demo8-inputFile.csv:
4101231234656,tom,100.00,2013-12-31 12:00:08,Lu lit
4101236543210,tom,120.00,2013-12-31 12:00:08,Lu Zui
demo8-inputFile2.csv:
4101231234656,Junne,100.00,2013-12-31 24:00:08,Lu lit
4101236543210,Junne,120.00,2013-12-31 24:00:08,Lu Zui
demo8-job.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:batch="http://www.springframework.org/schema/batch"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/batch http://www.springframework.org/schema/batch/spring-batch.xsd">
<!--导入文件-->
<import resource="classpath:demo8/job/demo8-jobContext.xml"/>
<!--定义名字为billJob的作业-->
<batch:job id="billJob">
<!--定义名字为billStep的作业步-->
<batch:step id="billStep">
<batch:tasklet transaction-manager="transactionManager">
<!--定义读、处理、写操作,规定每处理两条数据,进行一次写入操作,这样可以提高写的效率-->
<batch:chunk reader="csvItemReader" processor="creditBillProcessor" writer="csvItemWriter" commit-interval="2">
</batch:chunk>
</batch:tasklet>
</batch:step>
</batch:job>
</beans>
demo8-jobContext.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:batch="http://www.springframework.org/schema/batch"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/batch http://www.springframework.org/schema/batch/spring-batch.xsd">
<!--定义作业仓库 Job执行期间的元数据存储在内存中-->
<bean id="jobRepository" class="org.springframework.batch.core.repository.support.MapJobRepositoryFactoryBean"/>
<!--定义作业调度器,用来启动job-->
<bean id="jobLauncher" class="org.springframework.batch.core.launch.support.SimpleJobLauncher">
<!--注入jobRepository-->
<property name="jobRepository" ref="jobRepository"/>
</bean>
<!--定义事务管理器,用于Spring Batch框架中对数据操作提供事务能力-->
<bean id="transactionManager" class="org.springframework.batch.support.transaction.ResourcelessTransactionManager"/>
<!--读取信用卡账单文件,CSV 格式-->
<!--使用FlatFileItemReader读文本文件-->
<bean id="csvItemReader" class="org.springframework.batch.item.file.FlatFileItemReader" scope="step">
<!--指定读取的资源文件-->
<property name="resource" value="classpath:demo8/data/demo8-inputFile.csv"/>
<!--通过lineMapper把文本中的一行转换为领域对象creditBill-->
<property name="lineMapper">
<bean class="org.springframework.batch.item.file.mapping.DefaultLineMapper">
<!--lineTokenizer定义文本中每行的分隔符号-->
<property name="lineTokenizer" ref="lineTokenizer"/>
<!--fieldSetMapper定义了转换结果映射,即具体映射到哪个Java类对象-->
<property name="fieldSetMapper">
<bean class="org.springframework.batch.item.file.mapping.BeanWrapperFieldSetMapper">
<property name="prototypeBeanName" value="creditBill"/>
</bean>
</property>
</bean>
</property>
</bean>
<!--lineTokenizer-->
<bean id="lineTokenizer" class="org.springframework.batch.item.file.transform.DelimitedLineTokenizer">
<!--按","符号对行进行切割-->
<property name="delimiter" value=","/>
<!--属性名称列表,将切割后的行按顺序投入-->
<property name="names">
<list>
<value>accountID</value>
<value>name</value>
<value>amount</value>
<value>date</value>
<value>address</value>
</list>
</property>
</bean>
<!--注入实体类-->
<bean id="creditBill" class="com.xj.demo8.CreditBill" scope="prototype"></bean>
<!--数据处理类-->
<bean id="creditBillProcessor" class="com.xj.demo8.CreditBillProcessor" scope="step"></bean>
<!--写信用卡账单文件,CSV格式-->
<bean id="csvItemWriter" class="org.springframework.batch.item.file.FlatFileItemWriter" scope="step">
<!--要写入的文件位置,因为[classpath:]不是一个具体的目录,这里应当用[file:](从项目根目录开始)指明输出位置-->
<property name="resource" value="file:src/main/resources/demo8/data/demo8-outputFile.csv"/>
<!--[lineAggregator成员]指明行聚合器,用来将对象输出到文件时构造文件中的每行的格式-->
<property name="lineAggregator">
<!--这里使用Spring Batch自带的DelimitedLineAggregator来作为行聚合器(可以拼接一个个属性形成行)-->
<bean class="org.springframework.batch.item.file.transform.DelimitedLineAggregator">
<!--使用","拼接-->
<property name="delimiter" value=","/>
<!--fieldExtractor成员用来将Java类的属性组成的数组拼接成行字符串-->
<property name="fieldExtractor">
<bean class="org.springframework.batch.item.file.transform.BeanWrapperFieldExtractor">
<property name="names" value="accountID,name,amount,date,address">
</property>
</bean>
</property>
</bean>
</property>
</bean>
</beans>
demo8-jobContext2.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:batch="http://www.springframework.org/schema/batch"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/batch http://www.springframework.org/schema/batch/spring-batch.xsd">
<!--定义作业仓库 Job执行期间的元数据存储在内存中-->
<bean id="jobRepository" class="org.springframework.batch.core.repository.support.MapJobRepositoryFactoryBean"/>
<!--定义作业调度器,用来启动job-->
<bean id="jobLauncher" class="org.springframework.batch.core.launch.support.SimpleJobLauncher">
<!--注入jobRepository-->
<property name="jobRepository" ref="jobRepository"/>
</bean>
<!--定义事务管理器,用于Spring Batch框架中对数据操作提供事务能力-->
<bean id="transactionManager" class="org.springframework.batch.support.transaction.ResourcelessTransactionManager"/>
<!--读取信用卡账单文件,CSV 格式-->
<!--使用FlatFileItemReader读文本文件-->
<bean id="csvItemReader" class="org.springframework.batch.item.file.FlatFileItemReader" scope="step">
<!--指定读取的资源文件-->
<property name="resource" value="#{jobParameters['inputResource']}"/>
<!--通过lineMapper把文本中的一行转换为领域对象creditBill-->
<property name="lineMapper">
<bean class="org.springframework.batch.item.file.mapping.DefaultLineMapper">
<!--lineTokenizer定义文本中每行的分隔符号-->
<property name="lineTokenizer" ref="lineTokenizer"/>
<!--fieldSetMapper定义了转换结果映射,即具体映射到哪个Java类对象-->
<property name="fieldSetMapper">
<bean class="org.springframework.batch.item.file.mapping.BeanWrapperFieldSetMapper">
<property name="prototypeBeanName" value="creditBill"/>
</bean>
</property>
</bean>
</property>
</bean>
<!--lineTokenizer-->
<bean id="lineTokenizer" class="org.springframework.batch.item.file.transform.DelimitedLineTokenizer">
<!--按","符号对行进行切割-->
<property name="delimiter" value=","/>
<!--属性名称列表,将切割后的行按顺序投入-->
<property name="names">
<list>
<value>accountID</value>
<value>name</value>
<value>amount</value>
<value>date</value>
<value>address</value>
</list>
</property>
</bean>
<!--注入实体类-->
<bean id="creditBill" class="com.xj.demo8.CreditBill" scope="prototype"></bean>
<!--数据处理类-->
<bean id="creditBillProcessor" class="com.xj.demo8.CreditBillProcessor" scope="step"></bean>
<!--写信用卡账单文件,CSV格式-->
<bean id="csvItemWriter" class="org.springframework.batch.item.file.FlatFileItemWriter" scope="step">
<!--要写入的文件位置,因为[classpath:]不是一个具体的目录,这里应当用[file:](从项目根目录开始)指明输出位置-->
<property name="resource" value="#{jobParameters['outputResource']}"/>
<!--[lineAggregator成员]指明行聚合器,用来将对象输出到文件时构造文件中的每行的格式-->
<property name="lineAggregator">
<!--这里使用Spring Batch自带的DelimitedLineAggregator来作为行聚合器(可以拼接一个个属性形成行)-->
<bean class="org.springframework.batch.item.file.transform.DelimitedLineAggregator">
<!--使用","拼接-->
<property name="delimiter" value=","/>
<!--fieldExtractor成员用来将Java类的属性组成的数组拼接成行字符串-->
<property name="fieldExtractor">
<bean class="org.springframework.batch.item.file.transform.BeanWrapperFieldExtractor">
<property name="names" value="accountID,name,amount,date,address">
</property>
</bean>
</property>
</bean>
</property>
</bean>
</beans>
pom.xml:
<groupId>com.xj</groupId>
<artifactId>spring-batch</artifactId>
<version>1.0-SNAPSHOT</version>
<build>
<plugins>
<plugin>
<!--使用org.apache.maven.plugins.maven-dependency-plugin打包-->
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-dependency-plugin</artifactId>
<version>2.5.1</version>
<!--是否从该插件下载Maven扩展(例如打包和类型处理器),由于性能原因,只有在真需要下载时,默认为false-->
<executions>
<!--execution元素包含了插件执行需要的信息-->
<execution>
<!--执行目标的标识符,用于标识构建过程中的目标,或者匹配继承过程中需要合并的执行目标-->
<id>copy-dependencies</id>
<!--绑定了目标的构建生命周期阶段,即声明goals执行的时期。如果省略,目标会被绑定到源数据里配置的默认阶段-->
<phase>package</phase>
<!--配置的执行目标-->
<goals>
<!--要执行的goal,即copy-dependencies,将所有依赖项复制到target/dependency-jars中-->
<goal>copy-dependencies</goal>
</goals>
<configuration>
<!--打包文件输出路径-->
<outputDirectory>
${project.build.directory}/dependency-jars/
</outputDirectory>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>

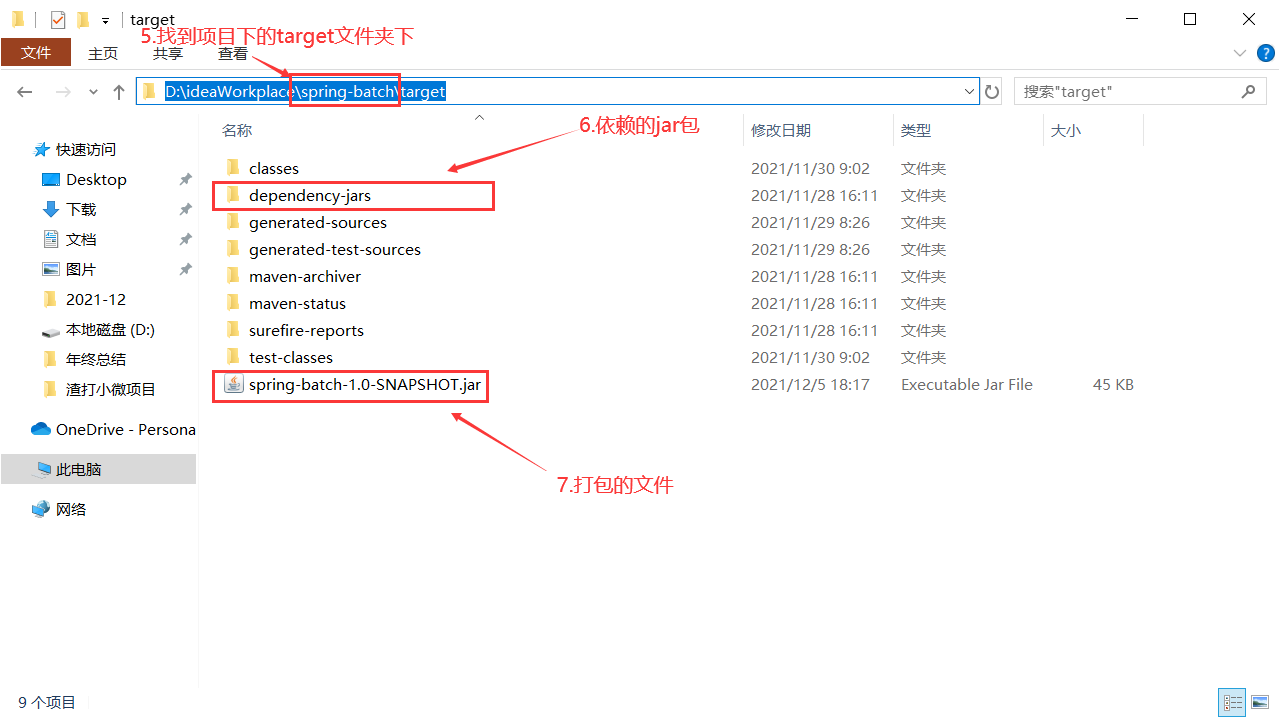

使用Maven将您的项目打包到单个jar文件– target / your-project.jar中 ,然后将所有依赖项复制到target / dependency-jars /中 。

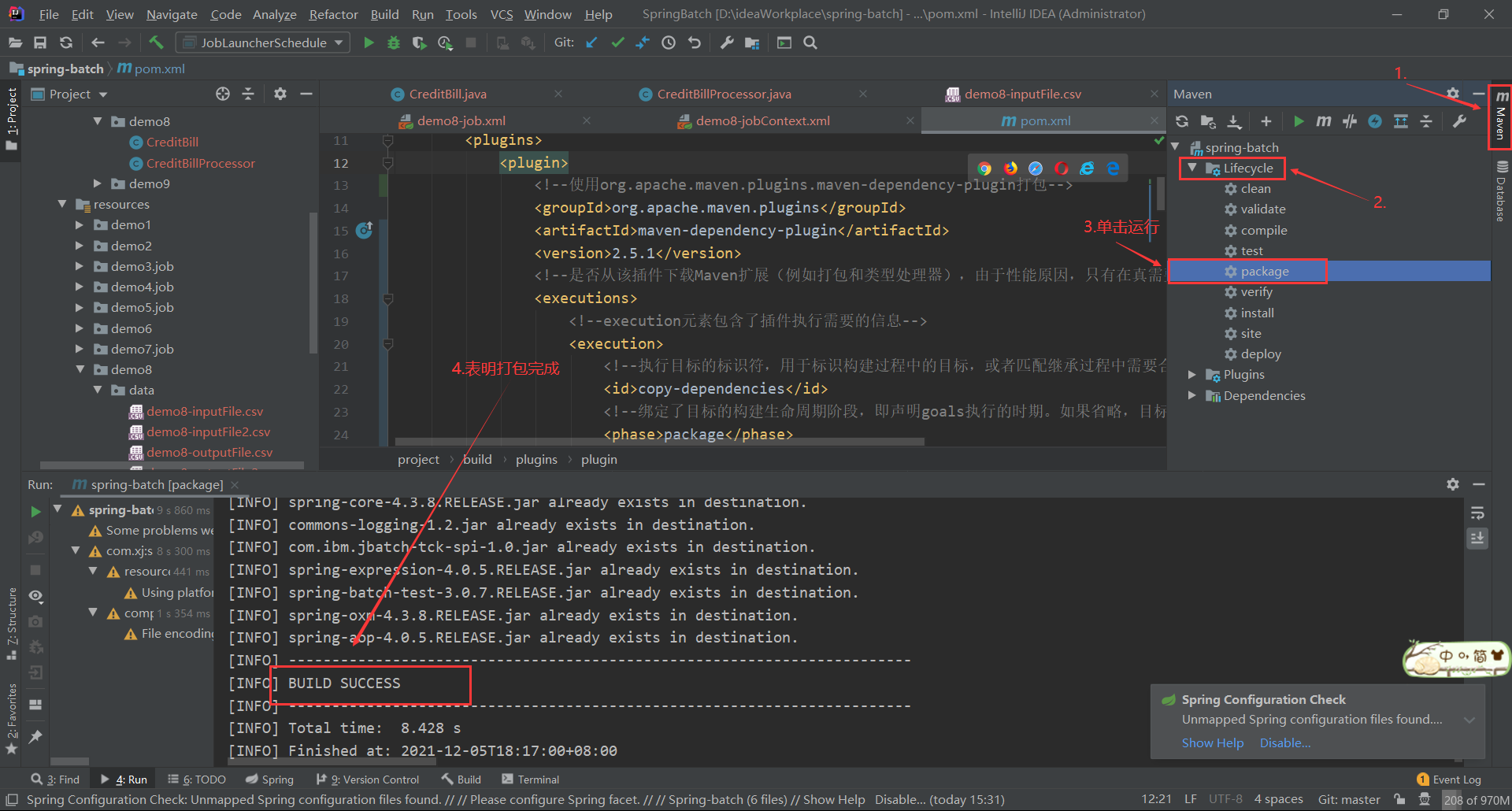

三、项目打包

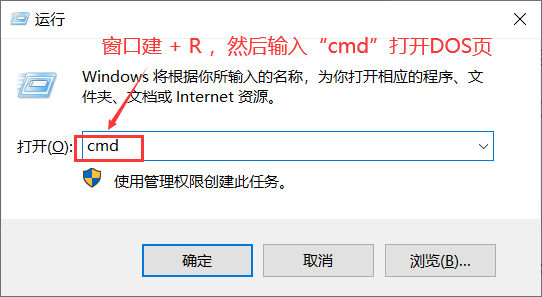

四、运行结果
根据配置情况输入指令:

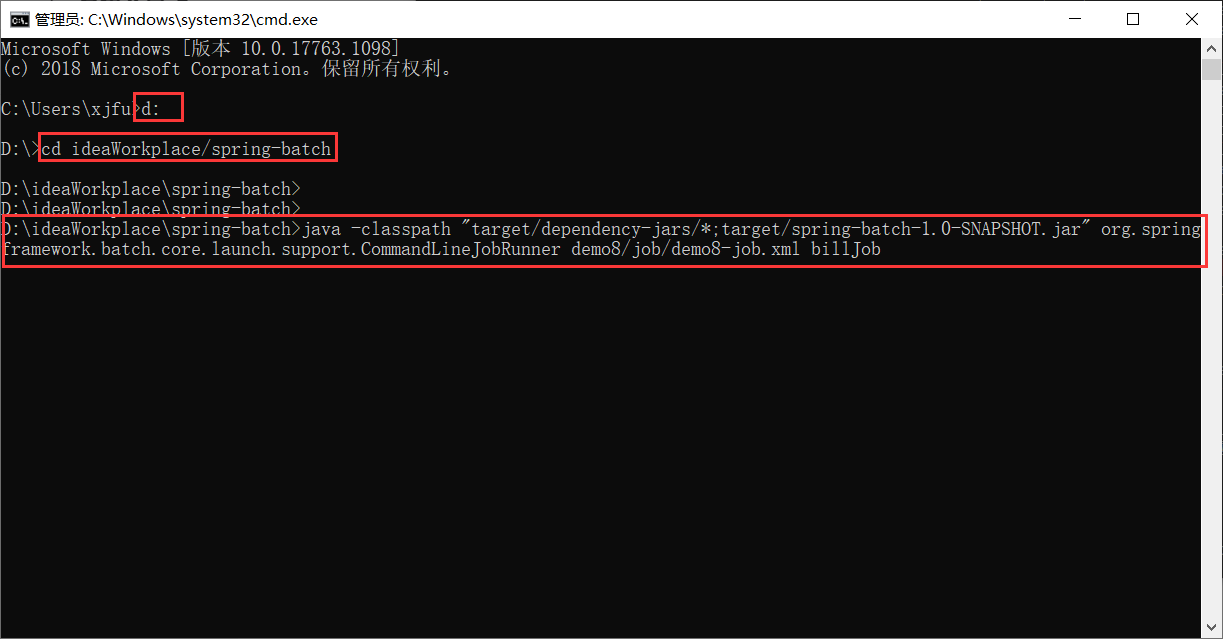

java -classpath "target/dependency-jars/*;target/spring-batch-1.0-SNAPSHOT.jar" org.springframework.batch.core.launch.support.CommandLineJobRunner demo8/job/demo8-job.xml billJob
注意:这里是windows系统的话,分隔符用“;”,如果是Linux系统的话,就用“:”。
五、添加额外参数运行方式
将demo8-job.xml文件中的导入文件变更为配置文件demo8-jobContext2.xml,然后重新使用maven打包,即package一下。
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:batch="http://www.springframework.org/schema/batch"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/batch http://www.springframework.org/schema/batch/spring-batch.xsd">
<!--导入文件-->
<import resource="classpath:demo8/job/demo8-jobContext2.xml"/>
. . . . . . . . .
</beans>
根据配置情况输入指令:

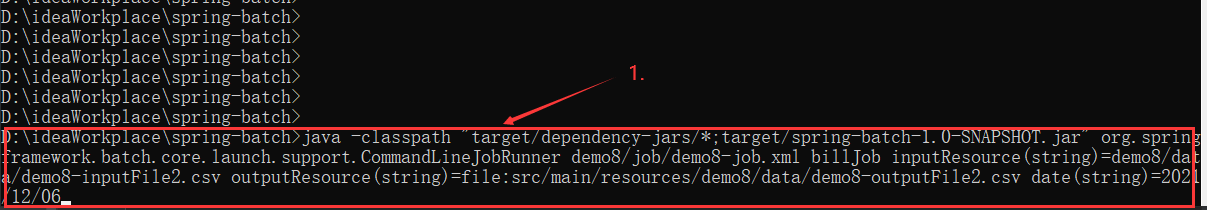

java -classpath "target/dependency-jars/*;target/spring-batch-1.0-SNAPSHOT.jar" org.springframework.batch.core.launch.support.CommandLineJobRunner demo8/job/demo8-job.xml billJob inputResource(string)=demo8/data/demo8-inputFile2.csv outputResource(string)=file:src/main/resources/demo8/data/demo8-outputFile2.csv date(string)=2021/12/06
注意,其中“String”都改为“string”。

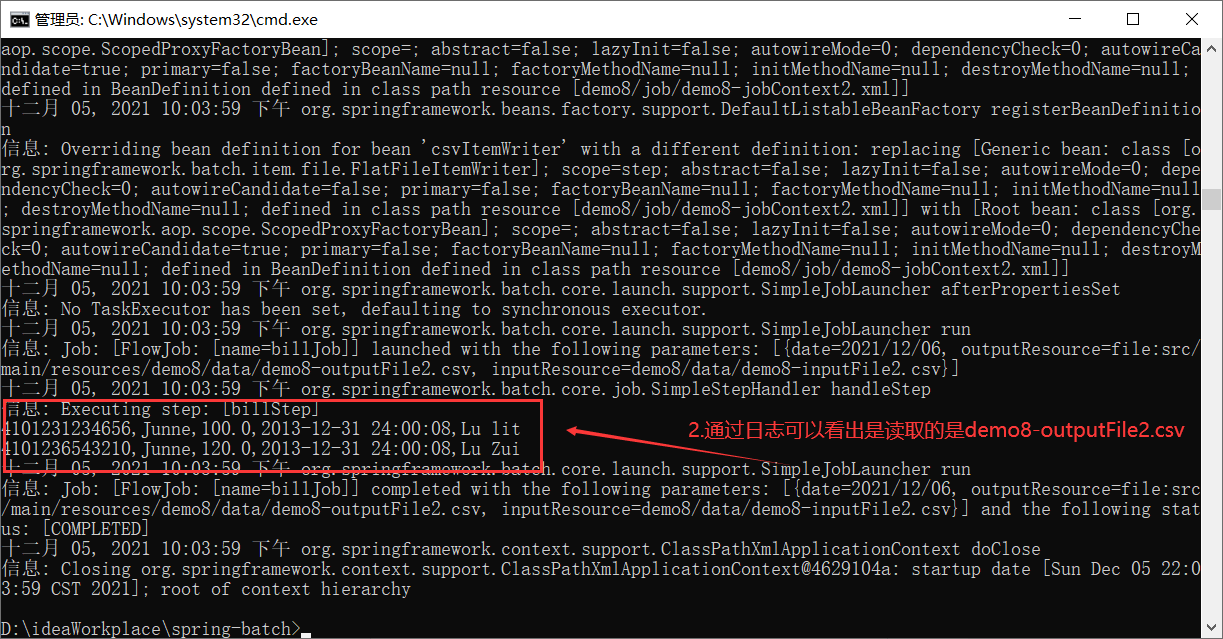

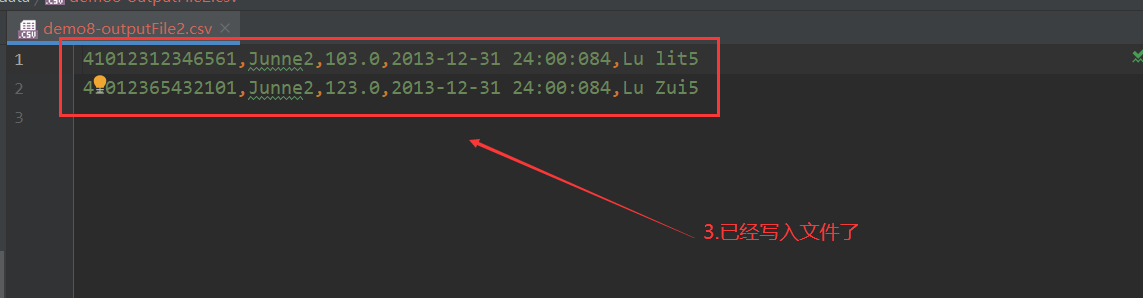

运行代码:
六、注意事项
使用CommandLineJobRunner进行命令行执行过程中,spring对CommandLineJobRunner中的依赖全部使用基于类型的自动装配。例如CommandLineJobRunner中的属性launcher,Spring会自动基于类型的JobLauncher进行装配,如果没有JobLauncher的定义或者有多个定义都会导致错误。
