ShardingSphere-jdbc 5.5.1 + spring boot 基础配置


在这里插入图片描述

环境准备

版本

spring boot 2.7.17
shardingsphere-jdbc 5.5.1
druid 1.2.23

数据库说明

本示例数据库为mysql单机多库schema的架构，以一主二从作为集群演示，转为一主多从数据库集群时，可自定义修改配置。

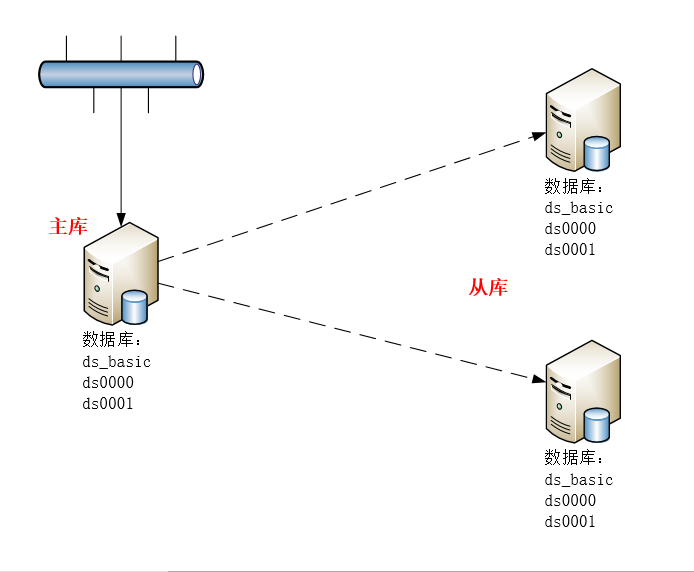

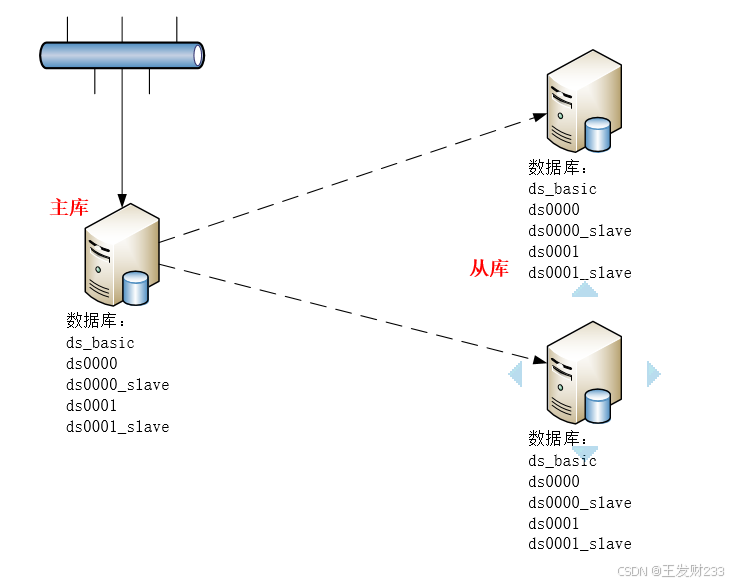

集群

一主二从：
逻辑主库：ds_basic、ds0000、ds0001（ds_basic为数据简单、量少的元数据库）
逻辑从库：ds0000_slave、ds0001_slave
在这里插入图片描述

Maven依赖

         <dependency>
            <groupId>org.apache.shardingsphere</groupId>
            <artifactId>shardingsphere-jdbc</artifactId>
            <version>5.5.1</version>
            <exclusions>
                <exclusion>
                    <groupId>org.apache.shardingsphere</groupId>
                    <artifactId>shardingsphere-test-util</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.yaml</groupId>
            <artifactId>snakeyaml</artifactId>
            <version>2.2</version>
        </dependency>

配置

配置文件

在这里插入图片描述

spring boot配置

application.yml

spring:
  application:
    name: demo
  datasource:
    driver-class-name: org.apache.shardingsphere.driver.ShardingSphereDriver
    url: jdbc:shardingsphere:classpath:sharding.yaml

shardingsphere-jdbc配置

完整的基础配置

sharding.yaml

已实现配置功能：
单机模式服务；
数据源（druid加解密数据库密码）；
规则配置：【数据分片、读写分离、数据加密、单表】；
待新增补充功能：
混合规则等。

mode:
  type: Standalone
  repository:
    type: JDBC
databaseName: demo_db
dataSources:
  ds_basic:
    dataSourceClassName: com.alibaba.druid.pool.DruidDataSource
    driverClassName: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/demo_basic?characterEncoding=utf-8&allowPublicKeyRetrieval=true&useSSL=false
    username: root
    password: Ph9ep971fm14nYaZsLl9LY+MCqX9uJSozYRNgP2VVSj/hbmokn5OC6kpiAA1I0okA9GiDHEo7qHUvRQYYUNZvQ==
    initialSize: 1
    minIdle: 1
    maxActive: 64
    maxWait: 20000
    validationQuery: SELECT 1 FROM DUAL
    validationQueryTimeout: 30000
    minEvictableIdleTimeMillis: 300000
    maxEvictableIdleTimeMillis: 600000
    timeBetweenEvictionRunsMillis: 300000
    testOnBorrow: true
    testWhileIdle: true
    filters: config, stat, wall
    connectProperties:
      connectTimeout: 5000
      socketTimeout: '20000'
      config.decrypt: 'true'
      config.decrypt.key: MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALZRYgsnvVKPqZTfMOWmmj6OuupFRSk7+Vtqv70cG3y6T3bm+DcQU3zOC993ozbHpmqeODtuLzURhIuXDMyTKW8CAwEAAQ==


  ds0000:
    dataSourceClassName: com.alibaba.druid.pool.DruidDataSource
    driverClassName: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/demo_0000?characterEncoding=utf-8&allowPublicKeyRetrieval=true&useSSL=false
    username: root
    password: Ph9ep971fm14nYaZsLl9LY+MCqX9uJSozYRNgP2VVSj/hbmokn5OC6kpiAA1I0okA9GiDHEo7qHUvRQYYUNZvQ==
    initialSize: 1
    minIdle: 1
    maxActive: 64
    maxWait: 20000
    validationQuery: SELECT 1 FROM DUAL
    validationQueryTimeout: 30000
    minEvictableIdleTimeMillis: 300000
    maxEvictableIdleTimeMillis: 600000
    timeBetweenEvictionRunsMillis: 300000
    testOnBorrow: true
    testWhileIdle: true
    filters: config, stat, wall
    connectProperties:
      connectTimeout: 5000
      socketTimeout: '20000'
      config.decrypt: 'true'
      config.decrypt.key: MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALZRYgsnvVKPqZTfMOWmmj6OuupFRSk7+Vtqv70cG3y6T3bm+DcQU3zOC993ozbHpmqeODtuLzURhIuXDMyTKW8CAwEAAQ==


  ds0001:
    dataSourceClassName: com.alibaba.druid.pool.DruidDataSource
    driverClassName: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/demo_0001?characterEncoding=utf-8&allowPublicKeyRetrieval=true&useSSL=false
    username: root
    password: Ph9ep971fm14nYaZsLl9LY+MCqX9uJSozYRNgP2VVSj/hbmokn5OC6kpiAA1I0okA9GiDHEo7qHUvRQYYUNZvQ==
    initialSize: 1
    minIdle: 1
    maxActive: 64
    maxWait: 20000
    validationQuery: SELECT 1 FROM DUAL
    validationQueryTimeout: 30000
    minEvictableIdleTimeMillis: 300000
    maxEvictableIdleTimeMillis: 600000
    timeBetweenEvictionRunsMillis: 300000
    testOnBorrow: true
    testWhileIdle: true
    filters: config, stat, wall
    connectProperties:
      connectTimeout: 5000
      socketTimeout: '20000'
      config.decrypt: 'true'
      config.decrypt.key: MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALZRYgsnvVKPqZTfMOWmmj6OuupFRSk7+Vtqv70cG3y6T3bm+DcQU3zOC993ozbHpmqeODtuLzURhIuXDMyTKW8CAwEAAQ==

  ds0000_slave:
    dataSourceClassName: com.alibaba.druid.pool.DruidDataSource
    driverClassName: com.mysql.jdbc.Driver
    url: jdbc:mysql://192.168.1.88:3306/demo_0000?characterEncoding=utf-8&allowPublicKeyRetrieval=true&useSSL=false
    username: root
    password: Ph9ep971fm14nYaZsLl9LY+MCqX9uJSozYRNgP2VVSj/hbmokn5OC6kpiAA1I0okA9GiDHEo7qHUvRQYYUNZvQ==
    initialSize: 1
    minIdle: 1
    maxActive: 64
    maxWait: 20000
    validationQuery: SELECT 1 FROM DUAL
    validationQueryTimeout: 30000
    minEvictableIdleTimeMillis: 300000
    maxEvictableIdleTimeMillis: 600000
    timeBetweenEvictionRunsMillis: 300000
    testOnBorrow: true
    testWhileIdle: true
    filters: config, stat, wall
    connectProperties:
      connectTimeout: 5000
      socketTimeout: '20000'
      config.decrypt: 'true'
      config.decrypt.key: MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALZRYgsnvVKPqZTfMOWmmj6OuupFRSk7+Vtqv70cG3y6T3bm+DcQU3zOC993ozbHpmqeODtuLzURhIuXDMyTKW8CAwEAAQ==

  ds0001_slave:
    dataSourceClassName: com.alibaba.druid.pool.DruidDataSource
    driverClassName: com.mysql.jdbc.Driver
    url: jdbc:mysql://192.168.1.88:3306/demo_0001?characterEncoding=utf-8&allowPublicKeyRetrieval=true&useSSL=false
    username: root
    password: Ph9ep971fm14nYaZsLl9LY+MCqX9uJSozYRNgP2VVSj/hbmokn5OC6kpiAA1I0okA9GiDHEo7qHUvRQYYUNZvQ==
    initialSize: 1
    minIdle: 1
    maxActive: 64
    maxWait: 20000
    validationQuery: SELECT 1 FROM DUAL
    validationQueryTimeout: 30000
    minEvictableIdleTimeMillis: 300000
    maxEvictableIdleTimeMillis: 600000
    timeBetweenEvictionRunsMillis: 300000
    testOnBorrow: true
    testWhileIdle: true
    filters: config, stat, wall
    connectProperties:
      connectTimeout: 5000
      socketTimeout: '20000'
      config.decrypt: 'true'
      config.decrypt.key: MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALZRYgsnvVKPqZTfMOWmmj6OuupFRSk7+Vtqv70cG3y6T3bm+DcQU3zOC993ozbHpmqeODtuLzURhIuXDMyTKW8CAwEAAQ==


rules:
# 数据分片
- !SHARDING
  tables:
    t_claim_case_mdtrt:
      actualDataNodes: ds$->{['0000','0001']}.t_claim_case_mdtrt_000$->{0..9}
      tableStrategy:
        standard:
          shardingColumn: transaction_no
          shardingAlgorithmName: t_claim_case_mdtrt_inline
      keyGenerateStrategy:
        column: id
        keyGeneratorName: snowflake
    t_claim_case_info:
      actualDataNodes: ds$->{['0000','0001']}.t_claim_case_info_000$->{0..9}
      tableStrategy:
        standard:
          shardingColumn: transaction_no
          shardingAlgorithmName: t_claim_case_info_inline
      keyGenerateStrategy:
        column: id
        keyGeneratorName: snowflake

  defaultShardingColumn: transaction_no
  bindingTables:
    - t_claim_case_mdtrt, t_claim_case_info
  defaultDatabaseStrategy:
    standard:
      shardingColumn: transaction_no
      shardingAlgorithmName: database_inline
  defaultTableStrategy:
    none:
  shardingAlgorithms:
    database_inline:
      type: INLINE
      props:
        algorithm-expression: ds$->{transaction_no[-8..-5]}
    t_claim_case_mdtrt_inline:
      type: INLINE
      props:
        algorithm-expression: t_claim_case_mdtrt_$->{transaction_no[-4..-1]}
    t_claim_case_info_inline:
      type: INLINE
      props:
        algorithm-expression: t_claim_case_info_$->{transaction_no[-4..-1]}
  keyGenerators:
    snowflake:
      type: SNOWFLAKE

#数据加密
- !ENCRYPT
  tables:
    t_claim_case_info:
      columns:
        appl_mobile:
          cipher:
            name: appl_mobile
            encryptorName: sm4_encryptor
        opsnId_no:
          cipher:
            name: opsnId_no
            encryptorName: sm4_encryptor
        rpter_id_no:
          cipher:
            name: rpter_id_no
            encryptorName: sm4_encryptor
        rpter_mobile:
          cipher:
            name: rpter_mobile
            encryptorName: sm4_encryptor
  encryptors:
    sm4_encryptor:
      type: SM4
      props:
        sm4-key: 86C63180C2806ED1F43A859DE501215C
        sm4-mode: ECB
        sm4-padding: PKCS5Padding
# 单表
- !SINGLE
  tables:
    - ds_basic.*

# 读写分离
- !READWRITE_SPLITTING
  dataSources:
    ds0000:
      writeDataSourceName: ds0000
      readDataSourceNames:
        - ds0000_slave
      transactionalReadQueryStrategy: PRIMARY
      loadBalancerName: random
    ds0001:
      writeDataSourceName: ds0001
      readDataSourceNames:
        - ds0001_slave
      transactionalReadQueryStrategy: PRIMARY
      loadBalancerName: random
  loadBalancers:
    random:
      type: RANDOM


props:
  sql-show: true
  max-connections-size-per-query: 5

自定义配置1：SM4加解密存储数据

shardingsphere 移除了sm4算法，两种方式解决：
1、使用官方shardingpshere plugin，找到相关组件依赖引用即可，
2、自己添加sm4算法代码SPI实现。
本文使用方式2（注意： 因官方每个版本加密算法源码会变化，以下sm4算法的SPI代码仅适配ShardingSphere-jdbc 5.5.1）。

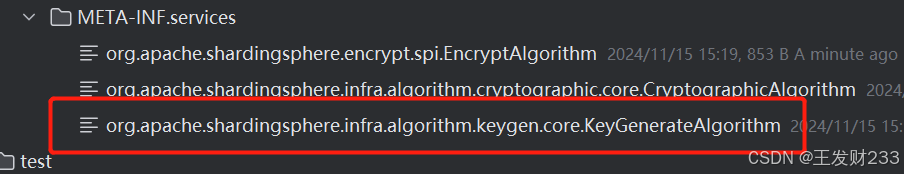

  1. 增加spi扩展
    在这里插入图片描述

org.apache.shardingsphere.encrypt.spi.EncryptAlgorithm增加以下代码：

com.demo.core.encrypt.SM4EncryptAlgorithm

org.apache.shardingsphere.infra.algorithm.cryptographic.core.CryptographicAlgorithm
增加以下代码：

com.demo.core.encrypt.SM4CryptographicAlgorithm
  1. SM4算法代码
    SM4EncryptAlgorithm.java

package com.demo.core.encrypt;

import lombok.Getter;
import org.apache.shardingsphere.encrypt.spi.EncryptAlgorithm;
import org.apache.shardingsphere.encrypt.spi.EncryptAlgorithmMetaData;
import org.apache.shardingsphere.infra.algorithm.core.config.AlgorithmConfiguration;
import org.apache.shardingsphere.infra.algorithm.core.context.AlgorithmSQLContext;
import org.apache.shardingsphere.infra.algorithm.cryptographic.core.CryptographicAlgorithm;
import org.apache.shardingsphere.infra.spi.type.typed.TypedSPILoader;

import java.util.Properties;

/**
* shardingsphere SM4 encrypt algorithm.
* @author Robin Wang
*/
public final class SM4EncryptAlgorithm implements EncryptAlgorithm {

   @Getter
   private final EncryptAlgorithmMetaData metaData = new EncryptAlgorithmMetaData(true, true, false);

   private Properties props;

   private CryptographicAlgorithm cryptographicAlgorithm;

   @Override
   public void init(final Properties props) {
       this.props = props;
       cryptographicAlgorithm = TypedSPILoader.getService(CryptographicAlgorithm.class, getType(), props);
   }

   @Override
   public String encrypt(Object plainValue, AlgorithmSQLContext algorithmSQLContext) {
       Object result = cryptographicAlgorithm.encrypt(plainValue);
       return null == result ? null : String.valueOf(result);
   }

   @Override
   public Object decrypt(Object cipherValue, AlgorithmSQLContext algorithmSQLContext) {
       return cryptographicAlgorithm.decrypt(cipherValue);
   }

   @Override
   public AlgorithmConfiguration toConfiguration() {
       return new AlgorithmConfiguration(getType(), props);
   }

   @Override
   public String getType() {
       return "SM4";
   }


}

SM4CryptographicAlgorithm.java

package com.demo.core.encrypt;

import lombok.SneakyThrows;
import org.apache.shardingsphere.infra.algorithm.core.exception.AlgorithmInitializationException;
import org.apache.shardingsphere.infra.algorithm.cryptographic.core.CryptographicAlgorithm;
import org.apache.shardingsphere.infra.exception.core.ShardingSpherePreconditions;
import org.bouncycastle.jce.provider.BouncyCastleProvider;
import org.bouncycastle.pqc.math.linearalgebra.ByteUtils;

import javax.crypto.Cipher;
import javax.crypto.spec.IvParameterSpec;
import javax.crypto.spec.SecretKeySpec;
import java.nio.charset.StandardCharsets;
import java.security.GeneralSecurityException;
import java.security.Security;
import java.util.*;

/**
 * SM4 cryptographic algorithm.
 *
 * @author Robin Wang
 * @date 2024/11/02 18:54
 **/
public final class SM4CryptographicAlgorithm implements CryptographicAlgorithm {
    static {
        Security.addProvider(new BouncyCastleProvider());
    }

    private static final String SM4_KEY = "sm4-key";

    private static final String SM4_IV = "sm4-iv";

    private static final String SM4_MODE = "sm4-mode";

    private static final String SM4_PADDING = "sm4-padding";

    private static final int KEY_LENGTH = 16;

    private static final int IV_LENGTH = 16;

    private static final Set<String> MODES = new HashSet<>(Arrays.asList("ECB", "CBC"));

    private static final Set<String> PADDINGS = new HashSet<>(Arrays.asList("PKCS5Padding", "PKCS7Padding"));

    private byte[] sm4Key;

    private byte[] sm4Iv;

    private String sm4ModePadding;

    @Override
    public void init(Properties props) {
        String sm4Mode = createSm4Mode(props);
        String sm4Padding = createSm4Padding(props);
        sm4ModePadding = "SM4/" + sm4Mode + "/" + sm4Padding;
        sm4Key = createSm4Key(props);
        sm4Iv = createSm4Iv(props, sm4Mode);
    }

    @Override
    public Object encrypt(Object plainValue) {
        return null == plainValue ? null : ByteUtils.toHexString(encrypt(String.valueOf(plainValue).getBytes(StandardCharsets.UTF_8)));

    }

    private byte[] encrypt(final byte[] plainValue) {
        return handle(plainValue, Cipher.ENCRYPT_MODE);
    }

    @Override
    public Object decrypt(Object cipherValue) {
        return null == cipherValue ? null : new String(decrypt(ByteUtils.fromHexString((String) cipherValue)), StandardCharsets.UTF_8);

    }

    private byte[] decrypt(final byte[] cipherValue) {
        return handle(cipherValue, Cipher.DECRYPT_MODE);
    }

    @Override
    public String getType() {
        return "SM4";
    }


    private String createSm4Mode(final Properties props) {
        ShardingSpherePreconditions.checkState(props.containsKey(SM4_MODE), () -> new AlgorithmInitializationException(this, "%s can not be null or empty", SM4_MODE));
        String result = String.valueOf(props.getProperty(SM4_MODE)).toUpperCase();
        ShardingSpherePreconditions.checkState(MODES.contains(result), () -> new AlgorithmInitializationException(this, "Mode must be either CBC or ECB"));
        return result;
    }

    private byte[] createSm4Key(final Properties props) {
        ShardingSpherePreconditions.checkState(props.containsKey(SM4_KEY), () -> new AlgorithmInitializationException(this, "%s can not be null", SM4_KEY));
        byte[] result = ByteUtils.fromHexString(String.valueOf(props.getProperty(SM4_KEY)));
        ShardingSpherePreconditions.checkState(KEY_LENGTH == result.length,
                () -> new AlgorithmInitializationException(this, "Key length must be " + KEY_LENGTH + " bytes long"));
        return result;
    }

    private byte[] createSm4Iv(final Properties props, final String sm4Mode) {
        if (!"CBC".equalsIgnoreCase(sm4Mode)) {
            return null;
        }
        ShardingSpherePreconditions.checkState(props.containsKey(SM4_IV), () -> new AlgorithmInitializationException(this, "%s can not be null", SM4_IV));
        String sm4IvValue = String.valueOf(props.getProperty(SM4_IV));
        byte[] result = ByteUtils.fromHexString(sm4IvValue);
        ShardingSpherePreconditions.checkState(IV_LENGTH == result.length, () -> new AlgorithmInitializationException(this, "Iv length must be " + IV_LENGTH + " bytes long"));
        return result;
    }

    private String createSm4Padding(final Properties props) {
        ShardingSpherePreconditions.checkState(props.containsKey(SM4_PADDING), () -> new AlgorithmInitializationException(this, "%s can not be null", SM4_PADDING));
        String result = String.valueOf(props.getProperty(SM4_PADDING)).toUpperCase().replace("PADDING", "Padding");
        ShardingSpherePreconditions.checkState(PADDINGS.contains(result), () -> new AlgorithmInitializationException(this, "Padding must be either PKCS5Padding or PKCS7Padding"));
        return result;
    }


    @SneakyThrows(GeneralSecurityException.class)
    private byte[] handle(final byte[] input, final int mode) {
        Cipher cipher = Cipher.getInstance(sm4ModePadding, BouncyCastleProvider.PROVIDER_NAME);
        SecretKeySpec secretKeySpec = new SecretKeySpec(sm4Key, "SM4");
        Optional<byte[]> sm4Iv = Optional.ofNullable(this.sm4Iv);
        if (sm4Iv.isPresent()) {
            cipher.init(mode, secretKeySpec, new IvParameterSpec(sm4Iv.get()));
        } else {
            cipher.init(mode, secretKeySpec);
        }
        return cipher.doFinal(input);
    }


}

自定义配置2：雪花算法动态worker.id

集群模式下，不同机器需要配置不同的workerId，适合使用ShardingSphere Proxy集群模式，需要使用第三方配置中心（zookeeper)。
但这会变更架构，且本项目CICD时只有一个war部署weblogic server集群的方式。
因此特沿用ShardingSphere JDBC单机模式，并且启动服务时添加处理自定义随机数的workerId以适应集群机器部署。
实现原理很简单： 每台机器的服务启动时，worker.id为生成的随机数（必须<1024)。

1.改造雪花算法代码


package com.demo.core.config;


import java.time.Instant;
import java.time.LocalDateTime;
import java.time.ZoneId;
import java.util.Collection;
import java.util.LinkedList;
import java.util.Properties;
import java.util.concurrent.atomic.AtomicInteger;
import java.util.concurrent.atomic.AtomicLong;
import java.util.concurrent.atomic.AtomicReference;

import cn.hutool.core.util.RandomUtil;
import lombok.Setter;
import lombok.SneakyThrows;
import org.apache.shardingsphere.infra.algorithm.core.context.AlgorithmSQLContext;
import org.apache.shardingsphere.infra.algorithm.core.exception.AlgorithmExecuteException;
import org.apache.shardingsphere.infra.algorithm.core.exception.AlgorithmInitializationException;
import org.apache.shardingsphere.infra.algorithm.keygen.core.KeyGenerateAlgorithm;
import org.apache.shardingsphere.infra.algorithm.keygen.snowflake.TimeService;
import org.apache.shardingsphere.infra.exception.core.ShardingSpherePreconditions;
import org.apache.shardingsphere.infra.instance.ComputeNodeInstanceContext;
import org.apache.shardingsphere.infra.instance.ComputeNodeInstanceContextAware;
import org.apache.shardingsphere.infra.instance.workerid.WorkerIdGenerator;

/**
 * ShardingSphere JDBC 随机workerId雪花算法
 *
 *
 * @author Robin Wang
 * @date 2024/10/06 13:00
 **/
public final class RandomWorkerIdSnowflakeKeyGenerateAlgorithm implements KeyGenerateAlgorithm, ComputeNodeInstanceContextAware {
    public static final long EPOCH;

    private static final String MAX_VIBRATION_OFFSET_KEY = "max-vibration-offset";

    private static final String MAX_TOLERATE_TIME_DIFFERENCE_MILLIS_KEY = "max-tolerate-time-difference-milliseconds";

    private static final long SEQUENCE_BITS = 12L;

    private static final long WORKER_ID_BITS = 10L;

    private static final long SEQUENCE_MASK = (1L << SEQUENCE_BITS) - 1L;

    private static final long WORKER_ID_LEFT_SHIFT_BITS = SEQUENCE_BITS;

    private static final long TIMESTAMP_LEFT_SHIFT_BITS = WORKER_ID_LEFT_SHIFT_BITS + WORKER_ID_BITS;

    private static final int DEFAULT_VIBRATION_VALUE = 1;

    private static final int MAX_TOLERATE_TIME_DIFFERENCE_MILLIS = 10;

    private static final int DEFAULT_WORKER_ID = 0;

    @Setter
    private static TimeService timeService = new TimeService();

    private final AtomicReference<ComputeNodeInstanceContext> computeNodeInstanceContext = new AtomicReference<>();

    private final AtomicInteger sequenceOffset = new AtomicInteger(-1);

    private final AtomicLong sequence = new AtomicLong();

    private final AtomicLong lastMillis = new AtomicLong();

    private Properties props;

    private int maxVibrationOffset;

    private int maxTolerateTimeDifferenceMillis;

    private static final String randomWorkerId = RandomUtil.randomNumbers(3);
    static {
        EPOCH = LocalDateTime.of(2016, 11, 1, 0, 0, 0).toInstant(ZoneId.systemDefault().getRules().getOffset(Instant.now())).toEpochMilli();
    }

    @Override
    public void init(final Properties props) {
        props.setProperty(WorkerIdGenerator.WORKER_ID_KEY, randomWorkerId);
        this.props = props;
        maxVibrationOffset = getMaxVibrationOffset(props);
        maxTolerateTimeDifferenceMillis = getMaxTolerateTimeDifferenceMillis(props);
    }

    private int getMaxVibrationOffset(final Properties props) {
        int result = Integer.parseInt(props.getOrDefault(MAX_VIBRATION_OFFSET_KEY, DEFAULT_VIBRATION_VALUE).toString());
        ShardingSpherePreconditions.checkState(result >= 0 && result <= SEQUENCE_MASK, () -> new AlgorithmInitializationException(this, "Illegal max vibration offset."));
        return result;
    }

    private int getMaxTolerateTimeDifferenceMillis(final Properties props) {
        int result = Integer.parseInt(props.getOrDefault(MAX_TOLERATE_TIME_DIFFERENCE_MILLIS_KEY, MAX_TOLERATE_TIME_DIFFERENCE_MILLIS).toString());
        ShardingSpherePreconditions.checkState(result >= 0, () -> new AlgorithmInitializationException(this, "Illegal max tolerate time difference milliseconds."));
        return result;
    }

    @Override
    public void setComputeNodeInstanceContext(final ComputeNodeInstanceContext computeNodeInstanceContext) {
        this.computeNodeInstanceContext.set(computeNodeInstanceContext);
        if (null != computeNodeInstanceContext) {
            computeNodeInstanceContext.generateWorkerId(props);
        }
    }

    @Override
    public Collection<Long> generateKeys(final AlgorithmSQLContext context, final int keyGenerateCount) {
        Collection<Long> result = new LinkedList<>();
        for (int index = 0; index < keyGenerateCount; index++) {
            result.add(generateKey());
        }
        return result;
    }

    private synchronized Long generateKey() {
        long currentMillis = timeService.getCurrentMillis();
        if (waitTolerateTimeDifferenceIfNeed(currentMillis)) {
            currentMillis = timeService.getCurrentMillis();
        }
        if (lastMillis.get() == currentMillis) {
            sequence.set(sequence.incrementAndGet() & SEQUENCE_MASK);
            if (0L == sequence.get()) {
                currentMillis = waitUntilNextTime(currentMillis);
            }
        } else {
            vibrateSequenceOffset();
            sequence.set(sequenceOffset.get());
        }
        lastMillis.set(currentMillis);
        return ((currentMillis - EPOCH) << TIMESTAMP_LEFT_SHIFT_BITS) | ((long) getWorkerId() << WORKER_ID_LEFT_SHIFT_BITS) | sequence.get();
    }

    @SneakyThrows(InterruptedException.class)
    private boolean waitTolerateTimeDifferenceIfNeed(final long currentMillis) {
        if (lastMillis.get() <= currentMillis) {
            return false;
        }
        long timeDifferenceMillis = lastMillis.get() - currentMillis;
        ShardingSpherePreconditions.checkState(timeDifferenceMillis < maxTolerateTimeDifferenceMillis,
                () -> new AlgorithmExecuteException(this, "Clock is moving backwards, last time is %d milliseconds, current time is %d milliseconds.", lastMillis.get(), currentMillis));
        Thread.sleep(timeDifferenceMillis);
        return true;
    }

    private long waitUntilNextTime(final long lastTime) {
        long result = timeService.getCurrentMillis();
        while (result <= lastTime) {
            result = timeService.getCurrentMillis();
        }
        return result;
    }

    private void vibrateSequenceOffset() {
        if (!sequenceOffset.compareAndSet(maxVibrationOffset, 0)) {
            sequenceOffset.incrementAndGet();
        }
    }

    private int getWorkerId() {
        return null == computeNodeInstanceContext.get() ? DEFAULT_WORKER_ID : computeNodeInstanceContext.get().getWorkerId();
    }

    @Override
    public String getType() {
        return "RANDOM_WORKER_ID_SNOWFLAKE";
    }

    @Override
    public boolean isDefault() {
        return true;
    }
}

2.添加SPI

在这里插入图片描述

添加以下代码路径：

com.demo.core.config.RandomWorkerIdSnowflakeKeyGenerateAlgorithm

3.修改雪花算法配置
在这里插入图片描述

其他

遗留问题

1、部署weblogic报错

说明：
tomcat、undertow正常启动，使用其他web server请忽略。
问题：
shardingsphere单例模式下JDBC，默认使用H2作为（元数据）内存数据库，初始化datasource前必须先依赖初始化h2，部署weblogic启动会报错。
报错信息：

[INFO ] 2024-11-01 13:34:04.266 [] [[STANDBY] ExecuteThread: '4' for queue: 'weblogic.kernel.Default (self-tuning)'] c.z.h.HikariDataSource - HikariPool-1 - Starting...
[ERROR] 2024-11-01 13:34:06.072 [] [[STANDBY] ExecuteThread: '4' for queue: 'weblogic.kernel.Default (self-tuning)'] c.z.h.p.HikariPool - HikariPool-1 - Exception during pool initialization.
java.lang.NullPointerException: null
	at org.apache.shardingsphere.mode.repository.standalone.jdbc.JDBCRepository.init(JDBCRepository.java:62)
	at org.apache.shardingsphere.infra.spi.type.typed.TypedSPILoader.findService(TypedSPILoader.java:61)
	at org.apache.shardingsphere.infra.spi.type.typed.TypedSPILoader.getService(TypedSPILoader.java:110)
	at org.apache.shardingsphere.mode.manager.standalone.StandaloneContextManagerBuilder.build(StandaloneContextManagerBuilder.java:48)
	at org.apache.shardingsphere.driver.jdbc.core.datasource.ShardingSphereDataSource.createContextManager(ShardingSphereDataSource.java:79)
	at org.apache.shardingsphere.driver.jdbc.core.datasource.ShardingSphereDataSource.<init>(ShardingSphereDataSource.java:67)
	at org.apache.shardingsphere.driver.api.ShardingSphereDataSourceFactory.createDataSource(ShardingSphereDataSourceFactory.java:95)
	at org.apache.shardingsphere.driver.api.yaml.YamlShardingSphereDataSourceFactory.createDataSource(YamlShardingSphereDataSourceFactory.java:135)
	at org.apache.shardingsphere.driver.api.yaml.YamlShardingSphereDataSourceFactory.createDataSource(YamlShardingSphereDataSourceFactory.java:70)
	at org.apache.shardingsphere.driver.jdbc.core.driver.DriverDataSourceCache.createDataSource(DriverDataSourceCache.java:55)
	at org.apache.shardingsphere.driver.jdbc.core.driver.DriverDataSourceCache.lambda$get$0(DriverDataSourceCache.java:48)
	at java.util.concurrent.ConcurrentHashMap.computeIfAbsent(ConcurrentHashMap.java:1660)
	at org.apache.shardingsphere.driver.jdbc.core.driver.DriverDataSourceCache.get(DriverDataSourceCache.java:48)
	at org.apache.shardingsphere.driver.ShardingSphereDriver.connect(ShardingSphereDriver.java:56)
	at com.zaxxer.hikari.util.DriverDataSource.getConnection(DriverDataSource.java:121)
	at com.zaxxer.hikari.pool.PoolBase.newConnection(PoolBase.java:364)
	at com.zaxxer.hikari.pool.PoolBase.newPoolEntry(PoolBase.java:206)
	at com.zaxxer.hikari.pool.HikariPool.createPoolEntry(HikariPool.java:476)
	at com.zaxxer.hikari.pool.HikariPool.checkFailFast(HikariPool.java:561)
	at com.zaxxer.hikari.pool.HikariPool.<init>(HikariPool.java:115)
	at com.zaxxer.hikari.HikariDataSource.getConnection(HikariDataSource.java:112)
	at org.springframework.jdbc.datasource.DataSourceUtils.fetchConnection(DataSourceUtils.java:160)
	at org.springframework.jdbc.datasource.DataSourceUtils.doGetConnection(DataSourceUtils.java:118)
	at org.springframework.jdbc.datasource.DataSourceUtils.getConnection(DataSourceUtils.java:81)
	at org.mybatis.spring.transaction.SpringManagedTransaction.openConnection(SpringManagedTransaction.java:80)
	at org.mybatis.spring.transaction.SpringManagedTransaction.getConnection(SpringManagedTransaction.java:67)
	at org.apache.ibatis.executor.BaseExecutor.getConnection(BaseExecutor.java:345)
	at org.apache.ibatis.executor.SimpleExecutor.prepareStatement(SimpleExecutor.java:89)
	at org.apache.ibatis.executor.SimpleExecutor.doQuery(SimpleExecutor.java:64)
	at org.apache.ibatis.executor.BaseExecutor.queryFromDatabase(BaseExecutor.java:333)
	at org.apache.ibatis.executor.BaseExecutor.query(BaseExecutor.java:158)
	at org.apache.ibatis.executor.CachingExecutor.query(CachingExecutor.java:110)
	at org.apache.ibatis.executor.CachingExecutor.query(CachingExecutor.java:90)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:154)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:147)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:142)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.mybatis.spring.SqlSessionTemplate$SqlSessionInterceptor.invoke(SqlSessionTemplate.java:425)
	at com.sun.proxy.$Proxy258.selectList(Unknown Source)
	at org.mybatis.spring.SqlSessionTemplate.selectList(SqlSessionTemplate.java:224)
	at org.apache.ibatis.binding.MapperMethod.executeForMany(MapperMethod.java:147)
	at org.apache.ibatis.binding.MapperMethod.execute(MapperMethod.java:80)
	at org.apache.ibatis.binding.MapperProxy$PlainMethodInvoker.invoke(MapperProxy.java:142)
	at org.apache.ibatis.binding.MapperProxy.invoke(MapperProxy.java:86)
	at com.sun.proxy.$Proxy259.queryShiroFilter(Unknown Source)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:344)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:198)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
	at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.invoke(PersistenceExceptionTranslationInterceptor.java:137)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
	at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:241)
	at com.sun.proxy.$Proxy247.queryShiroFilter(Unknown Source)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:344)
	at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:234)
	at com.sun.proxy.$Proxy247.queryShiroFilter(Unknown Source)
	at com.winning.mup.auth.service.impl.ShiroServiceImpl.getShiroFilter(ShiroServiceImpl.java:45)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:344)
	at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:234)
	at com.sun.proxy.$Proxy246.getShiroFilter(Unknown Source)
	at com.winning.mup.auth.config.shiro.ShiroConfig.shiroFilterChainDefinition(ShiroConfig.java:27)
	at com.winning.mup.auth.config.shiro.ShiroConfig$$EnhancerBySpringCGLIB$$cad44ed0.CGLIB$shiroFilterChainDefinition$4(<generated>)
	at com.winning.mup.auth.config.shiro.ShiroConfig$$EnhancerBySpringCGLIB$$cad44ed0$$FastClassBySpringCGLIB$$cc40e2e5.invoke(<generated>)
	at org.springframework.cglib.proxy.MethodProxy.invokeSuper(MethodProxy.java:244)
	at org.springframework.context.annotation.ConfigurationClassEnhancer$BeanMethodInterceptor.intercept(ConfigurationClassEnhancer.java:331)
	at com.winning.mup.auth.config.shiro.ShiroConfig$$EnhancerBySpringCGLIB$$cad44ed0.shiroFilterChainDefinition(<generated>)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:154)
	at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:648)
	at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:633)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1352)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1195)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:582)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542)
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335)
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333)
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208)
	at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276)
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1391)
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1311)
	at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:710)
	at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:693)
	at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:119)
	at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:408)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1431)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:619)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542)
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335)
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333)
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208)
	at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:405)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1352)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1195)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:582)
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542)
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335)
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333)
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:213)
	at org.springframework.context.support.PostProcessorRegistrationDelegate.registerBeanPostProcessors(PostProcessorRegistrationDelegate.java:270)
	at org.springframework.context.support.AbstractApplicationContext.registerBeanPostProcessors(AbstractApplicationContext.java:765)
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:567)
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147)
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:732)
	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:409)
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:308)
	at org.springframework.boot.web.servlet.support.SpringBootServletInitializer.run(SpringBootServletInitializer.java:175)
	at org.springframework.boot.web.servlet.support.SpringBootServletInitializer.createRootApplicationContext(SpringBootServletInitializer.java:155)
	at org.springframework.boot.web.servlet.support.SpringBootServletInitializer.onStartup(SpringBootServletInitializer.java:97)
	at org.springframework.web.SpringServletContainerInitializer.onStartup(SpringServletContainerInitializer.java:174)
	at weblogic.servlet.internal.WebAppServletContext.initContainerInitializer(WebAppServletContext.java:1433)
	at weblogic.servlet.internal.WebAppServletContext.initContainerInitializers(WebAppServletContext.java:1372)
	at weblogic.servlet.internal.WebAppServletContext.initContainerInitializers(WebAppServletContext.java:1353)
	at weblogic.servlet.internal.WebAppServletContext.preloadResources(WebAppServletContext.java:1925)
	at weblogic.servlet.internal.WebAppServletContext.start(WebAppServletContext.java:3191)
	at weblogic.servlet.internal.WebAppModule.startContexts(WebAppModule.java:1864)
	at weblogic.servlet.internal.WebAppModule.start(WebAppModule.java:919)
	at weblogic.application.internal.ExtensibleModuleWrapper$StartStateChange.next(ExtensibleModuleWrapper.java:360)
	at weblogic.application.internal.ExtensibleModuleWrapper$StartStateChange.next(ExtensibleModuleWrapper.java:356)
	at weblogic.application.utils.StateMachineDriver.nextState(StateMachineDriver.java:45)
	at weblogic.application.internal.ExtensibleModuleWrapper.start(ExtensibleModuleWrapper.java:138)
	at weblogic.application.internal.flow.ModuleListenerInvoker.start(ModuleListenerInvoker.java:124)
	at weblogic.application.internal.flow.ModuleStateDriver$3.next(ModuleStateDriver.java:233)
	at weblogic.application.internal.flow.ModuleStateDriver$3.next(ModuleStateDriver.java:228)
	at weblogic.application.utils.StateMachineDriver.nextState(StateMachineDriver.java:45)
	at weblogic.application.internal.flow.ModuleStateDriver.start(ModuleStateDriver.java:78)
	at weblogic.application.internal.flow.StartModulesFlow.activate(StartModulesFlow.java:52)
	at weblogic.application.internal.BaseDeployment$2.next(BaseDeployment.java:752)
	at weblogic.application.utils.StateMachineDriver.nextState(StateMachineDriver.java:45)
	at weblogic.application.internal.BaseDeployment.activate(BaseDeployment.java:262)
	at weblogic.application.internal.SingleModuleDeployment.activate(SingleModuleDeployment.java:52)
	at weblogic.application.internal.DeploymentStateChecker.activate(DeploymentStateChecker.java:165)
	at weblogic.deploy.internal.targetserver.AppContainerInvoker.activate(AppContainerInvoker.java:90)
	at weblogic.deploy.internal.targetserver.BasicDeployment.activate(BasicDeployment.java:274)
	at weblogic.deploy.internal.targetserver.BasicDeployment.activateFromServerLifecycle(BasicDeployment.java:507)
	at weblogic.management.deploy.internal.DeploymentAdapter$1.doActivate(DeploymentAdapter.java:53)
	at weblogic.management.deploy.internal.DeploymentAdapter.activate(DeploymentAdapter.java:202)
	at weblogic.management.deploy.internal.AppTransition$2.transitionAppInternal(AppTransition.java:53)
	at weblogic.management.deploy.internal.AppTransition.transitionApp(AppTransition.java:138)
	at weblogic.management.deploy.internal.ConfiguredDeployments$2.doItem(ConfiguredDeployments.java:741)
	at weblogic.management.deploy.internal.parallel.BucketInvoker.invoke(BucketInvoker.java:138)
	at weblogic.management.deploy.internal.ConfiguredDeployments.transitionAppsParallel(ConfiguredDeployments.java:749)
	at weblogic.management.deploy.internal.ConfiguredDeployments.transitionAppsParallel(ConfiguredDeployments.java:702)
	at weblogic.management.deploy.internal.ConfiguredDeployments.activate(ConfiguredDeployments.java:381)
	at weblogic.management.deploy.internal.ConfiguredDeployments.deploy(ConfiguredDeployments.java:233)
	at weblogic.management.deploy.internal.DeploymentServerService.resume(DeploymentServerService.java:219)
	at weblogic.management.deploy.internal.DeploymentServerService.start(DeploymentServerService.java:133)
	at weblogic.server.AbstractServerService.postConstruct(AbstractServerService.java:76)
	at sun.reflect.GeneratedMethodAccessor6.invoke(Unknown Source)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.glassfish.hk2.utilities.reflection.ReflectionHelper.invoke(ReflectionHelper.java:1287)
	at org.jvnet.hk2.internal.ClazzCreator.postConstructMe(ClazzCreator.java:333)
	at org.jvnet.hk2.internal.ClazzCreator.create(ClazzCreator.java:375)
	at org.jvnet.hk2.internal.SystemDescriptor.create(SystemDescriptor.java:487)
	at org.glassfish.hk2.runlevel.internal.AsyncRunLevelContext.findOrCreate(AsyncRunLevelContext.java:305)
	at org.glassfish.hk2.runlevel.RunLevelContext.findOrCreate(RunLevelContext.java:85)
	at org.jvnet.hk2.internal.Utilities.createService(Utilities.java:2126)
	at org.jvnet.hk2.internal.ServiceHandleImpl.getService(ServiceHandleImpl.java:116)
	at org.jvnet.hk2.internal.ServiceLocatorImpl.getService(ServiceLocatorImpl.java:698)
	at org.jvnet.hk2.internal.ThreeThirtyResolver.resolve(ThreeThirtyResolver.java:78)
	at org.jvnet.hk2.internal.ClazzCreator.resolve(ClazzCreator.java:212)
	at org.jvnet.hk2.internal.ClazzCreator.resolveAllDependencies(ClazzCreator.java:235)
	at org.jvnet.hk2.internal.ClazzCreator.create(ClazzCreator.java:358)
	at org.jvnet.hk2.internal.SystemDescriptor.create(SystemDescriptor.java:487)
	at org.glassfish.hk2.runlevel.internal.AsyncRunLevelContext.findOrCreate(AsyncRunLevelContext.java:305)
	at org.glassfish.hk2.runlevel.RunLevelContext.findOrCreate(RunLevelContext.java:85)
	at org.jvnet.hk2.internal.Utilities.createService(Utilities.java:2126)
	at org.jvnet.hk2.internal.ServiceHandleImpl.getService(ServiceHandleImpl.java:116)
	at org.jvnet.hk2.internal.ServiceLocatorImpl.getService(ServiceLocatorImpl.java:698)
	at org.jvnet.hk2.internal.ThreeThirtyResolver.resolve(ThreeThirtyResolver.java:78)
	at org.jvnet.hk2.internal.ClazzCreator.resolve(ClazzCreator.java:212)
	at org.jvnet.hk2.internal.ClazzCreator.resolveAllDependencies(ClazzCreator.java:235)
	at org.jvnet.hk2.internal.ClazzCreator.create(ClazzCreator.java:358)
	at org.jvnet.hk2.internal.SystemDescriptor.create(SystemDescriptor.java:487)
	at org.glassfish.hk2.runlevel.internal.AsyncRunLevelContext.findOrCreate(AsyncRunLevelContext.java:305)
	at org.glassfish.hk2.runlevel.RunLevelContext.findOrCreate(RunLevelContext.java:85)
	at org.jvnet.hk2.internal.Utilities.createService(Utilities.java:2126)
	at org.jvnet.hk2.internal.ServiceHandleImpl.getService(ServiceHandleImpl.java:116)
	at org.jvnet.hk2.internal.ServiceLocatorImpl.getService(ServiceLocatorImpl.java:698)
	at org.jvnet.hk2.internal.ThreeThirtyResolver.resolve(ThreeThirtyResolver.java:78)
	at org.jvnet.hk2.internal.ClazzCreator.resolve(ClazzCreator.java:212)
	at org.jvnet.hk2.internal.ClazzCreator.resolveAllDependencies(ClazzCreator.java:235)
	at org.jvnet.hk2.internal.ClazzCreator.create(ClazzCreator.java:358)
	at org.jvnet.hk2.internal.SystemDescriptor.create(SystemDescriptor.java:487)
	at org.glassfish.hk2.runlevel.internal.AsyncRunLevelContext.findOrCreate(AsyncRunLevelContext.java:305)
	at org.glassfish.hk2.runlevel.RunLevelContext.findOrCreate(RunLevelContext.java:85)
	at org.jvnet.hk2.internal.Utilities.createService(Utilities.java:2126)
	at org.jvnet.hk2.internal.ServiceHandleImpl.getService(ServiceHandleImpl.java:116)
	at org.jvnet.hk2.internal.ServiceHandleImpl.getService(ServiceHandleImpl.java:90)
	at org.glassfish.hk2.runlevel.internal.CurrentTaskFuture$QueueRunner.oneJob(CurrentTaskFuture.java:1237)
	at org.glassfish.hk2.runlevel.internal.CurrentTaskFuture$QueueRunner.run(CurrentTaskFuture.java:1168)
	at weblogic.work.SelfTuningWorkManagerImpl$WorkAdapterImpl.run(SelfTuningWorkManagerImpl.java:681)
	at weblogic.invocation.ComponentInvocationContextManager._runAs(ComponentInvocationContextManager.java:352)
	at weblogic.invocation.ComponentInvocationContextManager.runAs(ComponentInvocationContextManager.java:337)
	at weblogic.work.LivePartitionUtility.doRunWorkUnderContext(LivePartitionUtility.java:57)
	at weblogic.work.PartitionUtility.runWorkUnderContext(PartitionUtility.java:41)
	at weblogic.work.SelfTuningWorkManagerImpl.runWorkUnderContext(SelfTuningWorkManagerImpl.java:655)
	at weblogic.work.ExecuteThread.execute(ExecuteThread.java:420)
	at weblogic.work.ExecuteThread.run(ExecuteThread.java:360)

解决方案(以下多种方案）：
1、切换mysql其他数据库为默认内存数据库（暂未实践）
2、等待官方后续版本优化
3、spring bean初始化datasource 先依赖h2Driver初始化，需要改造部分代码（暂未实践）

shardingsphere5.5.1基于spring体系的集成-复合分片02
笨鸟不会飞
11-08 184
shardingsphere已经实现的等分片算法都可以基于复合分片算法来实现，在本章中我们将会编写如何基于shardingsphere5.5.1版本实现我们的通用内置分片算法和复合分片算法。
shardingsphere5.5.1基于spring体系的集成01
笨鸟不会飞
11-07 172
ShardingSphere 已经逐步升级到 5.5.1 版本，随着版本的迭代，其配置也在不断变化。因此，我将基于 5.5.1 版本，为大家重新整理其集成方式，以便更清晰地理解和应用。
shardingsphere-jdbc5.5.2 springboot3.4.2 集群模式
最新发布
wadexi的博客
02-15 830
所谓集群模式，就是把配置发到一个公共的地方 如 zookeeper/etcd 等这样多个微服务就不需要都维护一份了，且修改zookeeper /etcd 可以实时生效例如，主库挂掉，手动切换备库的时候，就改下 zookeeper /etcd 就OK了，不用每个微服务都去改一遍再重启。
ShardingSphere-jdbc 5.5.0 + spring boot 基础配置 - 实战篇
qq_21903999的博客
08-20 3310
shardingsphere 5.5.0移除了sm4算法，自己加上即可。增加spi扩展org.apache.shardingsphere.encrypt.spi.EncryptAlgorithm增加以下代码：SM4算法代码/***/static {@Getter@Overrideif (!
1024 程序员节献礼，ShardingSphere 5.5.1 正式发布
ShardingSphere官微
10-24 253
引言 在程序员的节日——10月24日，我们满怀喜悦地宣布 Apache ShardingSphere 5.5.1 版本正式发布。 程序员，这个汇聚智慧与创造力的群体，用代码构建起数字世界的宏伟大厦，编织出我们生活的便捷与精彩。在这个信息快速迭代的时代，程序员不仅是技术的推动者，更是创新的源泉，他们用智慧和汗水推动社会不断向前发展。 向程序员们致敬！ 感谢你们创造的精彩数字世...
Apache ShardingSphere Proxy5.5.0实现MySQL分库分表与读写分离
流水悠然，任山川引路。
07-25 2091
感谢你的关注，欢迎你评论交流。
shardingsphere 5.5.1按月分表配置记录，支持dynamic-datasource多数据源
未兆的博客
11-11 1354
先说明下springboot的支持只到5.2.1，但是因为旧版本有漏洞问题，加上官方新版本不在支持springboot写法，所以改成了shardingsphere-jdbc。新版本的shardingsphere配置查了很多材料，最后终于配置完成，做个记录。springboot版本2.7.18。yml的配置里面加上。
openGauss+shardingsphere-5.5.1简单实例
Florence0405的博客
11-22 1216
本文记录了苯人在使用chatgpt进行了分布式数据库实验的一些过程，照着下面的代码能把服务跑起来，但不带基础知识（比如yaml配置文件里每一行、每个设置是什么意思（因为我也不会XD））。本文中记录的并不是唯一实现的方法，也可能有隐藏的bug在，但是我暂时还没遇到，仅供参考。p.s. openEuler虚拟机是之前杨老师发的！————————————all copyright reserved to 飞行员—————————————
Sharding-Jdbc
art_code的博客
01-29 452
Sharding-Jdbc 基于Sharding-Jdbc实现读写分离 基于Sharding-Jdbc实现分表分库 Sharding-Jdbc源码分析 数据库集群自动增长id，Sharding-Jdbc 雪花算法 Sharding-Jdbc介绍 Sharding-Jdbc在3.0后改名为Shardingsphere它由Sharding-JDBC、Sharding-Proxy和Shar...
Sharding-JDBC（三）3.1.0版本实践
dlx29376的博客
05-04 578
目录 　　一、Sharding-JDBC依赖 　　二、代码实践 　　三、源码分析 在上一篇博文中，介绍了Sharding-JDBC的分片策略、分片键和分片算法的基本概念，以及2.0.3版本可以支持和无法支持的使用场景。 可以支持的场景：支持对SQL语句中的=、IN和BETWEEN AND的分片操作，但前提是分片键必须存在于SQL和数据表结构中。 无法支持的场景：分片键不...
ShardingShpere5分库分表
qq_40003391的博客
04-06 963
官网： https://shardingsphere.apache.org/index_zh.html文档： https://shardingsphere.apache.org/document/5.1.1/cn/overview/ ApacheShardingSphere 由JDBCProxy和Sidecar（规划中）这 3 款既能够独立部署，又支持混合 部署配合使用的产品组成。
Sharding-JDBC 5.4.1+SpringBoot3.4.1+MySQL8.4.1 使用案例
whereabouts_的博客
01-23 1254
SpringBoot 3.4.1 + Sharding-jdbc 5.4.1 + MySQL 8.4.1 工程项目分表案例
Sharding-JDBC4.1整合mybatis实现分库分表、绑定表、广播表、读写分离、自定义主键策略、inline、hint分布式事务等操作
小哇
04-25 2631
链接：https://pan.baidu.com/s/1LeUHSbUs_hrfjzf8s3Gcdg。
Sharding-JDBC 5.0.0快速集成Springboot2.3.2【读写分离】
tianqi11的博客
04-23 325
【代码】Sharding-JDBC 5.0.0快速集成Springboot2.3.2【读写分离】
Shardingsphere-Proxy 5.5.0部署
m0_63164811的博客
06-19 2128
Shardingsphere-Proxy 5.5.0部署
Spring Boot整合ShardingSphere5.5.1实现读写分离，主从复制
m0_65374199的博客
12-10 559
ps:我用的ShardingSphere版本是5.5.1，各版本配置差别好像有点大，5.2.1版本之前有Spring Boot启动依赖，详情见​ Spring Boot版本是3.3.5。
springboot2.2+sharding-jdbc 5.3实战分享
若水印象博客
10-23 251
可能是sharding-jdbc全网按年分表最全的一个示例了。遇到的坑和代码都会完全分享出来。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
