kubebuilder自定义资源

github地址

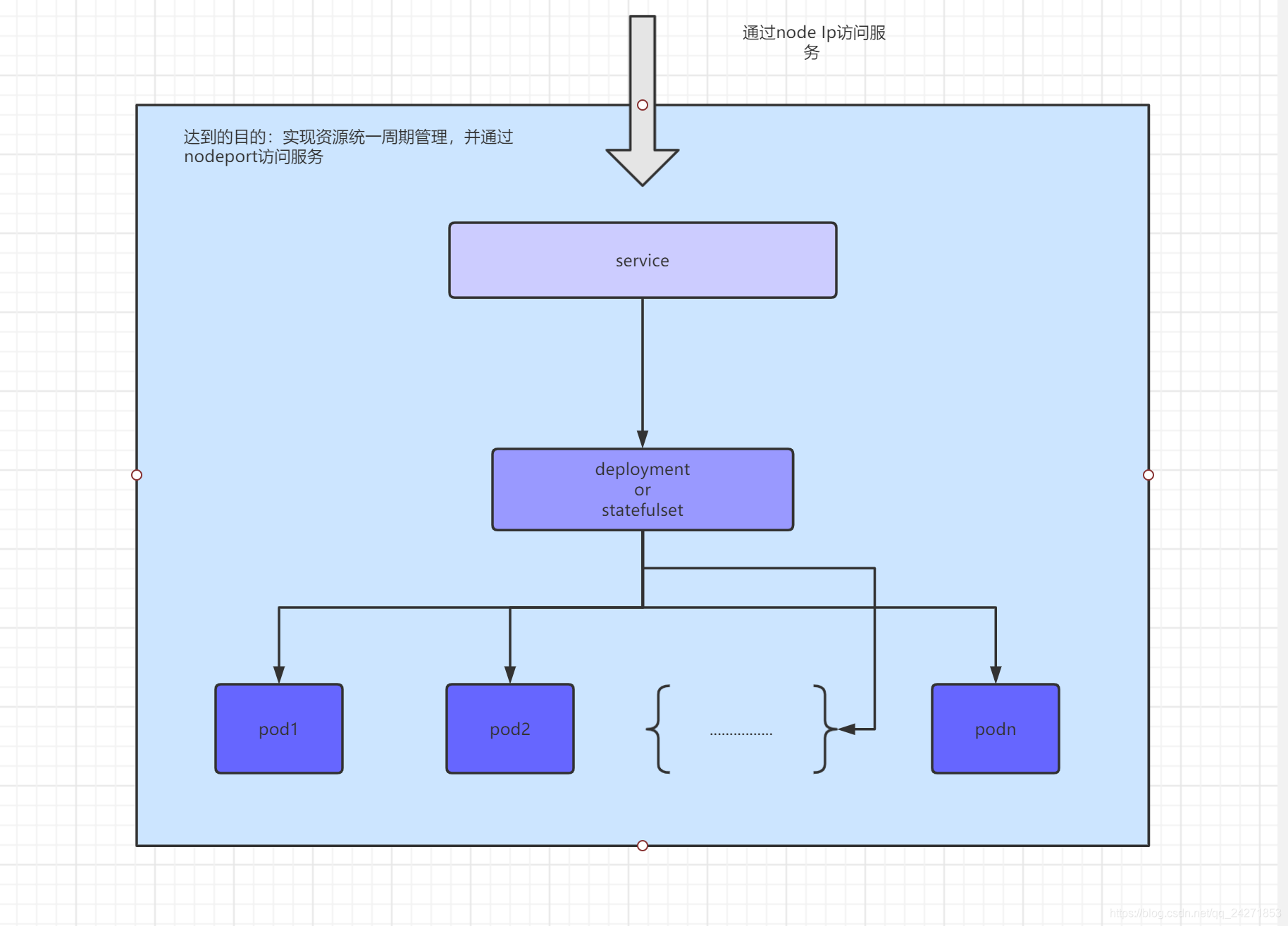

一直在网上看k8s自定义资源这一块的内容，但是只停留于看，并没有真正的自己去实践一波，写这篇文章主要参考的是这篇博客，只是我对他做了一些简化，我只希望外部能够通过nodeip+port访问我的服务，并且对里面的资源进行统一生命周期管理。

1、使用kubebuilder初始化一个自定义资源

kubebuilder的安装请参考以前写的博客

1.进入gopath src 下新建一个文件夹,进入新建文件夹，生成自定以资源的相关文件，生成controller，type等，生成webhook相关的文件

[root@master src]# mkdir servicemanager
[root@master src]# cd servicemanager/
[root@master servicemanager]# kubebuilder init --domain servicemanager.io
Writing scaffold for you to edit...
Get controller runtime:
$ go get sigs.k8s.io/controller-runtime@v0.5.0
Update go.mod:
$ go mod tidy
Running make:
$ make
/usr/local/bin/controller-gen object:headerFile="hack/boilerplate.go.txt" paths="./..."
go fmt ./...
go vet ./...
go build -o bin/manager main.go
Next: define a resource with:
$ kubebuilder create api
[root@master servicemanager]# kubebuilder create api --group servicemanager --version v1 --kind ServiceManager
Create Resource [y/n]
y
Create Controller [y/n]
y
Writing scaffold for you to edit...
api/v1/servicemanager_types.go
controllers/servicemanager_controller.go
Running make:
$ make
/usr/local/bin/controller-gen object:headerFile="hack/boilerplate.go.txt" paths="./..."
go fmt ./...
go vet ./...
go build -o bin/manager main.go
[root@master servicemanager]# kubebuilder create webhook --group servicemanager --version v1 --kind ServiceManager --defaulting --programmatic-validation
Writing scaffold for you to edit...
api/v1/servicemanager_webhook.go

生成的，目录结构如下：

.
├── api
│   └── v1
│       ├── groupversion_info.go // GVK信息、scheme生成的方法都在这里
│       ├── servicemanager_types.go // 自定义CRD结构，需修改的文件
│       ├── servicemanager_webhook.go // webhook相关的文件
│       └── zz_generated.deepcopy.go // 深度拷贝
├── bin
│   └── manager // go打包文件的二进制文件
├── config // 所有最终生成的需要kubectl apply的的资源，按照功能进行分片成不同的目录，这里有些地方可以做些自定义的配置
│   ├── certmanager
│   │   ├── certificate.yaml
│   │   ├── kustomization.yaml
│   │   └── kustomizeconfig.yaml
│   ├── crd // crd的配置
│   │   ├── kustomization.yaml
│   │   ├── kustomizeconfig.yaml
│   │   └── patches
│   │       ├── cainjection_in_servicemanagers.yaml
│   │       └── webhook_in_servicemanagers.yaml
│   ├── default
│   │   ├── kustomization.yaml
│   │   ├── manager_auth_proxy_patch.yaml
│   │   ├── manager_webhook_patch.yaml
│   │   └── webhookcainjection_patch.yaml
│   ├── manager // manager的deployment在这里
│   │   ├── kustomization.yaml
│   │   └── manager.yaml
│   ├── prometheus // metric暴露
│   │   ├── kustomization.yaml
│   │   └── monitor.yaml
│   ├── rbac // rbac授权
│   │   ├── auth_proxy_client_clusterrole.yaml
│   │   ├── auth_proxy_role_binding.yaml
│   │   ├── auth_proxy_role.yaml
│   │   ├── auth_proxy_service.yaml
│   │   ├── kustomization.yaml
│   │   ├── leader_election_role_binding.yaml
│   │   ├── leader_election_role.yaml
│   │   ├── role_binding.yaml
│   │   ├── servicemanager_editor_role.yaml
│   │   └── servicemanager_viewer_role.yaml
│   ├── samples // 简单的自定义资源yaml文件
│   │   └── servicemanager_v1_servicemanager.yaml
│   └── webhook // Unit webhook Service，用来接收APIServer转发而来的webhook请求
│       ├── kustomization.yaml
│       ├── kustomizeconfig.yaml
│       └── service.yaml
├── controllers
│   ├── servicemanager_controller.go // # CRD controller的核心逻辑在这里
│   └── suite_test.go
├── Dockerfile // 制作crd-controller镜像的Dockerfile
├── go.mod
├── go.sum
├── hack
│   └── boilerplate.go.txt
├── main.go // 程序入口
├── Makefile // make编译文件
└── PROJECT // 项目元数据

2.修改servicemanager_types.go文件

type ServiceManagerSpec struct {

	// INSERT ADDITIONAL SPEC FIELDS - desired state of cluster
	// Important: Run "make" to regenerate code after modifying this file

	// Foo is an example field of ServiceManager. Edit ServiceManager_types.go to remove/update
	// Category 只有两种可能 deployment statefulset
	// 这个注释表示该字段的值只能是Deployment 或者 Statefulset
	// +kubebuilder:validation:Enum=Deployment;Statefulset
	Category string `json:"category,omitempty"`

	// 标签选择器
	Selector map[string]string `json:"selector,omitempty"`

	// 引用的statefulset deployment的template
	Template corev1.PodTemplateSpec `json:"template,omitempty"`

	// 副本数 最大不超过10
	// +kubebuilder:validation:Maximum=10
	Replicas *int32 `json:"replicas,omitempty"`

	//端口号 端口号做大超过65535 服务端口号
	// +kubebuilder:validation:Maximum=65535
	Port *int32 `json:"port,omitempty"`

	// +kubebuilder:validation:Maximum=65535
	Targetport *int32 `json:"targetport,omitempty"`

}

// ServiceManagerStatus defines the observed state of ServiceManager
type ServiceManagerStatus struct {

	// INSERT ADDITIONAL STATUS FIELD - define observed state of cluster
	// Important: Run "make" to regenerate code after modifying this file
	Replicas int32 `json:"replicas,omitempty"`
	LastUpdateTime metav1.Time `json:"last_update_time,omitempty"`
	DeploymentStatus appsv1.DeploymentStatus `json:"deployment_status,omitempty"`
	ServiceStatus corev1.ServiceStatus `json:"service_status,omitempty"`
}
// 这里，Spec和Status均是ServiceManager的成员变量，Status并不像Pod.Status一样，是Pod的subResource.因此，
// 如果我们在controller的代码中调用到Status().Update(),会触发panic，
// 并报错：the server could not find the requested resource
// 如果我们想像k8s中的设计那样，那么就要遵循k8s中status subresource的使用规范：
// kubebuilder:subresource:status
// 用户只能指定一个CRD实例的spec部分；
// CRD实例的status部分由控制器进行变更。

// +kubebuilder:object:root=true
// +kubebuilder:subresource:status
// +kubebuilder:subresource:scale:selectorpath=.spec.selector,specpath=.spec.replicas,statuspath=.status.replicas
// ServiceManager is the Schema for the servicemanagers API
type ServiceManager struct {

	metav1.TypeMeta   `json:",inline"`
	metav1.ObjectMeta `json:"metadata,omitempty"`

	Spec   ServiceManagerSpec   `json:"spec,omitempty"`
	Status ServiceManagerStatus `json:"status,omitempty"`
}

// +kubebuilder:object:root=true

// ServiceManagerList contains a list of ServiceManager
type ServiceManagerList struct {

	metav1.TypeMeta `json:
