vue3 vue-ganttastic 使用

小云小白

已于 2025-05-15 11:27:00 修改

阅读量341

点赞数 7

文章标签： vue3 vue-ganttastic 甘特图

于 2025-05-14 10:45:57 首次发布

本文链接：https://blog.csdn.net/qq_26408545/article/details/147944121

版权

简介

vue3 原生开源甘特图：地址：https://zunnzunn.github.io/vue-ganttastic/
功能相对简单；做项目进度展示，会议室预定展示还可以；不支持复杂粒度控制；

1、安装

pnpm install @infectoone/vue-ganttastic

2、配置

src/main.js 配置

import { createApp } from "vue"
import App from "./App.vue"
...
import ganttastic from '@infectoone/vue-ganttastic'
...
createApp(App)
  .use(ganttastic)
  .mount('#app')

官方样例：https://zunnzunn.github.io/vue-ganttastic/examples.html

3、使用

element-pluis +vue-ganttastic 静态使用样例

<template>
  <g-gantt-chart
      :chart-start="`${applicationDate} 07:00:00`"
      :chart-end="`${applicationDate} 23:59:59`"
      precision="hour"
      date-format="YYYY-MM-DD HH:mm:ss"
      bar-start="startTime"
      bar-end="endTime"
      color-scheme="sky"
      :push-on-overlap="false"
      :no-overlap="true"
      :grid="true"
      :row-height="40"
      label-column-title="会议室"
      label-column-width="300px"
      style="width: 87vw;"
  >
    <template #upper-timeunit="{ date }">
      <el-date-picker
          v-model="applicationDate"
          type="date"
          placeholder="选择时间"
          value-format="YYYY-MM-DD"
          :clearable="false"
          style="width: 130px;"
      />
    </template>
    <template #timeunit="{label, value}">
      <el-text style="text-align: left;width: 100%;">{{ label }}</el-text>
    </template>
    <template #label-column-row="{label}">
      <el-tooltip
          class="box-item"
          effect="dark"
          :content="`${label.roomName}，可容纳：${label.capacity}人`"
          placement="right"
      >
        <el-text style="width: 270px;" :truncated="true">{{
            label.roomName
          }}，{{ label.capacity }}人
        </el-text>
      </el-tooltip>
    </template>

    <g-gantt-row v-for="(item,index) in meetingRoomRequestStatusList" :label="item" :bars="item.rowBarList ">
      <template #bar-label="{bar}">
        <el-tooltip
            class="box-item"
            effect="dark"
            :content="`${bar.ganttBarConfig?.label}`"
            raw-content
            placement="top"
        >
          <el-text style="width: 100%;text-align: center"> {{ bar.ganttBarConfig?.label }}</el-text>
        </el-tooltip>
      </template>
    </g-gantt-row>
  </g-gantt-chart>
</template>

<script setup>
import {ref} from "vue"

// 当选选择的时间
const applicationDate = ref('2025-05-12')

// 会议室申请列表：api见：https://zunnzunn.github.io/vue-ganttastic/
const meetingRoomRequestStatusList = ref([{
  "id": 1,
  "roomName": "1#310会议室",
  "capacity": 30,
  "rowBarList": [{
    "startTime": "2025-05-12 11:00:00",
    "endTime": "2025-05-12 12:00:00",
    "ganttBarConfig": {
      "id": 2,
      "label": "XXX",
      // 是否有操作条
      "hasHandles": false,
      // 是否可移动：true 为不可一定
      "immobile": true,
      "style": {
        "background": "#2CABE3",
        "borderRadius": "5px",
        "color": "black"
      }
    }
  }]
}, {
  "id": 2,
  "roomName": "1#303-会议室",
  "capacity": 8,
  "rowBarList": [{
    "startTime": "2025-05-12 09:30:00",
    "endTime": "2025-05-12 11:00:00",
    "ganttBarConfig": {
      "id": 6,
      "label": "XXXXX",
      "hasHandles": false,
      "immobile": true,
      "style": {
        "background": "#2CABE3",
        "borderRadius": "5px",
        "color": "black"
      }
    }
  }]
}, {
  "id": 3,
  "roomName": "1#3F录播室",
  "rowBarList": [{
    "startTime": "2025-05-12 07:00:00",
    "endTime": "2025-05-12 08:00:00",
    "ganttBarConfig": {
      "id": 3,
      "label": "XXX",
      "hasHandles": false,
      "immobile": true,
      "style": {
        "background": "#2CABE3",
        "borderRadius": "5px",
        "color": "black"
      }
    }
  }, {
    "startTime": "2025-05-12 07:00:00",
    "endTime": "2025-05-12 08:00:00",
    "ganttBarConfig": {
      "id": 7,
      "label": "XXX",
      "hasHandles": false,
      "immobile": true,
      "style": {
        "background": "#2CABE3",
        "borderRadius": "5px",
        "color": "black"
      }
    }
  }, {
    "startTime": "2025-05-12 10:00:00",
    "endTime": "2025-05-12 11:30:00",
    "ganttBarConfig": {
      "id": 8,
      "label": "XXXX",
      "hasHandles": false,
      "immobile": true,
      "style": {
        "background": "#2CABE3",
        "borderRadius": "5px",
        "color": "black"
      }
    }
  }]
}, {
  "id": 4,
  "roomName": "1#2F实操室",
  "capacity": 12,
  "rowBarList": [{
    "startTime": "2025-05-12 07:00:00",
    "endTime": "2025-05-12 08:00:00",
    "ganttBarConfig": {
      "id": 4,
      "label": "XXX",
      "hasHandles": false,
      "immobile": true,
      "style": {
        "background": "#2CABE3",
        "borderRadius": "5px",
        "color": "black"
      }
    }
  }]
}, {
  "id": 5,
  "roomName": "1@2F教研室",
  "rowBarList": []
}, {
  "id": 6,
  "roomName": "3F连廊会客区",
  "rowBarList": [{
    "startTime": "2025-05-12 07:00:00",
    "endTime": "2025-05-12 08:00:00",
    "ganttBarConfig": {
      "id": 5,
      "label": "XX",
      "hasHandles": false,
      "immobile": true,
      "style": {
        "background": "#2CABE3",
        "borderRadius": "5px",
        "color": "black"
      }
    }
  }]
}, {
  "id": 7,
  "roomName": "1#5F西侧小会议室",
  "rowBarList": []
}, {
  "id": 8,
  "roomName": "1#5F西侧大会议室",
  "rowBarList": []
}, {
  "id": 9,
  "roomName": "2号楼会议室",
  "isSupportVideo": false,
  "rowBarList": []
}, {
  "id": 10,
  "roomName": "2号楼报告厅",
  "rowBarList": []
}])
</script>

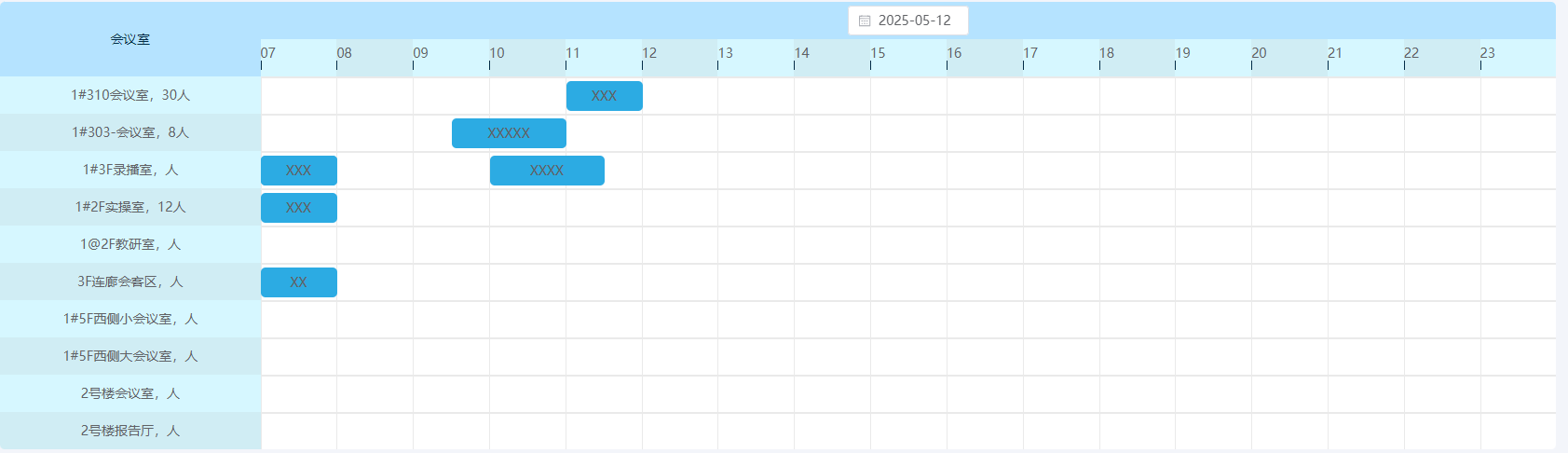

效果图：
在这里插入图片描述

4、常用属性介绍

4.1 g-gantt-chart 主属性介绍

来源：https://zunnzunn.github.io/vue-ganttastic/GGanttChart.html

1）chart-start、chart-start ，图标时间范围
2）precision：最小单位，枚举：hour, day, date, week and month
3）date-format：传入的时间格式："YYYY-MM-DD HH:mm:ss"
4）bar-start、bar-end 甘特图的开始结束指向的字段
5）color-scheme：配色方案，可每个区域指定颜色，见官方文档
6）push-on-overlap：false，拖动和重叠时条不“相互推动”
7）no-overlap：true，不允许进度条覆盖
8）grid：网格是否显示
9）row-height：行高
10）label-column-title：该属性不为空，则左侧列独立成列
11）label-column-width：指定label-column-title的宽度
12）支持事件：
click-bar：点击进度条
drag-bar：拖拽进度条中
dragend-bar 拖动进度条结束后：可拿到时间范围；
mouseenter-bar：鼠标覆盖事件；还支持单击、双击进度条；不支持点击空白区域；

<g-gantt-chart
                :chart-start="`${applicationDate} 07:00:00`"
                :chart-start="`${applicationDate} 23:59:59`"
                precision="hour"
                date-format="YYYY-MM-DD HH:mm:ss"
                bar-start="startTime"
                bar-end="endTime"
                color-scheme="sky"
                :push-on-overlap="false"
                :no-overlap="true"
                :grid="true"
                :row-height="40"
                label-column-title="会议室"
                label-column-width="300px"
                @click-bar="handleGanttBarClick"
                @drag-bar="handleGanttDrag"
                @dragend-bar="handleGanttDragend"
                @mouseenter-bar="handleGanttMouseenter">
 </g-gantt-chart>

4.2 插槽

常用插槽

1）g-gantt-chart 的 upper-timeunit ：时间轴显示日期的部分
2）g-gantt-chart 的 timeunit ：时间轴上的刻度部分
3）g-gantt-chart 的 label-column-row ：g-gantt-chart 的 label-column-title属性不为空，标题列的插槽；假设 label-column-title 属性为空，则插槽为：label-column-title
4）g-gantt-row 的 bar-label：甘特图进度条的插槽
注：g-gantt-row 的 label 可以把整个对象传递过去，来控制 g-gantt-chart 的 label-column-row 的接受label对象；

<g-gantt-chart>
  <template #upper-timeunit="{ date }">
	时间轴显示日期的部分{{date}}
  </template>
  <template #timeunit="{label, value}">
	<el-text style="text-align: left;width: 100%;">时间刻度：{{ label }}</el-text>
  </template>

  <template #label-column-row="{label}">
	标题列：
	  <el-text style="width: 270px;" :truncated="true">{{
		  label.roomName
		}}，{{ label.capacity }}人，{{ label.adminList?.map(item => item.userName).join('、') || '' }}
	  </el-text>
  </template>

  <g-gantt-row v-for="(item,index) in meetingRoomRequestStatusList" :label="item" :bars="item.rowBarList ">
	<template #bar-label="{bar}">
		甘特图上的项目进度条
	  {{bar.ganttBarConfig?.label}}
	</template>
  </g-gantt-row>
</g-gantt-chart>

5、动态增行

给在 meetingRoomRequestStatusList.value 中某个会议室的 rowBarList 添加一个进度条属性即可

// 添加会议室单行
const addGanttRow = () => {
  editMeetingRoomRequestStatus.value.rowBarList.push({
    startTime: formData.value.startTime,
    endTime: formData.value.endTime,
    ganttBarConfig: {
      id: formData.value.id,
      label: '当前',
      hasHandles: true,
      immobile: false,
      style: {
        background: "#00ff00",
        borderRadius: "20px",
        color: "black"
      }
    }
  })
}

6 判断点击了哪个会议室的几点

handleChartClick 为实际点击事件，但为了防止拖拽事件和点击事件的冲突
所以：使用变量 isDragging + 3个事件，来避免误判；

  <g-gantt-chart
		@click-bar="handleGanttBarClick"
		@drag-bar="handleGanttDrag"
		@dragend-bar="handleGanttDragend"
  >
    <g-gantt-row v-for="(item,index) in meetingRoomRequestStatusList" :label="item" :bars="item.rowBarList"
	@click="(event) => handleChartClick(event, item, index)">
    </g-gantt-row>
</g-gantt-chart>

<script setup>
	import dayjs from "dayjs";

	// 记录是否在拖拽
	const isDragging = ref(false)
	// 鼠标点击甘特图进度条
	const handleGanttBarClick = ({bar, e, datetime})=>{
	  isDragging.value = true;
	}
	// 拖拽甘特图，标记正在拖拽
	const handleGanttDrag = ({bar, e}) => {
	  isDragging.value = true;
	}
	// 拖拽结束后
	const handleGanttDragend = (e) => {
	  // 拖拽结束后 1s 后允许点击
	  setTimeout(() => {
	    isDragging.value = false;
	  }, 500)
	}

	// 点击
	const handleChartClick = (event, row, rowIndex) => {
	  setTimeout(() => {
		isDragging.value = false;
	  }, 500)

	  // 正在拖拽，则排除此次点击
	  if (isDragging.value) {
		return
	  }

	  // 图表可点击的宽度（右侧时间轴区域）
	  const chartStart = new Date(`${applicationDate.value} 07:00:00`).getTime();
	  const chartEnd = new Date(`${applicationDate.value} 23:59:59`).getTime();
	  const totalTimeMs = chartEnd - chartStart;

	  // 计算点击在该行那个位置：offsetX 相对开始，target.offsetWidth：控件宽度
	  let radio = event.offsetX / event.target.offsetWidth;
	  if (radio < 0.0 || radio > 1.0) {
		return;
	  }
	  // 计算点击的时间点
	  const clickedTime = new Date(chartStart + radio * totalTimeMs)

	  console.log("点击的时间：", dayjs(clickedTime).format('YYYY-MM-DD HH:mm:ss'));
	  console.log("点击的行：", rowIndex, row);
	}
</script>
