仿百度壁纸客户端（四）——自定义上拉加载实现精选壁纸墙

仿百度壁纸客户端（四）——自定义上拉加载实现精选壁纸墙

---

百度壁纸系列

仿百度壁纸客户端（一）——主框架搭建,自定义Tab + ViewPager + Fragment

仿百度壁纸客户端（二）——主页自定义ViewPager广告定时轮播图

仿百度壁纸客户端（三）——首页单向，双向事件冲突处理，壁纸列表的实现

仿百度壁纸客户端（四）——自定义上拉加载实现精选壁纸墙

仿百度壁纸客户端（五）——实现搜索动画GestureDetector手势识别，动态更新搜索关键字

仿百度壁纸客户端（六）——完结篇之Gallery画廊实现壁纸预览已经项目细节优化

---

主页说完了，我们来实现第二个页面吧，第二个精选其实就是一个壁纸墙，百度壁纸本身也没做下拉刷新，所以我们只考虑上拉加载，其实实现不负责，壁纸墙还是用主页的自定义GridView，但是这里我们还得重写ScroolView来监听他是否滑动到底部，这样吧，我们先来看一下百度壁纸的效果吧：

我们先来自定义一个ScrollView监听滑动到底部

PullScrollView

package com.lgl.baiduwallpaper.view;

import android.content.Context;
import android.util.AttributeSet;
import android.widget.ScrollView;

/**
 * 刷新的View，主要是监听是否滑动到顶部或者底部
 * Created by lgl on 16/4/6.
 */
public class PullScrollView extends ScrollView {

    private static  final  String LOAD = "load";

    public IcallBack icallBack = null;

    //构造方法
    public PullScrollView(Context context, AttributeSet attrs) {
        super(context, attrs);
    }


    /**
     * 手指滑动，不停的调用
     * @param l
     * @param t
     * @param oldl
     * @param oldt
     */
    @Override
    protected void onScrollChanged(int l, int t, int oldl, int oldt) {
        check();
        super.onScrollChanged(l, t, oldl, oldt);
    }

    /**
     * 上下监听
     */
    private void check() {
        //判断是否上拉到底部
        if (getChildAt(0) != null && getChildAt(0).getMeasuredHeight() <= getScrollY() + getHeight()) {
            if(LoadReshView.getBottomOrTop()){
                return;
            }
            //回调到下一个页面
            icallBack.click(LOAD);
        }
    }

    /**
     * 定义一个底部的接口
     */
    public interface IcallBack {
        public void click(String bottom);
    }

    /**
     * 定义一个方法
     */
    public void setIcallBack(IcallBack icallBack) {
        this.icallBack = icallBack;
    }
}

这里我们就可以写一个组合控件了，把具体功能给全部实现的控件了，我们先定义这样的一个布局

pull_load.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <com.lgl.baiduwallpaper.view.PullScrollView
        android:id="@+id/pull_scroll"
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical">

            <com.lgl.baiduwallpaper.view.DisGridView
                android:horizontalSpacing="10dp"
                android:verticalSpacing="10dp"
                android:numColumns="3"
                android:id="@+id/mGridView"
                android:layout_width="match_parent"
                android:layout_height="match_parent" />

            <RelativeLayout
                android:layout_width="match_parent"
                android:layout_height="50dp">

                <LinearLayout
                    android:id="@+id/linearLayout"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_centerInParent="true"
                    android:orientation="horizontal">

                    <!--加载更多的进度-->
                    <ProgressBar
                        android:id="@+id/proBar"
                        style="?android:attr/progressBarStyleSmall"
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content" />

                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:text="正在加载..." />

                </LinearLayout>

            </RelativeLayout>
        </LinearLayout>
    </com.lgl.baiduwallpaper.view.PullScrollView>
</LinearLayout>

那我们就来实现了，我们自定义一个容器

LoadReshView

package com.lgl.baiduwallpaper.view;

import android.content.Context;
import android.os.Handler;
import android.os.Message;
import android.util.AttributeSet;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.LinearLayout;

import com.lgl.baiduwallpaper.R;

/**
 * 上啦 刷新
 * Created by lgl on 16/4/6.
 */
public class LoadReshView extends LinearLayout {

    private static final String LOAD = "load";
    private static final int LOADDATA = 1;
    private static final int REFREAH = 2;

    //监听底部
    private PullScrollView pullScrollView;
    //数据表格
    private DisGridView mGridView;
    //下拉显示布局
    private LinearLayout linearLayout;

    public pullCallBack pull = null;
    //没有显示底部布局
    private static boolean isShow = false;
    /**
     * 子线程
     */
    private Handler handler = new Handler() {
        @Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                case LOADDATA:
                    isBottomShow();
                    isShow = true;
                    break;
                case REFREAH:
                    isBottomSClose();
                    isShow = false;
                    break;
            }
            super.handleMessage(msg);
        }
    };

    /**
     * 构造方法
     *
     * @param context
     * @param attrs
     */
    public LoadReshView(Context context, AttributeSet attrs) {
        super(context, attrs);
        initView();
    }

    /**
     * 初始化
     */
    private void initView() {
        //加载布局文件
        LayoutInflater inflater = LayoutInflater.from(getContext());
        View view = inflater.inflate(R.layout.pull_load, this);
        findView(view);
        setCallBack();
    }

    /**
     * 实现回调接口
     */
    private void setCallBack() {
        pullScrollView.setIcallBack(new MyIcallback());
    }

    /**
     * 实现接口
     */
    private class MyIcallback implements PullScrollView.IcallBack {

        @Override
        public void click(String bottom) {
            //如果监听到最底部
            if (bottom.equals(LOAD)) {
                pull.load();
                //显示
                handler.sendEmptyMessage(LOADDATA);
            } else {
                pull.reFresh();
            }
        }
    }

    /**
     * 加载数据的接口
     */
    public interface pullCallBack {
        //加載
        public void load();

        //刷新
        public void reFresh();
    }

    /**
     * 初始化控件
     *
     * @param view
     */
    private void findView(View view) {
        pullScrollView = (PullScrollView) view.findViewById(R.id.pull_scroll);
        mGridView = (DisGridView) view.findViewById(R.id.mGridView);
        linearLayout = (LinearLayout) view.findViewById(R.id.linearLayout);
    }

    public void setpullCallBack(pullCallBack pull) {
        this.pull = pull;
    }

    /**
     * 判斷是否显示操作
     *
     * @return
     */
    public static boolean getBottomOrTop() {
        return isShow;
    }

    /**
     * 显示底部
     */
    public void isBottomShow() {
        linearLayout.setVisibility(View.VISIBLE);
    }

    public void isBottomSClose() {
        linearLayout.setVisibility(View.GONE);
    }

    /**
     * 数据加载完成
     */
    public void dataFinish() {
        handler.sendEmptyMessage(REFREAH);
    }

    /**
     * 返回
     *
     * @return
     */
    public PullScrollView getpullScrollView() {
        return pullScrollView;
    }

    /**
     * 返回
     *
     * @return
     */
    public DisGridView getGridView() {
        return mGridView;
    }

}

这里我们就可以去实现这个功能了，GridView需要一个adapter，那就要一个item，也就是一个imageview(实际项目中，是使用smartimageview)的

sele_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <ImageView
        android:id="@+id/smartimg"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

</LinearLayout>

最后，我们就可以来实现精选页SelectFragment的逻辑了

SelectFragment

package com.lgl.baiduwallpaper.fragment;

import android.content.Context;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AbsListView;
import android.widget.BaseAdapter;
import android.widget.ImageView;

import com.lgl.baiduwallpaper.R;
import com.lgl.baiduwallpaper.view.DisGridView;
import com.lgl.baiduwallpaper.view.LoadReshView;

import java.util.ArrayList;

/**
 * 精选
 * Created by lgl on 16/3/31.
 */
public class SelectFragment extends Fragment {

    private LoadReshView loadview;
    private DisGridView myGridView;
    private ArrayList<Integer> data = new ArrayList<Integer>();
    private myAdapter adapter;

  private Handler handle= new Handler(){
      @Override
      public void handleMessage(Message msg) {
          switch (msg.what){
              case 100:
                    adapter.notifyDataSetChanged();
                  loadview.dataFinish();
                  break;
          }
          super.handleMessage(msg);
      }
  };

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.select_fragment, container, false);
        findView(view);
        return view;
    }

    /**
     * 初始化控件
     *
     * @param view
     */
    private void findView(View view) {
        loadview = (LoadReshView) view.findViewById(R.id.myloadview);
//        myGridView = (DisGridView) view.findViewById(R.id.mGridView);
        myGridView = loadview.getGridView();
    }

    @Override
    public void onActivityCreated(Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        init();
    }

    /**
     * 初始化数据
     */
    private void init() {
        loadview.setpullCallBack(new PullClick());
        initGridData();
        adapter = new myAdapter(getActivity());
        myGridView.setAdapter(adapter);
    }

    /**
     * GridView数据
     */
    private void initGridData() {
        for (int i = 0; i < 10; i++) {
            //添加数据
            data.add(R.drawable.nice);
        }
    }

    private class PullClick implements LoadReshView.pullCallBack {
        //加载数据
        @Override
        public void load() {
            new Thread(new Runnable() {
                @Override
                public void run() {

                    try {
                        //睡一下
                        Thread.sleep(2000);
                        initGridData();
                        handle.sendEmptyMessage(100);
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
            }).start();

        }

        //刷新数据
        @Override
        public void reFresh() {

        }
    }

    /**
     * GridView的Adapter
     */
    private class myAdapter extends BaseAdapter {

        private Context mContext;
        private LayoutInflater inflater;

        public myAdapter(Context mContext) {
            this.mContext = mContext;
            inflater = (LayoutInflater) mContext.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
        }

        @Override
        public int getCount() {
            return data.size();
        }

        @Override
        public Object getItem(int position) {
            return data.get(position);
        }

        @Override
        public long getItemId(int position) {
            return position;
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent) {
            ViewHolder viewHolder;
            if (convertView == null) {
                convertView = inflater.inflate(R.layout.sele_item, null);
                viewHolder = new ViewHolder();
                viewHolder.imgs = (ImageView) convertView.findViewById(R.id.smartimg);
                convertView.setTag(viewHolder);
            } else {
                viewHolder = (ViewHolder) convertView.getTag();
               }
                //设置数据
            convertView.setLayoutParams(new AbsListView.LayoutParams(AbsListView.LayoutParams.MATCH_PARENT,300));
            viewHolder.imgs.setBackgroundResource(R.drawable.nice);


            return convertView;
        }
    }

    static class ViewHolder {
        ImageView imgs;
    }
}

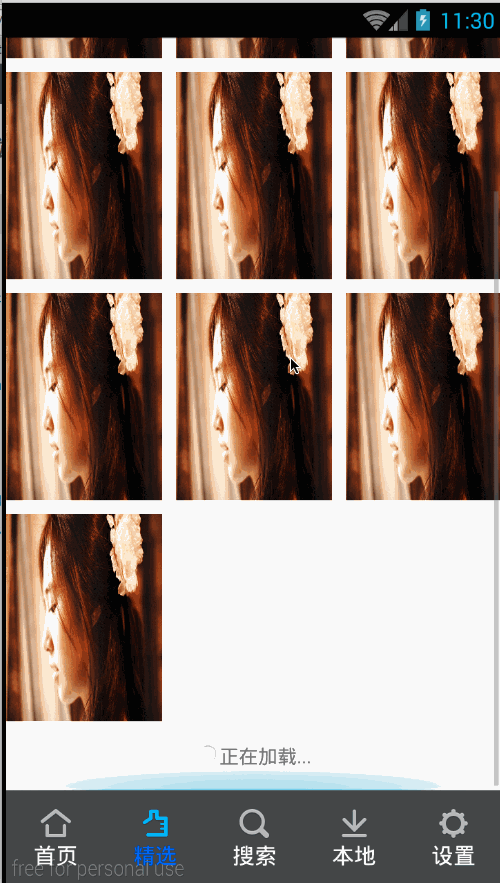

最后的运行效果

这个虽然有些粗糙，但是我们主要还是实现逻辑为主，UI部分大家自行调整哈

Demo下载：http://download.csdn.net/detail/qq_26787115/9484197
