Java实现网络摄像头实时视频人脸识别

1 项目特点

本项目最具亮点之处——简单：

1. 学习简单
2. 开发简单
3. 部署简单

2 实现步骤

1. 请参阅本人的这篇文章“JAIN SIP API详解与GB28181服务器实现【保姆级源码教程】http://t.csdnimg.cn/O2Rxi”先实现一个支持GB28181协议的视频预览平台，然后接入真实或虚拟（安卓手机可以通过安装模拟器实现）的网络摄像头，保证平台能通过http-flv地址正常取流预览。
2. Java服务开启定时任务，每隔1秒采用ffmpeg抓取一帧图片，图片抓取成功后调用人脸识别算法，成功识别人脸后进行标记并保存标记后的图片。

如果有需求，也可以进行对接消息中间件实现告警推送的扩展。

3 代码实现

1. 定时抓图

   	@Override
       public BaseResult faceDetection(String streamId) {
           ScheduledFuture scheduledFuture = ThreadPoolTaskConfig.getScheduledFuture(streamId);
           if(Objects.nonNull(scheduledFuture)){
               log.warn("[FaceServiceImpl] Face detection: {} is running.", streamId);
               return BaseResult.success("success");
           }
           List<String> playingStreams = redisUtil.getPlayingStreams();
           if(!playingStreams.contains(streamId)){
               log.error("[FaceDetection] Stream ID: {} inexistence.", streamId);
               return BaseResult.success("success");
           }
           MediaServerDTO mediaServerDTO = redisUtil.getMediaServerDTO();
           String fileName = streamId + ".jpg";
           schedulerManager.startPeriod(streamId, () -> {
               List<String> streams = redisUtil.getPlayingStreams();
               if(!streams.contains(streamId)){
                   schedulerManager.stopSchedule(streamId);
                   TaskContainer.remove(captureFaceSavePath, fileName);
               }
               // 抓图
               // rtsp://10.192.33.34:554/rtp/34020000001320000001_34020000001320000001
               // String streamUrl = String.format("rtsp://%s:%s/%s/%s/", mediaServerDTO.getIp(), "554", "rtp", streamId);
               // http://10.192.33.34:80/rtp/34020000001320000001_34020000001320000001.live.flv
               String streamUrl = String.format("http://%s:%s/%s/%s.live.flv", mediaServerDTO.getIp(), mediaServerDTO.getHttpPort(), "rtp", streamId);
               // 请求截图
               log.info("[CaptureTask]: " + fileName);
               // zlmRestfulUtils.getSnap(mediaServerDTO, streamUrl, 15, 1, captureFaceSavePath, fileName);
               FaceUtil.capture(ffmpegBinPath, streamUrl, captureFaceSavePath + fileName);
               // try {
               //     FaceUtil.capture(streamUrl, captureFaceSavePath + fileName);
               // } catch (IOException e) {
               //     e.printStackTrace();
               // }
               // FaceUtil.capture();
           }, 8);
           Optional<TaskPO> taskDaoById = taskDao.findById(streamId);
           if(taskDaoById.isPresent()){
               TaskPO taskPO = taskDaoById.get();
               taskPO.setFaceDetection(true);
               taskDao.save(taskPO);
           }
           TaskContainer.addStream(captureFaceSavePath, fileName);
           return BaseResult.success("success");
       }


2. 人脸识别

   package com.example.mediasiphttpserver.config;

   import com.example.mediasiphttpserver.server.face.task.CaptureTask;
   import org.quartz.*;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.context.annotation.Configuration;

   import javax.annotation.PostConstruct;

   /**
    * @author yrz
    * @create 2023/12/20
    */
   @Configuration
   public class SchedulerConfig {
       @Autowired
       private Scheduler scheduler;

       @PostConstruct
       public void scheduleJobs() throws SchedulerException {
           // 创建第一个JobDetail和Trigger
           JobDetail jobDetail1 = JobBuilder.newJob(CaptureTask.class)
                   .withIdentity("job1", "group1")
                   .build();

           CronTrigger trigger1 = TriggerBuilder.newTrigger()
                   .withIdentity("trigger1", "group1")
                   .withSchedule(CronScheduleBuilder.cronSchedule("0/10 * * * * ?"))
                   .build();
           // 将JobDetail和Trigger关联到Scheduler
           scheduler.scheduleJob(jobDetail1, trigger1);
       }
   }



   package com.example.mediasiphttpserver.server.face.task;

   import com.example.mediasiphttpserver.server.face.utils.FaceUtil;
   import com.example.mediasiphttpserver.server.face.utils.TaskContainer;
   import lombok.extern.slf4j.Slf4j;
   import org.quartz.Job;
   import org.quartz.JobExecutionContext;
   import org.quartz.JobExecutionException;

   import java.util.HashSet;
   import java.util.Map;
   import java.util.Set;

   /**
    * @author yrz
    * @create 2023/12/19
    */
   @Slf4j
   public class CaptureTask implements Job {
       @Override
       public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
           Set<Map.Entry<String, HashSet<String>>> entries = TaskContainer.getEntries();
           for(Map.Entry<String, HashSet<String>> entry : entries){
               String captureFaceSavePath = entry.getKey();
               HashSet<String> fileNames = entry.getValue();
               for(String fileName : fileNames){
                   FaceUtil.faceDetection(captureFaceSavePath, fileName);
               }
           }
       }
   }



4 效果展示

1. flv预览后点击人脸任务

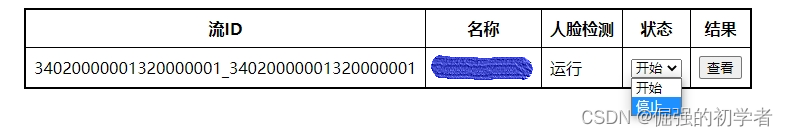

2. 开启/停止任务

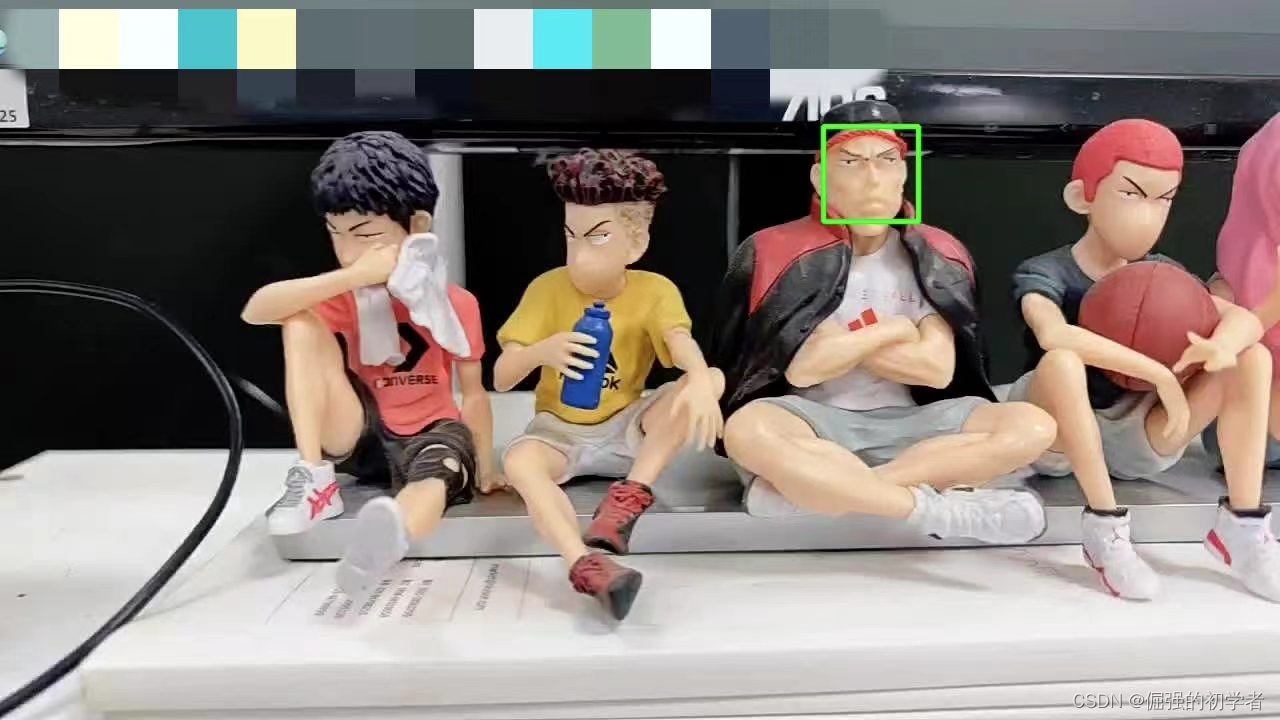

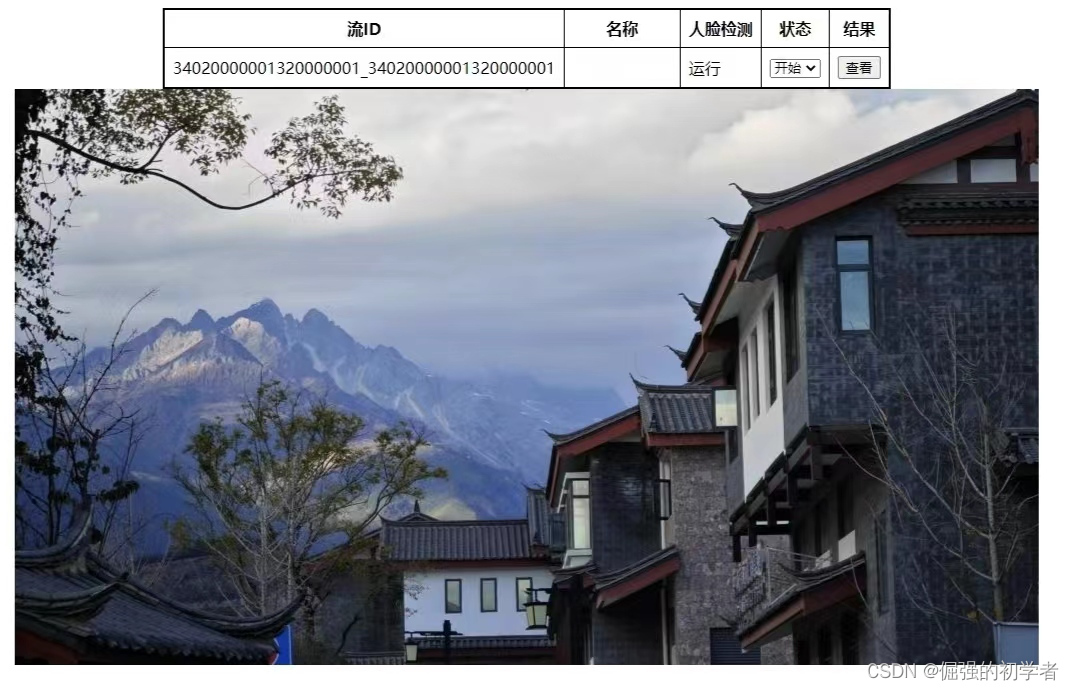

3. 查看结果（无人脸被识别到展示默认图片）



   有想了解该项目或想要源码的私信我(づ｡◕ᴗᴗ◕｡)づ
