python 读写 smart200PLC

第一步，安装snap7

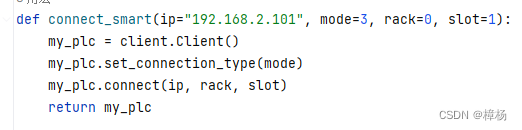

第二步，创建连接函数

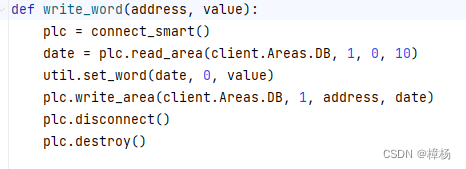

第三步，创建一个写入字的函数

address是你要写入的V区地址，value是值，例如write_word(200, 195)就是向VW200写入195

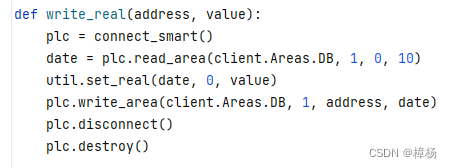

第四步，创建一个写入浮点数的函数

同理，例如write_real(200, 195.0)就是向VD200写入195.0

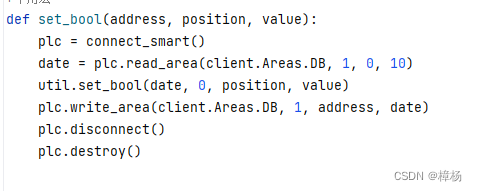

第五步，创建一个写入bool量的函数

set_bool(7999, 2, False)就是向VB7999的第2位写入False，也就是V7999.2赋值0

可以在主函数中调用，例

完整函数如下

from snap7 import util, client


def connect_smart(ip="192.168.2.101", mode=3, rack=0, slot=1):
my_plc = client.Client()
my_plc.set_connection_type(mode)
my_plc.connect(ip, rack, slot)
return my_plc


def write_word(address, value):
plc = connect_smart()
date = plc.read_area(client.Areas.DB, 1, 0, 10)
util.set_word(date, 0, value)
plc.write_area(client.Areas.DB, 1, address, date)
plc.disconnect()
plc.destroy()


def write_real(address, value):
plc = connect_smart()
date = plc.read_area(client.Areas.DB, 1, 0, 10)
util.set_real(date, 0, value)
plc.write_area(client.Areas.DB, 1, address, date)
plc.disconnect()
plc.destroy()


def set_bool(address, position, value):
plc = connect_smart()
date = plc.read_area(client.Areas.DB, 1, 0, 10)
util.set_bool(date, 0, position, value)
plc.write_area(client.Areas.DB, 1, address, date)
plc.disconnect()
plc.destroy()
