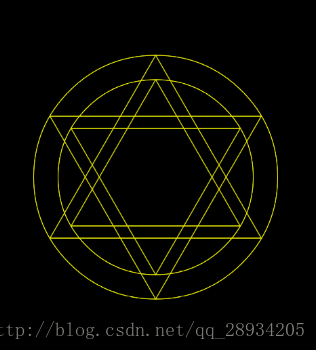

android 自定义View六芒星（六角星）

public class Xing2View extends CustomView {

    public Xing2View(Context context) {
        super(context);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        mDeafultPaint.setAntiAlias(true);//抗锯齿
        canvas.translate(mViewWidth / 2, mViewHeight / 2);//移动画布到页面中心
        canvas.rotate(-90);
//        6角星外接圆大小
        int t = mViewWidth / 3;
//        6角星6个角的角度360/6

        canvas.drawColor(Color.BLACK);
        canvaXing(t,canvas);
        canvaXing((int) (t*0.8),canvas);

    }


    private void canvaXing(int t,Canvas canvas){
        float r = 60;
//        弧度的计算公式为： 2*PI/360*角度；
        double aa = 2 * PI / 360;
//        计算6个顶点坐标
        float a[] = {(float) (Math.cos(0 * aa) * t), (float) (sin(0 * aa) * t)};
        float b[] = {(float) (Math.cos(r * aa) * t), (float) (sin(r * aa) * t)};
        float c[] = {(float) (Math.cos(r * 2 * aa) * t), (float) (sin(r * 2 * aa) * t)};
        float d[] = {(float) (Math.cos(r * 3 * aa) * t), (float) (-sin(r * 3 * aa) * t)};
        float e[] = {(float) (Math.cos(r * 4 * aa) * t), (float) (sin(r * 4 * aa) * t)};
        float f[] = {(float) (Math.cos(r * 5 * aa) * t), (float) (sin(r * 5 * aa) * t)};
//        画6角星
        mDeafultPaint.setStrokeWidth(2);
        mDeafultPaint.setColor(Color.YELLOW);
        mDeafultPaint.setStyle(Paint.Style.STROKE);
        Path path = new Path();
        path.moveTo(a[0], a[1]);
        path.lineTo(c[0], c[1]);
        path.lineTo(e[0], e[1]);
        path.close();
        path.moveTo(b[0], b[1]);
        path.lineTo(d[0], d[1]);
        path.lineTo(f[0], f[1]);
        path.close();
        canvas.drawPath(path, mDeafultPaint);

        canvas.drawCircle(0,0,t,mDeafultPaint);
    }

}
