集群概况(就一个master节点):
master 192.168.1.1
发现问题:(在一个看似平凡的上午,突然集群出现了这样反应)
问题表征图

发现问题后的一个思路:

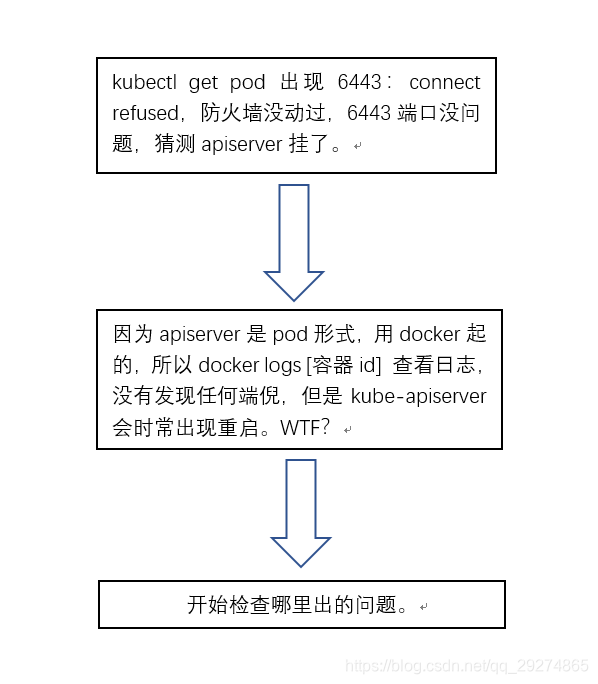

解决问题的思路
步骤:

  1. 开始查看防火墙的6443是否打开,(需要打开—zone=internal方向的防火墙),检查后没问题。
  2. swap是否关闭,本集群检查后没问题。
    关闭方式:
    ① 注释 /etc/fstab 的swap注释(永久关闭swap)。
    ② swappoff -a (暂时关闭swap)。
    ③ 查看是否关闭 free -m
[root@km1 ~]# free -m
              total        used        free      shared  buff/cache   available
Mem:         257117        8944      239641          20        8530      247290
Swap:             0           0           0

swap现在是关闭了。
3.既然kube-apiserver经常重启,logs又看不出什么异常,是否是docker本身的问题,查看docker的/etc/docker/daemon.json发现这条“native.cgroupdriver=systemd”没有了,加上它:

{
 "registry-mirrors": [
    "https://dockerhub.azk8s.cn",
    "https://reg-mirror.qiniu.com",
    "https://quay-mirror.qiniu.com"
  ],
  "exec-opts": [ "native.cgroupdriver=systemd" ]
}

然后重启docker:

systemctl daemon-reload //重新加载docker服务的配置文件
systemctl restart docker //重启docker

哦吼!失败!重启失败!好吧,看来docker有问题,重装!(我承认我的方法比较低端,哈哈哈)
重装之路:
①我们安装k8s是1.18.0所以通过查询其配套的docker版本是

k8s-1.18对应docker版本 1.13.1, 17.03, 17.06, 17.09, 18.06, 18.09

我们安装18.09版本。
安装命令:

yum install -y docker-ce-18.09.9 docker-ce-cli-18.09.9 containerd.io

设置阿里源:

yum-config-manager \
    --add-repo \
    http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

设置/etc/docker/daemon.json,修改cgroupdriver:

{
 "registry-mirrors": [
    "https://dockerhub.azk8s.cn",
    "https://reg-mirror.qiniu.com",
    "https://quay-mirror.qiniu.com"
  ],
  "exec-opts": [ "native.cgroupdriver=systemd" ]
}

重启docker:

systemctl daemon-reload //重新加载docker服务的配置文件
systemctl restart docker //重启docker

然后就可以通过docker info | grep Cgroup来查看修改后的 docker cgroup 状态,发现变为systemd即为修改成功。
4.用journalctl -fu kubelet查看kubelet的日志,会发现大量的这样报错:

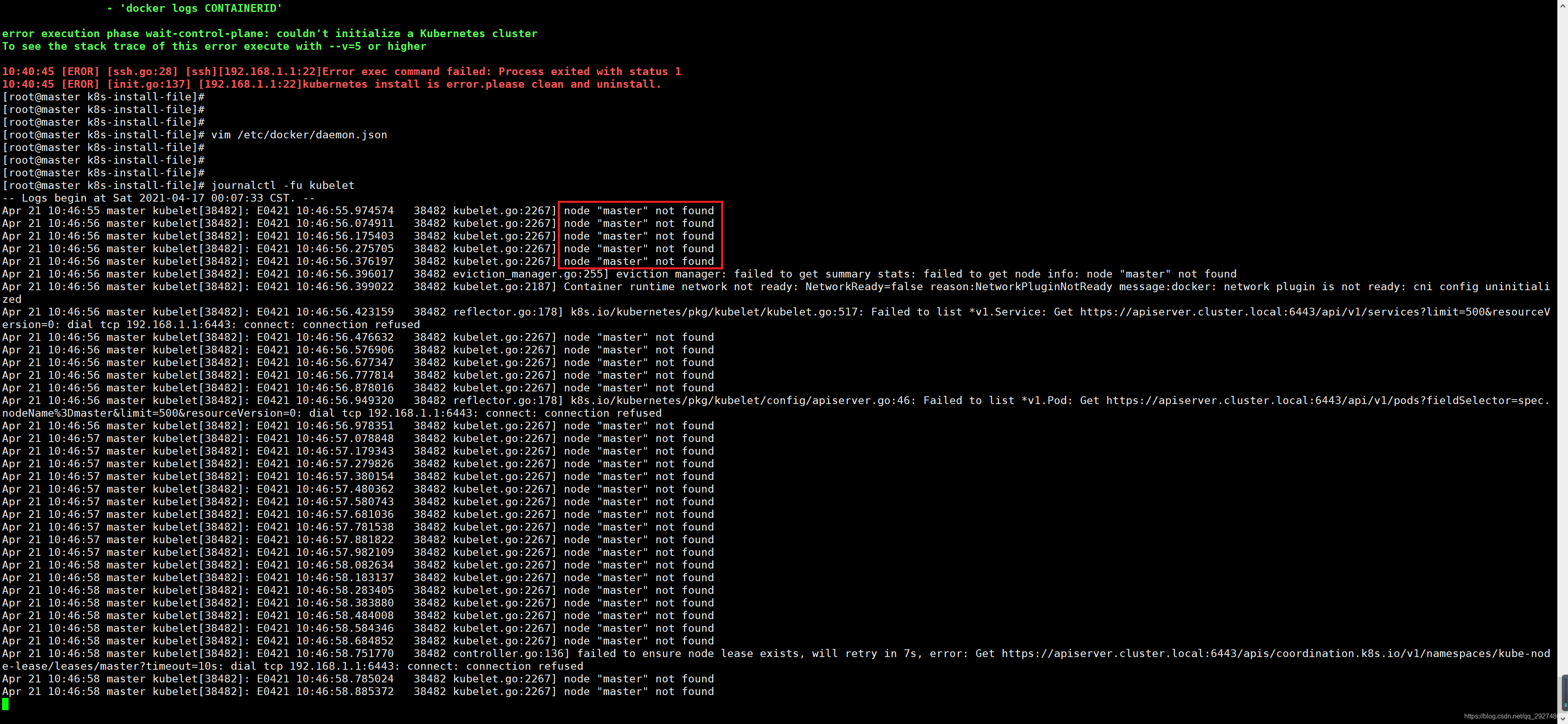

kubelet报错截图
node master 找不到?WTF?就一个节点还有这幺蛾子?防火墙还防自己?索性直接iptables -F刷了iptables规则(要非常小心执行这个,最好先备份,因为我是测试节点,而且就一个节点,刷也就刷了),还是不行!WTF?难道?难道是?对!去看/etc/hosts文件:
果然有一些端倪,大家上眼:

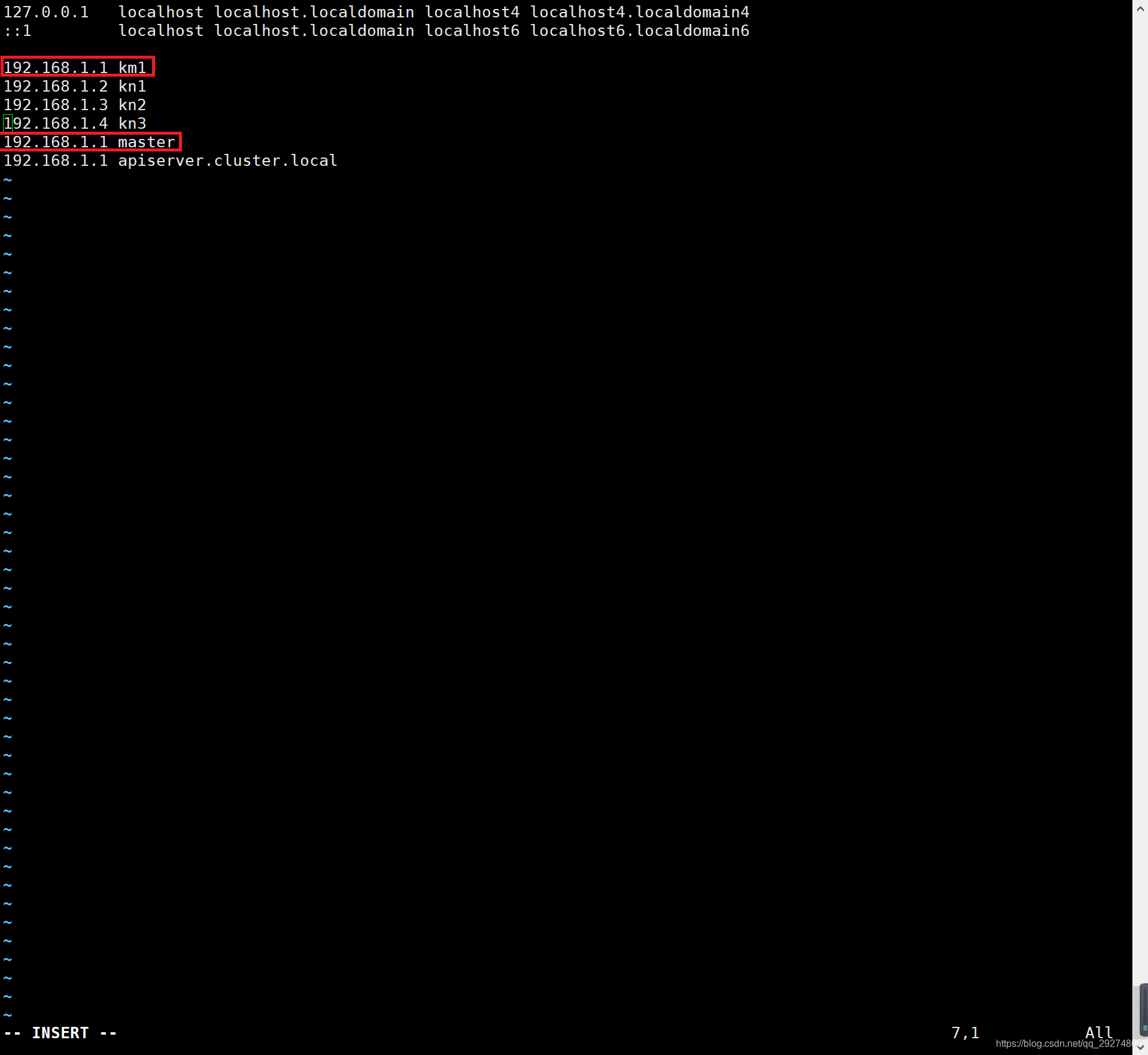

/etc/hosts文件
有可能是对192.168.1.1的双重定义导致的无法找到master节点,我们作以下处理,注释掉192.168.1.1 km1的字段:

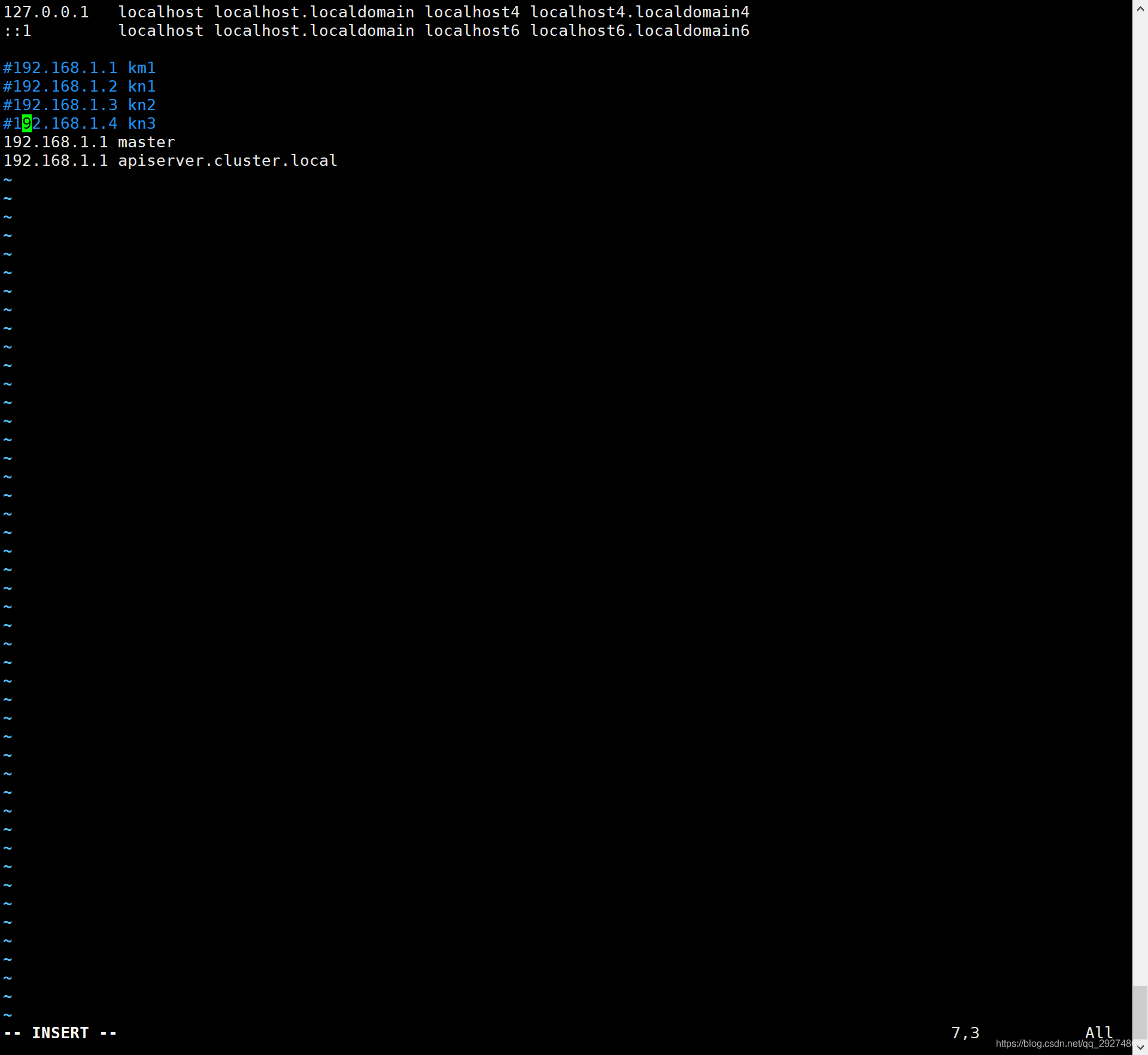

注释掉192.168.1.1 km1的字段

保存退出,然后

reboot

一定要reboot,哈哈哈哈哈
一定要记得
reboot
reboot
reboot

最后,成功!!!Got it!
总结
排查思路:
①防火墙端口。
②swap关闭。
③docker是否正常cgroupdriver=systemd。
④修改了/etc/hosts文件。
