c++课程设计学生考勤管理系统报告
1.需求分析
1.录入学生的缺课记录;
2.修改某个学生的缺课记录;
3.查询某个学生的缺课情况;
4.统计某段时间内,某门课旷课学生姓名及旷课次数,按旷课次数由多到少排序;
5.统计某段时间内,有学生旷课的课程及旷课人次,按旷课人次由多到少排序;
6.系统以菜单方式工作。
1.3课题意义
程序实践是本科生重要教学环节之一。通过程序实践,强化学生的计算机应用技能,使学生验证、巩固和充实所学的理论知识, 加深对相关内容的理解,拓宽知识面,培养学生的创新精神和实践能力
学生考勤管理程序可以大大减缓学生考勤人员的工作量, 方便了平时上课学生的出勤率的管理。
2.概要设计
根据分析整个系统主要划分为7个功能模块,分别执行要求中的功能。数据管理中可以对学生的基本信息、课程的基本信息、学生缺课的查询、添加、删除和修改。查询管理通过根据学生姓名,课程姓名 时间段儿等信息,查询单个学生的缺课记录,单科课的旷课记录,单个学生的旷课记录。功能模块图如图1所示:

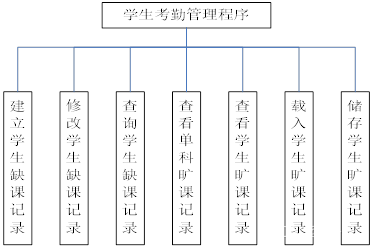

图2-1功能模块图
这个程序是过程性语言设计的。运用多种条件语句,主体采用的是链表指针。系统的设计采用了数组语句、选择语句和循环语句,在需要处理大量同类数据时,这样就使程序书写更加简洁。程序使用了布尔函数。选择语句多采用if多分支选择结构与switch语句。首先计算switch表达式,然后在caes子句中寻找值相等的常量表达式,并以此为入口符号,由此开始顺序执行。循环语句采用了for语句等、do-while语句,for语句用于已知循环次数的循环结构,括号中的三个量分别用来表示循环变量初值、循环终值和循环增量。do-while语句先循环后判断, Break语句在switch语句中,保证多分支情况的正确执行,在循环语句中,强制终止本层循环。保存和读取函数是典型的函数功能,一个程序是由若干个函数组成的,保存和读取函数是和其他函数互相调用的。
3.详细设计
struct xueke
{char xueke_name[50];
int people_num;
};
这是定义了一个xueke结构体,用来存放一个学科名及其相应的旷课人数;
struct student
{ char name[50];
long time;
int lesson_time;
char lesson_name[50];
int chidao_num;
int zaotui_num;
int qingjia_num;
int kuangke_num;
struct student *next;
};这是定义了一个student的结构体,用来存放一个学生的考勤记录,
其中有,字符数组name[50],lesson_name[50],分别存放学生名字,
缺课课程名字;int型变量lesson_time,chidao_num,zaotui_num,qingjia_num, kuangke_num,分别来存放,缺课节次,迟到次数,早退次数,请假次数,旷课次数 long型变量time,记录时间。
主模块设计
建立学生缺课记录子模块

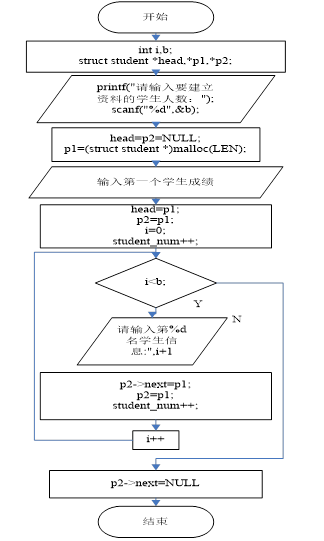

要建立的学生人数,学生基本信息(包括缺课时间、学生姓名、课程名称、节次、迟到次数、早退次数、请假次数、旷课次数)可用creat()函数如图1.
图3-1建立学生缺课记录子模块

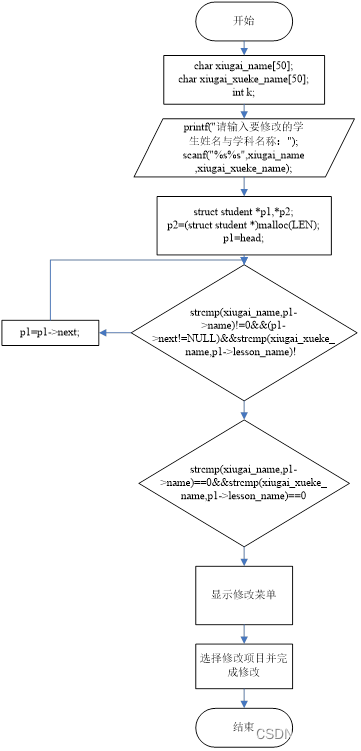

修改学生缺课记录子模块,根据要修改的学生姓名以及科目名称找到相应的信息,再选择要修改的项目进行单项修改, 如图2:
图3-2修改学生缺课记录子模块

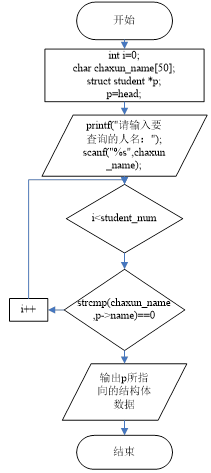

修改学生缺课记录子模块,根据人名可以查出该学生的所有缺课记录,如图3:
图3-3修改学生缺课记录子模块

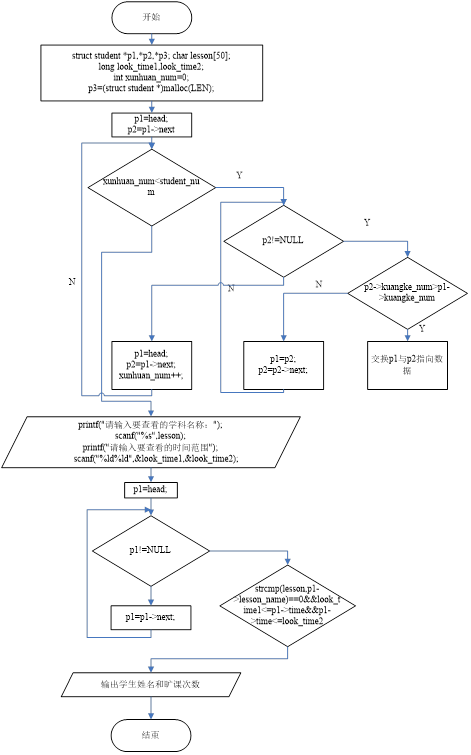

查看单科旷课记录子模块,根据学科名称和时间范围查出所有在该范围内旷课的学生以及次数 :如图4
图3-4查看单科旷课记录子模块

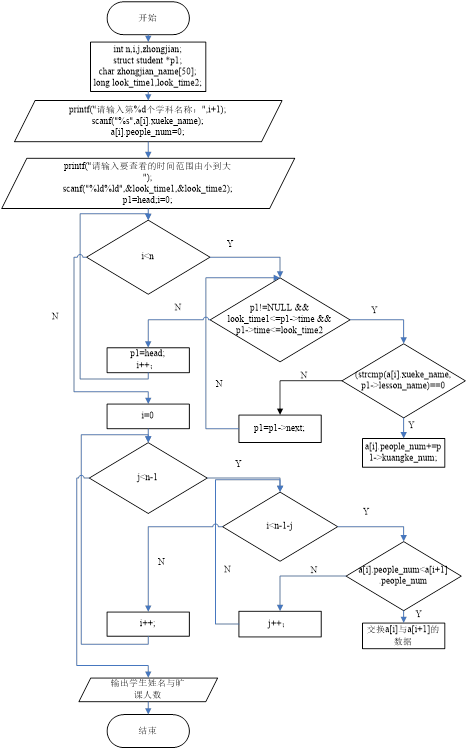

查看学生旷课记录子模块,根据要查询的学科名称及时间段查出在改时间段内该门课上旷课的人数, 如图5
图3-5查看学生旷课记录子模块
载入学生旷课记录子模块,可以载入实现储存在当前文件夹中txt文件中所储存的数据, 如图6
图3-6载入学生旷课记录子模块

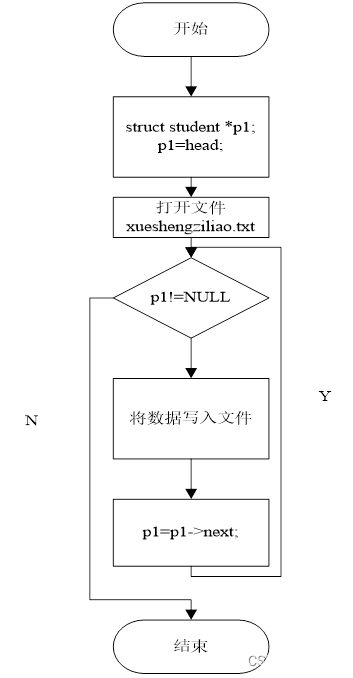

储存学生旷课记录子模快,进入系统界面,顺序的完成各项操作,进行数据的输入,信息的保存调用相应的函数打开相应的地址,查询各项信息。如图7
图3-7储存学生旷课记录子模快
代码块
#include<cstdio> //cstdio是将stdio.h的内容用C++头文件的形式表示出来
#include<iostream>
#include<malloc.h> //malloc的全称是memory allocation,中文叫动态内存分配,当无法知道内存具体位置的时候,想要绑定真正的内存空间,就需要用到动态的分配内存。
#include<cstring> //当调用库函数,客户程序提供的是string类型参数,而库函数内部实现用的是c-串,因此需要将string对象,转化为char*对象,而c_str()提供了这样一种方法,它返回一个客户程序可读不可改的指向字符数组的指针。
#include<iomanip> //I/O流控制头文件
#define NULL 0
#define guding 10
#define LEN sizeof(struct student)
using namespace std;
int student_num;
FILE *fp1;
struct xueke
{char xueke_name[50];
int people_num;
};
struct student
{ char name[50];
long time;
int lesson_time;
char lesson_name[50];
int chidao_num;
int zaotui_num;
int qingjia_num;
int kuangke_num;
struct student *next;
};
void chaxun(struct student *head)
{ int i;
char chaxun_name[50];
cout<<"请输入要查询的人名:";
cin>>chaxun_name;
struct student *p;
if(head==NULL)
cout<<"联系人为空";
p=head;
for(i=0;i<student_num;i++)
{if(strcmp(chaxun_name,p->name)==0)
{cout<<"缺课时间:"<<p->time<<" 学生姓名:"<<p->name<<" 课程名称:"<<p->lesson_name<<" 节次:"<<p->lesson_time<<endl
<<"迟到次数:"<<p->chidao_num<<" 早退次数:"<<p->zaotui_num<<" 请假次数:"<<p->qingjia_num<<" 旷课次数:"<<p->kuangke_num<<endl;
}
p=p->next; }
}
struct student *xiugai(struct student *head)
{char xiugai_name[50];
char xiugai_xueke_name[50];
int k;
cout<<"请输入要修改的学生姓名与学科名称【格式:学生姓名(空格)学科名称】:";
cin>>xiugai_name>>xiugai_xueke_name;
struct student *p1,*p2;
p2=(struct student *)malloc(LEN);
p1=head;
if(head==NULL)
{cout<<"没有学生信息\n";
return head; }
while((strcmp(xiugai_name,p1->name)!=0||strcmp(xiugai_xueke_name,p1->lesson_name)!=0)&&(p1->next!=NULL))
p1=p1->next;
if(strcmp(xiugai_name,p1->name)==0&&strcmp(xiugai_xueke_name,p1->lesson_name)==0)
{ cout<<"==================================== 修改信息 =================================\n";
cout<<" 1-修改缺课时间 \n";
cout<<" 2-修改学生姓名 \n";
cout<<" 3-修改课程名称 \n";
cout<<" 4-修改第几节缺课 \n";
cout<<" 5-修改迟到次数 \n";
cout<<" 6-修改早退次数 \n";
cout<<" 7-修改请假次数 \n";
cout<<" 8-修改旷课次数 \n\n";
cout<<"================================================================================\n";
cin>>k;
switch(k)
{case 1:
cout<<"请输入新的缺课时间:";
cin>>p1->time;
break;
case 2:
cout<<"请输入新的学生姓名:";
cin>>p1->name;
break;
case 3:
cout<<"请输入新的课程名称:";
cin>>p1->lesson_name;
break;
case 4:
cout<<"请输入新的缺课节次:";
cin>>p1->lesson_time;
break;
case 5:
cout<<"请输入新的迟到次数:";
cin>>p1->chidao_num;
break;
case 6:
cout<<"请输入新的早退次数:";
cin>>p1->zaotui_num;
break;
case 7:
cout<<"请输入新的请假次数:";
cin>>p1->qingjia_num;
break;
case 8:
cout<<"请输入新的旷课次数:";
cin>>p1->kuangke_num;
break; }
}
return head;
}
struct student *creat()
{
int i,b;
struct student *head,*p1,*p2;
cout<<"请输入要建立资料的学生人数:";
cin>>b;
head=p2=NULL;
p1=(struct student *)malloc(LEN);
cout<<"【输入格式:缺课时间(空格)学生姓名(空格)课程名称(空格)第几节(空格)迟到次数(空格)早退次数(空格)请假次数(空格)旷课次数】\n";
cout<<"请输入第1名学生信息:";
cin>>p1->time>>p1->name>>p1->lesson_name>>p1->lesson_time>>p1->chidao_num>>p1->zaotui_num>>p1->qingjia_num>>p1->kuangke_num;
head=p1;
p2=p1;
student_num+=1;
for(i=1;i<b;i++)
{
p1=(struct student*)malloc(LEN);
cout<<"请输入第"<<i+1<<"名学生信息:";
cin>>p1->time>>p1->name>>p1->lesson_name>>p1->lesson_time>>p1->chidao_num>>p1->zaotui_num>>p1->qingjia_num>>p1->kuangke_num;
p2->next=p1;
p2=p1;
student_num+=1;
}
p2->next=NULL;
return head;
}
void print(struct student *head)
{struct student *p;
p=head;
if(p==NULL)
cout<<"没有学生信息\n";
while(p!=NULL)
{ cout<<"缺课时间:"<<p->time<<" 学生姓名:"<<setw(10)<<p->name<<" 课程名称:"<<p->lesson_name<<" 节次:"<<p->lesson_time<<endl
<<"迟到次数:"<<p->chidao_num<<" 早退次数:"<<p->zaotui_num<<" 请假次数:"<<p->qingjia_num<<" 旷课次数:"<<p->kuangke_num<<endl;
p=p->next;}
}
struct student *tongji_lesson(struct student *head)
{ struct student *p1,*p2,*p3;
char lesson[50];
long look_time1,look_time2;
int xunhuan_num=0;
p3=(struct student *)malloc(LEN);
if(head==NULL)
{cout<<"没有学生信息";
return(head); }
p1=head;
p2=p1->next;
while(xunhuan_num<student_num)
{while(p2!=NULL)
{
if(p2->kuangke_num>p1->kuangke_num)
{
p3->chidao_num=p2->chidao_num;
p3->kuangke_num=p2->kuangke_num;
p3->qingjia_num=p2->qingjia_num;
p3->zaotui_num=p2->zaotui_num;
p3->lesson_time=p2->lesson_time;
p3->time=p2->time;
strcpy(p3->lesson_name,p2->lesson_name);
strcpy(p3->name,p2->name);
p2->chidao_num=p1->chidao_num;
p2->kuangke_num=p1->kuangke_num;
p2->qingjia_num=p1->qingjia_num;
p2->zaotui_num=p1->zaotui_num;
p2->lesson_time=p1->lesson_time;
p2->time=p1->time;
strcpy(p2->lesson_name,p1->lesson_name);
strcpy(p2->name,p1->name);
p1->chidao_num=p3->chidao_num;
p1->kuangke_num=p3->kuangke_num;
p1->qingjia_num=p3->qingjia_num;
p1->zaotui_num=p3->zaotui_num;
p1->lesson_time=p3->lesson_time;
p1->time=p3->time;
strcpy(p1->lesson_name,p3->lesson_name);
strcpy(p1->name,p3->name);
}
p1=p2;
p2=p2->next;
}
p1=head;
p2=p1->next;
xunhuan_num++;
}
cout<<"请输入要查看的学科名称:";
cin>>lesson;
cout<<"请输入要查看的时间范围【输入格式:时间(空格)时间】";
cin>>look_time1>>look_time2;
p1=head;
while(p1!=NULL)
{if(strcmp(lesson,p1->lesson_name)==0&&look_time1<=p1->time&&p1->time<=look_time2)
cout<<"学生姓名:"<<p1->name<<" 旷课次数:"<<p1->kuangke_num<<endl;
p1=p1->next; }
return head;
}
struct student *tongji_student(struct student *head)
{ struct xueke a[10];
int n,i,j,zhongjian;
struct student *p1;
char zhongjian_name[50];
long look_time1,look_time2;
if(head==NULL)
{cout<<"没有学生信息\n";
return head;
}
cout<<"请输入一共的学科数:";
cin>>n;
for(i=0;i<n;i++)
{cout<<"请输入第"<<i+1<<"个学科名称:";
cin>>a[i].xueke_name;
a[i].people_num=0;
}
cout<<"请输入要查看的时间范围由小到大【输入格式:时间(空格)时间】";
cin>>look_time1>>look_time2;
p1=head;
for(i=0;i<n;i++)
{while(p1!=NULL&&look_time1<=p1->time&&p1->time<=look_time2)
{if(a[i].xueke_name==p1->lesson_name)
a[i].people_num+=p1->kuangke_num;
p1=p1->next;}
p1=head;
}
for(j=0;j<n-1;j++)
for(i=0;i<n-1-j;i++)
{if(a[i].people_num<a[i+1].people_num)
{ zhongjian=a[i+1].people_num;
a[i+1].people_num=a[i].people_num;
a[i].people_num=zhongjian;
strcpy(zhongjian_name,a[i+1].xueke_name);
strcpy(a[i+1].xueke_name,a[i].xueke_name);
strcpy(a[i].xueke_name,zhongjian_name);}
else if(a[i].people_num==a[i+1].people_num&&strcmp(a[i].xueke_name,a[i+1].xueke_name)>0)
{ zhongjian=a[i+1].people_num;
a[i+1].people_num=a[i].people_num;
a[i].people_num=zhongjian;
strcpy(zhongjian_name,a[i+1].xueke_name);
strcpy(a[i+1].xueke_name,a[i].xueke_name);
strcpy(a[i].xueke_name,zhongjian_name);}
}
for(i=0;i<n;i++)
{cout<<"学科名称:"<<a[i].xueke_name<<" 旷课次数:"<<a[i].people_num<<endl;
return head;}
return head;
}
struct student *zairu()
{struct student *p1=NULL,*p2=NULL,*head=NULL;
struct student student_ziliao[100];
int i=0,n=0;
if((fp1=fopen("xueshengziliao.txt","rb+"))==NULL)
{ printf("cannot open file\n");
return(head); }
while(!feof(fp1))
{if(fread(&student_ziliao[i],LEN,1,fp1)!=1)
{if(feof(fp1))
{fclose(fp1);
break; }
printf("file read error\n");}
i++;
}
n=i;
student_num=n;
p1=p2=(struct student *)malloc(LEN);
head=p1;
for(i=0;i<n;i++)
{p1->chidao_num=student_ziliao[i].chidao_num;
p1->kuangke_num=student_ziliao[i].kuangke_num;
strcpy(p1->lesson_name,student_ziliao[i].lesson_name);
p1->lesson_time=student_ziliao[i].lesson_time;
strcpy(p1->name,student_ziliao[i].name);
p1->qingjia_num=student_ziliao[i].qingjia_num;
p1->time=student_ziliao[i].time;
p1->zaotui_num=student_ziliao[i].zaotui_num;
p2->next=p1;
p2=p1;
p1=(struct student*)malloc(LEN); }
p2->next=NULL;
return(head);
}
void chucun(struct student *head)
{ struct student *p1;
p1=head;
fp1=fopen("xueshengziliao.txt","wb+");
while(p1!=NULL)
{fwrite(p1,LEN,1,fp1);
p1=p1->next; }
fclose(fp1);
cout<<" 储存成功\n";
}
void main()
{
struct student *head;
int a,b,c;
zhuye: cout<<"$$$$$$$$$$$$$$$$$$$$$$ 欢迎使用学生考勤管理系统 V1.0.0 $$$$$$$$$$$$$$$$$$\n";
cout<<" 1_进入管理\n\n\n";
cout<<" 2_查看系统相关信息\n\n\n";
cout<<"$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$\n\n\n\n\n";
cin>>a;
if(a==1)
{
do
{ cout<<"********************************************************************************\n";
cout<<" 1_建立学生缺课记录\n";
cout<<" 2_修改学生缺课记录\n";
cout<<" 3_查询学生缺课记录\n";
cout<<" 4_查看单科旷课记录\n";
cout<<" 5_查看学生旷课记录\n";
cout<<" 6_载入学生旷课记录\n";
cout<<" 7_储存学生旷课记录\n";
cout<<" 8_退出考勤管理程序\n";
cout<<"********************************************************************************\n";
cin>>b;
switch(b)
{
case 1:
head=creat();
print(head);
break;
case 2:
head=xiugai(head);
print(head);
break;
case 3:
chaxun(head);
break;
case 4:
head=tongji_lesson(head);
break;
case 5:
head=tongji_student(head);
break;
case 6:
head=zairu();print(head);
break;
case 7:
chucun(head);
break;}
}while(b!=8);
}
else
{cout<<"******************************欢迎使用本系统 **************************************\n";
cout<<"******************************返回主页请按1*************************************\n";
cin>>c;
if(c==1)
goto zhuye;
