前言：

虽然Leaflet提供了强大的画图工具，不过它的速度不是很尽人意，当数据量较大的时候，需要较长的渲染时间，交互好感度会降低。因此我们可以考虑使用D3，在leaflet的地图上蒙上一个svg，在svg上画图会加快一些速度，获得更好的交互体验。

D3官网上有Leaflet+D3的相关介绍https://bost.ocks.org/mike/leaflet/

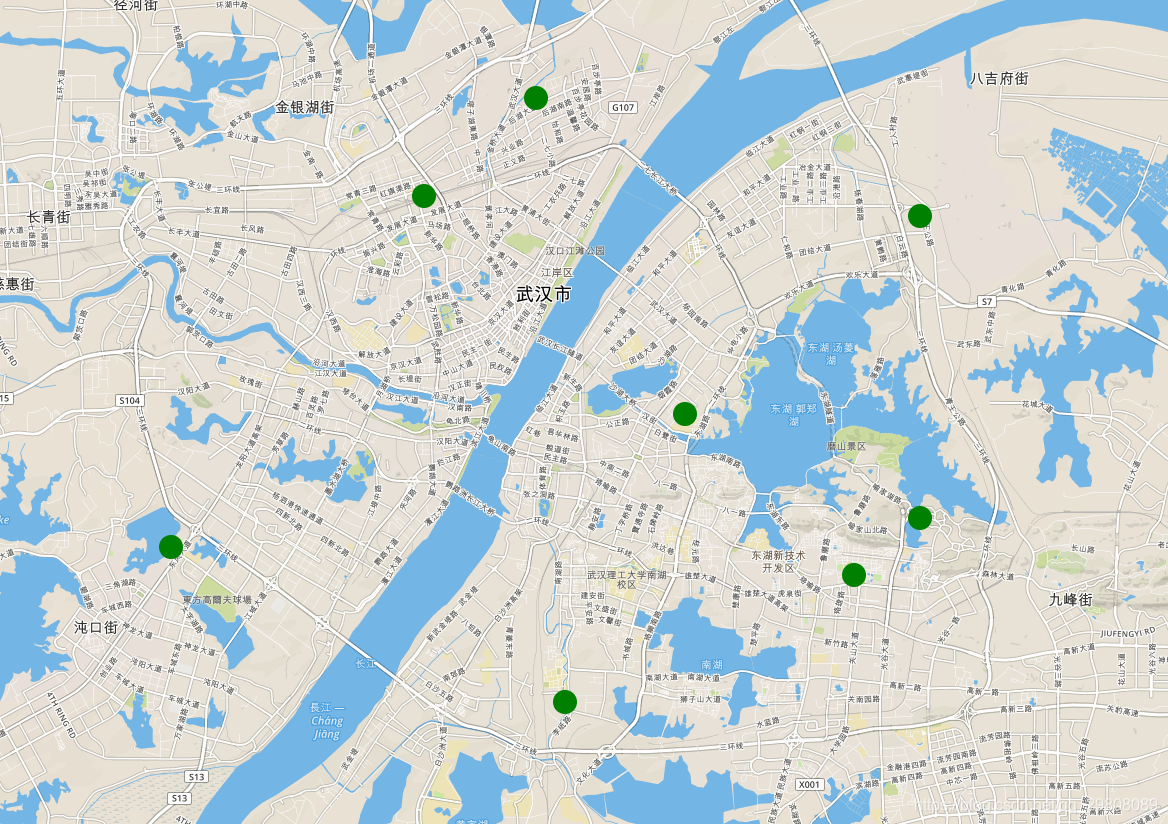

效果图如下：

实现效果代码：

<!DOCTYPE html>
<html>
	<head>
		<script type="text/javascript" src="http://d3js.org/d3.v3.min.js"></script>

		<meta charset="utf-8" />

		<meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no"
		 ">

    <link rel=" stylesheet" href="https://unpkg.com/leaflet@1.1.0/dist/leaflet.css" integrity="sha512-wcw6ts8Anuw10Mzh9Ytw4pylW8+NAD4ch3lqm9lzAsTxg0GFeJgoAtxuCLREZSC5lUXdVyo/7yfsqFjQ4S+aKw=="
		 crossorigin="" />
		<script src="https://unpkg.com/leaflet@1.1.0/dist/leaflet.js" integrity="sha512-mNqn2Wg7tSToJhvHcqfzLMU6J4mkOImSPTxVZAdo+lcPlk+GhZmYgACEe0x35K7YzW1zJ7XyJV/TT1MrdXvMcA=="
		 crossorigin=""></script>
		<style>
			body {
				padding: 0;
				margin: 0;
			}

			html,
			body,
			#mapid {
				height: 100%;
				width: 100%;
			}
		</style>
	</head>
	<body>
		<script src="http://d3js.org/d3.v3.min.js"></script>
		<div id="mapid"></div>
		<script>
			var mymap = L.map('mapid').setView([30.555684, 114.295488], 12);
			L.tileLayer(
				'https://api.tiles.mapbox.com/v4/{id}/{z}/{x}/{y}.png?access_token=pk.eyJ1IjoibWFwYm94IiwiYSI6ImNpejY4NXVycTA2emYycXBndHRqcmZ3N3gifQ.rJcFIG214AriISLbB6B5aw', {
					maxZoom: 18,
					id: 'mapbox.streets'
				}).addTo(mymap);

			//加载SVG
			//The data for our line
			var lines = new Array();


			var circleData = [{
					"lat": "30.653658",
					"lng": "114.296638"
				},
				{
					"lat": "30.529309",
					"lng": "114.428294"
				},
				{
					"lat": "30.520847",
					"lng": "114.171307"
				},
				{
					"lat": "30.475042",
					"lng": "114.306412"
				},
				{
					"lat": "30.596726",
					"lng": "114.546726"
				},
				{
					"lat": "30.618608",
					"lng": "114.428294"
				},
				{
					"lat": "30.624575",
					"lng": "114.258119"
				},
				{
					"lat": "30.777598",
					"lng": "114.219025"
				},
				{
					"lat": "30.512509",
					"lng": "114.405872"
				},
				{
					"lat": "30.560225",
					"lng": "114.347626"
				}
			];
			//加载SVG
			var svg = d3.select(mymap.getPanes().overlayPane).append("svg").attr("class", "leaflet-zoom-hide"),
				g = svg.append("g");
			var jsonCircles = new Array();

			function drawCircle() {
				circleData.forEach(function(d) {
					console.log(d);
					jsonCircles.push({
						"x_axis": d.lat,
						"y_axis": d.lng,
						"radius": 12,
						"color": "green"
					});
				});
				console.log("drawCircle");
				console.log(jsonCircles);
				var t = svg.selectAll("circle")
					.data(jsonCircles);
				var circleAttributes =
					t
					.enter()
					.append("circle")
					.attr("cx", function(d) {
						console.log(mymap.latLngToLayerPoint(L.latLng(d.x_axis, d.y_axis)));
						return mymap.latLngToLayerPoint(L.latLng(d.x_axis, d.y_axis)).x;
					})
					.attr("cy", function(d) {
						return mymap.latLngToLayerPoint(L.latLng(d.x_axis, d.y_axis)).y;
					})
					.attr("r", function(d) {
						return d.radius;
					})
					.style("fill", function(d) {
						return d.color;
					});

			}
			//调整圆的大小，在onMapZoom中调用
			function adjustCircle() {
				console.log("draw");
				d3.selectAll("circle")
					.attr('cx', o => mymap.latLngToLayerPoint([o.x_axis, o.y_axis]).x)
					.attr('cy', o => mymap.latLngToLayerPoint([o.x_axis, o.y_axis]).y);
			}
			//鼠标缩放操作
			function onMapZoom() {
				//adjustSVG();
				adjustCircle();
			}

			function initial() {
				svg.attr("width", 1500)
					.attr("height", 800);
				drawCircle();
			}

			//初始化画图的函数
			initial();
			//事件响应
			mymap.on('zoom', onMapZoom);
		</script>

	</body>
</html>
