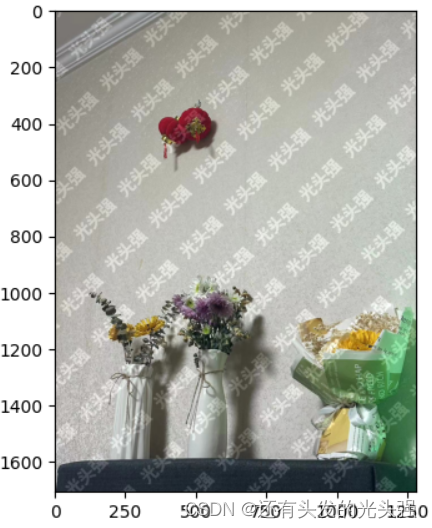

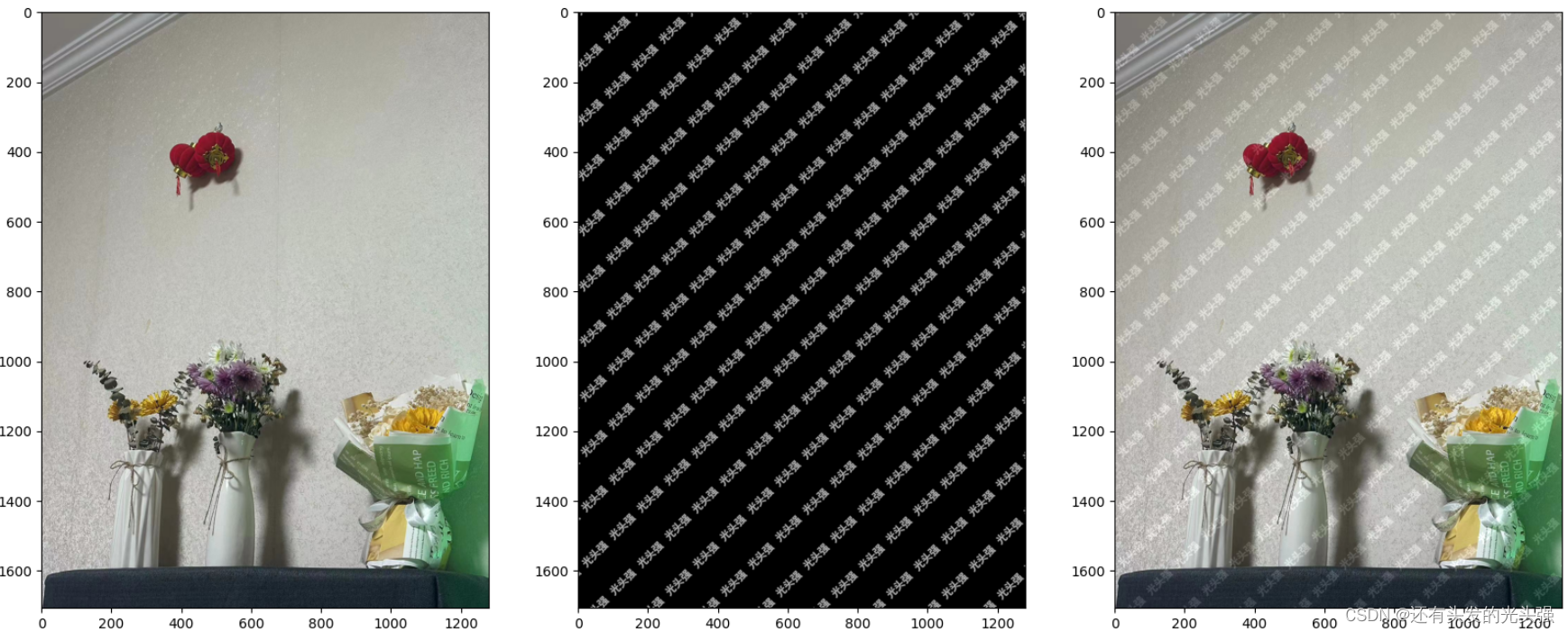

别的不说，先上来看看效果

场景

最近本人由于工作原因在学习使用opencv，同事最近正好帮同事一个忙，搞一个能够为图片增加水印的算法，要求是水印成45度角填满整个背景图，后来由于需求的变更做了别的版本的代码，为了不让自己的努力白费，记录一下原始代码的思路。

思路

制作水印的思路如下：

1. 首先生成一张比较长单行水印图，在后期进行贴图

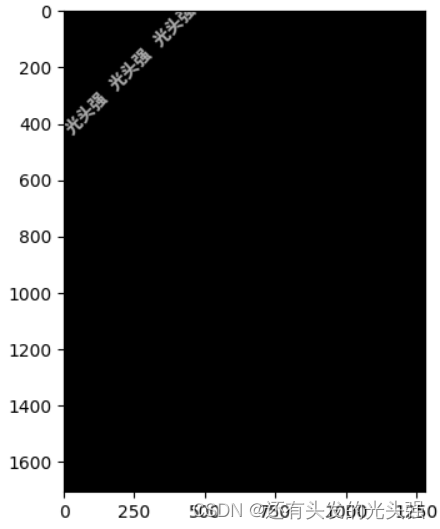

2. 对贴图进行仿射变换，旋转45°，获得旋转矩阵

   使用opencv的官方代码，令旋转中心为单行水印图的中心，旋转45°

   M = cv2.getRotationMatrix2D((int(bar_w/2),int(bar_h/2)),45,1)


3. 修改旋转矩阵，将图选购平移到原点附近


   # 矩阵的第三列为平移参数，可以将旋转后的图像平移到中心
   M[0][2] = M[0][2] - bar_w/2
   M[1][2] = M[1][2] - bar_h/2

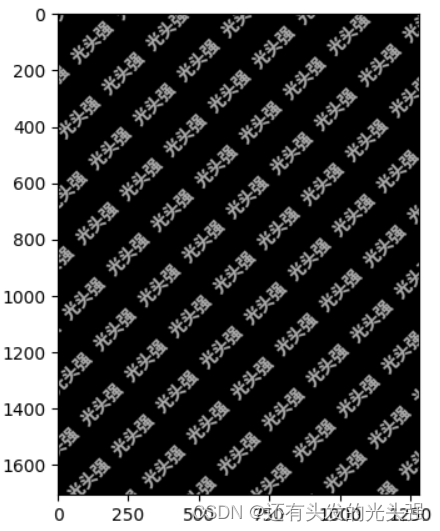

4. 根据字体的大小以及间距，不断贴图直至水印充满整个背景图

# 不断平移
    M[0][2] += i * (间隔距离+ 字号)
    M[1][2] += i * (间隔距离+ 字号)

5. 使用cv2.copyTo函数将非黑色的部分贴到背景上



CODE

运行这份脚本需要使用的依赖如下：

import os
import cv2
import math
import random
import numpy as np
from matplotlib import pyplot as plt
from PIL import ImageFont, Image, ImageDraw

核心代码：

def text_bar(mask_shape, text, text_size, text_gray, font_path):
    """
    This method get mark bar.

    Input:
        mask_shape: The shape of mark (H,W).
        text: The text of watermarking.
        text_size: The size of word
        text_gray: 1-255
        font_path: The path of word font.

    Output:
        bar: The img_data contain the watermark (RGB)
    """

    # 获取 watermarking bar
    (H, W) = mask_shape
    draw_text = ""
    for i in range(100):
        draw_text += "   {}".format(text)
    bar_w = int(2*math.sqrt((H**2 + W**2)))
    bar_h = int(text_size * 1.1)
    bar = Image.new('RGB', (bar_w, bar_h))
    draw = ImageDraw.Draw(bar)
    font1 = ImageFont.truetype(font_path, text_size)
    t_loc_x = int(text_size * random.uniform(0.1,0.5)+3)
    t_loc_y = int((bar_h - text_size)/2)
    draw.text((t_loc_x, t_loc_y), draw_text, fill = (text_gray, text_gray ,text_gray),font=font1)
    return bar

def water_mask(img_data, text, text_size, text_gray, interval_size, font_path):
    """
    This method get watermarking of a picture.

    Input:
        img_data: The img_data base on numpy.
        text: The text of watermarking.
        text_size: The size of word
        text_gray: 1-255
        interval_size: The interval distance between 2 marking.
        font_path: The path of word font.

    Output:
        res_data: The img_data contain the watermark based on numpy (H,W,3)(BGR)
    """
    (H,W,C) = img_data.shape
    # 获取蒙版
    Mask = np.zeros((H,W,C)).astype(np.int8)

    # 获取 watermarking bar
    bar = text_bar((H,W), text, text_size, text_gray, font_path)
    cv_bar = np.asarray(bar)
    cv_bar = cv2.cvtColor(cv_bar, cv2.COLOR_RGB2BGR)

    # (BGR)

    bar_h, bar_w, _ = cv_bar.shape

    # 获得旋转矩阵
    paste_time = int((H + W) / (text_size + interval_size)) + 1
    for i in range(paste_time):
        paste_img = cv_bar.copy()
        M = cv2.getRotationMatrix2D((int(bar_w/2),int(bar_h/2)),45,1)
        M[0][2] = M[0][2] - bar_w/2 + i * (interval_size + text_size)
        M[1][2] = M[1][2] - bar_h/2 + i * (interval_size + text_size)
        dst= cv2.warpAffine(paste_img, M, (int(W),int(H)), borderValue=0)
        Mask = cv2.copyTo(src=dst, mask=dst, dst=Mask)

    # Mask = cv2.cvtColor(Mask, cv2.COLOR_BGR2BGR)

    return Mask

def gradualMask(Mask):
    """
    Mask : The Mask of watermark, it's channel is BGR
    """
    c_d = 60

    Mask[160:860,160:560,:] = 0
    w_s = 160-c_d
    w_e = 560+c_d

    h_s = 160-c_d
    h_e = 860+c_d

    for i in range(c_d):
        Mask[h_s+i:h_e-i, w_s+i:w_e-i,:] = Mask[h_s+i:h_e-i, w_s+i:w_e-i,:] * 0.9555

    Mask = Mask.astype(np.uint8)
    return Mask

def hybrid_img(Mask, Img_data, transparent):
    """
    The metho can hybrid the watermark and background img.

    Input:
        Mask : The Mask of watermark, it's channel is BGR
        Img_data : The img data that you want to add watermark, its channel is BGR
        transparent: The transparent ratio of watermark(0-1)

    Output:
        res: The output img, its channel is BGR

    """
    # Mask[:,:,3] = transparent
    # Img_data = cv2.cvtColor(Img_data, cv2.COLOR_BGR2BGRA)
    process = Img_data.copy()
    process = process.astype(np.uint8)
    res = cv2.addWeighted(process, 1, Mask, transparent,0)
    res = cv2.cvtColor(res, cv2.COLOR_BGRA2BGR)

    return res

img = cv2.imread("Path/to/img.png")
Mask = water_mask(img, "光头强", 60, 169, 50, "Path/to/fontfile/SOURCEHANSANSCN_HEAVY.OTF")
res = hybrid_img(Mask, img, 0.2)
res = cv2.cvtColor(res, cv2.COLOR_BGR2RGB)
