vl01/vl02/vl03 交货单屏幕增强

步骤

1、在相应的表里加附加字段（抬头数据 likp,  行项目数据lips)

2、编写程序 或者 函数组,创建屏幕，画出屏幕布局

3、交货单抬头屏幕增强BADI：LE_SHP_TAB_CUST_HEAD .

    交货单行项目屏幕增强BADI：LE_SHP_TAB_CUST_ITEM

---

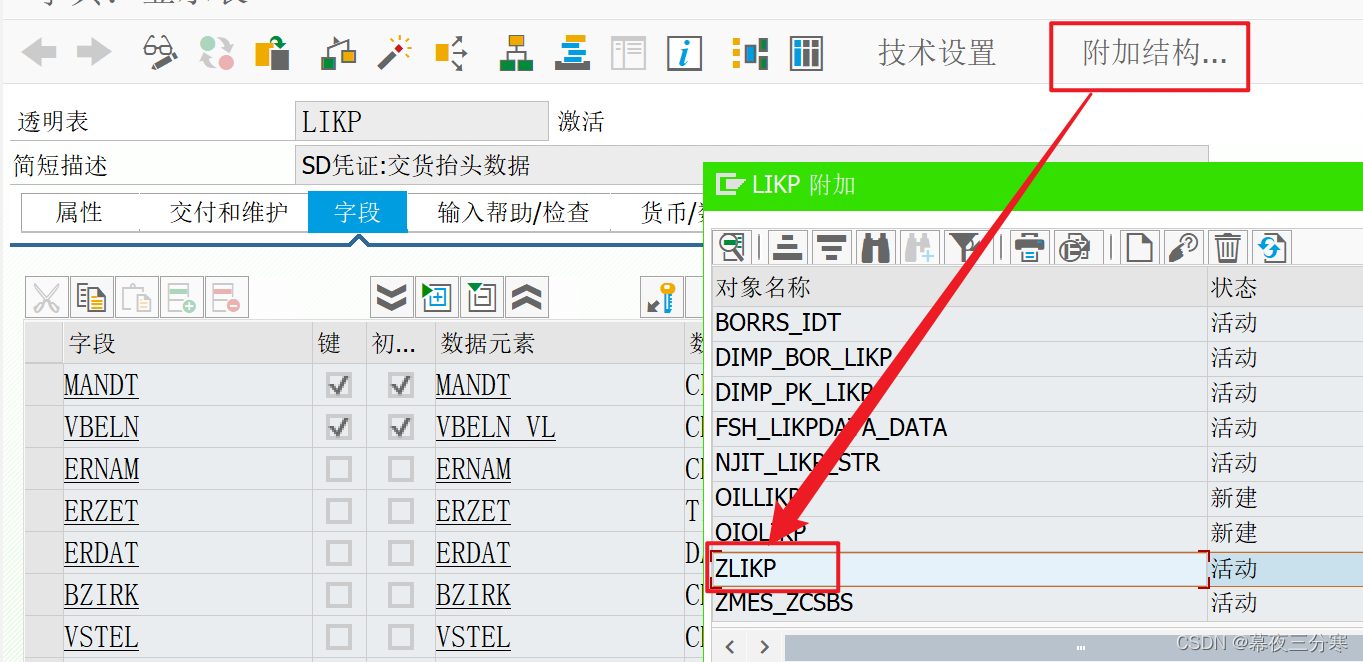

1、在相应的表里加附加字段（抬头数据 likp,  行项目数据lips)

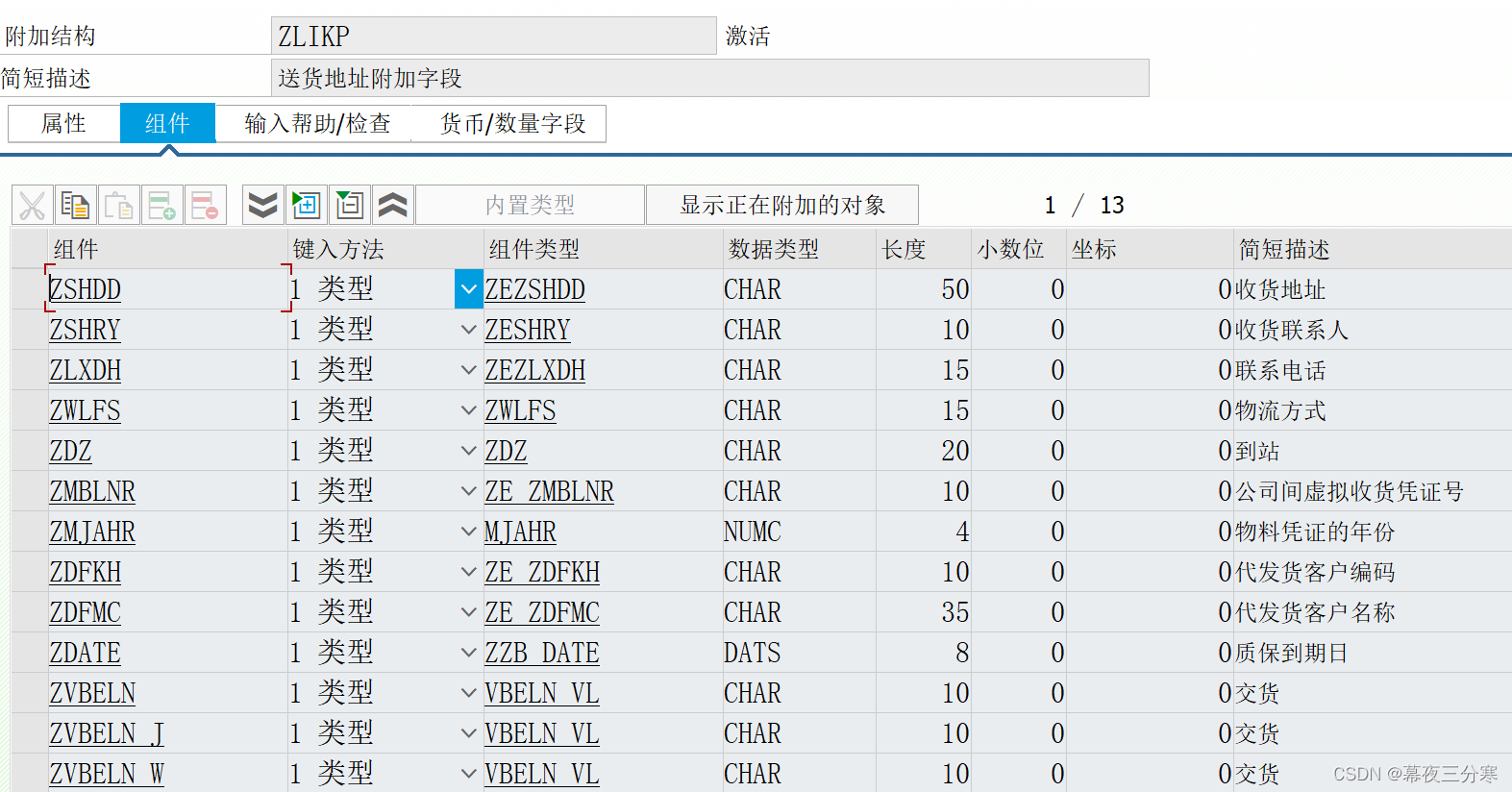

  a、抬头数据

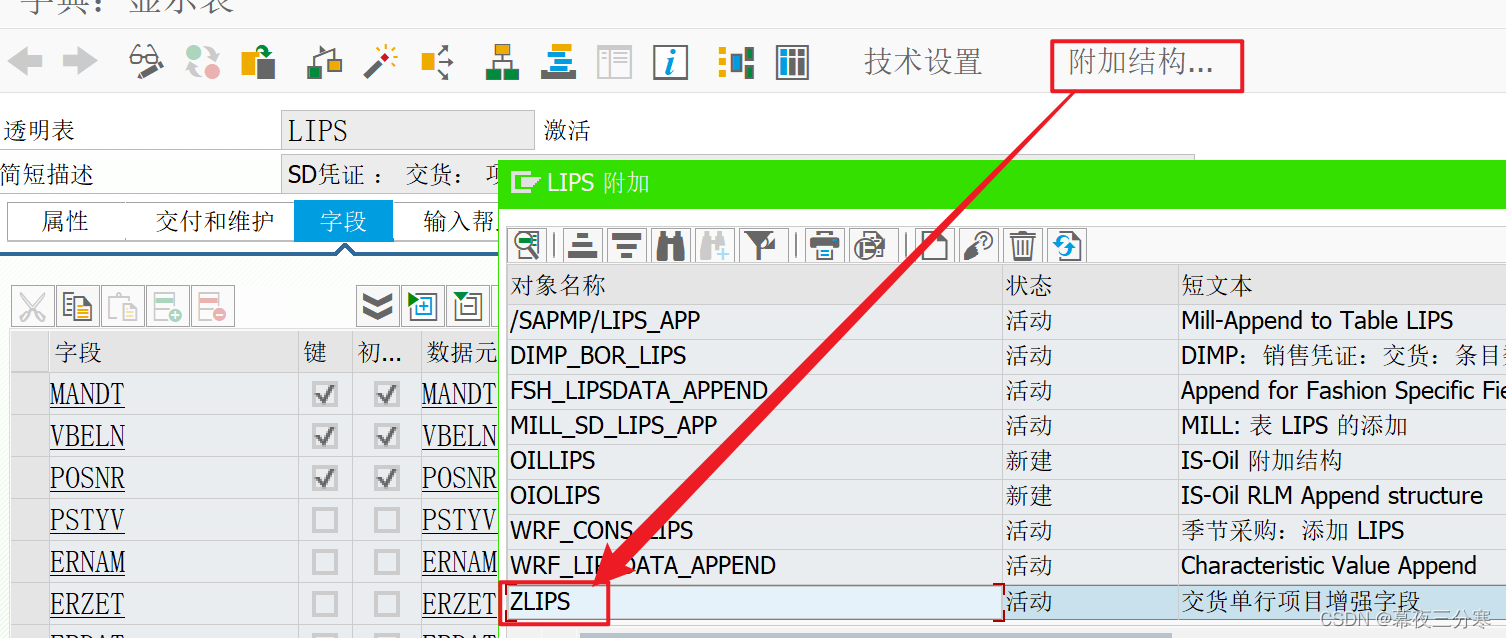

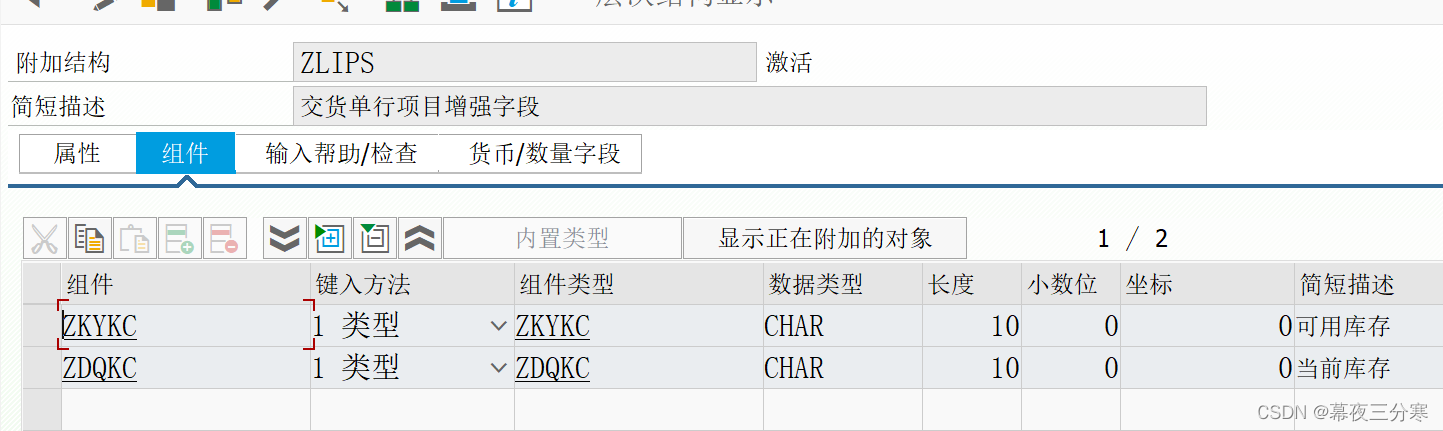

 b、行项目数据





2、编写程序 或者 函数组,创建屏幕，画出屏幕布局

 我在这里是建了一个程序，函数组也一样的，

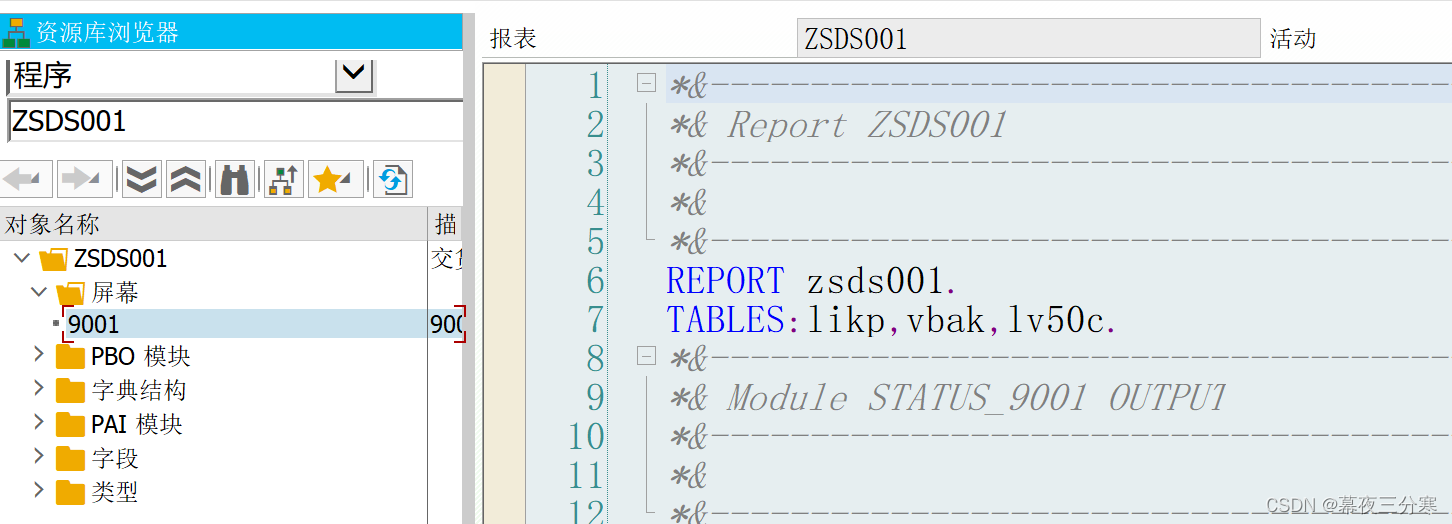

  a、建立程序，建立屏幕9001，安排好样式

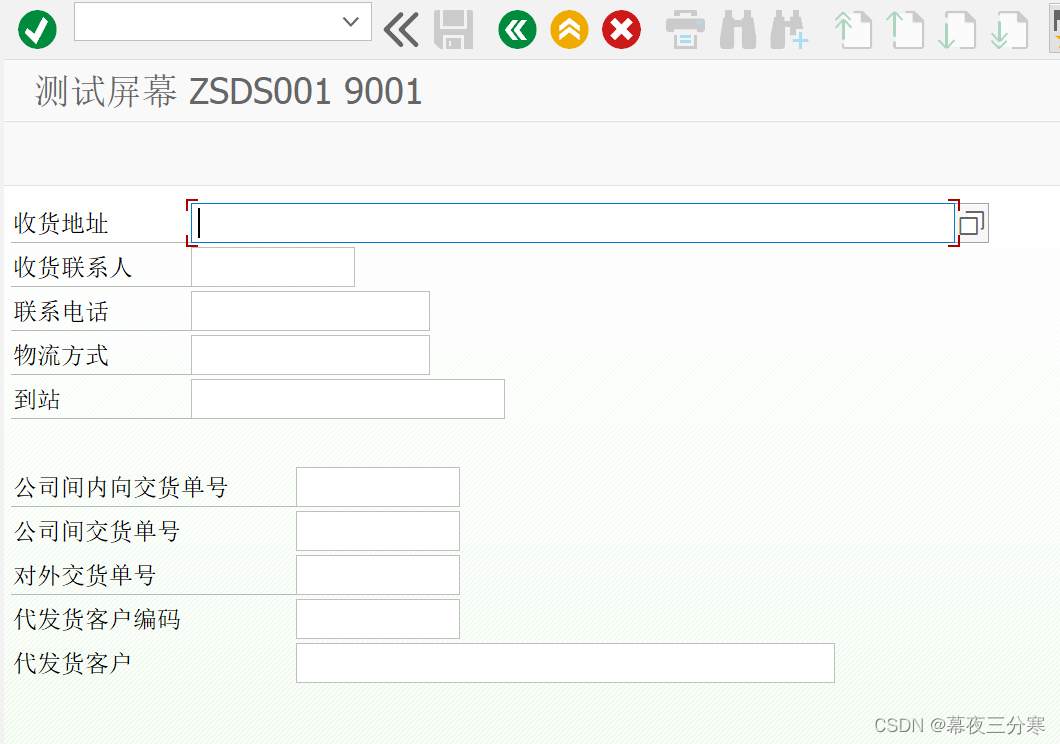

屏幕9001

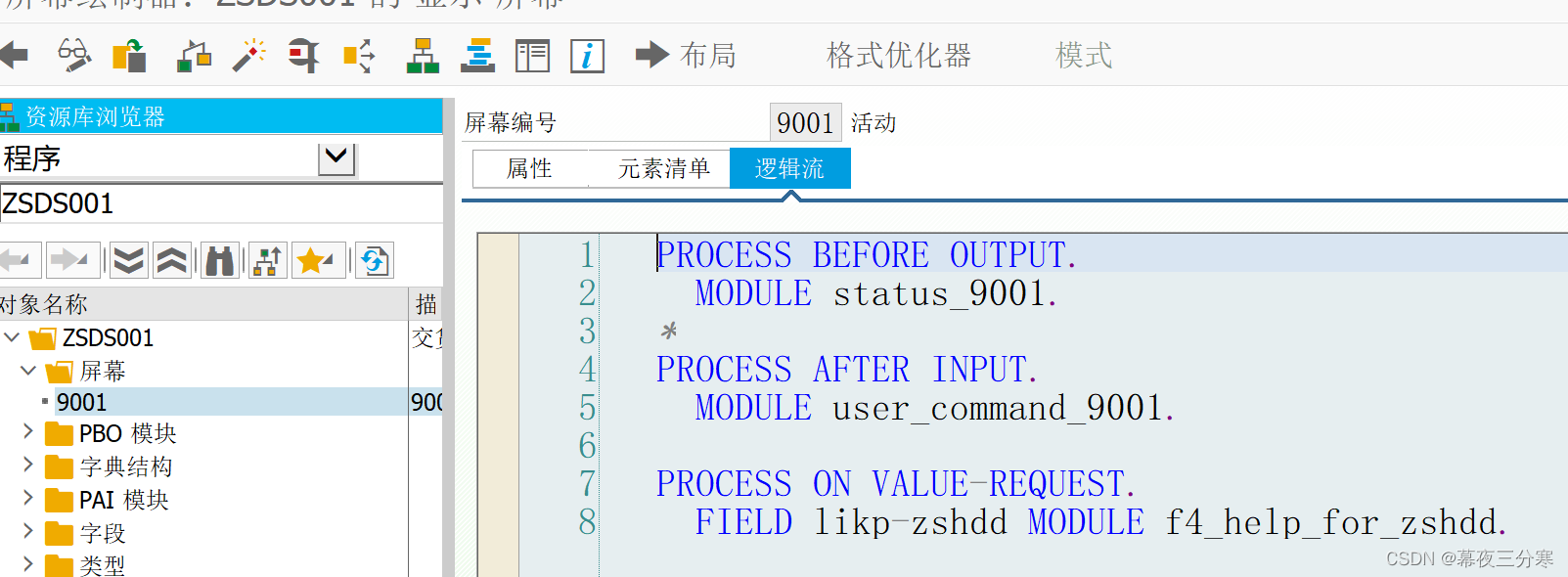

 屏幕的逻辑流

 "获取表里数据，或者填的数据  lv_trtyp 这个字段是判断当前状态是不是为编辑，比如事务码为vl03，但是我们点编辑，这个时候单纯的判断事务码就不能实现显示和修改



在显示之前 通过   GET PARAMETER ID 'ZSHDD' FIELD likp-zshdd.  的方法获取对应的值

MODULE status_9001 OUTPUT.

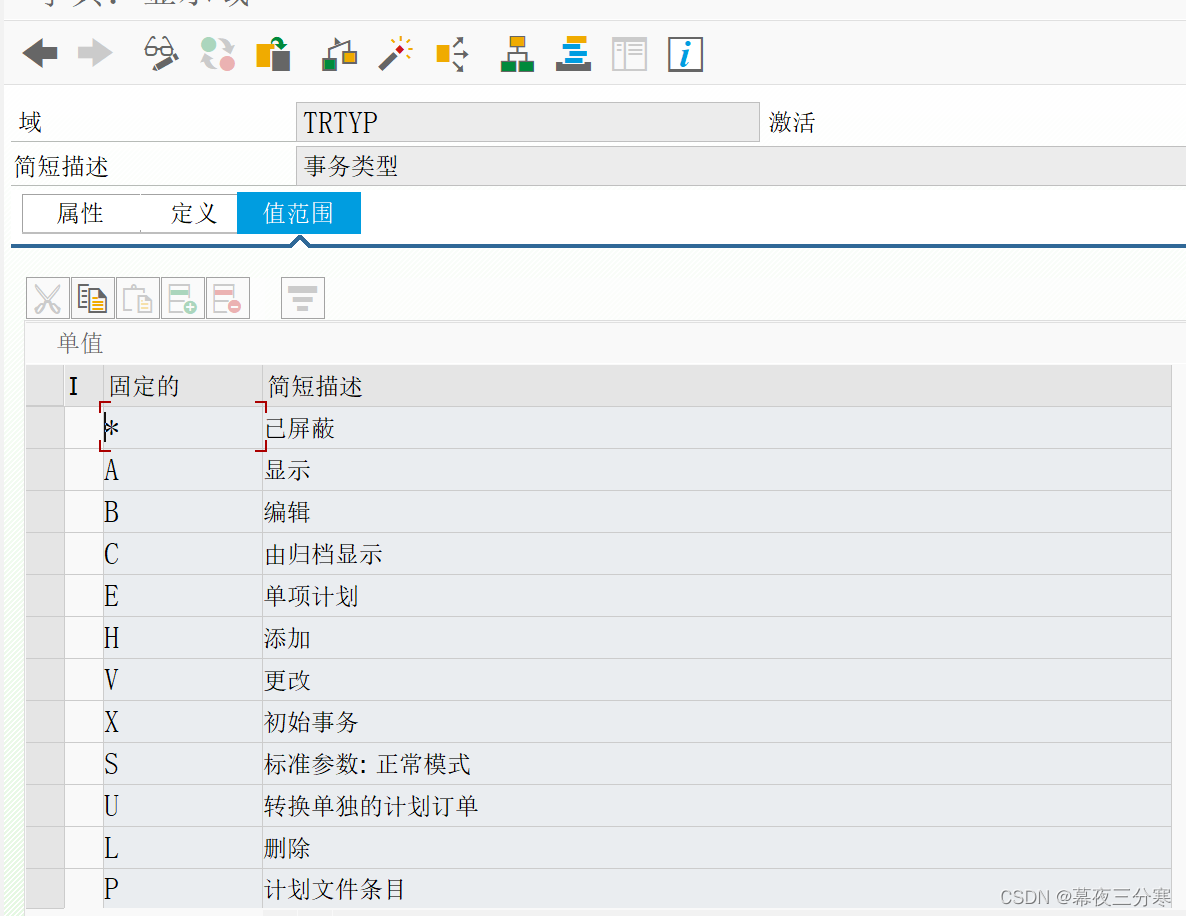

  "修改显示标识 A 显示,V 修改
  "DATA lv_trtyp TYPE trtyp.

* SET PF-STATUS 'xxxxxxxx'.
* SET TITLEBAR 'xxx'.
  GET PARAMETER ID 'ZSHDD' FIELD likp-zshdd.
  GET PARAMETER ID 'ZSHRY' FIELD likp-zshry.
  GET PARAMETER ID 'ZLXDH' FIELD likp-zlxdh.
  GET PARAMETER ID 'ZWLFS' FIELD likp-zwlfs.
  GET PARAMETER ID 'ZDZ'   FIELD likp-zdz.
  GET PARAMETER ID 'ZMBLNR' FIELD likp-zmblnr.
  GET PARAMETER ID 'MJA'   FIELD likp-zmjahr.
  GET PARAMETER ID 'ZDFKH' FIELD likp-zdfkh.
  GET PARAMETER ID 'ZDFMC' FIELD likp-zdfmc.
  GET PARAMETER ID 'ZVBELN' FIELD likp-zvbeln.
  GET PARAMETER ID 'ZVBELN_J' FIELD likp-zvbeln_j.
  GET PARAMETER ID 'ZVBELN_W' FIELD likp-zvbeln_w.
  GET PARAMETER ID 'ZTYP'  FIELD DATA(lv_trtyp).
  GET PARAMETER ID 'LFART'  FIELD DATA(lv_lfart).

  IF sy-tcode = 'VL03N'.
    LOOP AT SCREEN.
      IF   screen-name = 'LIKP-ZSHDD'  OR screen-name = 'LIKP-ZSHRY'
        OR screen-name = 'LIKP-ZLXDH'
        OR screen-name = 'LIKP-ZWLFS'  OR screen-name = 'LIKP-ZDZ'
        OR screen-name = 'LIKP-ZMBLNR' OR screen-name = 'LIKP-ZMJAHR'
        OR screen-name = 'LIKP-ZDFKH'  OR screen-name = 'LIKP-ZDATE'
        OR screen-name = 'LIKP-ZDFMC' OR screen-name = 'LIKP-ZVBELN' OR screen-name = 'LIKP-ZVBELN_J' OR screen-name = 'LIKP-ZVBELN_W'.
        screen-input = 0.
        MODIFY SCREEN.
      ENDIF.
    ENDLOOP.
  ENDIF.

  LOOP AT SCREEN.
    IF screen-name = 'LIKP-ZSHDD'  OR screen-name = 'LIKP-ZSHRY'
    OR screen-name = 'LIKP-ZLXDH'  OR screen-name = 'LIKP-ZDATE'
    OR screen-name = 'LIKP-ZWLFS'  OR screen-name = 'LIKP-ZDZ'
    OR screen-name = 'LIKP-ZMBLNR' OR screen-name = 'LIKP-ZMJAHR'
    OR screen-name = 'LIKP-ZDFKH'  OR screen-name = 'LIKP-ZDFMC' OR screen-name = 'LIKP-ZVBELN' OR screen-name = 'LIKP-ZVBELN_J' OR screen-name = 'LIKP-ZVBELN_W'.
      IF lv_trtyp = 'A'.
        screen-input = 0.
      ELSEIF lv_trtyp = 'V'.
        screen-input = 1.
      ENDIF.
      MODIFY SCREEN.
    ENDIF.
  ENDLOOP.

  IF sy-tcode = 'VL01N'.
    IF likp-zshdd IS INITIAL.
      SELECT SINGLE
        zshdd
        zshry
        zlxdh
        zwlfs
        zdz
        INTO (likp-zshdd,likp-zshry,likp-zlxdh,likp-zwlfs,likp-zdz)
        FROM vbak
        WHERE vbeln = lv50c-vbeln.
    ENDIF.
    IF likp-zdfkh IS INITIAL AND lv_lfart = 'ZLF'.
      SELECT SINGLE
        zdfkh
        zdfmc
        FROM vbak
        INTO (likp-zdfkh,likp-zdfmc)
        WHERE vbeln = lv50c-vbeln.
    ENDIF.
  ENDIF.
ENDMODULE.

修改或者按钮以后把值写回去



MODULE user_command_9001 INPUT.

  SET PARAMETER ID 'ZSHDD' FIELD likp-zshdd.
  SET PARAMETER ID 'ZSHRY' FIELD likp-zshry.
  SET PARAMETER ID 'ZLXDH' FIELD likp-zlxdh.
  SET PARAMETER ID 'ZWLFS' FIELD likp-zwlfs.
  SET PARAMETER ID 'ZDZ' FIELD likp-zdz.
  SET PARAMETER ID 'ZMBLNR' FIELD likp-zmblnr.
  SET PARAMETER ID 'MJA' FIELD likp-zmjahr.
  SET PARAMETER ID 'ZDFKH' FIELD likp-zdfkh.
  SET PARAMETER ID 'ZDFMC' FIELD likp-zdfmc.
  SET PARAMETER ID 'ZVBELN' FIELD likp-zvbeln.
  SET PARAMETER ID 'ZVBELN_J' FIELD likp-zvbeln_j.
  SET PARAMETER ID 'ZVBELN_W' FIELD likp-zvbeln_w.
  "  SET PARAMETER ID 'ZDTE' FIELD likp-zdate.
ENDMODULE.

3、交货单抬头屏幕增强BADI：LE_SHP_TAB_CUST_HEAD

  通过方法跟标准程序关联，回写和读取增强数据

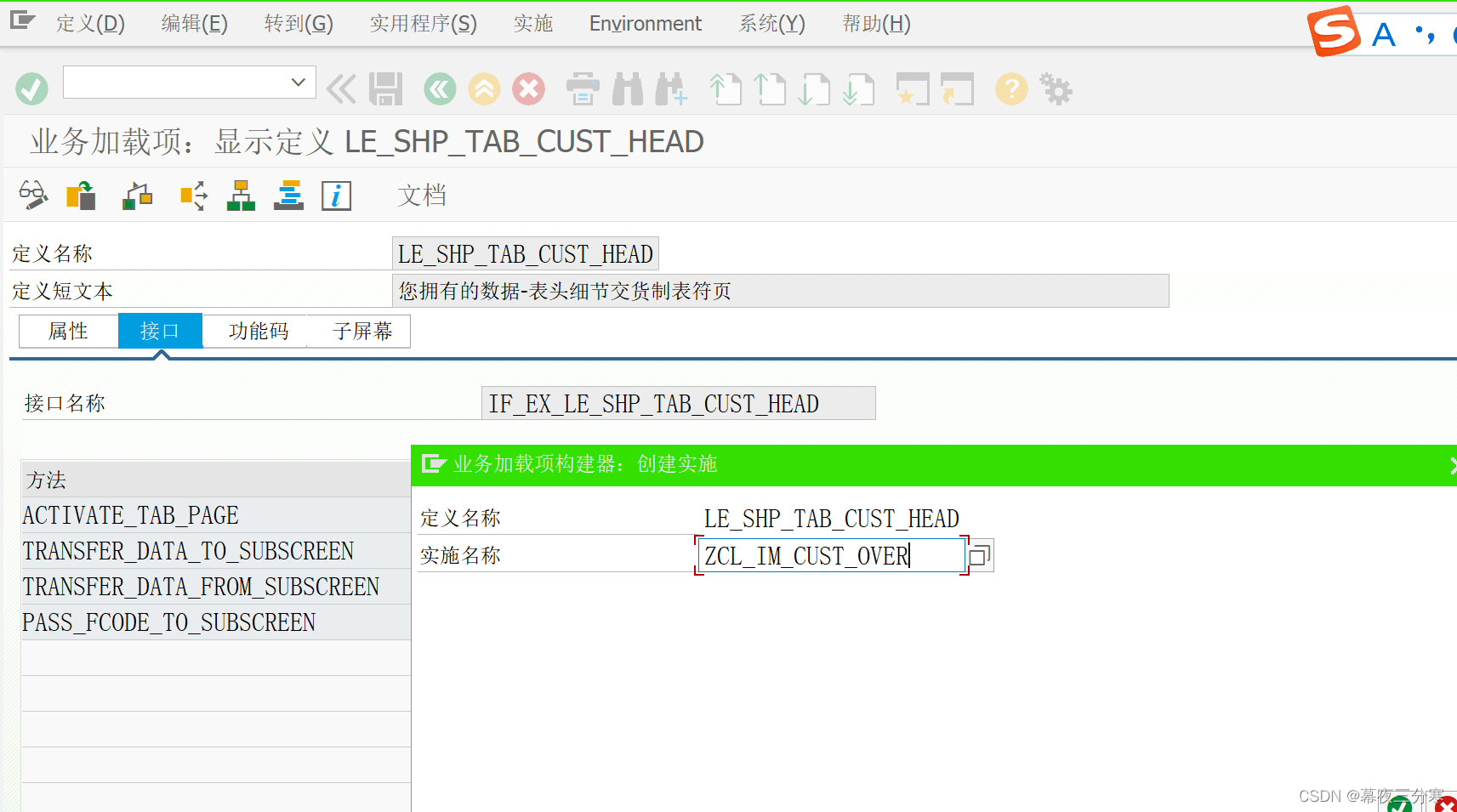

se18 BADI 创建实施

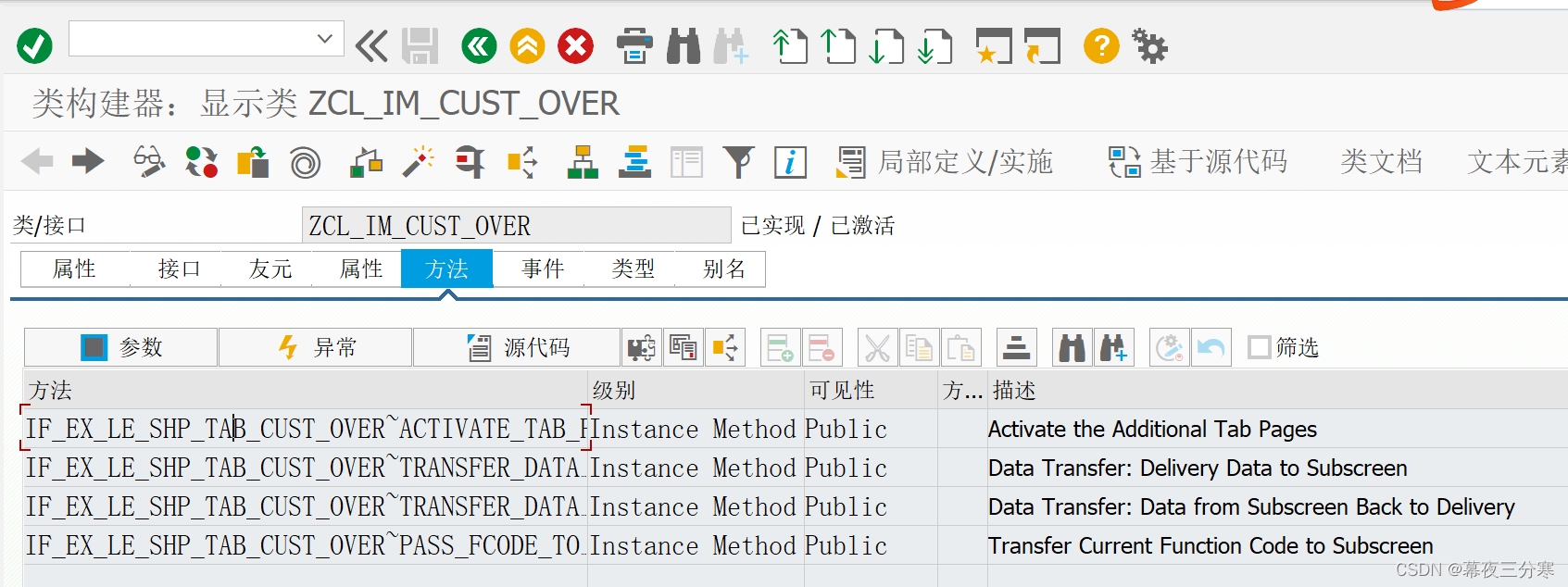

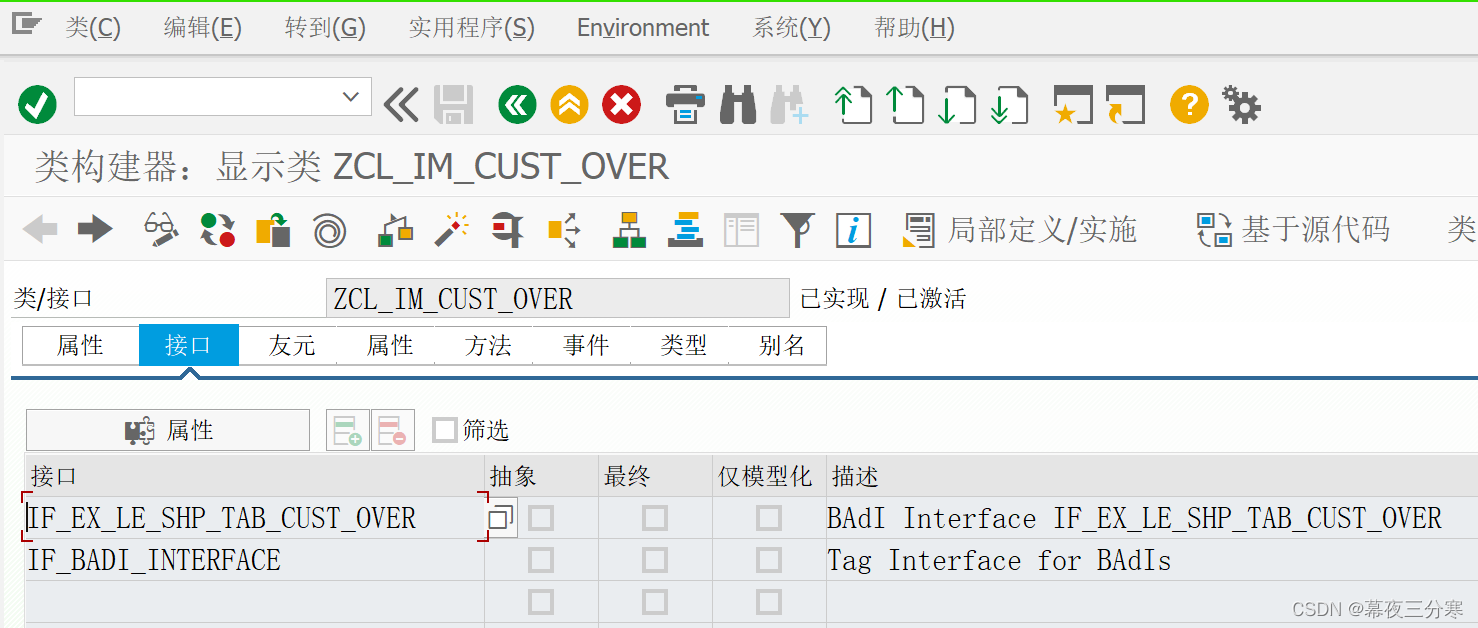

也可以自己建个方法：

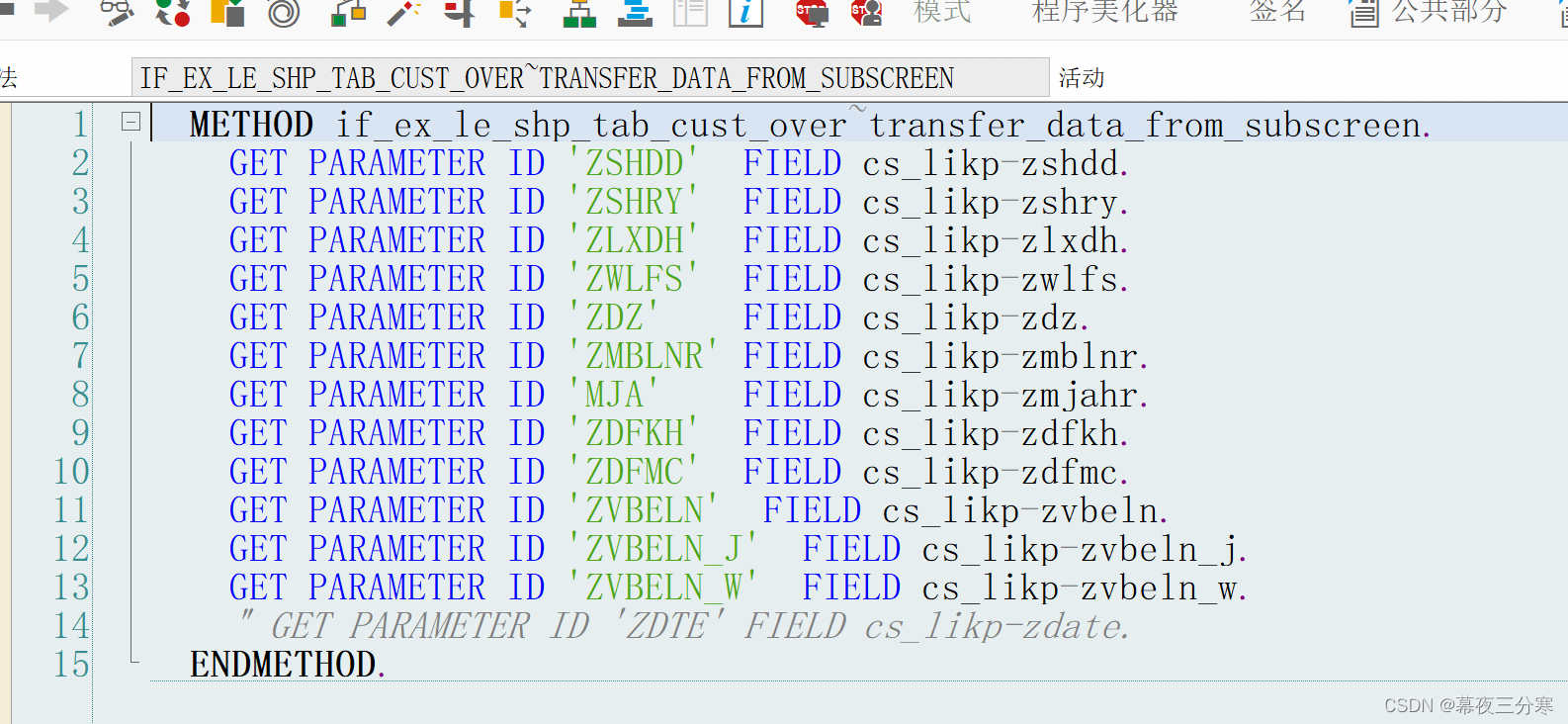

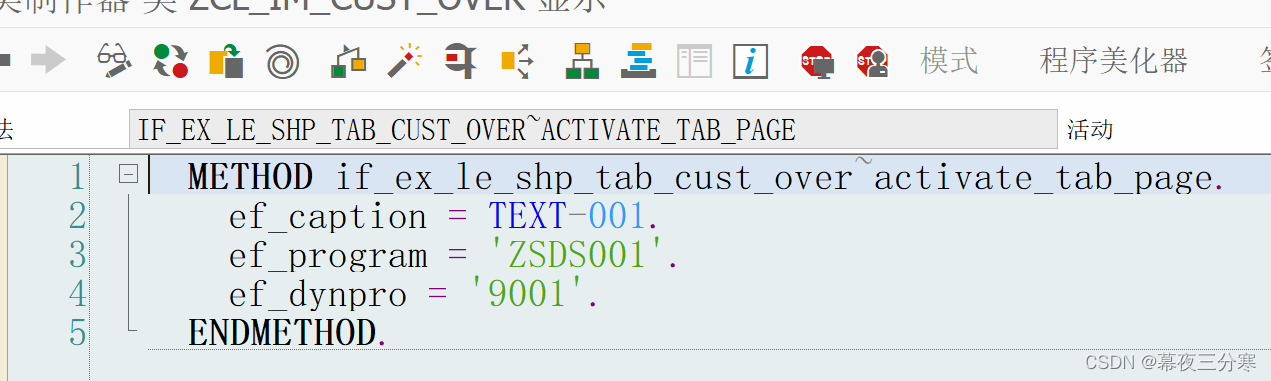

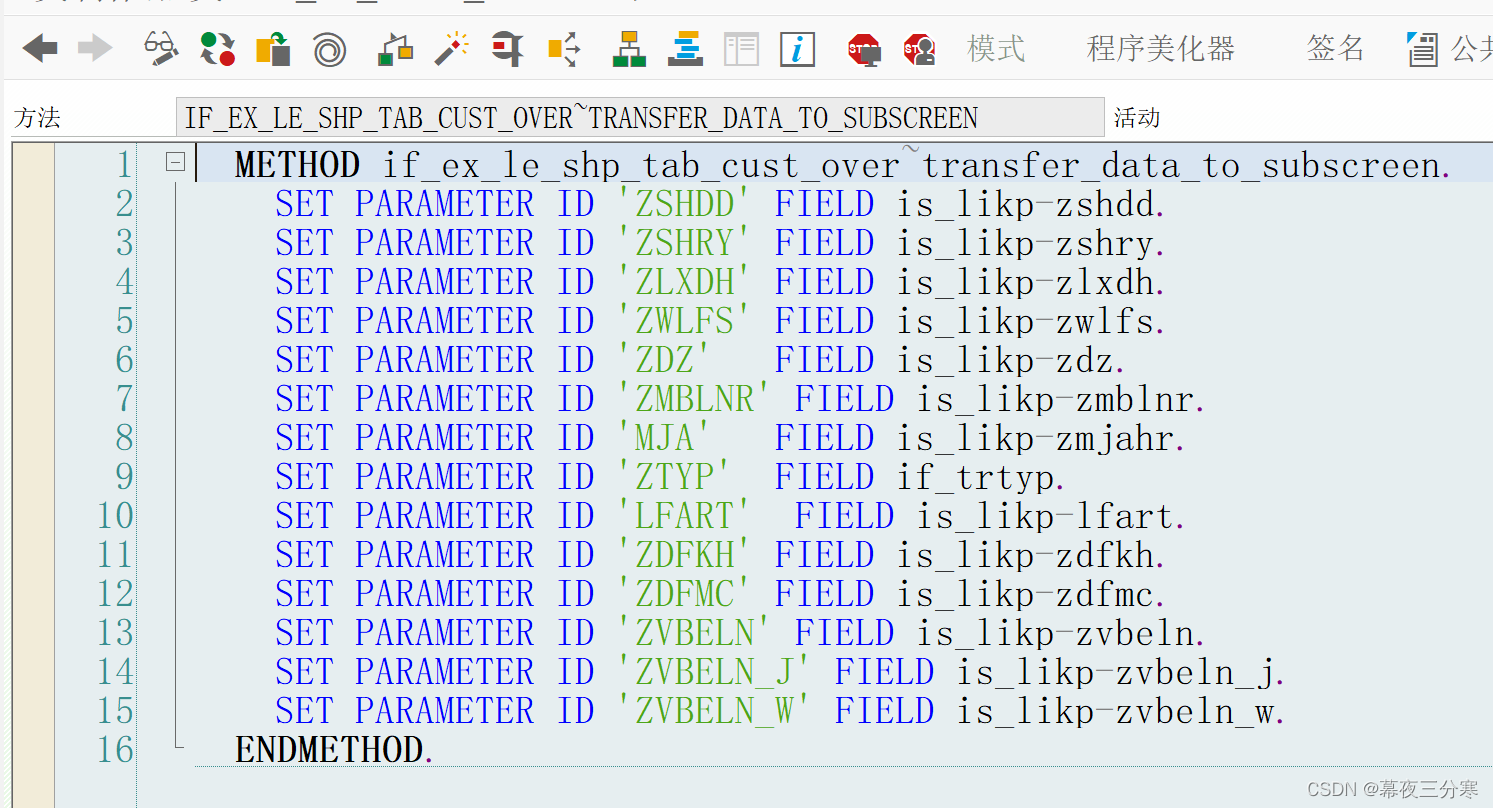

分别在方法里添加代码





head 和 item 做法相似。可以参考

 最后显示：

抬头数据
