本文详细介绍了如何在Android应用中实现一个三级联动选择器，通过使用Android-PickerView库来创建一个时间选择功能。文章展示了具体的代码实现，包括依赖引入、数据初始化和事件监听，帮助开发者理解如何在实际项目中应用此类组件。

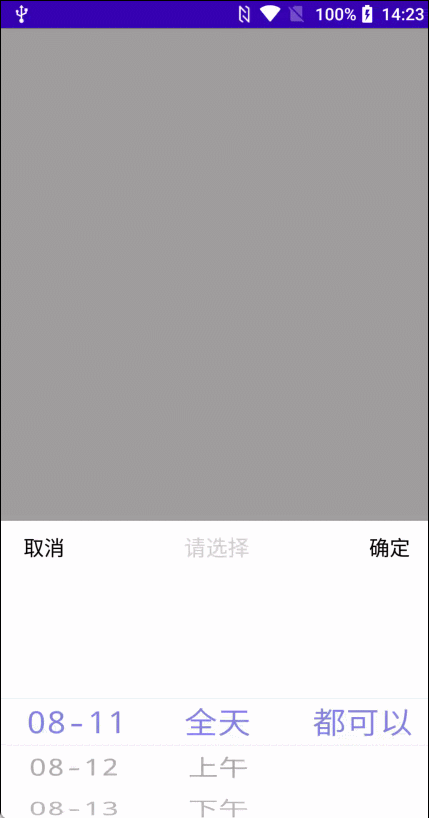

先看效果

再来实现

首先依赖

    implementation 'com.contrarywind:Android-PickerView:4.1.9'

原作者github ：https://github.com/Bigkoo/Android-PickerView

其次

public class MainActivity extends Activity {
    String[] item2 = {"全天", "上午", "下午", "晚上"};
    String[] item3_0 = {"都可以"};
    String[] item3_1 = {"都可以", "00:00", "01:00", "02:00", "03:00", "04:00", "05:00", "06:00", "07:00", "08:00", "09:00", "10:00", "11:00", "12:00"};
    String[] item3_2 = {"都可以", "13:00", "14:00", "15:00", "16:00", "17:00", "18:00"};
    String[] item3_3 = {"都可以", "19:00", "20:00", "21:00", "22:00", "23:00"};

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main_layout);

        final ArrayList<ArrayList<ArrayList<String>>> options3Items = new ArrayList<>();
        String[] item1 = getBeforeSevenDay();
        final ArrayList<String> options1Items = new ArrayList<>(Arrays.asList(item1));
        final ArrayList<ArrayList<String>> options2Items = new ArrayList<>();
        for (int z = 0; z < options1Items.size(); z++) {
            options2Items.add( new ArrayList<>(Arrays.asList(item2)));
        }
        ArrayList<ArrayList<String>> options3Items_01;
        ArrayList<String> options3Items_01_01;

        //全部下级的内容数据
        for (int z = 0; z < options1Items.size(); z++) {
            options3Items_01 = new ArrayList<>();
            for (int k = 0; k < item2.length; k++) {
                options3Items_01_01 = new ArrayList<>();
                if (k == 0) {
                    options3Items_01_01.add(item3_0[0]);
                    options3Items_01.add(options3Items_01_01);
                } else if (k == 1) {
                    options3Items_01_01.addAll(Arrays.asList(item3_1));
                    options3Items_01.add(options3Items_01_01);
                } else if (k == 2) {
                    options3Items_01_01.addAll(Arrays.asList(item3_2));
                    options3Items_01.add(options3Items_01_01);
                } else if (k == 3) {
                    options3Items_01_01.addAll(Arrays.asList(item3_3));
                    options3Items_01.add(options3Items_01_01);
                }

            }
            options3Items.add(options3Items_01);
        }

        OptionsPickerView pickerBuilder = new OptionsPickerBuilder(this, (options1, options2, options3, v) -> {
            //判 Null
            if (options1Items.size() > 0) {
                String tx = options1Items.get(options1);
                if (options2Items.size() > 0) {
                    String tx1 = options2Items.get(options1).get(options2);
                    if (options3Items.get(options1).get(options2).size() > 0) {
                        String tx2 = options3Items.get(options1).get(options2).get(options3);
                        Toast.makeText(getBaseContext(), tx + "-" + tx1 + "-" + tx2, Toast.LENGTH_SHORT).show();
                    }
                }
            }
        })
                .setTitleText("请选择")
                .setContentTextSize(25)
                .setDividerColor(Color.LTGRAY)
                .setSelectOptions(0, 0, 0)
                .setBgColor(Color.WHITE)
                .setTitleBgColor(Color.WHITE)
                .setTitleColor(Color.LTGRAY)
                .setCancelColor(getResources().getColor(R.color.black))
                .setSubmitColor(getResources().getColor(R.color.black))
                .setTextColorCenter(R.color.purple_700)
                .isRestoreItem(true)
                .isCenterLabel(false)
                .setOptionsSelectChangeListener((options1, options2, options3) -> {
                    String str = "options1: " + options1 + "\noptions2: " + options2 + "\noptions3: " + options3;
                })
                .build();
        //给选择器添加数据
        pickerBuilder.setPicker(options1Items);//一级选择器
        pickerBuilder.setPicker(options1Items, options2Items);//二级选择器
        pickerBuilder.setPicker(options1Items, options2Items, options3Items);//三级选择器
        pickerBuilder.show();

    }
    @SuppressLint("SimpleDateFormat")
    public static String[] getBeforeSevenDay() {
        String[] arr = new String[7];
        SimpleDateFormat sdf = new SimpleDateFormat("MM-dd");
        Calendar c = null;
        for (int i = 0; i < 7; i++) {
            c = Calendar.getInstance();
            c.add(Calendar.DAY_OF_MONTH, -i - 1);
            arr[6 - i] = sdf.format(c.getTime());

        }
        return arr;
    }
}
