201024-5步PyTorchLightning中设置并访问tensorboard

• 导入工具箱

from pytorch_lightning.loggers import TensorBoardLogger

• 写入记录

def training_step(self, batch, batch_idx):
    self.log('my_loss', loss, on_step=True, on_epoch=True, prog_bar=True, logger=True)

• 创建记录器logger

logger = TensorBoardLogger('tb_logs', name='my_model')

• 关联训练器trainer

# train
model = LightningMNISTClassifier(outdim=outdim)
trainer = pl.Trainer(gpus=None, max_epochs=2, logger=logger)
trainer.fit(model)

• 打开tensorboard

tensorboard --logdir ./tb_logs

⚠️：tensorboard命令中路径名称需要与创建logger文件夹路径名称相同

• 参考文献：

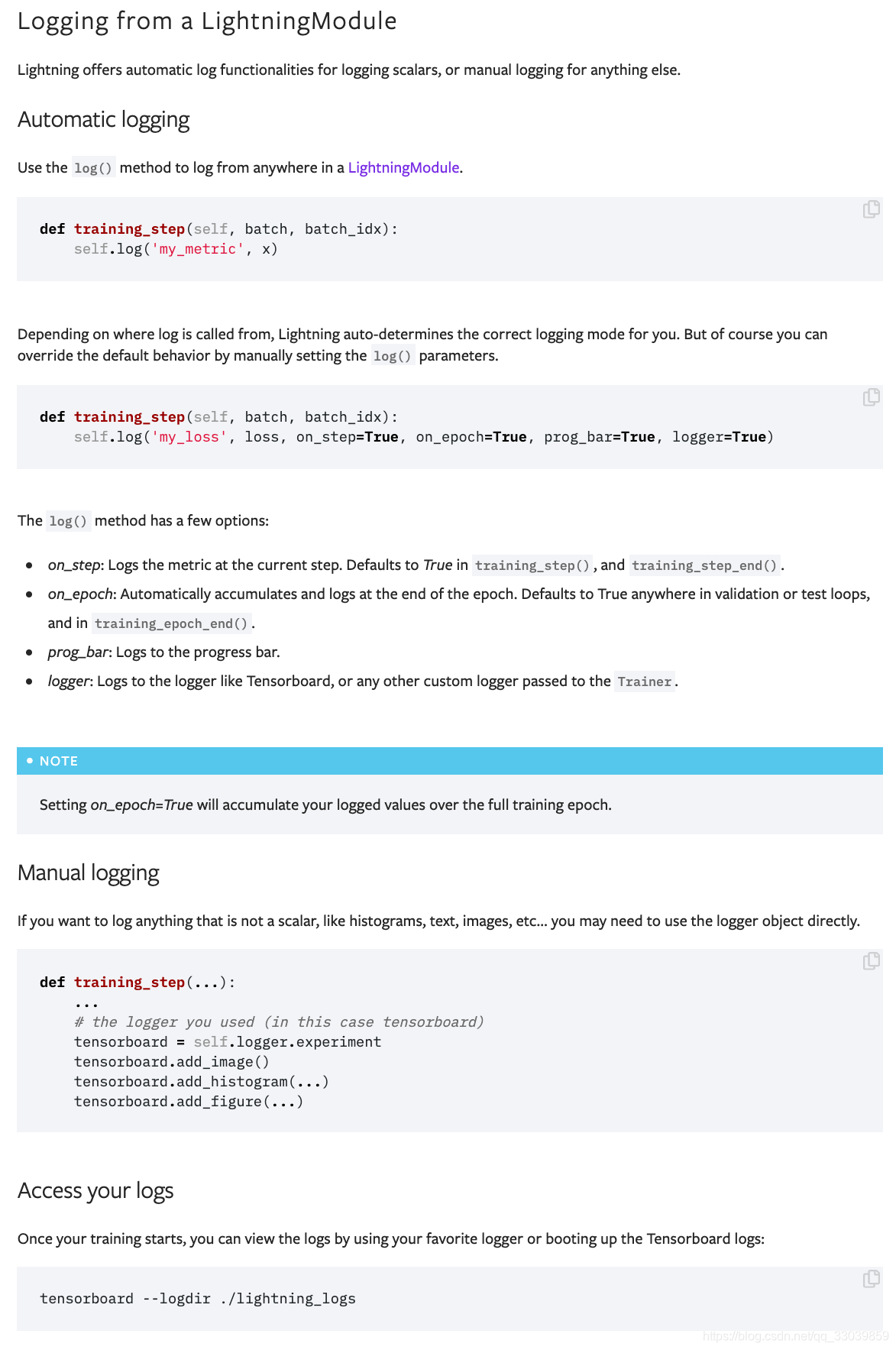

  https://pytorch-lightning.readthedocs.io/en/latest/logging.html#logging-hyperparameters
  https://www.learnopencv.com/tensorboard-with-pytorch-lightning/

• Demo

# PyTorch Lightning 1.x + Neptune [Basic Example]

# Before you start

# Install dependencies

# Step 1: Import Libraries

from pytorch_lightning.loggers.neptune import NeptuneLogger
import os

import torch
from torch.nn import functional as F
from torch.utils.data import DataLoader
from torchvision.datasets import MNIST
from torchvision import transforms

import pytorch_lightning as pl
from pytorch_lightning.loggers import TensorBoardLogger

# Step 2: Define Hyper-Parameters

PARAMS = {'max_epochs': 3,
          'learning_rate': 0.005,
          'batch_size': 256}

# Step 3: Define LightningModule and DataLoader

# pl.LightningModule


class LitModel(pl.LightningModule):
    def __init__(self):
        super().__init__()
        self.l1 = torch.nn.Linear(28 * 28, 10)

    def forward(self, x):
        return torch.relu(self.l1(x.view(x.size(0), -1)))

    def training_step(self, batch, batch_idx):
        x, y = batch
        y_hat = self(x)
        loss = F.cross_entropy(y_hat, y)
        self.log('train_loss', loss)
        return loss

    def configure_optimizers(self):
        return torch.optim.Adam(self.parameters(), lr=PARAMS['learning_rate'])


# DataLoader
train_loader = DataLoader(MNIST(os.getcwd(), download=True, transform=transforms.ToTensor()),
                          batch_size=PARAMS['batch_size'])

# Step 4: Create TensorBoardLogger


logger = TensorBoardLogger('tb_logs', name='my_model')


# Step 5: Pass NeptuneLogger to the Trainer

trainer = pl.Trainer(max_epochs=PARAMS['max_epochs'],
                     logger=logger)

# Step 6: Run experiment

model = LitModel()

trainer.fit(model, train_loader)

# Explore Results
