Java中导入/导出excel,导出pdf报表信息

1.项目中经常需要用到报表生成,信息导入数据库的功能.主要有以下几种.

2.其中比较简单的是 外部数据无需处理直接 导入数据库中,这种比较简单.直接利用Navicat数据库工具 导入外部.示例如下
1.准备customer.xlsx文件信息
在这里插入图片描述
2.使用导入向导,选择导入文件的xlsx文件类型在这里插入图片描述
3.选择导入数据源及相关表位置.
在这里插入图片描述

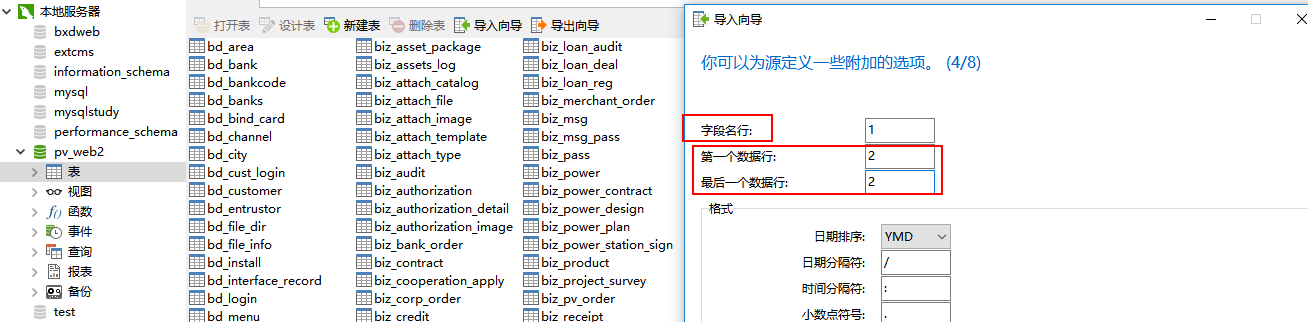

4.选择导入xlsx数据源位置,从第几行开始导入,字段名行的相对行位置.
在这里插入图片描述
5.选择导入数据 对应表字段相关信息
在这里插入图片描述

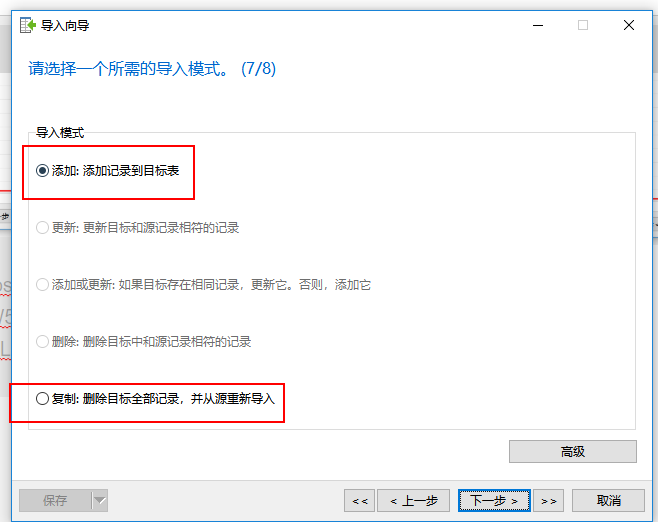

6.选择导入模式,此处我使用的是 记录添加模式
在这里插入图片描述

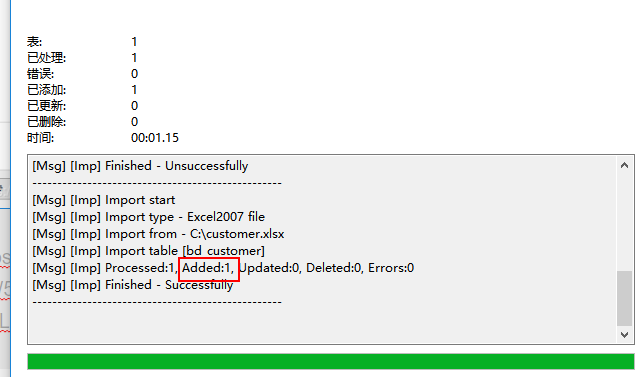

7.开始添加 ,影像了几条记录
在这里插入图片描述
8.记录添加成功
在这里插入图片描述

3.根据需要的信息 生成导出excel表格,具体代码示例如下

package com.bxd.app.util;

import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Iterator;
import java.util.LinkedHashMap;
import java.util.LinkedList;
import java.util.List;
import java.util.Map;

import org.apache.poi.hssf.usermodel.HSSFCell;
import org.apache.poi.hssf.usermodel.HSSFCellStyle;
import org.apache.poi.hssf.usermodel.HSSFFont;
import org.apache.poi.hssf.usermodel.HSSFRichTextString;
import org.apache.poi.hssf.usermodel.HSSFRow;
import org.apache.poi.hssf.usermodel.HSSFSheet;
import org.apache.poi.hssf.usermodel.HSSFWorkbook;
import org.apache.poi.hssf.util.HSSFColor;
import org.apache.poi.ss.util.CellRangeAddress;

import com.bxd.app.view.biz.ExportExcelView;

public class ExportExcelUtil {

	/**
	 * 创建表格标题
	 *
	 * @param wb
	 *            Excel文档对象
	 * @param sheet
	 *            工作表对象
	 * @param headString
	 *            标题名称
	 * @param col
	 *            标题占用列数
	 */
	@SuppressWarnings("deprecation")
	public static void createHeadTittle(HSSFWorkbook wb, HSSFSheet sheet, String headString, int col) {
		HSSFRow row = sheet.createRow(0); // 创建Excel工作表的行
		HSSFCell cell = row.createCell(0); // 创建Excel工作表指定行的单元格
		row.setHeight((short) 1000); // 设置高度

		cell.setCellType(HSSFCell.ENCODING_UTF_16); // 定义单元格为字符串类型
		cell.setCellValue(new HSSFRichTextString(headString));

		sheet.addMergedRegion(new CellRangeAddress(0, 0, 0, col)); // 指定标题合并区域

		// 定义单元格格式,添加单元格表样式,并添加到工作簿
		HSSFCellStyle cellStyle = wb.createCellStyle();
		cellStyle.setAlignment(HSSFCellStyle.ALIGN_CENTER); // 指定单元格居中对齐
		cellStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER); // 指定单元格垂直居中个对齐
		cellStyle.setWrapText(true); // 指定单元格自动换行

		// 设置单元格字体
		HSSFFont font = wb.createFont();
		font.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);
		font.setFontName("微软雅黑");
		font.setFontHeightInPoints((short) 16); // 字体大小

		cellStyle.setFont(font);
		cell.setCellStyle(cellStyle);
	}

	/**
	 * 创建表头
	 *
	 * @param wb
	 *            Excel文档对象
	 * @param sheet
	 *            工作表对象
	 * @param thead
	 *            表头内容
	 * @param sheetWidth
	 *            每一列宽度
	 */
	@SuppressWarnings("deprecation")
	public static void createThead(HSSFWorkbook wb, HSSFSheet sheet, String[] thead, int[] sheetWidth) {
		HSSFRow row1 = sheet.createRow(1);
		row1.setHeight((short) 600);
		// 定义单元格格式,添加单元格表样式,并添加到工作簿
		HSSFCellStyle cellStyle = wb.createCellStyle();
		cellStyle.setAlignment(HSSFCellStyle.ALIGN_CENTER);
		cellStyle.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);
		cellStyle.setWrapText(true);
		cellStyle.setFillForegroundColor(HSSFColor.GREY_25_PERCENT.index); // 设置背景色
		cellStyle.setFillPattern(HSSFCellStyle.SOLID_FOREGROUND);
		cellStyle.setBorderRight(HSSFCellStyle.BORDER_THIN); // 设置右边框类型
		cellStyle.setRightBorderColor(HSSFColor.BLACK.index); // 设置右边框颜色

		// 设置单元格字体
		HSSFFont font = wb.createFont();
		font.setBoldweight(HSSFFont.BOLDWEIGHT_BOLD);
		font.setFontName("宋体");
		font.setFontHeightInPoints((short) 10);
		cellStyle.setFont(font);

		// 设置表头内容
		for (int i = 0; i < thead.length; i++) {
			HSSFCell cell1 = row1.createCell(i);
			cell1.setCellType(HSSFCell.ENCODING_UTF_16);
			cell1.setCellValue(new HSSFRichTextString(thead[i]));
			cell1.setCellStyle(cellStyle);
		}

		// 设置每一列宽度
		for (int i = 0; i < sheetWidth.length; i++) {
			sheet.setColumnWidth(i, sheetWidth[i]);
		}
	}

	/**
	 * 填入数据
	 *
	 * @param wb
	 *            // Excel文档对象
	 * @param sheet
	 *            // 工作表对象
	 * @param result
	 *            // 表数据
	 */
	@SuppressWarnings("deprecation")
	public static void createTable(HSSFWorkbook wb, HSSFSheet sheet, List<LinkedHashMap<String, String>> result) {
		// 定义单元格格式,添加单元格表样式,并添加到工作薄
		HSSFCellStyle cellStyle = wb.createCellStyle();
		cellStyle.setWrapText(true);

		// 单元格字体
		HSSFFont font = wb.createFont();
		font.setFontName("宋体");
		font.setFontHeightInPoints((short) 10);
		cellStyle.setFont(font);
		cellStyle.setAlignment(HSSFCellStyle.ALIGN_CENTER); // 居中

		// 循环插入数据
		for (int i = 0; i < result.size(); i++) {
			HSSFRow row = sheet.createRow(i + 2);
			row.setHeight((short) 400); // 设置高度
			HSSFCell cell = null;
			int j = 0;
			for (String key : (result.get(i).keySet())) {
				cell = row.createCell(j);
				cell.setCellStyle(cellStyle);
				cell.setCellValue(new HSSFRichTextString(result.get(i).get(key)));
				j++;
			}
		}
	}

	public static void main(String[] args) {
		//测试hashmap  treemap  linkedhashmap之间的顺序
 		/*Map<String, String>  map=new HashMap<>();
 		System.out.println("hashmap排序");
 		add_keyvalue(map);
 		TreeMap<String, String>  map2=new TreeMap<>();
 		System.out.println("treemap排序");
 		add_keyvalue(map2);
 		LinkedHashMap<String, String>  map3=new LinkedHashMap<>();
 		System.out.println("linkedhash排序");
 		add_keyvalue(map3);*/

		// 1.封装数据
		List<ExportExcelView> list = new LinkedList<>();
		ExportExcelView b1 = new ExportExcelView();
		b1.setDeclsno("201810251706470169854601");
		b1.setDecdt("2018-09-22");
		b1.setEleacno("1209394999");
		b1.setCustName("张三");
		b1.setEntName("正信广电");
		b1.setSaleName("郭启铭");
		b1.setSaleTel("17342064227");
		b1.setRealsumretbal("1000");
		b1.setDecutionFee("100");

		ExportExcelView b2 = new ExportExcelView();
		b2.setDeclsno("201810251706470176052618");
		b2.setDecdt("2018-09-22");
		b2.setEleacno("1209394999");
		b2.setCustName("赵四");
		b2.setEntName("正信广电");
		b2.setSaleName("郭启铭");
		b2.setSaleTel("17342064227");
		b2.setRealsumretbal("2000");
		b2.setDecutionFee("200");
		list.add(b1);
		list.add(b2);

		// 实体类转换为map
		List<LinkedHashMap<String, String>> result = new ArrayList<>();
		LinkedHashMap<String, String> map = new LinkedHashMap<>();
        for (ExportExcelView e : list) {
        	map.put("declsno", e.getDeclsno());
        	map.put("decdt", e.getDecdt());
        	map.put("eleacno", e.getEleacno());
        	map.put("custName",e.getCustName());
        	map.put("entName",e.getEntName());
        	map.put("saleName",e.getSaleName());
        	map.put("saleTel",e.getSaleTel());
        	map.put("realsumretbal",e.getRealsumretbal());
        	map.put("decutionFee",e.getDecutionFee());
        	result.add(map);
		}

		// 2.定义变量值 创建Excel文件
		String fileName = "正信广电_201809代扣费用表.xls"; // 定义文件名
		String headString = "正信广电_201809代扣费用表"; // 定义表格标题
		String sheetName = "正信广电_201809代扣费用表"; // 定义工作表表名
		String filePath = "D:\\"; // 文件本地保存路径
		String[] thead = { "扣款流水", "扣款日期", "发电户号", "用户姓名", "开发商",
				"业务员姓名","业务员手机号","扣款金额(元)", "代扣费用(元)" };
		int[] sheetWidth = { 7500, 4000, 3000, 3000, 4000, 3000, 5000, 5000,5000}; // 定义每一列宽度

		HSSFWorkbook wb = new HSSFWorkbook(); // 创建Excel文档对象
		HSSFSheet sheet = wb.createSheet(sheetName); // 创建工作表

		// 3.生成表格
		// ①创建表格标题
		createHeadTittle(wb, sheet, headString, 8);
		// result.get(0).size() - 1为表格占用列数,从0开始
		// ②创建表头
		createThead(wb, sheet, thead, sheetWidth);
		// ③填入数据
		createTable(wb, sheet, result);

		FileOutputStream fos;
		try {
			fos = new FileOutputStream(new File(filePath + fileName));
			wb.write(fos);
			fos.close();
			wb.close();
			System.out.println("导出excel成功");
		} catch (FileNotFoundException ex) {
			ex.printStackTrace();
		} catch (IOException ex) {
			ex.printStackTrace();
		}

	}

	public static void add_keyvalue(Map<String, String> map){
		map.put("351", "11");
		map.put("512", "222");
		map.put("853", "333");
		map.put("125", "333");
		map.put("341", "333");
		Iterator<String>  iterator=map.keySet().iterator();
		while(iterator.hasNext()){
			System.out.println(iterator.next());
		}
	}

}

在这里插入图片描述

2.导出pdf示例,将多张图片合成pdf文件 生成到指定位置

package com.bxd.app.util;

import java.awt.image.BufferedImage;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;

import javax.imageio.ImageIO;

import com.bxd.core.util.FileUtil;
import com.lowagie.text.BadElementException;
import com.lowagie.text.Document;
import com.lowagie.text.DocumentException;
import com.lowagie.text.Image;
import com.lowagie.text.Rectangle;
import com.lowagie.text.pdf.PdfWriter;

class PrintToPdfUtil {

	/**
	 *
	 * @param imageFolderPath
	 *            图片文件夹地址
	 * @param pdfPath
	 *            PDF文件保存地址
	 *
	 */
	public static void toPdf(String imageFolderPath, String pdfPath) {
		try {
			// 图片文件夹地址
			// String imageFolderPath = "D:/Demo/ceshi/";
			// 图片地址
			String imagePath = null;
			// PDF文件保存地址
			// String pdfPath = "D:/Demo/ceshi/hebing.pdf";
			// 输入流
			FileOutputStream fos = new FileOutputStream(pdfPath);

			// 创建文档
			Document doc = new Document(null, 0, 0, 0, 0);
			// doc.open();
			// 写入PDF文档
			PdfWriter.getInstance(doc, fos);
			// 读取图片流
			BufferedImage img = null;
			// 实例化图片
			Image image = null;
			// 获取图片文件夹对象
			File file = new File(imageFolderPath);
			File[] files = file.listFiles();
			// 循环获取图片文件夹内的图片
			for (File file1 : files) {
				if (file1.getName().endsWith(".png") || file1.getName().endsWith(".jpg")
						|| file1.getName().endsWith(".gif") || file1.getName().endsWith(".jpeg")
						|| file1.getName().endsWith(".tif")) {
					// System.out.println(file1.getName());
					imagePath = imageFolderPath + file1.getName();
					// 读取图片流
					img = ImageIO.read(new File(imagePath));
					// 根据图片大小设置文档大小
					doc.setPageSize(new Rectangle(img.getWidth(), img.getHeight()));
					// 实例化图片
					image = Image.getInstance(imagePath);
					// 添加图片到文档
					doc.open();
					doc.add(image);
				}
			}
			// 关闭文档
			doc.close();
		} catch (IOException e) {
			e.printStackTrace();
		} catch (BadElementException e) {
			e.printStackTrace();
		} catch (DocumentException e) {
			e.printStackTrace();
		}
	}

	public static void main(String[] args) {
		long time1 = System.currentTimeMillis();
		toPdf("C:/2018-11-14/",
				"C:/hebing.pdf");
		long time2 = System.currentTimeMillis();
		int time = (int) ((time2 - time1) / 1000);
		System.out.println("执行了:" + time + "秒!");
	}
}

在这里插入图片描述

3.导入excel文件信息

package com.bxd.app.util;

import com.bxd.app.dao.biz.BdCustomerDao;
import com.bxd.app.entity.BdCustomer;
import com.bxd.core.util.BeanUtil;
import com.bxd.core.util.IdcardValidator;
import com.bxd.core.util.MD5;
import com.bxd.core.util.StringUtil;
import com.bxd.core.util.TelValidatorUtil;
import com.bxd.core.util.TextFormater;
import com.bxd.core.util.UUIDGenerator;
import org.apache.poi.hssf.usermodel.HSSFWorkbook;
import org.apache.poi.ss.usermodel.Cell;
import org.apache.poi.ss.usermodel.DateUtil;
import org.apache.poi.ss.usermodel.Row;
import org.apache.poi.ss.usermodel.Sheet;
import org.apache.poi.ss.usermodel.Workbook;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.Calendar;
import java.util.Date;
import java.util.LinkedHashMap;
import java.util.LinkedList;
import java.util.List;
import java.util.Map;
import java.util.Map.Entry;


@Component
public class ImportCustomerUtil {

	private static Logger logger =LoggerFactory.getLogger(ImportCustomerUtil.class);

	@Autowired
	public BdCustomerDao bdCustomerDao;

	/**
	 * 生成需要的数据
	 *
	 * @param passwd
	 *            密码
	 * @param filePath
	 *            文件路径
	 * @param columns
	 *            列数据
	 * @param type
	 *            01 只需要注册的 02 代表 注册和实名都需要的弄的数据
	 * @return
	 */
	@SuppressWarnings("unused")
	public static List<BdCustomer> import_excel(String passwd, String filePath, String columns[], String type) {
		Workbook wb = null;
		Sheet sheet = null;
		Row row = null;
		List<Map<String, String>> list = null;
		String cellData = null;

		wb = readExcel(filePath);
		if (wb != null) {
			// 用来存放表中数据
			list = new ArrayList<Map<String, String>>();
			// 获取第一个sheet
			sheet = wb.getSheetAt(0);
			// 获取最大行数
			int rownum = sheet.getPhysicalNumberOfRows();
			// 获取第一行
			row = sheet.getRow(0);
			// 获取最大列数
			int colnum = row.getPhysicalNumberOfCells();
			for (int i = 1; i < rownum; i++) {
				Map<String, String> map = new LinkedHashMap<String, String>();
				row = sheet.getRow(i);
				if (row != null) {
					for (int j = 0; j < colnum; j++) {
						cellData = (String) getCellFormatValue(row.getCell(j));
						map.put(columns[j], cellData);
					}
				} else {
					break;
				}
				list.add(map);
			}
		}
		// 遍历解析出来的list
		logger.info("*******excel读取出来的数量:" + list.size() + "*****");
		List<BdCustomer> excel_result = new LinkedList<BdCustomer>();
		for (Map<String, String> map : list) {
			for (Entry<String, String> entry : map.entrySet()) {
//				logger.info(entry.getKey() + ":" + entry.getValue() + ",");
			}
			BdCustomer bdCustomer = BeanUtil.toBean(map, BdCustomer.class);
			excel_result.add(bdCustomer);// 存储到list集合中
		}
		List<BdCustomer> result = new LinkedList<BdCustomer>();
		int no_register=0;
		if (type.equals("01")) {//只需要注册的用户数据
			for (int i = 0; i < excel_result.size(); i++) {
				// 手机号码格式不正确   不能注册的用户信息及数量
				if (!TelValidatorUtil.mobileValidator(excel_result.get(i).getTelphone())) {
					logger.info("姓名:"+excel_result.get(i).getCustName()+","+
						excel_result.get(i).getTelphone()+"手机号格式不正确");
					no_register++;
					continue;
				}
				//手机号码格式正确  同时 客户姓名或者 身份证号不正确
				if (TelValidatorUtil.mobileValidator(excel_result.get(i).getTelphone())
						&& (StringUtil.isEmpty(excel_result.get(i).getCustName())
								||excel_result.get(i).getCustName().indexOf("*")!=-1
								||!"".equals( IdcardValidator.Validate(excel_result.get(i).getIdNo())))) {
					try {
						// 对用户信息进行加密
						BdCustomer bdCustomer = new BdCustomer();
						bdCustomer.setCustNo("U" + UUIDGenerator.nextSerial());// 如果手机号不为空,则设置用户编号
						bdCustomer.setCustAcct(DesensitizationUtil.encrypt_private(excel_result.get(i).getTelphone()));
						bdCustomer.setTelphone(DesensitizationUtil.encrypt_private(excel_result.get(i).getTelphone()));
						bdCustomer.setPasswd(MD5.crypt(passwd));
						bdCustomer.setRegTime(TextFormater.format(new Date(), "yyyyMMdd"));
						bdCustomer.setIsBind("0");
						bdCustomer.setIsLocked("0");
						bdCustomer.setSources("1");
						bdCustomer.setCustName("");
						bdCustomer.setIdType("01");
						result.add(bdCustomer);
					} catch (Exception ex) {
						ex.printStackTrace();
					}
				}
			}
			logger.info("无法注册的用户数量:"+no_register);
		} else {//需要注册和实名的用户数据为
			for (int i = 0; i < excel_result.size(); i++) {
				// 手机号正确,姓名及 身份证号格式正确
				if (TelValidatorUtil.mobileValidator(excel_result.get(i).getTelphone())
						&& StringUtil.isNotEmpty(excel_result.get(i).getCustName())
						&&excel_result.get(i).getCustName().indexOf("*")==-1
								&&"".equals(IdcardValidator.Validate(excel_result.get(i).getIdNo()))
								) {
					try {
						// 对用户信息进行加密
						BdCustomer bdCustomer = new BdCustomer();
						//实名认证所需填写信息
						bdCustomer.setCustName(DesensitizationUtil.encrypt_private(excel_result.get(i).getCustName()));
						bdCustomer.setIsVerified("01");
						bdCustomer.setVerifiedTime(TextFormater.format(Calendar.getInstance().getTime(), "yyyyMMdd"));
						bdCustomer.setCustAge(IdNOToAge(excel_result.get(i).getIdNo()));//根据身份证号计算年龄
						bdCustomer.setIdNo(DesensitizationUtil.encrypt_private(excel_result.get(i).getIdNo()));
						bdCustomer.setSources("1");
						bdCustomer.setCustNo("U" + UUIDGenerator.nextSerial());// 如果手机号不为空,则设置用户编号
						bdCustomer.setCustAcct(DesensitizationUtil.encrypt_private(excel_result.get(i).getTelphone()));
						bdCustomer.setTelphone(DesensitizationUtil.encrypt_private(excel_result.get(i).getTelphone()));
						bdCustomer.setPasswd(MD5.crypt(passwd));
						bdCustomer.setRegTime(TextFormater.format(new Date(), "yyyyMMdd"));
						bdCustomer.setIsBind("0");
						bdCustomer.setIsLocked("0");
						bdCustomer.setIdType("01");

						result.add(bdCustomer);
					} catch (Exception ex) {
						ex.printStackTrace();
					}
				}
			}

		}
		return result;

	}




	public static void main(String[] args) {
		String passwd = "666666d";// 导入用户密码
		String filepath = "C:\\test.xlsx";// 文件路径地址
		String columns[] = { "custName", "roofArea", "idNo", "homeAddress", "telphone" };
		List<BdCustomer> result = import_excel(passwd, filepath, columns, "01");
		System.out.println(TelValidatorUtil.mobileValidator(""));

	}

	/**
	 * 根据身份证号计算年龄
	 * @param IdNO
	 * @return
	 */
	private static int IdNOToAge(String IdNO){
        Integer  birthyear=Integer.parseInt(IdNO.substring(6, 10));//出生年月
        Integer  year=Integer.parseInt(TextFormater.format(Calendar.getInstance().getTime(),"yyyy"));//
		return year-birthyear;

    }

	// 读取excel
	@SuppressWarnings("resource")
	public static Workbook readExcel(String filePath) {
		Workbook wb = null;
		if (filePath == null) {
			return null;
		}
		String extString = filePath.substring(filePath.lastIndexOf("."));
		InputStream is = null;
		try {
			is = new FileInputStream(filePath);
			if (".xls".equals(extString)) {
				return wb = new HSSFWorkbook(is);
			} else if (".xlsx".equals(extString)) {
				return wb = new XSSFWorkbook(is);
			} else {
				return wb = null;
			}

		} catch (FileNotFoundException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}
		return wb;
	}

	@SuppressWarnings("deprecation")
	public static Object getCellFormatValue(Cell cell) {
		Object cellValue = null;
		if (cell != null) {
			// 判断cell类型
			switch (cell.getCellType()) {
			case Cell.CELL_TYPE_NUMERIC: {
				cellValue = String.valueOf(cell.getNumericCellValue());
				break;
			}
			case Cell.CELL_TYPE_FORMULA: {
				// 判断cell是否为日期格式
				if (DateUtil.isCellDateFormatted(cell)) {
					// 转换为日期格式YYYY-mm-dd
					cellValue = cell.getDateCellValue();
				} else {
					// 数字
					cellValue = String.valueOf(cell.getNumericCellValue());
				}
				break;
			}
			case Cell.CELL_TYPE_STRING: {
				cellValue = cell.getRichStringCellValue().getString();
				break;
			}
			default:
				cellValue = "";
			}
		} else {
			cellValue = "";
		}
		return cellValue;
	}
}

  • 0
    点赞
  • 2
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
智能调度平台系统技术要求 一、系统要求 1、总体目标要求 投标人必须采用先进成熟的技术和产品,严格按照相关国家标准 、行业标准的软件开发流程进行项目定制开发,不允许在实施过程 作试验性开发或产品试用,确保系统建设质量和进度,防范开发 集成过程的技术风险和产品风险。 2、软件平台的要求 2.1投标人开发建设的系统必须符合《深圳市公交智能调度系统 平台规范SZDB/Z 35- 2011》以及招标人的平台功能需求,按照《深圳市公交智能 调度系统 通信协议SZDB/Z 36- 2011》接入符合《深圳市公交智能调度系统 车载调度终端SZDB/Z 35- 2011》的车载调度终端,并满足本技术要求的具体要求( 如存在不一致的地方以本技术要求为准)。 2.2投标人开发的系统须支持目前通用的各类操作系统环境,包 括Windows 2008server,Linux等主流操作系统。 2.3 Web应用服务器支持主流间件产品,如IBM Websphere, BEA Weblogic, Oracle Application Server, Tomcat等; Web服务器支持MS IIS, NES, Apache等。 2.4数据库管理系统须具备良好的数据和索引的压缩技术,具有 较低的空间膨胀率;在系统硬件资源允许的条件下(如服务 器内存不小于2G),对超大型数据库及结构化/非结构化复杂 查询实现响应的时间能够达到亚秒级,并且不随文件数量增 大而效率降低,数据库规模仅受硬件资源的限制。数据库仅 限于使用ORACLE或SQL SERVER 2008。 2.5语言支持:简体(GBK)、繁体(BIG5)、西文(ASCII)、 国际统一码(Unicode)。支持西文混合检索。 2.6系统须采用JAVA语言并基于J2EE架构或者基于C#的.NET平台 开发,整个架构必须是构件化面向对象的,充分考虑系统今 后纵向和横向地平滑扩张能力,进行设计和建设。 2.7系统应采用多层B/S应用结构体系,表示层、业务层、数据 访问层要分开。 2.8系统应支持组件化开发,为第三方应用系统提供标准化数据 接口。 2.9 系统须具有分布式事务功能。 2.10系统须支持负载均衡及双机热备。 2.11除系统所用到的硬件、数据库软件及操作系统的费用由招 标人承担以外,其它费用均由投标人承担。 2.12电子地图要求必须支持ArcGIS地图,同时支持目前免费的 主流地图,包括但不限于谷歌地图、百度地图等。 2.13系统的基础信息部分支持excel导入导出。 2.14系统的所有查询应能支持灵活查询。 2.15系统报表除了打印固定的格式外,还须支持导出文本 或excel格式。 3、数据处理能力 3.1必须提供分布式和跨平台的灵活配置方案,支持对关系型数 据库的文本数据和大对象类型数据检索能力。 3.2系统支持并发用户数大于1000人。 3.3百万目录数据量带全文检索,客户端响应时间小于10秒; 3.4在内网情况下,用户访问系统、WEB页面报表查询、线路切 换、轨迹查询等的响应时间小于3秒。 4、外网接入的安全性 4.1防止系统在互联网上被非法用户使用资源。 4.2防止网络病毒的入侵。 4.3防止数据在传输时的泄漏。 5、数据备份的要求 5.1应能永久保存数据,并提供永久备份数据的解决方案。 5.2应能定期备份数据,采用本地保存或异地存储的方式。 5.3当数据容量过大时,提示并辅助实施相关数据的导出备份。 5.4系统采用每日增量备份,每月全量备份。 5.5系统具备异地灾备,实现系统所有数据在灾备心的实时备 份。 5.6数据备份时,不能影响平台系统的正常运行。 6、系统的稳定性要求 6.1系统无故障运行时间大于半年,全年60分钟内无法修复的故 障次数不大于2次。平均故障修复时间小于60分钟。发生故障 时,应能立即启动应急响应机制,确保公交调度业务不受影 响。 6.2电子目录数据接收,导入导出)临时或核心数据库每批次 能承载百万条以上,记录数据信息不发生错误; 6.3软件系统须防止消耗过多的系统资源而使系统崩溃。 6.4数据库设计时须区分当前业务数据和历史数据,避免因历史 数据过大,查询或相关的操作引起服务器运行负载过重。 7、故障监视、诊断及恢复 7.1出现故障须及时告警,具备完整的系统安全机制。 7.2应用系统具备自动或手动恢复措施,以便在发生错误时能够 快速地恢复正常运行。当系统出现故障时,必须能及时切换 备用服务器以快速恢复系统正常工作,备用服务器启动时候 小于15分钟。 7.3须有相应的应急方案,以便在3G网络故障或局域网络故障时 能保证正常的生产工作。 7.4系统必须能接收车载终端发送的自检信息和服务器定时的资 源使用率情况信息,生成故障告警表。 8、系统安全性 8

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
