01 功能说明

上篇：ABAP SALV-页眉、页脚

本系列将通过模拟用户与开发者之间的对话场景，来逐步演示SALV的使用。在本篇中，我们将延续前文内容，解决用户最新提出的需求，并同时介绍 SALV部分事件的触发时机，为后续新增功能的实现提供必要的知识储备。让我们一起来探索吧。

赶紧动手试一试，以便更好地掌握这些新的知识点。

02 功能效果

第12天用户说：选择模式

现在每次只能复制单行数据，我想选择多行进行复制。

IF p_day12 EQ 'X'.
  DATA lo_selections TYPE REF TO cl_salv_selections.

  lo_selections = go_salv->get_selections( ).
  lo_selections->set_selection_mode( if_salv_c_selection_mode=>cell ).
  ...
ENDIF.

在这里插入图片描述

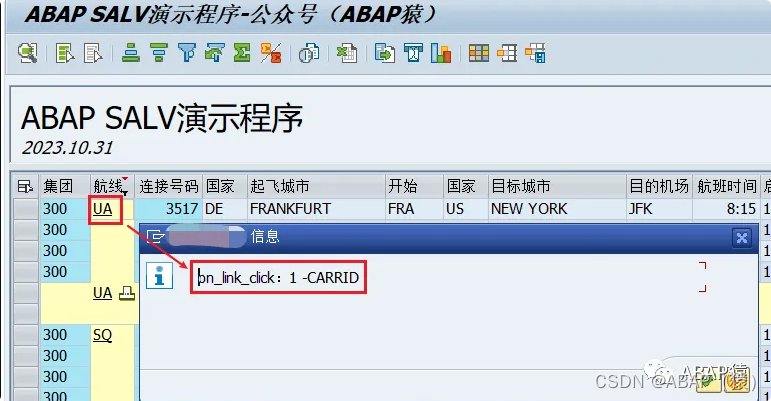

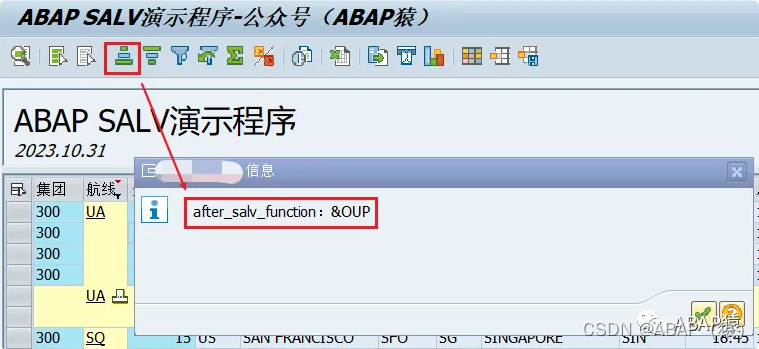

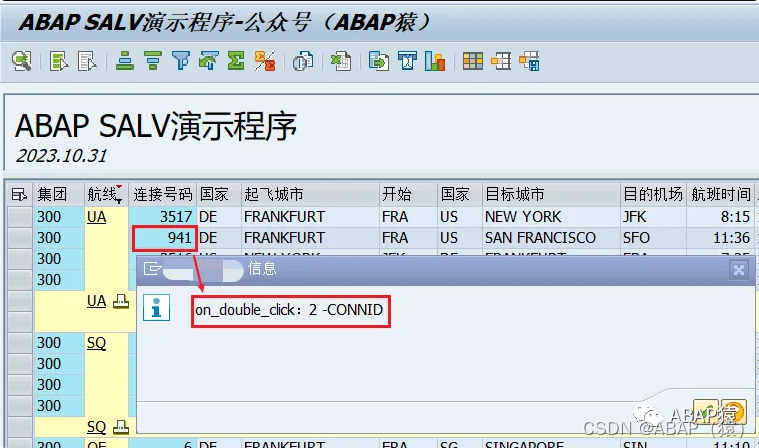

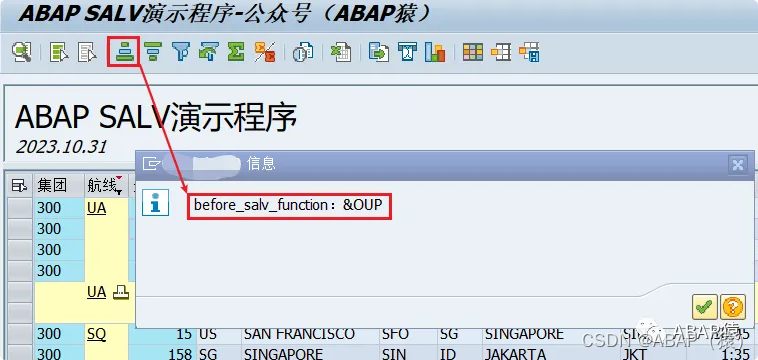

第13天用户说：触发事件

用户今天啥也没说，你来研究下SALV的触发事件吧！

IF p_day13 EQ 'X'.
  DATA lo_events_table TYPE REF TO cl_salv_events_table.
  lo_events_table = go_salv->get_event( ).

  DATA lo_evt_handler TYPE REF TO lcl_evt_handler.
  CREATE OBJECT lo_evt_handler.
  SET HANDLER lo_evt_handler->on_link_click FOR lo_events_table.
  SET HANDLER lo_evt_handler->on_double_click FOR lo_events_table.
  SET HANDLER lo_evt_handler->on_added_function FOR lo_events_table.
  SET HANDLER lo_evt_handler->before_salv_function FOR lo_events_table.
  SET HANDLER lo_evt_handler->after_salv_function FOR lo_events_table.
  ...
ENDIF.

在这里插入图片描述

03 源码分享

CLASS lcl_evt_handler DEFINITION.
  PUBLIC SECTION.
    METHODS on_link_click         "单击（热点）
                  FOR EVENT link_click OF cl_salv_events_table
      IMPORTING row column.

    METHODS on_double_click       "双击
                  FOR EVENT double_click OF cl_salv_events_table
      IMPORTING row column.

    METHODS on_added_function     "新增按钮点击
                  FOR EVENT added_function OF cl_salv_events_table
      IMPORTING e_salv_function.

    METHODS before_salv_function  "标准按钮点击前
                  FOR EVENT before_salv_function OF cl_salv_events_table
      IMPORTING e_salv_function.

    METHODS after_salv_function   "标准按钮点击后
                  FOR EVENT after_salv_function OF cl_salv_events_table
      IMPORTING e_salv_function.
ENDCLASS.

CLASS lcl_evt_handler IMPLEMENTATION.
  METHOD on_link_click.
    MESSAGE i001(00) WITH 'on_link_click：' row ' - ' column.
  ENDMETHOD.
  METHOD on_double_click.
    MESSAGE i001(00) WITH 'on_double_click：' row ' - ' column.
  ENDMETHOD.
  METHOD on_added_function.
    MESSAGE i001(00) WITH 'on_added_function：' e_salv_function.
  ENDMETHOD.
  METHOD before_salv_function.
    MESSAGE i001(00) WITH 'before_salv_function：' e_salv_function.
  ENDMETHOD.
  METHOD after_salv_function.
    MESSAGE i001(00) WITH 'after_salv_function：' e_salv_function.
  ENDMETHOD.
ENDCLASS.

SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE t1.
SELECTION-SCREEN BEGIN OF LINE.
SELECTION-SCREEN COMMENT 1(79) day01 .
SELECTION-SCREEN END OF LINE.
SELECTION-SCREEN BEGIN OF LINE.
SELECTION-SCREEN COMMENT 1(79) day02 .
SELECTION-SCREEN END OF LINE.
SELECTION-SCREEN BEGIN OF LINE.
SELECTION-SCREEN COMMENT 1(79) day03 .
SELECTION-SCREEN END OF LINE.
SELECTION-SCREEN BEGIN OF LINE.
SELECTION-SCREEN COMMENT 1(79) day04 .
SELECTION-SCREEN END OF LINE.
...
SELECTION-SCREEN BEGIN OF LINE.
SELECTION-SCREEN COMMENT 1(79) day12 .
SELECTION-SCREEN END OF LINE.
SELECTION-SCREEN BEGIN OF LINE.
SELECTION-SCREEN COMMENT 1(79) day13 .
SELECTION-SCREEN END OF LINE.
SELECTION-SCREEN END OF BLOCK b1.

SELECTION-SCREEN BEGIN OF BLOCK b2 WITH FRAME TITLE t2.
PARAMETERS p_day01 AS CHECKBOX DEFAULT 'X' . "01、基本展示
PARAMETERS p_day02 AS CHECKBOX DEFAULT 'X' . "02、外观设置
PARAMETERS p_day03 AS CHECKBOX DEFAULT 'X' . "03、列设置
PARAMETERS p_day04 AS CHECKBOX DEFAULT 'X' . "04、按钮设置
...
PARAMETERS p_day12 AS CHECKBOX DEFAULT 'X' . "12、选择模式
PARAMETERS p_day13 AS CHECKBOX DEFAULT 'X' . "13、触发事件
SELECTION-SCREEN END OF BLOCK b2.

INITIALIZATION.
  sy-title = 'ABAP SALV演示程序-公众号（ABAP猿）'.
  t1 = '用户说'.
  t2 = '你来做'.
  day01 = '01、从表SPFLI获取数据，并进行基本展示。'.
  day02 = '02、能否修改下抬头标题文本，并斑马纹展示?'.
  day03 = '03、能否优化下列宽?'.
  day04 = '04、怎么没有应用工具栏按钮，能加上吗?'.
  ...
  day12 = '12、现在每次只能复制单行数据，我想选择多行进行复制。'.
  day13 = '13、用户今天啥也没说，你来研究下SALV的触发事件吧！'.

  %_p_day01_%_app_%-text = '01、基本展示'.
  %_p_day02_%_app_%-text = '02、外观设置'.
  %_p_day03_%_app_%-text = '03、列设置'.
  %_p_day04_%_app_%-text = '04、按钮设置'.
  ...
  %_p_day12_%_app_%-text = '12、选择模式'.
  %_p_day13_%_app_%-text = '13、触发事件'.

START-OF-SELECTION.
*------------------------------------*
  CHECK p_day01 EQ 'X'.
  DATA gt_spfli TYPE TABLE OF spfli.
  SELECT * FROM spfli INTO TABLE gt_spfli UP TO 30 ROWS.

  DATA go_salv TYPE REF TO cl_salv_table.
  cl_salv_table=>factory(
   IMPORTING
     r_salv_table = go_salv
   CHANGING
     t_table      = gt_spfli ).
  ...
*------------------------------------*
  IF p_day02 EQ 'X'.
    DATA lo_display TYPE REF TO cl_salv_display_settings.

    lo_display = go_salv->get_display_settings( ).
    lo_display->set_list_header( 'ABAP SALV演示程序-公众号（ABAP猿）' ).
    lo_display->set_striped_pattern( 'X' ).
    ...
  ENDIF.
*------------------------------------*
  IF p_day03 EQ 'X'.
    DATA lo_columns TYPE REF TO cl_salv_columns_table .

    lo_columns = go_salv->get_columns( ).
    lo_columns->set_optimize( 'X' ).
    ...
    IF p_day13 = 'X'.
      DATA lo_column TYPE REF TO cl_salv_column_table .

      lo_column ?= lo_columns->get_column( columnname = 'CARRID' ).
      lo_column->set_cell_type( if_salv_c_cell_type=>hotspot ).
    ENDIF.
  ENDIF.
*------------------------------------*
  IF p_day04 EQ 'X'.
    DATA lo_functions TYPE REF TO cl_salv_functions.

    lo_functions = go_salv->get_functions( ).
    lo_functions->set_all( 'X' ).
    ...
  ENDIF.
*------------------------------------*
  ...
*------------------------------------*
  IF p_day12 EQ 'X'.
    DATA lo_selections TYPE REF TO cl_salv_selections.

    lo_selections = go_salv->get_selections( ).
    lo_selections->set_selection_mode( if_salv_c_selection_mode=>cell ).
    ...
  ENDIF.
*------------------------------------*
  IF p_day13 EQ 'X'.
    DATA lo_events_table TYPE REF TO cl_salv_events_table.
    lo_events_table = go_salv->get_event( ).

    DATA lo_evt_handler TYPE REF TO lcl_evt_handler.
    CREATE OBJECT lo_evt_handler.
    SET HANDLER lo_evt_handler->on_link_click FOR lo_events_table.
    SET HANDLER lo_evt_handler->on_double_click FOR lo_events_table.
    SET HANDLER lo_evt_handler->on_added_function FOR lo_events_table.
    SET HANDLER lo_evt_handler->before_salv_function FOR lo_events_table.
    SET HANDLER lo_evt_handler->after_salv_function FOR lo_events_table.
    ...
  ENDIF.
*------------------------------------*
  go_salv->display( ).
