Configmap使用指南

Configmap使用指南

本文章主要分享在容器化应用中，使用configmap存储应用配置文件，再挂载到容器内部，实现程序和配置的解耦。
食用之前可先阅读 https://www.ytg2097.com/more/spring-boot-k8s-configmap.html

一、操作过程

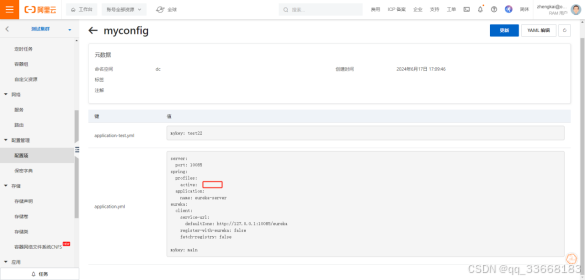

1、在ack创建configmap

将Springboot的2个配置文件写入了configmap ，名为 myconfig ， 其中mykey的值不一样。

apiVersion: v1
data:
  application-test.yml: 'mykey: test22'
  application.yml: |-
    server:
      port: 10085
    spring:
      profiles:
        active: test
      application:
        name: eureka-server
    eureka:
      client:
        service-url:
          defaultZone: http://127.0.0.1:10085/eureka
        register-with-eureka: false
        fetch-registry: false

    mykey: main
kind: ConfigMap
metadata:
  creationTimestamp: '2024-06-17T09:09:46Z'
  managedFields:
    - apiVersion: v1
      fieldsType: FieldsV1
      fieldsV1:
        'f:data':
          .: {}
          'f:application-test.yml': {}
          'f:application.yml': {}
      manager: ACK-Console Apache-HttpClient
      operation: Update
      time: '2024-06-19T01:31:55Z'
  name: myconfig
  namespace: dc
  resourceVersion: '71997954'
  uid: 58c79492-c10e-42c0-9d6d-7a619723e624

2、创建deployment

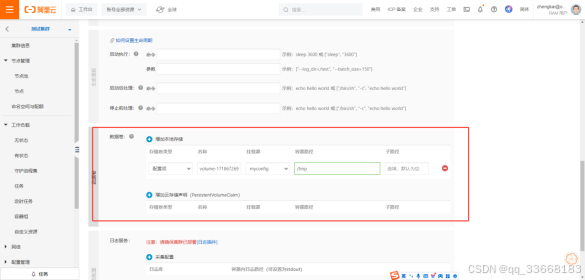

注意要选择挂载的configmap，这里容器路径选择jar包所在路径的子路径config。jar所在路径为/web/app.jar，故挂载路径为/web/config。
dockerfile如下：

#FROM ubuntu22-jdk17
FROM harbor.ovopark.com/library/jdk:1.8.0_311
ADD target/EurekaServer10085-1.0-SNAPSHOT.jar   /web/app.jar
# 执行启动命令
# ENTRYPOINT ["sh","-c","exec java -jar  -Xms2048m -Xmx2048m  -XX:MetaspaceSize=512M -XX:MaxMetaspaceSize=512M /web/app.jar"]
WORKDIR /web
ENTRYPOINT ["sh","-c","exec java -jar  -Xms1024m -Xmx1024m  -XX:MetaspaceSize=512M -XX:MaxMetaspaceSize=512M  -XX:+UseG1GC  /web/app.jar"]

deployment 如下：

apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: '11'
  creationTimestamp: '2024-06-18T06:12:50Z'
  generation: 11
  labels:
    app: zk-eureka3
  managedFields:
    - apiVersion: apps/v1
      fieldsType: FieldsV1
      fieldsV1:
        'f:metadata':
          'f:labels':
            .: {}
            'f:app': {}
        'f:spec':
          'f:progressDeadlineSeconds': {}
          'f:replicas': {}
          'f:revisionHistoryLimit': {}
          'f:selector': {}
          'f:strategy':
            'f:rollingUpdate':
              .: {}
              'f:maxSurge': {}
              'f:maxUnavailable': {}
            'f:type': {}
          'f:template':
            'f:metadata':
              'f:annotations':
                .: {}
                'f:redeploy-timestamp': {}
              'f:labels':
                .: {}
                'f:app': {}
            'f:spec':
              'f:containers':
                'k:{"name":"zk-eureka3"}':
                  .: {}
                  'f:image': {}
                  'f:imagePullPolicy': {}
                  'f:name': {}
                  'f:ports':
                    .: {}
                    'k:{"containerPort":10085,"protocol":"TCP"}':
                      .: {}
                      'f:containerPort': {}
                      'f:name': {}
                      'f:protocol': {}
                  'f:resources':
                    .: {}
                    'f:limits':
                      .: {}
                      'f:cpu': {}
                      'f:memory': {}
                  'f:terminationMessagePath': {}
                  'f:terminationMessagePolicy': {}
                  'f:volumeMounts':
                    .: {}
                    'k:{"mountPath":"/web/config"}':
                      .: {}
                      'f:mountPath': {}
                      'f:name': {}
              'f:dnsPolicy': {}
              'f:imagePullSecrets':
                .: {}
                'k:{"name":"miyao"}': {}
              'f:restartPolicy': {}
              'f:schedulerName': {}
              'f:securityContext': {}
              'f:terminationGracePeriodSeconds': {}
              'f:volumes':
                .: {}
                'k:{"name":"volume-1718691135676"}':
                  .: {}
                  'f:configMap':
                    .: {}
                    'f:defaultMode': {}
                    'f:name': {}
                  'f:name': {}
      manager: ACK-Console Apache-HttpClient
      operation: Update
      time: '2024-06-19T01:34:38Z'
    - apiVersion: apps/v1
      fieldsType: FieldsV1
      fieldsV1:
        'f:metadata':
          'f:annotations':
            .: {}
            'f:deployment.kubernetes.io/revision': {}
        'f:status':
          'f:availableReplicas': {}
          'f:conditions':
            .: {}
            'k:{"type":"Available"}':
              .: {}
              'f:lastTransitionTime': {}
              'f:lastUpdateTime': {}
              'f:message': {}
              'f:reason': {}
              'f:status': {}
              'f:type': {}
            'k:{"type":"Progressing"}':
              .: {}
              'f:lastTransitionTime': {}
              'f:lastUpdateTime': {}
              'f:message': {}
              'f:reason': {}
              'f:status': {}
              'f:type': {}
          'f:observedGeneration': {}
          'f:readyReplicas': {}
          'f:replicas': {}
          'f:updatedReplicas': {}
      manager: kube-controller-manager
      operation: Update
      subresource: status
      time: '2024-06-19T01:34:42Z'
  name: zk-eureka3
  namespace: dc
  resourceVersion: '71998971'
  uid: e609019e-6ca0-42b4-b6cb-879f770e3b64
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: zk-eureka3
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      annotations:
        redeploy-timestamp: '1718760878627'
      labels:
        app: zk-eureka3
    spec:
      containers:
        - image: 'ovo-registry.cn-hangzhou.cr.aliyuncs.com/ovopark/zk-eureka:v2'
          imagePullPolicy: Always
          name: zk-eureka3
          ports:
            - containerPort: 10085
              name: p
              protocol: TCP
          resources:
            limits:
              cpu: 200m
              memory: 1Gi
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          volumeMounts:
            - mountPath: /web/config
              name: volume-1718691135676
      dnsPolicy: ClusterFirst
      imagePullSecrets:
        - name: miyao
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
      volumes:
        - configMap:
            defaultMode: 420
            name: myconfig
          name: volume-1718691135676
status:
  availableReplicas: 1
  conditions:
    - lastTransitionTime: '2024-06-18T06:12:52Z'
      lastUpdateTime: '2024-06-18T06:12:52Z'
      message: Deployment has minimum availability.
      reason: MinimumReplicasAvailable
      status: 'True'
      type: Available
    - lastTransitionTime: '2024-06-18T06:12:50Z'
      lastUpdateTime: '2024-06-19T01:34:42Z'
      message: ReplicaSet "zk-eureka3-788b485557" has successfully progressed.
      reason: NewReplicaSetAvailable
      status: 'True'
      type: Progressing
  observedGeneration: 11
  readyReplicas: 1
  replicas: 1
  updatedReplicas: 1

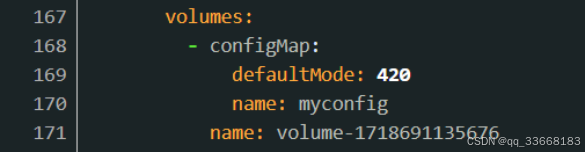

来分析下这个yaml，在167-171行在容器内部声明了一个卷，名为volume-1718691135676 ，是由myconfig这个configmap创建而来。

在157-159行将该卷挂载到容器内指定路径。

3、创建service

选择负载均衡器clb test2-116.62.101.233

二、测试与验证

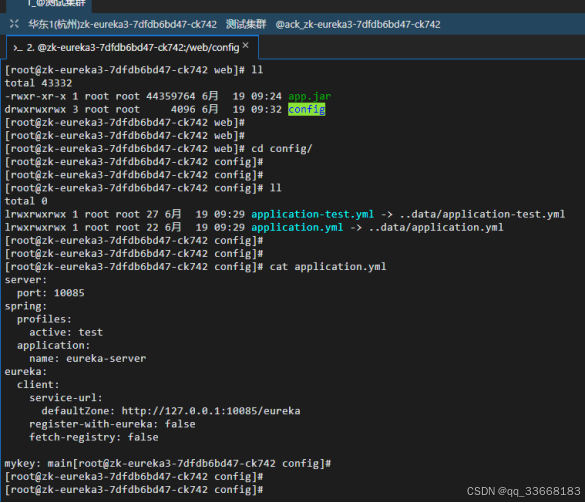

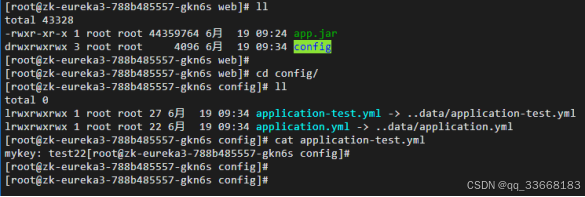

进入容器内部，确认配置文件已挂载进去。

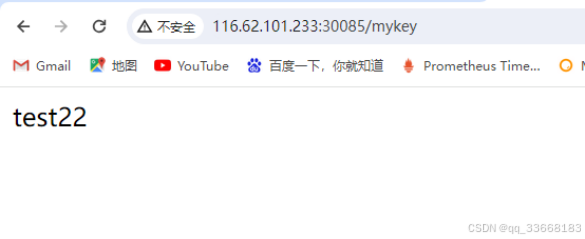

再通过接口获取下mykey的值，正确输出。

接下来切换下环境，使用默认yaml。更新configmap，再重启下deployment。

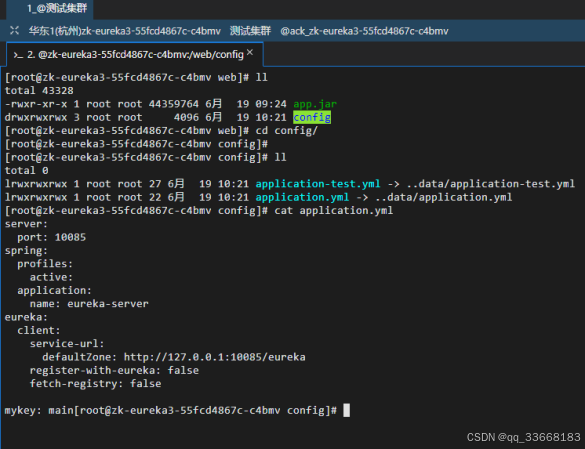

再进入容器内部确认下configmap ，更新成功。

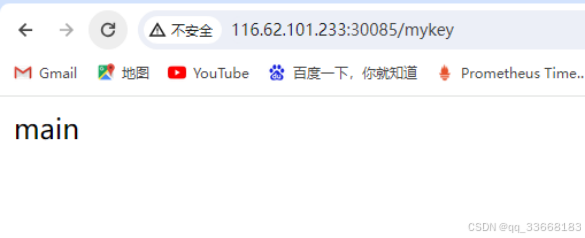

再次访问接口，获取下mykey的值，获取成功，测试通过！

三、总结与反思

实验中踩了一个大坑，碰到configmap确实挂载到了容器内部，但是程序访问到的还是jar内部的配置文件。最终发现是dockerfile没有指定工作路径workdir，应该要切换到jar所在路径（如dockerfile第6行）。感谢https://segmentfault.com/q/1010000041759388
之前在写《基于jenkins+GitLab实现CI/CD自动化部署》的时候，测试项目是鹰眼查项目，碰到一个问题，pod不断重启，查看了日志原来是mysql连接不对，应该是用内网的rds连接，
不得不修改了配置信息，提交代码触发流水线、推送新镜像到仓库、重新部署。仅仅是因为配置的修改就要大费周章实在是大可不必，现在有了configmap，只需修改configmap、重新部署deployment就行。
configmap是k8s自带的资源对象，是解决多配置环境下配置和程序解耦的一种解决方案。当然，分布式配置nacos、apollo，也是不错的选择。
