前言

本文为我亲测，2020年5月之前绝对可以用

kafka的原理：https://blog.csdn.net/qq_34168515/article/details/106433825

前提，建议虚拟机内存大于4G，系统为centos7

建议将yum和docker的源都切换为阿里源，不然下载速度会非常慢，原因你懂的。

以下我搭建的三个zk集群和三个kafka集群的地址

hostnameip addrportlistener
zoo1172.19.0.112184:2181—
zoo2172.19.0.122185:2181—
zoo3172.19.0.132186:2181—
kafka1172.19.0.149092:9092kafka1
kafka2172.19.0.159093:9092kafka2
Kafka3172.19.0.169094:9092Kafka3
宿主机192.168.102.137——

一、搭建docker

省略，网上很多，注意yum和docker的源都切换为阿里源

1.1 创建docker的网络

docker network create --driver bridge --subnet 172.19.0.0/25 --gateway 172.19.0.1  br200530

该网络用于配置zk集群和kafka集群。

1.2 查询docker的网络

[root@localhost docker-kafka]# docker network list
NETWORK ID          NAME                DRIVER              SCOPE
386116bb9b09        br200530            bridge              local
7c38e96cb246        bridge              bridge              local
bf929b7394aa        host                host                local
199262ea3eba        none                null                local

二、Zookeeper集群搭建

注意，zookeeper的版本最新为3.6，目前推荐为3.4。因为最新的3.6的端口需要自己去设置，比较麻烦。而3.4的端口不需要自己设置，直接2181,比较方便。

先拉取dookeeper镜像

docker pull zookeeper:3.4.10

2.1 安装docker之后，还需要安装 docker-compose

Compose 是一个用户定义和运行多个容器的 Docker 应用程序。在 Compose 中你可以使用 YAML 文件来配置你的应用服务。然后，只需要一个简单的命令，就可以创建并启动你配置的所有服务。

安装 Docker Compose
Docker Compose 存放在Git Hub，不太稳定。
你可以也通过执行下面的命令，高速安装Docker Compose。

curl -L https://get.daocloud.io/docker/compose/releases/download/1.25.5/docker-compose-`uname -s`-`uname -m` > /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose

[root@localhost bin]# docker-compose -v
docker-compose version 1.25.5, build 8a1c60f6

2.2 采用 使用yml文件和$ docker-compose up -d命令创建或重建集群

解释：
1、把镜像中的 /data 挂载到 /data/cancan/Development/volume/zkcluster/zoo1/data
2、把镜像中的 /datalog 挂载到 /data/cancan/Development/volume/zkcluster/zoo1/datalog
3、docker操作宿主机的文件，是需要权限的，所以需要设置 privileged: true

zk集群的 docker-compose.yml

version: '3.4.10'

services:
  zoo1:
    image: zookeeper:3.4.10
    restart: always
    hostname: zoo1
    container_name: zoo1
    privileged: true
    ports:
    - 2184:2181
    volumes:
    - "/data/cancan/Development/volume/zkcluster/zoo1/data:/data"
    - "/data/cancan/Development/volume/zkcluster/zoo1/datalog:/datalog"
    environment:
      ZOO_MY_ID: 1
      ZOO_SERVERS: server.1=zoo1:2888:3888 server.2=zoo2:2888:3888 server.3=zoo3:2888:3888
    networks:
      br200530:
        ipv4_address: 172.19.0.11

  zoo2:
    image: zookeeper:3.4.10
    restart: always
    hostname: zoo2
    container_name: zoo2
    privileged: true
    ports:
    - 2185:2181
    volumes:
    - "/data/cancan/Development/volume/zkcluster/zoo2/data:/data"
    - "/data/cancan/Development/volume/zkcluster/zoo2/datalog:/datalog"
    environment:
      ZOO_MY_ID: 2
      ZOO_SERVERS: server.1=zoo1:2888:3888 server.2=zoo2:2888:3888 server.3=zoo3:2888:3888
    networks:
      br200530:
        ipv4_address: 172.19.0.12

  zoo3:
    image: zookeeper:3.4.10
    restart: always
    hostname: zoo3
    container_name: zoo3
    privileged: true
    ports:
    - 2186:2181
    volumes:
    - "/data/cancan/Development/volume/zkcluster/zoo3/data:/data"
    - "/data/cancan/Development/volume/zkcluster/zoo3/datalog:/datalog"
    environment:
      ZOO_MY_ID: 3
      ZOO_SERVERS: server.1=zoo1:2888:3888 server.2=zoo2:2888:3888 server.3=zoo3:2888:3888
    networks:
      br200530:
        ipv4_address: 172.19.0.13

networks:
  br200530:
    external:
      name: br200530

2.3 在放置有 docker-compose.yml 的位置运行命令

  1. 创建zk集群
[root@localhost docker-zk]# docker-compose up -d
Creating zoo2 ... done
Creating zoo1 ... done
Creating zoo3 ... done
  1. 查询
[root@localhost docker-zk]# docker-compose ps
Name              Command               State                     Ports
------------------------------------------------------------------------------------------
zoo1   /docker-entrypoint.sh zkSe ...   Up      0.0.0.0:2184->2181/tcp, 2888/tcp, 3888/tcp
zoo2   /docker-entrypoint.sh zkSe ...   Up      0.0.0.0:2185->2181/tcp, 2888/tcp, 3888/tcp
zoo3   /docker-entrypoint.sh zkSe ...   Up      0.0.0.0:2186->2181/tcp, 2888/tcp, 3888/tcp
  1. 停止 — 非必要不要操作
[root@localhost docker-zk]# docker-compose stop
Stopping zoo3 ... done
Stopping zoo1 ... done
Stopping zoo2 ... done
  1. 删除 — 非必要不要操作
[root@localhost docker-zk]# docker-compose rm
Going to remove zoo3, zoo1, zoo2
Are you sure? [yN] y
Removing zoo3 ... done
Removing zoo1 ... done
Removing zoo2 ... done

三、Kafka集群搭建

2.1 创建 kafka的 docker-compose.yml

kafka集群的 docker-compose.yml

version: '2.1.0'

services:
  kafka1:
    image: wurstmeister/kafka
    restart: always
    hostname: kafka1
    container_name: kafka1
    privileged: true
    ports:
    - 9092:9092
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_LISTENERS: PLAINTEXT://kafka1:9092
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://192.168.102.137:9092
      KAFKA_ZOOKEEPER_CONNECT: zoo1:2181,zoo2:2181,zoo3:2181
      KAFKA_DEFAULT_REPLICATION_FACTOR: 3
      KAFKA_NUM_PARTITIONS: 3
      JMX_PORT: 9988
    volumes:
    - /data/cancan/Development/volume/kfkcluster/kafka1/logs:/kafka
    external_links:
    - zoo1
    - zoo2
    - zoo3
    networks:
      br200530:
        ipv4_address: 172.19.0.14

  kafka2:
    image: wurstmeister/kafka
    restart: always
    hostname: kafka2
    container_name: kafka2
    privileged: true
    ports:
    - 9093:9092
    environment:
      KAFKA_BROKER_ID: 2
      KAFKA_LISTENERS: PLAINTEXT://kafka2:9092
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://192.168.102.137:9093
      KAFKA_ZOOKEEPER_CONNECT: zoo1:2181,zoo2:2181,zoo3:2181
      KAFKA_DEFAULT_REPLICATION_FACTOR: 3
      KAFKA_NUM_PARTITIONS: 3
      JMX_PORT: 9988
    volumes:
    - /data/cancan/Development/volume/kfkcluster/kafka2/logs:/kafka
    external_links:
    - zoo1
    - zoo2
    - zoo3
    networks:
      br200530:
        ipv4_address: 172.19.0.15

  kafka3:
    image: wurstmeister/kafka
    restart: always
    hostname: kafka3
    container_name: kafka3
    privileged: true
    ports:
    - 9094:9092
    environment:
      KAFKA_BROKER_ID: 3
      KAFKA_LISTENERS: PLAINTEXT://kafka3:9092
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://192.168.102.137:9094
      KAFKA_ZOOKEEPER_CONNECT: zoo1:2181,zoo2:2181,zoo3:2181
      KAFKA_DEFAULT_REPLICATION_FACTOR: 3
      KAFKA_NUM_PARTITIONS: 3
      JMX_PORT: 9988
    volumes:
    - /data/cancan/Development/volume/kfkcluster/kafka3/logs:/kafka
    external_links:
    - zoo1
    - zoo2
    - zoo3
    networks:
      br200530:
        ipv4_address: 172.19.0.16

  kafka-manager:
    image: sheepkiller/kafka-manager:latest
    restart: always
    container_name: kafka-manager
    hostname: kafka-manager
    ports:
      - "9000:9000"
    links:            # 连接本compose文件创建的container
      - kafka1
      - kafka2
      - kafka3
    external_links:   # 连接本compose文件以外的container
      - zoo1
      - zoo2
      - zoo3
    environment:
      ZK_HOSTS: zoo1:2181,zoo2:2181,zoo3:2181
      KAFKA_BROKERS: kafka1:9092,kafka2:9092,kafka3:9092
      APPLICATION_SECRET: letmein
      KM_ARGS: -Djava.net.preferIPv4Stack=true
    networks:
      br200530:
        ipv4_address: 172.19.0.20

networks:
  br200530:
    external:
      name: br200530

2.2 运行在放置有 docker-compose.yml 的位置运行命令

  1. 创建
[root@localhost docker-kafka]# docker-compose up -d
Creating kafka1 ... done
Creating kafka2 ... done
Creating kafka3 ... done
Creating kafka-manager ... done
  1. 查询
[root@localhost docker-kafka]# docker-compose ps
    Name                Command            State           Ports
-------------------------------------------------------------------------
kafka-manager   ./start-kafka-manager.sh   Up      0.0.0.0:9000->9000/tcp
kafka1          start-kafka.sh             Up      0.0.0.0:9092->9092/tcp
kafka2          start-kafka.sh             Up      0.0.0.0:9093->9092/tcp
kafka3          start-kafka.sh             Up      0.0.0.0:9094->9092/tcp

2.3 说明

  1. 搭建了 kafka1 kafka2 kafka3 三个集群和一个管理界面 manager

  2. kafka启动参数说明

# kafka的broker的顺序
KAFKA_BROKER_ID: 1
# kafka的内部监听端口
KAFKA_LISTENERS: PLAINTEXT://kafka1:9092
# kafka的外部监听端口，取代了KAFKA_ADVERTISED_HOST_NAME和KAFKA_ADVERTISED_PORT
KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://192.168.102.137:9092
# zk的集群地址
KAFKA_ZOOKEEPER_CONNECT: zoo1:2181,zoo2:2181,zoo3:2181
# 默认开启了分片，一般分片的数量跟集群的数量一致
KAFKA_DEFAULT_REPLICATION_FACTOR: 3
# 默认开启了副本
KAFKA_NUM_PARTITIONS: 3
JMX_PORT: 9988

  1. zk的集群地址为 192.168.102.137:2184,192.168.102.137:2185,192.168.102.137:2186

  2. kafka的集群地址为 192.168.102.137:9092,192.168.102.137:909
    3,192.168.102.137:9094

四、测试

参考文章：https://blog.csdn.net/qq_34168515/article/details/106433825

4.1 在宿主机下载一个kafka的安装包。

例如：

[root@localhost docker-kafka]# cd ../kafka/kafka_2.11-2.1.0/bin/
[root@localhost bin]# ls
connect-distributed.sh        kafka-consumer-groups.sh     kafka-preferred-replica-election.sh  kafka-streams-application-reset.sh  zookeeper-security-migration.sh
connect-standalone.sh         kafka-consumer-perf-test.sh  kafka-producer-perf-test.sh          kafka-topics.sh                     zookeeper-server-start.sh
kafka-acls.sh                 kafka-delegation-tokens.sh   kafka-reassign-partitions.sh         kafka-verifiable-consumer.sh        zookeeper-server-stop.sh
kafka-broker-api-versions.sh  kafka-delete-records.sh      kafka-replica-verification.sh        kafka-verifiable-producer.sh        zookeeper-shell.sh
kafka-configs.sh              kafka-dump-log.sh            kafka-run-class.sh                   trogdor.sh
kafka-console-consumer.sh     kafka-log-dirs.sh            kafka-server-start.sh                windows
kafka-console-producer.sh     kafka-mirror-maker.sh        kafka-server-stop.sh                 zookeeper.out

4.2 手动创建一个为 cancan 的主题

[root@localhost bin]# ./kafka-topics.sh --zookeeper localhost:2184,localhost:2185,localhost:2186 --topic cancan --create --partitions 3 --replication-factor 3
Created topic "cancan".

4.3 查询 cancan 的主题

[root@localhost bin]# ./kafka-topics.sh --zookeeper localhost:2184,localhost:2185,localhost:2186 --list
__consumer_offsets
cancan

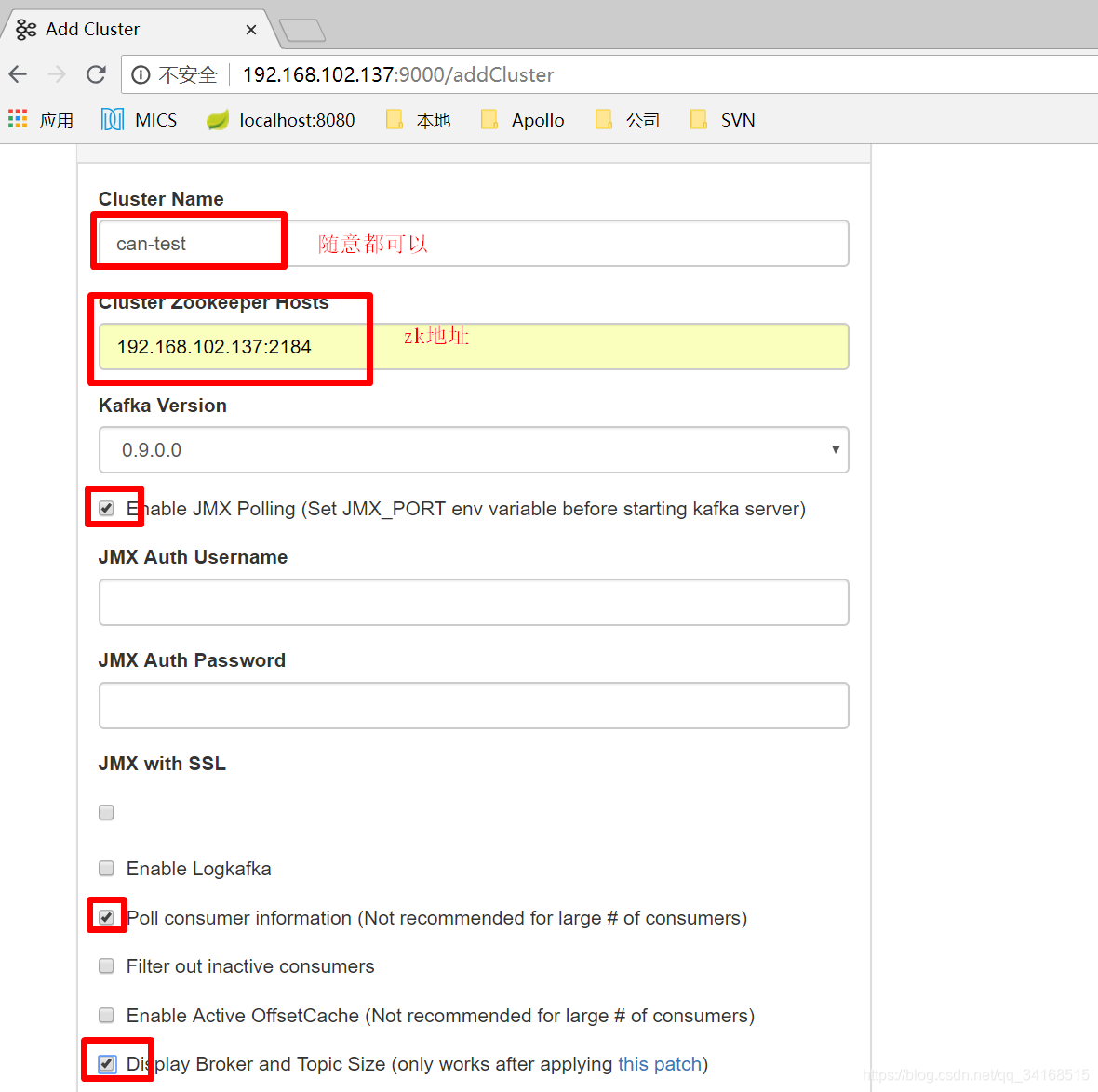

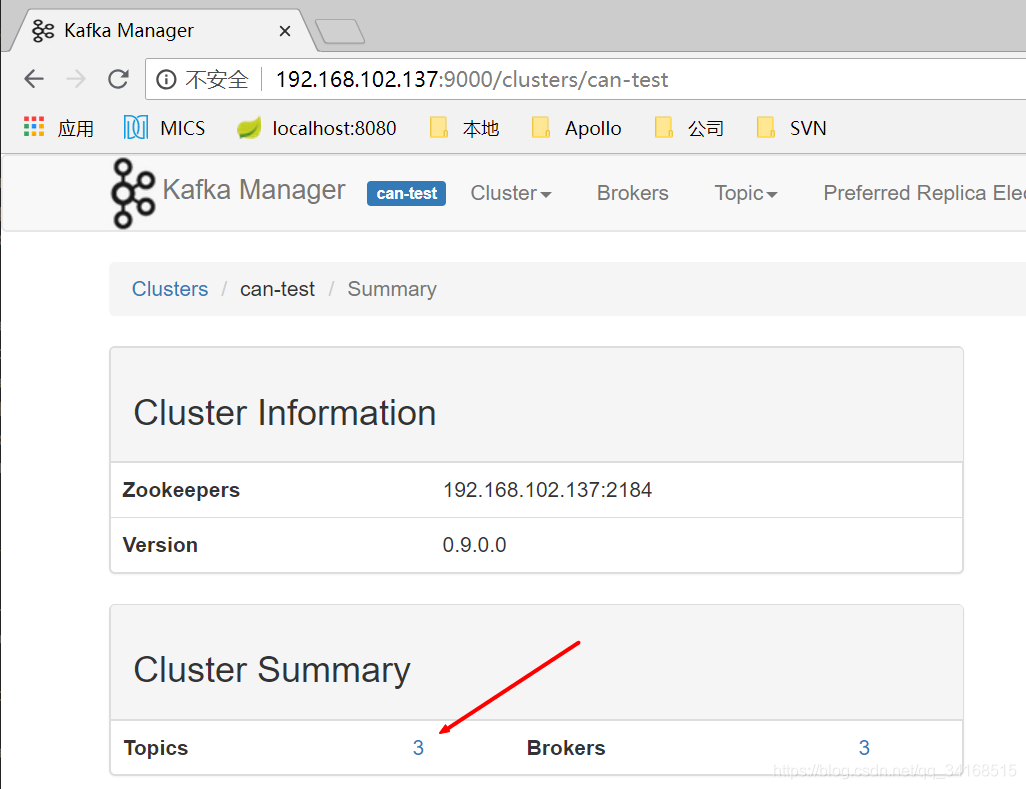

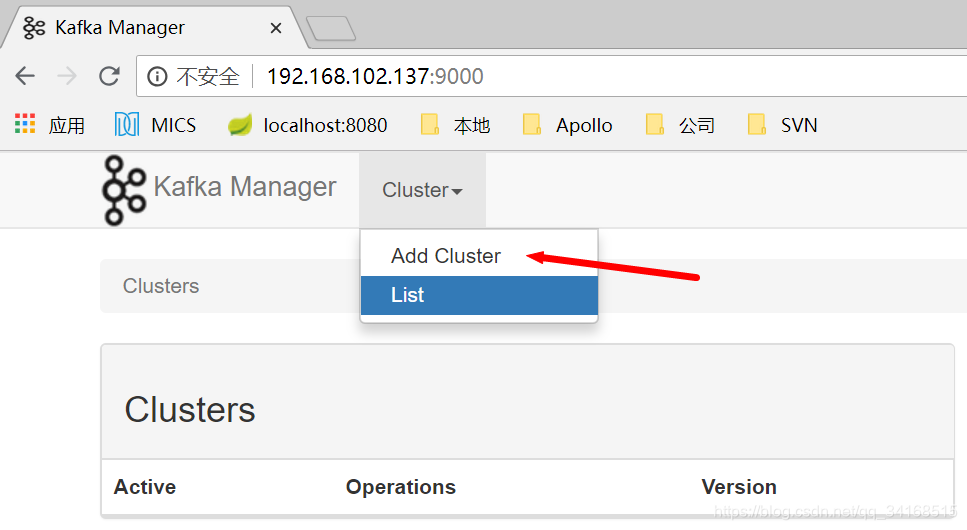

4.4 前端页面打开kafka

192.168.102.137:9000
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
