SpringBoot与web开发(五) ---- SpringBoot 错误处理机制

SpringBoot 错误处理

SpringBoot 默认错误机制，返回一个错误页面和 json数据

• 浏览器

• 其它客户端

1. 原理

源码 ErrorMvcAutoConfiguration

其中有几个重要的组件：

• DefaultErrorAttributes ： 共享信息

  • timestamp 时间
  • status 状态码
  • error 错误提示
  • exception 异常对象
  • message 异常信息
  • errors JSR303 数据校验的信息

• DefaultErrorViewResolver

  @Override
  public ModelAndView resolveErrorView(HttpServletRequest request, HttpStatus status, Map<String, Object> model) {
     ModelAndView modelAndView = resolve(String.valueOf(status.value()), model);
     if (modelAndView == null && SERIES_VIEWS.containsKey(status.series())) {
        modelAndView = resolve(SERIES_VIEWS.get(status.series()), model);
     }
     return modelAndView;
  }

  private ModelAndView resolve(String viewName, Map<String, Object> model) {
     String errorViewName = "error/" + viewName;
    //使用模板引擎
     TemplateAvailabilityProvider provider = this.templateAvailabilityProviders.getProvider(errorViewName,
           this.applicationContext);
     if (provider != null) {
        return new ModelAndView(errorViewName, model);
     }
     //没有模板引擎 自动在静态资源下面去找
     return resolveResource(errorViewName, model);
  }


• ErrorPageCustomizer ： 自定义

• BasicErrorController ： 处理 /error 请求

  @Controller
  @RequestMapping("${server.error.path:${error.path:/error}}")
  public class BasicErrorController extends AbstractErrorController {
      //html  浏览器
    	@RequestMapping(produces = MediaType.TEXT_HTML_VALUE)
  	public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {
  		HttpStatus status = getStatus(request);
  		Map<String, Object> model = Collections
  				.unmodifiableMap(getErrorAttributes(request, isIncludeStackTrace(request, MediaType.TEXT_HTML)));
  		response.setStatus(status.value());
  		ModelAndView modelAndView = resolveErrorView(request, response, status, model);
  		return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);
  	}
      //json  其他客户端
  	@RequestMapping
  	public ResponseEntity<Map<String, Object>> error(HttpServletRequest request) {
  		Map<String, Object> body = getErrorAttributes(request, isIncludeStackTrace(request, MediaType.ALL));
  		HttpStatus status = getStatus(request);
  		return new ResponseEntity<>(body, status);
  	}


2. 自定义

• 自定义页面

  1. 有模板引擎，将404页面放在templates/error下面,（4xx）都可以找到 , 同理5xx也是可以的（首先是精确匹配）。
  2. 没有模板引擎，static 目录下创建error目录以及错误页面。

• 自定义 JSON 数据

  • 以下测试的controller

        /**
         * 测试
         * @param user 测试用户名：aa
         * @return Exception or String
         */
        @RequestMapping("/hello")
        @ResponseBody
        public String hello(@RequestParam("user") String user) {
            if (user.equals("aa")) {
                throw new UserNotException();
            }
            return "hello";
        }



  1. 统一显示json

     /**
      * @program: spring-boot-restful-crud
      * @description: 异常处理器
      * @author: YuanChangYue
      * @create: 2019-08-19 12:53
      */
     @ControllerAdvice
     public class MyExceptionHandler {

         /**
          * 处理UserNotException
          * 同意返回的是json数据 而不是分开显示为页面或者json
          * @return 处理信息
          */
         @ResponseBody
         @ExceptionHandler(UserNotException.class)
         public Map<String, Object> handlerException(Exception e) {
             Map<String, Object> map = new HashMap<>();
             map.put("code", "user not exist");
             map.put("message", e.getMessage());
             return map;
         }
     }

     /**
      * @program: spring-boot-restful-crud
      * @description: 用户不存在异常类
      * @author: YuanChangYue
      * @create: 2019-08-19 12:44
      */
     public class UserNotException extends RuntimeException {
         public UserNotException() {
             super("用户不存在");
         }
     }



2. 页面和json分开 （通过转发到error）

   /**
    * @program: spring-boot-restful-crud
    * @description: 异常处理器
    * @author: YuanChangYue
    * @create: 2019-08-19 12:53
    */
   @ControllerAdvice
   public class MyExceptionHandler {

   //    /**
   //     * 处理UserNotException
   //     *
   //     * @return 处理信息
   //     */
   //    @ResponseBody
   //    @ExceptionHandler(UserNotException.class)
   //    public Map<String, Object> handlerException(Exception e) {
   //        Map<String, Object> map = new HashMap<>();
   //        map.put("code", "user not exist");
   //        map.put("message", e.getMessage());
   //        return map;
   //    }

      /**
        * 处理UserNotException
        * 注意：一定要设置错误代码
        * 根据：org.springframework.boot.autoconfigure.web.servlet.error.AbstractErrorController#getStatus(javax.servlet.http.HttpServletRequest)
        * 关键点：request.setAttribute("javax.servlet.error.status_code", 500);
        *
        * @return 处理信息
        */
       @ResponseBody
       @ExceptionHandler(UserNotException.class)
       public String handlerException(Exception e, HttpServletRequest request) {
           Map<String, Object> map = new HashMap<>();
           //传入错误代码 4xx 5xx
           //Integer statusCode = (Integer) request.getAttribute("javax.servlet.error.status_code");
           request.setAttribute("javax.servlet.error.status_code", 500);
           map.put("code", "user not exist");
           map.put("message", e.getMessage());
           return "forward:/error";
       }
   }



3. 将我们的定制数据传递出去

   当出现error时候，会来到/error请求中，这样就会被BasicErrorController类处理，查看这个类发现，相应的响应数据是由getErrorAttributes（在BasicErrorController继承的父类AbstractErrorController （ErrorController.class实现类））方法的得到的。再看ErrorMvcAutoConfiguration自动装载BasicErrorController ：

    @Bean
     //当没有ErrorController.class就会加载BasicErrorController到容器中
     @ConditionalOnMissingBean(value = ErrorController.class, search = SearchStrategy.CURRENT)
     public BasicErrorController basicErrorController(ErrorAttributes errorAttributes) {
     return new BasicErrorController(errorAttributes, this.serverProperties.getError(), this.errorViewResolvers);}


   • 这样就可以来编写一个BasicErrorController的实现类，放在容器中。
   • BasicErrorController最终会在ErrorAttributes中取出响应数据，所以 我们可以编写自己的ErrorAttribute.


     /**
      * @program: spring-boot-restful-crud
      * @description: 自定义ErrorAttributes
      * @author: YuanChangYue
      * @create: 2019-08-19 15:02
      */
     public class MyErrorAtrributes extends DefaultErrorAttributes {

         @Override
         public Map<String, Object> getErrorAttributes(WebRequest webRequest, boolean includeStackTrace) {
             Map<String, Object> errorAttributes = super.getErrorAttributes(webRequest, includeStackTrace);
             errorAttributes.put("owner", "ChangYue");
             return errorAttributes;
         }
     }


![在这里插入图片描述](https://img-blog.csdnimg.cn/20190819164733763.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0MjUyOTg3,size_16,color_FFFFFF,t_70)

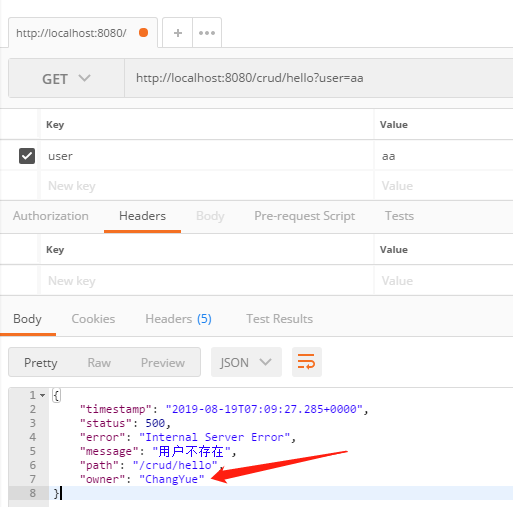

​ 将自定义异常处理类需要传递的数据传递到自定义ErrorAttributes中，并添加进去

​

  /**
   * @program: spring-boot-restful-crud
   * @description: 自定义ErrorAttributes
   * @author: YuanChangYue
   * @create: 2019-08-19 15:02
   */
  @Component
  public class MyErrorAttributes extends DefaultErrorAttributes {

      /**
       * @return 页面和json获取的字段
       */
      @Override
      public Map<String, Object> getErrorAttributes(WebRequest webRequest, boolean includeStackTrace) {
          Map<String, Object> errorAttributes = super.getErrorAttributes(webRequest, includeStackTrace);
          errorAttributes.put("owner", "ChangYue");
          //自定义需要的传递的数据
          Map<String, Object> exc = (Map<String, Object>) webRequest.getAttribute("exc", 0);
          errorAttributes.put("exc", exc);
          return errorAttributes;
      }

  }

  /**
   * @program: spring-boot-restful-crud
   * @description: 异常处理器
   * @author: YuanChangYue
   * @create: 2019-08-19 12:53
   */
  @ControllerAdvice
  public class MyExceptionHandler {

      /**
       * 处理UserNotException
       * 注意：一定要设置错误代码
       * 根据：org.springframework.boot.autoconfigure.web.servlet.error.AbstractErrorController#getStatus(javax.servlet.http.HttpServletRequest)
       * 关键点：request.setAttribute("javax.servlet.error.status_code", 500);
       *
       * @return 处理信息
       */
      @ExceptionHandler(UserNotException.class)
      public String handlerException(Exception e, HttpServletRequest request) {
          Map<String, Object> map = new HashMap<>();
          //传入错误代码 4xx 5xx
          //Integer statusCode = (Integer) request.getAttribute("javax.servlet.error.status_code");
          request.setAttribute("javax.servlet.error.status_code", 500);
          map.put("code", "user not exist");
          map.put("message", e.getMessage());
          request.setAttribute("exc", map);
          return "forward:/error";
      }
  }

​

同时在错误页面中也可以显示出来
