本文介绍在华为云中间件中如何优化Kafka消费者多线程消费模式，通过减少不必要的长连接和线程轮询，降低资源消耗，提高消费效率。
本文来自华为云中间件最佳实践
源地址连接
场景介绍
在DMS提供的原生Kafka SDK中，消费者可以自定义拉取消息的时长，如果需要长时间的拉取消息，只需要把poll(long)方法的参数设置合适的值即可。但是这样的长连接可能会对客户端和服务端造成一定的压力，特别是分区数较多且每个消费者开启多个线程的情况下。
如图1所示，Kafka队列含有多个分区，消费组中有多个消费者同时进行消费，每个线程均为长连接。当队列中消息较少或者没有时，连接不断开，所有消费者不间断地拉取消息，这样造成了一定的资源浪费。

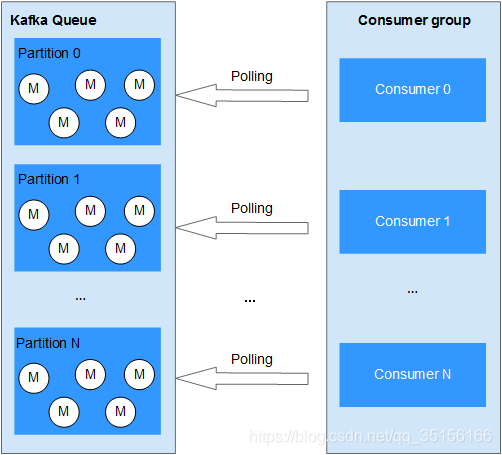

图1 Kafka消费者多线程消费模式
优化方案
在开了多个线程同时访问的情况下，如果队列里已经没有消息了，其实不需要所有的线程都在poll，只需要有一个线程poll各分区的消息就足够了，当在polling的线程发现队列中有消息，可以唤醒其他线程一起消费消息，以达到快速响应的目的。如图2所示。
这种方案适用于对消费消息的实时性要求不高的应用场景。如果要求准实时消费消息，则建议保持所有消费者处于活跃状态。

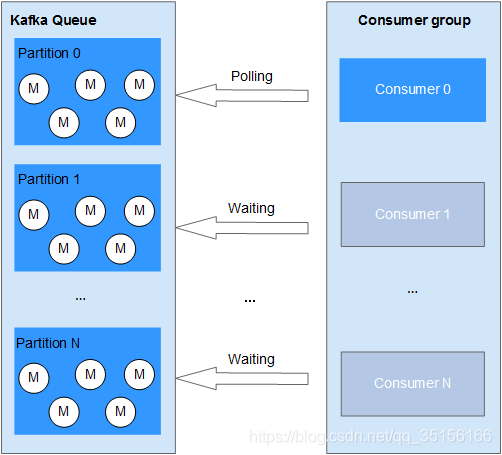

图2 优化后的多线程消费方案
消费者（Consumer）和消息分区（Partition）并不强制数量相等，Kafka的poll(long)方法帮助实现获取消息、分区平衡、消费者与Kafka broker节点间的心跳检测等功能。 因此在对消费消息的实时性要求不高场景下，当消息数量不多的时候，可以选择让一部分消费者处于wait状态。
代码示例
-
注意：
以下仅贴出与消费者线程唤醒与睡眠相关代码，如需运行整个demo，请先下载完整的代码示例包，同时参考DMS开发指南进行部署和运行。 -
消费消息代码示例如下：
package com.huawei.dms.kafka;
import java.io.IOException;
import java.util.Arrays;
import java.util.Collection;
import java.util.Iterator;
import java.util.Properties;
import org.apache.kafka.clients.consumer.ConsumerRebalanceListener;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import org.apache.kafka.common.TopicPartition;
import org.apache.log4j.Logger;
public class DmsKafkaConsumeDemo
{
private static Logger logger = Logger.getLogger(DmsKafkaProduceDemo.class);
public static void WorkerFunc(int workerId, KafkaConsumer<String, String> kafkaConsumer) throws IOException
{
Properties consumerConfig = Config.getConsumerConfig();
RecordReceiver receiver = new RecordReceiver(workerId, kafkaConsumer, consumerConfig.getProperty("topic"));
while (true)
{
ConsumerRecords<String, String> records = receiver.receiveMessage();
Iterator<ConsumerRecord<String, String>> iter = records.iterator();
while (iter.hasNext())
{
ConsumerRecord<String, String> cr = iter.next();
System.out.println("Thread" + workerId + " recievedrecords" + cr.value());
logger.info("Thread" + workerId + " recievedrecords" + cr.value());
}
}
}
public static KafkaConsumer<String, String> getConsumer() throws IOException
{
Properties consumerConfig = Config.getConsumerConfig();
consumerConfig.put("ssl.truststore.location", Config.getTrustStorePath());
System.setProperty("java.security.auth.login.config", Config.getSaslConfig());
KafkaConsumer<String, String> kafkaConsumer = new KafkaConsumer<>(consumerConfig);
kafkaConsumer.subscribe(Arrays.asList(consumerConfig.getProperty("topic")),
new ConsumerRebalanceListener()
{
@Override
public void onPartitionsRevoked(Collection<TopicPartition> arg0)
{
}
@Override
public void onPartitionsAssigned(Collection<TopicPartition> tps)
{
}
});
return kafkaConsumer;
}
public static void main(String[] args) throws IOException
{
//创建当前消费组的consumer
final KafkaConsumer<String, String> consumer1 = getConsumer();
Thread thread1 = new Thread(new Runnable()
{
public void run()
{
try
{
WorkerFunc(1, consumer1);
}
catch (IOException e)
{
// TODO Auto-generated catch block
e.printStackTrace();
}
}
});
final KafkaConsumer<String, String> consumer2 = getConsumer();
Thread thread2 = new Thread(new Runnable()
{
public void run()
{
try
{
WorkerFunc(2, consumer2);
}
catch (IOException e)
{
// TODO Auto-generated catch block
e.printStackTrace();
}
}
});
final KafkaConsumer<String, String> consumer3 = getConsumer();
Thread thread3 = new Thread(new Runnable()
{
public void run()
{
try
{
WorkerFunc(3, consumer3);
}
catch (IOException e)
{
// TODO Auto-generated catch block
e.printStackTrace();
}
}
});
//启动线程
thread1.start();
thread2.start();
thread3.start();
try
{
Thread.sleep(5000);
}
catch (InterruptedException e)
{
e.printStackTrace();
}
//线程加入
try
{
thread1.join();
thread2.join();
thread3.join();
}
catch (InterruptedException e)
{
e.printStackTrace();
}
}
}
- 消费者线程管理示例代码
示例仅提供简单的设计思路，开发者可结合实际场景优化线程休眠和唤醒机制。
package com.huawei.dms.kafka;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import org.apache.log4j.Logger;
public class RecordReceiver
{
private static Logger logger = Logger.getLogger(DmsKafkaProduceDemo.class);
//polling的间隔时间
public static final int WAIT_SECONDS = 10 * 1000;
protected static final Map<String, Object> sLockObjMap = new HashMap<String, Object>();
protected static Map<String, Boolean> sPollingMap = new ConcurrentHashMap<String, Boolean>();
protected Object lockObj;
protected String topicName;
protected KafkaConsumer<String, String> kafkaConsumer;
protected int workerId;
public RecordReceiver(int id, KafkaConsumer<String, String> kafkaConsumer, String queue)
{
this.kafkaConsumer = kafkaConsumer;
this.topicName = queue;
this.workerId = id;
synchronized (sLockObjMap)
{
lockObj = sLockObjMap.get(topicName);
if (lockObj == null)
{
lockObj = new Object();
sLockObjMap.put(topicName, lockObj);
}
}
}
public boolean setPolling()
{
synchronized (lockObj)
{
Boolean ret = sPollingMap.get(topicName);
if (ret == null || !ret)
{
sPollingMap.put(topicName, true);
return true;
}
return false;
}
}
//唤醒全部线程
public void clearPolling()
{
synchronized (lockObj)
{
sPollingMap.put(topicName, false);
lockObj.notifyAll();
System.out.println("Everyone WakeUp and Work!");
logger.info("Everyone WakeUp and Work!");
}
}
public ConsumerRecords<String, String> receiveMessage()
{
boolean polling = false;
while (true)
{
//检查线程的poll状态，必要时休眠
synchronized (lockObj)
{
Boolean p = sPollingMap.get(topicName);
if (p != null && p)
{
try
{
System.out.println("Thread" + workerId + " Have a nice sleep!");
logger.info("Thread" + workerId +" Have a nice sleep!");
polling = false;
lockObj.wait();
}
catch (InterruptedException e)
{
System.out.println("MessageReceiver Interrupted! topicName is " + topicName);
logger.error("MessageReceiver Interrupted! topicName is "+topicName);
return null;
}
}
}
//开始消费，必要时唤醒其他线程消费
try
{
ConsumerRecords<String, String> Records = null;
if (!polling)
{
Records = kafkaConsumer.poll(100);
if (Records.count() == 0)
{
polling = true;
continue;
}
}
else
{
if (setPolling())
{
System.out.println("Thread" + workerId + " Polling!");
logger.info("Thread " + workerId + " Polling!");
}
else
{
continue;
}
do
{
System.out.println("Thread" + workerId + " KEEP Poll records!");
logger.info("Thread" + workerId + " KEEP Poll records!");
try
{
Records = kafkaConsumer.poll(WAIT_SECONDS);
}
catch (Exception e)
{
System.out.println("Exception Happened when polling records: " + e);
logger.error("Exception Happened when polling records: " + e);
}
} while (Records.count()==0);
clearPolling();
}
//消息确认
kafkaConsumer.commitSync();
return Records;
}
catch (Exception e)
{
System.out.println("Exception Happened when poll records: " + e);
logger.error("Exception Happened when poll records: " + e);
}
}
}
}
- 说明：
topicName配置为“队列名称”或者“Kafka Topic”。
示例代码运行结果
[2018-01-25 22:40:51,841] INFO Thread 2 Polling! (com.huawei.dms.kafka.DmsKafkaProduceDemo:119)
[2018-01-25 22:40:51,841] INFO Thread2 KEEP Poll records! (com.huawei.dms.kafka.DmsKafkaProduceDemo:128)
[2018-01-25 22:40:52,122] INFO Everyone WakeUp and Work! (com.huawei.dms.kafka.DmsKafkaProduceDemo:69)
[2018-01-25 22:40:52,169] INFO Thread2 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:40:52,169] INFO Thread2 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:40:52,216] INFO Thread2 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:40:52,325] INFO Thread 2 Polling! (com.huawei.dms.kafka.DmsKafkaProduceDemo:119)
[2018-01-25 22:40:52,325] INFO Thread2 KEEP Poll records! (com.huawei.dms.kafka.DmsKafkaProduceDemo:128)
[2018-01-25 22:40:54,947] INFO Thread1 Have a nice sleep! (com.huawei.dms.kafka.DmsKafkaProduceDemo:87)
[2018-01-25 22:40:54,979] INFO Thread3 Have a nice sleep! (com.huawei.dms.kafka.DmsKafkaProduceDemo:87)
[2018-01-25 22:41:32,347] INFO Thread2 KEEP Poll records! (com.huawei.dms.kafka.DmsKafkaProduceDemo:128)
[2018-01-25 22:41:42,353] INFO Thread2 KEEP Poll records! (com.huawei.dms.kafka.DmsKafkaProduceDemo:128)
[2018-01-25 22:41:47,816] INFO Everyone WakeUp and Work! (com.huawei.dms.kafka.DmsKafkaProduceDemo:69)
[2018-01-25 22:41:47,847] INFO Thread2 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:41:47,925] INFO Thread 3 Polling! (com.huawei.dms.kafka.DmsKafkaProduceDemo:119)
[2018-01-25 22:41:47,925] INFO Thread1 Have a nice sleep! (com.huawei.dms.kafka.DmsKafkaProduceDemo:87)
[2018-01-25 22:41:47,925] INFO Thread3 KEEP Poll records! (com.huawei.dms.kafka.DmsKafkaProduceDemo:128)
[2018-01-25 22:41:47,957] INFO Thread2 Have a nice sleep! (com.huawei.dms.kafka.DmsKafkaProduceDemo:87)
[2018-01-25 22:41:48,472] INFO Everyone WakeUp and Work! (com.huawei.dms.kafka.DmsKafkaProduceDemo:69)
[2018-01-25 22:41:48,503] INFO Thread3 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:41:48,518] INFO Thread1 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:41:48,550] INFO Thread2 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:41:48,597] INFO Thread1 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:41:48,659] INFO Thread 2 Polling! (com.huawei.dms.kafka.DmsKafkaProduceDemo:119)
[2018-01-25 22:41:48,659] INFO Thread2 KEEP Poll records! (com.huawei.dms.kafka.DmsKafkaProduceDemo:128)
[2018-01-25 22:41:48,675] INFO Thread3 recievedrecordshello, dms kafka. (com.huawei.dms.kafka.DmsKafkaProduceDemo:32)
[2018-01-25 22:41:48,675] INFO Everyone WakeUp and Work! (com.huawei.dms.kafka.DmsKafkaProduceDemo:69)
[2018-01-25 22:41:48,706] INFO Thread 1 Polling! (com.huawei.dms.kafka.DmsKafkaProduceDemo:119)
[2018-01-25 22:41:48,706] INFO Thread1 KEEP Poll records! (com.huawei.dms.kafka.DmsKafkaProduceDemo:128)
