在单页应用如此流行的今天,曾经令人惊叹的前端路由已经成为各大框架的基础标配,每个框架都提供了强大的路由功能,导致路由实现变的复杂。想要搞懂路由内部实现还是有些困难的,但是如果只想了解路由实现基本原理还是比较简单的。本文针对前端路由主流的实现方式 hash 和 history,提供了原生JS/React/Vue 共计六个版本供参考,每个版本的实现代码约 25~40 行左右(含空行)。
什么是前端路由?
路由的概念来源于服务端,在服务端中路由描述的是 URL 与处理函数之间的映射关系。
在 Web 前端单页应用 SPA(Single Page Application)中,路由描述的是 URL 与 UI 之间的映射关系,这种映射是单向的,即 URL 变化引起 UI 更新(无需刷新页面)。
如何实现前端路由?
要实现前端路由,需要解决两个核心:
-
如何改变 URL 却不引起页面刷新?
-
如何检测 URL 变化了?
下面分别使用 hash 和 history 两种实现方式回答上面的两个核心问题。
hash 实现
-
hash 是 URL 中 hash (#) 及后面的那部分,常用作锚点在页面内进行导航,改变 URL 中的 hash 部分不会引起页面刷新
-
通过 hashchange 事件监听 URL 的变化,改变 URL 的方式只有这几种:通过浏览器前进后退改变 URL、通过
<a>
标签改变 URL、通过window.location改变URL,这几种情况改变 URL 都会触发 hashchange 事件
history 实现
-
history 提供了 pushState 和 replaceState 两个方法,这两个方法改变 URL 的 path 部分不会引起页面刷新
-
history 提供类似 hashchange 事件的 popstate 事件,但 popstate 事件有些不同:通过浏览器前进后退改变 URL 时会触发 popstate 事件,通过pushState/replaceState或
<a>
标签改变 URL 不会触发 popstate 事件。好在我们可以拦截 pushState/replaceState的调用和<a>
标签的点击事件来检测 URL 变化,所以监听 URL 变化可以实现,只是没有 hashchange 那么方便。
原生JS版前端路由实现
基于上节讨论的两种实现方式,分别实现 hash 版本和 history 版本的路由,示例使用原生 HTML/JS 实现,不依赖任何框架。
基于 hash 实现

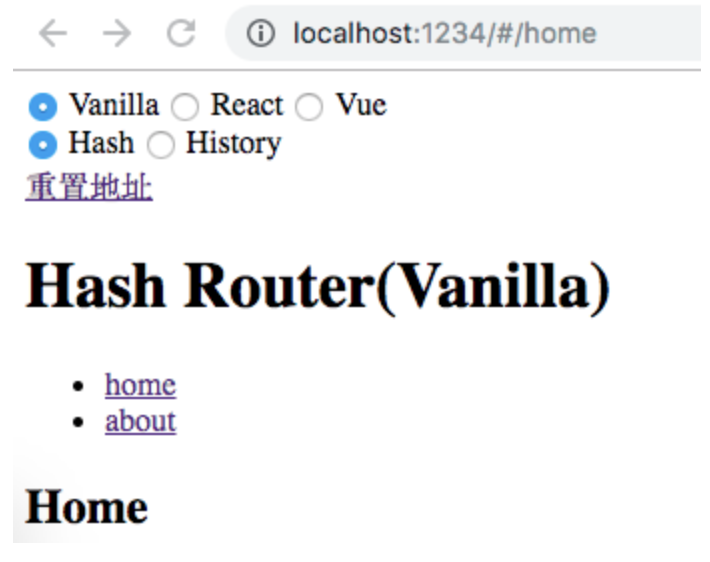

运行效果:
HTML 部分:
-
<body>
-
<ul>
-
<!-- 定义路由 -->
-
<li><a href="#/home">home</a></li>
-
<li><a href="#/about">about</a></li>
-
<!-- 渲染路由对应的 UI -->
-
<div id="routeView"></div>
-
</ul>
-
</body>
JavaScript 部分:
-
// 页面加载完不会触发 hashchange,这里主动触发一次 hashchange 事件
-
window.addEventListener('DOMContentLoaded', onLoad)
-
// 监听路由变化
-
window.addEventListener('hashchange', onHashChange)
-
// 路由视图
-
var routerView = null
-
function onLoad () {
-
routerView = document.querySelector('#routeView')
-
onHashChange()
-
}
-
// 路由变化时,根据路由渲染对应 UI
-
function onHashChange () {
-
switch (location.hash) {
-
case '#/home':
-
routerView.innerHTML = 'Home'
-
return
-
case '#/about':
-
routerView.innerHTML = 'About'
-
return
-
default:
-
return
-
}
-
}
基于 history 实现
运行效果:
HTML 部分:
-
<body>
-
<ul>
-
<li><a href='/home'>home</a></li>
-
<li><a href='/about'>about</a></li>
-
<div id="routeView"></div>
-
</ul>
-
</body>
JavaScript 部分:
-
// 页面加载完不会触发 hashchange,这里主动触发一次 hashchange 事件
-
window.addEventListener('DOMContentLoaded', onLoad)
-
// 监听路由变化
-
window.addEventListener('popstate', onPopState)
-
// 路由视图
-
var routerView = null
-
function onLoad () {
-
routerView = document.querySelector('#routeView')
-
onPopState()
-
// 拦截 <a> 标签点击事件默认行为, 点击时使用 pushState 修改 URL并更新手动 UI,从而实现点击链接更新 URL 和 UI 的效果。
-
var linkList = document.querySelectorAll('a[href]')
-
linkList.forEach(el => el.addEventListener('click', function (e) {
-
e.preventDefault()
-
history.pushState(null, '', el.getAttribute('href'))
-
onPopState()
-
}))
-
}
-
// 路由变化时,根据路由渲染对应 UI
-
function onPopState () {
-
switch (location.pathname) {
-
case '/home':
-
routerView.innerHTML = 'Home'
-
return
-
case '/about':
-
routerView.innerHTML = 'About'
-
return
-
default:
-
return
-
}
-
}
React 版前端路由实现
基于 hash 实现
运行效果:
使用方式和 react-router 类似:
-
<BrowserRouter>
-
<ul>
-
<li>
-
<Link to="/home">home</Link>
-
</li>
-
<li>
-
<Link to="/about">about</Link>
-
</li>
-
</ul>
-
<Route path="/home" render={() => <h2>Home</h2>} />
-
<Route path="/about" render={() => <h2>About</h2>} />
-
</BrowserRouter>
BrowserRouter 实现
-
export default class BrowserRouter extends React.Component {
-
state = {
-
currentPath: utils.extractHashPath(window.location.href)
-
};
-
onHashChange = e => {
-
const currentPath = utils.extractHashPath(e.newURL);
-
console.log("onHashChange:", currentPath);
-
this.setState({ currentPath });
-
};
-
componentDidMount() {
-
window.addEventListener("hashchange", this.onHashChange);
-
}
-
componentWillUnmount() {
-
window.removeEventListener("hashchange", this.onHashChange);
-
}
-
render() {
-
return (
-
<RouteContext.Provider value={{currentPath: this.state.currentPath}}>
-
{this.props.children}
-
</RouteContext.Provider>
-
);
-
}
-
}
Route 实现
-
export default ({ path, render }) => (
-
<RouteContext.Consumer>
-
{({currentPath}) => currentPath === path && render()}
-
</RouteContext.Consumer>
-
);
Link 实现
export default ({ to, ...props }) => <a {...props} href={"#" + to} />;
基于 history 实现

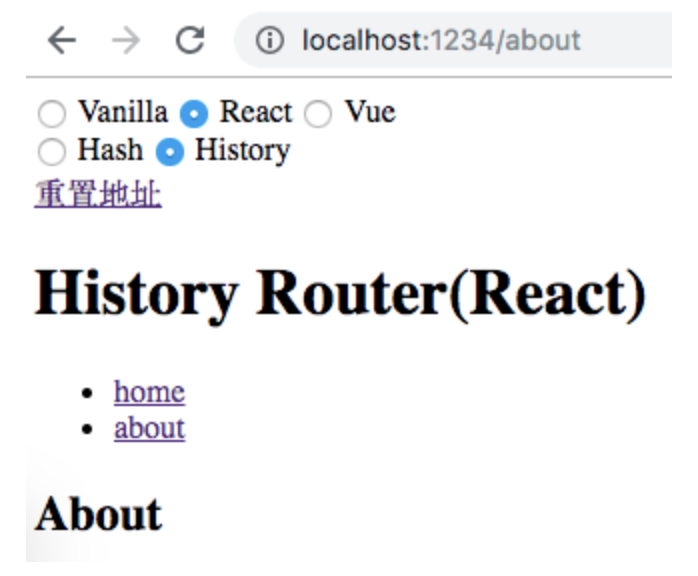

运行效果:
使用方式和 react-router 类似:
-
<HistoryRouter>
-
<ul>
-
<li>
-
<Link to="/home">home</Link>
-
</li>
-
<li>
-
<Link to="/about">about</Link>
-
</li>
-
</ul>
-
<Route path="/home" render={() => <h2>Home</h2>} />
-
<Route path="/about" render={() => <h2>About</h2>} />
-
</HistoryRouter>
HistoryRouter 实现
-
export default class HistoryRouter extends React.Component {
-
state = {
-
currentPath: utils.extractUrlPath(window.location.href)
-
};
-
onPopState = e => {
-
const currentPath = utils.extractUrlPath(window.location.href);
-
console.log("onPopState:", currentPath);
-
this.setState({ currentPath });
-
};
-
componentDidMount() {
-
window.addEventListener("popstate", this.onPopState);
-
}
-
componentWillUnmount() {
-
window.removeEventListener("popstate", this.onPopState);
-
}
-
render() {
-
return (
-
<RouteContext.Provider value={{currentPath: this.state.currentPath, onPopState: this.onPopState}}>
-
{this.props.children}
-
</RouteContext.Provider>
-
);
-
}
-
}
Route 实现
-
export default ({ path, render }) => (
-
<RouteContext.Consumer>
-
{({currentPath}) => currentPath === path && render()}
-
</RouteContext.Consumer>
-
);
Link 实现
-
export default ({ to, ...props }) => (
-
<RouteContext.Consumer>
-
{({ onPopState }) => (
-
<a
-
href=""
-
{...props}
-
onClick={e => {
-
e.preventDefault();
-
window.history.pushState(null, "", to);
-
onPopState();
-
}}
-
/>
-
)}
-
</RouteContext.Consumer>
-
);
Vue 版本前端路由实现
基于 hash 实现

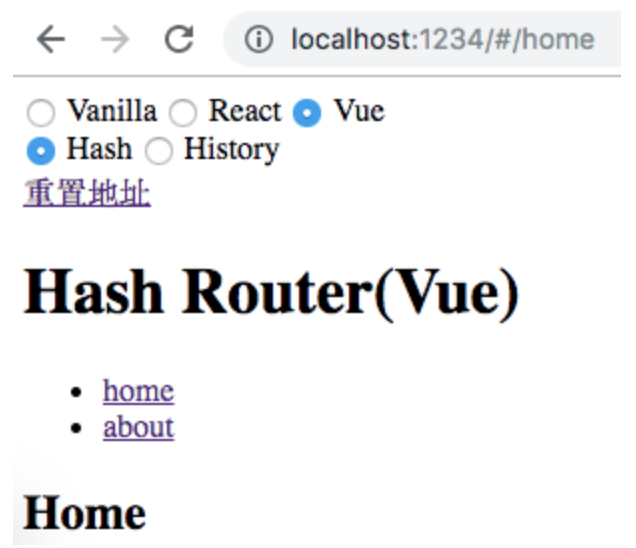

运行效果:
使用方式和 vue-router 类似(vue-router 通过插件机制注入路由,但是这样隐藏了实现细节,为了保持代码直观,这里没有使用 Vue 插件封装):
-
<div>
-
<ul>
-
<li><router-link to="/home">home</router-link></li>
-
<li><router-link to="/about">about</router-link></li>
-
</ul>
-
<router-view></router-view>
-
</div>
-
const routes = {
-
'/home': {
-
template: '<h2>Home</h2>'
-
},
-
'/about': {
-
template: '<h2>About</h2>'
-
}
-
}
-
const app = new Vue({
-
el: '.vue.hash',
-
components: {
-
'router-view': RouterView,
-
'router-link': RouterLink
-
},
-
beforeCreate () {
-
this.$routes = routes
-
}
-
})
router-view 实现
-
<template>
-
<component :is="routeView" />
-
</template>
-
<script>
-
import utils from '~/utils.js'
-
export default {
-
data () {
-
return {
-
routeView: null
-
}
-
},
-
created () {
-
this.boundHashChange = this.onHashChange.bind(this)
-
},
-
beforeMount () {
-
window.addEventListener('hashchange', this.boundHashChange)
-
},
-
mounted () {
-
this.onHashChange()
-
},
-
beforeDestroy() {
-
window.removeEventListener('hashchange', this.boundHashChange)
-
},
-
methods: {
-
onHashChange () {
-
const path = utils.extractHashPath(window.location.href)
-
this.routeView = this.$root.$routes[path] || null
-
console.log('vue:hashchange:', path)
-
}
-
}
-
}
-
</script>
router-link 实现
-
<template>
-
<a @click.prevent="onClick" href=''><slot></slot></a>
-
</template>
-
<script>
-
export default {
-
props: {
-
to: String
-
},
-
methods: {
-
onClick () {
-
window.location.hash = '#' + this.to
-
}
-
}
-
}
-
</script>
基于 history 实现
运行效果:
使用方式和 vue-router 类似:
-
<div>
-
<ul>
-
<li><router-link to="/home">home</router-link></li>
-
<li><router-link to="/about">about</router-link></li>
-
</ul>
-
<router-view></router-view>
-
</div>
-
const routes = {
-
'/home': {
-
template: '<h2>Home</h2>'
-
},
-
'/about': {
-
template: '<h2>About</h2>'
-
}
-
}
-
const app = new Vue({
-
el: '.vue.history',
-
components: {
-
'router-view': RouterView,
-
'router-link': RouterLink
-
},
-
created () {
-
this.$routes = routes
-
this.boundPopState = this.onPopState.bind(this)
-
},
-
beforeMount () {
-
window.addEventListener('popstate', this.boundPopState)
-
},
-
beforeDestroy () {
-
window.removeEventListener('popstate', this.boundPopState)
-
},
-
methods: {
-
onPopState (...args) {
-
this.$emit('popstate', ...args)
-
}
-
}
-
})
router-view 实现:
-
<template>
-
<component :is="routeView" />
-
</template>
-
<script>
-
import utils from '~/utils.js'
-
export default {
-
data () {
-
return {
-
routeView: null
-
}
-
},
-
created () {
-
this.boundPopState = this.onPopState.bind(this)
-
},
-
beforeMount () {
-
this.$root.$on('popstate', this.boundPopState)
-
},
-
beforeDestroy() {
-
this.$root.$off('popstate', this.boundPopState)
-
},
-
methods: {
-
onPopState (e) {
-
const path = utils.extractUrlPath(window.location.href)
-
this.routeView = this.$root.$routes[path] || null
-
console.log('[Vue] popstate:', path)
-
}
-
}
-
}
-
</script>
router-link 实现
-
<template>
-
<a @click.prevent="onClick" href=''><slot></slot></a>
-
</template>
-
<script>
-
export default {
-
props: {
-
to: String
-
},
-
methods: {
-
onClick () {
-
history.pushState(null, '', this.to)
-
this.$root.$emit('popstate')
-
}
-
}
-
}
-
</script>
小结
前端路由的核心实现原理很简单,但是结合具体框架后,框架增加了很多特性,如动态路由、路由参数、路由动画等等,这些导致路由实现变的复杂。本文去粗取精只针对前端路由最核心部分的实现进行分析,并基于 hash 和 history 两种模式,分别提供原生JS/React/Vue 三种实现,共计六个实现版本供参考,希望对你有所帮助。
所有的示例的代码放在 Github 仓库:https://github.com/whinc/web-router-principle
参考
-
详解单页面路由的几种实现原理
http://www.cnblogs.com/xiaobie123/p/6357724.html
-
单页面应用路由实现原理:以 React-Router 为例
https://github.com/youngwind/blog/issues/109
作者:@whinc
链接:https://github.com/whinc/blog/issues/13
