36.安卓逆向2-frida hook技术-过firda检测(一)(端口检测和maps检测)

免责声明:内容仅供学习参考,请合法利用知识,禁止进行违法犯罪活动!

内容参考于:图灵Python学院

工具下载:

链接:https://pan.baidu.com/s/1bb8NhJc9eTuLzQr39lF55Q?pwd=zy89

提取码:zy89

复制这段内容后打开百度网盘手机App,操作更方便哦

上一个内容:35.安卓逆向2-frida hook技术-过root检测

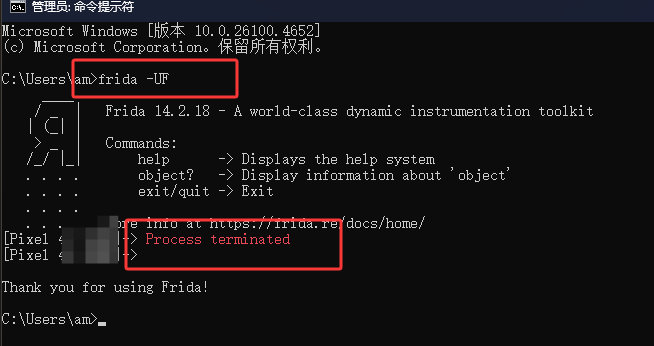

如下图使用frida -UF注入后,紧接着就会提示 Process terminated(中文意思:进程已终止)这就是有frida检测,当检测到有frida注入后app就会强制关闭

然后使用 frida -Uf 重启的方式注入,也会被检测

改怎么解决?

首先要知道frida检测的点

1.如果想使用frida框架,就要在手机中会放frida-server的frida服务端,在官网下载后文件名就包含frida这个单词了,所以就可以检测关键目录中的文件名是否存在frida这个单词,如果有就说明被frida注入了,然后就强制关闭app,这个情况可以修改frida文件名来解决

2.frida的默认使用27042端口来通信,可以检测这个端口是否被占用,如果被占用说明存在frida通信,然后强制关闭app,这个情况可以修改端口来解决

3.双进程保护,就是有些app会启动两个进程,一个进程是我们用的app,一个进程也可能会给app注入东西,然后我们使用frida注入后,会导致它注入失败,然后app就会关闭,这个情况可以使用frida重启的方式注入

4.D-Bus通信,这个有点复杂,去问ai,这个可以通过hook系统的函数,来避免被D-Bus检测

5.frida运行后会创建文件,会暴露frida特征

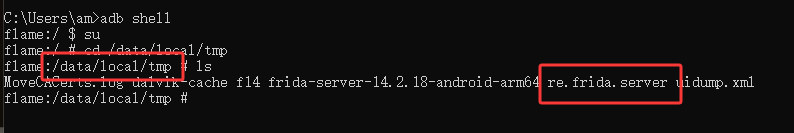

如下图中f14就是fridaserver,然后f14运行后,就会创建下图红框的文件夹,f14不运行的时候是没有的

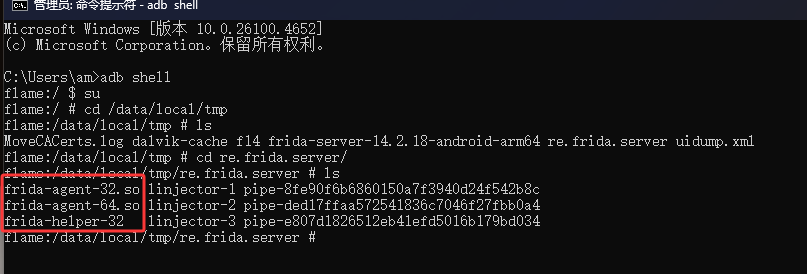

然后进入这个文件夹里,可以看到下图红框的文件,注入的时候就会把它们注入进去,这些名字就会是frida的特征,这也就是检测点,一些魔改的frida就会把这些文件名改了

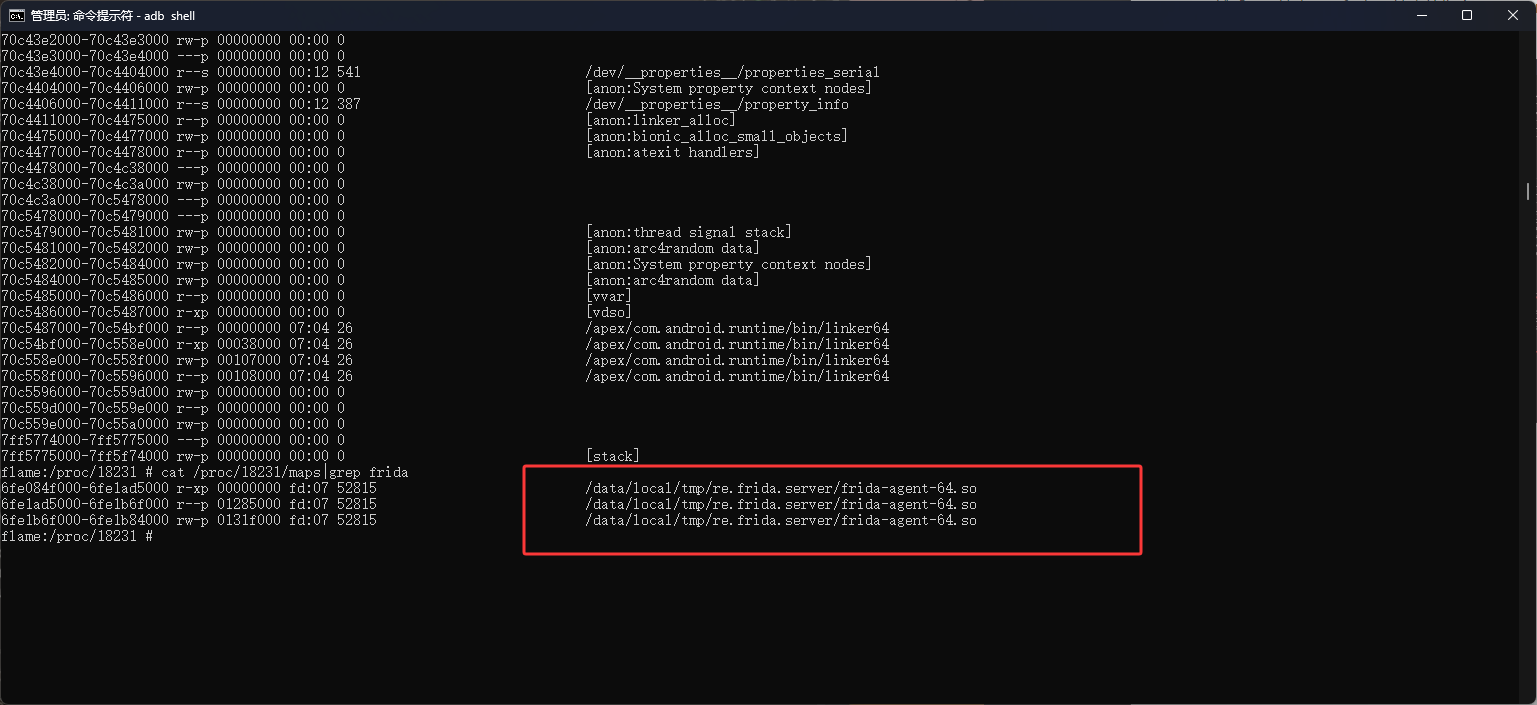

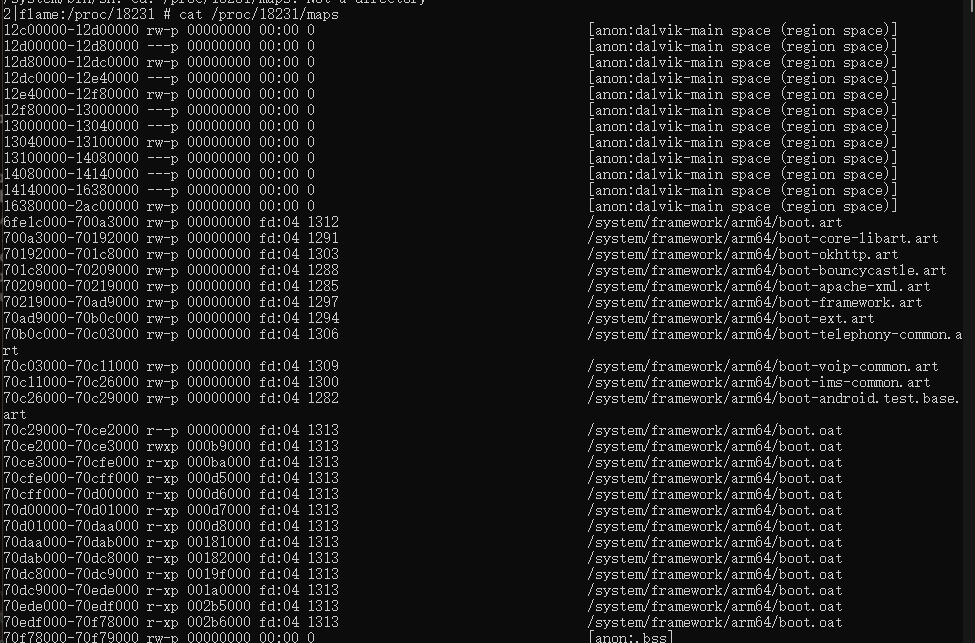

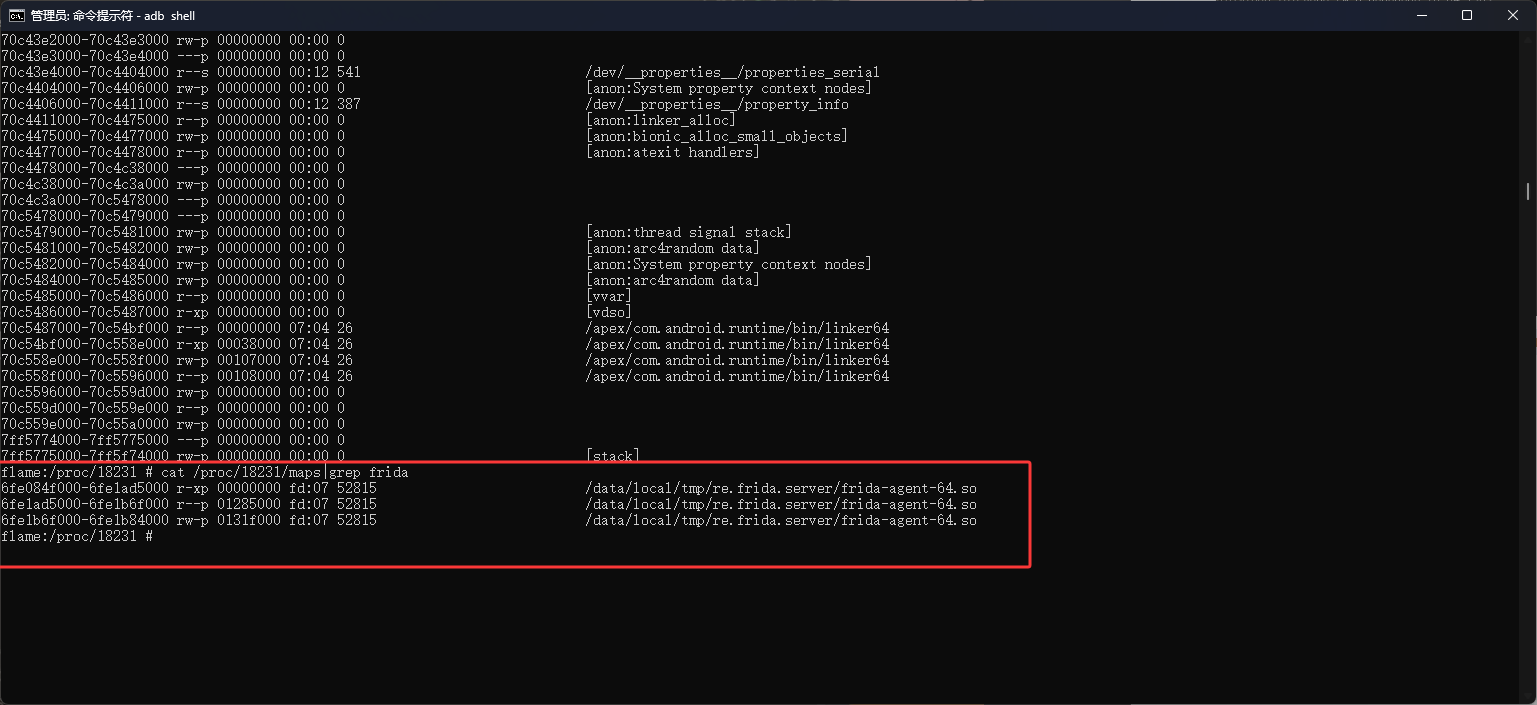

6.检测/proc/pid/maps,之前使用frida打印so文件的时候,可以看到里面有个叫frida什么什么的so文件,这个就可以被检测,它就是在maps目录有这个so文件

7.‌检测/proc/pid/task/tid/stat或/proc/pid/task/tid/status‌:通过更改frida-server的特征来避免检测。

以上就是frida的曝光点(检测点),反检测的方式

1.修改文件名和端口‌:可以通过修改frida-server的文件名和端口来绕过检测。./f14 -l 0.0.0.0:8881 修改为8881端口的指令

2.使用spawn模式启动‌:通过spawn模式启动应用,避免双进程保护机制。

‌3.hook系统库函数‌:通过hook系统库函数,如strstr、strcmp等,来避免D-Bus检测。

‌4.更改特征‌:通过更改frida-server的特征,如文件名、端口等,来避免被检测。

‌5.使用魔改frida‌:有些应用会检测frida的特定特征,可以通过魔改frida来绕过这些检测(比如修改文件名)。

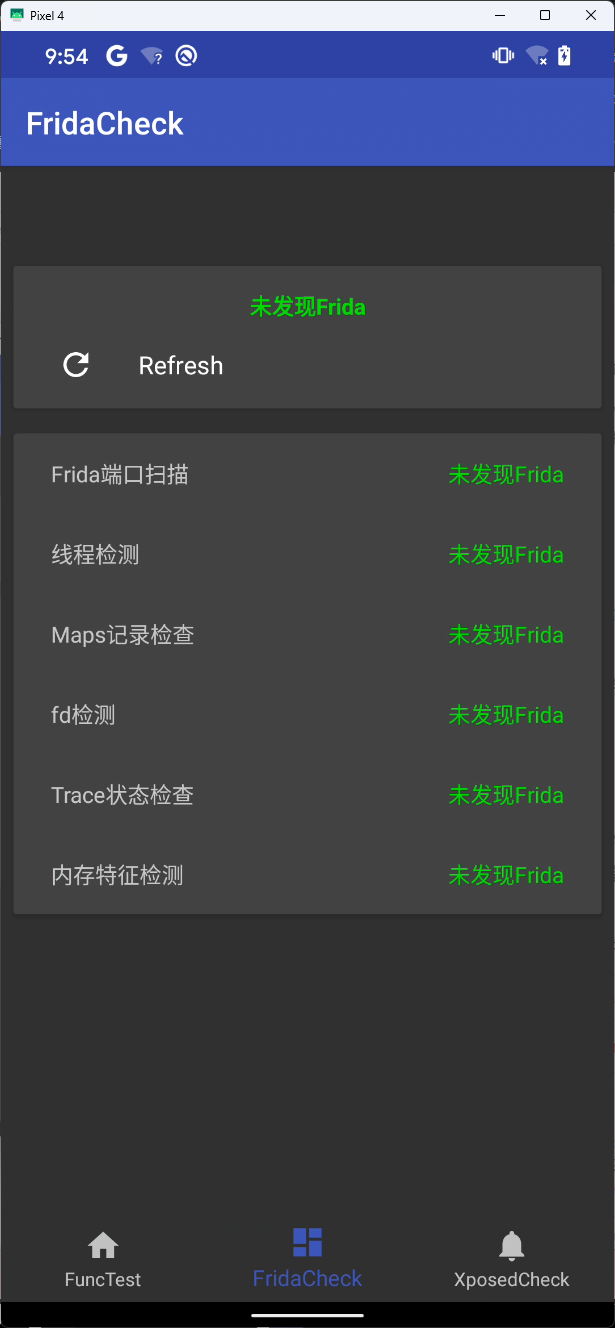

首先有一个用来检测常规frida的app,如下图当前没有运行f14

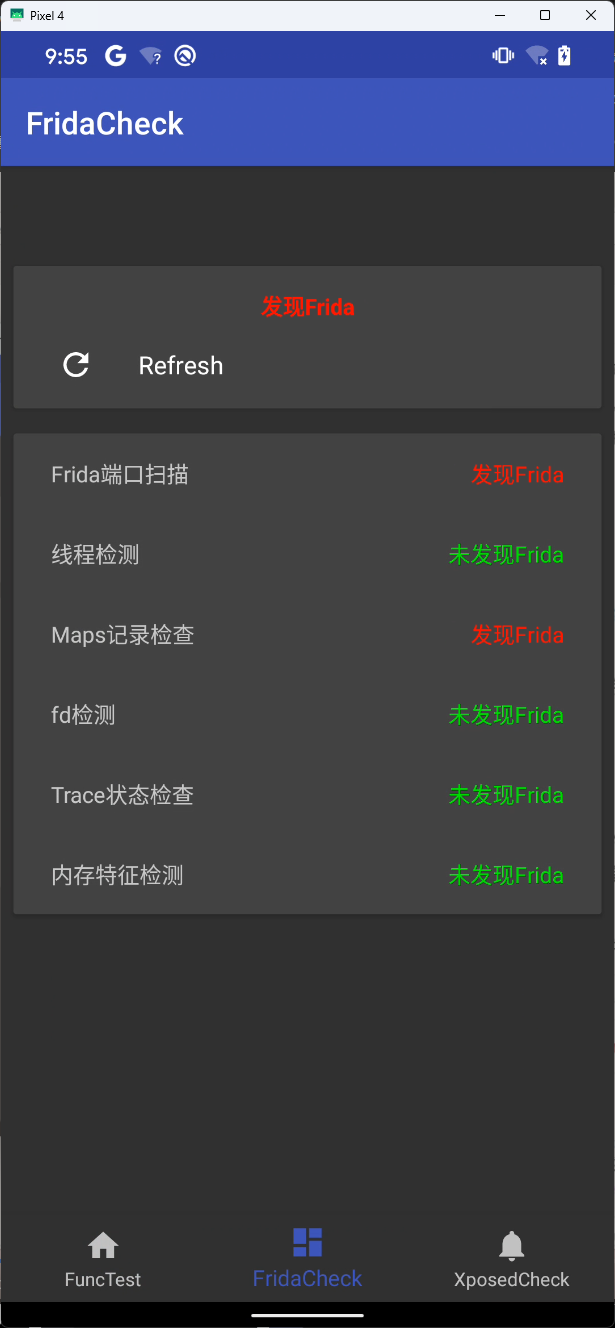

运行f14后,下图可以看到端口和maps都被检测到frida了,可以发现只要当fridaserver运行后,app就可以检测到frida

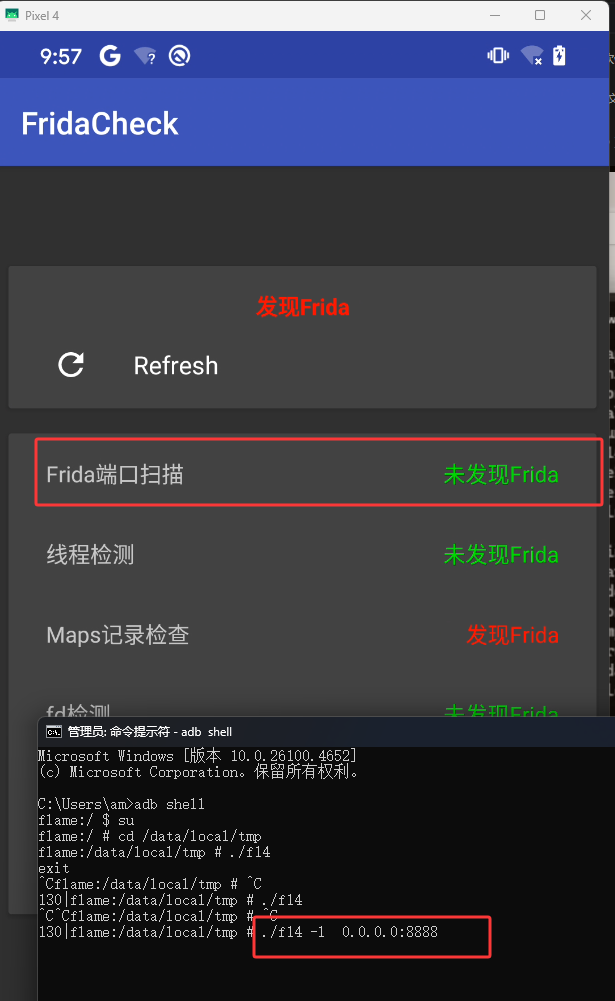

端口检测的处理,如下图使用 ./f14 -l 0.0.0.0:8888 指令修改端口然后运行fridaserver,就可以过端口检测了

然后给这个检测frida的app注入一个脚本进行测试,如下图被检测到的点更多了

注入frida脚本的代码

/*
Original author: Daniele Linguaglossa
28/07/2021 -    Edited by Simone Quatrini
                Code amended to correctly run on the latest frida version
        		Added controls to exclude Magisk Manager
*/

// spwn模式注入

// 开源的镜像

Java.perform(function() {
    var RootPackages = ["com.noshufou.android.su", "com.noshufou.android.su.elite", "eu.chainfire.supersu",
        "com.koushikdutta.superuser", "com.thirdparty.superuser", "com.yellowes.su", "com.koushikdutta.rommanager",
        "com.koushikdutta.rommanager.license", "com.dimonvideo.luckypatcher", "com.chelpus.lackypatch",
        "com.ramdroid.appquarantine", "com.ramdroid.appquarantinepro", "com.devadvance.rootcloak", "com.devadvance.rootcloakplus",
        "de.robv.android.xposed.installer", "com.saurik.substrate", "com.zachspong.temprootremovejb", "com.amphoras.hidemyroot",
        "com.amphoras.hidemyrootadfree", "com.formyhm.hiderootPremium", "com.formyhm.hideroot", "me.phh.superuser",
        "eu.chainfire.supersu.pro", "com.kingouser.com", "com.topjohnwu.magisk"
    ];

    var RootBinaries = ["su", "busybox", "supersu", "Superuser.apk", "KingoUser.apk", "SuperSu.apk", "magisk"];

    var RootProperties = {
        "ro.build.selinux": "1",
        "ro.debuggable": "0",
        "service.adb.root": "0",
        "ro.secure": "1"
    };

    var RootPropertiesKeys = [];

    for (var k in RootProperties) RootPropertiesKeys.push(k);

    var PackageManager = Java.use("android.app.ApplicationPackageManager");

    var Runtime = Java.use('java.lang.Runtime');

    var NativeFile = Java.use('java.io.File');

    var String = Java.use('java.lang.String');

    var SystemProperties = Java.use('android.os.SystemProperties');

    var BufferedReader = Java.use('java.io.BufferedReader');

    var ProcessBuilder = Java.use('java.lang.ProcessBuilder');

    var StringBuffer = Java.use('java.lang.StringBuffer');

    var loaded_classes = Java.enumerateLoadedClassesSync();

    send("Loaded " + loaded_classes.length + " classes!");

    var useKeyInfo = false;

    var useProcessManager = false;

    send("loaded: " + loaded_classes.indexOf('java.lang.ProcessManager'));

    if (loaded_classes.indexOf('java.lang.ProcessManager') != -1) {
        try {
            //useProcessManager = true;
            //var ProcessManager = Java.use('java.lang.ProcessManager');
        } catch (err) {
            send("ProcessManager Hook failed: " + err);
        }
    } else {
        send("ProcessManager hook not loaded");
    }

    var KeyInfo = null;

    if (loaded_classes.indexOf('android.security.keystore.KeyInfo') != -1) {
        try {
            //useKeyInfo = true;
            //var KeyInfo = Java.use('android.security.keystore.KeyInfo');
        } catch (err) {
            send("KeyInfo Hook failed: " + err);
        }
    } else {
        send("KeyInfo hook not loaded");
    }

    PackageManager.getPackageInfo.overload('java.lang.String', 'int').implementation = function(pname, flags) {
        var shouldFakePackage = (RootPackages.indexOf(pname) > -1);
        if (shouldFakePackage) {
            send("Bypass root check for package: " + pname);
            pname = "set.package.name.to.a.fake.one.so.we.can.bypass.it";
        }
        return this.getPackageInfo.overload('java.lang.String', 'int').call(this, pname, flags);
    };

    NativeFile.exists.implementation = function() {
        var name = NativeFile.getName.call(this);
        var shouldFakeReturn = (RootBinaries.indexOf(name) > -1);
        if (shouldFakeReturn) {
            send("Bypass return value for binary: " + name);
            return false;
        } else {
            return this.exists.call(this);
        }
    };

    var exec = Runtime.exec.overload('[Ljava.lang.String;');
    var exec1 = Runtime.exec.overload('java.lang.String');
    var exec2 = Runtime.exec.overload('java.lang.String', '[Ljava.lang.String;');
    var exec3 = Runtime.exec.overload('[Ljava.lang.String;', '[Ljava.lang.String;');
    var exec4 = Runtime.exec.overload('[Ljava.lang.String;', '[Ljava.lang.String;', 'java.io.File');
    var exec5 = Runtime.exec.overload('java.lang.String', '[Ljava.lang.String;', 'java.io.File');

    exec5.implementation = function(cmd, env, dir) {
        if (cmd.indexOf("getprop") != -1 || cmd == "mount" || cmd.indexOf("build.prop") != -1 || cmd == "id" || cmd == "sh") {
            var fakeCmd = "grep";
            send("Bypass " + cmd + " command");
            return exec1.call(this, fakeCmd);
        }
        if (cmd == "su") {
            var fakeCmd = "justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled";
            send("Bypass " + cmd + " command");
            return exec1.call(this, fakeCmd);
        }
        return exec5.call(this, cmd, env, dir);
    };

    exec4.implementation = function(cmdarr, env, file) {
        for (var i = 0; i < cmdarr.length; i = i + 1) {
            var tmp_cmd = cmdarr[i];
            if (tmp_cmd.indexOf("getprop") != -1 || tmp_cmd == "mount" || tmp_cmd.indexOf("build.prop") != -1 || tmp_cmd == "id" || tmp_cmd == "sh") {
                var fakeCmd = "grep";
                send("Bypass " + cmdarr + " command");
                return exec1.call(this, fakeCmd);
            }

            if (tmp_cmd == "su") {
                var fakeCmd = "justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled";
                send("Bypass " + cmdarr + " command");
                return exec1.call(this, fakeCmd);
            }
        }
        return exec4.call(this, cmdarr, env, file);
    };

    exec3.implementation = function(cmdarr, envp) {
        for (var i = 0; i < cmdarr.length; i = i + 1) {
            var tmp_cmd = cmdarr[i];
            if (tmp_cmd.indexOf("getprop") != -1 || tmp_cmd == "mount" || tmp_cmd.indexOf("build.prop") != -1 || tmp_cmd == "id" || tmp_cmd == "sh") {
                var fakeCmd = "grep";
                send("Bypass " + cmdarr + " command");
                return exec1.call(this, fakeCmd);
            }

            if (tmp_cmd == "su") {
                var fakeCmd = "justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled";
                send("Bypass " + cmdarr + " command");
                return exec1.call(this, fakeCmd);
            }
        }
        return exec3.call(this, cmdarr, envp);
    };

    exec2.implementation = function(cmd, env) {
        if (cmd.indexOf("getprop") != -1 || cmd == "mount" || cmd.indexOf("build.prop") != -1 || cmd == "id" || cmd == "sh") {
            var fakeCmd = "grep";
            send("Bypass " + cmd + " command");
            return exec1.call(this, fakeCmd);
        }
        if (cmd == "su") {
            var fakeCmd = "justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled";
            send("Bypass " + cmd + " command");
            return exec1.call(this, fakeCmd);
        }
        return exec2.call(this, cmd, env);
    };

    exec.implementation = function(cmd) {
        for (var i = 0; i < cmd.length; i = i + 1) {
            var tmp_cmd = cmd[i];
            if (tmp_cmd.indexOf("getprop") != -1 || tmp_cmd == "mount" || tmp_cmd.indexOf("build.prop") != -1 || tmp_cmd == "id" || tmp_cmd == "sh") {
                var fakeCmd = "grep";
                send("Bypass " + cmd + " command");
                return exec1.call(this, fakeCmd);
            }

            if (tmp_cmd == "su") {
                var fakeCmd = "justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled";
                send("Bypass " + cmd + " command");
                return exec1.call(this, fakeCmd);
            }
        }

        return exec.call(this, cmd);
    };

    exec1.implementation = function(cmd) {
        if (cmd.indexOf("getprop") != -1 || cmd == "mount" || cmd.indexOf("build.prop") != -1 || cmd == "id" || cmd == "sh") {
            var fakeCmd = "grep";
            send("Bypass " + cmd + " command");
            return exec1.call(this, fakeCmd);
        }
        if (cmd == "su") {
            var fakeCmd = "justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled";
            send("Bypass " + cmd + " command");
            return exec1.call(this, fakeCmd);
        }
        return exec1.call(this, cmd);
    };

    String.contains.implementation = function(name) {
        if (name == "test-keys") {
            send("Bypass test-keys check");
            return false;
        }
        return this.contains.call(this, name);
    };

    var get = SystemProperties.get.overload('java.lang.String');

    get.implementation = function(name) {
        if (RootPropertiesKeys.indexOf(name) != -1) {
            send("Bypass " + name);
            return RootProperties[name];
        }
        return this.get.call(this, name);
    };

    Interceptor.attach(Module.findExportByName("libc.so", "fopen"), {
        onEnter: function(args) {
            var path = Memory.readCString(args[0]);
            path = path.split("/");
            var executable = path[path.length - 1];
            var shouldFakeReturn = (RootBinaries.indexOf(executable) > -1)
            if (shouldFakeReturn) {
                Memory.writeUtf8String(args[0], "/notexists");
                send("Bypass native fopen");
            }
        },
        onLeave: function(retval) {

        }
    });

    Interceptor.attach(Module.findExportByName("libc.so", "system"), {
        onEnter: function(args) {
            var cmd = Memory.readCString(args[0]);
            send("SYSTEM CMD: " + cmd);
            if (cmd.indexOf("getprop") != -1 || cmd == "mount" || cmd.indexOf("build.prop") != -1 || cmd == "id") {
                send("Bypass native system: " + cmd);
                Memory.writeUtf8String(args[0], "grep");
            }
            if (cmd == "su") {
                send("Bypass native system: " + cmd);
                Memory.writeUtf8String(args[0], "justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled");
            }
        },
        onLeave: function(retval) {

        }
    });

    /*

    TO IMPLEMENT:

    Exec Family

    int execl(const char *path, const char *arg0, ..., const char *argn, (char *)0);
    int execle(const char *path, const char *arg0, ..., const char *argn, (char *)0, char *const envp[]);
    int execlp(const char *file, const char *arg0, ..., const char *argn, (char *)0);
    int execlpe(const char *file, const char *arg0, ..., const char *argn, (char *)0, char *const envp[]);
    int execv(const char *path, char *const argv[]);
    int execve(const char *path, char *const argv[], char *const envp[]);
    int execvp(const char *file, char *const argv[]);
    int execvpe(const char *file, char *const argv[], char *const envp[]);

    */


    BufferedReader.readLine.overload('boolean').implementation = function() {
        var text = this.readLine.overload('boolean').call(this);
        if (text === null) {
            // just pass , i know it's ugly as hell but test != null won't work :(
        } else {
            var shouldFakeRead = (text.indexOf("ro.build.tags=test-keys") > -1);
            if (shouldFakeRead) {
                send("Bypass build.prop file read");
                text = text.replace("ro.build.tags=test-keys", "ro.build.tags=release-keys");
            }
        }
        return text;
    };

    var executeCommand = ProcessBuilder.command.overload('java.util.List');

    ProcessBuilder.start.implementation = function() {
        var cmd = this.command.call(this);
        var shouldModifyCommand = false;
        for (var i = 0; i < cmd.size(); i = i + 1) {
            var tmp_cmd = cmd.get(i).toString();
            if (tmp_cmd.indexOf("getprop") != -1 || tmp_cmd.indexOf("mount") != -1 || tmp_cmd.indexOf("build.prop") != -1 || tmp_cmd.indexOf("id") != -1) {
                shouldModifyCommand = true;
            }
        }
        if (shouldModifyCommand) {
            send("Bypass ProcessBuilder " + cmd);
            this.command.call(this, ["grep"]);
            return this.start.call(this);
        }
        if (cmd.indexOf("su") != -1) {
            send("Bypass ProcessBuilder " + cmd);
            this.command.call(this, ["justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled"]);
            return this.start.call(this);
        }

        return this.start.call(this);
    };

    if (useProcessManager) {
        var ProcManExec = ProcessManager.exec.overload('[Ljava.lang.String;', '[Ljava.lang.String;', 'java.io.File', 'boolean');
        var ProcManExecVariant = ProcessManager.exec.overload('[Ljava.lang.String;', '[Ljava.lang.String;', 'java.lang.String', 'java.io.FileDescriptor', 'java.io.FileDescriptor', 'java.io.FileDescriptor', 'boolean');

        ProcManExec.implementation = function(cmd, env, workdir, redirectstderr) {
            var fake_cmd = cmd;
            for (var i = 0; i < cmd.length; i = i + 1) {
                var tmp_cmd = cmd[i];
                if (tmp_cmd.indexOf("getprop") != -1 || tmp_cmd == "mount" || tmp_cmd.indexOf("build.prop") != -1 || tmp_cmd == "id") {
                    var fake_cmd = ["grep"];
                    send("Bypass " + cmdarr + " command");
                }

                if (tmp_cmd == "su") {
                    var fake_cmd = ["justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled"];
                    send("Bypass " + cmdarr + " command");
                }
            }
            return ProcManExec.call(this, fake_cmd, env, workdir, redirectstderr);
        };

        ProcManExecVariant.implementation = function(cmd, env, directory, stdin, stdout, stderr, redirect) {
            var fake_cmd = cmd;
            for (var i = 0; i < cmd.length; i = i + 1) {
                var tmp_cmd = cmd[i];
                if (tmp_cmd.indexOf("getprop") != -1 || tmp_cmd == "mount" || tmp_cmd.indexOf("build.prop") != -1 || tmp_cmd == "id") {
                    var fake_cmd = ["grep"];
                    send("Bypass " + cmdarr + " command");
                }

                if (tmp_cmd == "su") {
                    var fake_cmd = ["justafakecommandthatcannotexistsusingthisshouldthowanexceptionwheneversuiscalled"];
                    send("Bypass " + cmdarr + " command");
                }
            }
            return ProcManExecVariant.call(this, fake_cmd, env, directory, stdin, stdout, stderr, redirect);
        };
    }

    if (useKeyInfo) {
        KeyInfo.isInsideSecureHardware.implementation = function() {
            send("Bypass isInsideSecureHardware");
            return true;
        }
    }

});

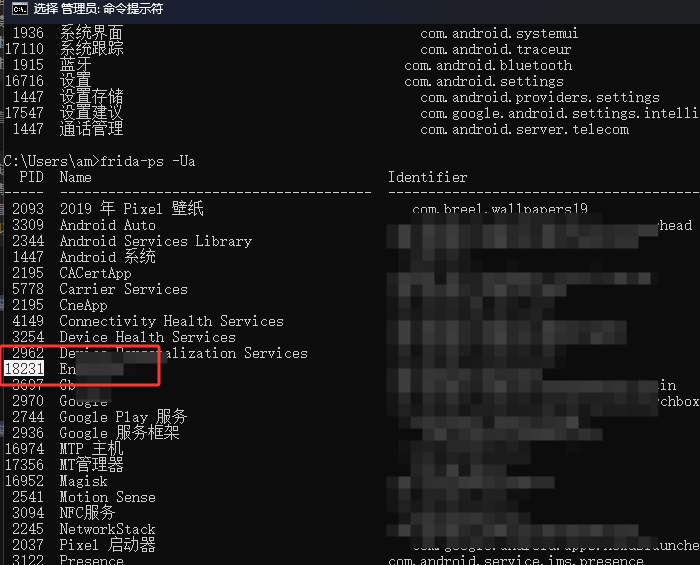

/proc/pid/maps检测的处理,首先使用frida-ps -Ua找一下被注入了frida的app的进程,如下图红框18231

maps 是一个文件,文件的内容是当前app加载的库文件(so文件),然后使用adb shell然后使用cat指令可以查看文件内容,cat /proc/18231/maps,如下图maps文件里有很多内容

然后需要搜索一下frida,搜索的指令是 cat /proc/18231/maps|grep frida,如下图红框,可以看到我们的frida了,这就是frida的特征,也就是maps检测

如下图红框可以看到映射的frida文件,这个文件上方写了是f14运行后就会创建,它这个名字我们不能随便改,这个名字在fridaserver中写死了,我们改了frida也没法用

可以通过伪造一个maps文件,来绕过检测,这个方式并不能100%绕过,想要100%绕过后面会有魔改的frida

// 定义一个函数,用于重定向并修改maps文件内容,以隐藏特定的库和路径信息
function mapsRedirect() {
    // 定义伪造的maps文件路径
    var FakeMaps = "/data/data/这里写包名/maps";
    // 获取libc.so库中'open'函数的地址
    const openPtr = Module.getExportByName('libc.so', 'open');
    // 根据地址创建一个新的NativeFunction对象,表示原生的'open'函数
    const open = new NativeFunction(openPtr, 'int', ['pointer', 'int']);
    // 查找并获取libc.so库中'read'函数的地址
    var readPtr = Module.findExportByName("libc.so", "read");
    // 创建新的NativeFunction对象表示原生的'read'函数
    var read = new NativeFunction(readPtr, 'int', ['int', 'pointer', "int"]);
    // 分配512字节的内存空间,用于临时存储从maps文件读取的内容
    var MapsBuffer = Memory.alloc(512);
    // 创建一个伪造的maps文件,用于写入修改后的内容,模式为"w"(写入)
    var MapsFile = new File(FakeMaps, "w");
    // 使用Interceptor替换原有的'open'函数,注入自定义逻辑
    Interceptor.replace(openPtr, new NativeCallback(function(pathname, flag) {
        // 调用原始的'open'函数,并获取文件描述符(FD)
        var FD = open(pathname, flag);
        // 读取并打印尝试打开的文件路径
        var ch = pathname.readCString();
        if (ch.indexOf("/proc/") >= 0 && ch.indexOf("maps") >= 0) {
            console.log("open : ", pathname.readCString());
            // 循环读取maps内容,并写入伪造的maps文件中,同时进行字符串替换以隐藏特定信息
            while (parseInt(read(FD, MapsBuffer, 512)) !== 0) {
                var MBuffer = MapsBuffer.readCString();
                MBuffer = MBuffer.replaceAll("/data/local/tmp/re.frida.server/frida-agent-64.so", "FakingMaps");
                MBuffer = MBuffer.replaceAll("re.frida.server", "FakingMaps");
                MBuffer = MBuffer.replaceAll("frida-agent-64.so", "FakingMaps");
                MBuffer = MBuffer.replaceAll("frida-agent-32.so", "FakingMaps");
                MBuffer = MBuffer.replaceAll("frida", "FakingMaps");
                MBuffer = MBuffer.replaceAll("/data/local/tmp", "/data");
                // 将修改后的内容写入伪造的maps文件
                MapsFile.write(MBuffer);
            }
            // 为返回伪造maps文件的打开操作,分配UTF8编码的文件名字符串
            var filename = Memory.allocUtf8String(FakeMaps);
            // 返回打开伪造maps文件的文件描述符
            return open(filename, flag);
        }
        // 如果不是目标maps文件,则直接返回原open调用的结果
        return FD;
    }, 'int', ['pointer', 'int']));
}


评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
