Mockito使用ReflectionTestUtils.setField不能mock对象问题解析

1.问题描述：

        使用ReflectionTestUtils.setField注入mock对象，对于使用代理的类，不能够将mock对象注入进去。

ationContext-test.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns="http://www.springframework.org/schema/beans" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:jdbc="http://www.springframework.org/schema/jdbc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop-4.1.xsd
        http://www.springframework.org/schema/jdbc
        http://www.springframework.org/schema/jdbc/spring-jdbc.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--扫描的包-->
    <context:component-scan base-package="adapter"/>
    <context:component-scan base-package="service"/>
    <tx:annotation-driven />

    <bean id="transactionManager"
          class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--UT采用H2内存数据库来消除UT对环境的依赖-->
    <jdbc:embedded-database id="dataSource" type="H2">
        <jdbc:script location="classpath:db/schema.sql" />
    </jdbc:embedded-database>

    <!--生成代码使用CGLIB代理-->
    <aop:aspectj-autoproxy proxy-target-class="true"/>

</beans>

Service类

public interface AService {
    String testA(Integer num);
}

@Service
public class AServiceImpl implements AService {

    @Autowired
    private CAdapter cAdapter;

    @Override
    public String testA(Integer num) {
        return cAdapter.testAdapter() + num;
    }
}

public interface BService {
    String testB(Integer num);
    String testB2(Integer num);
}

@Service
public class BServiceImpl implements BService {

    @Autowired
    private CAdapter cAdapter;

    @Override
    public String testB(Integer num) {
        return cAdapter.testAdapter() + num;
    }

    @Transactional
    @Override
    public String testB2(Integer num) {
        return null;
    }
}

第三方依赖类

public interface CAdapter {
    String testAdapter();
}

@Service
public class CAdapterImpl implements CAdapter {

    @Override
    public String testAdapter() {
        return "this CAdapterImpl";
    }
}

pom依赖

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>4.1.9.RELEASE</version>
</dependency>

单元测试一：

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"classpath:applicationContext-test.xml"})
@TransactionConfiguration(defaultRollback = true)
@Transactional
public class BaseTest {
}

public class AServiceTest extends BaseTest{

    @Autowired
    private AServiceImpl aService;

    @Mock
    private CAdapter cAdapter;

    @Before
    public void before() {
        MockitoAnnotations.initMocks(this);
        MockitoAnnotations.initMocks(cAdapter);

        ReflectionTestUtils.setField(aService, "cAdapter", cAdapter);
        Mockito.when(cAdapter.testAdapter()).thenReturn("mock");
    }


    @Test
    public void testA() {
        String result = aService.testA(3);
        System.out.println(result);
    }
}

// 输出：mock3

单元测试二：

public class BServiceTest extends BaseTest {

    @Autowired
    private BServiceImpl bService;

    @Mock
    private CAdapter cAdapter;

    @Before
    public void before() {
        MockitoAnnotations.initMocks(this);
        MockitoAnnotations.initMocks(cAdapter);

        ReflectionTestUtils.setField(bService, "cAdapter", cAdapter);

        Mockito.when(cAdapter.testAdapter()).thenReturn("mock");
    }


    @Test
    public void testB() {
        String result = bService.testB(3);
        System.out.println(result);
    }
}

// 输出：this CAdapterImpl3

单元测试一符合预期结果，但单元测试二的输出结果有点出乎意料，按正常逻辑来说也应该输出“mock3”！

2.问题分析：
分析这个问题首先明确以下两点：

该工程对代理的生成方式是默认生成CGLIB代理，参考上面的配置文件

Spring类中若有方法标记了“@Transactional”，则Spring容器在启动时会自动为该方法所在类生成代理

明确以上两点可知：

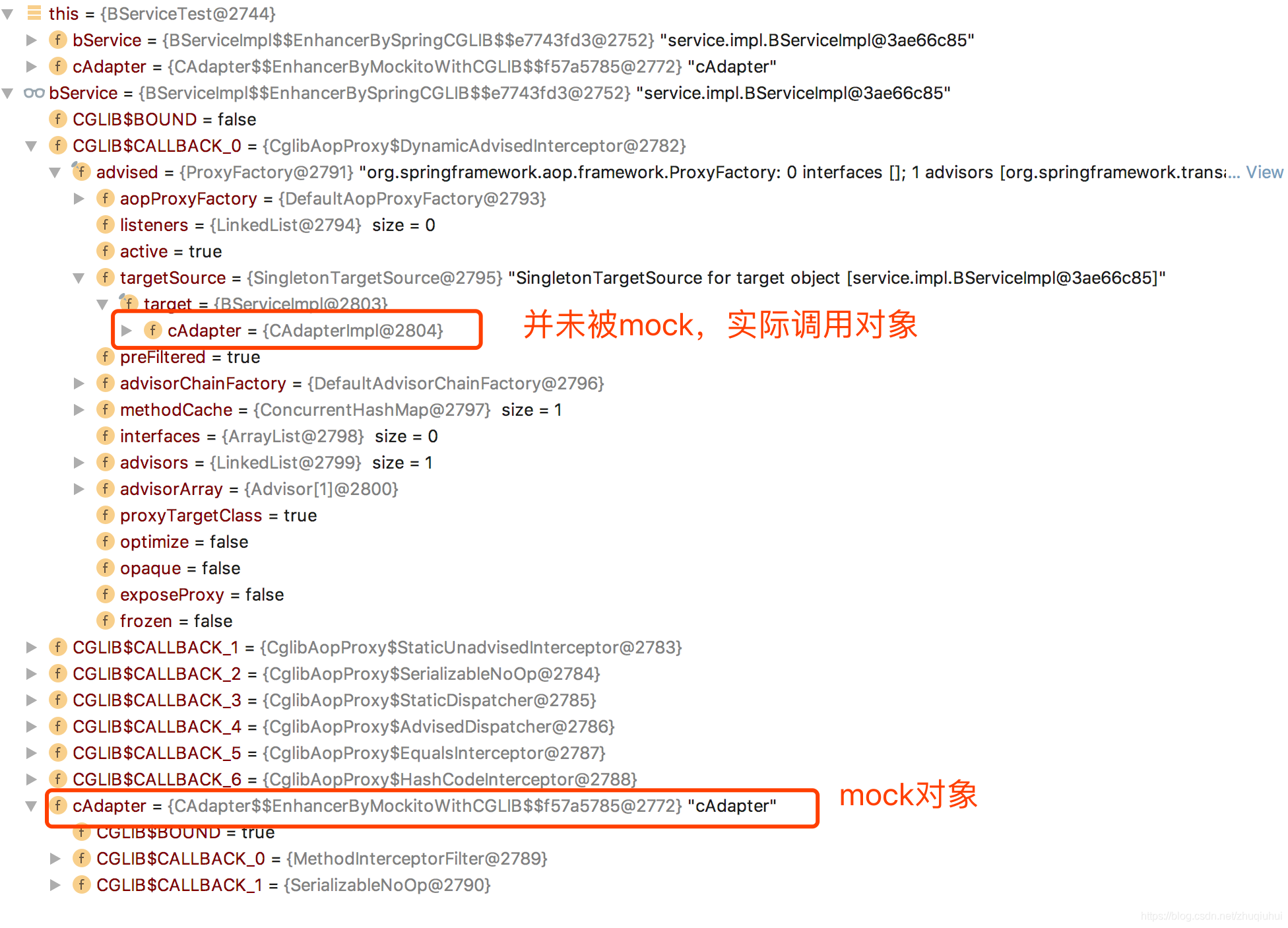

BServiceImpl类testB2方法中标记了“@Transactional”，则在单元测试二中Spring容器会为BServiceImpl生成CGLIB代理，如下图：

而 ReflectionTestUtils.setField(bService, "cAdapter", cAdapter)会把cAdapter的mock对象设置到BServiceImpl实例属性中，而非代理类中。

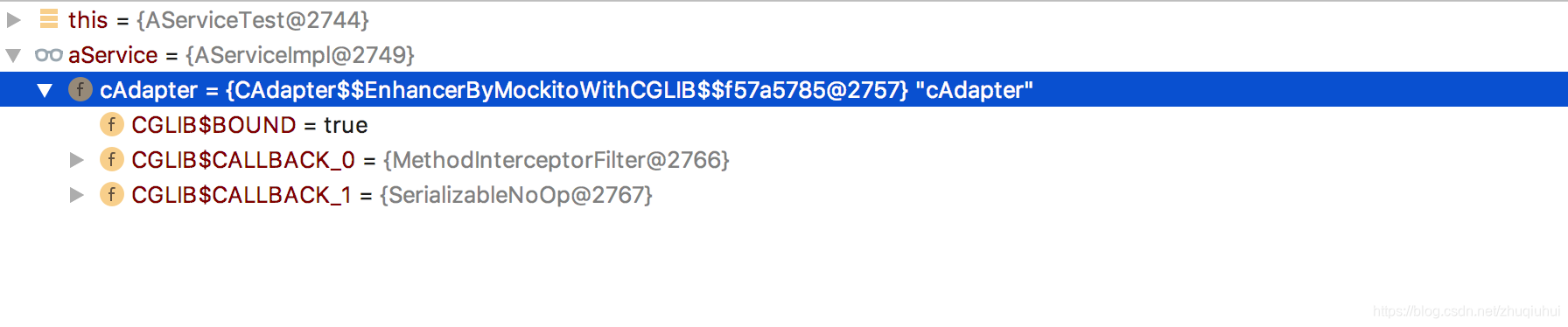

单元测试一中，Spring容器不会为AServiceImpl生成代理，ReflectionTestUtils.setField(bService, "cAdapter", cAdapter)直接把AServiceImpl实例中的cAdapter属性替换为mock对象，所以输出的是“mock3”，如下图：
3. 解决方案

方案一

要想单元测试二正确输出“mock3”，只需要获取其真正的代理，然后填充代理中的属性即可，改造如下：

public class BServiceTest extends BaseTest {

    @Autowired
    private BServiceImpl bService;

    @Mock
    private CAdapter cAdapter;

    @Before
    public void before() {
        MockitoAnnotations.initMocks(this);
        MockitoAnnotations.initMocks(cAdapter);

        try {
            ReflectionTestUtils.setField(AopTargetUtils.getTarget(bService), "cAdapter", cAdapter);
        } catch (Exception e) {
            e.printStackTrace();
        }
        Mockito.when(cAdapter.testAdapter()).thenReturn("mock");
    }


    @Test
    public void testB() {
        String result = bService.testB(3);
        System.out.println(result);
    }
}

其中工具类AopTargetUtils：

public class AopTargetUtils {
    public static Object getTarget(Object proxy) throws Exception {
        if (!AopUtils.isAopProxy(proxy)) {
            return proxy;//不是代理对象
        }
        if (AopUtils.isJdkDynamicProxy(proxy)) {
            return getJdkDynamicProxyTargetObject(proxy);
        } else {
            return getCglibProxyTargetObject(proxy);
        }
    }

    private static Object getCglibProxyTargetObject(Object proxy) throws Exception {
        Field h = proxy.getClass().getDeclaredField("CGLIB$CALLBACK_0");
        h.setAccessible(true);
        Object dynamicAdvisedInterceptor = h.get(proxy);
        Field advised = dynamicAdvisedInterceptor.getClass().getDeclaredField("advised");
        advised.setAccessible(true);
        Object target = ((AdvisedSupport) advised.get(dynamicAdvisedInterceptor)).getTargetSource().getTarget();
        return target;
    }

    private static Object getJdkDynamicProxyTargetObject(Object proxy) throws Exception {
        Field h = proxy.getClass().getSuperclass().getDeclaredField("h");
        h.setAccessible(true);
        AopProxy aopProxy = (AopProxy) h.get(proxy);
        Field advised = aopProxy.getClass().getDeclaredField("advised");
        advised.setAccessible(true);
        Object target = ((AdvisedSupport) advised.get(aopProxy)).getTargetSource().getTarget();
        return target;
    }
}

方案二
可把spring-test版本升级到4.3.13.RELEASE版本，可见Spring开发人员知道有这个缺陷后，在后来的版本已经升级了，所以说如果有高版本的spring-test就不会出现以上问题，也算是一个学习过程。

相对于低版本的spring-test，ReflectionTestUtils多出了代理获取过程：


public static void setField(Object targetObject, Class<?> targetClass, String name, Object value, Class<?> type) {
		Assert.isTrue(targetObject != null || targetClass != null,
			"Either targetObject or targetClass for the field must be specified");
        // 多出的代理获取过程
		if (targetObject != null && springAopPresent) {
			targetObject = AopTestUtils.getUltimateTargetObject(targetObject);
		}
		if (targetClass == null) {
			targetClass = targetObject.getClass();
		}
        //......
}

public static <T> T getUltimateTargetObject(Object candidate) {
		Assert.notNull(candidate, "Candidate must not be null");
		try {
			if (AopUtils.isAopProxy(candidate) && candidate instanceof Advised) {
				return (T) getUltimateTargetObject(((Advised) candidate).getTargetSource().getTarget());
			}
		}
		catch (Throwable ex) {
			throw new IllegalStateException("Failed to unwrap proxied object", ex);
		}
		return (T) candidate;
}
