swagger的接口自定义排序和接口中参数自定义排序

接口自定义排序就是以下俩个步骤，直接复制粘贴即可。

 1.在ApiModelProperty加上 position属性即可

 @ApiModelProperty(name = "username", value = "用户名", dataType = "string" ,position = 1)

@ToString
@Setter
@Getter
@NoArgsConstructor
@TableName("表名")
public class SystemUserEntity {

    /**
     * 用户id
     */
    @ApiModelProperty(hidden = true)
    @TableId("user_id")
    private Integer userId;

    /**
     * 用户名
     */
    @ApiModelProperty(name = "username", value = "用户名", dataType = "string" ,position = 1)
    @TableField("username")
    private String username;
}

2. 需要重写以下类。

@Primary //同一个接口，可能会有几种不同的实现类，而默认只会采取其中一种的情况下
@Component("ServiceModelToSwagger2Mapper")
@Order(Ordered.HIGHEST_PRECEDENCE)
public class CustomModelToSwaggerMapper extends ServiceModelToSwagger2MapperImpl{

    @Override
    protected List<Parameter> parameterListToParameterList(List<springfox.documentation.service.Parameter> list) {
        //list需要根据order|postion排序
        list = list.stream().sorted((p1, p2) -> Integer.compare(p1.getOrder(), p2.getOrder())).collect(Collectors.toList());
        return super.parameterListToParameterList(list);
    }

}

@Primary
@Component
public class CustomSwaggerParameterBuilder implements ExpandedParameterBuilderPlugin {

    private final DescriptionResolver descriptions;
    private final EnumTypeDeterminer enumTypeDeterminer;

    @Autowired
    public CustomSwaggerParameterBuilder(
            DescriptionResolver descriptions,
            EnumTypeDeterminer enumTypeDeterminer) {
        this.descriptions = descriptions;
        this.enumTypeDeterminer = enumTypeDeterminer;
    }

    @Override
    public void apply(ParameterExpansionContext context) {
        Optional<ApiModelProperty> apiModelPropertyOptional = context.findAnnotation(ApiModelProperty.class);
        if (apiModelPropertyOptional.isPresent()) {
            fromApiModelProperty(context, apiModelPropertyOptional.get());
        }
        Optional<ApiParam> apiParamOptional = context.findAnnotation(ApiParam.class);
        if (apiParamOptional.isPresent()) {
            fromApiParam(context, apiParamOptional.get());
        }
    }

    @Override
    public boolean supports(DocumentationType delimiter) {
        return SwaggerPluginSupport.pluginDoesApply(delimiter);
    }

    private void fromApiParam(ParameterExpansionContext context, ApiParam apiParam) {
        String allowableProperty = Strings.emptyToNull(apiParam.allowableValues());
        AllowableValues allowable = allowableValues(
                Optional.fromNullable(allowableProperty),
                context.getFieldType().getErasedType());

        maybeSetParameterName(context, apiParam.name())
                .description(descriptions.resolve(apiParam.value()))
                .defaultValue(apiParam.defaultValue())
                .required(apiParam.required())
                .allowMultiple(apiParam.allowMultiple())
                .allowableValues(allowable)
                .parameterAccess(apiParam.access())
                .hidden(apiParam.hidden())
                .scalarExample(apiParam.example())
                .complexExamples(Examples.examples(apiParam.examples()))
                .order(SWAGGER_PLUGIN_ORDER)
                .build();
    }

    private void fromApiModelProperty(ParameterExpansionContext context, ApiModelProperty apiModelProperty) {
        String allowableProperty = Strings.emptyToNull(apiModelProperty.allowableValues());
        AllowableValues allowable = allowableValues(
                Optional.fromNullable(allowableProperty),
                context.getFieldType().getErasedType());

        maybeSetParameterName(context, apiModelProperty.name())
                .description(descriptions.resolve(apiModelProperty.value()))
                .required(apiModelProperty.required())
                .allowableValues(allowable)
                .parameterAccess(apiModelProperty.access())
                .hidden(apiModelProperty.hidden())
                .scalarExample(apiModelProperty.example())
                .order(apiModelProperty.position()) //源码这里是: SWAGGER_PLUGIN_ORDER，需要修正
                .build();
    }

    private ParameterBuilder maybeSetParameterName(ParameterExpansionContext context, String parameterName) {
        if (!Strings.isNullOrEmpty(parameterName)) {
            context.getParameterBuilder().name(parameterName);
        }
        return context.getParameterBuilder();
    }

    private AllowableValues allowableValues(final Optional<String> optionalAllowable, Class<?> fieldType) {

        AllowableValues allowable = null;
        if (enumTypeDeterminer.isEnum(fieldType)) {
            allowable = new AllowableListValues(getEnumValues(fieldType), "LIST");
        } else if (optionalAllowable.isPresent()) {
            allowable = ApiModelProperties.allowableValueFromString(optionalAllowable.get());
        }
        return allowable;
    }

    private List<String> getEnumValues(final Class<?> subject) {
        return Lists.transform(Arrays.asList(subject.getEnumConstants()), new Function<Object, String>() {
            @Override
            public String apply(final Object input) {
                return input.toString();
            }
        });
    }
}

自定义接口中参数顺序就是以下俩个步骤。

1 需要加 @ApiSort(value = 5)   @ApiOperation(position = 5)这俩个参数。

@ApiSort(value = 5)
@Api(tags="用户管理")
@RestController
@RequestMapping("/api/v1/user")
public class SystemUserController {

    @Autowired
    private SystemUserService systemUserService;

    @ApiOperation(value = "1 添加用户",position = 1)
    @PostMapping("/add")
    //@ApiOperationSupport(order = 1)
    public ResponseData save(SystemUserEntity systemUserEntity){
        return ResponseData.success(systemUserService.save(systemUserEntity));
    }

    @ApiOperation(value = "2 修改用户",position = 2)
    @PostMapping("/update")
    //@ApiOperationSupport(order = 2)
    public ResponseData update(SystemUserEntity systemUserEntity,Integer id){
        Assert.notNull(id,"id不能为空");
        systemUserEntity.setUserId(id);
        systemUserService.updateById(systemUserEntity);
        return ResponseData.success();
    }

    @ApiOperation(value = "3 删除用户",position = 3)
    @PostMapping("/delete")
    //@ApiOperationSupport(order = 3)
    public ResponseData delete(Integer id){
        systemUserService.removeById(id);
        return ResponseData.success();
    }

    @ApiOperation(value = "4 查询所有用户",position = 4)
    @PostMapping("/list")
    //@ApiOperationSupport(order = 4)
    public ResponseData list(){
        return ResponseData.success(systemUserService.list());
    }

    @ApiOperation(value = "5 查询测试",position = 5)
    @PostMapping("/test")
    public ResponseData tset(){
        return ResponseData.success(systemUserService.list());
    }
}

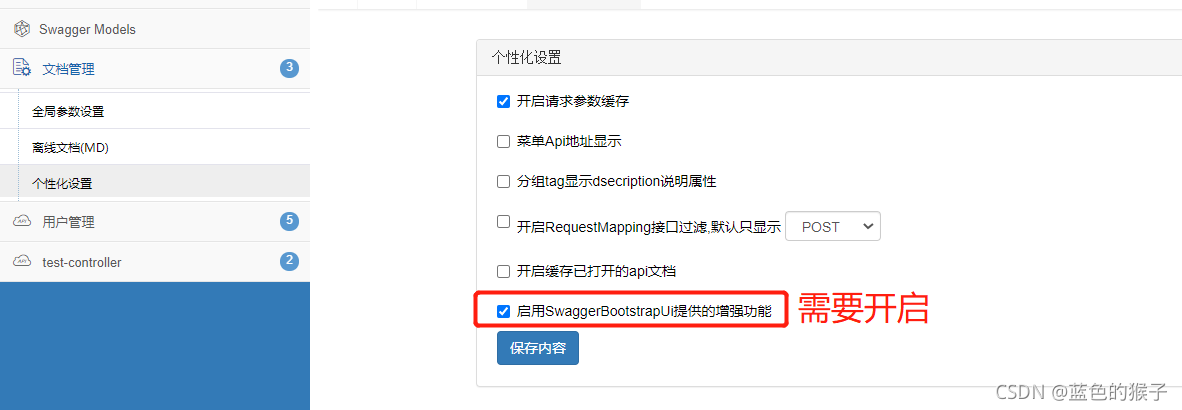

2 在扫描注解的配置 swaggerconifg 加入@EnableSwaggerBootstrapUI注解

@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUI
public class SwaggerConfig implements WebMvcConfigurer {

    /**
     * 创建DocketBean
     * @return Docket
     */
    @Bean
    public Docket apiDocket() {
        return new Docket(DocumentationType.SWAGGER_2)
                .select()
                .apis(RequestHandlerSelectors.basePackage("包名"))
                .paths(PathSelectors.any())
                .build()
                .apiInfo(getApiInfo());
    }


}
